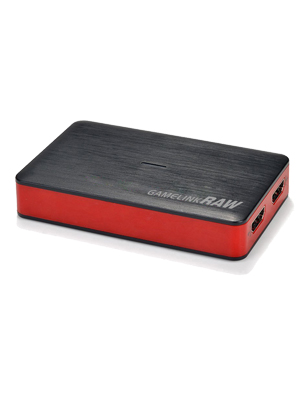

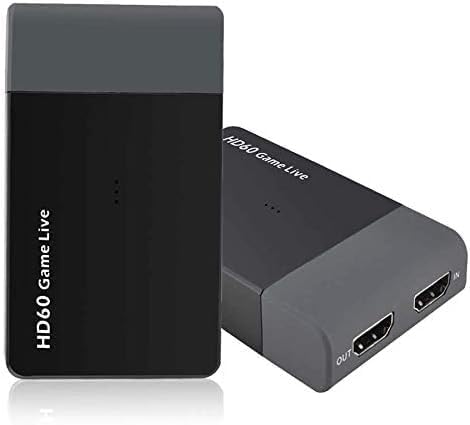

Y&H USB3.0 HDMI Game Capture Card Audio Video 4K 30P/1080P 120fps Record and Live Streaming

1 / 14

Y&H USB3.0 HDMI Game Capture Card Audio Video 4K 30P/1080P 120fps Record and Live Streaming

$20.70 USD

Shipping fees will be calculated at checkout.

【HDMI Game Capture】 Capture Card Based on the high speed USB 3.0 technology, It can capture one signal channel HD HDMI video signal. such as PS5, PS4, PS3, Xbox Series X/S, Xbox One, Xbox 360, Wii U, HDMI Camera, TV Box, DSLR, Nintendo Switch(Most devices with HDMI output ports)
【Plug-N-Play】Game Capture Card No driver or external power supply required, a Low latency game, meeting, live streaming. Share to youtube, facebook and twitch. Record HDMI signal source directly, No HDMI splitter needed anymore.It is not recommended to use an adapter.

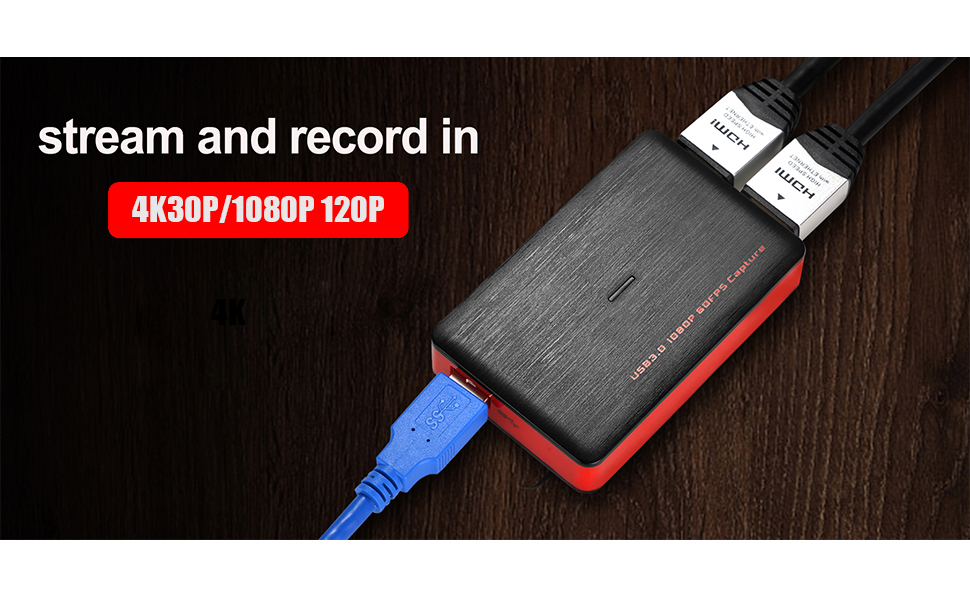

【4K30P HD Quality】This Video capture card support Capture astonishing 4K30P video content.Video Capture Cards Record up to 120 frames per second in crystal clear full HD 1080P.Superb quality keeps your streaming and recording more professional. The recorded video signal can reach 4K 30P/1080P@120fps and the HDMI input max resolution up to 4K@30Hz. (Also supports 1440p60 capture and record)
【4K30 Pass-Through】Capture Card Plug and Play. There is ultra-low-latency technology and lag-free pass-through,High Refresh Rate passthrough get an edge over the competition with support for 1080p 120Hz displays.it provides you with an extreme experience when you are making a game live streaming.
【RECORDING AND STREAM】This audio video capture card achieves preview, recording, capture, live broadcast and other functions through many free third-party software. It is perfect for live streaming, video recording, screen sharing, live conference, distance education and learning and so on. With 3.5mm TRS Line In port, you can use it to add external sound or commentary. But it only supports 3.5mm TRS standard input.The recording format mainly depends on the live broadcast software you use.

Hardware Interface	USB 2.0, USB 3.0
Video Capture Resolution	1080p
Operating System	Windows,Linux Os
Antenna Location	Video Recording
Other Special Features of the Product	Ultra-low-latency
Platform	Xbox
Tuner Type	Digital
AV Output	mpeg 4
Compatible Devices	Personal Computer
Minimum System Requirements	PC: Intel Core i5-3400 + NVIDIA GT630, NB: Intel Core i7-3537U 2.0 GHz + NVIDIA GT735, Mac: i5 quad-core or above, VGA card supporting DirectX 10, Sound card, 4GB RAM, Powered USB 3.0 port: Intel chipset with native USB 3.0 host controller (Renesas, Fresco ...)
Model Name	ezcap261
Built-In Media	Capture Card, Installation Guide
Model Number	ezcap261
Manufacturer	Y&H
UPC	637045269460 721821483024
Mfr Part Number	ezcap261
Recommended Uses For Product	Video Recording

STREAM AND RECORD YOUR CONSOLE GAMEPLAY IN STUNNING FULL HD 1080P 60FPS or 4k 30FPS QUALITY.

The gaming experience is all about sharing. With Y&H Game Capture Card, the next generation of gameplay sharing has finally arrived. Seamlessly capture hours of your best moments in stunning 4K30P or 1080P 120HZ and access them directly on your PC or Mac.
The 4K lag-free passthrough to your TV will let you focus on your game, until you're ready to marvel at your feats. The built-in Live Streaming feature gets you up and running on Twitch, YouTube or FaceBook in a snap.
Superb quality keeps your streaming and recording more professional. This game capture card works flawlessly with most HDMI devices, such as PS5, PS4, PS3, Xbox Series X, Xbox One, Xbox 360, Wii U, Nintendo Switch, Nintendo 3DS, HDMI Camera, TV Box, etc. And DSLR to Webcam Solution, Camera Live Broadcast Capture.

Do I Need a Y&H 4K Capture Card?

Supports 4K30 HDMI input, and 4K30 pass-through and capture . It also support 1080p120fps capture.

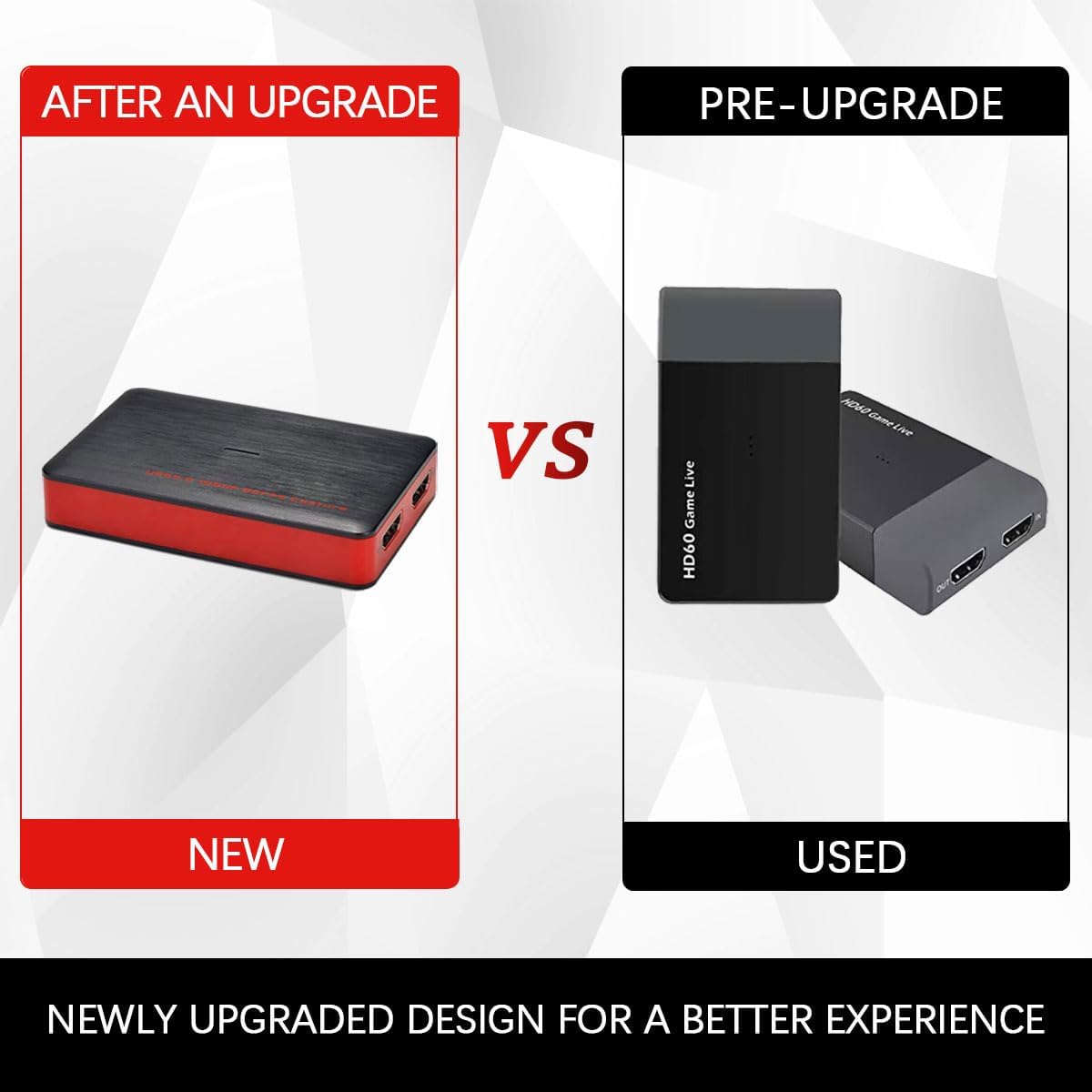

The LINE IN port(UPDATED VERSION) can add external voice. It only supports 3.5mm TRS standard input.
UVC standard, manual driver installation is not needed.
Supports most of trird party video capture softwares.
Live Streaming for Twitch, Youtube and more Live streaming platform
Output Video Format: YUY2, NV12, RGB

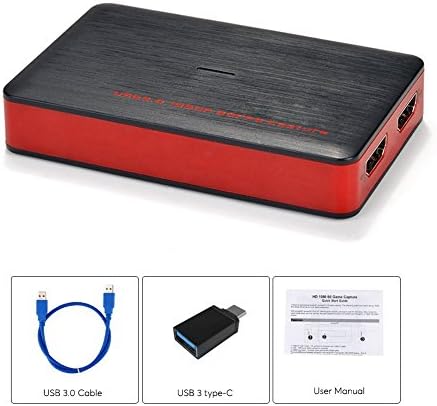

Package Included:
1 * USB 3.0 HD60 Capture Card
1 * USB 3.0 Cable
1 * English User Manual

4K30P Capture Card STREAM AND RECORD

Follow these steps for easy set up

Step 1. First of all with the help of HDMI cable make connection between HDMI In terminal of Game Capture card and your console.
Step 2. HDMI Out port of Game Capture card must be connected to TV set with the help of existing HDMI cable.
Step 3.With the help of USB cable available inside the box, you have to connect your PC or Mac device with Game Capture card.

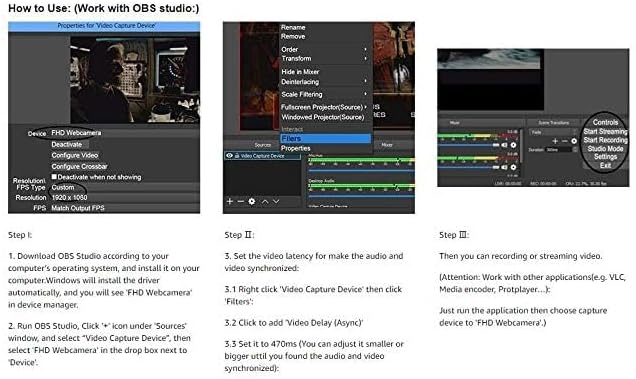

Step 4.Share your game video to Software&Platform: OBS Studio, Twitch, YouTube, XSplit, Facebook Live, and more..

PC: If you are working on dual system, a capture device will help you connect this second PC to primary PC. This will allow you to maintain optimal performance on your gaming PC.
PlayStation: will definitely add more flexibility in doing some fancy stuff. As compared to simple software, the card will assist users in easy streaming, recording and editing of game play footage.
Xbox: Capture cards are useful for Xbox users as it can help them to handle larger size of game play footage as compared to simple software. The stream becomes much easier with capture card support.
Mac: There are few specially designed capture cards that support game streaming on Mac platform. It allows streaming over acceptable resolution level.

HD60 Capture Card Item Specification

Interface:	USB3.0,*300-500MB/s
Video and Audio Input:	HDMI and 3.5mm TRS LINE IN Port
Input Resolution:	4K(30fps); 1920 x 1080 (60p); 1920 x 1080 (50p); 1920 x 1080 (30p); 1920 x 1080 (25p); 1920 x 1080 (24p); 1920 x 1080 (60i); 1920 x 1080 (50i); 1280 x 720p(60p); 1280 x 720p (50p); 720 x 576 (50p); 720 x 480 (60p);
Capture Resolution:	4K(30p); 1080p120fps; 1920 x 1080 (60p); 1920 x 1080 (50p); 1920 x 1080 (30p); 1920 x 1080 (25p); 1920 x 1080 (24p); 1920 x 1080 (60i); 1920 x 1080 (50i); 1280 x 720p(60p); 1280 x 720p (50p); 720 x 576 (50p); 720 x 480 (60p);
LED status indicator:	Will be on while USB3.0 cable is connected with computer.
Software Compatibility:	OBS Studio (windows,OS X); VLC (Windows, OS X, Linux); Potplayer(Windows); Windows Media Encoder (Windows); Adobe Flash Media Live -Encoder (Windows, OS X); Real Producer Plus (Windows); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows,OS X); vMix(Windows), etc.
interface compatibility:	DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux) OS X (QuickTime).

System Requirement:	Windows 7,8,10, OS X 10.9 or later, Linux, Android. Higher resolution needs higher hardware requirements.
PC:	Intel Core i5-3400 + NVIDIA GT630 or above. HIGHER-RESOLUTION RECOMMENDATION: Intel Core i7-3770 recommended, NVIDIA GeForce GTX 650 / AMD Radeon R7 250X or above, 4 GB RAM. Or Intel Core i5-6XXX / AMD, Ryzen 3 XXX or above, NVIDIA GTX 1060 / AMD RX 5700 or above, 8 GB RAM.
Mac:	i5 quad-core or above, VGA card supporting DirectX 10, Sound card, 4GB RAM or more. HIGHER-RESOLUTION RECOMMENDATION: Intel Core i7, Radeon Pro 555X with 2GB of GDDR5 memory, 16GB of 2400MHz DDR4 memory. Or 2.6GHz 6-core Intel Core i7, Radeon Pro 560X with 4GB of GDDR5 memory or above, 16GB of 2400MHz DDR4 memory.
Notebook:	Intel Core i7-3537U 2.0 GHz + NVIDIA GT735 or above. HIGHER-RESOLUTION RECOMMENDATION: Intel Core i7-4810MQ, NVIDIA GeForce GTX 870M or above, 8 GB RAM. Or Intel Core i7-7700HQ or above, NVIDIA GeForce GTX1050 Ti or above, 8 GB RAM.
MAX. PASS-THROUGH RESOLUTION	4K30
Output Video Format:	YUY2, NV12, RGB ; Such as 38402160: NV12/30; 25601440: NV12/60, YUY/50; 19201080: NV12/120, YUY/60, XRGB/30; 1280720: NV12/60, YUY/60, XRGB/60.

No audio？

Please set it according to the steps in the manual, and verify whether your setting steps are the same as the steps in the manual? (This operation is very important. Many customers don't like to follow the instructions)

1: Audio output mode: select "Only capture audio"

2: Check "Use a custom audio device"

3: Audio Device: Select "HDMI (ezcap Game Link RAW)"

4: After completing the above steps, if there are still problems, please contact YONGHUI merchants for technical support or firmware upgrade.

5：Audio Async Reference Manual
