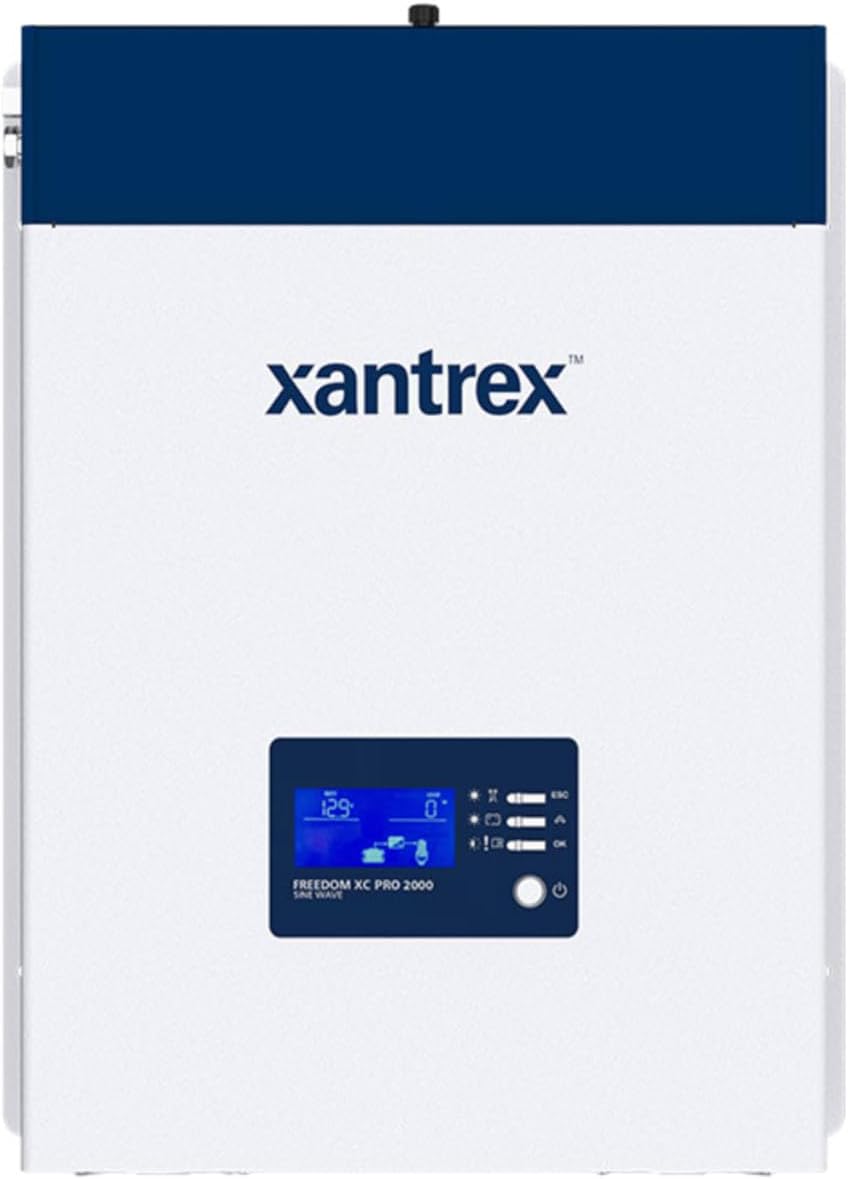

Xantrex 818-2010 Inv/Chgr, Freedom XC PRO, 2000W 12V 100A

$60.82 USD

Shipping fees will be calculated at checkout.

all-in-one solution: functions as a true sine wave inverter with a built-in lithium ion 100 amp (2000w model) / 150 amp (3000w model) battery charger, and transfer switch. this solution can run heavier loads and charge batteries faster than the freedom xc. can be used in rvs, boats, class 8 trucks, work trucks, and other specialty vehicles that need to run heavier power loads. the 3000w model features a 50a transfer relay
powerful: industry leading power boost, 2x continuous output for 5 seconds or more for motor loads. the power provided in the freedom xc pro is strong enough to power an air conditioner. easily operates microwaves, cooktops, cpap machines, air compressors, fridges and other heavy loads.
faster & more effective battery charging: with the 100 amp (2000w model) / 150 amp (3000w model) battery charger, you can get moving even faster! it is designed to charge dead batteries drained to extremely low voltage including 0 vdc. capability to operate under weak shore or generator power and wide dc input voltage range
small & lightweight: efficiently designed to be compact and to fit in tight spaces without weighing down the boat, rv or other specialty vehicle where space is valuable. its small and lightweight size makes it easy to handle and install in every application.
all-weather: reliable in climates as cold and wet as alaska and as hot and dry as california. full rated output from -4°f to 104°f (-20°c to 40°c) for operation in all climate temperatures. can work up to 140°f (60°c), but output is derated above 104°c (40°c). durable hardware is designed to keep the inverter running in the most extreme weather conditions.
Fit type: Universal Fit

Power Source	Battery Powered
Wattage	3000 watts
Battery Capacity	100 amp_hours
Number of Outlets	1
Input Voltage	12 volts
Output Power	2000 watts
Standby Power Shutoff	88.2%, 176.4%
Output Voltage	120 volts_of_alternating_current
Peak Output Power Watts	4000
Inverter Capacity Volt-Amp	250
Electrical Output Waveform	Pure Sine Wave
Frequency	50 hertz
Item Weight	18.5 pounds
Energy Specifications Met	ETL, UL
Antenna Location	Vehicle
Model Name	818-2010
Built-In Media	Xantrex 818-2010 Freedom XC Pro 2000 Inverter/Charger - 2000W, 100A
Model Number	818-2010
UPC	715535903121
Unit Count	1 Count
Item Type Name	Xantrex 818-2010 Freedom XC Pro 2000 Inverter/Charger - 2000W, 100A
Manufacturer	Xantrex
Mfr Part Number	818-2010
Color	No Color
Price	$929.47 $ 929 . 47
Output Wave Form	True sine wave
Operating Temperature Range	-4 to 140 °F (-20 to 60 °C)
Models	12V (1000W/50A, 2000W/80A)
Hybrid function through Auto Generator Start (AGS) module	NO
Built-in Transfer Relay	30A
Surge* - 2X continuous power boost	More than 2 seconds
Dead battery charging (batteries drained to extremely low voltage)	Yes
Custom Profile (set a limit output, set low battery cut off points, select battery type	Yes
Stacking feature (Parallel for future expansion and Series for 120/240 Vac split phase)	no data
Remote Monitoring & Control	Using the FREEDOM X Bluetooth Remote Panel (808-0817-02) and FXC Control App
Recommended Uses For Product	Vehicle
Power Source Type	Battery Powered
Battery	100 amp_hours

SEAMLESS INTEGRATION

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It supports seamless integration with third party monitoring and control systems. It also features a 100 amp (2000W model) / 150 amp (3000W model) battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4°F (-20°C) - 104°F (40°C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

INVERTER FEATURES

Extended Surge Rating - Surges to 2X continuous power for 5 seconds for motor loads
True Sine Wave AC Power - For operation of sensitive and motor loads
Ignition Control - Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
Wide 10-18 VDC Input Range - Ensures inverter operation on high

voltage alternators found on many new vehicle chassis

Programmable AC Under-Voltage (85-110VAC) Shutdown - Feature ideal to operate under weak shore power or generator input
Built in 50A AC Transfer Relay - Senses when outside AC Power is

present and transfers the load from the inverter to the source of

incoming power

BUILT-IN CHARGER FEATURES

Power Factor Corrected Multi-Stage - Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
Programmable - Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
Battery Equalization - Maximizes flooded battery life
Dead Battery Charging Down to 0 Vdc Power Share - Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
Lithium-Ion/Battery Support - BMS Required

BLUETOOTH REMOTE PANEL + FXC CONTROL MOBILE APP

montior

Easily monitor your system status on the FXC Control Mobile app available on Android and iOS.

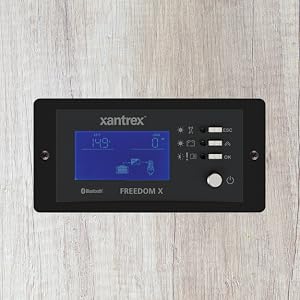

remote panel

FREEDOM X Remote Panel (part number here) is required to connect to the FXC Mobile App.

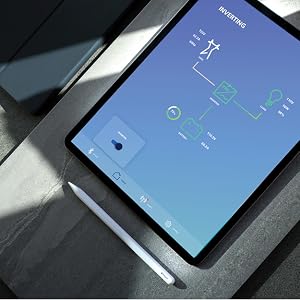

app

The FXC Control App is available on tablets and smartphones.
