High image resolution, good image contour and perfect low illumination
Adjustable power 25mW/50mW/200mW, Long transmission range and less blink
AntennaDescription
Cloverleaf
Manufacturer
Wolfwhoop
Unit Count
1 Count
Number of Items
1
Model Number
WT03
Mfr Part Number
WT03
Number of Channels
3
Maximum Range
50 meters
Color
Black
Antenna
Cloverleaf
Number Of Channels
3
Number Of Items
1

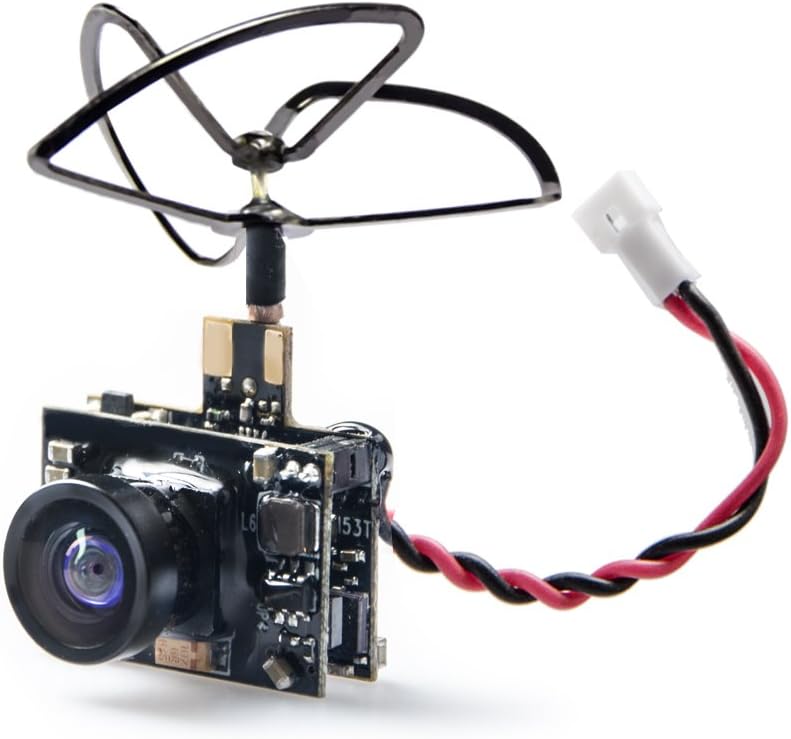

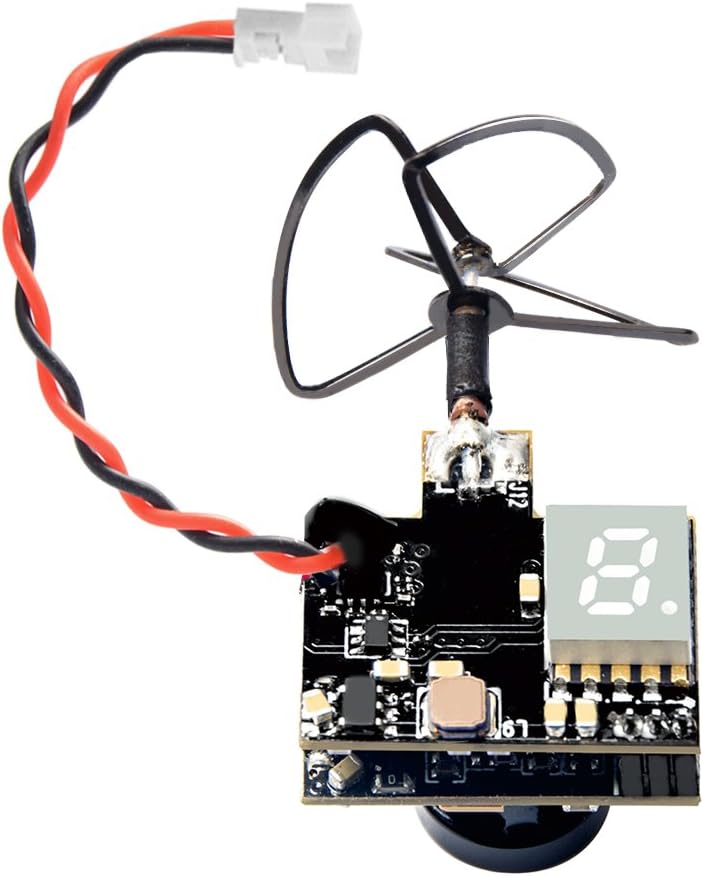

Adjustable power AIO camera transmitter with cloverleaf antenna

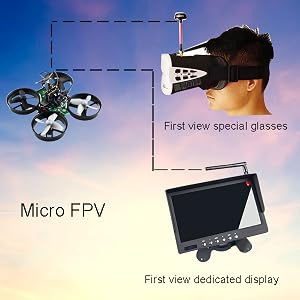

Description : The AIO Camera combo is perfect for ultra micro drone. It is a combination of a FPV camera, a transmitter and an antenna. It includes everything into a single unit no bigger than one dollar coin. It’s compatible with branded FPV googles and monitors equipped with 5.8GHz receivers. Installation is easy and can be done in seconds. No soldering or special skills are required. All you need is to put it into your drone and power it by a 1S Lipo battery. Needed To Complete with 1S Li-Po Battery and 5.8GHz FPV Headset or Monitor.
Easy to use plug and play
Features:
Micro size, light weight.
40CH compatible with more types of RX.
Plug and play, ready to fly, perfect for DIY.
High image resolution, good image contour and perfect low illumination.
Black PCB board prevent light-leaking, help to restore true color.

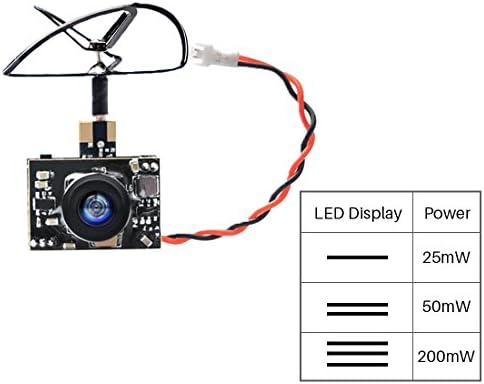

Adjustable power 25mW/50mW/200mW, Long transmission range and less blink.
Micro size and light weight
Specification:

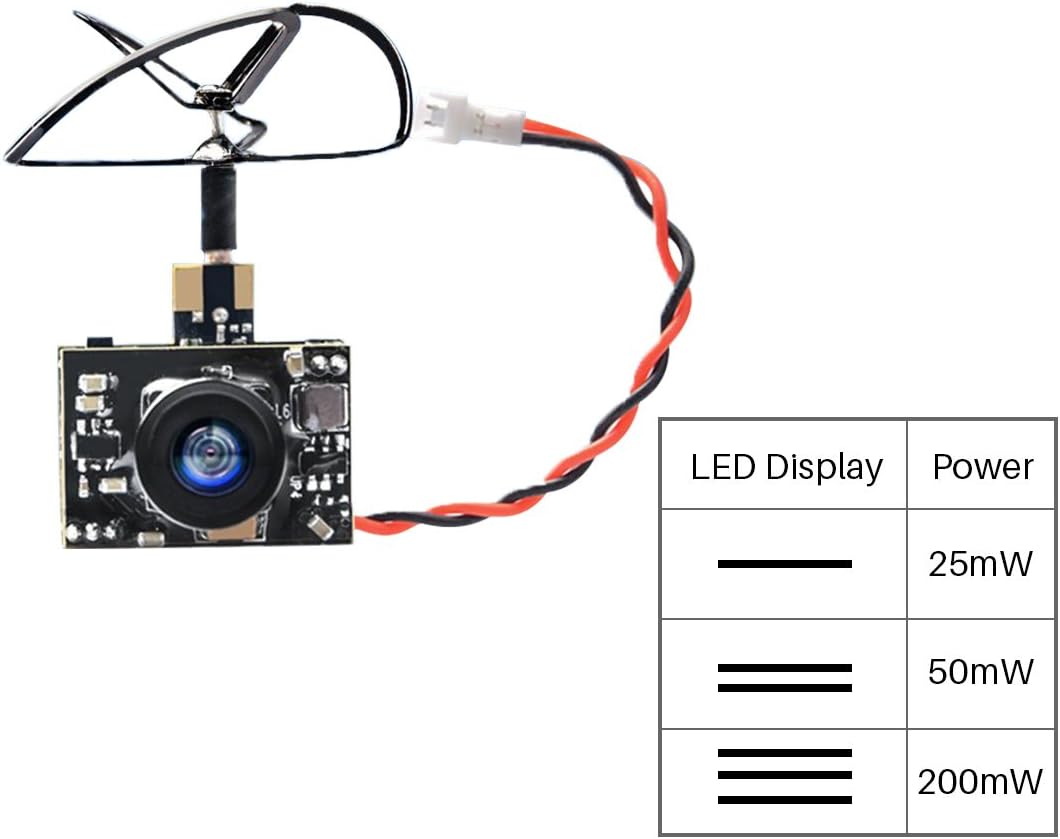

Output power:0/25mW/50mW/200mW adjustable (Set output power on 0, to avoid frequency interference)

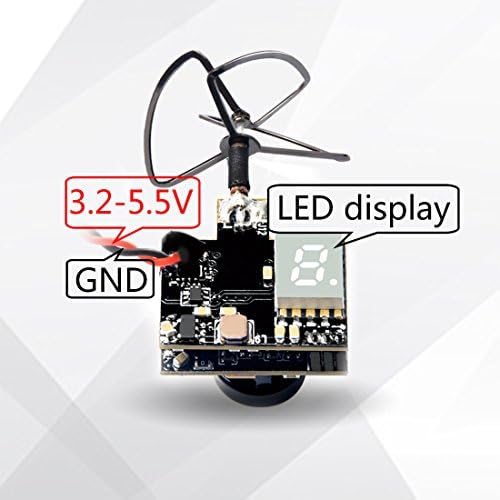

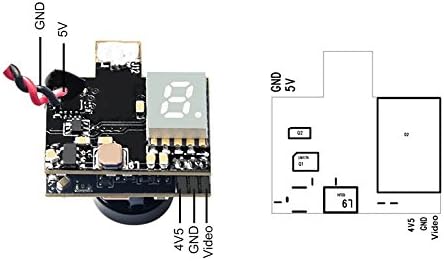

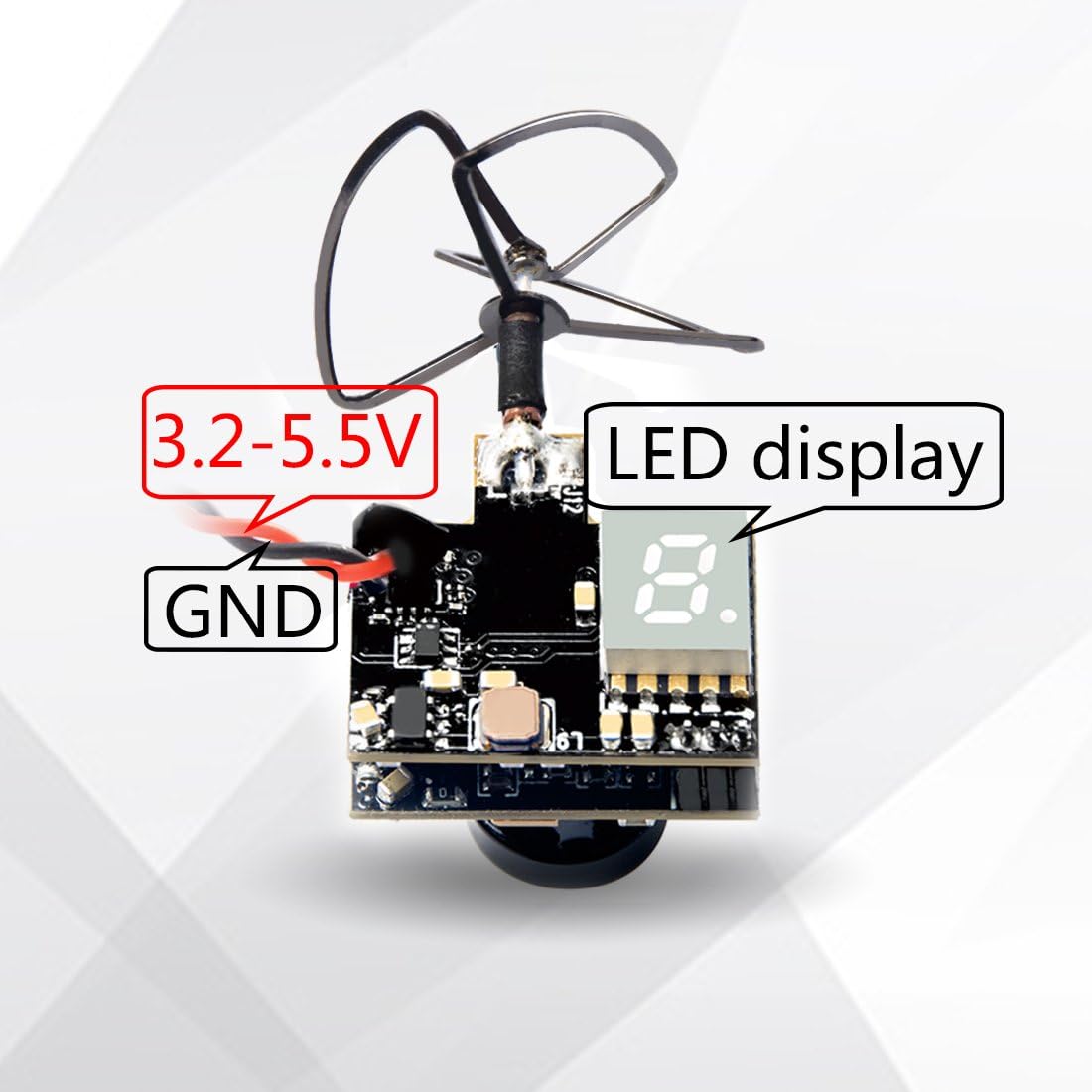

Input power: 3.2–5.5V
Current consumption:
250mA-510mA(25mW)
270mA-640mA(50mW)
330mA-740mA(200mW)
Camera resolution: 600TVL
Video system:NTSC
Mini illumination: 1 lux
Field of view: 120°FOV 150°DFOV

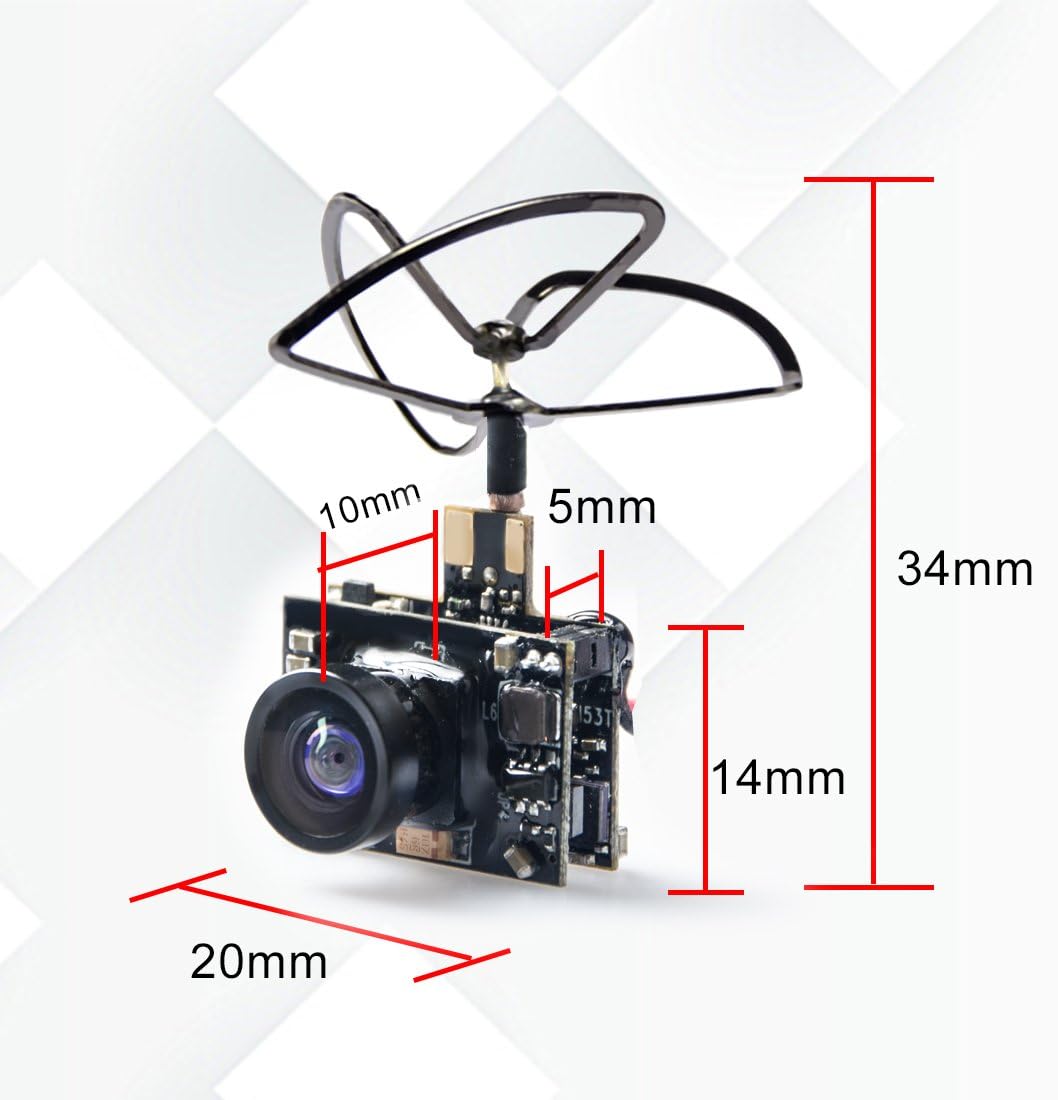

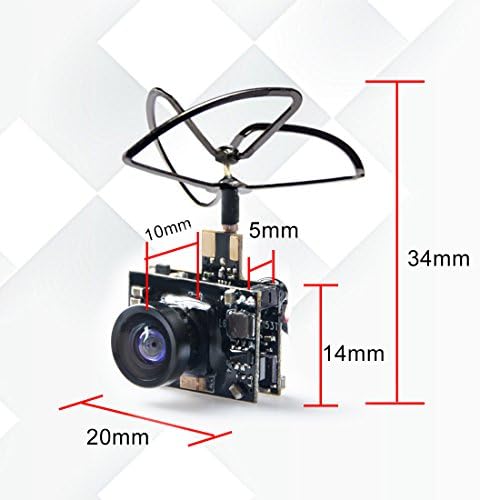

Antenna dimensions: 22mm X 29mm diameter
Antenna: cloverleaf antenna

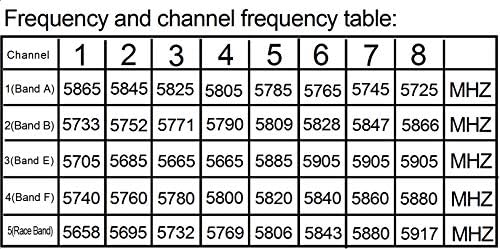

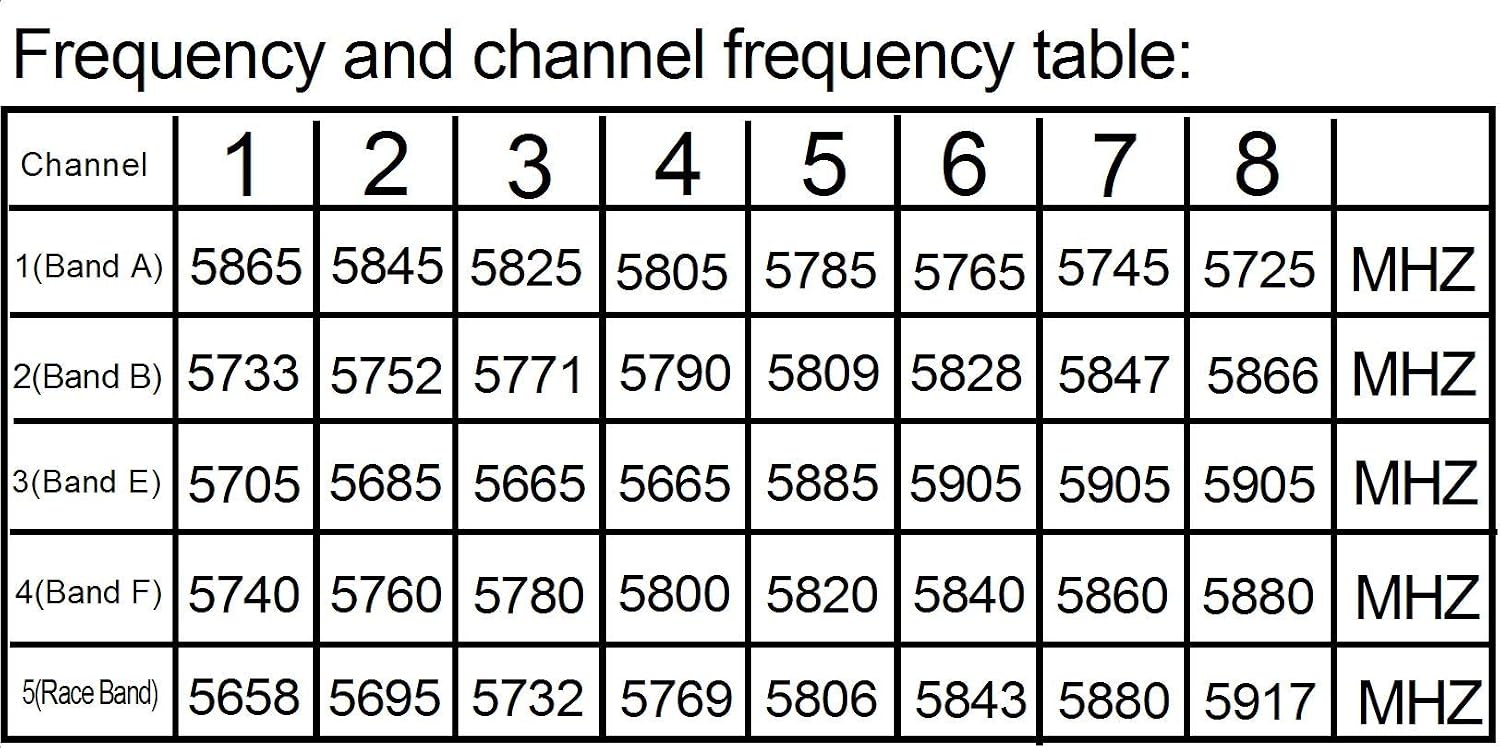

Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5658-5917 MHZ
