| UPC | 602581806165 |
|---|---|
| Color | Silver |
| Unit Count | 1 Count |
| Item Weight | 3.1 pounds |
| Manufacturer | Linkplay Technology Inc. |
| Model Number | ASR004 |

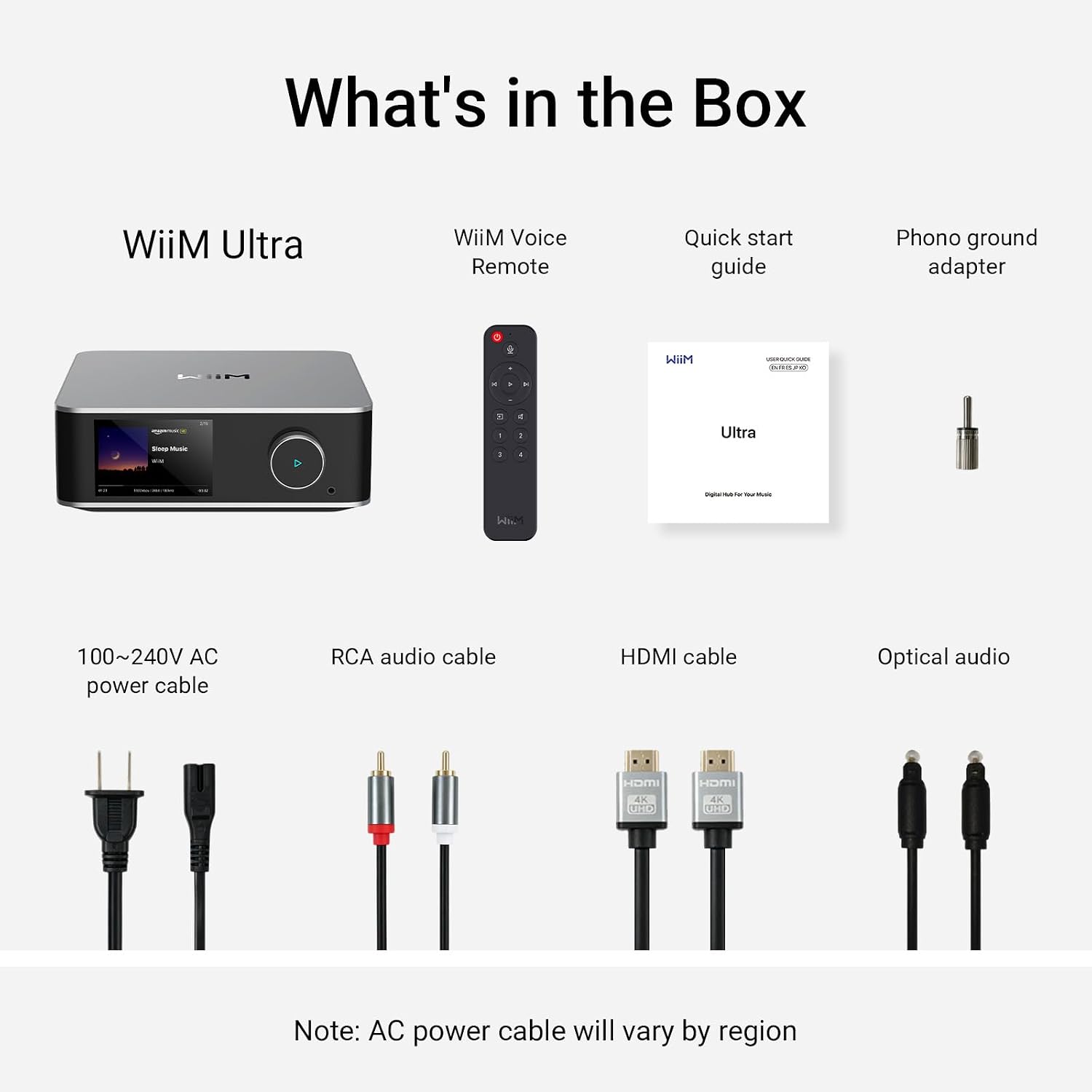

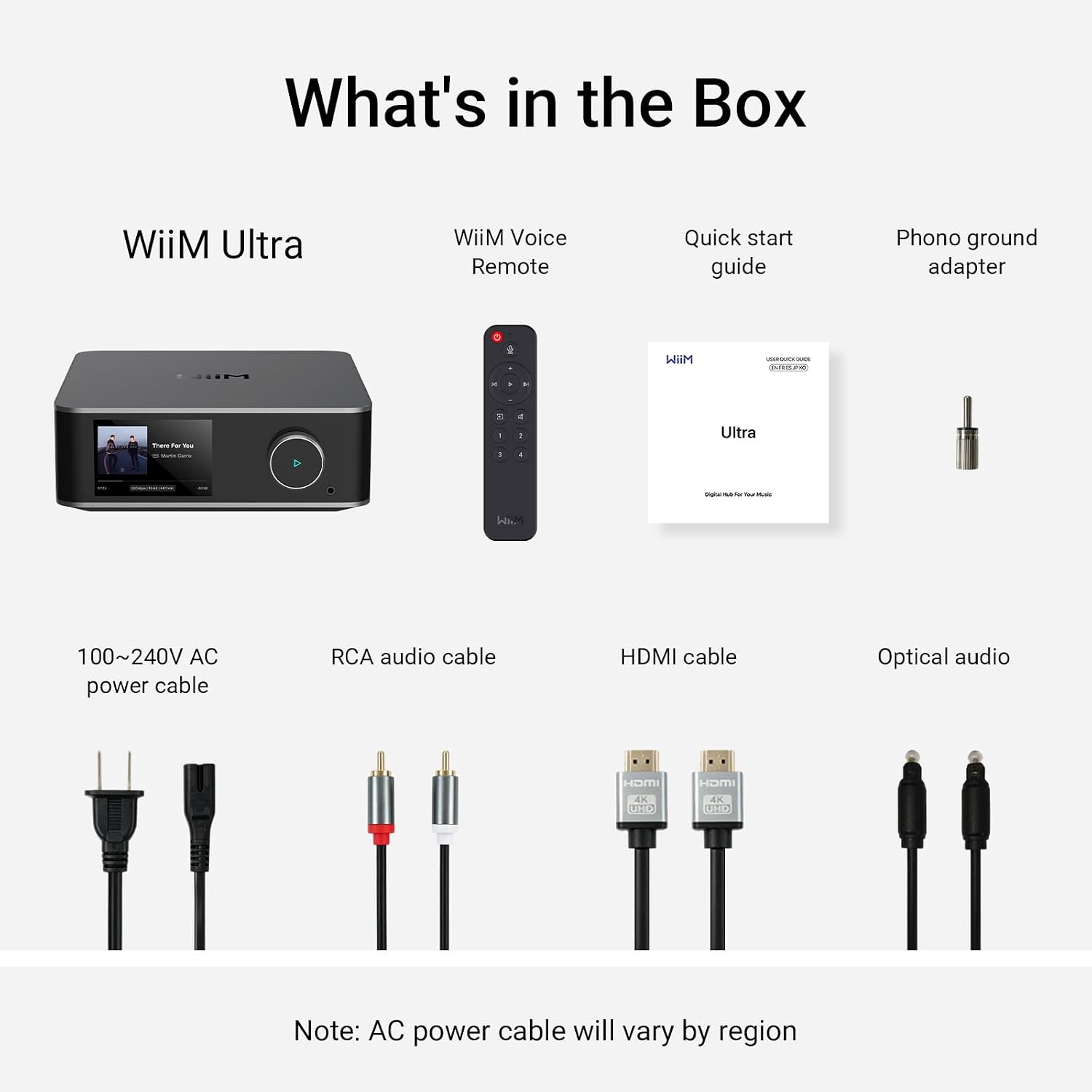

| Built-In Media | 100~240V AC power cable (1.5m) x 1, HDMI cable (1.5m) x 1, RCA audio cable (1.5m) x 1, Optical audio cable (1.5m) x 1, Quick start guide x 1, Phono ground adapter x 1, WiiM Ultra x 1, WiiM Voice Remote (AAA batteries not included) x 1 |

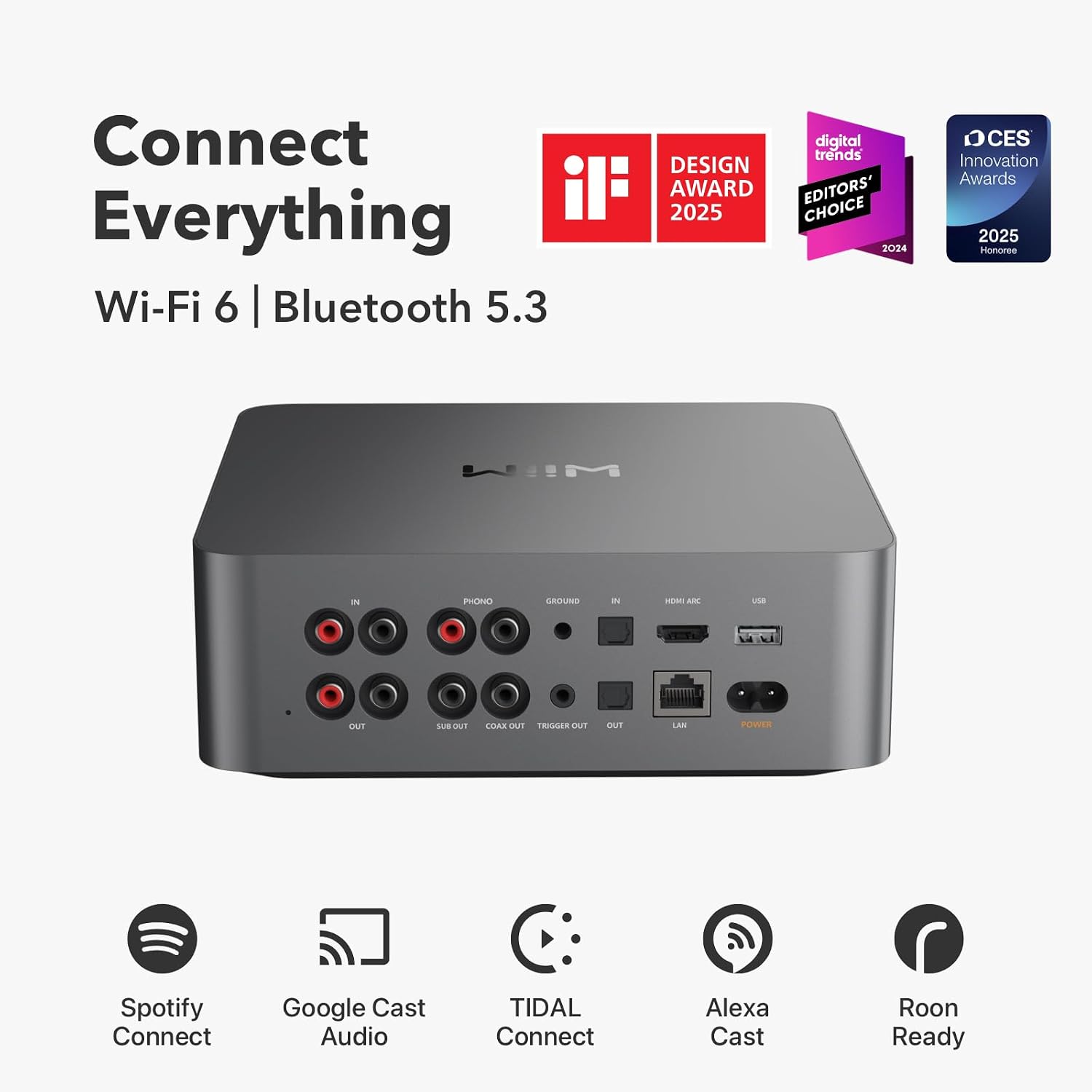

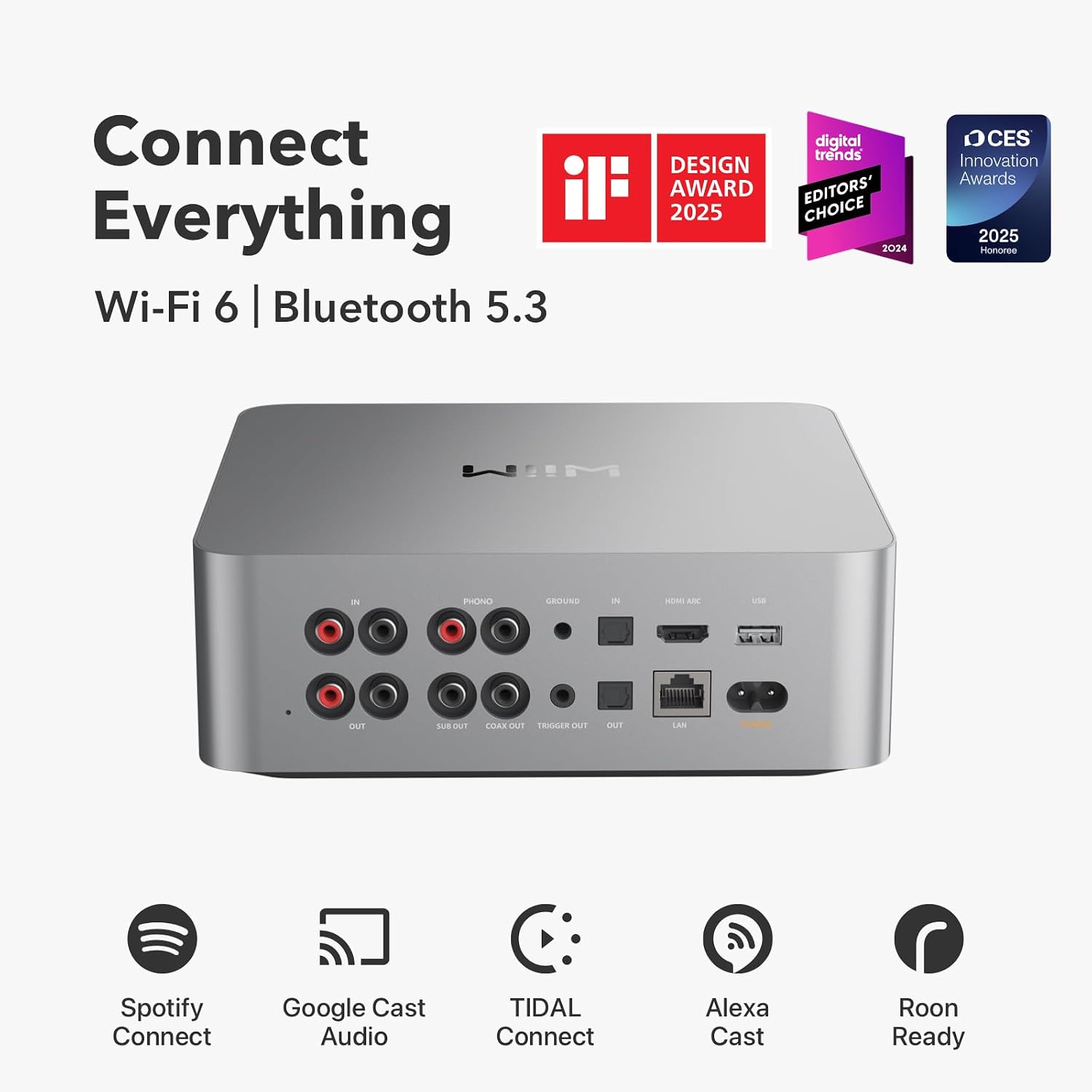

| Connector Type | Phono, Headphone Jack, Ethernet, AC Power, USB, Subwoofer Output, RCA, SPDIF (TOSLINK), COAX |
| Control Method | App, Remote, Touch, Voice |
| Controller Type | Google Assistant, Amazon Alexa, App Control |
| Mfr Part Number | ASR004 |
| Total Hdmi Ports | 1 |
| Audio Output Mode | RCA, Headphone, Coax, Optical, USB, BT, or DLNA receiver |
| Audio Output Type | RCA, Headphone, Coax, Optical, USB, BT, or DLNA receiver |
| Compatible Devices | Speaker, DAC, Amplifier, Mobile phone, Tablet, Echo, Google Home |
| Number of Channels | 3 |
| Wireless Technology | Bluetooth, Wi-Fi |
| Warranty Description | 1 Year |
| Connectivity Technology | Bluetooth, Ethernet, Wi-Fi |
| Item Dimensions D x W x H | 8.3"D x 7.87"W x 2.83"H |
| Total Number of HDMI Ports | 1 |
| Supported Internet Services | Amazon Music, BBC Radio, Calm Radio, Deezer, iHeartRadio, Napster, Pandora, Qobuz, Radio Paradise, SoundCloud, SoundMachine, TIDAL, TuneIn, vTuner |
| Surround Sound Channel Configuration | 2.1 |
| Other Special Features of the Product | Spotify Connect, Works with Alexa, Google Voice and Google Cast Audio, TIDAL Connect, Qobuz Connect, Roon Ready, NAS, DLNA, Home Media Server |
The WiiM Ultra redefines your audio experience by bringing Hi-Res streaming capabilities, advanced room correction, and smart home integration to your existing setup, be it powered speakers or amplifiers. It seamlessly connects with a wide range of devices, offering a versatile audio solution.

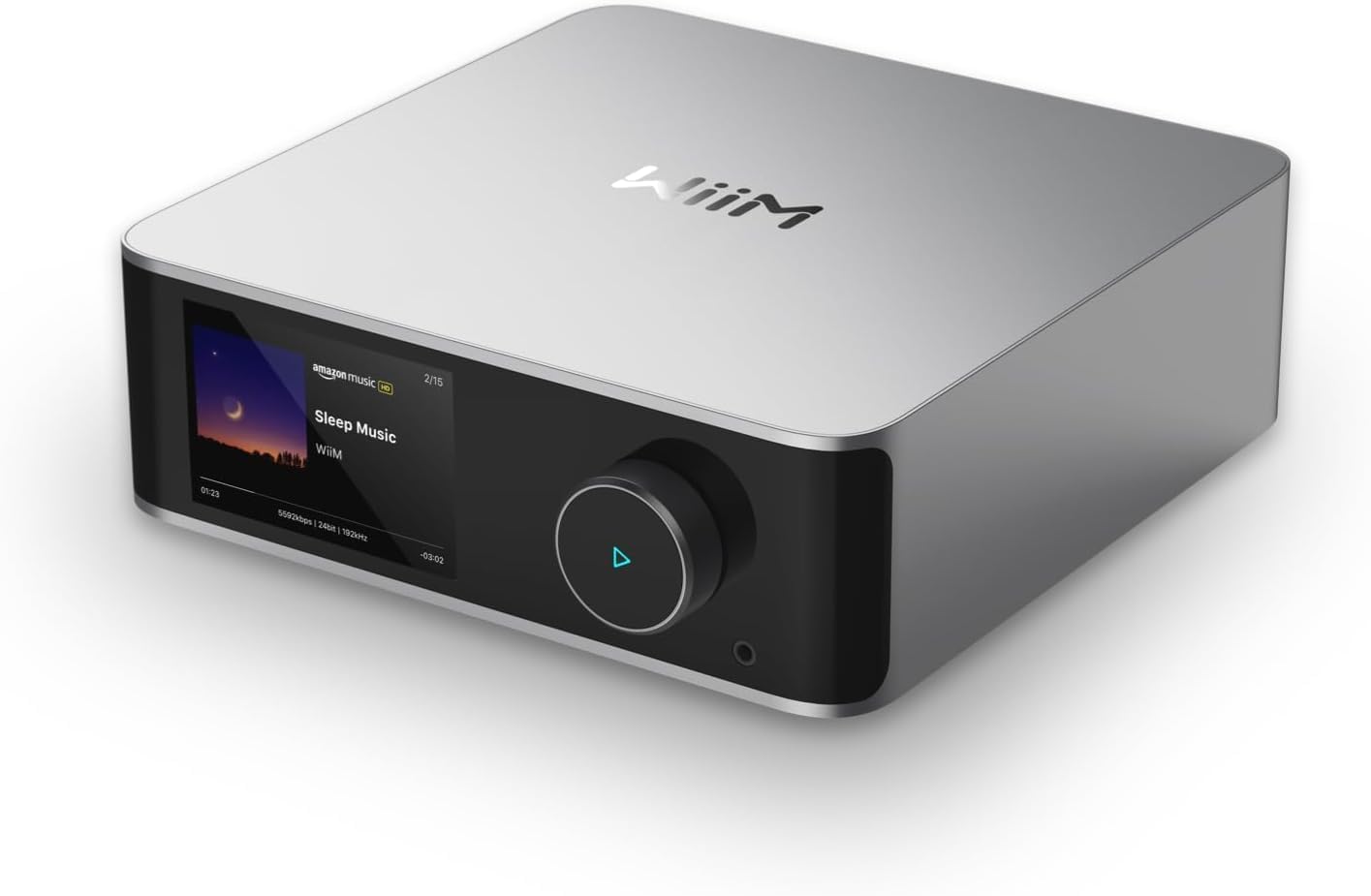

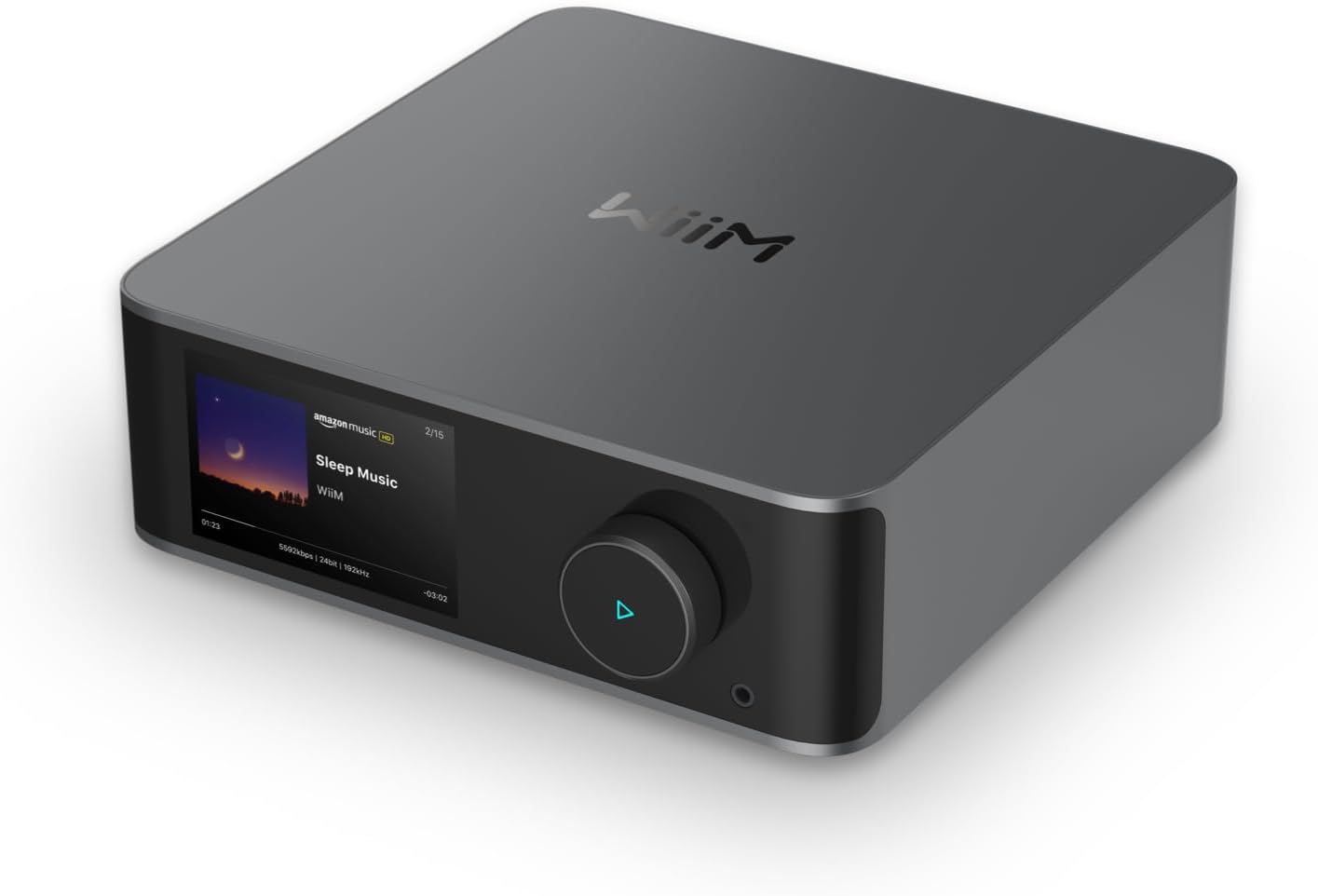

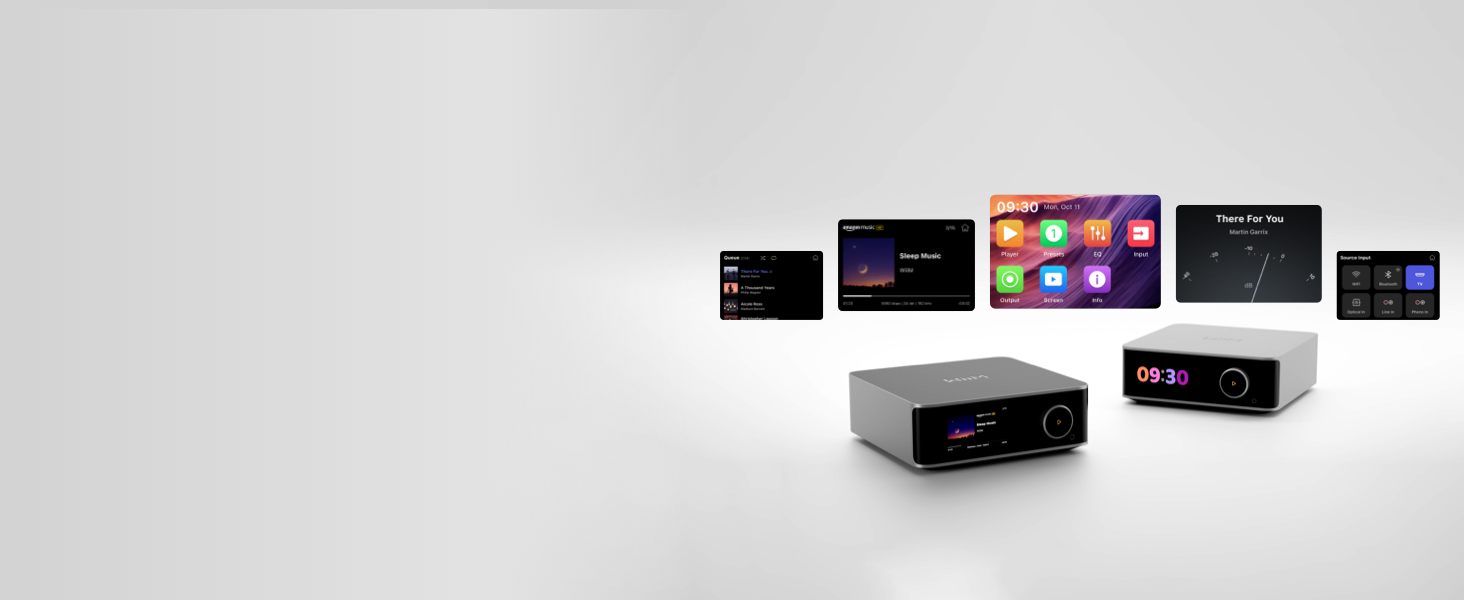

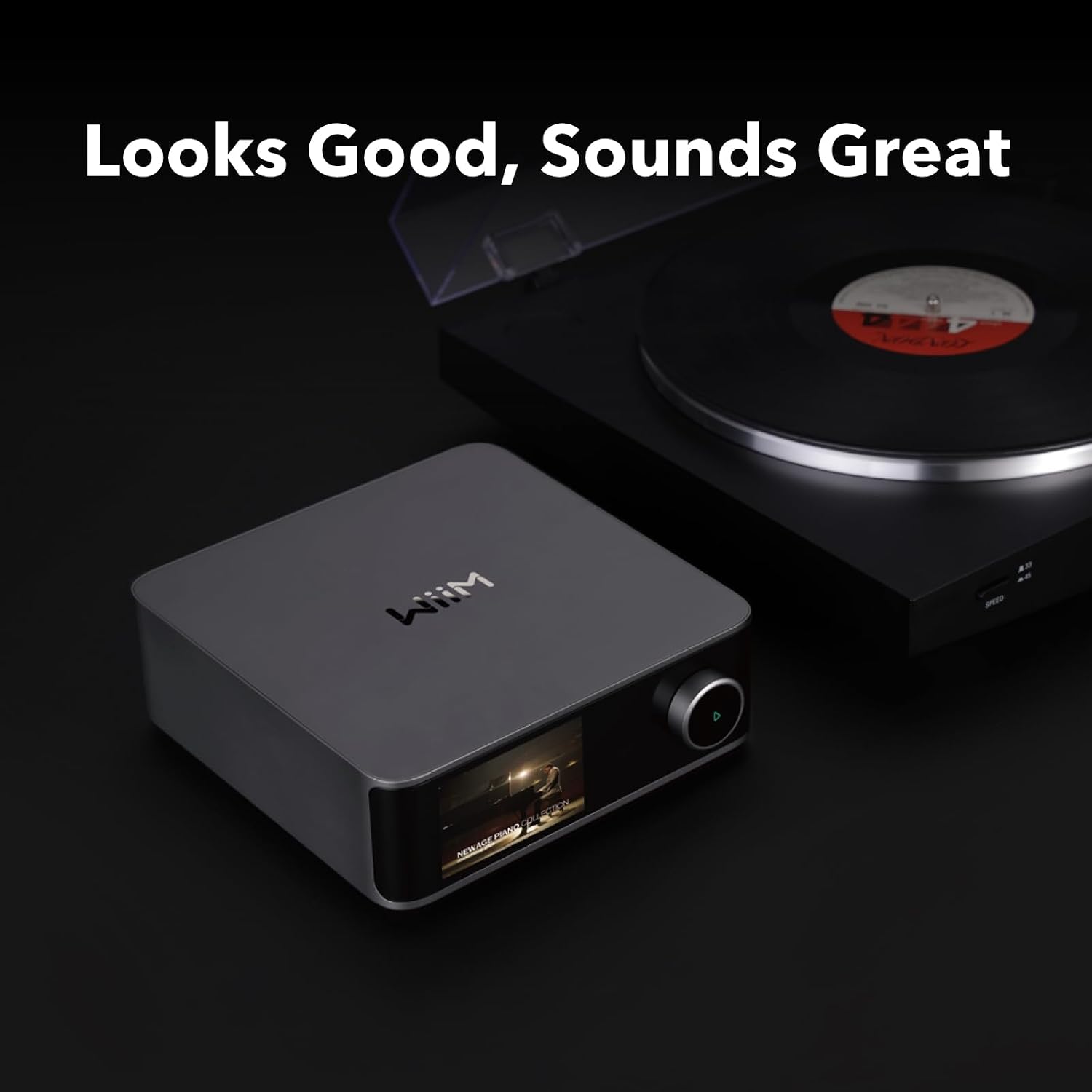

Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5” glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.

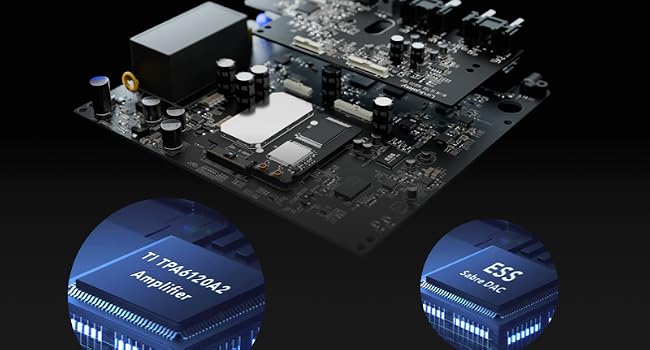

Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

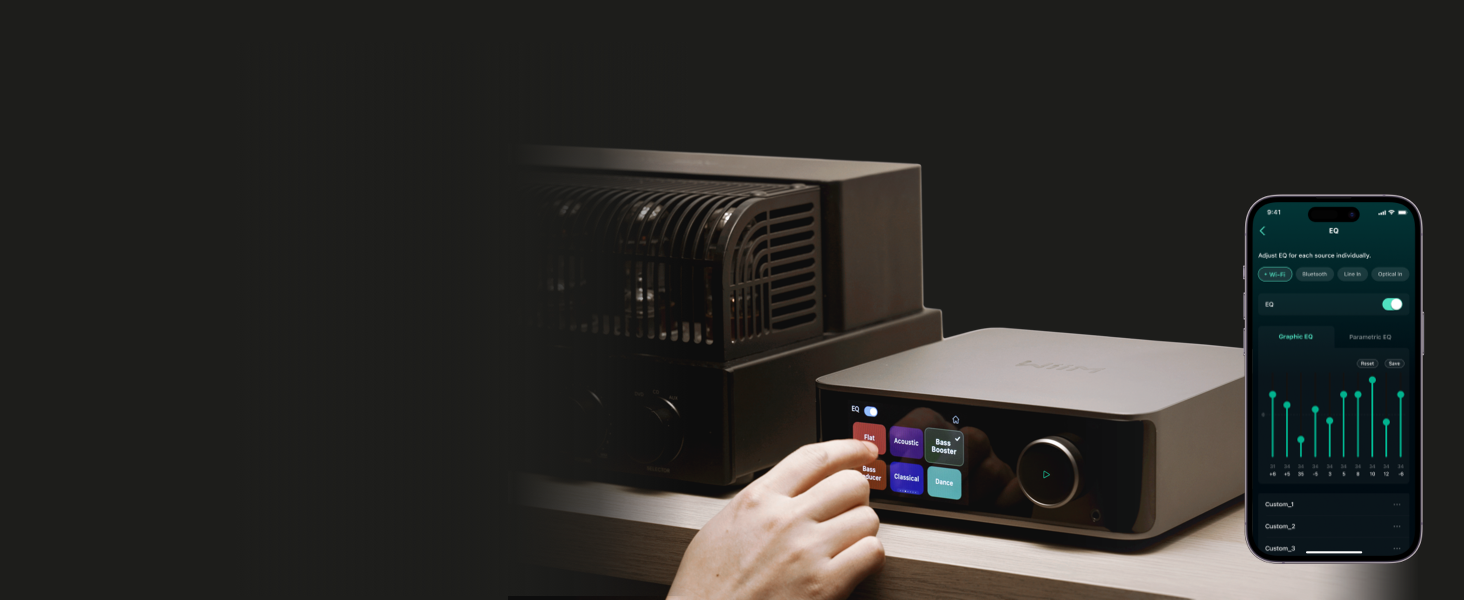

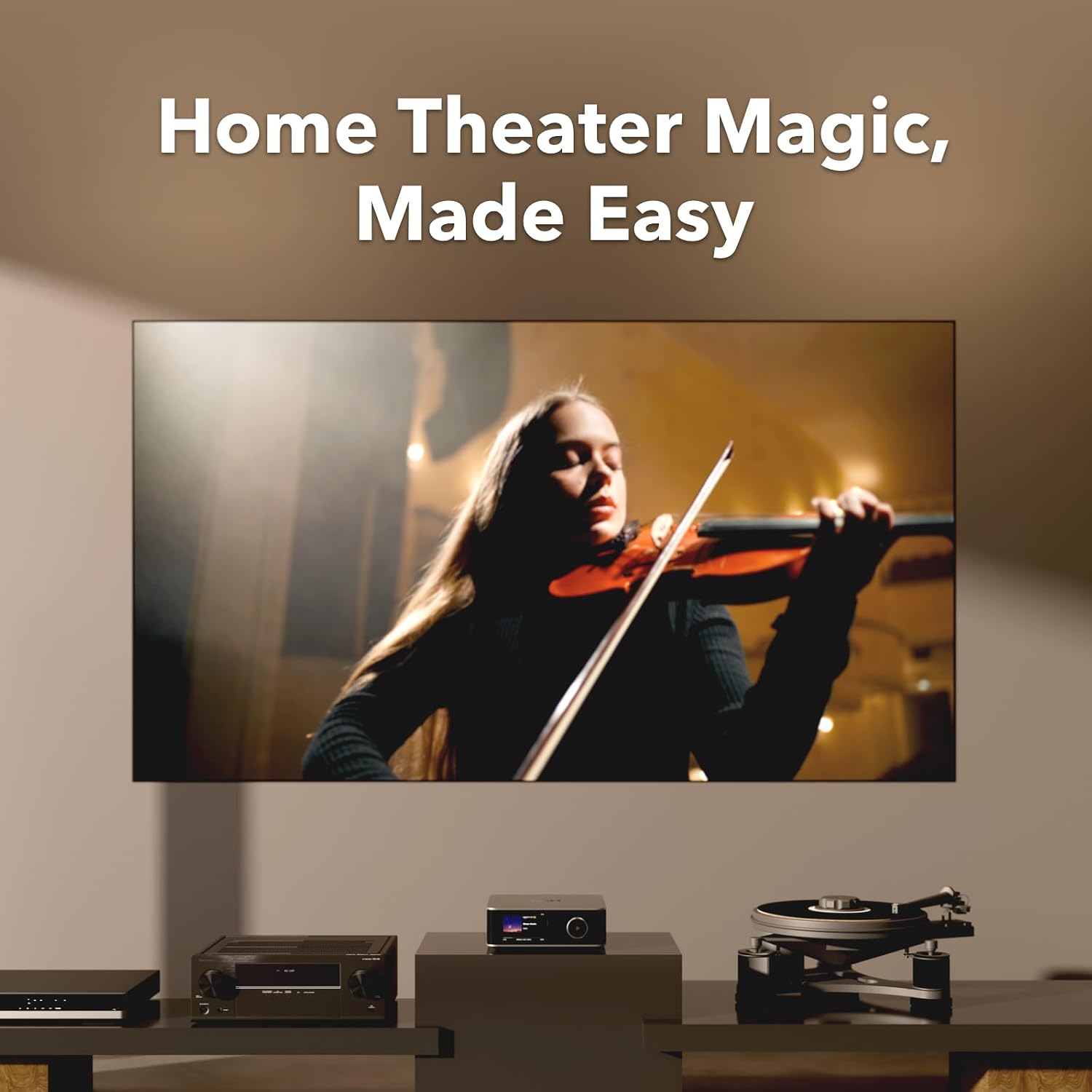

Elevate your entertainment effortlessly with the WiiM Ultra's HDMI ARC and Subwoofer Out for rich stereo sound in movies, shows, and games. Connect a powered subwoofer for deeper bass, and personalize your audio using the WiiM Home App's EQ settings and bass management.

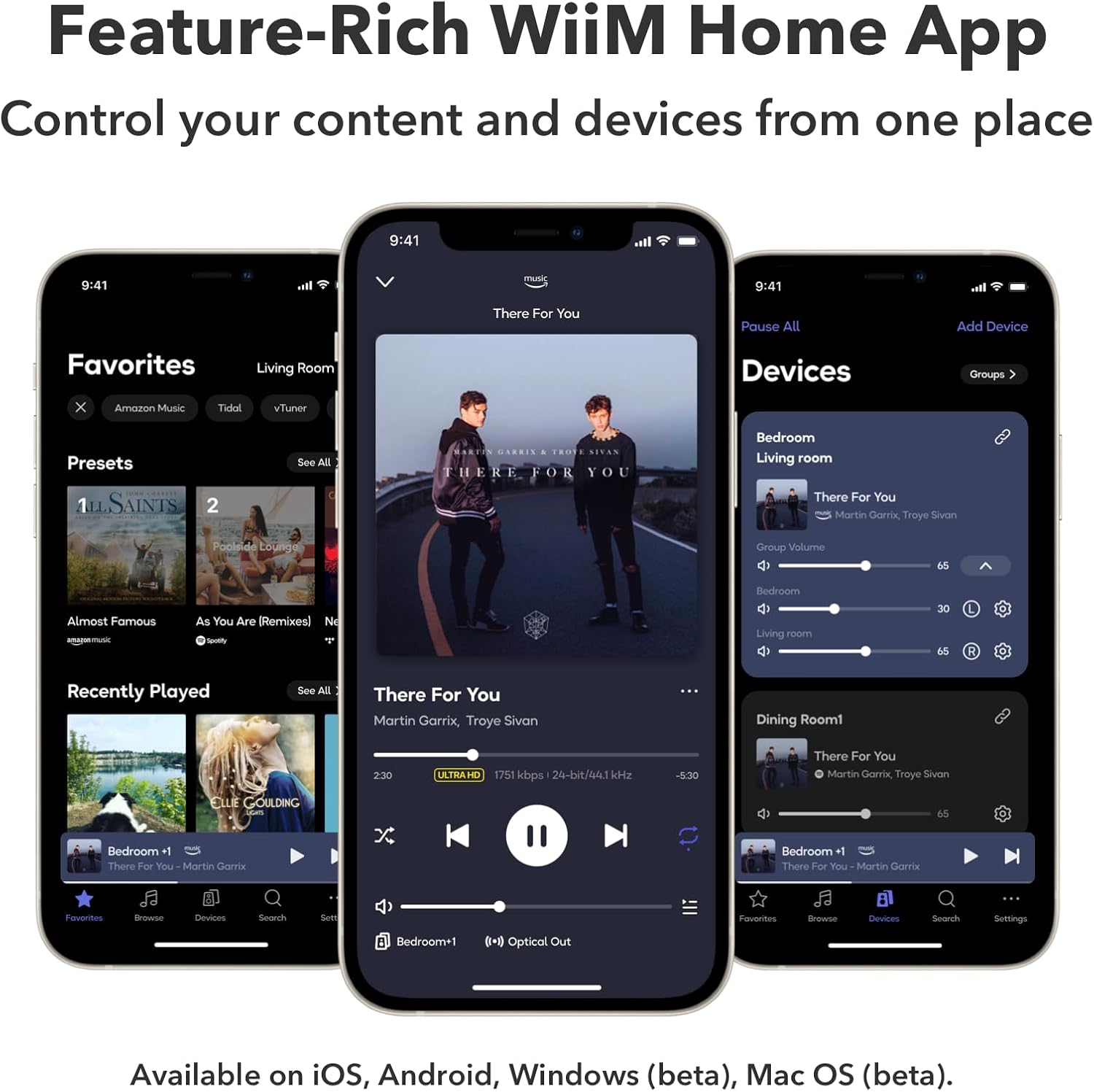

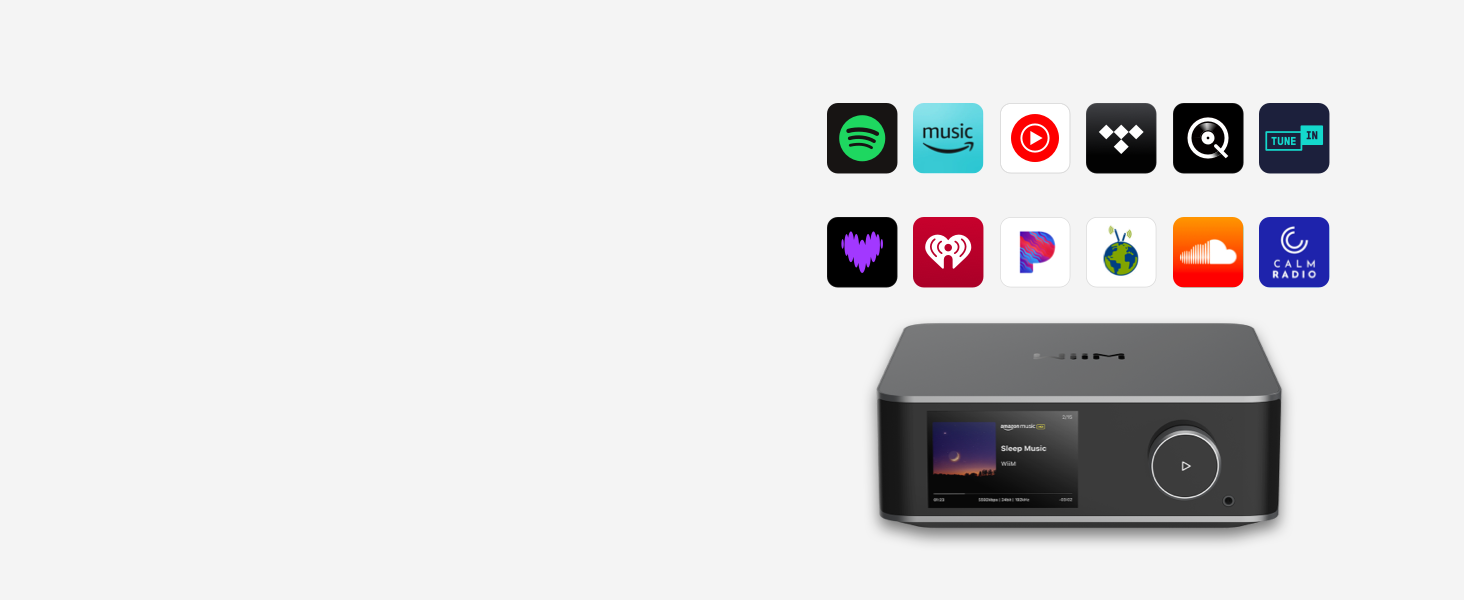

No more app-hopping. WiiM Home App connects you to a plethora of popular music streaming services.

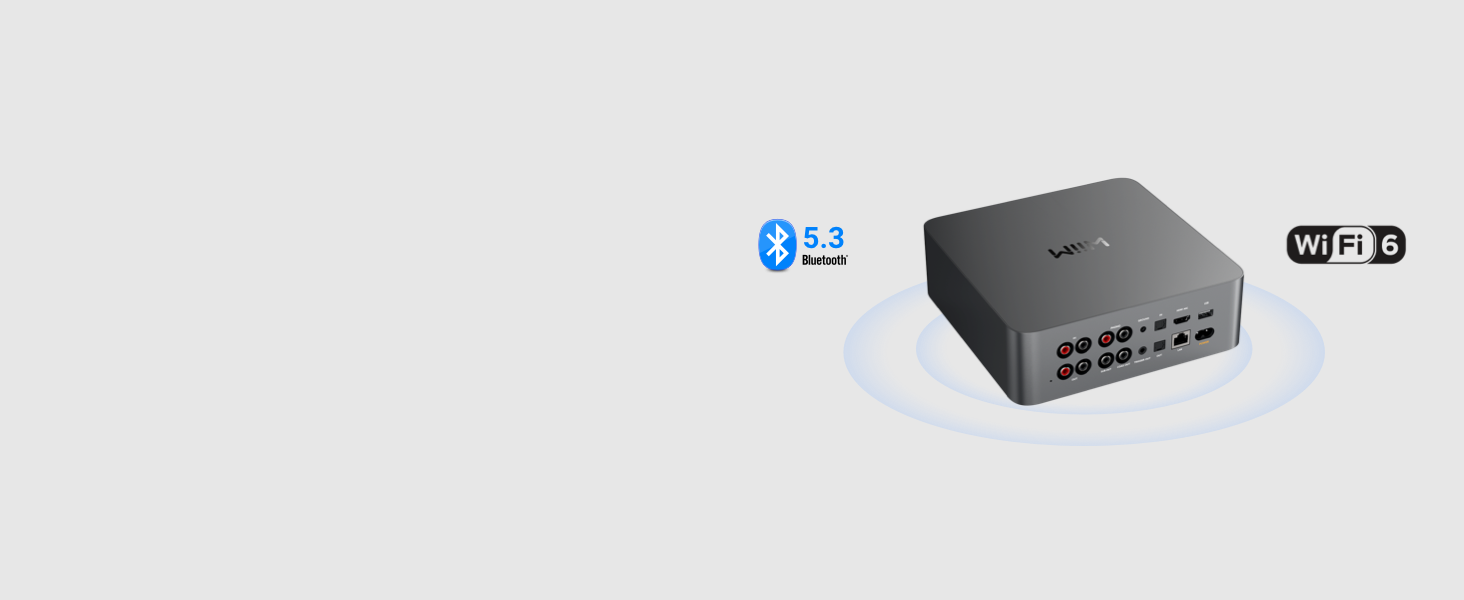

Features latest Wi-Fi 6 and BT 5.3 with dual antennas for rock solid Hi-Res audio streaming.
Built-in room correction measures your room's acoustics and customizes audio for your speakers.
Features large album art, VU meter, instant feedback, music playback, and customizable displays.

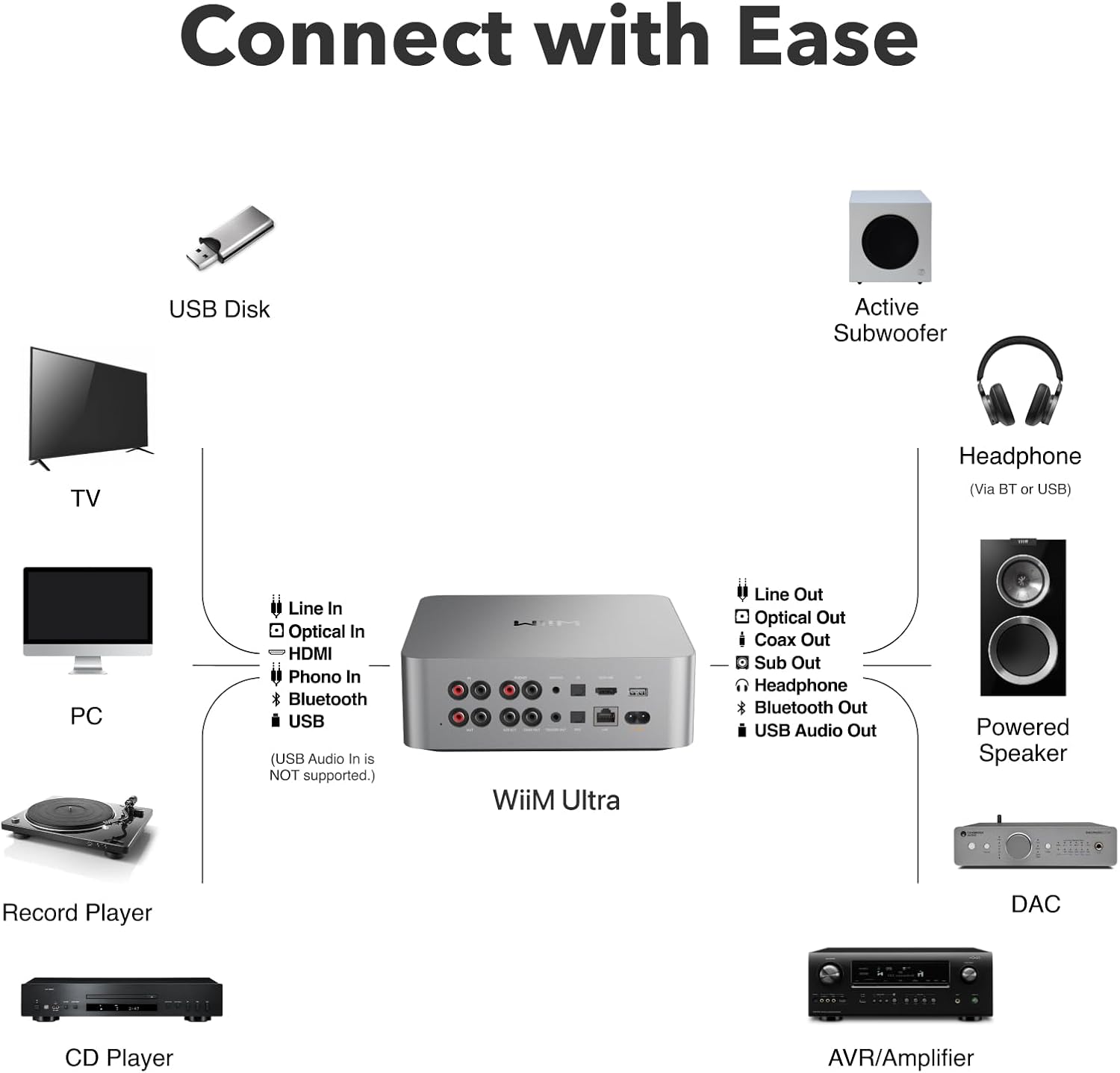

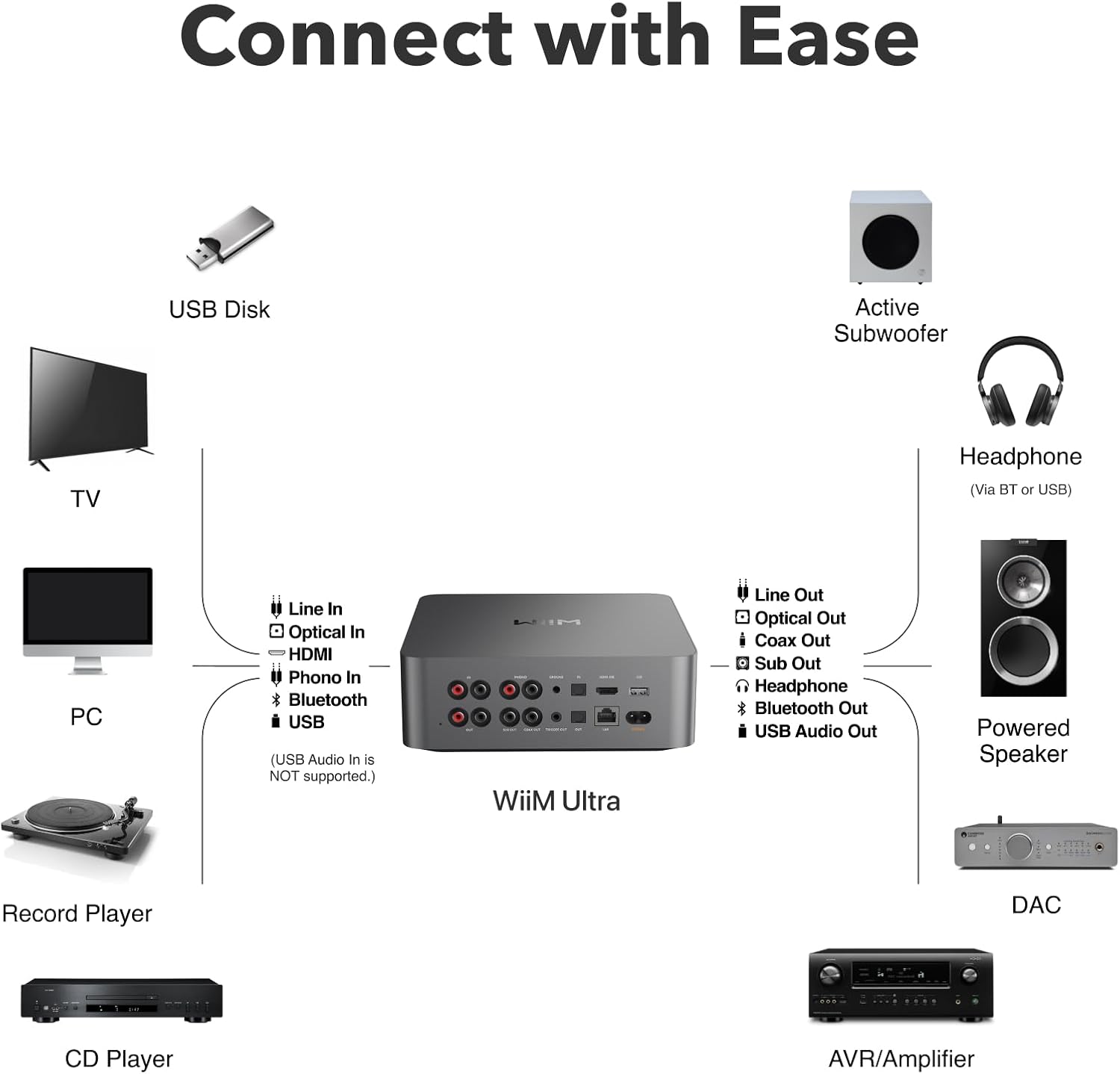

Connect your speaker to WiiM Ultra.
Plug in WiiM Ultra and connect to your network with the WiiM Home App.
Pair your voice remote.
Configure your device and music account, and play Hi-Res music.
| Dimensions and Weight | 8.3" x 7.87" x 2.83" (211 mm x 200 mm x 72 mm), 3.13 lbs (1.42 kg ) |
| Colors | Space Gray, Silver |
| Touch Display | Displays App widgets, large album pictures, playback control, playing queue.presets, EQ, audio input and output, and device settings; Guides users through the OOBE and OTA; Provides feedback when there's a change in the play mode. |
| Controls | Volume knob, play/pause, and more |
| LED | 4 Color RGBW LED indicates the device status |
| Speaker Output | Stereo or dual mono sound |
| Home Theater Audio Formats | Stereo PCM, Dolby Digital (DTS is not supported) |
| Audio Input | HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/192 kHz |
| Audio Output | RCA, Headphone, Coax, Optical, USB, BT, or DLNA receiver |
| Audio Format | MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG |
| EQ | 24 preset EQ settings, 10-band Graphics EQ, 10-band Parametric EQ |
| Subwoofer Output | Comprehensive bass management; Adjustable crossover frequency, level, phase, and latency. |
| Power Supply | 100-240V AC input, 50/60 Hz, 0.5A Max |
| Connectivity | Network - Wi-Fi 6, 802.11 b/g/n/ax 2.4 GHz, 5 GHz. 10M/100 Mbps LAN; Bluetooth - BT 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote. |
| Supported Streaming Protocol | Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite |
| External Storage | Access personal media library and use it as a media server for other WiiM and DLNA devices, Support FAT32, NTFS, and EXT4 file systems. |
