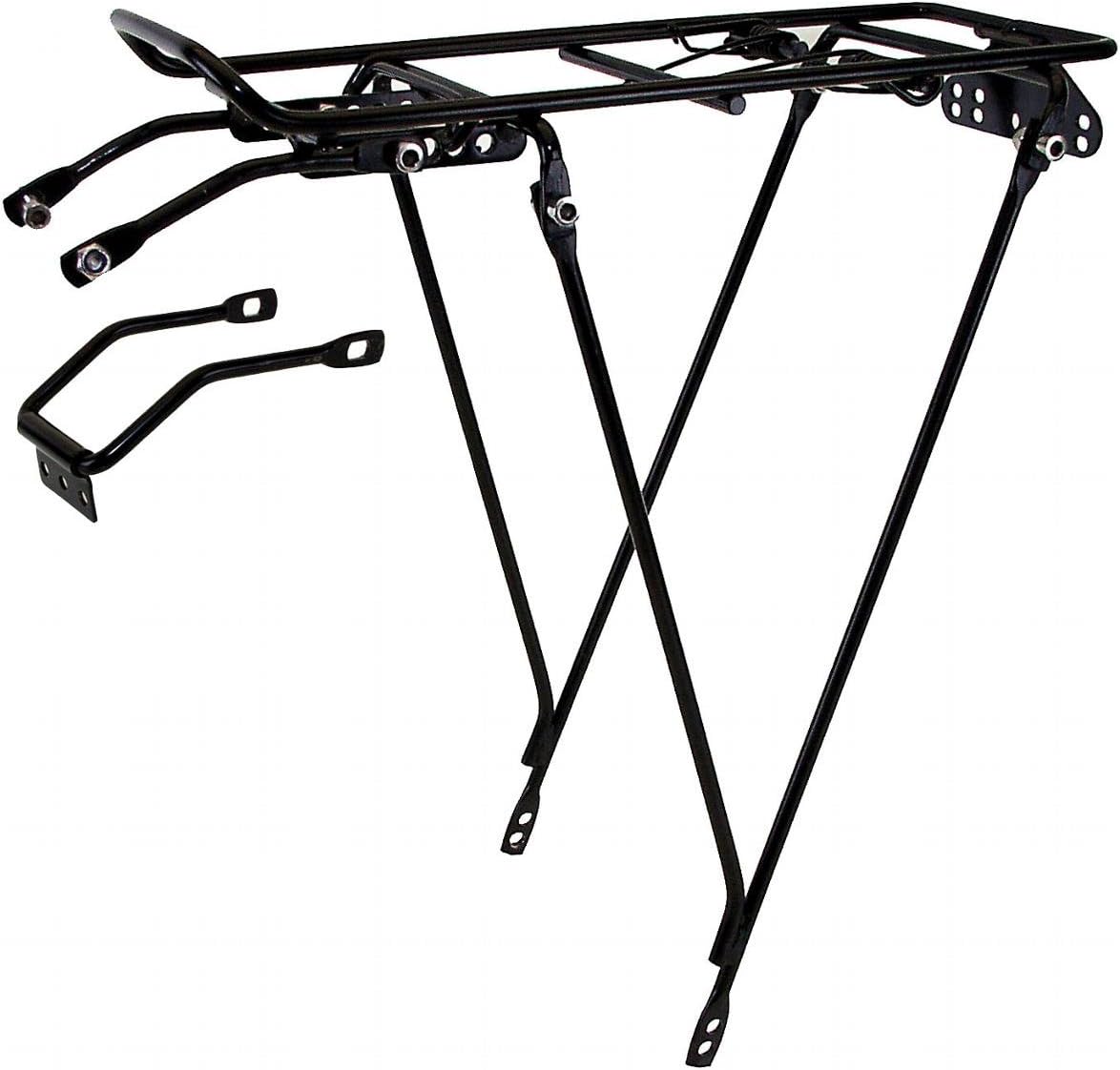

Ventura Universal Carrier Rack

$8.98 USD

Shipping fees will be calculated at checkout.

[SOME BICYCLES WILL REQUIRE ADDITIONAL HARDWARE] For assistance with hardware or installation: call us at 1-877-BIKEAID (245-3243)
[ADJUSTABLE] fits 26 IN. or 28 IN. bicycle tires, and features a fitting set to fit MOST BUT NOT ALL bike types
[TOOLS REQUIRED] 3mm Hex Wrench is included for easy assembly, 8mm wrench or pliers are required but not included to tighten the lock nuts completely.
[SPECIFICATIONS] lightweight, steel rack mounts to the back of your bicycle to help transport bags, panniers, cargo baskets and more at a 22 lb. or 10kg weight limit - a reflector bracket and spring flap are also included!
[INSTALLATION] An updated assembly guide is available, please see product photos at the bottom of this listing page!

Manufacturer	Cycle Force Group
Unit Count	1 Count
UPC	698238401654
Global Trade Identification Number	04015493440048

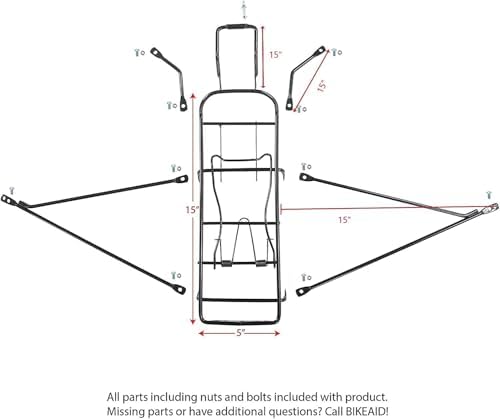

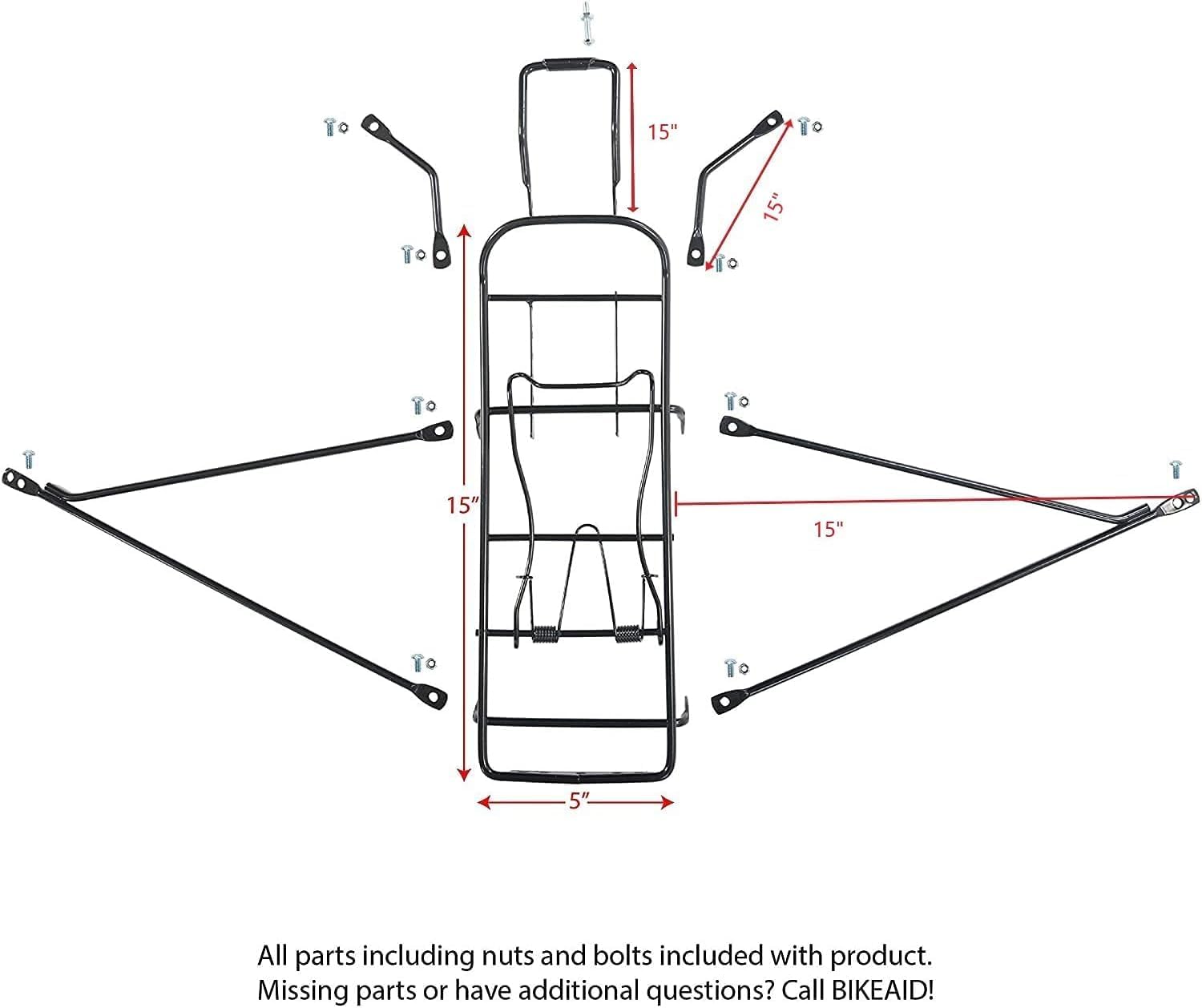

Included Components	Rack, hardware
Item Type Name	Rear Bicycle Rack
Model Number	440149
Manufacturer Part Number	440149
Warranty Description	Limited
Mount Type	back
Load Capacity	22 pound
Orientation	Rear
Wheel Size	28 inches
Color	Black
Material Type	Blend
Item Weight	1.05 kg
Item Dimensions L x W x H	14.57"L x 6.69"W x 14.17"H
Material	Blend
Item Length Width Height	14.57"L x 6.69"W x 14.17"H

The Ventura Brand Of Products Covers Everything from Chains to Locks to Lights

They all have one thing in common: Excellent price without sacrificing quality.

Ventura Urban Items Such As Our Racks, Kickstands, Baskets And Storage Units Keep Commuters Happy

This bicycle rack will fit on either a 26" or 700c bike. The fitting set will ensure that this rack will have a secure fit to your bike. The spring flap can be used to keep pannier bags from sliding around and adds an additional sense of security while riding. Please note: extra clamps may be required for seat tube or seat stay installation - and these are not included.

Ventura offers:

Baskets and racks
Bells, horns, mirrors
Brakes and drivetrain components
Cyclocomputers
Helmets and apparel
Saddles & Pedals
Tools and storage solutions
Hydration equipment and Tube accessories

Other Products from Ventura

Ventura Quick Release Blue Wire Basket

-Steel net mesh with reinforcements with ergonomic handle.

- Clip-on bracket with quick release.

- Mounts at front with clip on quick release bracket for stem or handle bar.

- Very firm and high quality design with reinforced main and auxiliary bars.

- 35 x 25 x 25 cm dimensions and available in multiple colors.

Ventura Rivets Saddle

- Imitation leather cover.

- Stainless steel rivets.

- 278 mm long by 153 mm wide.

- Weighs only 297 grams.

- Nine Colors Available.

Ventura Semi In-Mold Cycling Helmet

- Semi In-Mold plastic Microshell with integrated safety foam.

- 24 big vents for great air circulation with fly nets.

- Removable visor and rear reflective bands.

- Easy-adjust soft RING System.

- Great multi-color design.

Ventura Mini Folding Multi Tool 18 in 1

- 18 functions.

- 2/2.5/3/4/5/6/8 mm hardened steel Allen keys.

- 1 flat head screwdriver.

- 1 Phillips head screwdriver.

- 1 chain rivet extractor.

Precautions:

Max Weight ~40 pounds.
When attatching baggage or a child carrier, they must be secured in accordance with the manufacturer's instructions.
Do not allow straps to hang freely, in which they can be caught inside a wheel.

Assembly Instructions

26" or 700c Height Adjustment and Mounting

Click enlarge image to view step by step instructions.

Connect the legs to the rack. The straight bar of each leg should connect to the rear of the rack, while the angled bar connects to the front. The legs should attach on the inside of the rack connectors.
Connect the rack legs to the bottom rack mount boss.
Choose one of the mount systems, determined by the bicycle frame attachments available. See left picture larger.
Connect the appropriate mount to bicycle frame attachment, determined in step three. Using clamps if necessary bicycle frame attachments are not available.
Attach the front mount to the outside of the horizontal stays. There are four holes to choose from depending on where you would like the rack positioned.
Adjust according to preferences and tighten screws.
