| Power Source | OBD II Port |
|---|---|
| Operating System | Android (head units not supported), iOS |
| Automotive Fit Type | Universal Fit |
| Item Dimensions L x W x H | 1.97"L x 1.61"W x 0.87"H |
| Manufacturer | Veepeak |

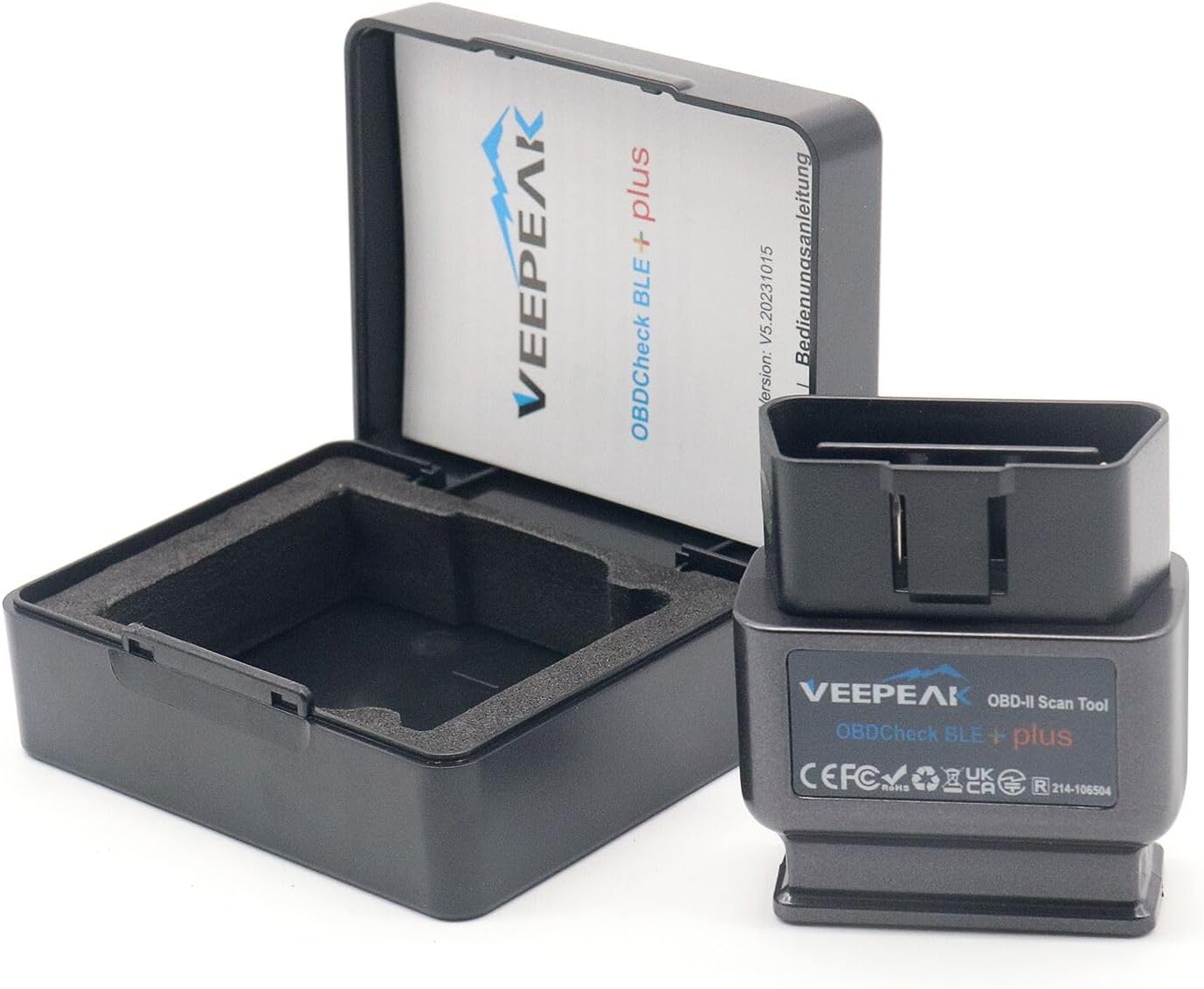

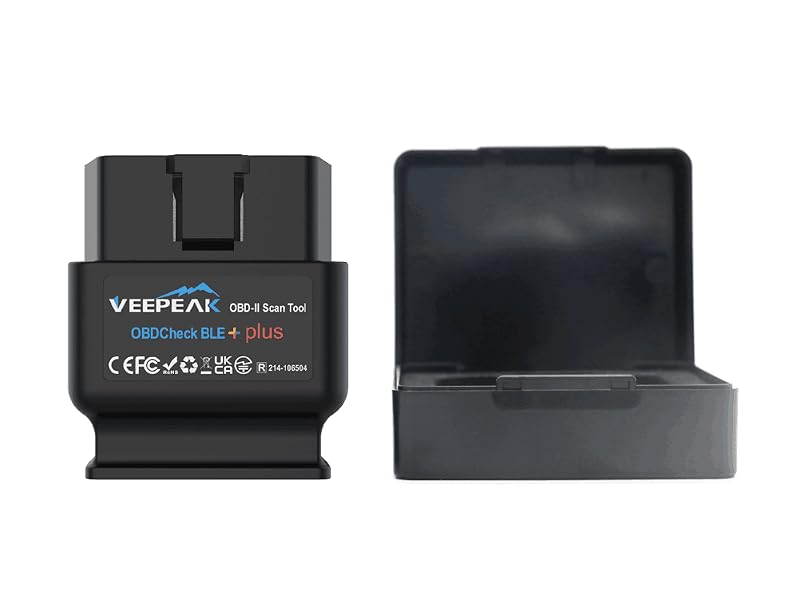

| Included Components | OBD II Scanner, carrying case and user manual |
| Model Number | OBDCheck BLE+ |
| Manufacturer Part Number | OBDCheck BLE+ |
| Manufacturer Warranty Description | 1 year manufacturer warranty |
| Power Source Type | OBD II Port |
| Item Length Width Height | 1.97"L x 1.61"W x 0.87"H |

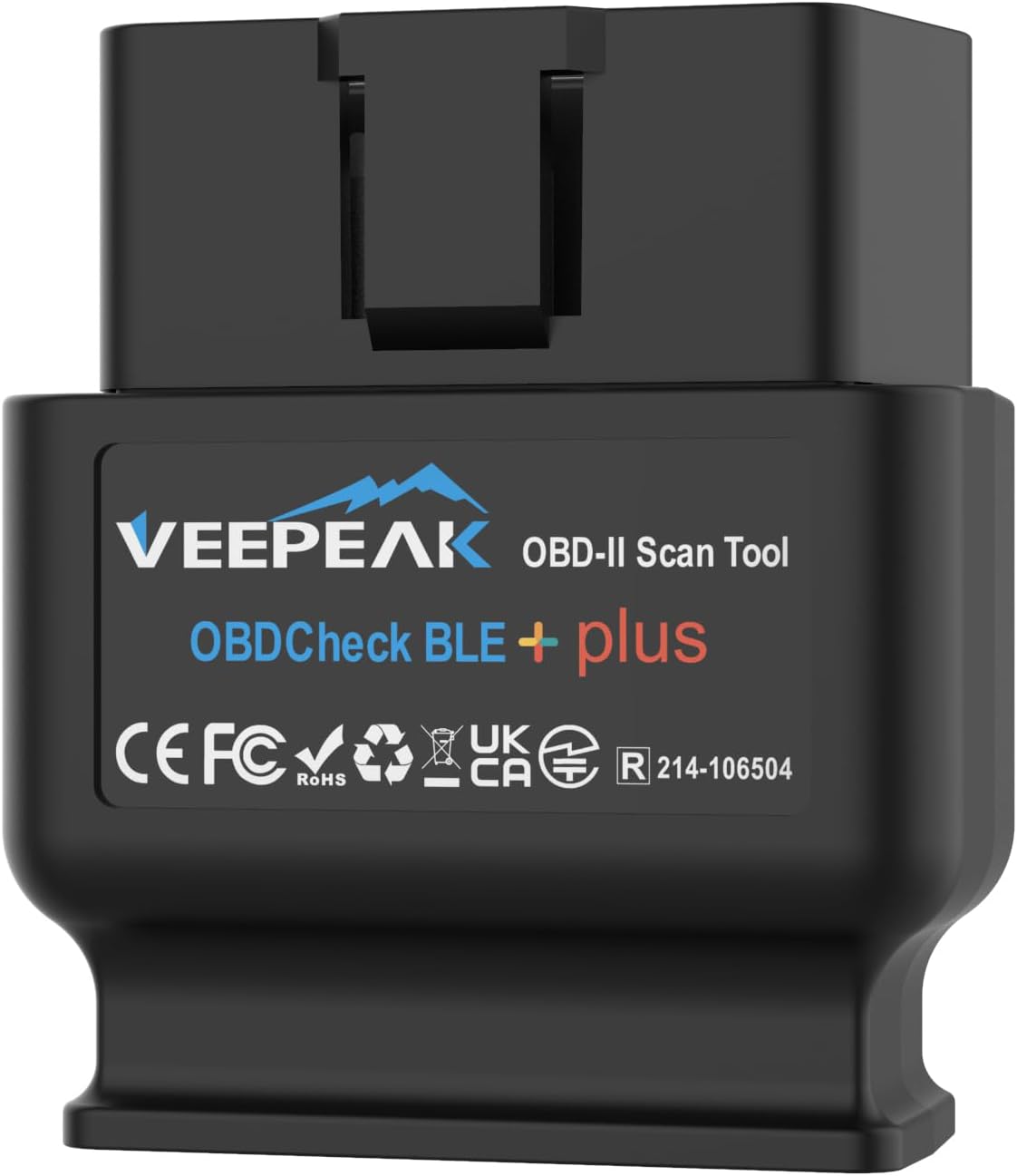

The vehicle in your garage can be as smart as your phone. Turn your smartphone or tablet into a sophisticated diagnostic scan tool and real-time performance monitor. The OBDCheck BLE+ directly plugs into your vehicle and connects to an OBD II App on your iOS or Android device via Bluetooth. Whenever you have a check engine light on or want to see how your car is performing, it will be a very useful gadget for you.

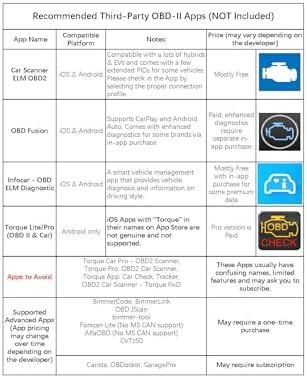

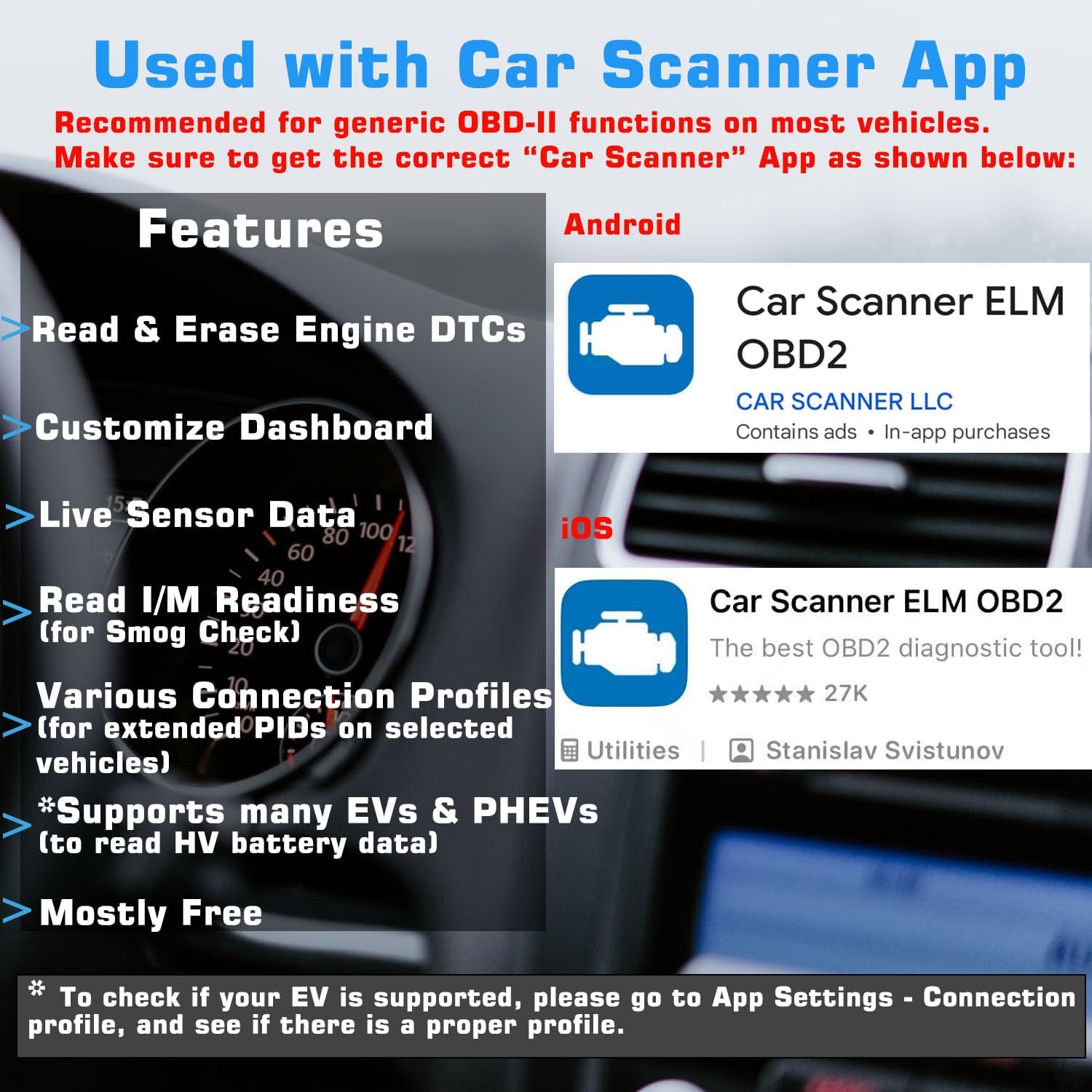

| CAR SCANNER ELM OBD2 | Get OBD fault codes, car performance, sensor data and more! (Recommended for most vehicles for generic OBD-II functions) |
| OBD Fusion | Generic OBD-II functions, plus enhanced diagnostics add-on for selected vehicles (paid). |
| Torque (Android) | Popular vehicle performance, sensors and diagnostics tool for Android (No iOS version). |
| BimmerCode | Advanced paid coding App for BMW (2008+ E, F, I, and 2008+ R series); Model year before 2008, G series and U series are NOT supported. |
| BimmerLink | Advanced paid diagnostic App for BMW (MY2008+). Model year before 2008 are not supported. |
| Other Advanced Apps | Compatible with Dr. Prius, JScan OBD, ActiveOBD, Carista, OBDocker, AlfaOBD (limited support), FORScan Lite (no MS CAN support) etc. (Please check the app page for detailed features & fees) |
| Incompatible Apps or Software | Carly, MHD, xHP, ProTool, bootmod3, Multiecuscan, Techstream, VCDS, or other software that requires specialized hardware. |
| Important Information | Avoid third-party apps with similar names (including look-alike versions of Torque or Car Scanner), as they may require additional subscriptions, or may not work properly with this device. |

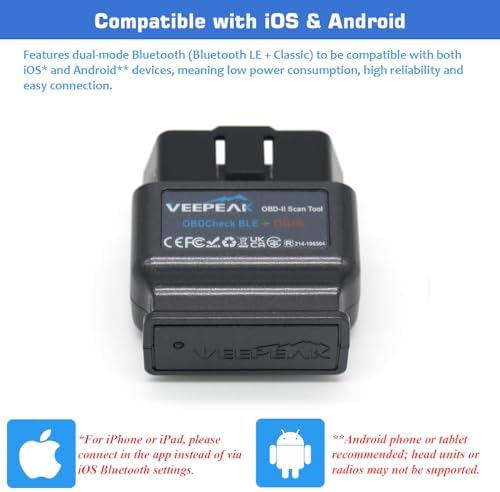

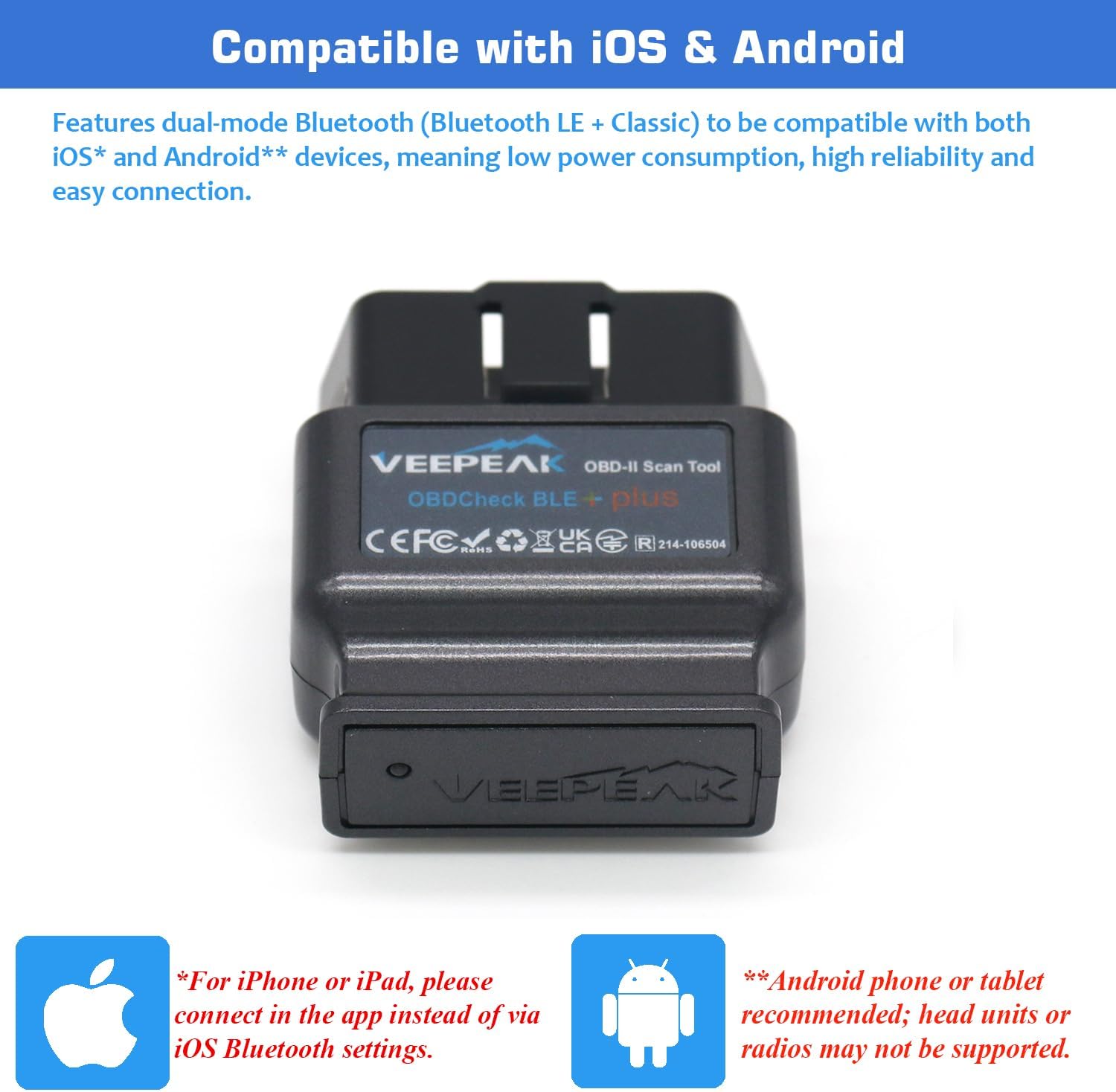

| Connection Method | iOS: Bluetooth LE only. Android: Bluetooth LE or Classic. Connection Tip: When using Bluetooth LE, please connect from within the app instead of through phone's Bluetooth settings. |
| Supported AT command version | v2.2 (v1.4 for normal BLE version) |

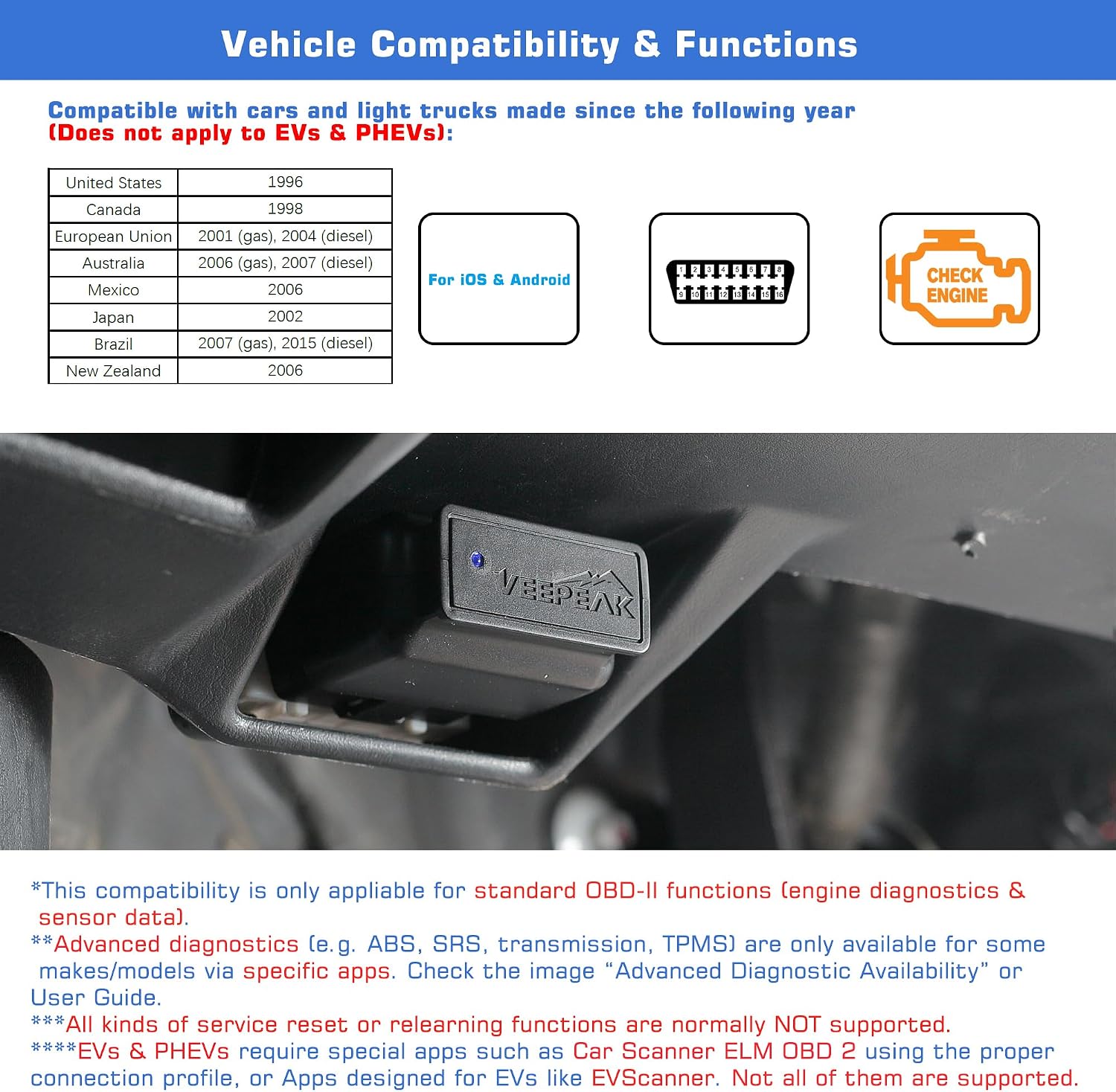

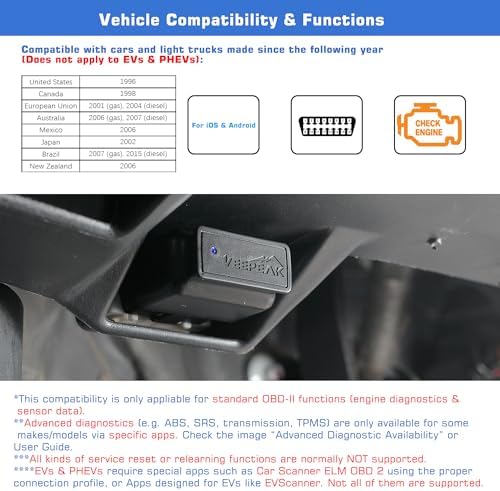

| Compatible Vehicles | USA - 1996+, Canada – 1998+, Mexico – 2006+, EU – 2001+ (gas), 2004+ (diesel) for generic OBD II diagnostic functions. Non-OBD-II & J1939 vehicles are NOT compatible. |
| Supported OBD II protocols | J1850 PWM, J1850 VPW, ISO9141-2, ISO14230-4 (KWP2000), and ISO 15765-4 (CAN). MS-CAN & SW-CAN are Not supported. |

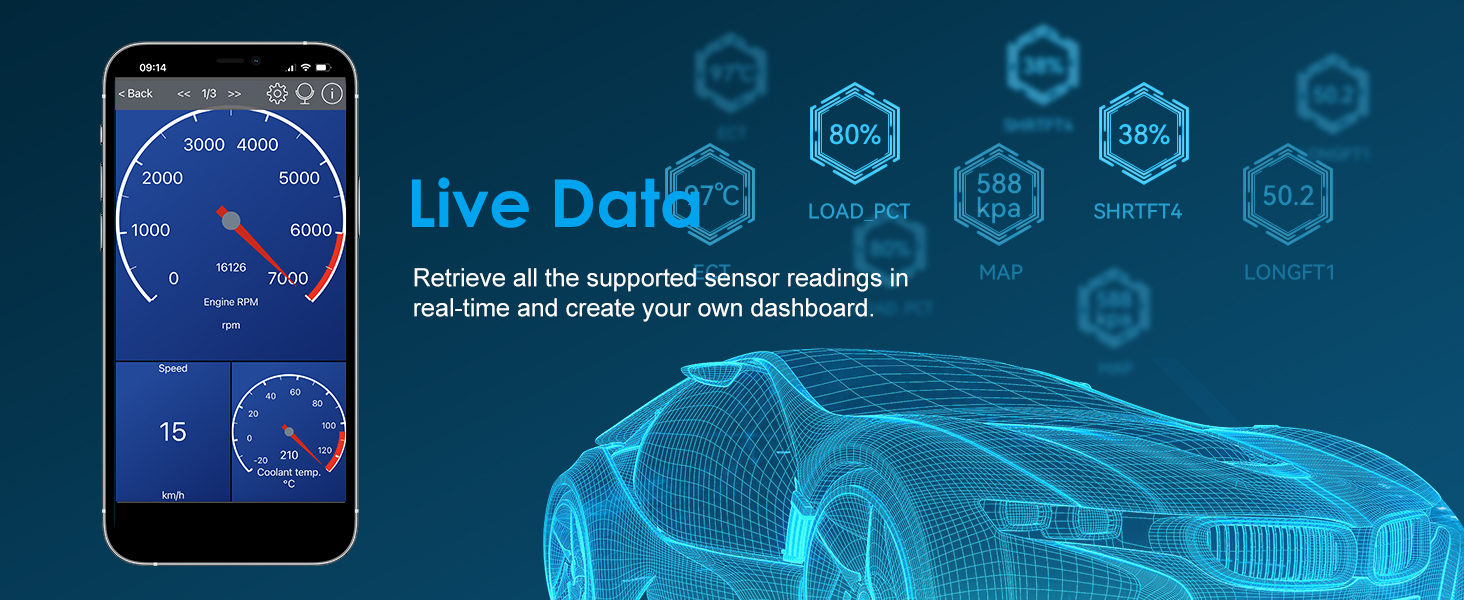

| Supported Functions | Generic OBD-II diagnostics (engine), live sensor data, and I/M readiness. Additional vehicle-specific functions may be available through compatible third-party apps and vary by vehicle and app support. |
| Not Designed For | Oil or service interval reset, brake/EPB/SAS reset, injector coding, relearning, adaptation, or other bidirectional/service functions. |
| EV Compatibility | Partially supported via Car Scanner ELM OBD2 App or other EV-compatible Apps. |
Is there an App included with the item? Do I need a subscription to use it?
No. You need to get a compatible third-party App from the App Store or Play Store. Be cautious of imitation apps that require a subscription. Only use the recommended apps to ensure proper functionality and avoid unnecessary charges.
What vehicles are supported when using it with BimmerCode or BimmerLink App?
Currently only 2008+ models are supported for the two apps. Additionally, G or U series is not supported in BimmerCode, and BimmerLink may have limited support for the latest G or U series. Check the App website for details.
Does it work on electric vehicles?
EVs do not have standard OBD-II systems so they require special Apps to connect, for example Car Scanner ELM OBD2 (with the appropriate EV connection profiles), and not all of them are compatible. Also it's limited to battery system reading.

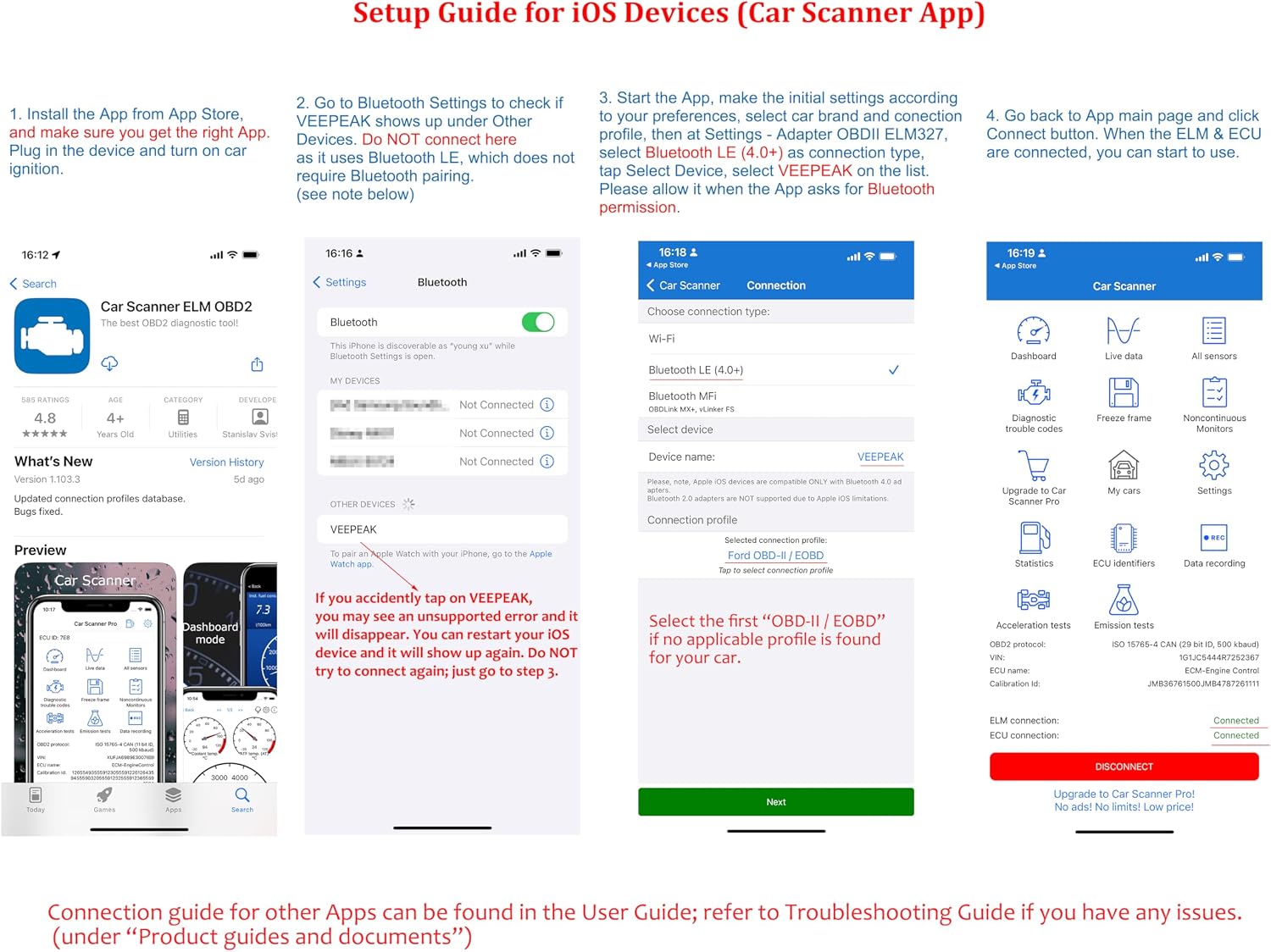

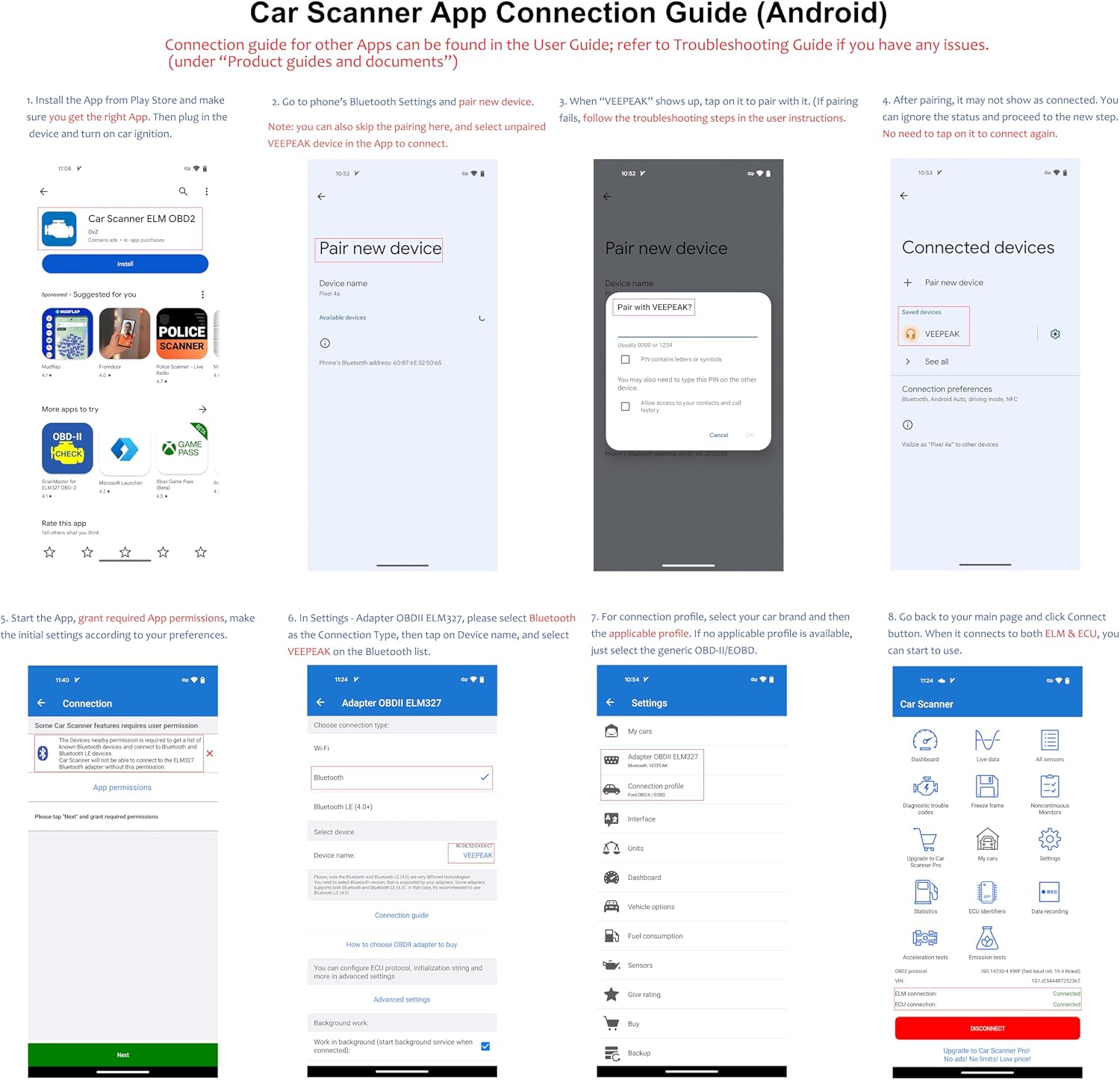

How to connect on iOS and Android?
iOS: Do NOT pair in Bluetooth settings. Open the app, set to Bluetooth LE and connect from within the app.
Android: same as iOS if the App supports Bluetooth LE. Otherwise, pair the device in phone Bluetooth, set to Bluetooth in the App to connect.
1. When I try to connect “VEEPEAK” with my iPhone or iPad, it tells me it is not supported, or it connects but disconnects shortly.
You will see this issue when trying to connect from iOS Bluetooth Settings. This device uses Bluetooth LE for iOS devices and requires connecting in the App. Please restart your iOS device so “VEEPEAK” shows up again, then start the OBD App, set the connection type to Bluetooth LE and connect in the App (refer to the setup guide in product images or user instructions).
2. Could not pair my Android device with “VEEPEAK”.
For most Apps like Car Scanner, skip the pairing and select Bluetooth LE in the App to connect. If the App requires Bluetooth pairing,try the following:Turn off Bluetooth and turn it back on. Try pairing a few more times; Turn off WiFi & cellular data and try again; Disconnect other Bluetooth devices; Restart your Android device; Clear Bluetooth data cache.
3. App not connecting to Veepeak device.
Make sure the App is compatible, and you have made the correct App connection settings (especially connection type which should be set to Bluetooth or Bluetooth LE) and granted the App permissions; Remove and re-install the app (especially when you have an OS update or the App is not used for some time); Try with a different App.
4. Cannot connect to vehicle/ECU.
Make sure the OBD port is in good condition and the device fits well in it. Try to push it a little harder into the OBD port if the contact is loose as powering up does not always mean a good fit. Make sure your vehicle is OBD II compliant, and ignition is turned ON; Check if your vehicle is supported by the App; Try it on another vehicle.
Tip: More FAQs and Troubleshooting tips can be found in the "Instructions for Use" document.
