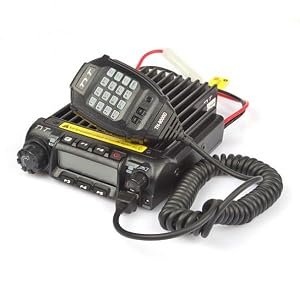

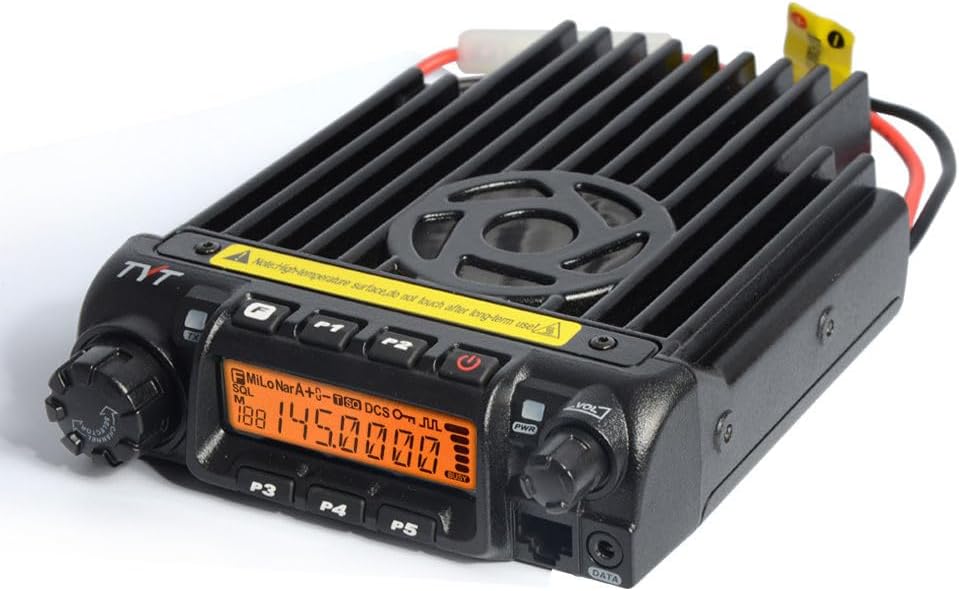

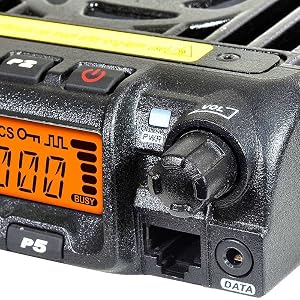

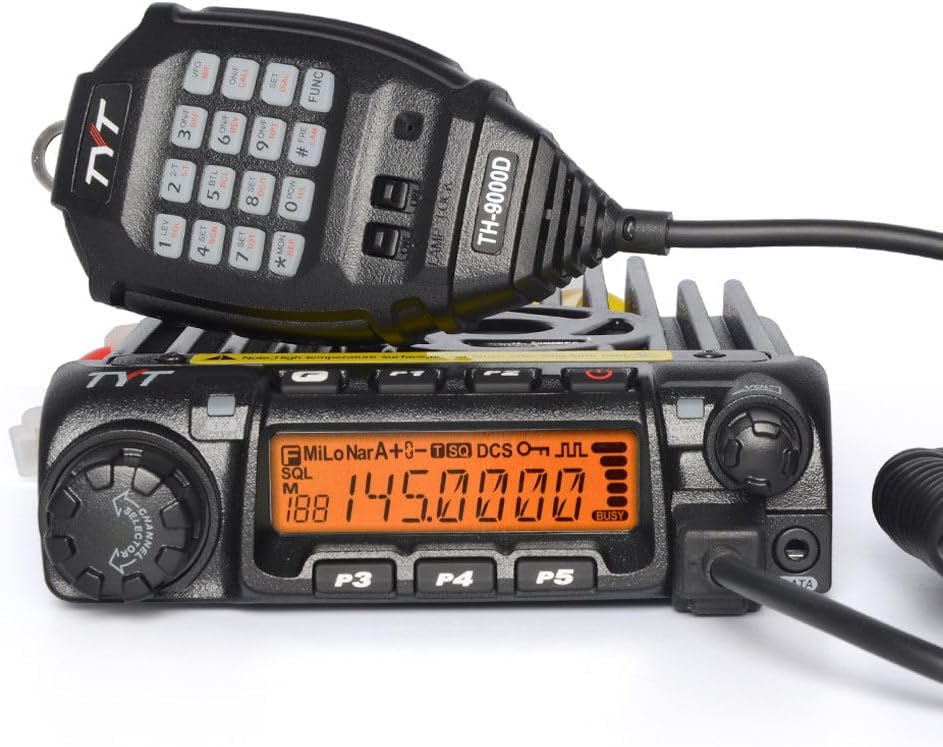

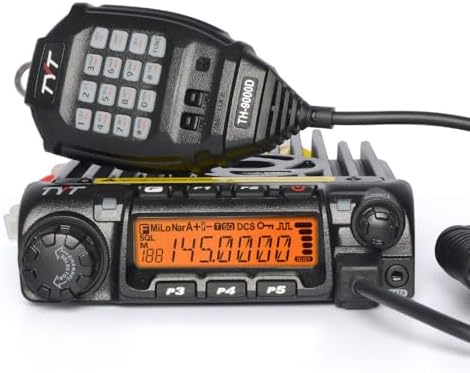

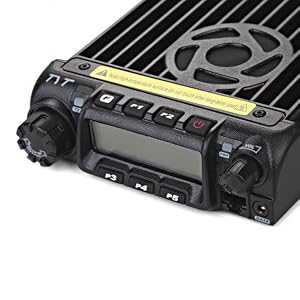

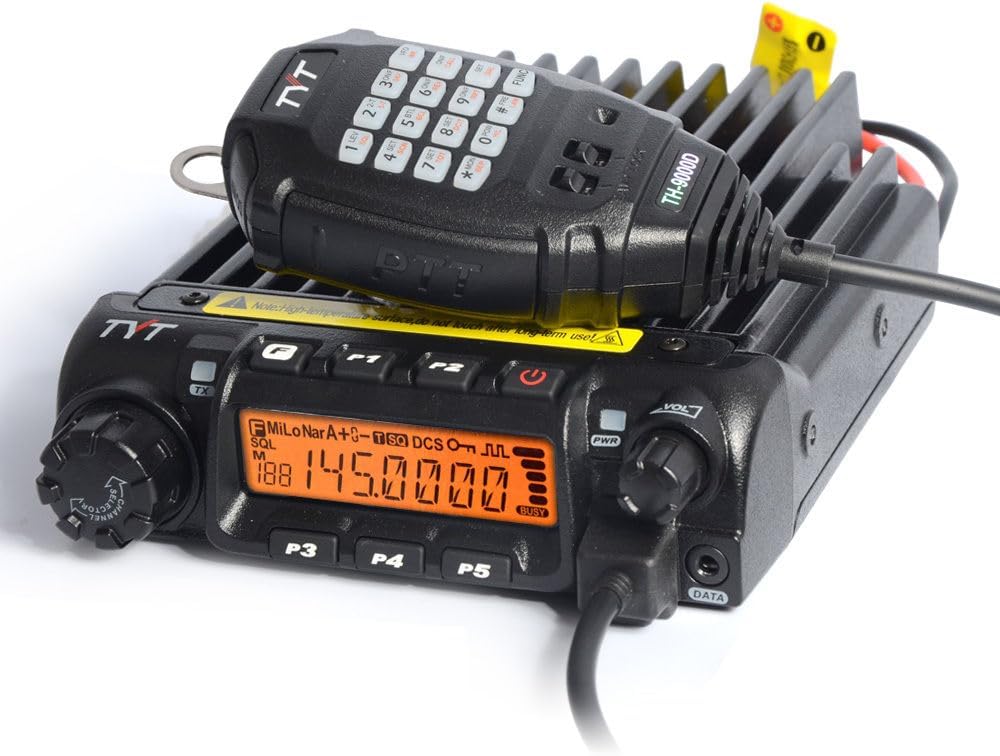

Tyt Th-9000d Vhf Mono Band Mobile Transceiver 65 Watt 200 Channel 8 Group Scrambler Car Truck Amateur Radio | 65 Watt 200 Channels 8 Group Scrambler

1 / 12

Tyt Th-9000d Vhf Mono Band Mobile Transceiver 65 Watt 200 Channel 8 Group Scrambler Car Truck Amateur Radio | 65 Watt 200 Channels 8 Group Scrambler

$42.00 USD

Shipping fees will be calculated at checkout.

Frequency Range: VHF; RX: 136-174MHz; TX: 144-148MHz. FCC ID: PODTH-9000DV

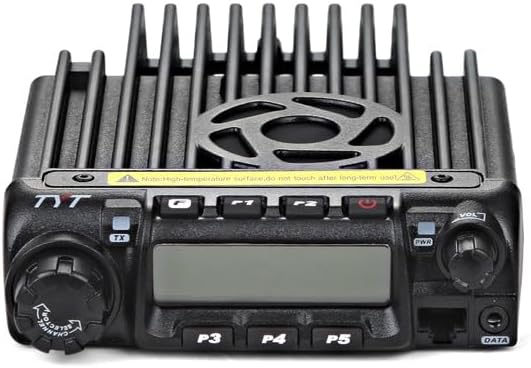

Heavy Duty Two Way VHF Mobile Transceiver 65 Watt with CTCSS/DCS (PL & DPL).

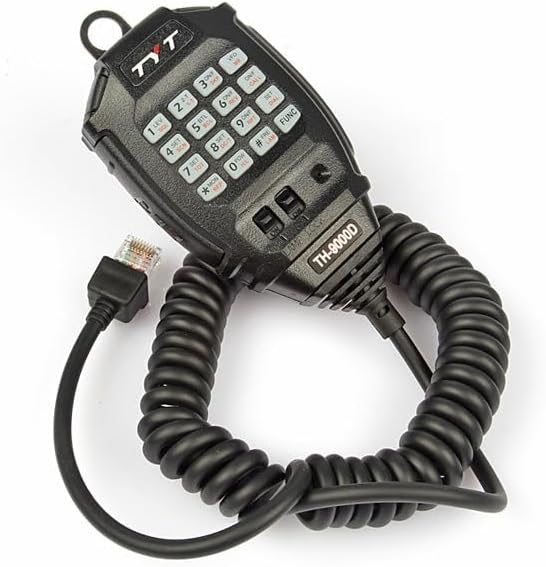

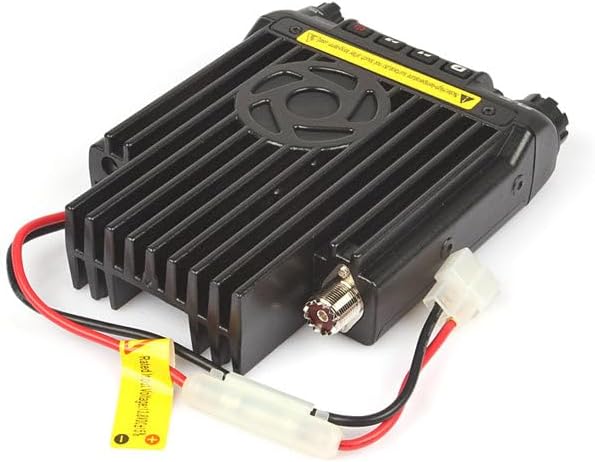

Full Keypad Microphone, 200 Alphanumeric Channels. Cool-Blue Display Backlight. Includes Mounting Bracket & Fused Power Cable.
Features 3 Selectable Power Levels, DTMF, Keypad Lock, Scan Modes & More!
Requires Optional Suitable VHF Antenna, & Hookup to 12-14Vdc ( 12-14A)

Number of Channels	200
Additional Features	Emergency Alarm, Keypad Lock
Frequency Range	144 - 148 MHz
Talking Range Maximum	5 kilometer
Voltage	13.8 volts
Water Resistance Level	Not Water Resistant
Number of Batteries	1 Lithium Ion batteries required. (included)
Compatible Devices	vehicles with a 12-14Vdc power source
Battery Average Life	72 hours
Tuner Type	VHF
Item Dimensions D x W x H	13"D x 4.5"W x 9.6"H
Item Weight	3.4 pounds
Color	Black
Model Number	TYT-TH-9000D

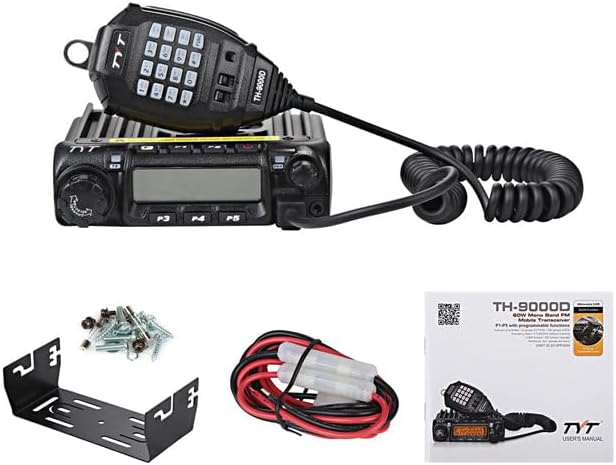

Built-In Media	1* TYT TH-9000D VHF Mobile Transceiver, Handheld Microphone, Power Cable, Screws and Accessories, Fixed Bracket, User's Manual
Global Trade Identification Number	00628586667914
Unit Count	1 Count
Manufacturer	SAIN-Import
UPC	628586667914 033587075154
Mfr Part Number	TYT-TH-9000D
Warranty Description	/
Number Of Channels	200
Special Feature	Emergency Alarm, Keypad Lock
Talk Range Maximum	5 kilometer
Item Depth Width Height	13"D x 4.5"W x 9.6"H
Num Batteries	1 Lithium Ion batteries required. (included)

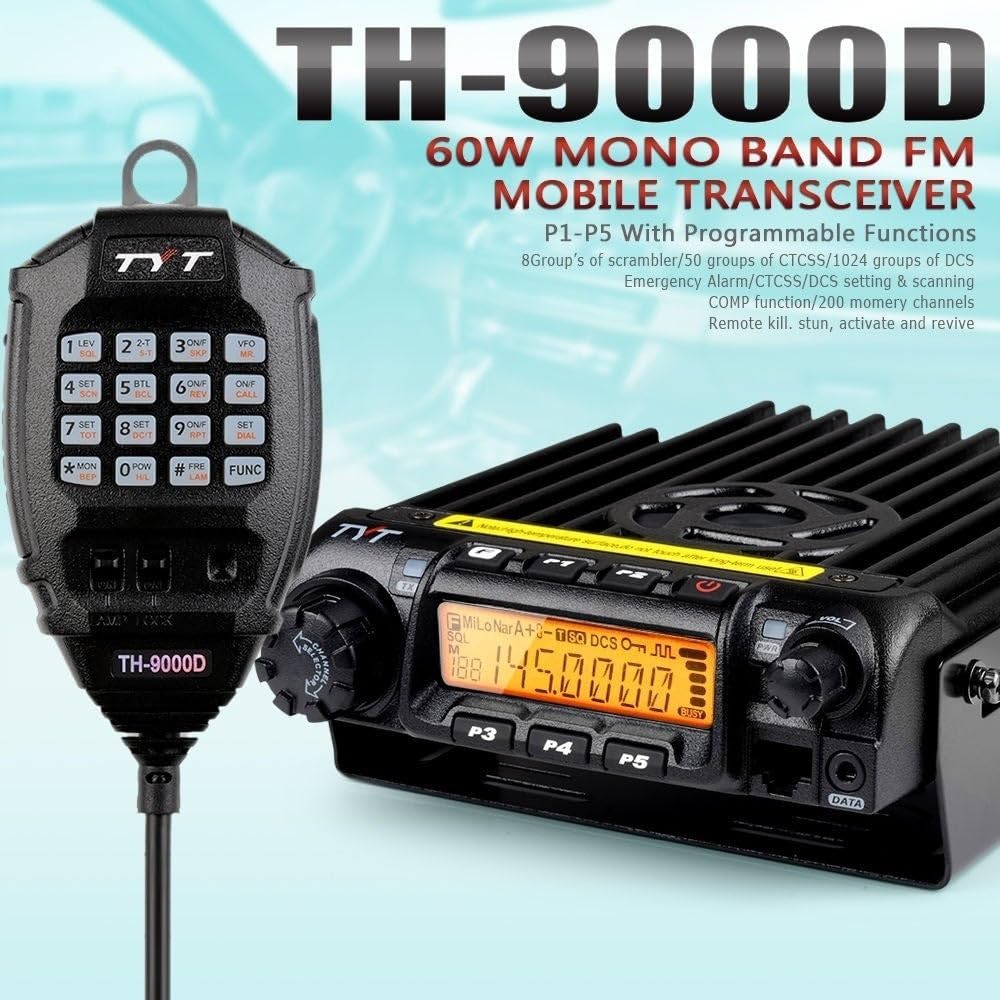

TYT TH-9000D

- VFO step setting: 5/6.25/10/12.5/20/25/50kHz

- 8 Group's of Scrambler.

- 0-9 SQL grade setting.

- Frequency/Channel scanning.

- High/Mid/Low power selectable.

- 1750Hz Tone CTCSS/DCS setting & scanning.

Functions:

Frequency Range:

VHF:136-174MHz 245-245.9875MHz (220-260MHz).

UHF: 400-480MHz. (These Frequency Range can be selectable to use).

Output Power:

VHF: 10W/25W/60W.

UHF: 45W/25W/10W.

More Functions:

- Voice commander.

- Repeater offset shift.

- Keypad lock function.

- Contact book.

- Battery voltage display.

- DTMF/2 tone/5 tone.

- ANI ID.

- Remote kill/ stun/ activate/ revive.

- Emergency alarm.

- Wide/Narrow band setting.

- TX inhibit.

- Busy Channel Lock-Out.

- Channel name editing.

- Reverse frequency.

- Talk around.

- Scrambler(Optional).

- Voice prompt.

- Time-out Timer.

- Auto Power off.

Specification:

General:

- Frequenvy Range: 136-174/245-246/400-490MHz.

- Channel Capacity: 200.

- Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz.

- Freruency Stability: 2.5ppm.

- Operating Temperature: -20℃ ~ + 60℃.

- Operating Voltage: 13.8V DC ± 15%.

- Dimension(HxWxD): 145mm x190mm x47mm.

- Weight(with bracket): 1200g.

Receiver:

- Reference Sensitivity: 0.2μV @ 12dB SINAD.

- Operating Bandwidth: 60dB@12.5KHz /70dB@25KHz.

- Adjacent Channel Selectivity: 60dB@12.5KHz 70dB@25KHz.

- Inter-modulation Rejection: ≥60dB/ ≥65dB.

- Spurious Response Rejection: ≥70dB.

- Rated Audio Response: +1-+3dB.

- Rated Audio Distortion: <5%.

- FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz.

Transmitter:

- RF Power: 45W/25W/10W (UHF)/60W/25W/10W (VHF).

- Frequency Modulation: 11kΦF3E / 16kΦF3E.

- Modulation Distortion :< 5% FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz.

- Adjacent Channel Power: ≥60dB@12.5KHz /≥70KHz @25KHz.

- Audio Response: +1-+3dB.

- Audio Distortion: <5%.
