| Number of Channels | 200 |
|---|---|
| Additional Features | Waterproof |
| Frequency Range | 144 - 148 MHz (2m), 420-450MHz (70cm) |
| Voltage | 13.8 volts |
| Water Resistance Level | Waterproof |
| Audible Noise | 45 db |
| Compatible Devices | Other two-way radios within the frequency range of 144-148 MHz (2m) and 420-450MHz (70cm) |
| Connectivity Protocol | VHF, UHF |
| Tuner Type | UHF, VHF |
| Item Dimensions D x W x H | 1.77"D x 4.92"W x 1.77"H |
| Item Weight | 3.5 pounds |
| Color | Black |
| Model Number | TH 8600 |
| Built-In Media | 1 x Radio unit, 1 x Program cable, 1 x Keypad DTMF Microphone, 1 x One pack of Screw & Mount Bracket, 1 x Protection fuses, 1 x User's manual |
| Unit Count | 1 Count |
| Manufacturer | TYT ELECTRONICS CO., LTD |
| UPC | 653391514443 |
| Warranty Description | 3 months |
| Waterproof Rating | IP67 |
| Number Of Channels | 200 |
| Special Feature | Waterproof |
| Item Depth Width Height | 1.77"D x 4.92"W x 1.77"H |

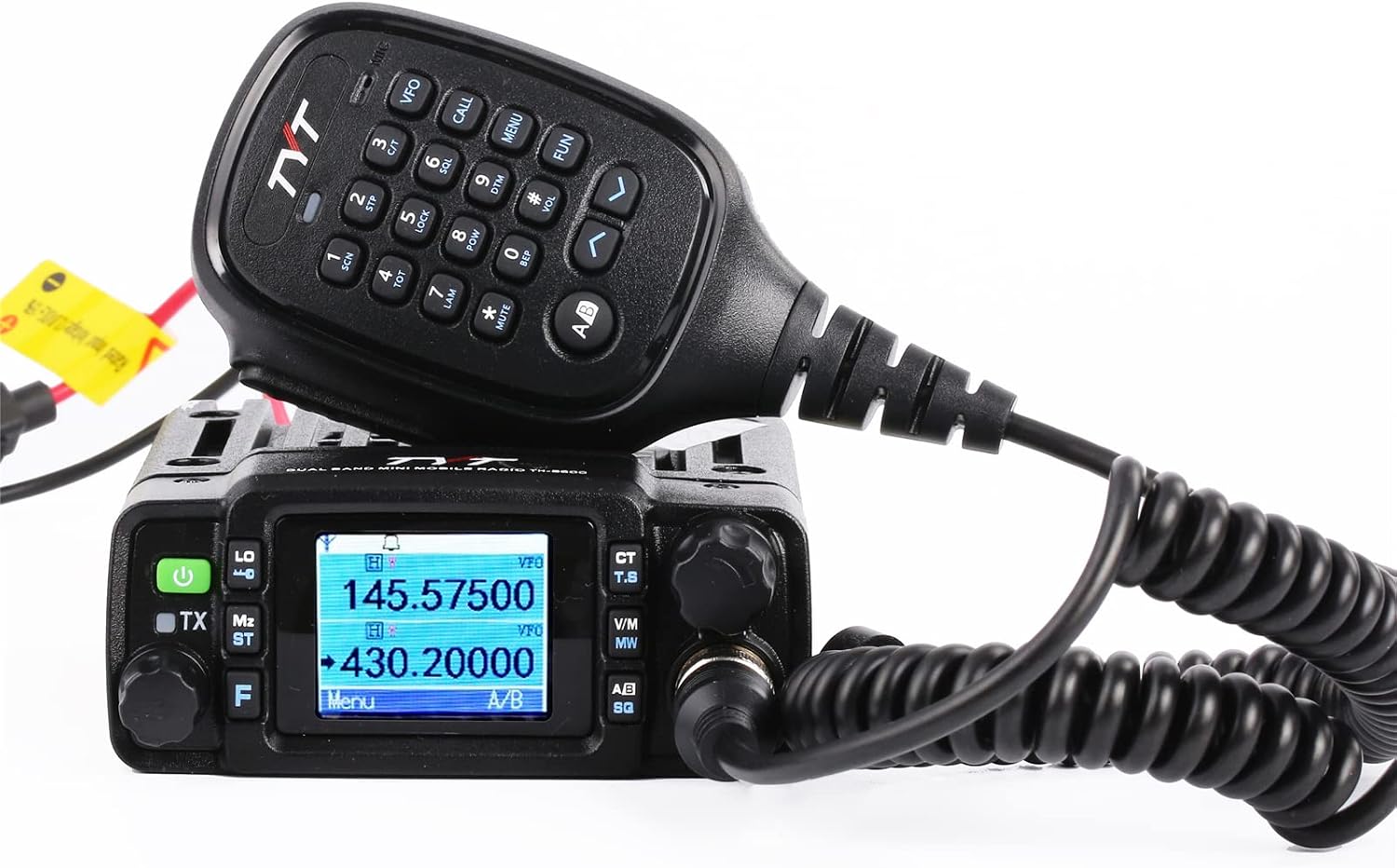

VHF 144-148MHz UHF 420-450MHz
Operation of an amateur station requires an amateur operator license grant from the FCC. It is ILLEGAL to UNLOCK the radio without permission.
Frequency:
VHF:144-148MHz
UHF: 420-450MHz

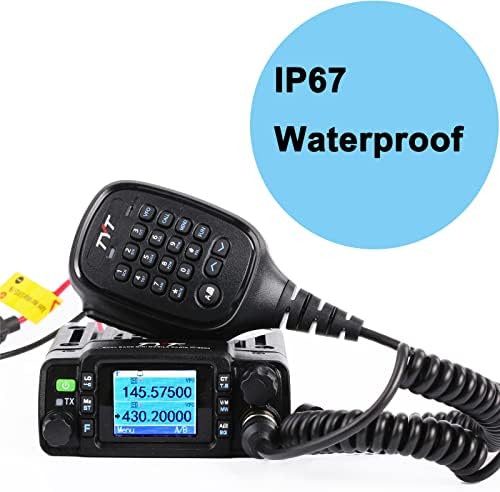

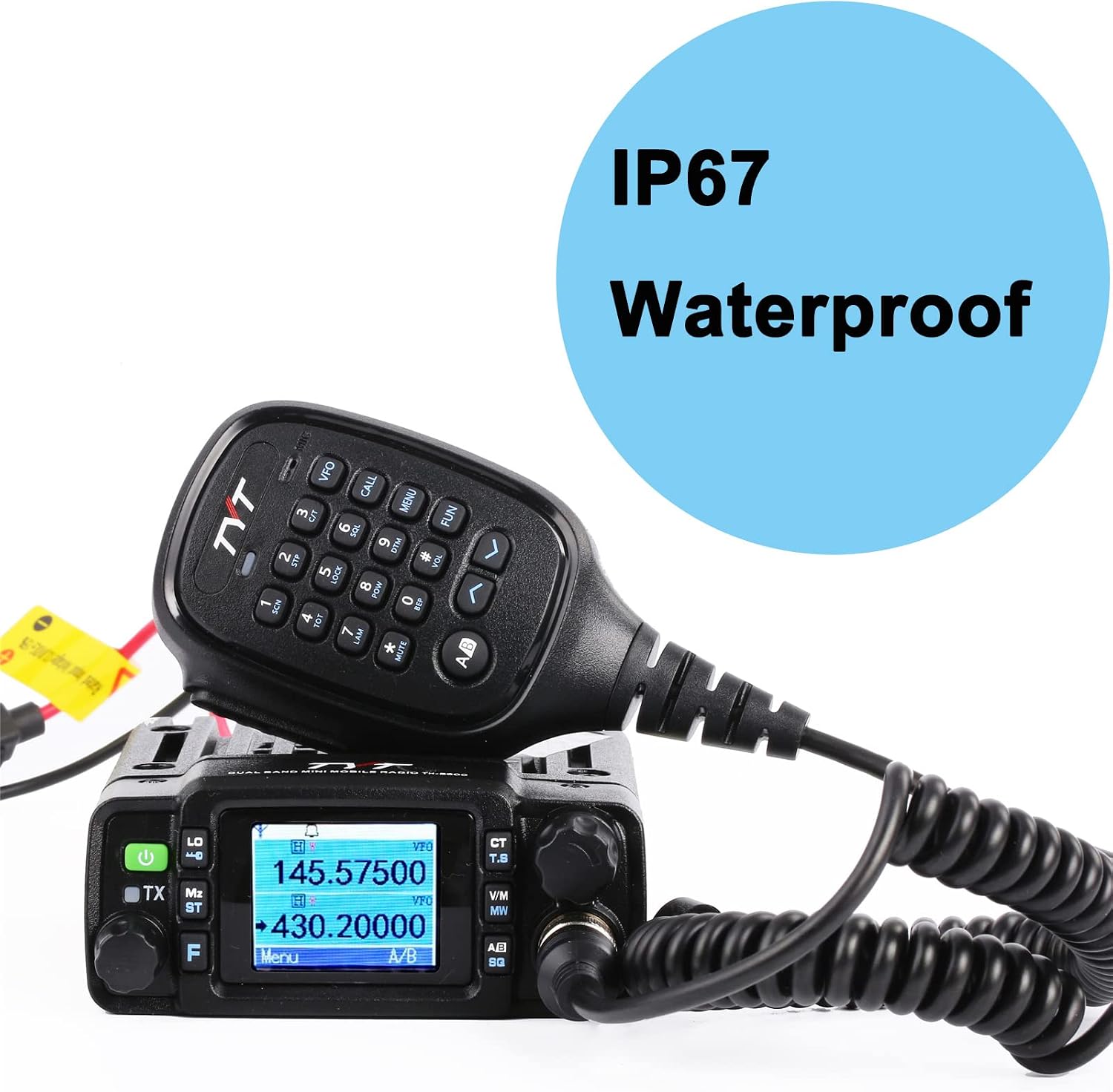

IP67 Waterproof
Dual band, dual display, dual standby
25W for VHF and 20W for UHF
200 channels
P1-P4 programmable functional keys
Color LCD display
CTCSS/DCS/DTMF/2Tone/5Tone/1750Hz tone
Remote stun/kill and activate

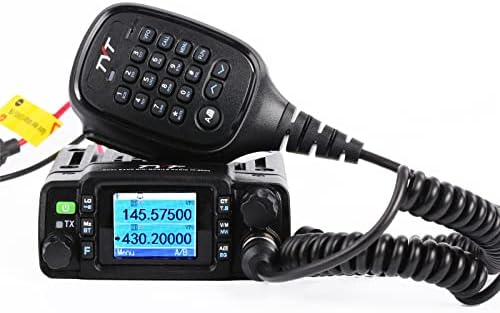

1. Power On/Off
2. TX 3. Main Dial
4. Function Key
5. Adjust the Frequency
6.1. Long Press: switch power output level/Short Press: switch the offset direction
7. Switch CTCSS/DCS
8. VOL: adjust volume key
9. Switch Screen/Switch UHF/VHF
10. Mic. Connector
11. Long Press: store the channel/Short Press: switch the frequency

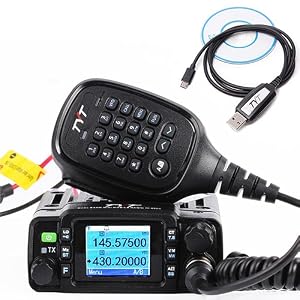

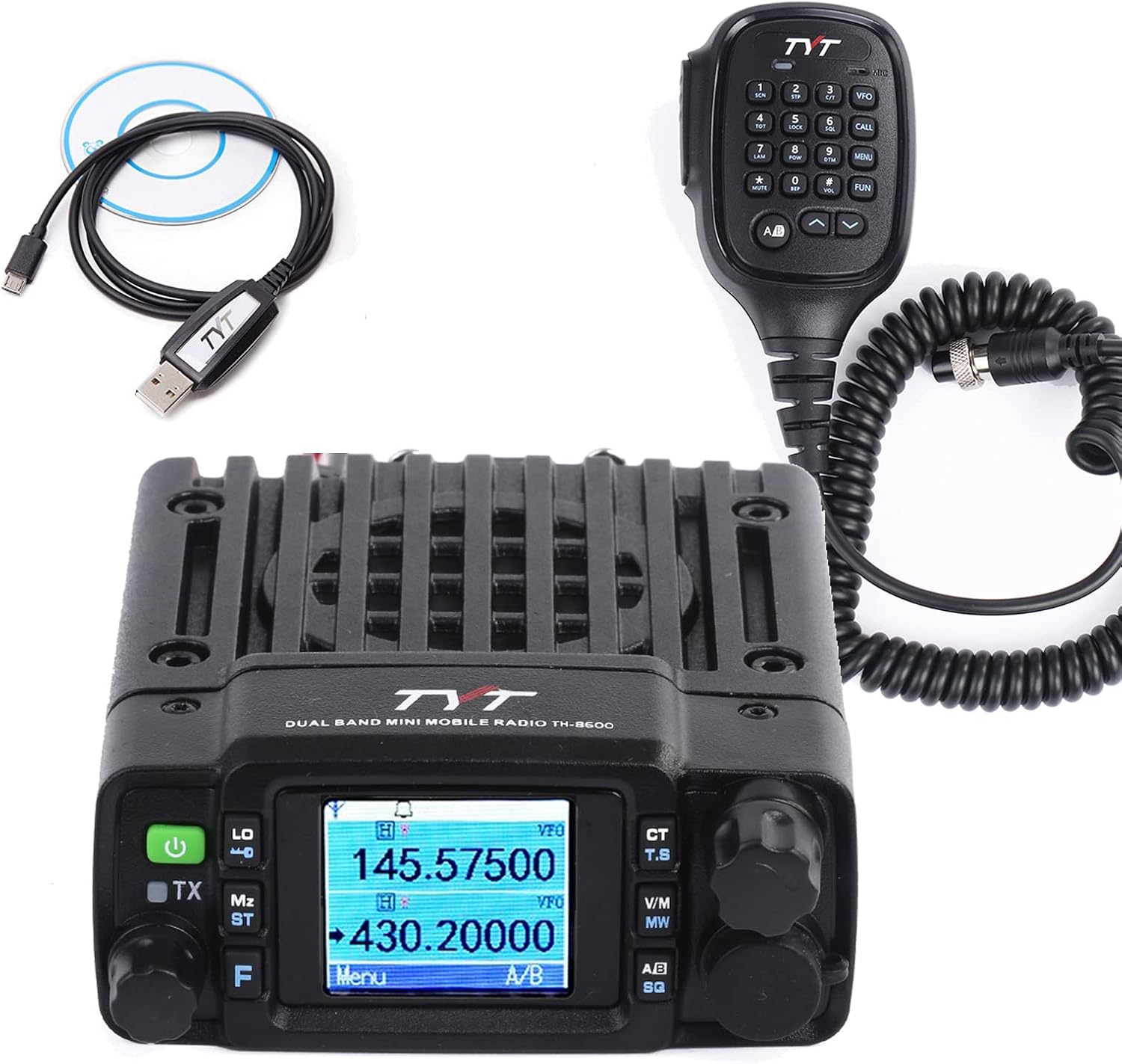

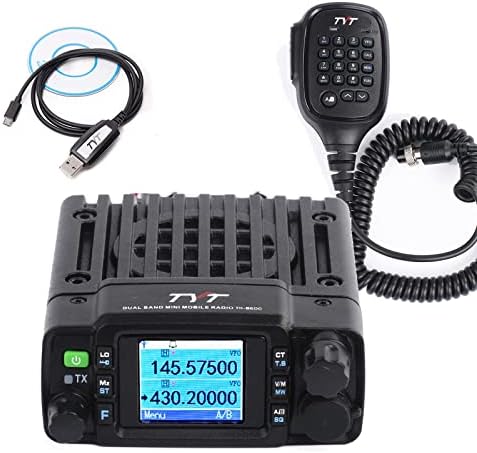

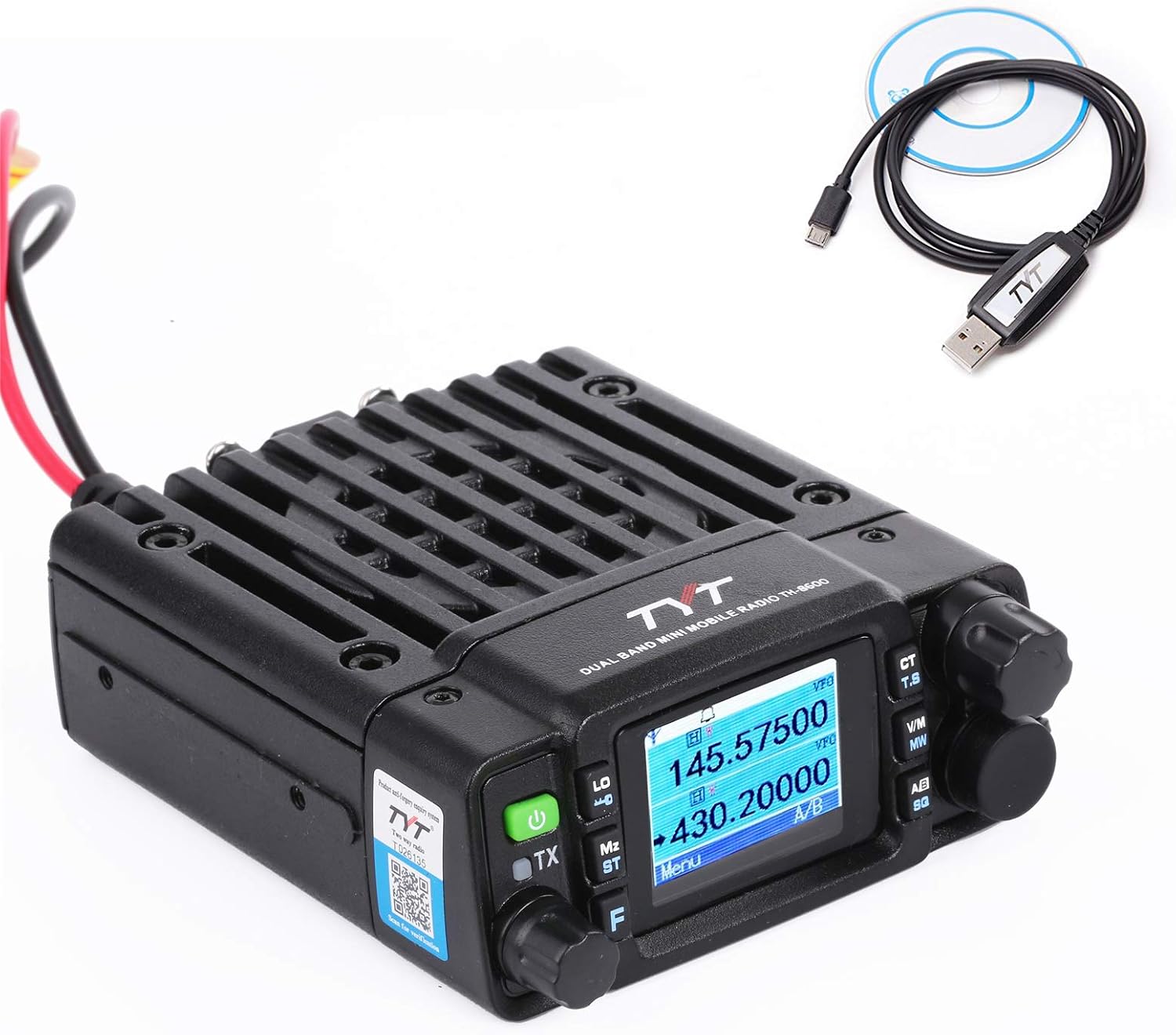

1 * TYT Radio unit (TH-8600)
1 * Keypad DTMF Microphone
1 * Program cable
1 * Protection fuses
1 * Mount Bracket
1 * One pack of Screw
1 * User's manual
Frequency stability (-20℃ +60℃,+25℃): +/-1.0ppm
Sensibility: 0.2μV
Adjacent Ch. Selectivity: 60dB 12.5KHz; 70dB 25KHz
Intermodulation: ≥60dB/≥65dB
Spurious Rejection: ≥70dB
Audio response: +1~-3dB
RF Sensitivity: -122dbm(12db SINAD)
Audio Distortion: <5%
FM Hum and Noise: -40dB 12.5KHz ; -45dB 25KHz
Frequency Range(MHz):
VHF: 144-148Mhz
UHF: 420-450Mhz
Frequency Stability: ±1ppm
Voltage Rating: DC 13.8V
Operating Temperature: -30℃~+60℃
Storage Temperature: -30℃ ~+85℃
Dimention: 4.2" (L) x 5.4 "(W) x 1.8" (H) inch
Weight:1.53lbs
Output Power: 25/20 Watt
Transmitting Current: 4A 13.8V
Standby Current: 0.2A 13.8V
FM Modulation: Wide band:16K0F3E
Modulation distortion: ＜5%
FM Hun and Noise: ≥45dB 25KHz ;≥40dB 12.5KHz
Adjacent Ch. power: ≥60dB 12.5KHz ; ≥70dB 25KHz
Audio response: +1~-3dB
