| Color | Red |
|---|---|
| Material | High-grade Steel |
| Style Name | Floor Jack |
| Unit Count | 1 Count |
| Item Weight | 101 pounds |
| Manufacturer | Strongway |

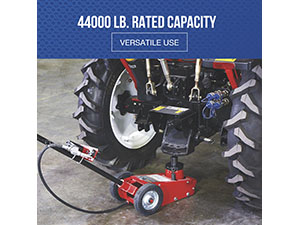

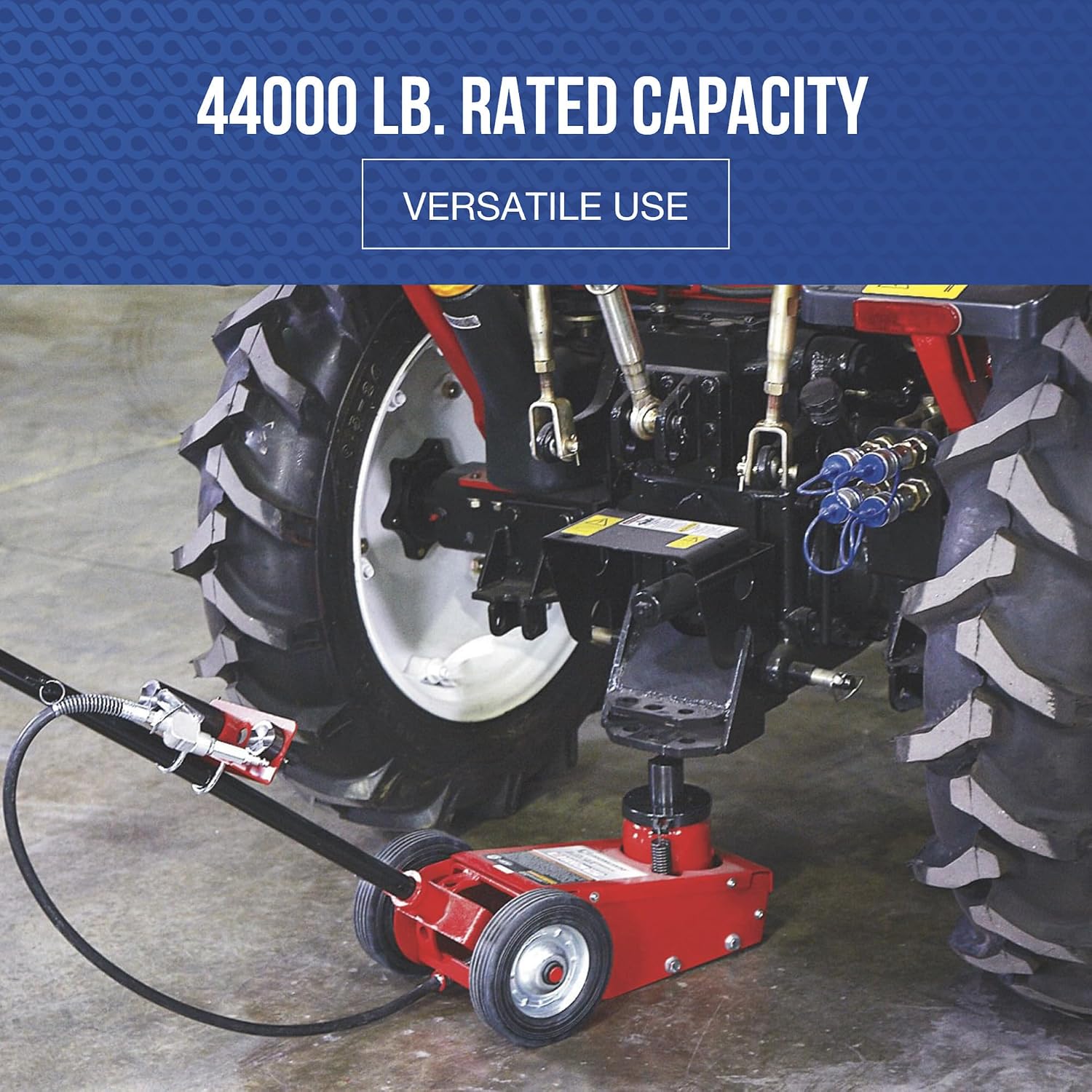

| Load Capacity | 22 Tons |
| Material Type | High-grade Steel |
| Automotive Fit Type | Universal Fit |
| Maximum Lifting Height | 21.73 inches |
| Manufacturer Part Number | 3076844 |
| Compatible With Vehicle Type | Heavy vehicles, trucks, industrial machinery |
| Compatible with Vehicle Type | Heavy vehicles, trucks, industrial machinery |
| Manufacturer Warranty Description | 1 year Limited Warranty |

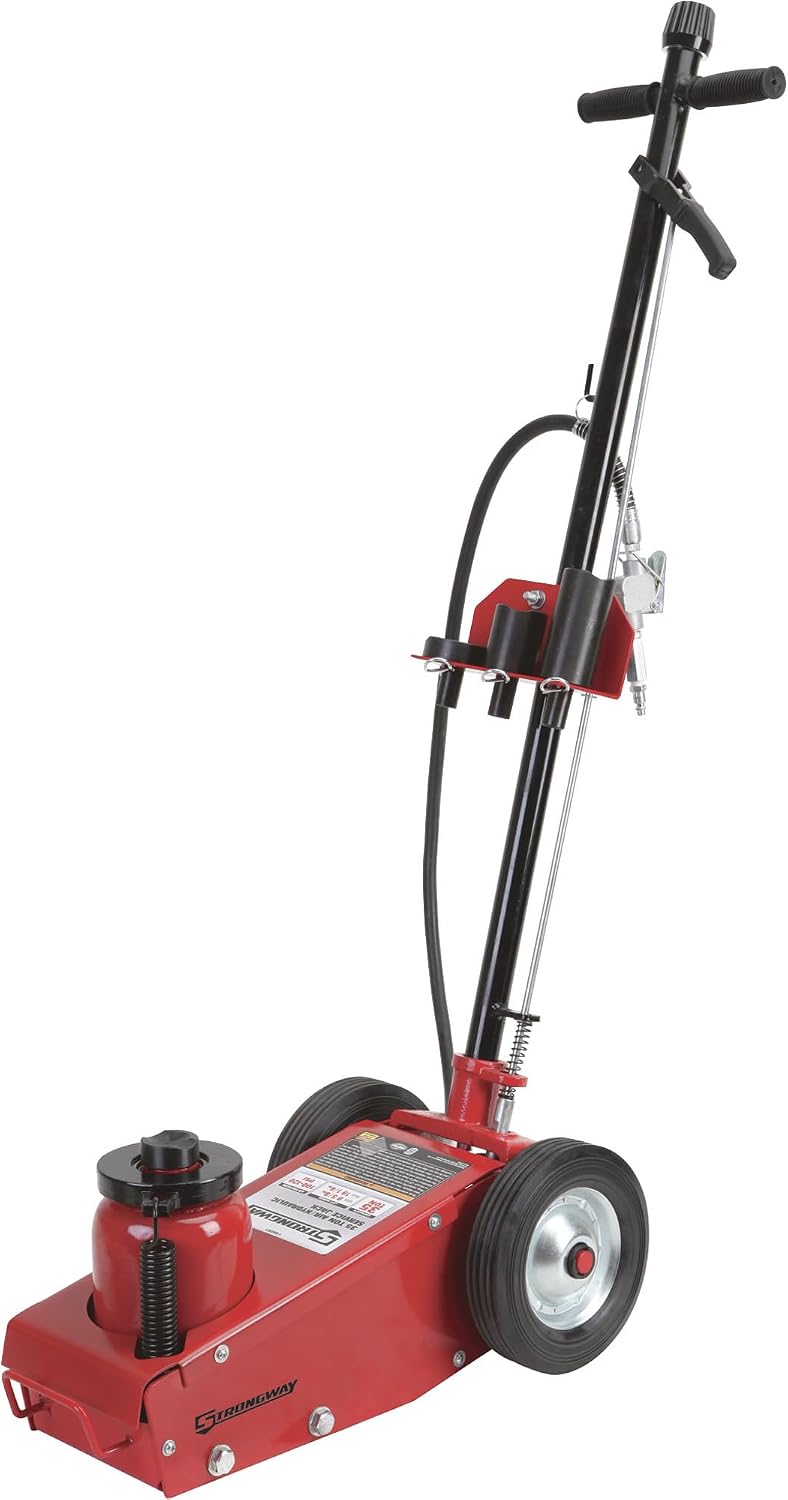

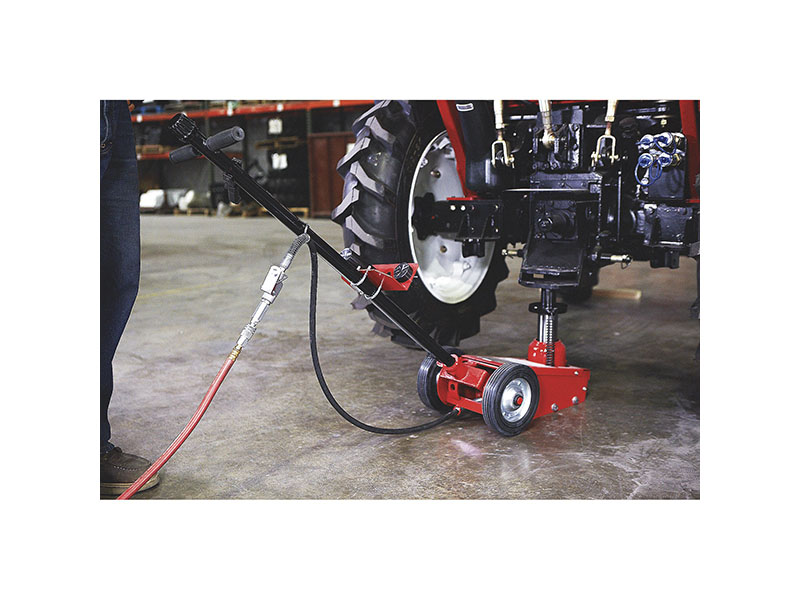

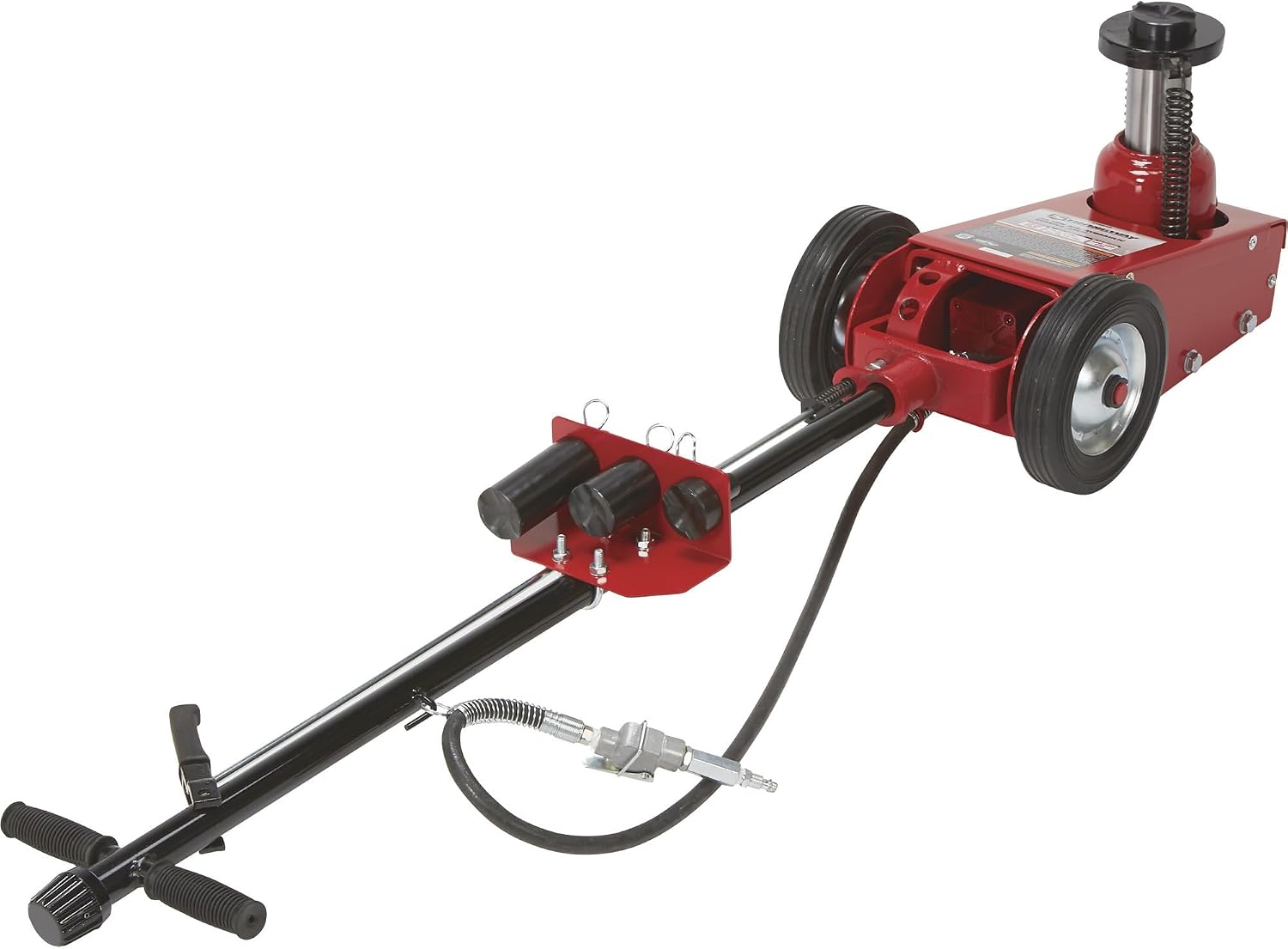

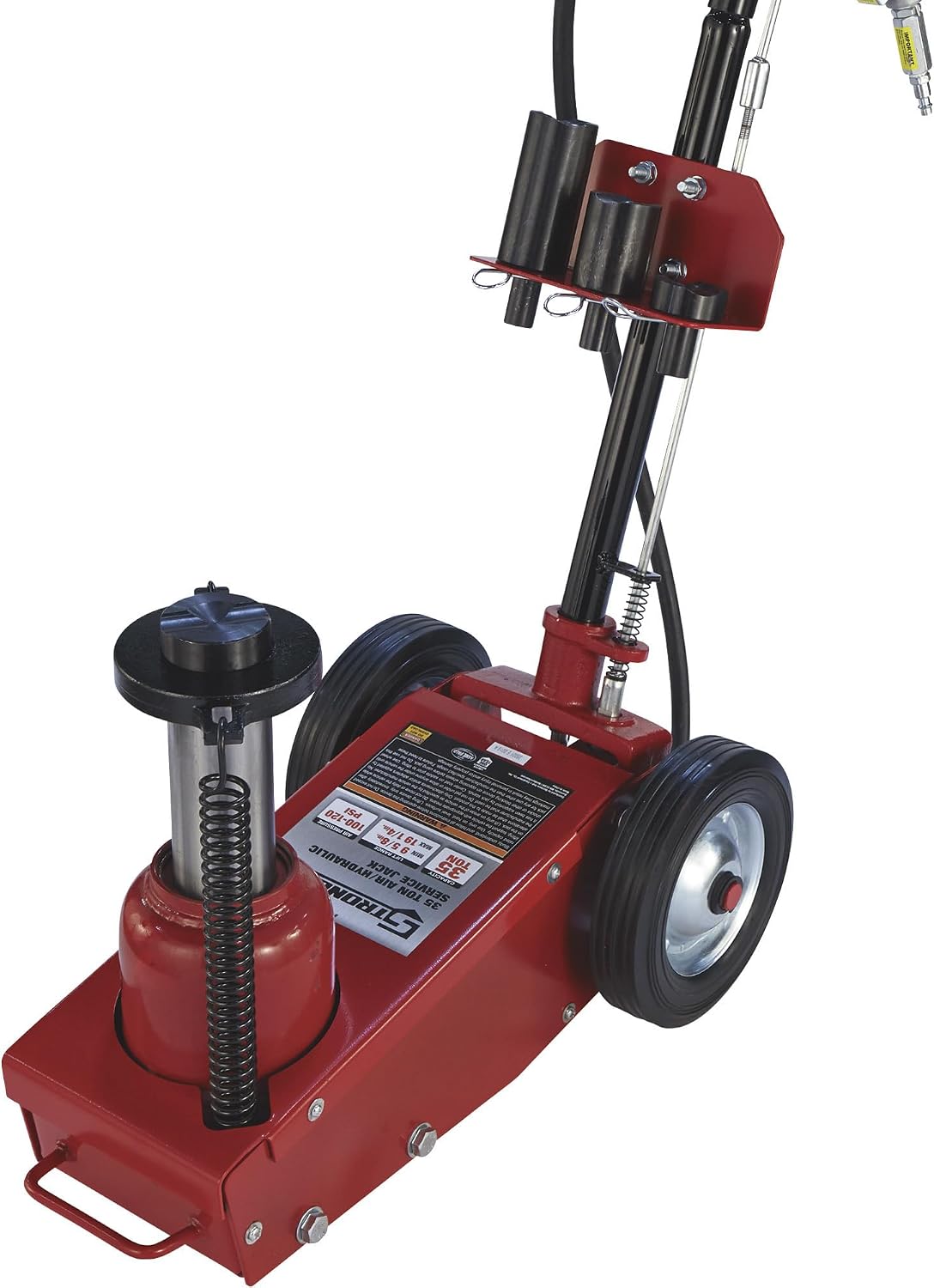

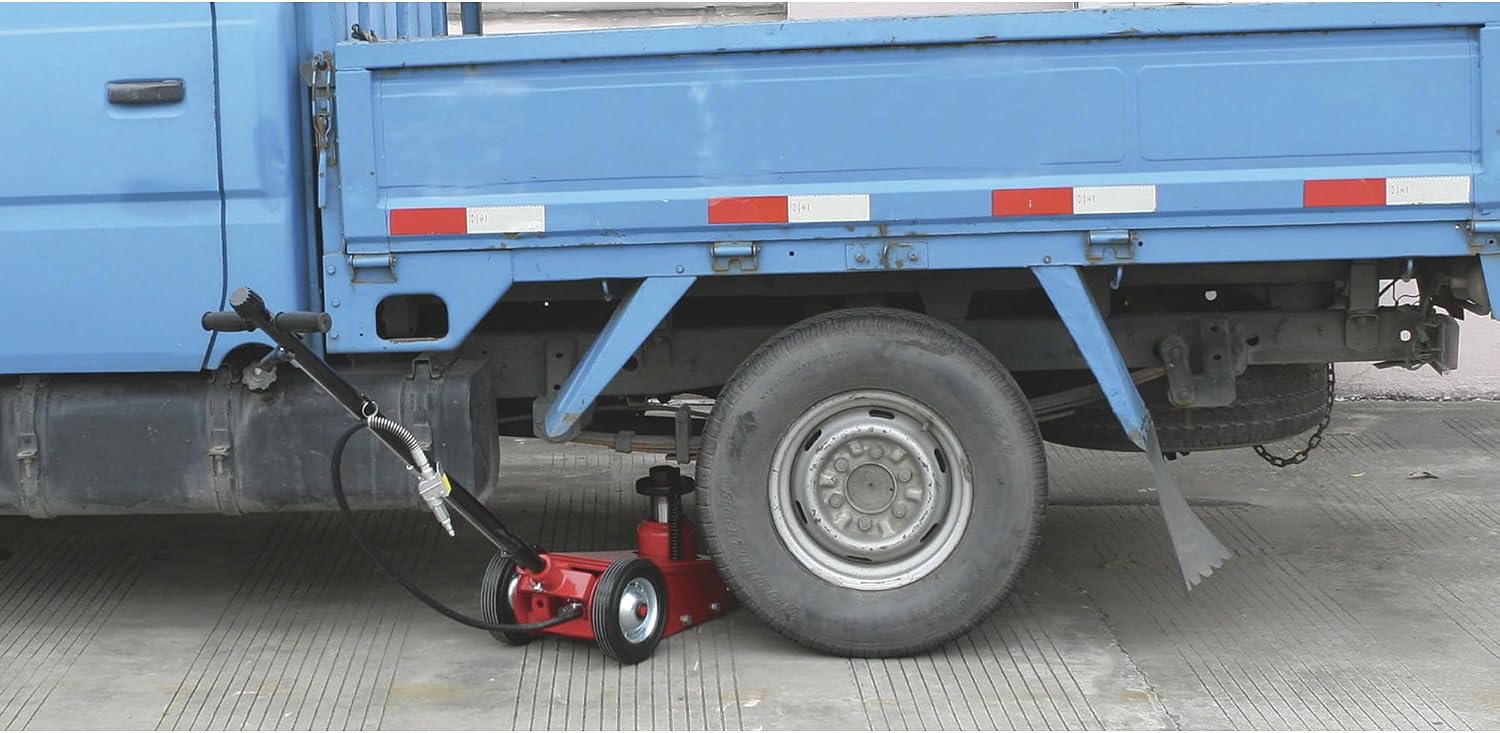

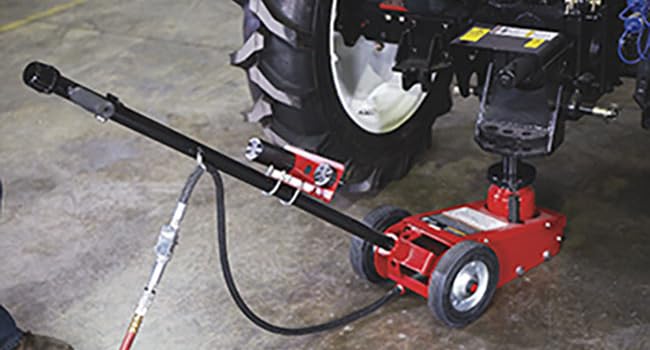

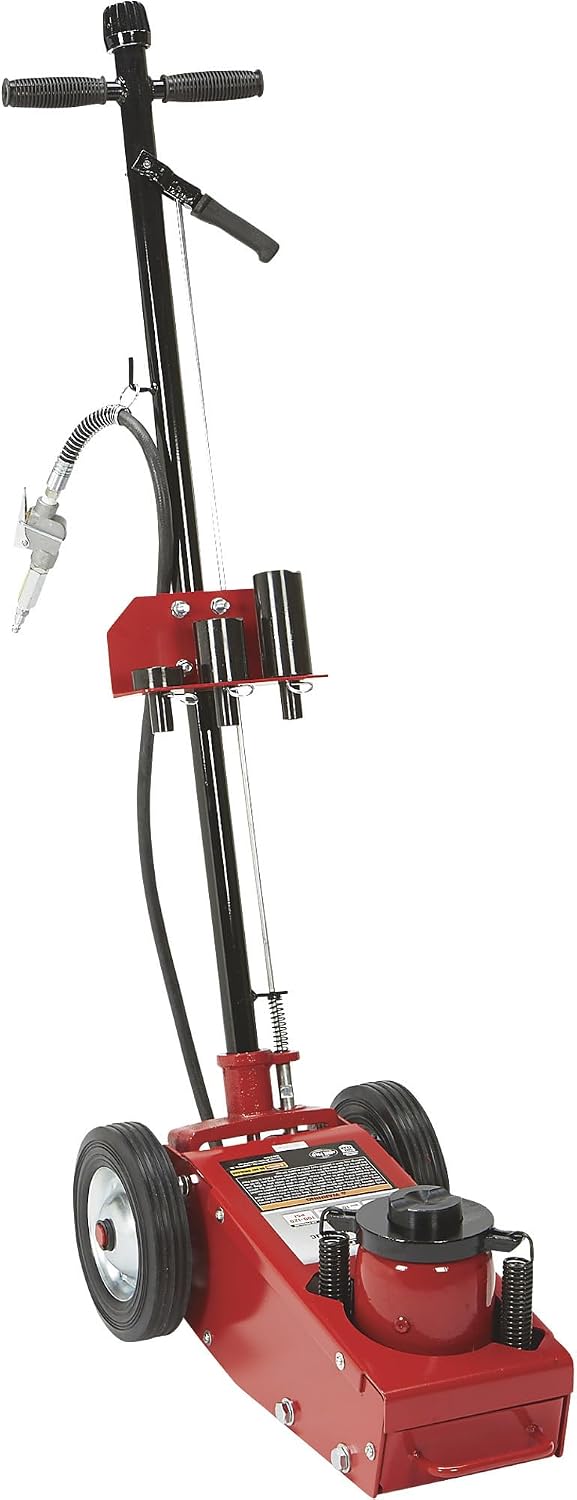

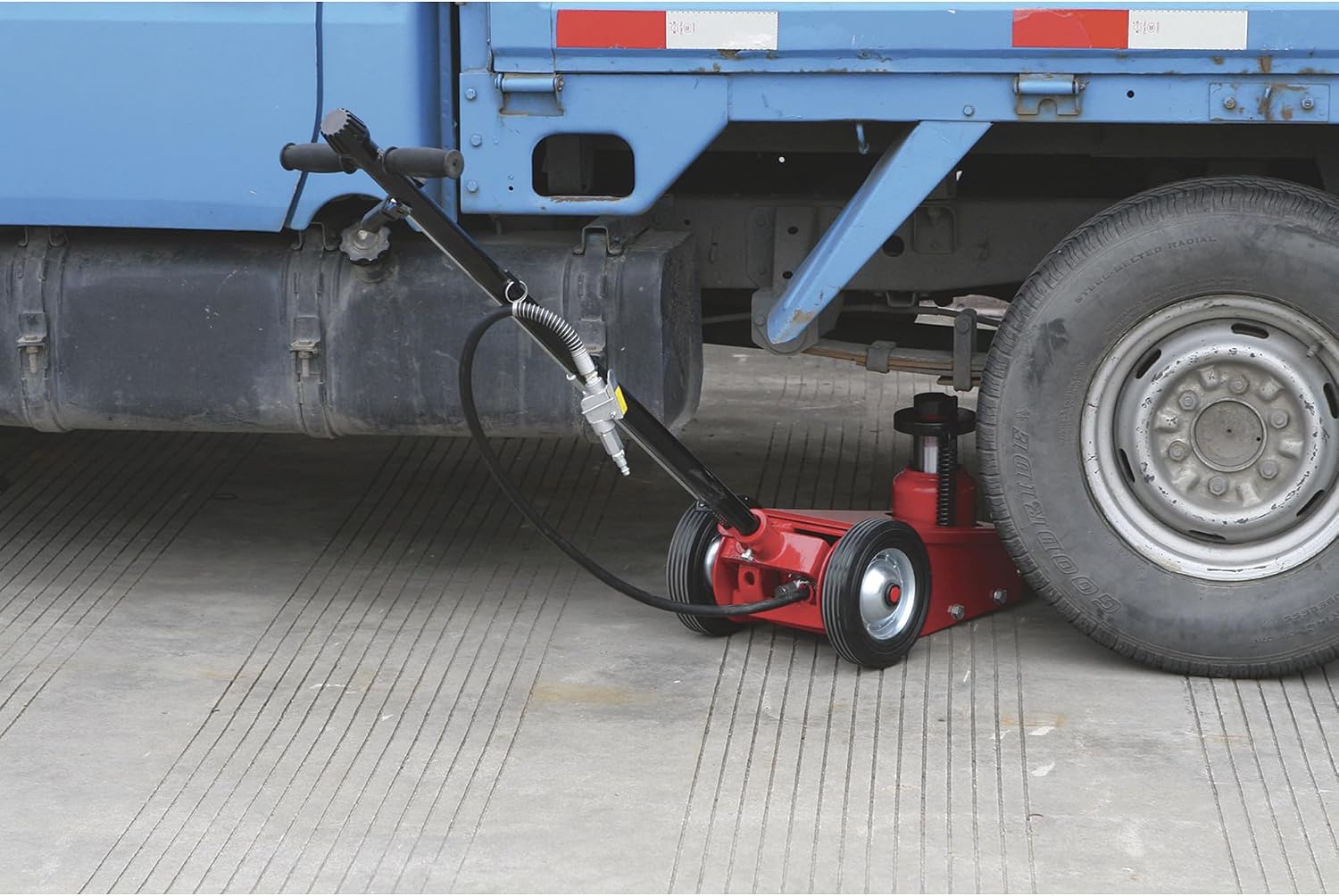

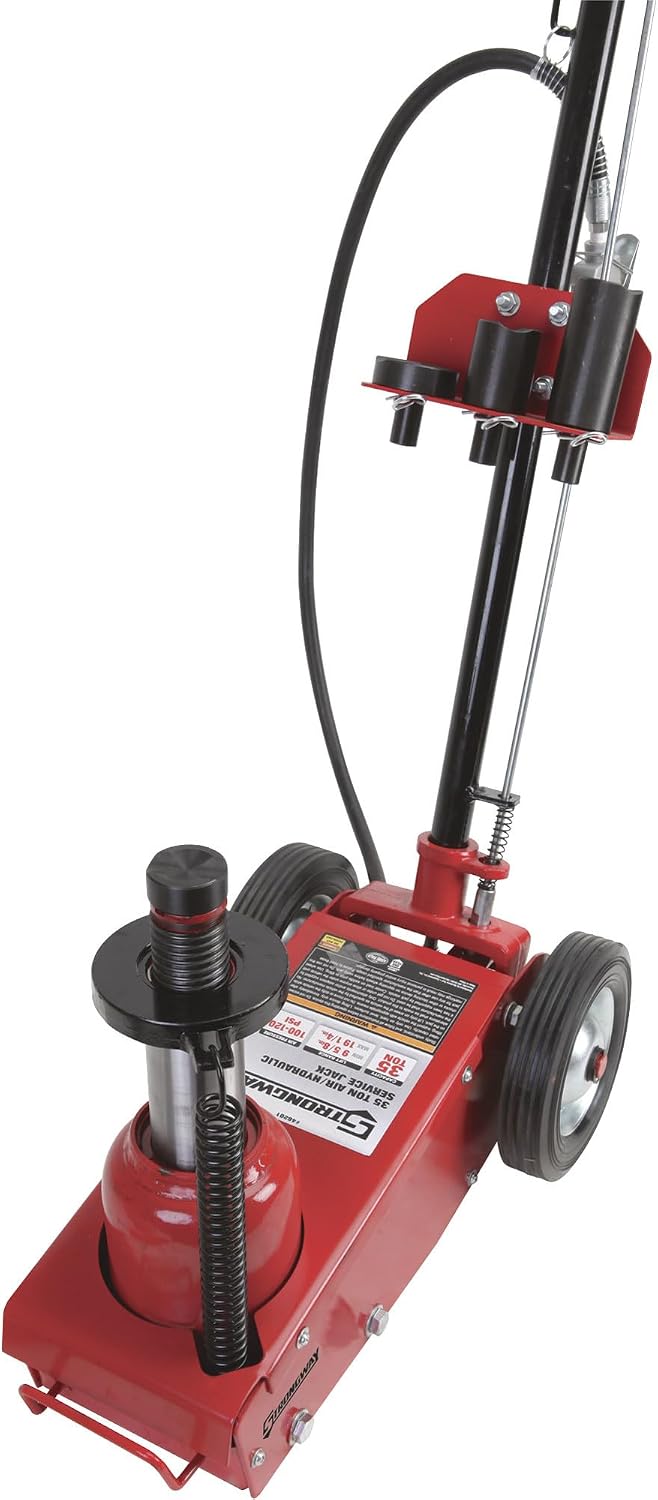

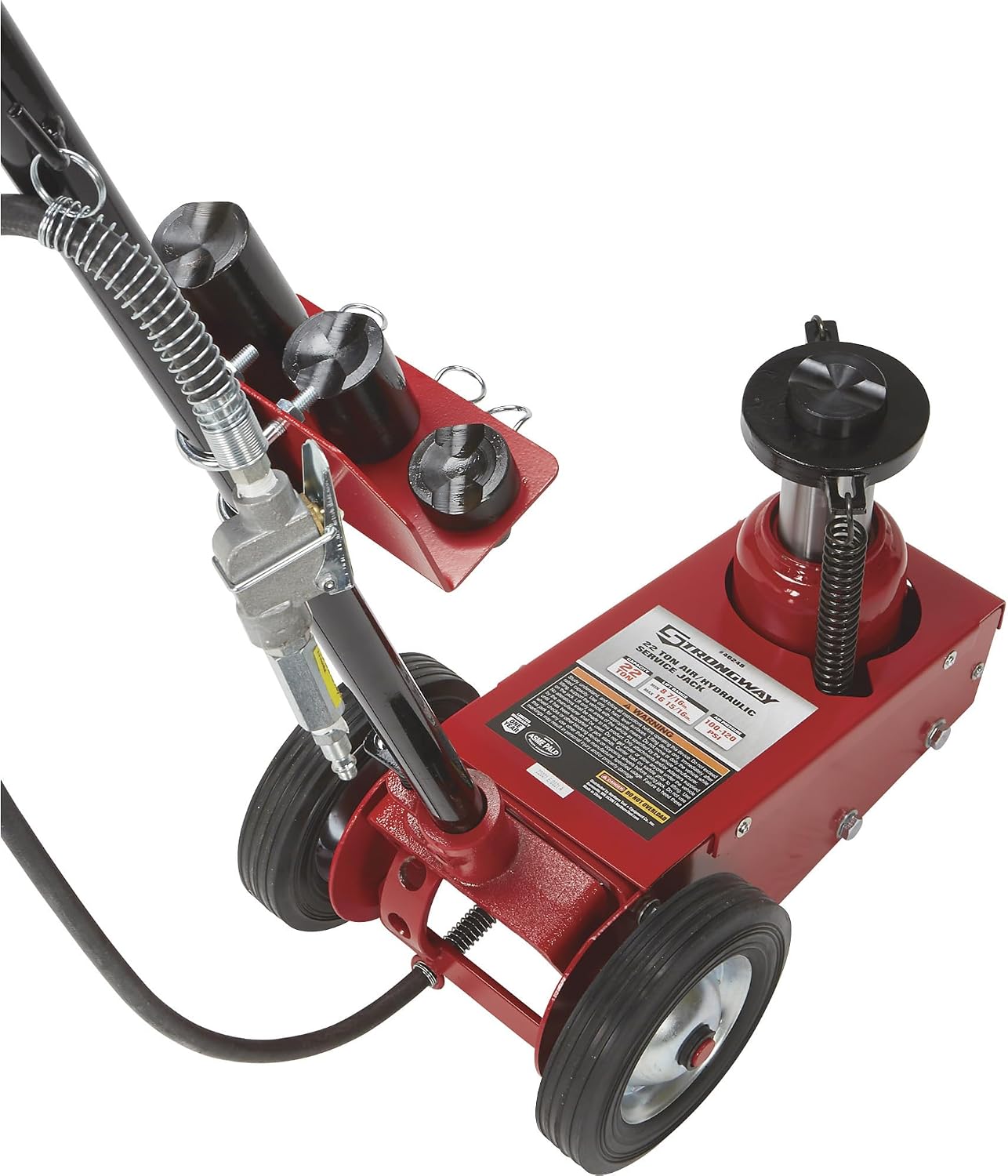

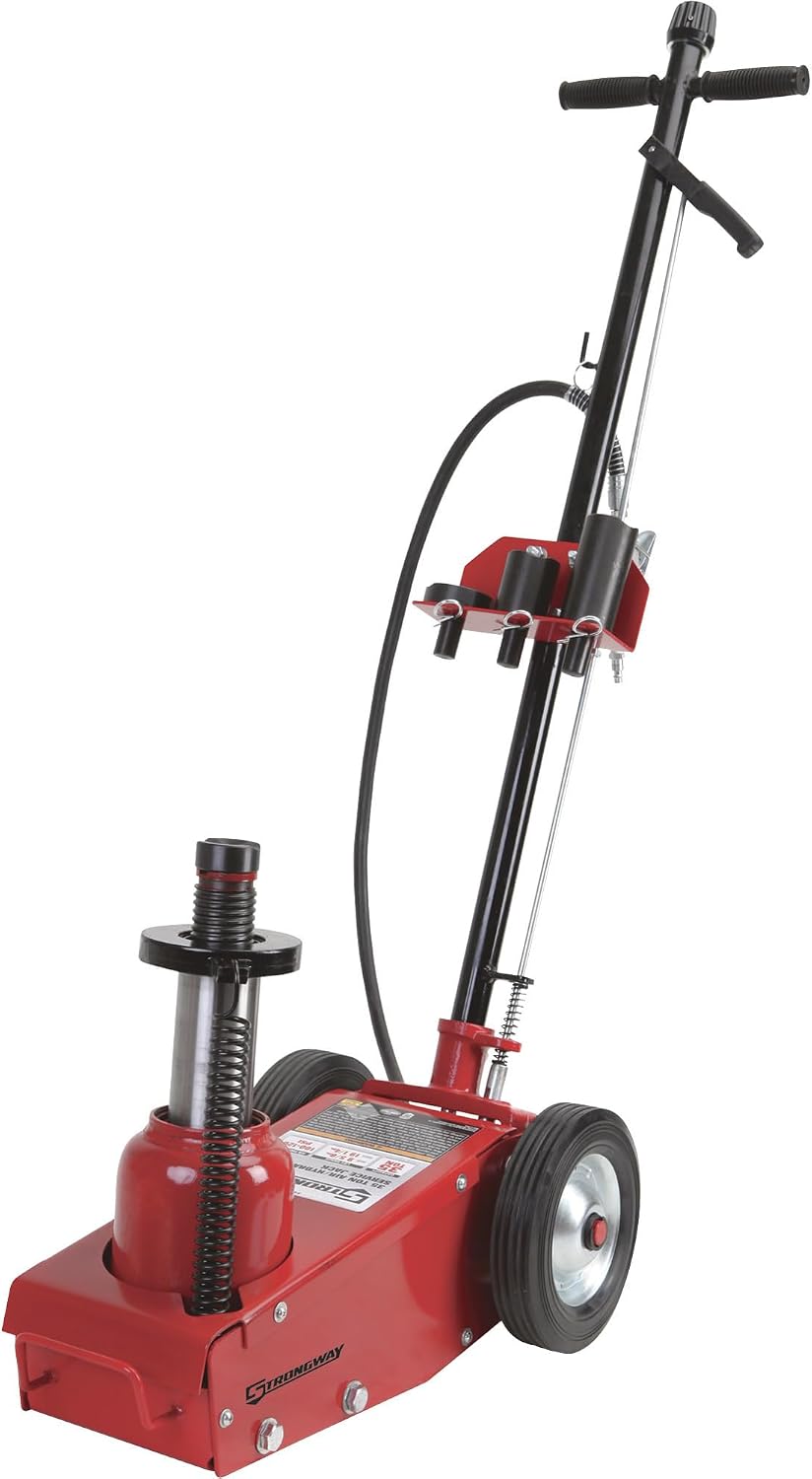

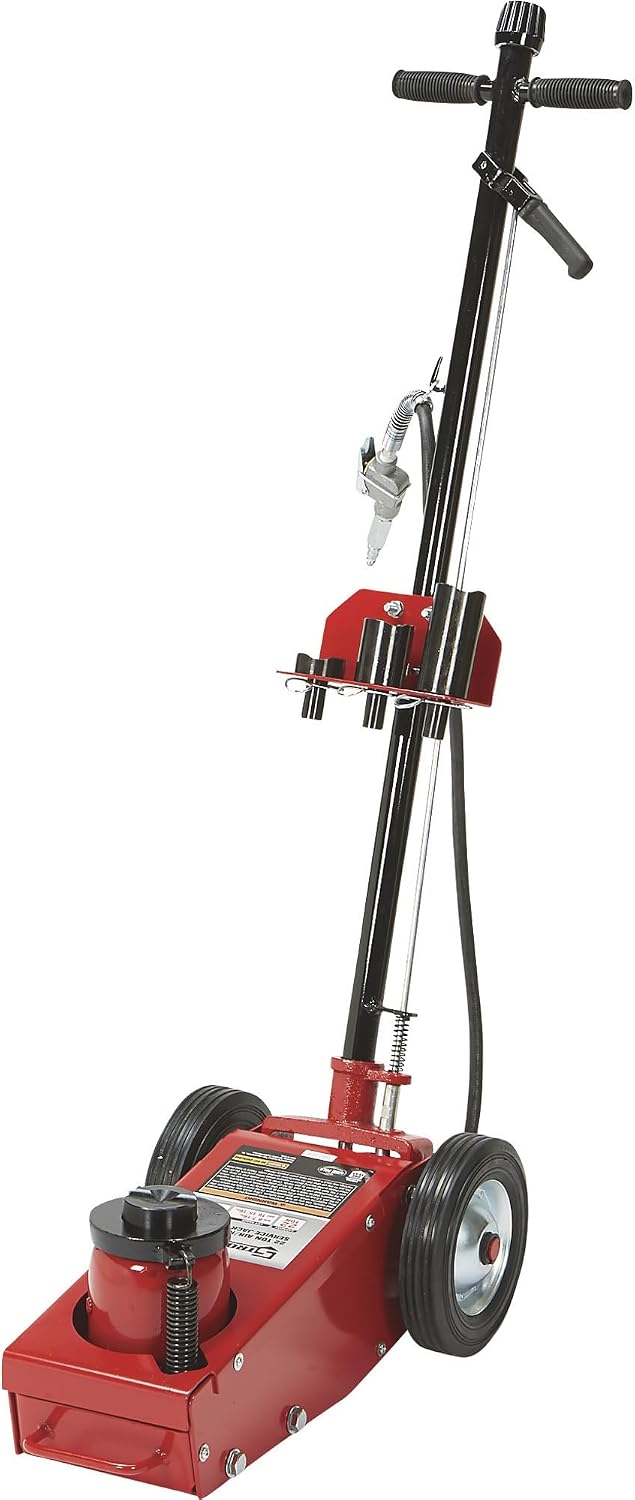

This 22-ton heavy-duty Air/Hydraulic Quick Lift Service Jack is the perfect choice for a wide variety of uses.

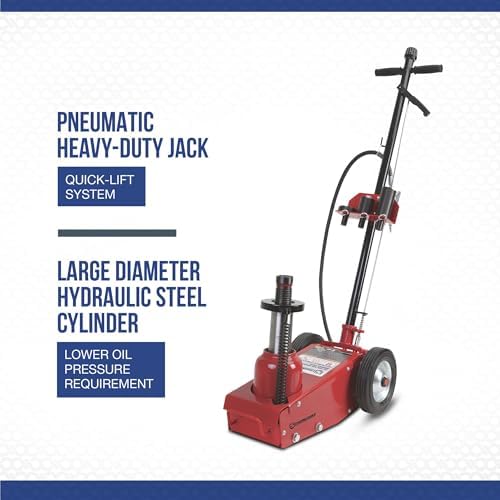

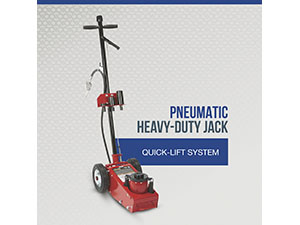

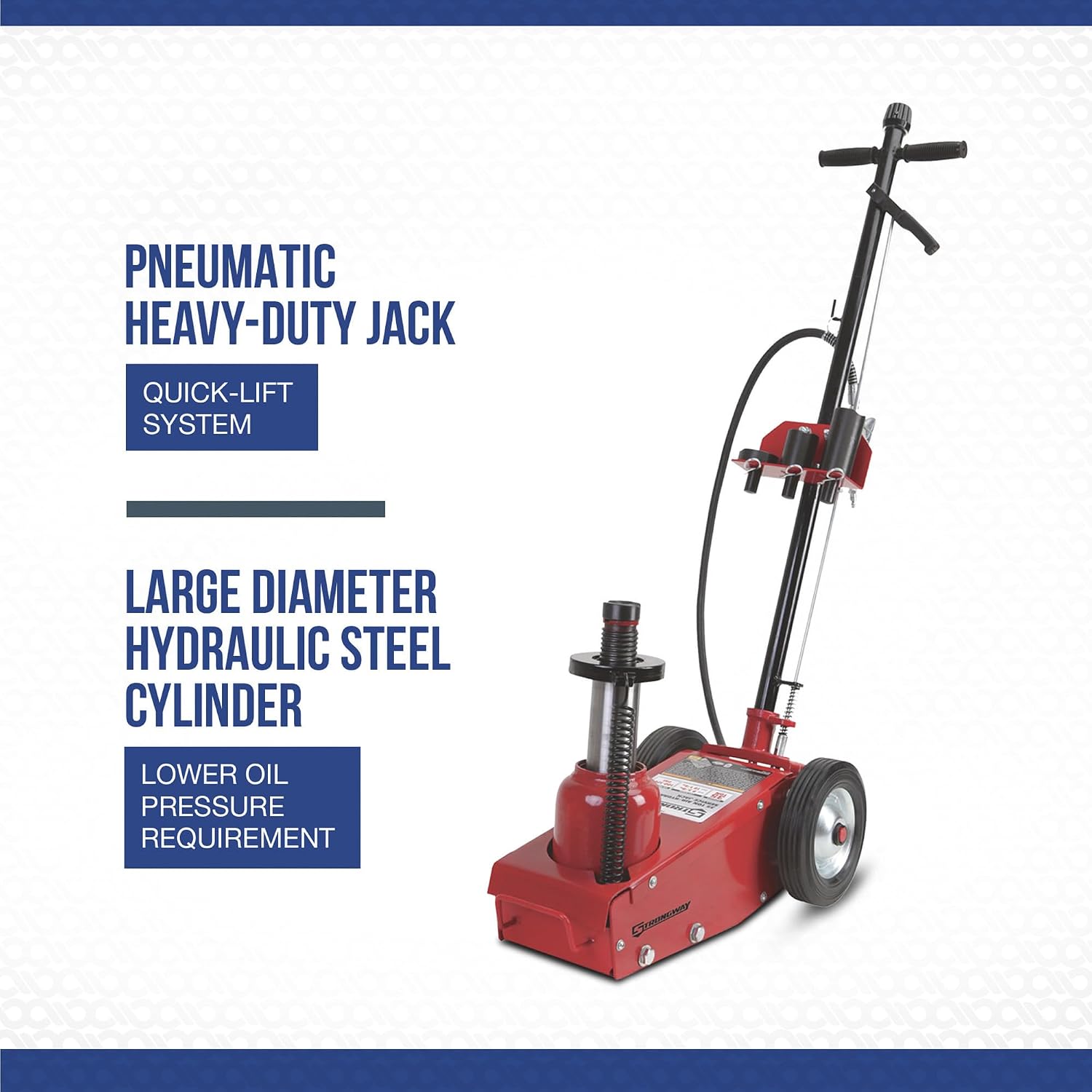

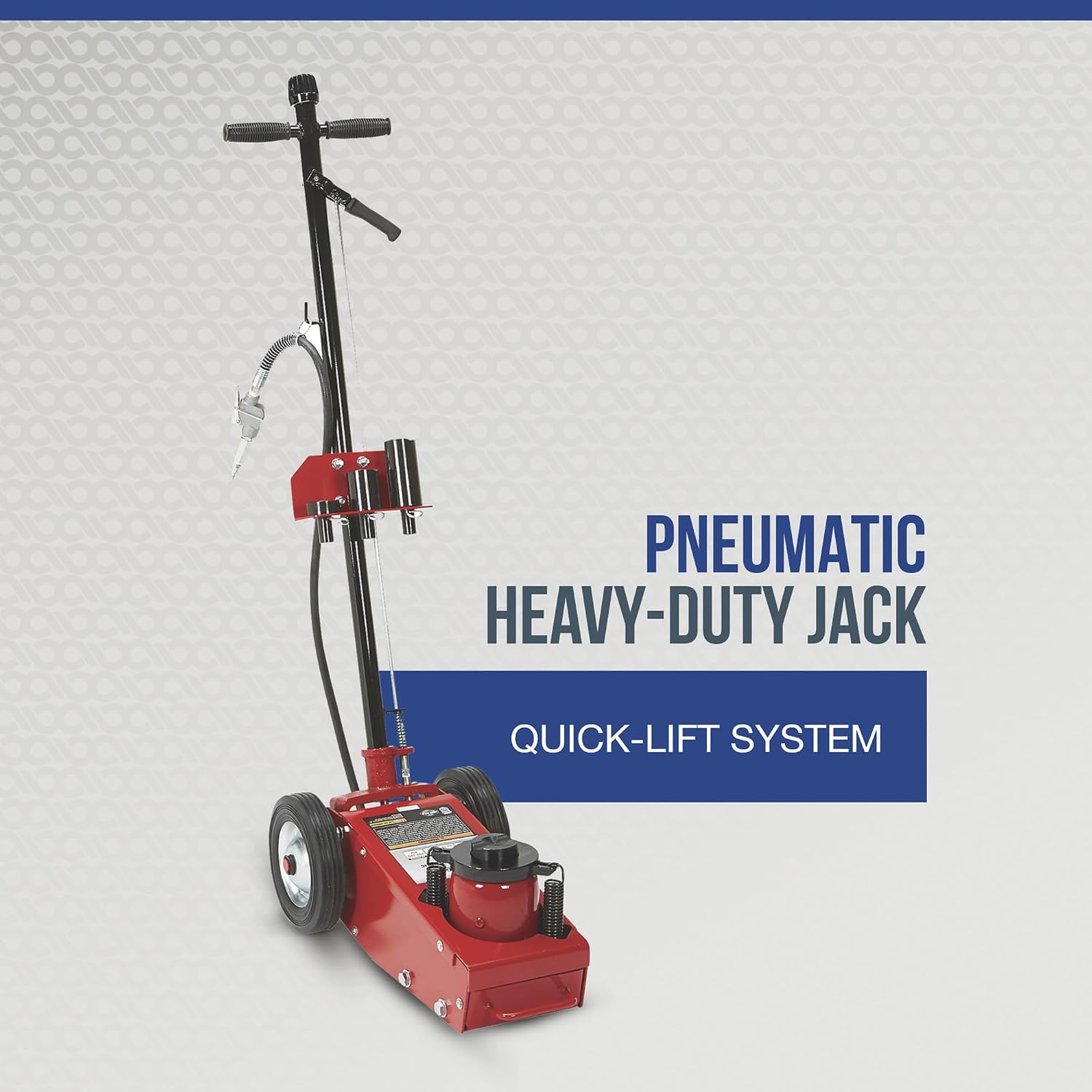

The Quick Lift system gets the job done. The system allows the lifting ram to come in contact load faster.
Use this workhorse with a 100–120 PSI rated air pressure supply to lighten the load and provide the fast, strong lifting power you need, or operate it

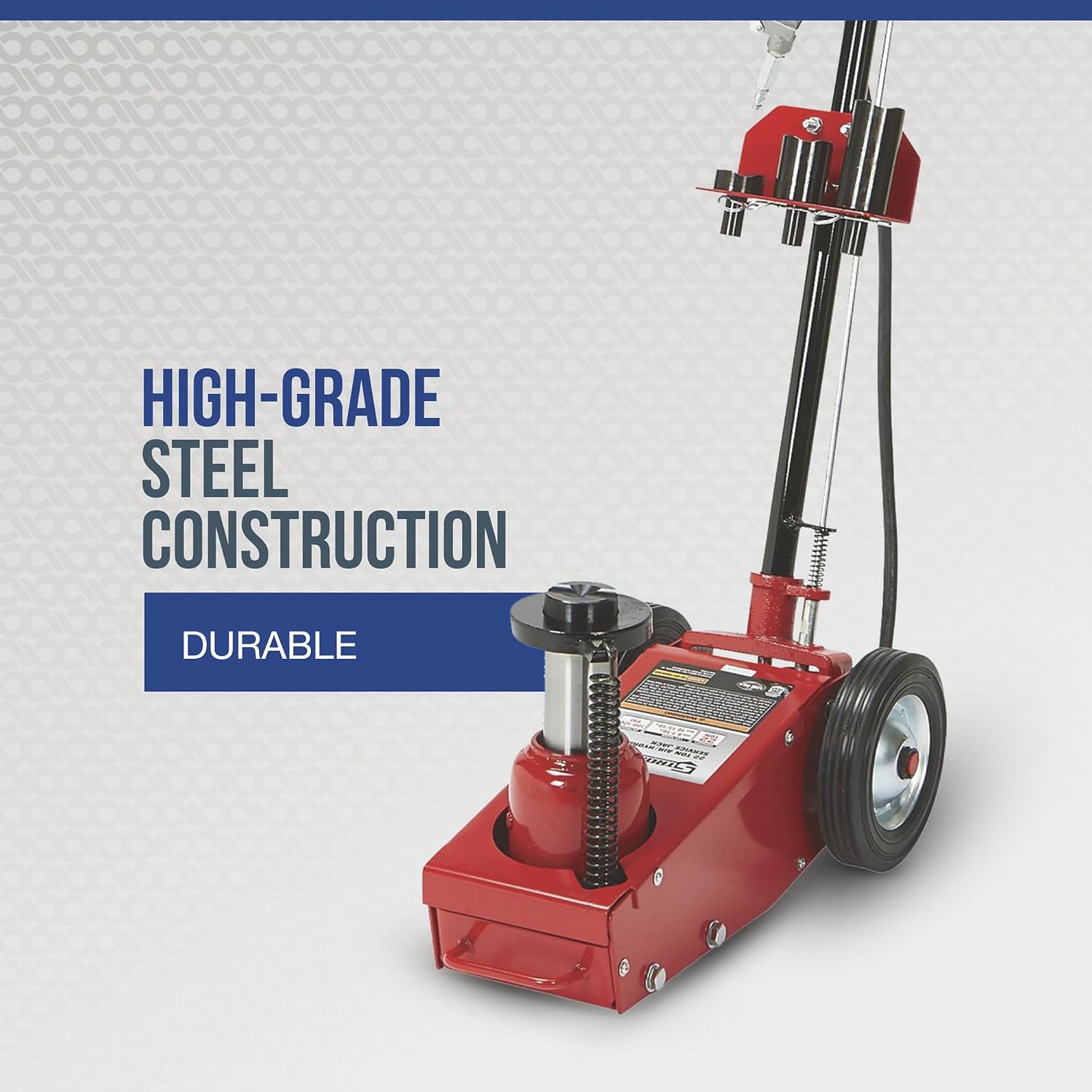

This jack is designed for durability. A rugged high-grade steel frame is teamed with a lead-free paint finish that covers the entire surface.
From the highest grades of rugged steel, to the wear-resistant Y style sealing rings, to the super strong QT 450 Nodular Iron hydraulic pump, right down to the high/low temperature-resistant (40°F to 105°F) hydraulic oil, Strong way uses quality components built to exacting standards to deliver top performance and reliability.

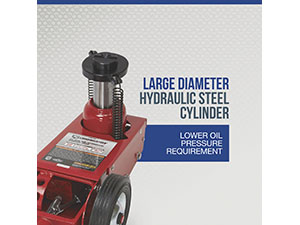

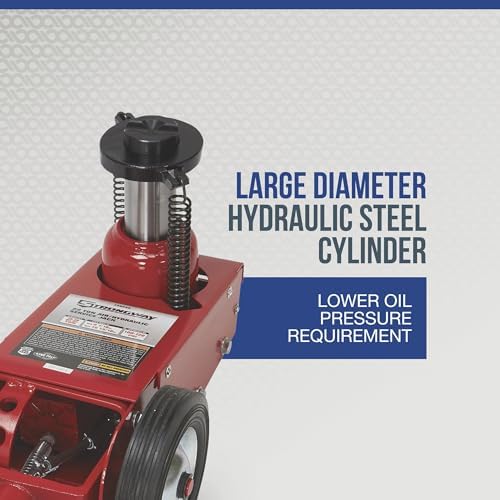

The long-wearing performance of this jack starts with the piston-ram. It's treated and polished to resist thinning over time and uses a Y-style polyurethane sealing ring with a backup ring. This Y-ring keeps the jack solidly raised in the desired position, preventing the load from falling slowly.
This jack is fitted with a built-in bypass hydraulic safety overload system for extra protection and to give you extra peace of mind. Even if you load the jack up with too much weight, the safety overload kicks in and gently lowers the unit before the operator is put in a dangerous situation.
Each Strong way jack is built in ISO facilities and engineered using the same systems as Aerospace Technologies and the Automotive OEM sector. The Air/Hydraulic Quick Lift Service Jack is also tested for reliability and safety to meet strict ASME PALD 2009 standards and requirements. The end result is a safety manufactured to the highest standards, so you can trust this jack to do the job right.
| Ship Weight | 101.0 LB |
| Lift Capacity | 22 Tons |
| Max. Lift Height | 16.94 in |
| Product Type | Axle Jack |
| Min. Lift Height | 8.44 in |
| Safety Valve | Yes |
| Product Weight | 103.5 lb |

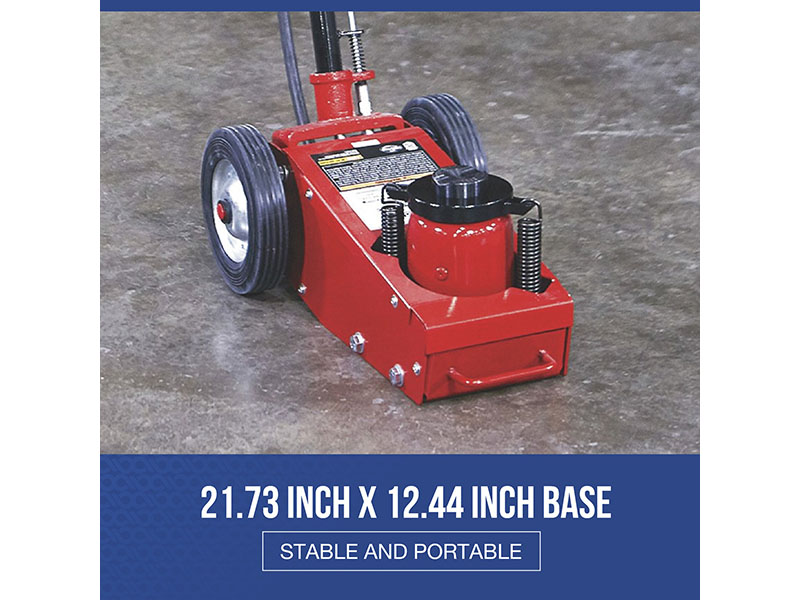

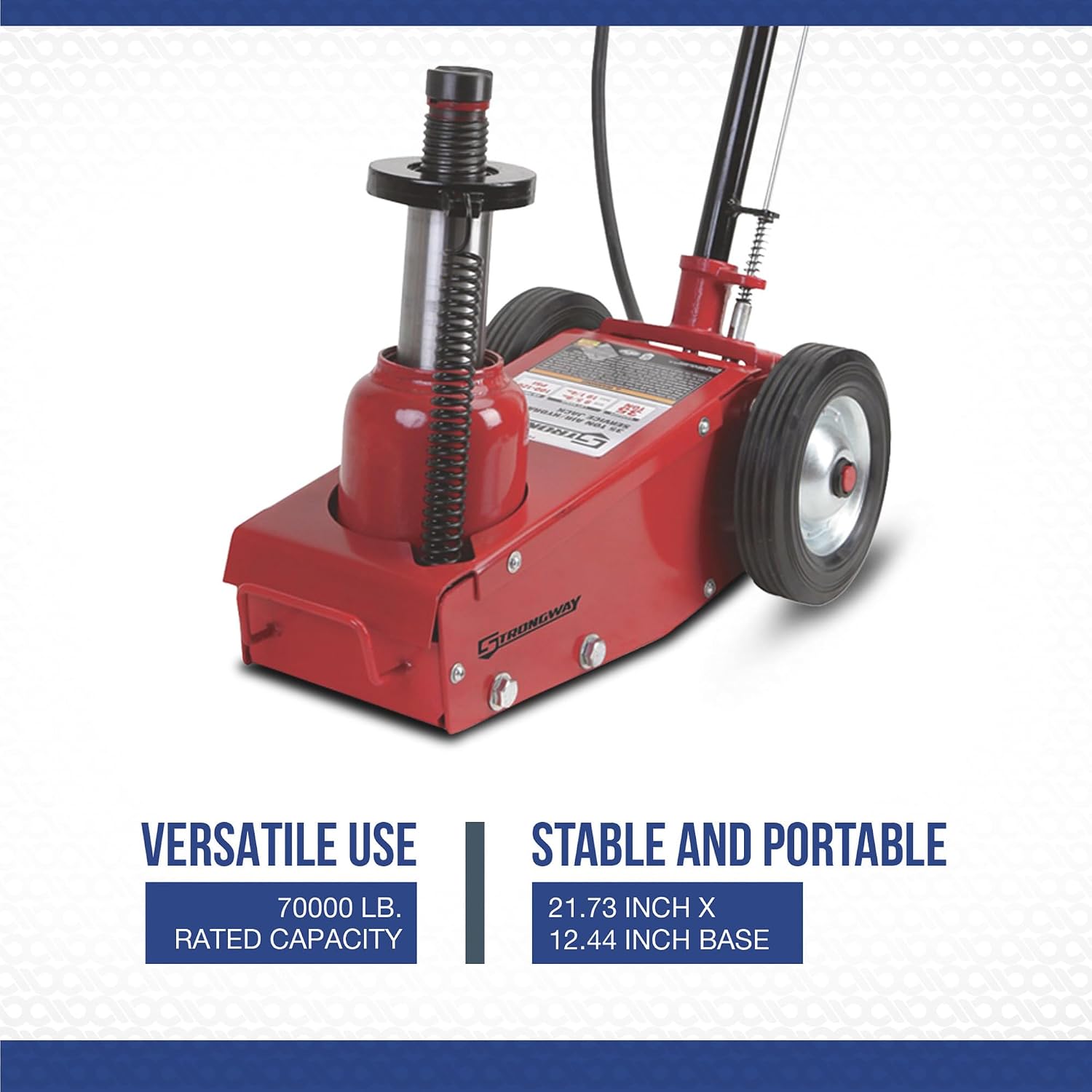

| Dimensions L x W x H (in.) | 21.75 x 12.43 x 9.875 in |
