| Color | Silver |
|---|---|
| Shape | Rectangular |
| Material | Stainless Steel |
| Lock Type | Screw Lock |
| Item Shape | Rectangular |

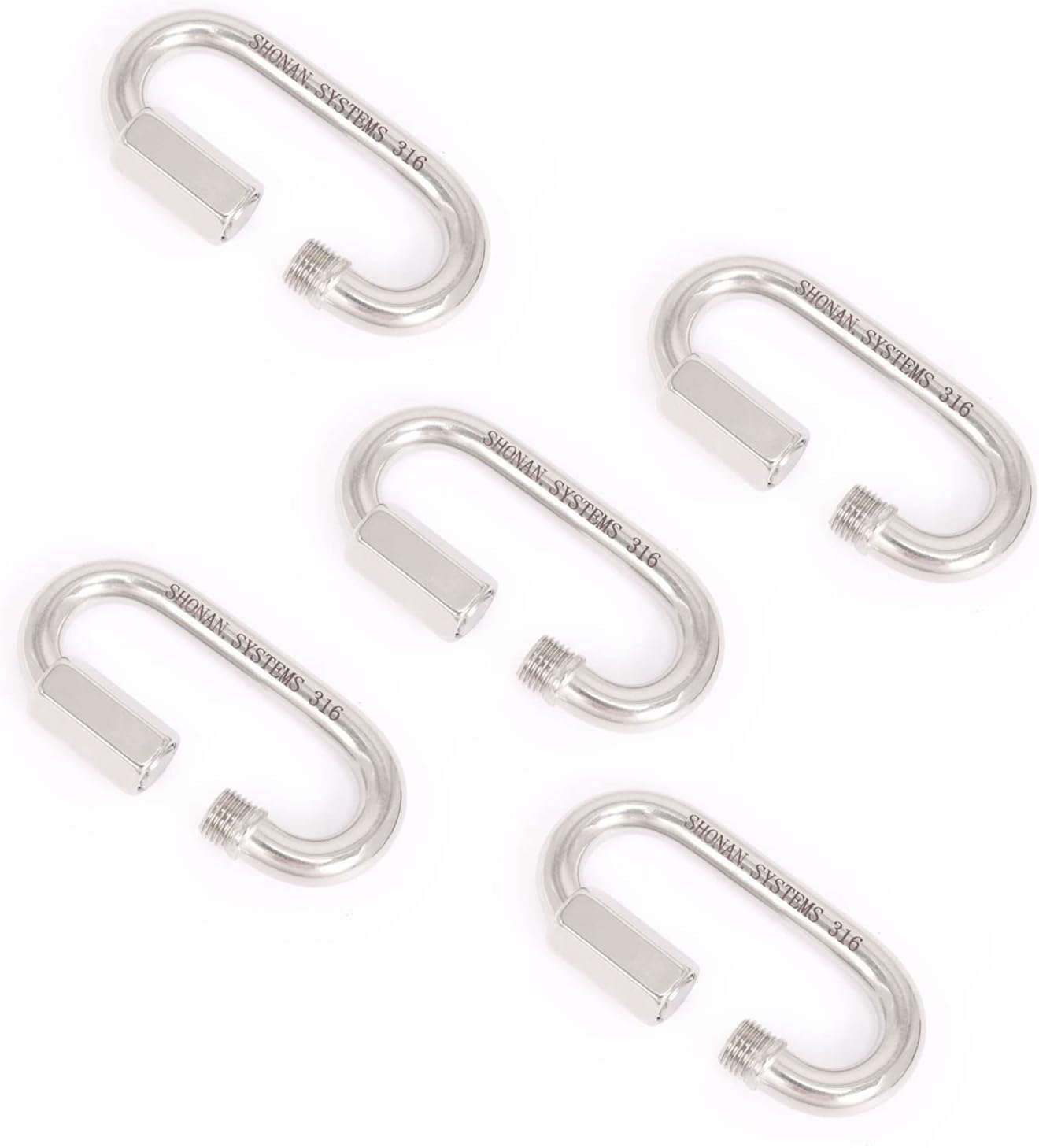

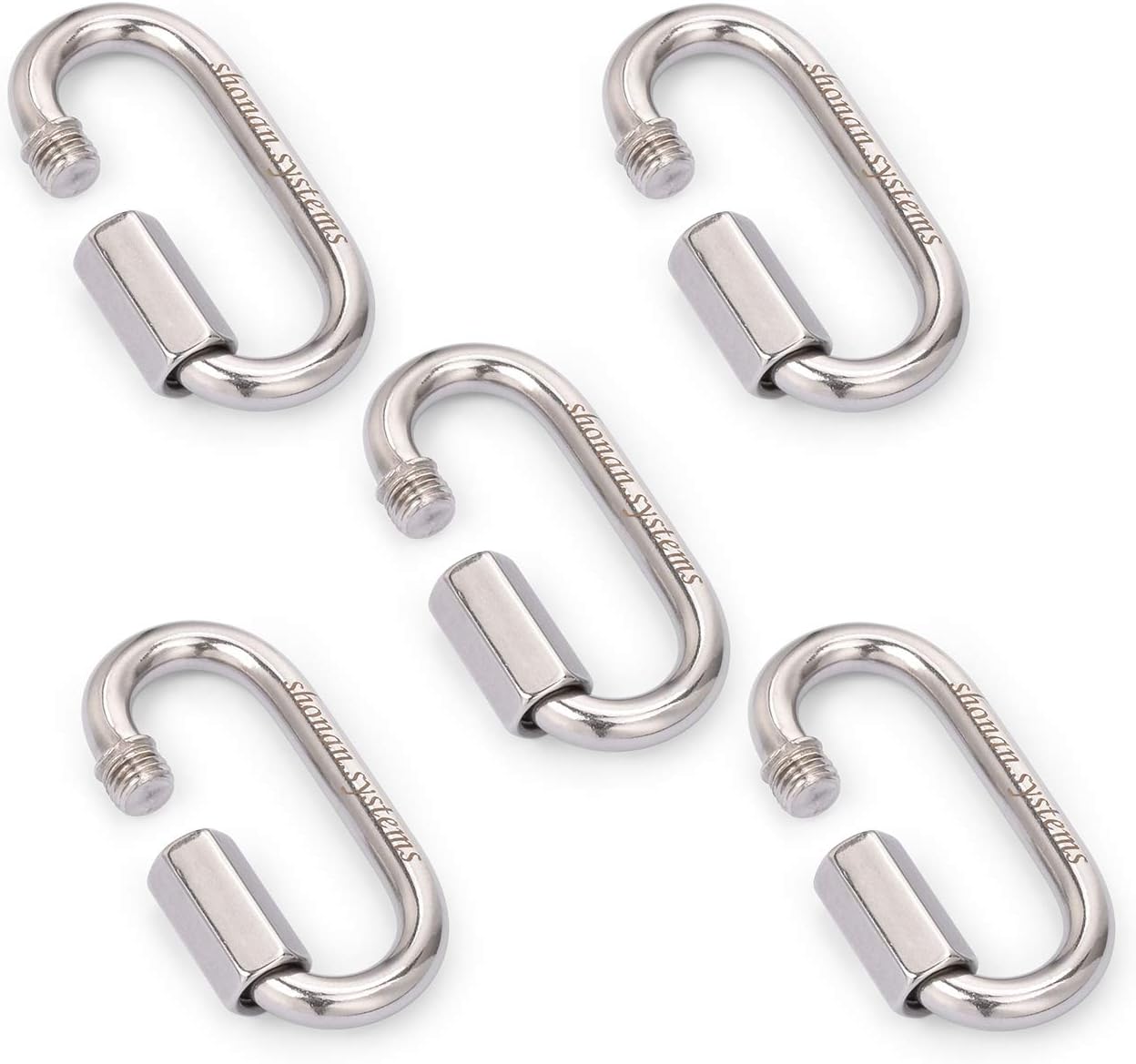

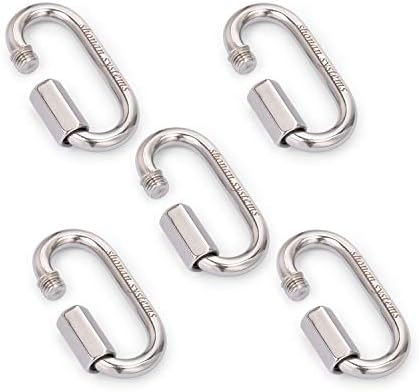

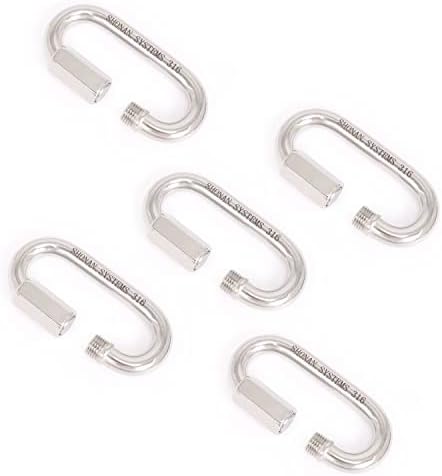

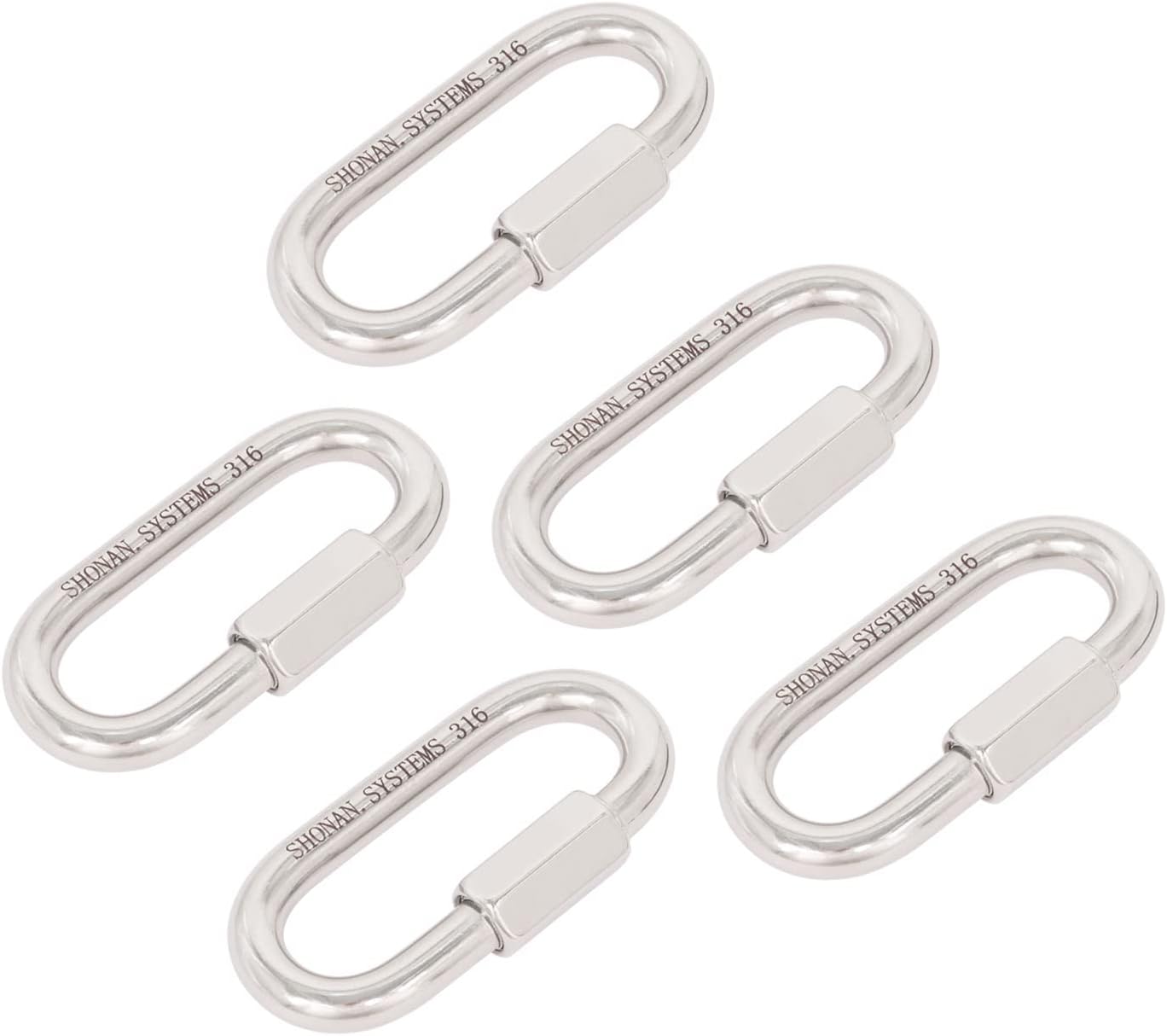

| Unit Count | 5 Count |

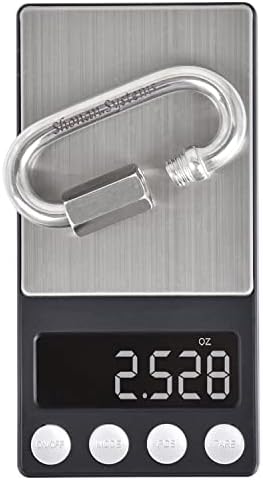

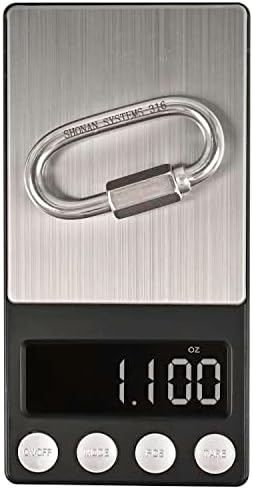

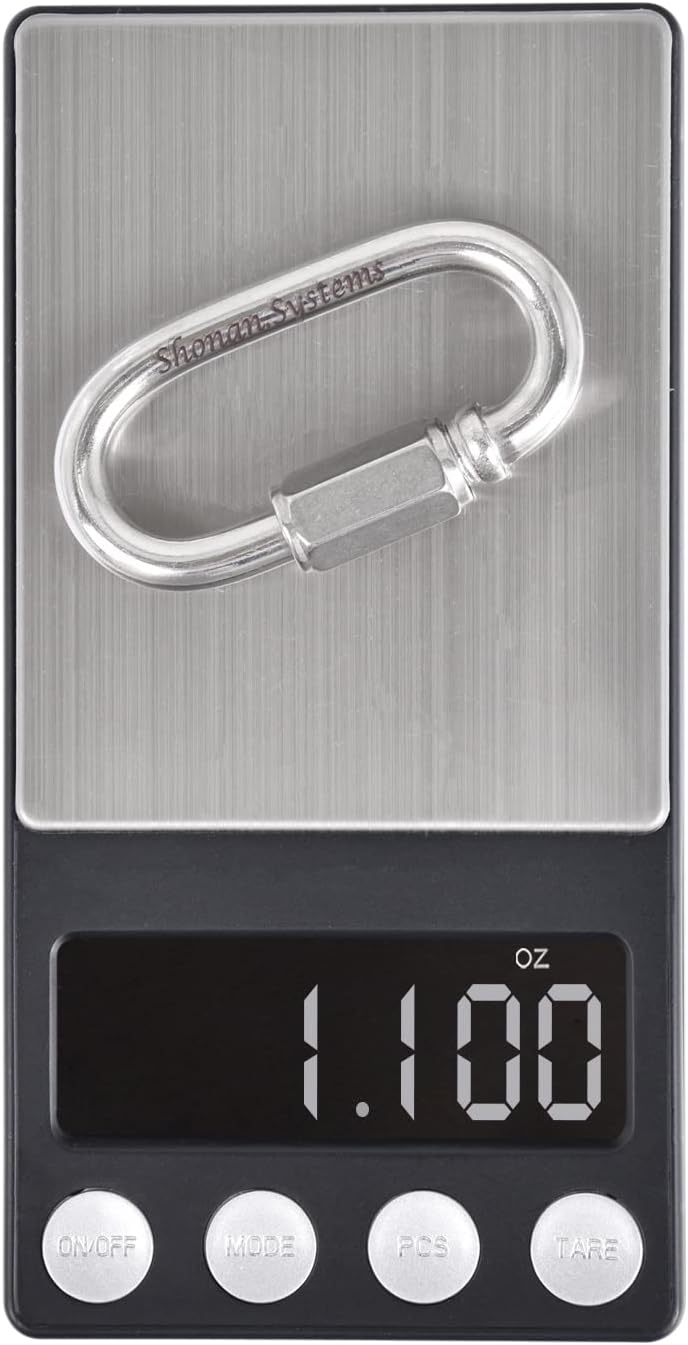

| Item Weight | 0.18 kg |
| Manufacturer | Shonan Ltd. |
| Material Type | Stainless Steel |
| Warranty Description | 1 year warranty |

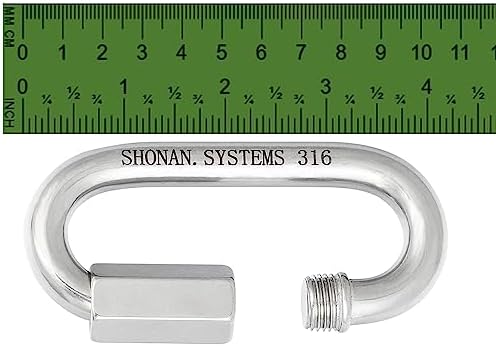

| Item Dimensions L x W | 2.3"L x 2.3"W |

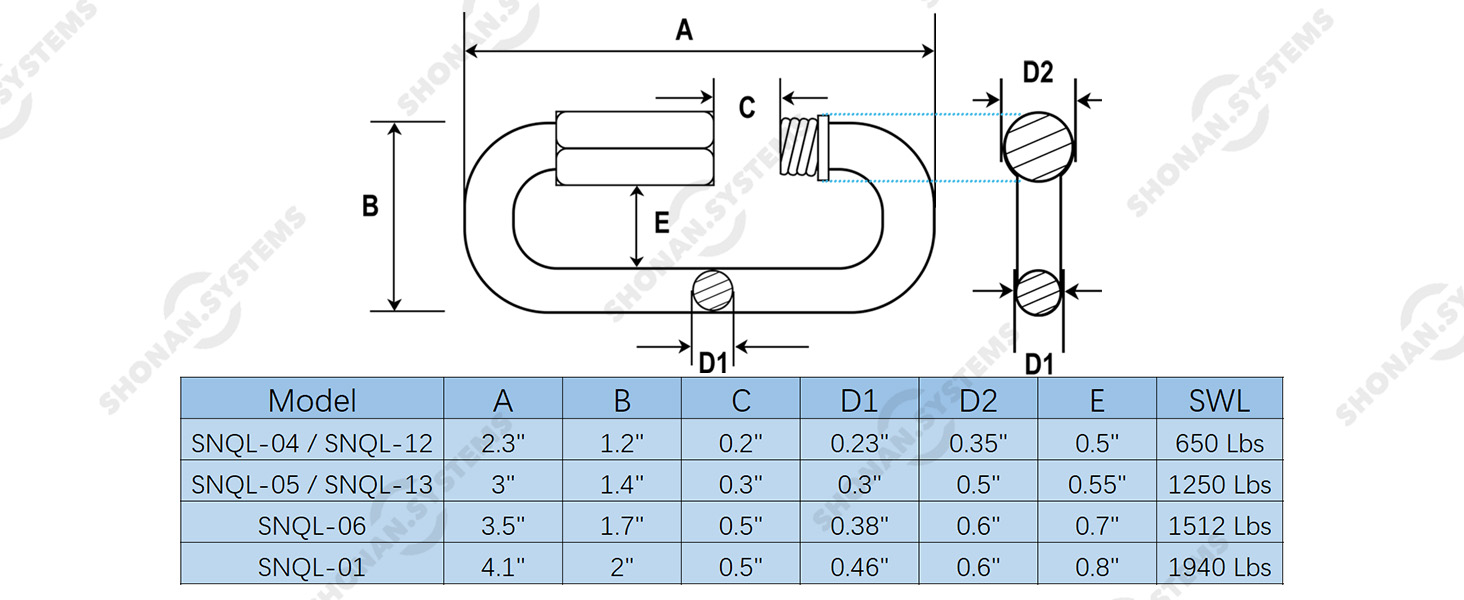

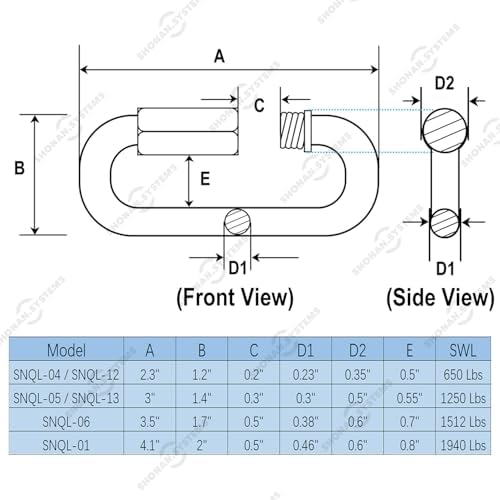

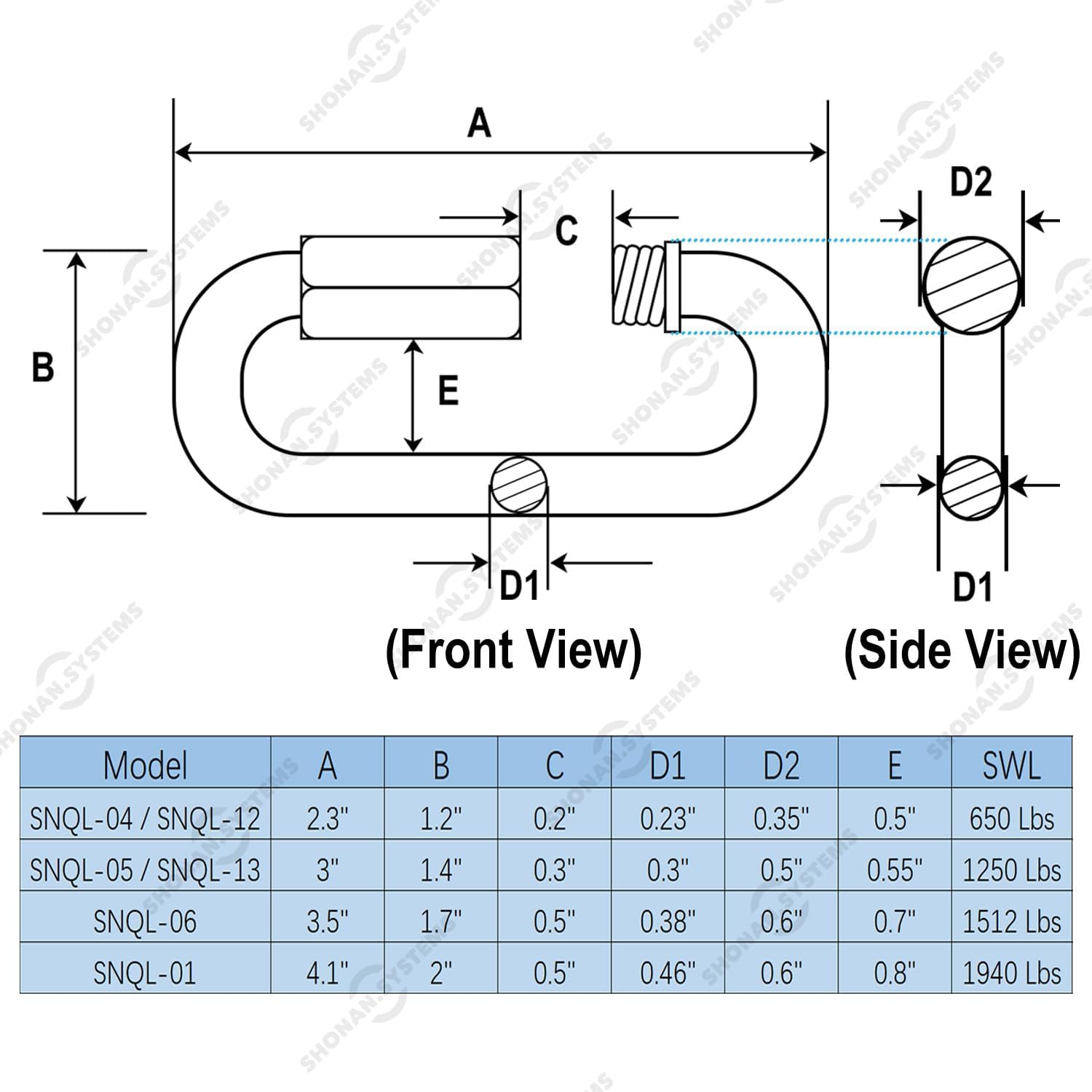

The diameter of the chain or rope used should be smaller than the values specified in columns "C" and "E", and the eye or hole of your project should be larger than the value specified in column "D2". "D2"represents the diameter of the end with thread.
For the standard version of the quick links, we offer two materials and four sizes for customers to choose from, as detailed below:

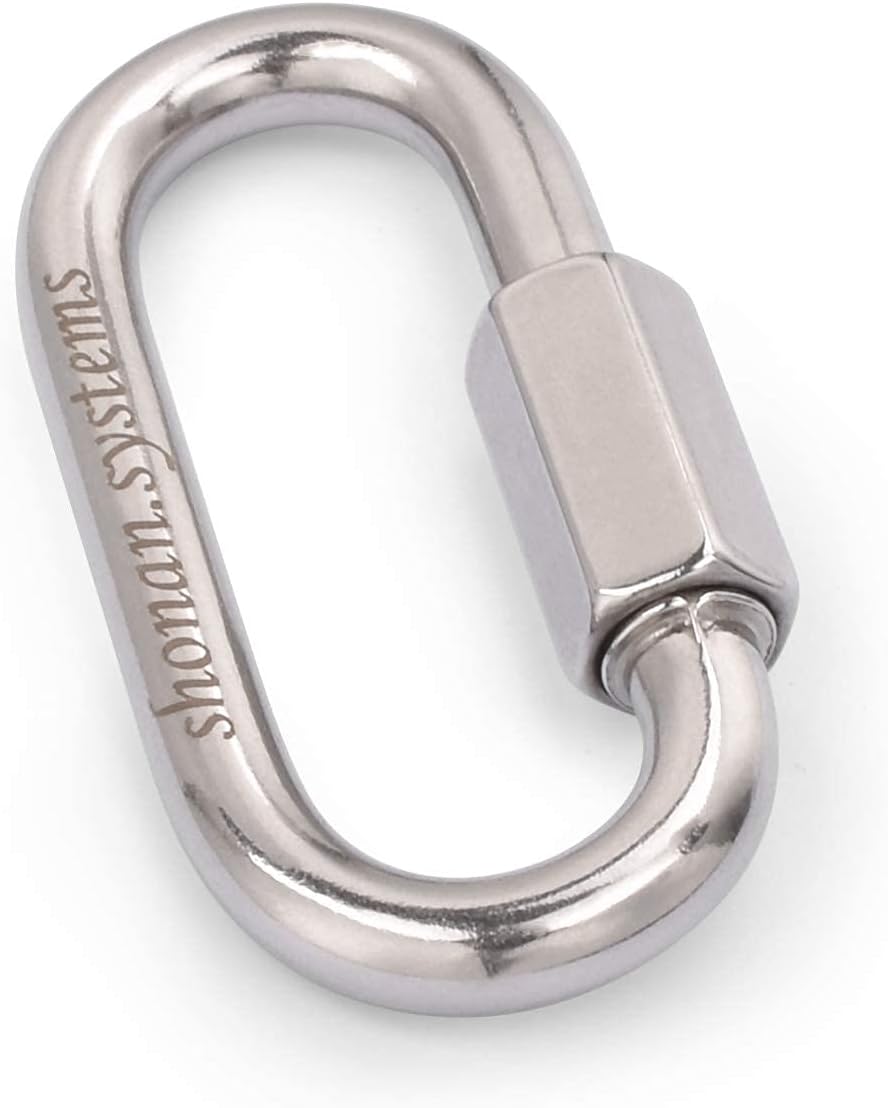

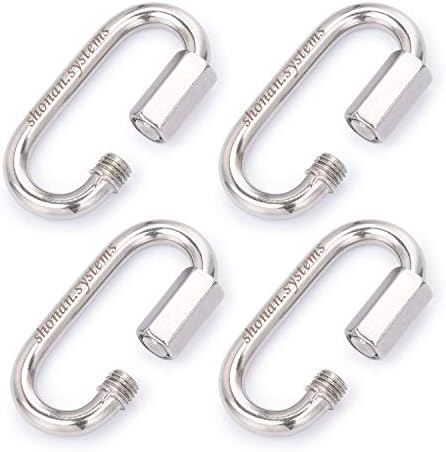

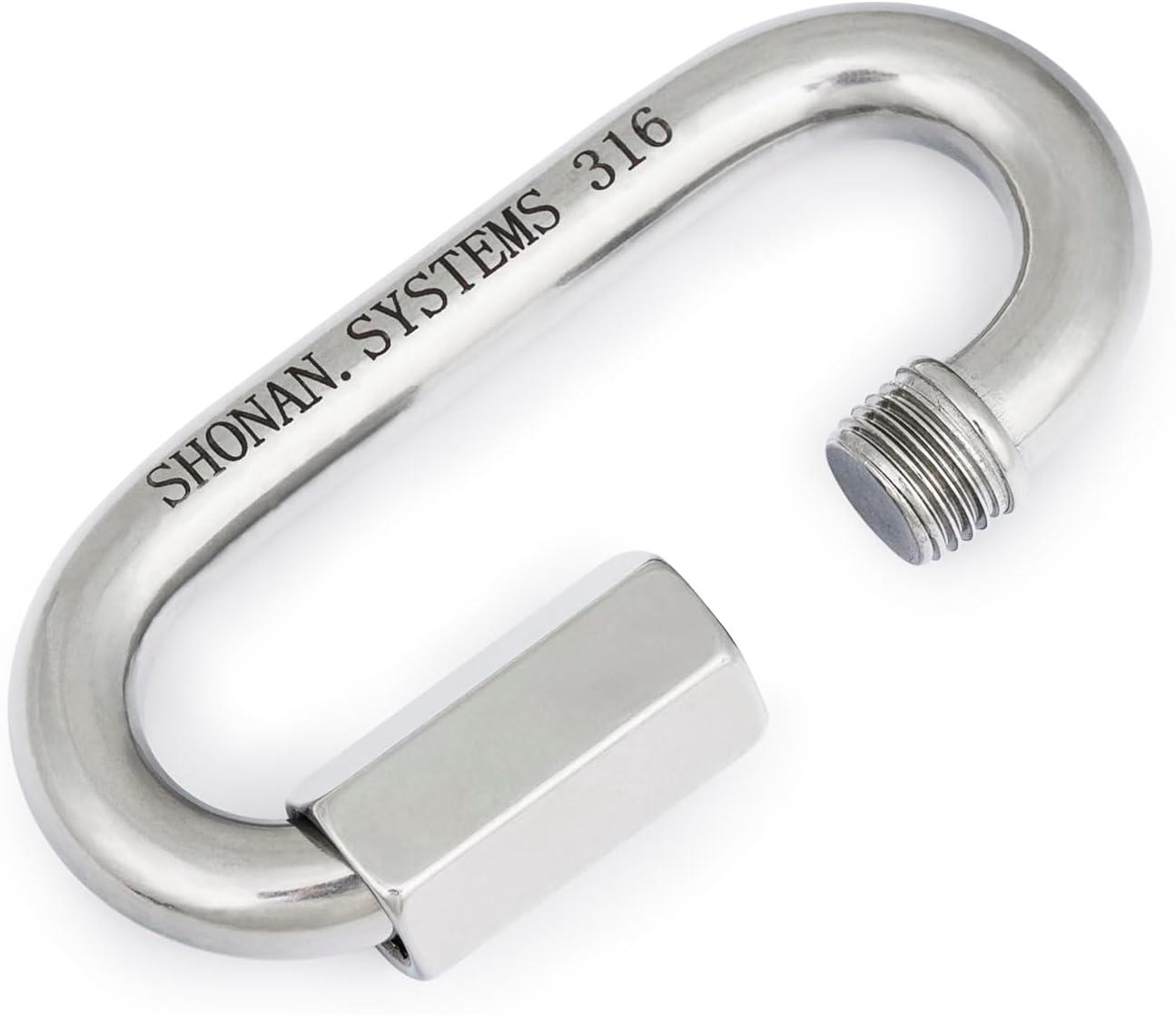

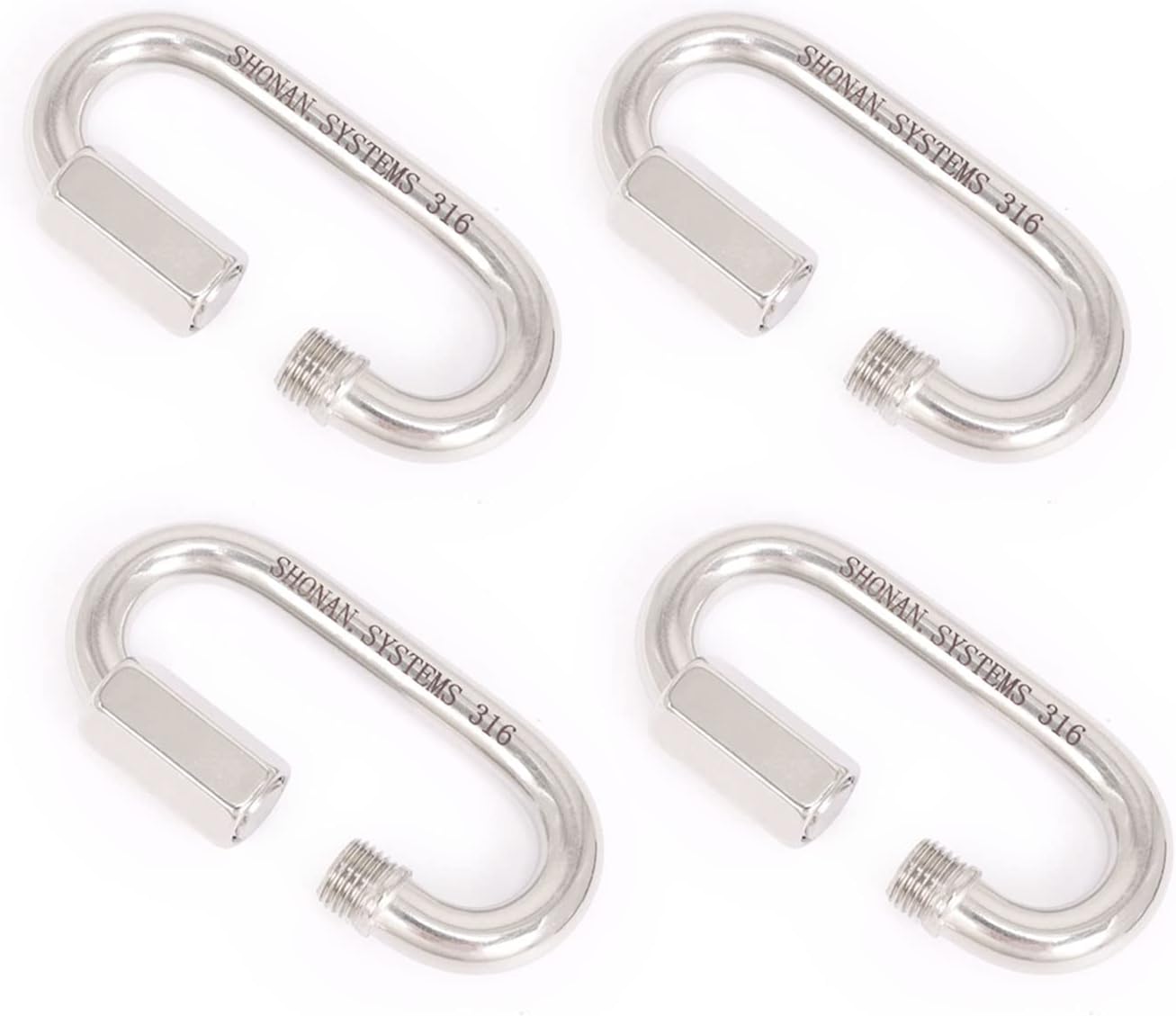

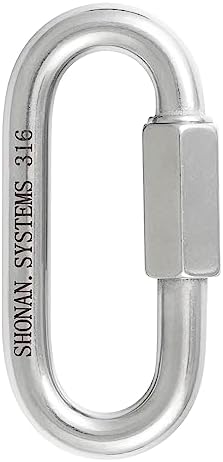

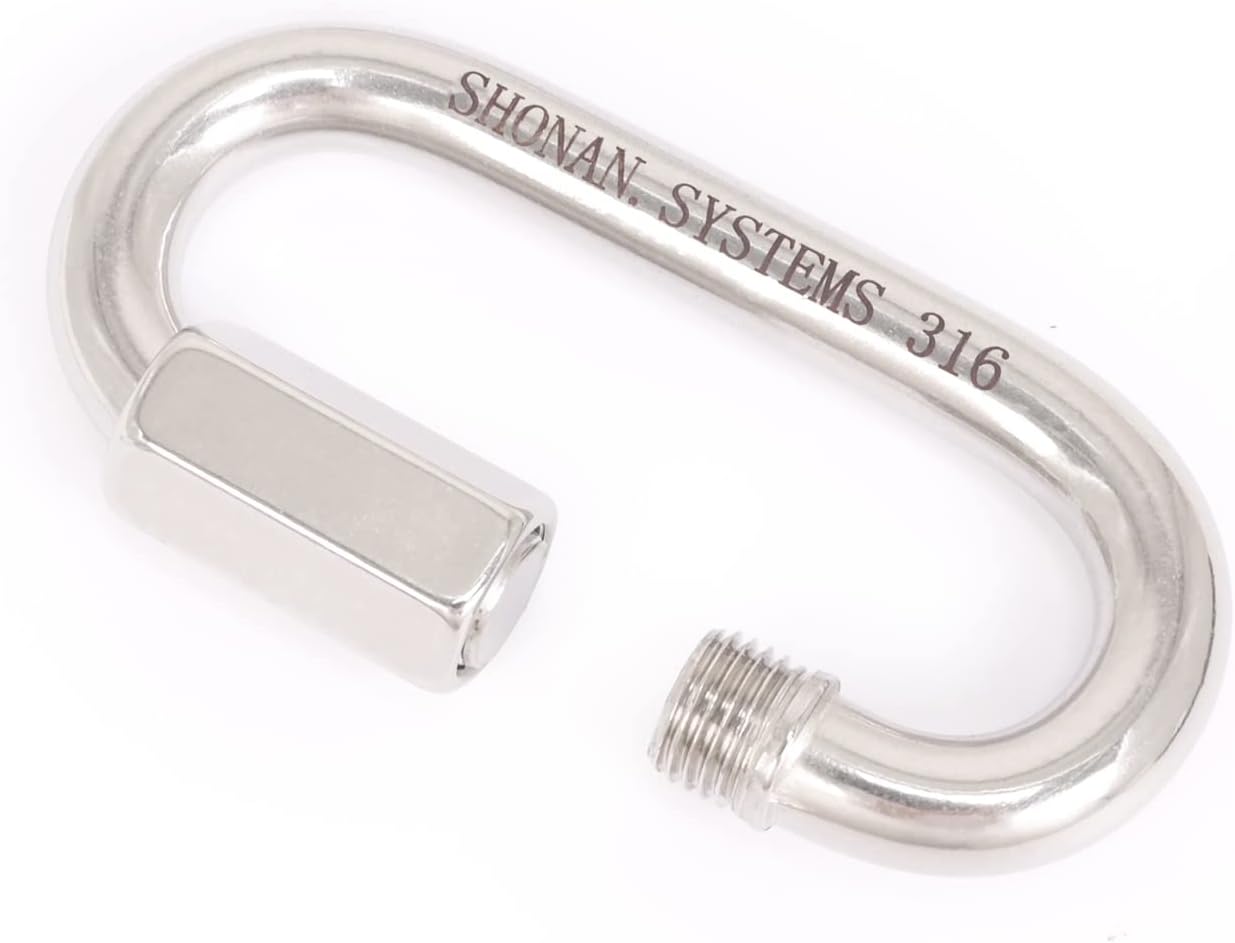

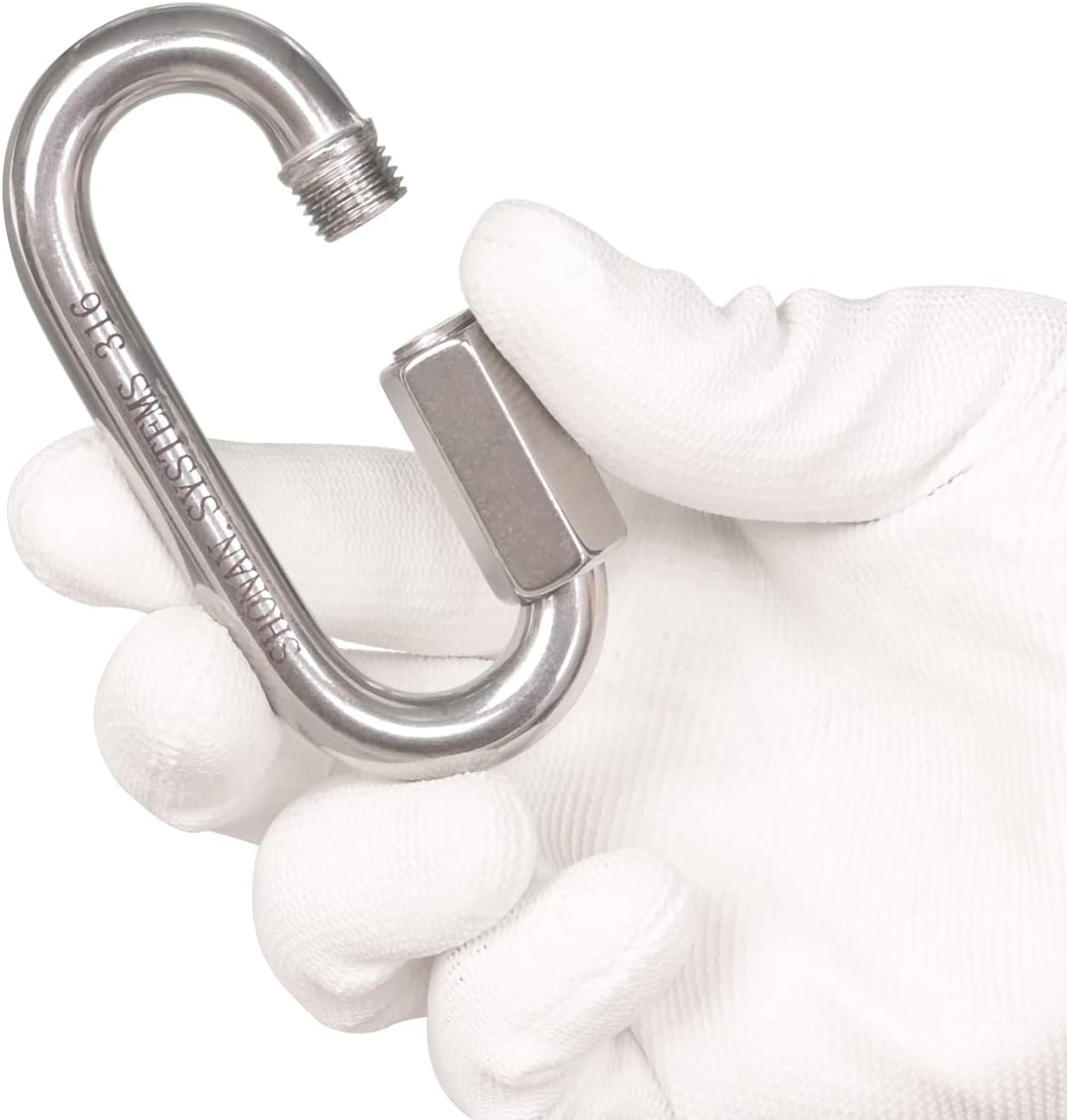

Each chain connector is equipped with a nut to ensure a secure connection. It enables strong, quick attachment to rope, cable, chain, or other stainless steel lines. When using the connector, please tighten the nut securely with a wrench.
Every piece of SHONAN steel hardware comes with a one year free replacement service in case of any failure. Not suitable for climbing.
DO NOT USE under any circumstances where disengagement could result in personal injury or property damage.

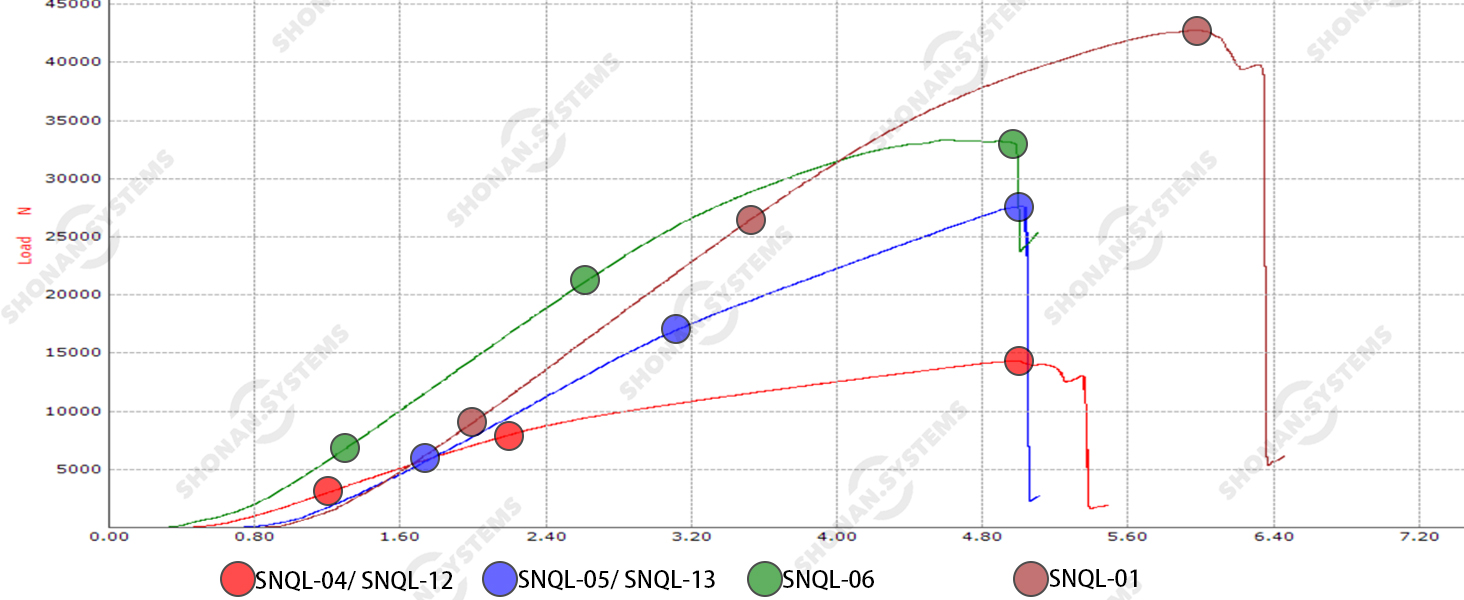

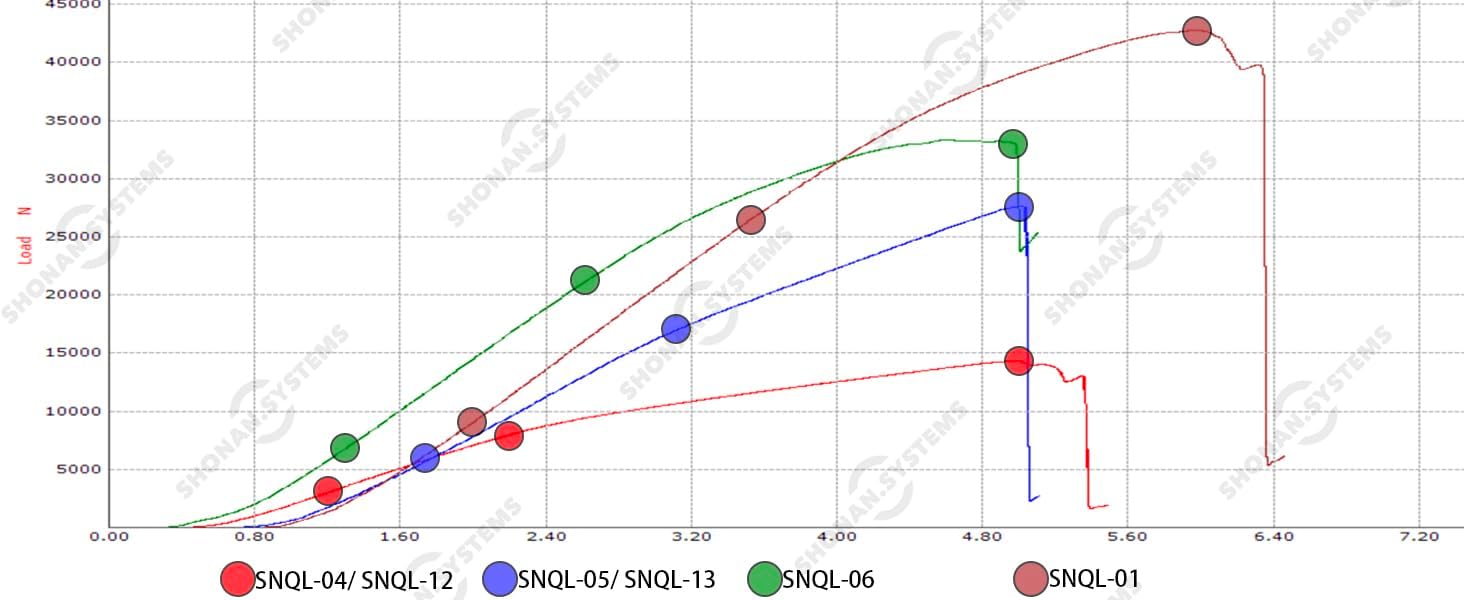

| Breaking Strength SNQL-04 / 12 | 14340 N (equals 3252 pounds) |
| Yield Point SNQL-04 / 12 | 8000 N (equals 1814 pounds) |
| Working Load SNQL-04 / 12 | 2868 N (equals 650 pounds) |
| Breaking Strength SNQL-05 / 13 | 27570 N (equals 6252 pounds) |
| Yield Point SNQL-05 / 13 | 17000 N (equals 3855 pounds) |
| Working Load SNQL-05 / 13 | 5514 N (equals 1250 pounds) |
| Breaking Strength SNQL-06 | 33300 N (equals 7551 pounds) |
| Yield Point SNQL-06 | 21500 N (equals 4875 pounds) |
| Working Load SNQL-06 | 6660 N (equals 1512 pounds) |
| Breaking Strength SNQL-01 | 42770 N (equals 9698 pounds) |
| Yield Point SNQL-01 | 26000 N (equals 5896 pounds) |
| Working Load SNQL-01 | 8554 N (equals 1940 pounds) |
