| Number of Channels | 360 |
|---|---|
| Additional Features | CW/PA/USB/LSB/AM/FM, SWR&Voltage Protection,Noise Reduction, ASQ,10 Meter Radio, VFO knob;A/B/C/D/E/F frequency bands;ECHO;Mic Gain; |
| Frequency Range | 28.000MHz--29.700MHz |
| Talking Range Maximum | 5 kilometer |
| Voltage | 13.8 volts_of_direct_current |
| Water Resistance Level | Not Water Resistant |
| Compatible Devices | External Morse code devices, devices using CTCSS/DCS tones |
| Tuner Type | SSB, CW, AM, FM |
| Item Dimensions D x W x H | 11.02"D x 7.87"W x 2.36"H |
| Item Weight | 1500 g |
| Color | Black |
| Model Number | HS4 |
| Built-In Media | 1 X HS4 10m ham radio with cooling fan(include cable), 1 X Microphone, 1 X Mounting brackets, 1 X Power cable, User Manual |
| Unit Count | 1 Count |
| Manufacturer | Retevis |
| Mfr Part Number | HS4 |
| Warranty Description | We provide 2 year warranty and 30 days no reason to return;2 year warranty for radio body and 1 year warranty for accessories. Beyond the warranty period: We still offer maintain service, buyers are required to afford corresponding costs. We processed in the most hassle-free way possible.You just need to contact with us on Amazon ,we will reply you within 12 hours |
| Number Of Channels | 360 |
| Talk Range Maximum | 5 kilometer |
| Item Depth Width Height | 11.02"D x 7.87"W x 2.36"H |

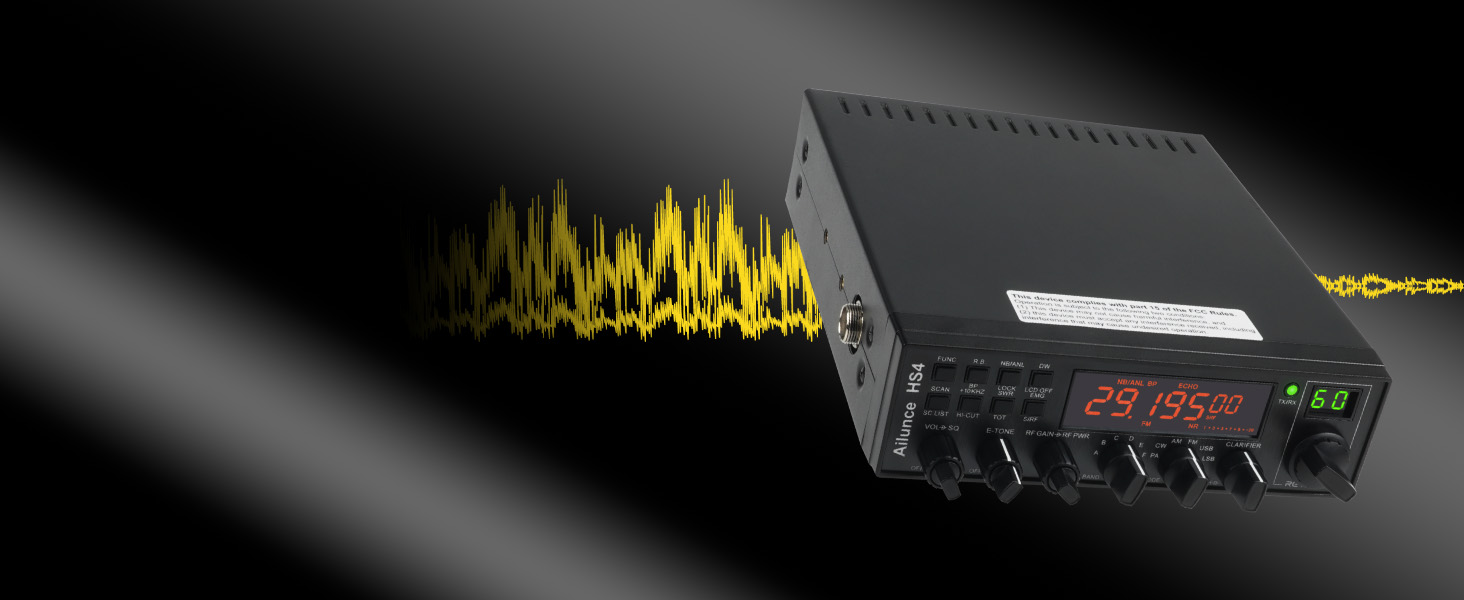

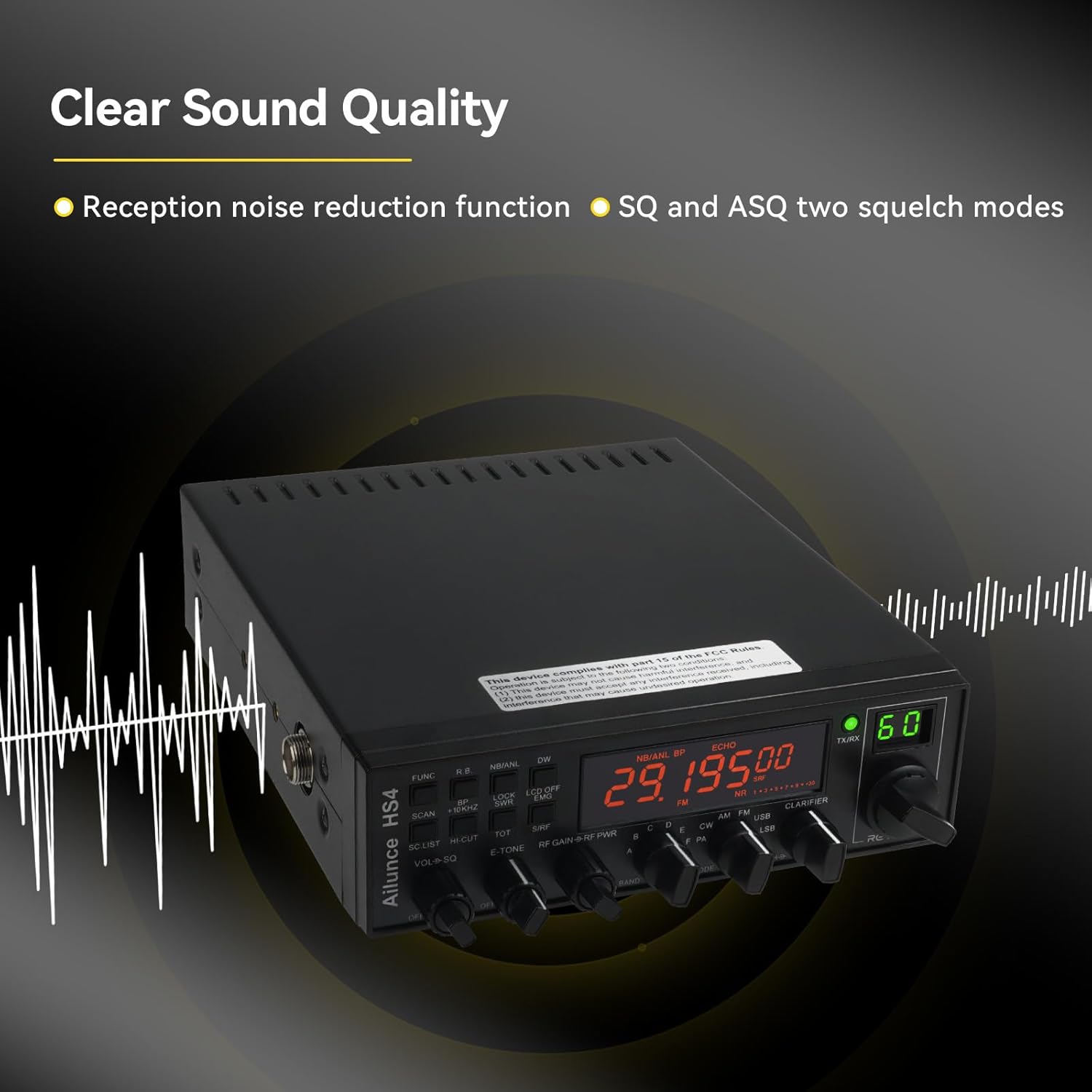

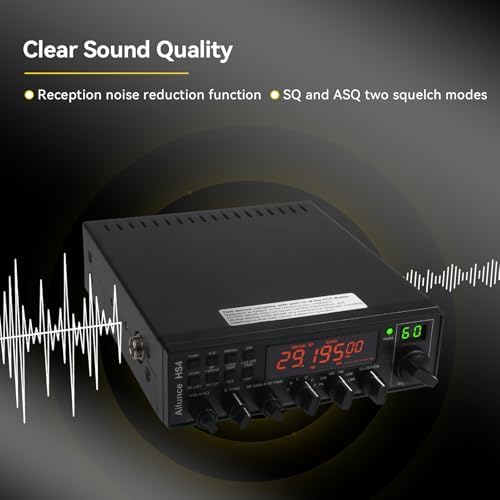

Adopting the reception noise reduction, the ham radio receives clearly in a noisy environment.

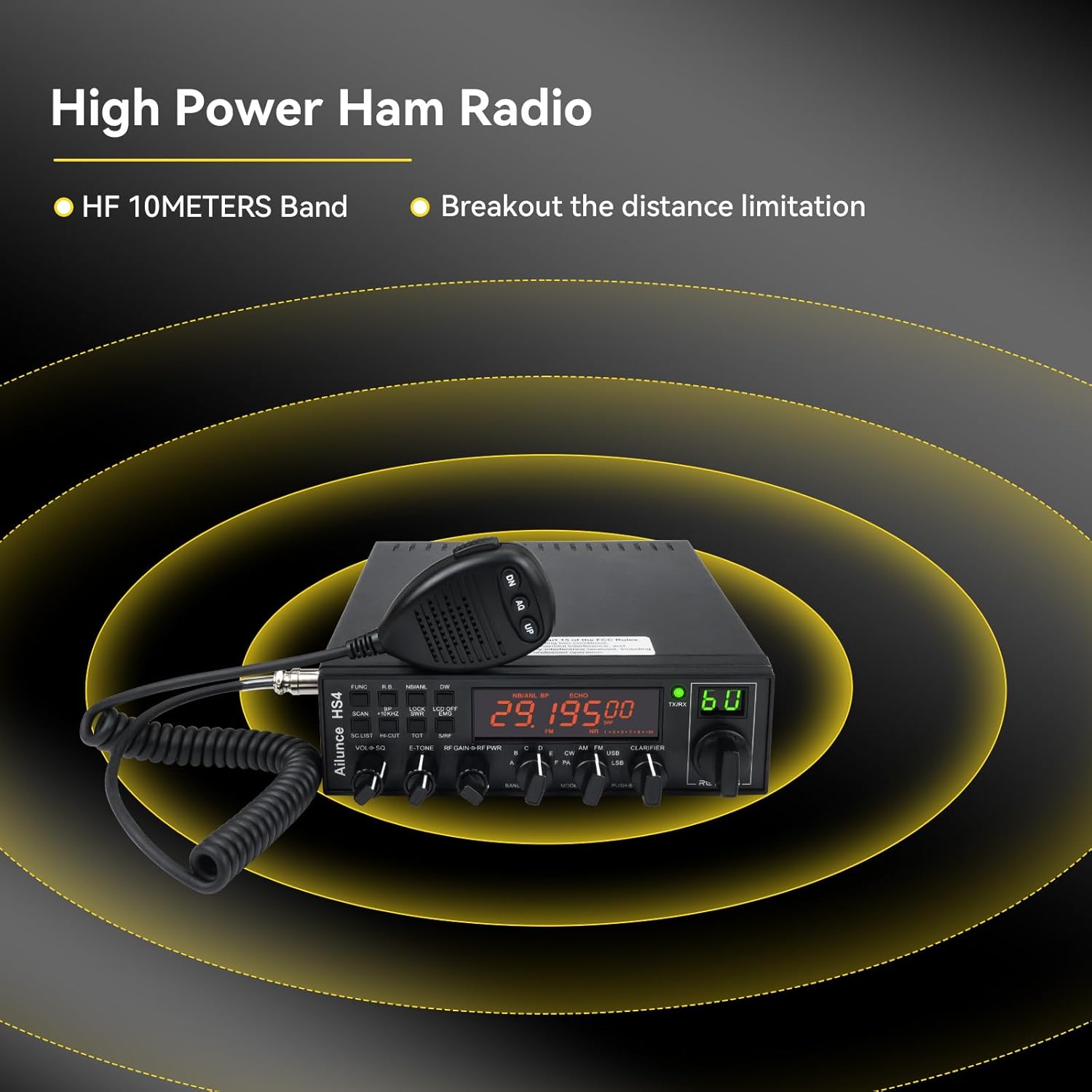

10 meter shortwave ham radio has no call limitation and ensures stable calls over a distance.

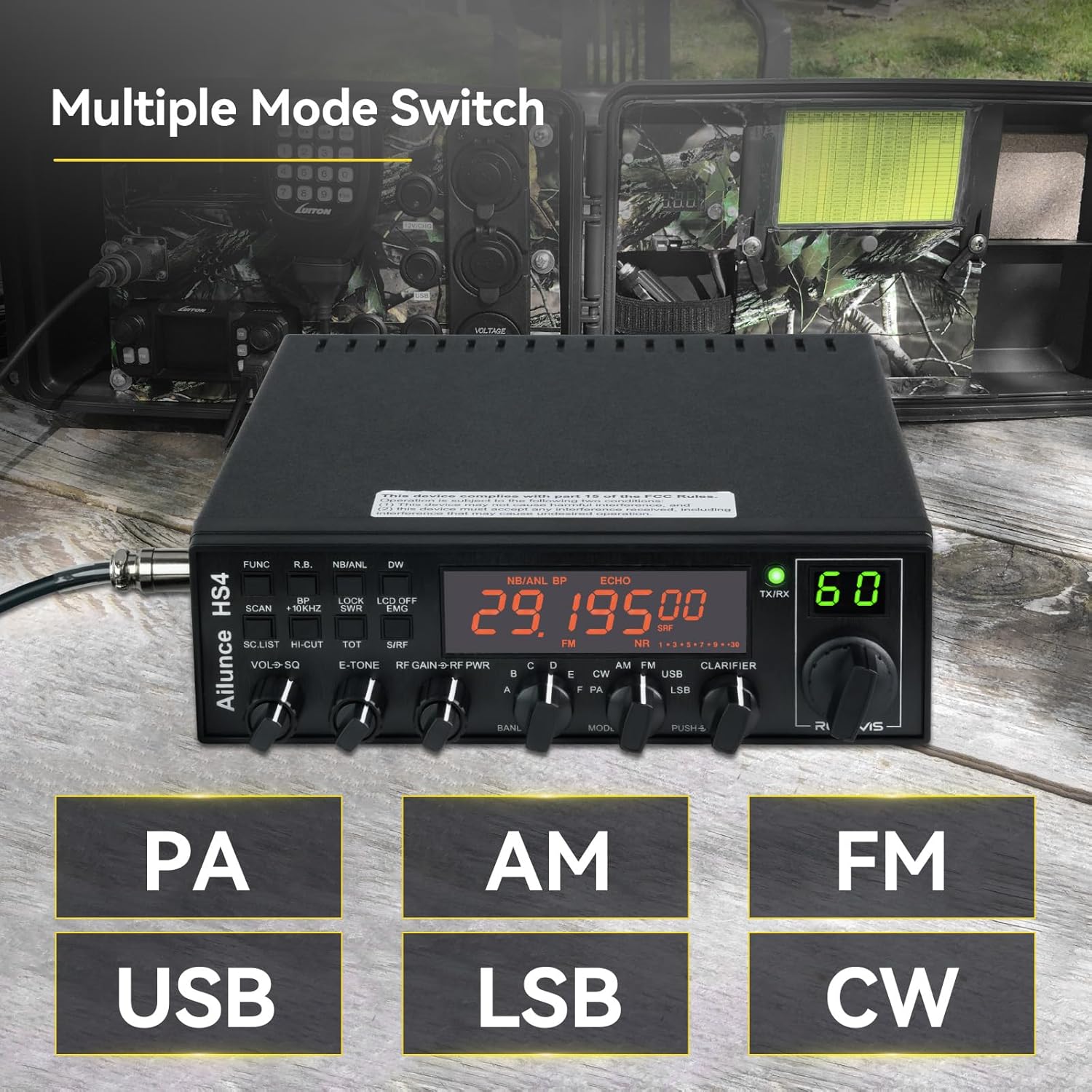

10 meter radio has CW, SSB, PA total 6 modes. CW mode outputs a high power for better transmission.

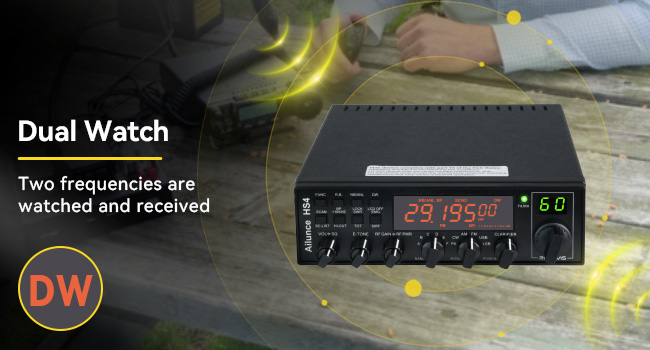

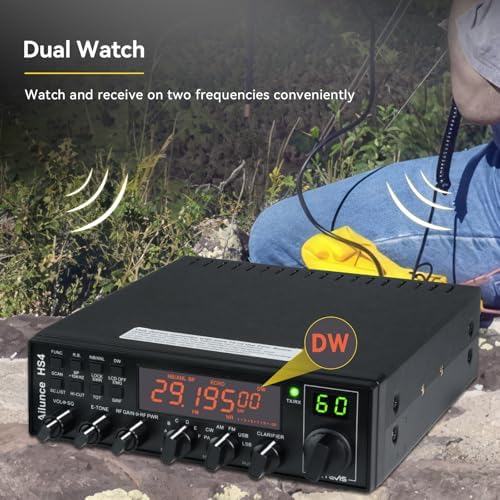

The ham radio base station supports a dual watch function. It enables operators to watch and receive on two frequencies automatically without missing important information. It helps enhance communication.

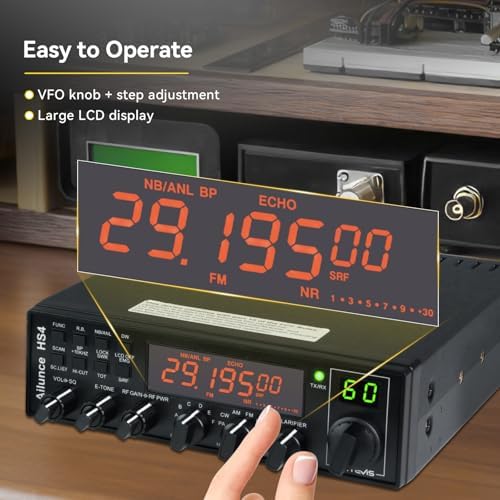

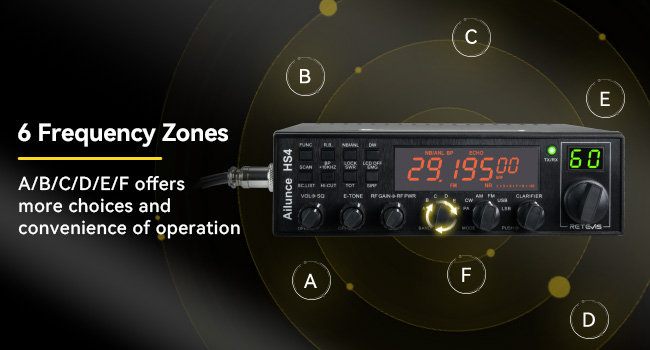

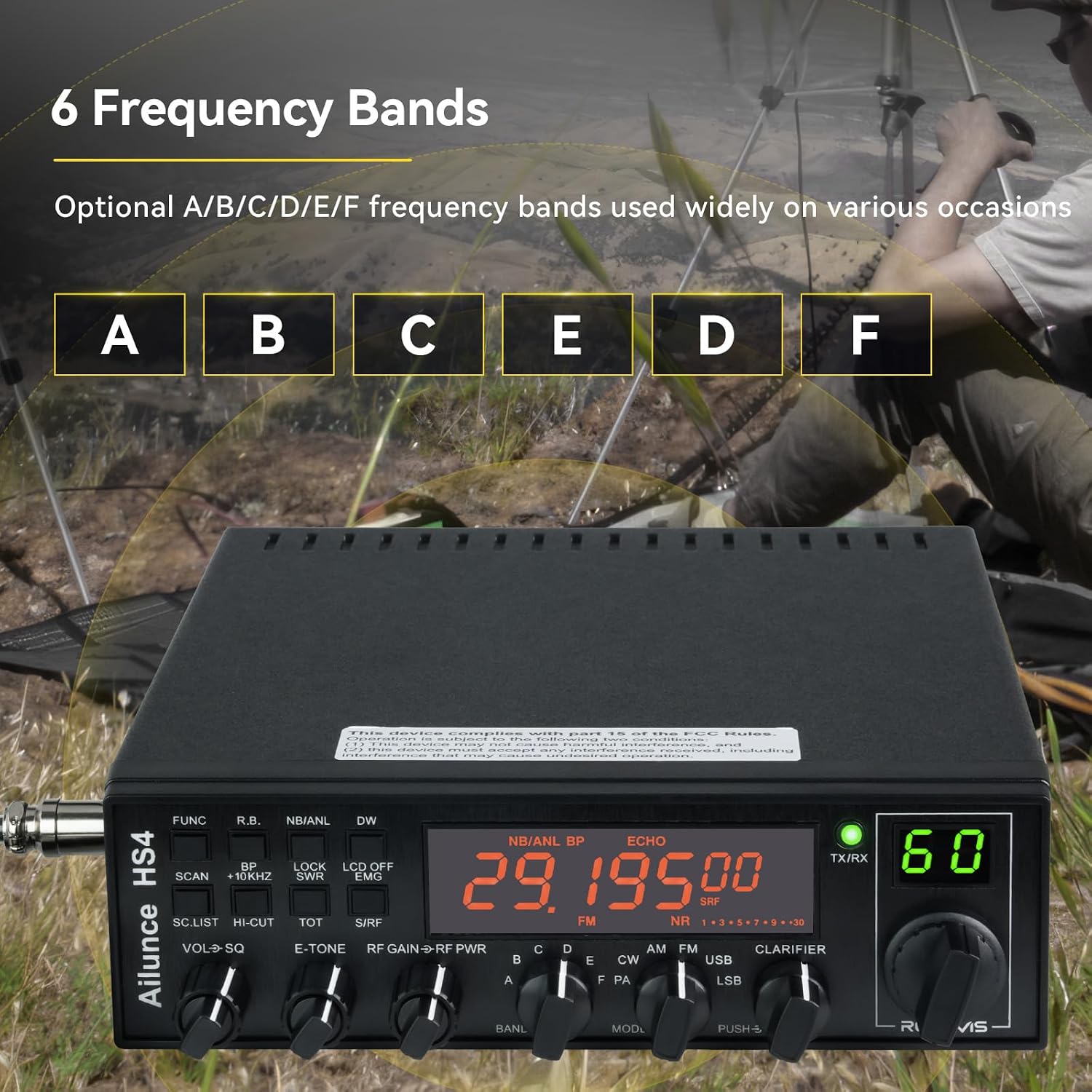

Equipped with A/B/C/D/E/F 6 frequency bands, 10 meter radio enables operators to choose and set the needed channel and frequency in a specific zone quickly and conveniently. Each frequency band has 60 channels to set.

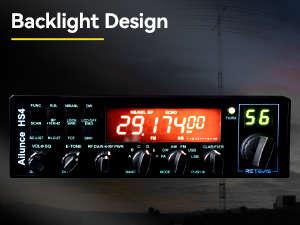

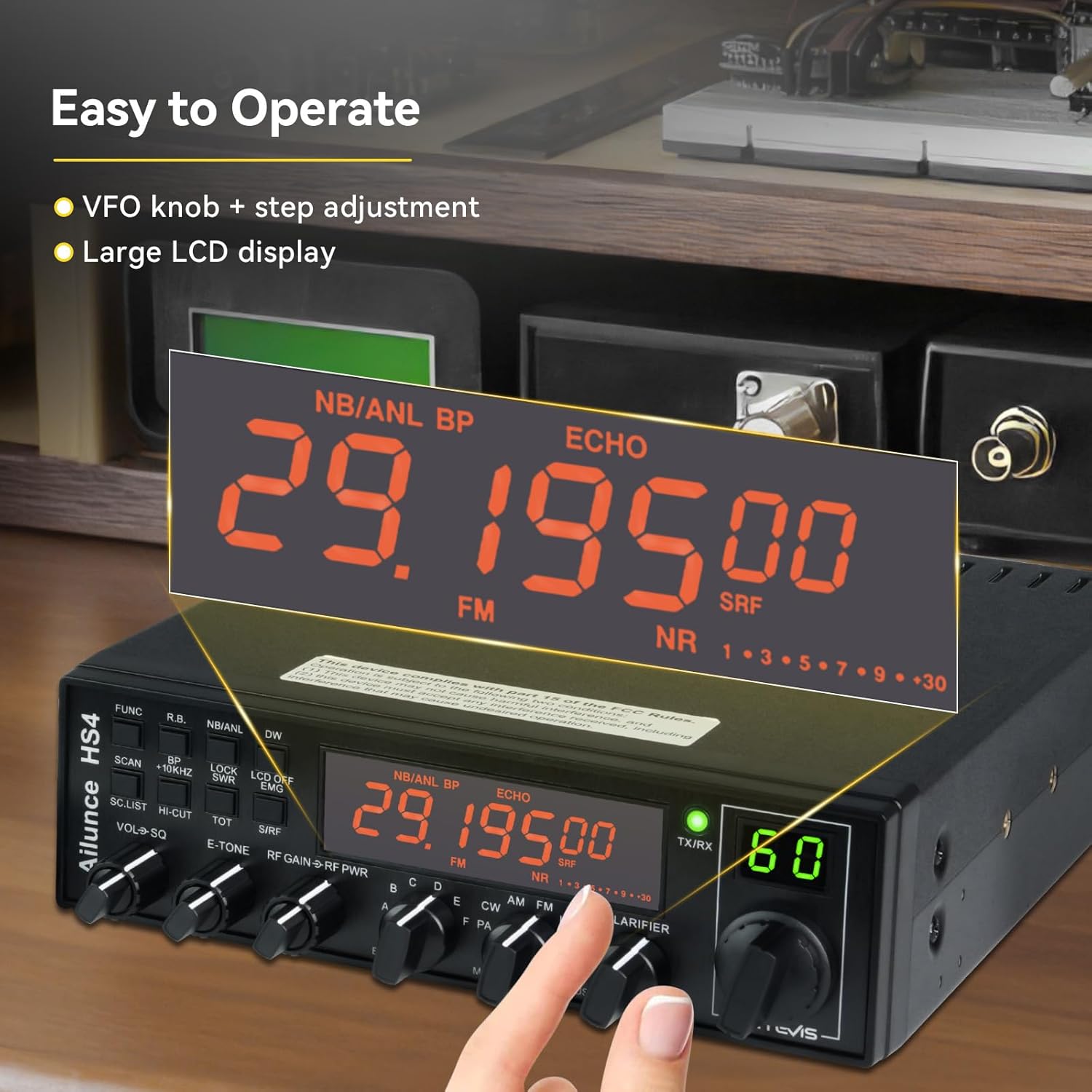

The keys will display a green color in the dim light. Work with backlight adjustment, 10 meter radio is easy and convenient to operate.

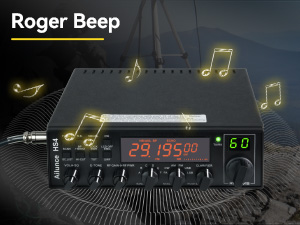

Activate the RB function, the mobile ham radio sends a tone at the end of the transmission from the operator, increasing the convenience of use.

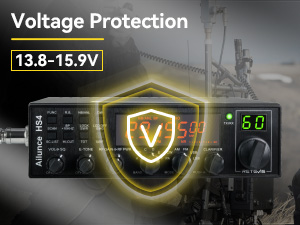

When the voltage is over a certain level, the amateur mobile transceiver will cut off automatically to protect 10 meter radio from damage.

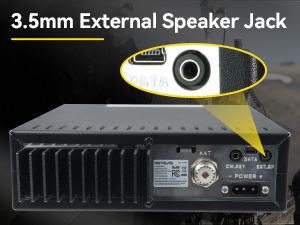

3.5mm port, onnect the external speaker to make the voice sound loud, hearing clearly while in noisy traffic conditions.
| Frequency Band: | A/B/C/D/E/F |
| Channel: | 60 channels in each band |
| Frequency Control: | Phase-Locked-Loop Synthesizer |
| Frequency Step: | 10Hz 100Hz 1KHz 10KHz |
| Temperature Range : | -30℃to +50℃ |
| Microphone: | Plug-in dynamic;with push-to-talk/UP/DN and coiled cord |
| Input Voltage: | DC 13.8V normal, 15.9V max |
| Dimension: | 28*25*6cm/11*10*2inches |
| Weight: | 1.5kg/3Ib |
| Antenna Connector: | SO239 |
| Mode | CW/LSB/USB/AM/FM/PA 6 mode |
| Frequency Tolerance | ±5.00ppm |
| Featuers | CW;Noise Reduction;DW(Dual Watch);Large Screen;SWR&Voltage Protection;Rogger Beep;CTCSS/DCS |

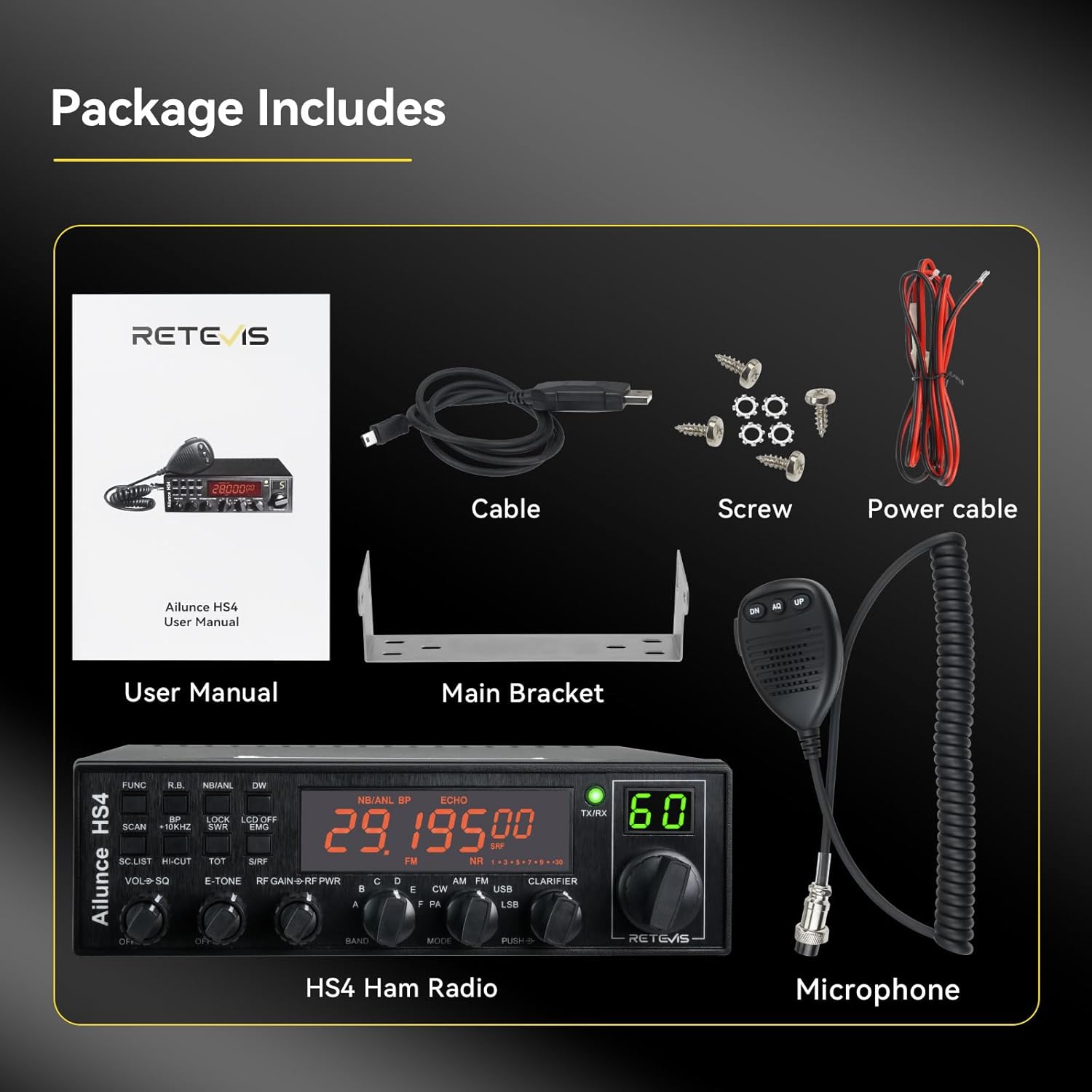

| In the Box | 1 x HS4 Ham Radio 1 x Detachable Microphone 1 x Mounting Bracket 1 x Power Cable 1 x Cable & 1 pack of screws |
| Modulation: | AM/FM/USB/LSB |
| Distortion: | SSB: 3rd order, more than -25dB; 5th order, more than -35dB |
| SSB Carrier Suppression: | 55dB |
| Unwanted Sideband: | 50dB |
| Frequency Response: | AM and FM: 450 to 2500Hz |
| Output Impedance: | 50ohms, unbalanced |
| RF Gain Control: | 45 dB adjustable for optimum signal reception |
| Automatic Gain Control (AGC): | Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt |
| Audio Output Power: | 3 watts into 8 ohms |
| Frequency Response: | 300 to 2800 Hz |
| Built-in Speaker: | 8 ohms, round |
| External Speaker(Not Supply): | 8 ohms; disables internal speaker when connected |
| Sensitivity | SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2 watt of audio output AM: 1.0μV for 10dB(S+N)/N at greater than 1/2 watt of audio output FM: 1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output |
| Image Rejection | More than 65dB |
| Squelch | Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV |
| Adjacent-Channel Selectivity | 60dB AM/FM &70 dB SSB |
