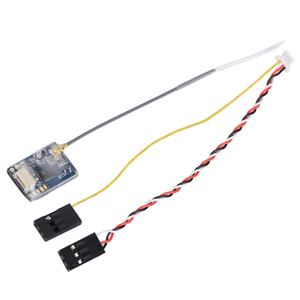

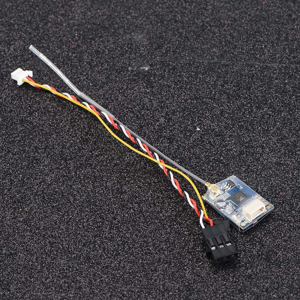

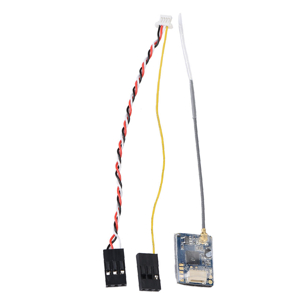

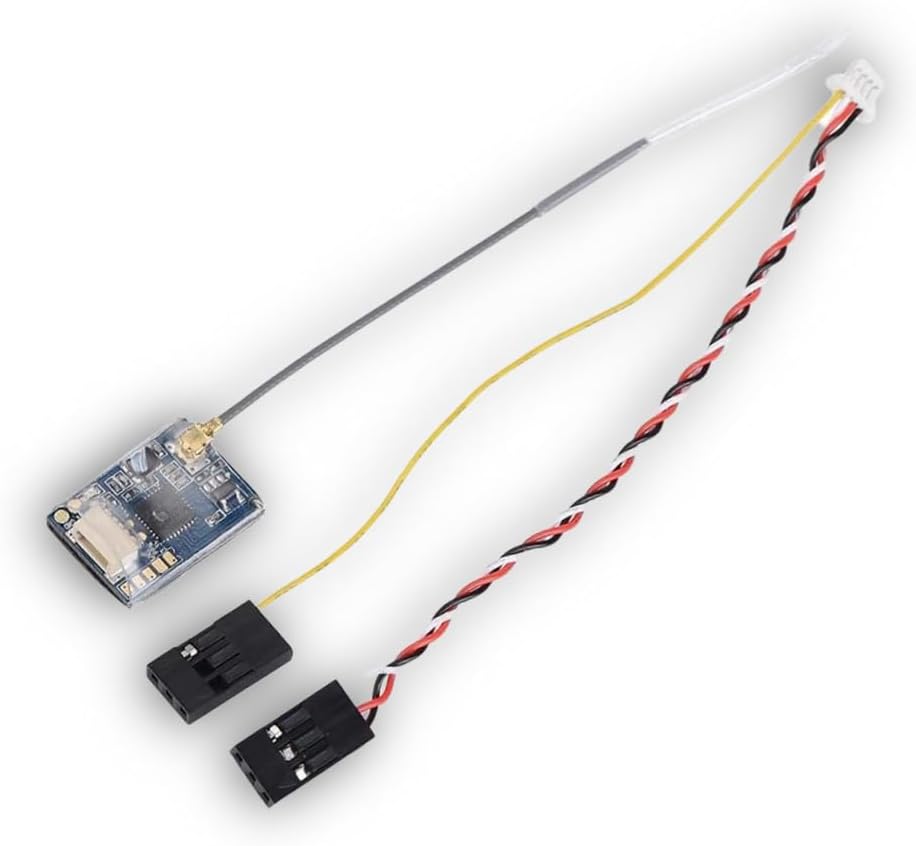

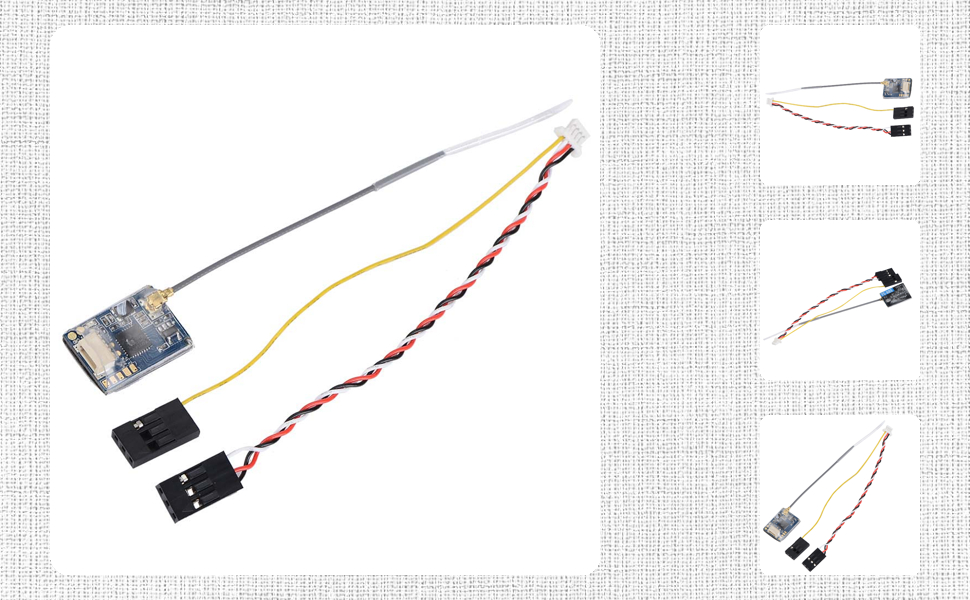

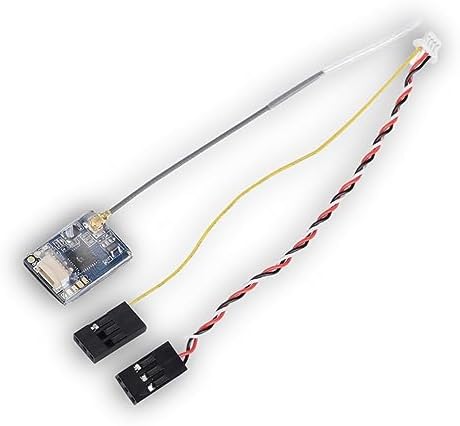

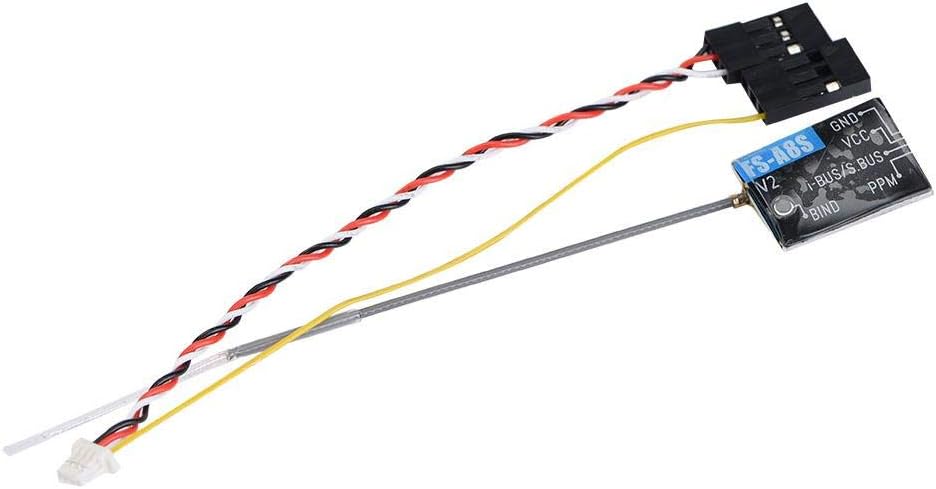

RC Receiver, FS-A8S 2.4G 8CH Mini Receiver w/PPM i-Bus SBUS Output for FS-i4 FS-i6 FS-i6S

RC Receiver, FS-A8S 2.4G 8CH Mini Receiver w/PPM i-Bus SBUS Output for FS-i4 FS-i6 FS-i6S

Features:

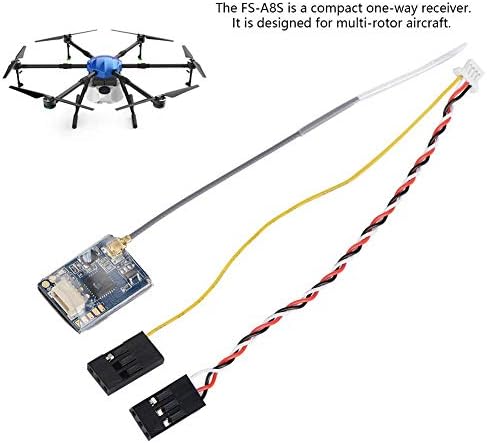

The FS-A8S is a compact one-way receiver. It is designed for multi-rotor aircraft. It uses the AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, and supports standard PPM output as well as has i-BUS support for up to 18 channels. The receiver is suitable for FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F RC transmitter. Changing mode (i-BUS / S.BUS) is simplier and easier.

Specification:

Material: PCB + Rubber

Color: Black

Brand Name:

Item Name: FS-A8S Receiver

Channels: PPM 8CH, i-BUS 18CH

Model Type: Multi-rotor

Frequency range: 2.408-2.475GHz

Band width: 500KHz

Band number: 135

RX Sensitivity: -92 dBm

2.4GHz System: AFHDS 2A

Modulation Type: GFSK

Port: PPM/i-BUS/S.BUS

Transfer Method: FHSS

Data Output: 1.5mm*3 Pin PPM/i-BUS/S.BUS

Antenna Length: 26mm (Not including brass contacts)

Input Power Supply: 4.0-8.4V

Display Method: LED

No ground interference ( Transmitting and receiving 1 m from the ground): >300m

Working current: 40mA

Each Channel Data: Depend On The Transmitter

Channel Delay: <15mS

Certificate: CE0678, FCCID: N45ZA8S00

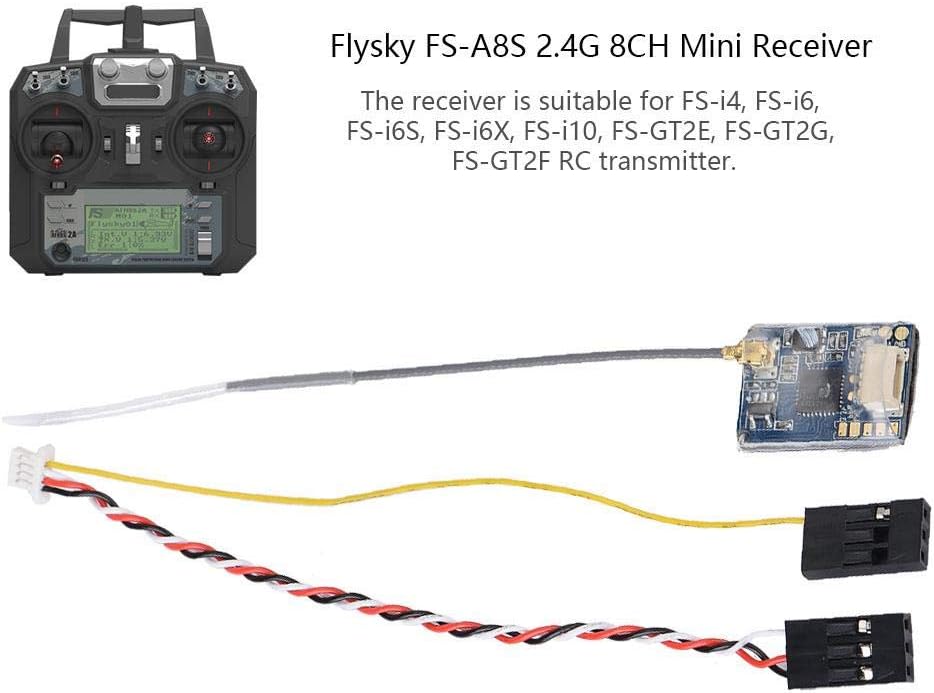

Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

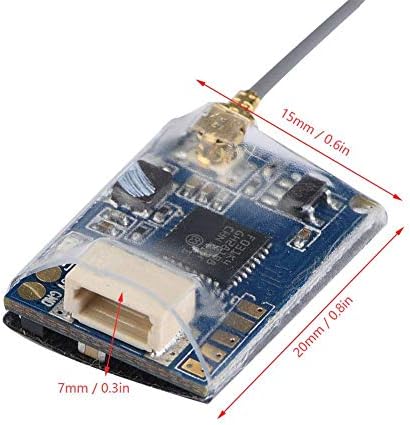

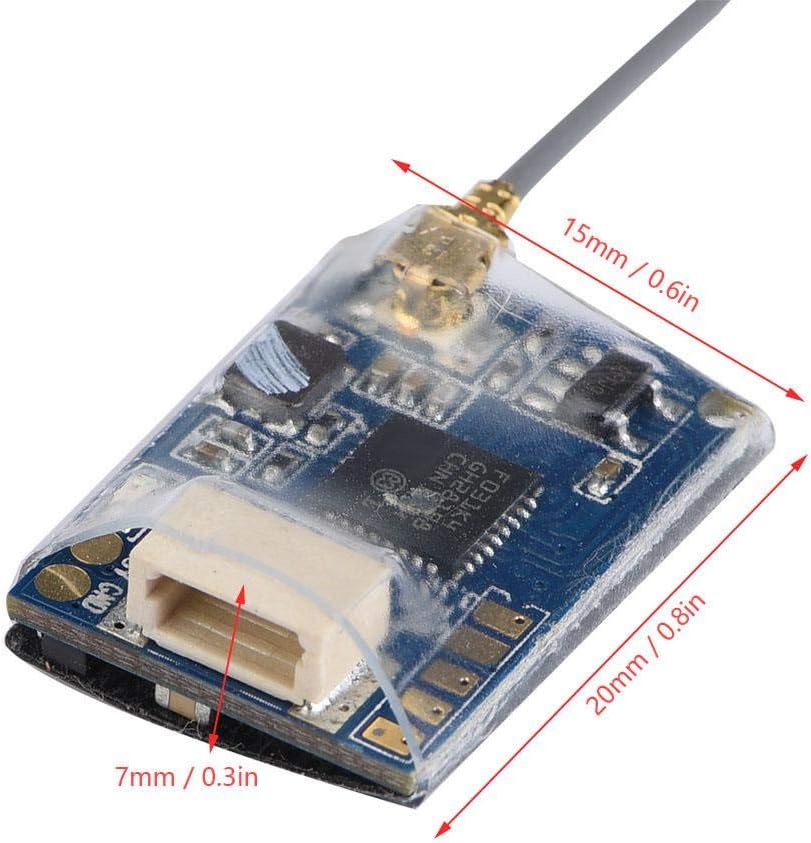

Size: Approx. 20 * 15 * 7mm / 0.8 * 0.6 * 0.3inch

Weight: 9g

Type: RC Model Part & Acces

Package List:

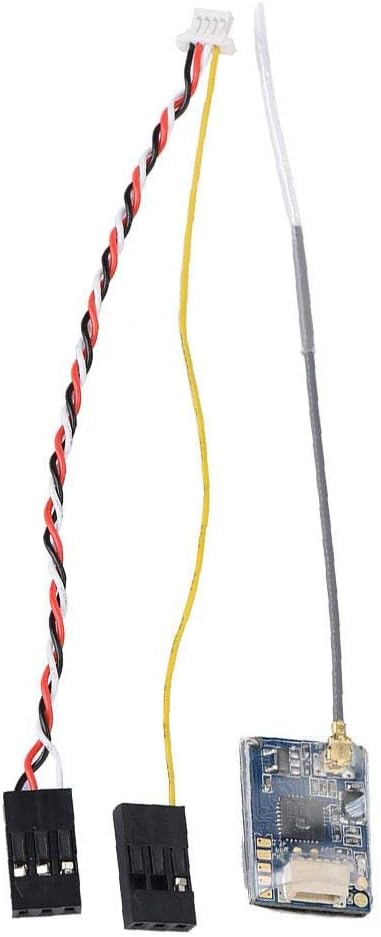

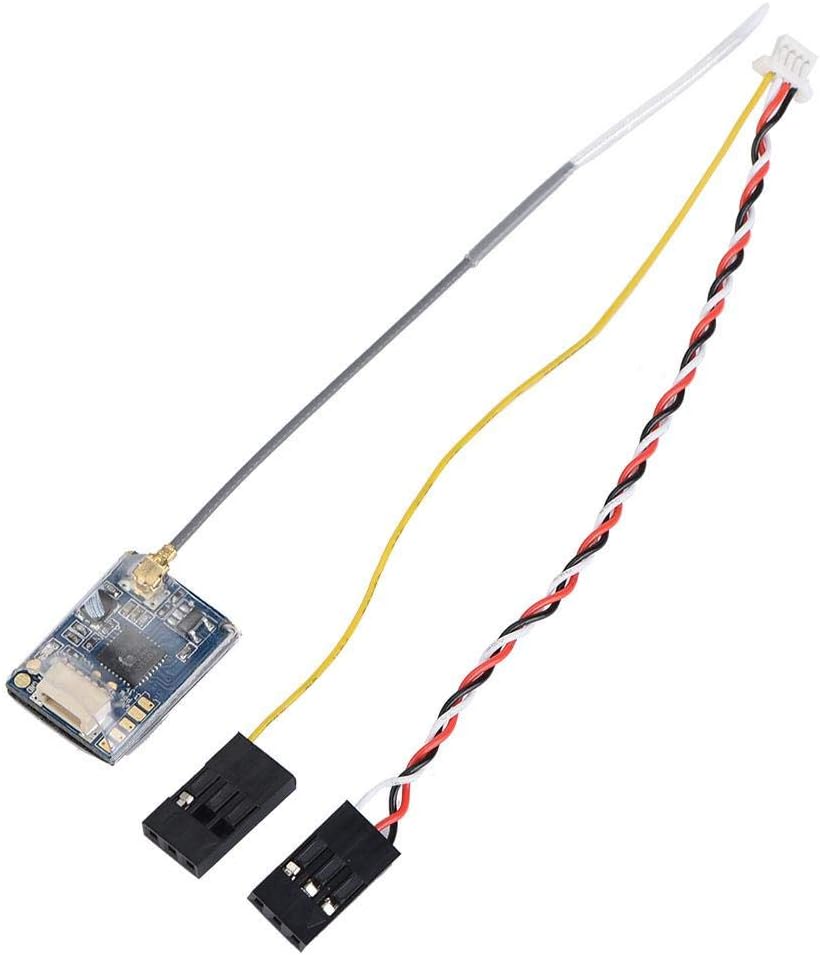

1 * FS-A8S 2.4G 8CH Mini Receiver

1 * Cable

1 * Manual
