| AntennaDescription | Television |
|---|---|
| UPC | 682604241432 |
| Manufacturer | pingbingding |
| Unit Count | 1 Count |
| Number of Items | 1 |
| Model Number | WA-2608+18M |
| Mfr Part Number | WA-2608+18M |
| Warranty Description | 1 Year Warranty |
| Number of Channels | 69 |
| Impedance | 75 ohm |
| Maximum Range | 150 miles |
| Color | Black, Grey, Silver |
| Antenna | Television |
| Number Of Channels | 69 |
| Upc | 682604241432 |
| Number Of Packs | 1 |

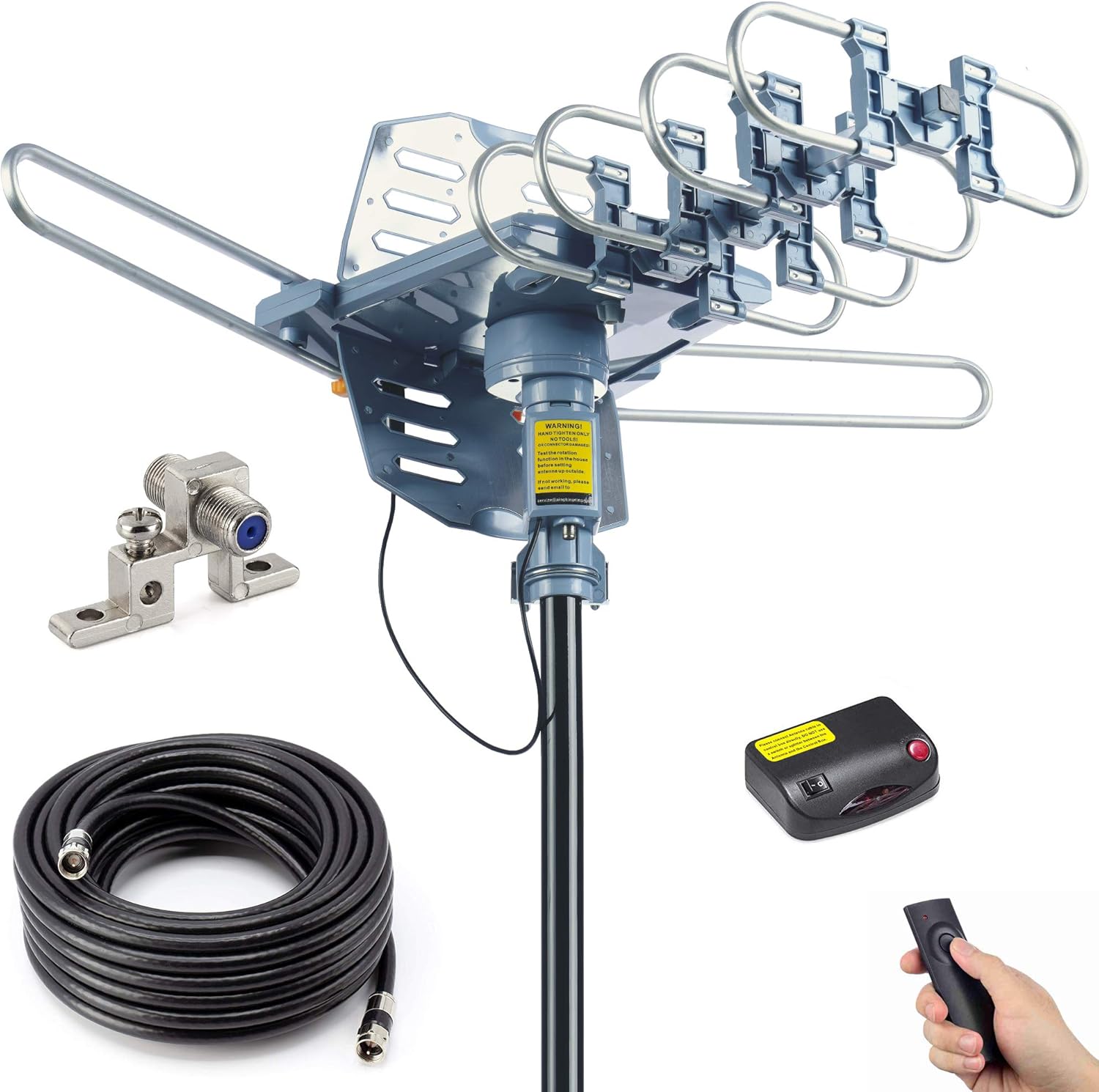

This outdoor HDTV antenna is designed to receive digital TV UHF/VHF signals while providing high quality HDTV picture. You can enjoy high definition television without the high cost of cable or satellite. With a built-in rotor, Turn a full 360 degrees using the infrared remote control.
Specifications:
Working Frequency: VHF 170~230MHz | UHF 470~890MHz
Noise Figure:< =2.5dB
Typical Antenna Gain: VHF 28~32dB | UHF 32~36dB
Impedance: 75Ohm
Max Output Level:105dB u V
Main Voltage: AC120V±10%/60Hz
Operation Temperature: -10° C ~ 50° C

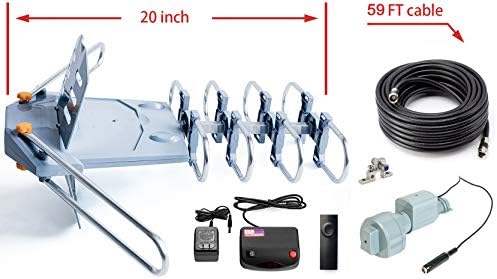

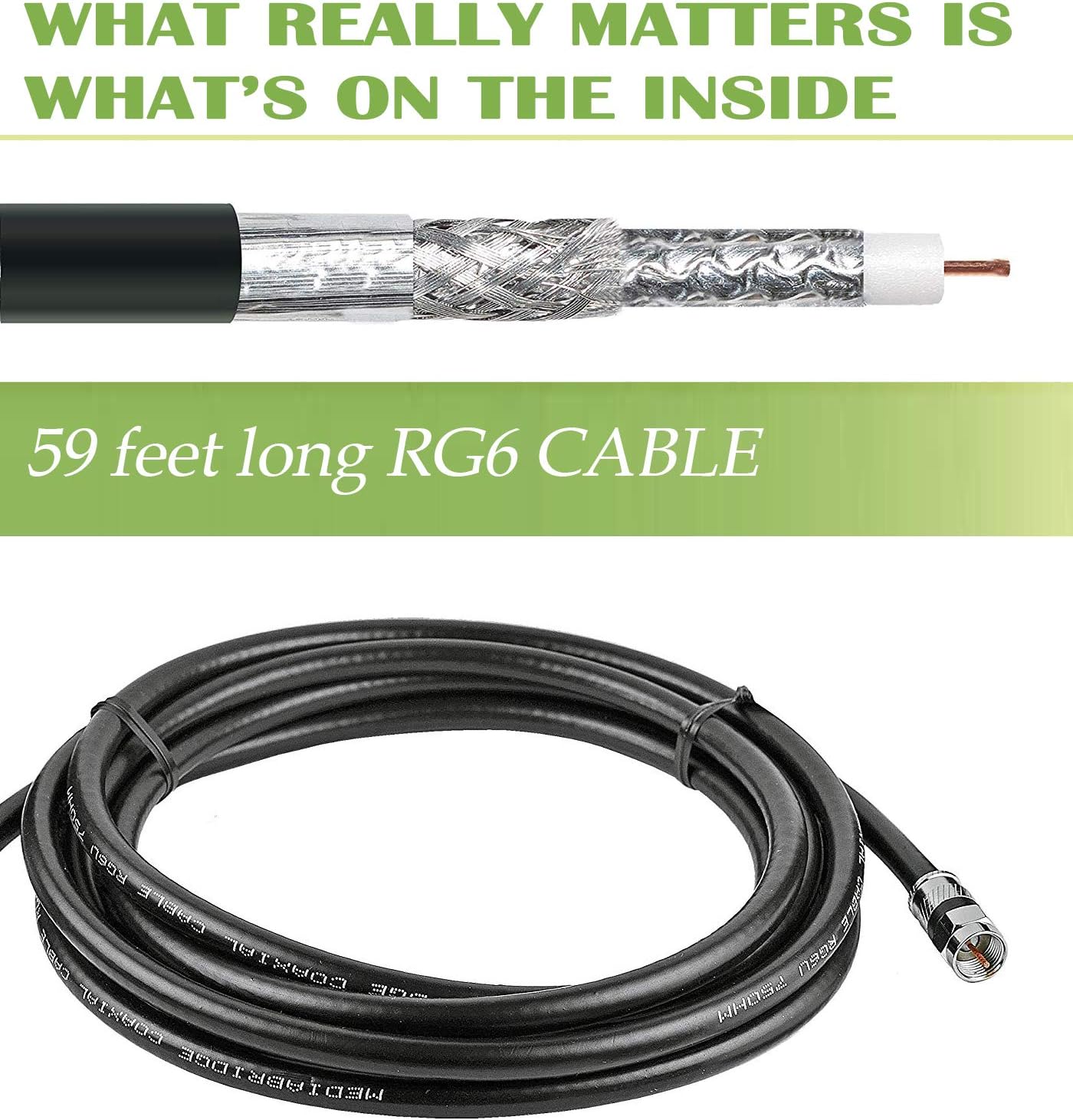

Coaxial Cable Length: 59FT RG6
Package Dimensions: 17.2 x 11.8 x 3.8 inches with 5.4 Pounds (Pole Not Included) Put B07BNSL21G into Amazon search box for pole.

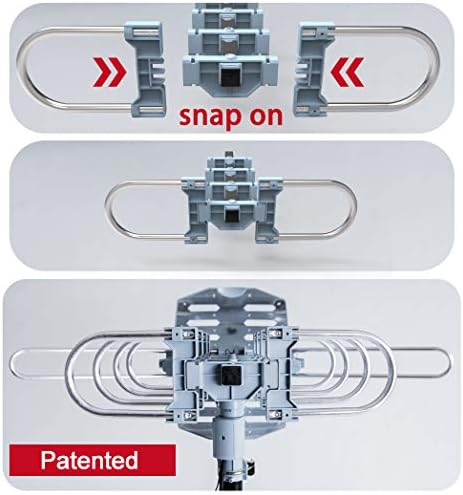

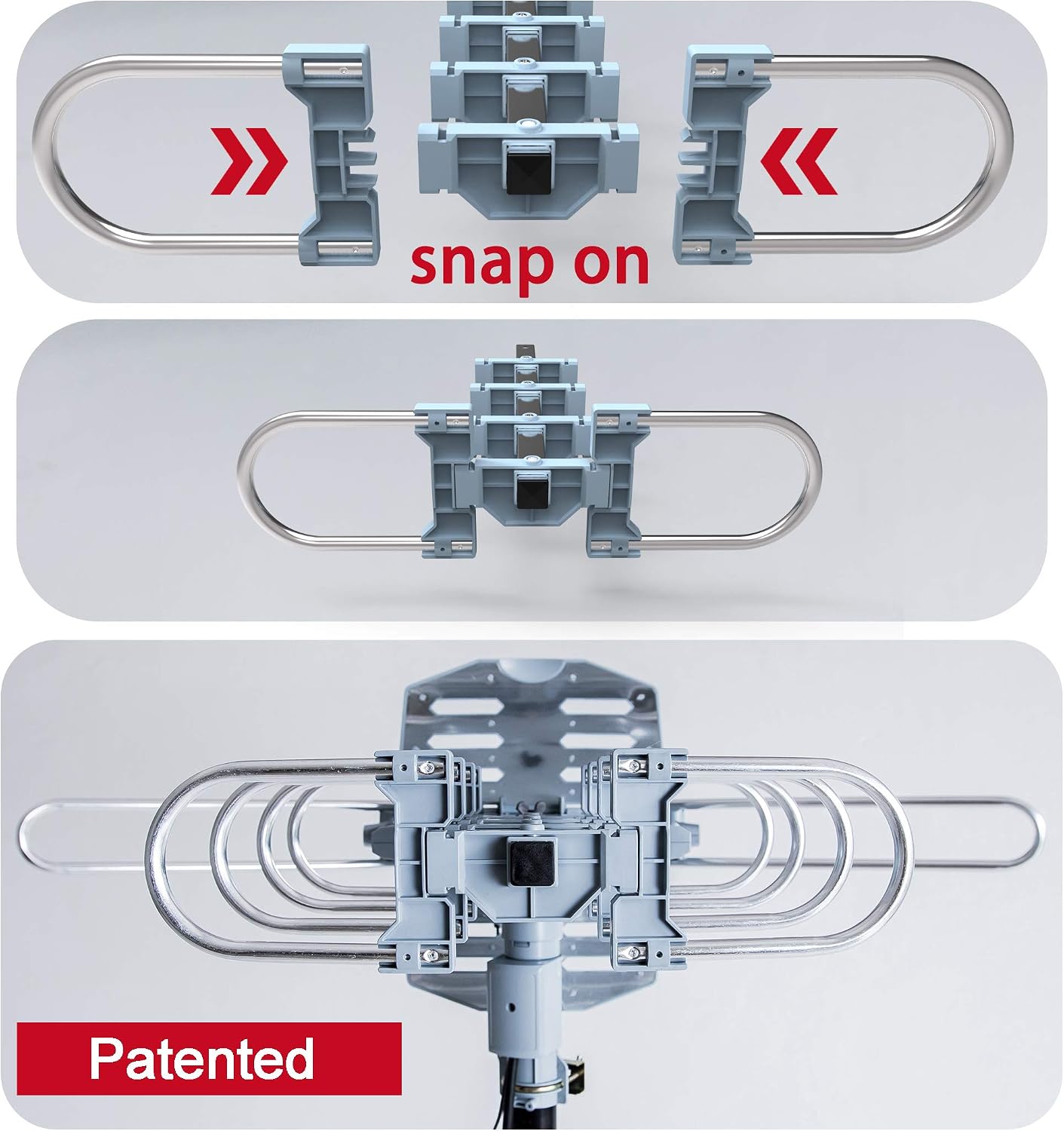

Why do our antennas outperform the competition? The proof is in the patented SNAP-ON design. The 2608 series is engineered to respond to a greater range of frequencies along with a wide beam angle eliminating the need for rotation.

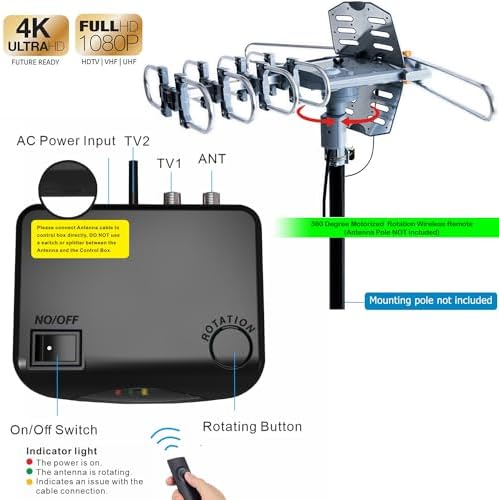

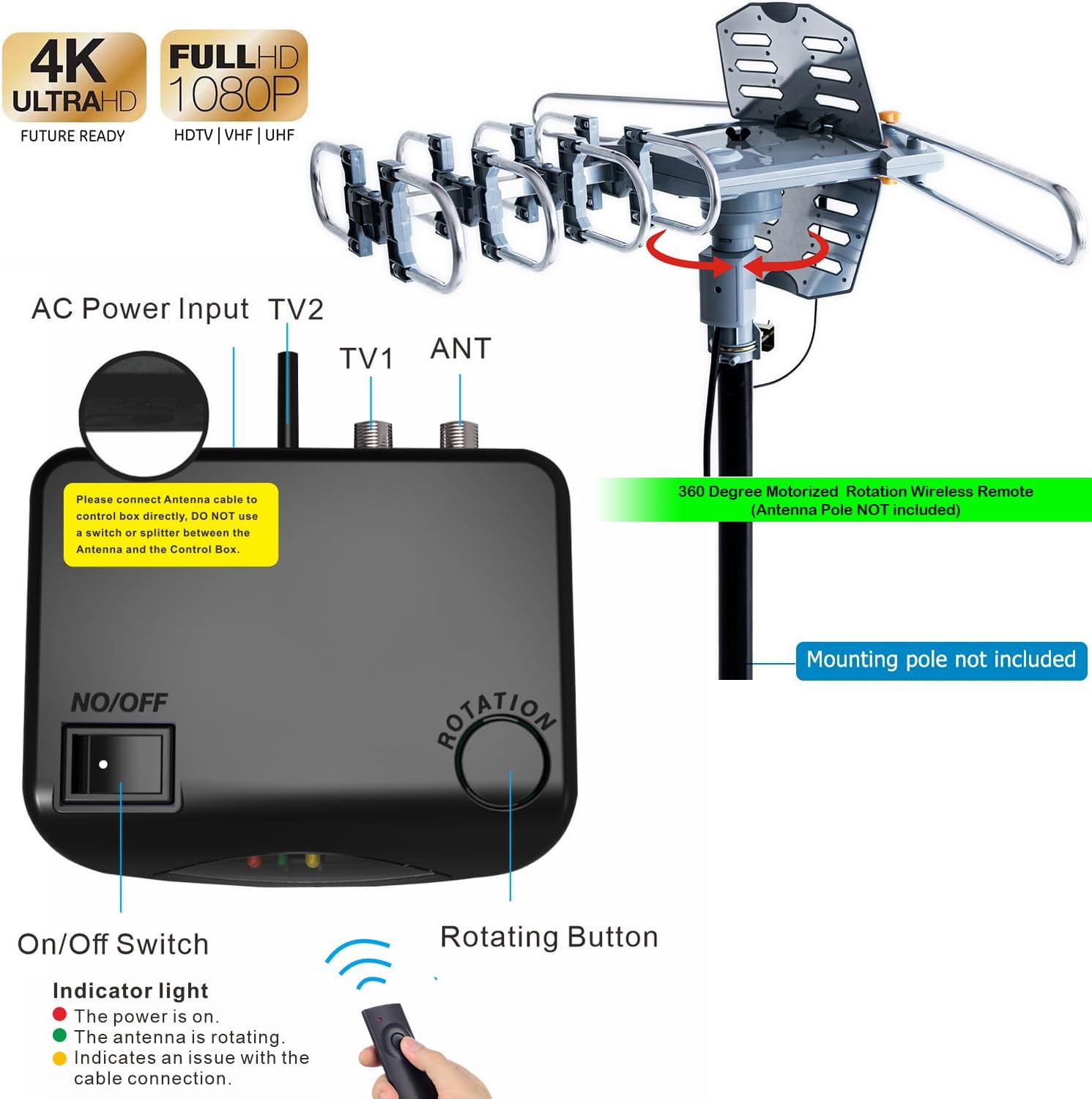

This outdoor HDTV antenna is designed as a perfect substitute for your annual cable to receive digital TV UHF/VHF signals. You can now enjoy free 4K high definition television without the high cost of cable or satellite. We also built it with motorized ability, you can adjust the antenna up to 360° now, simply by using the infrared remote control.
Antennas are built-in preamplifier* for outdoor usage.
(per Wikipedia). Locate the amplifier as close to the antenna as possible, so amplifying antenna signal and not amplifying line noise or interference on the cable run.*
Recommended to be mounted 30 feet above ground (Pole Not Included) Put B07BNSL21G into Amazon search box for pole.

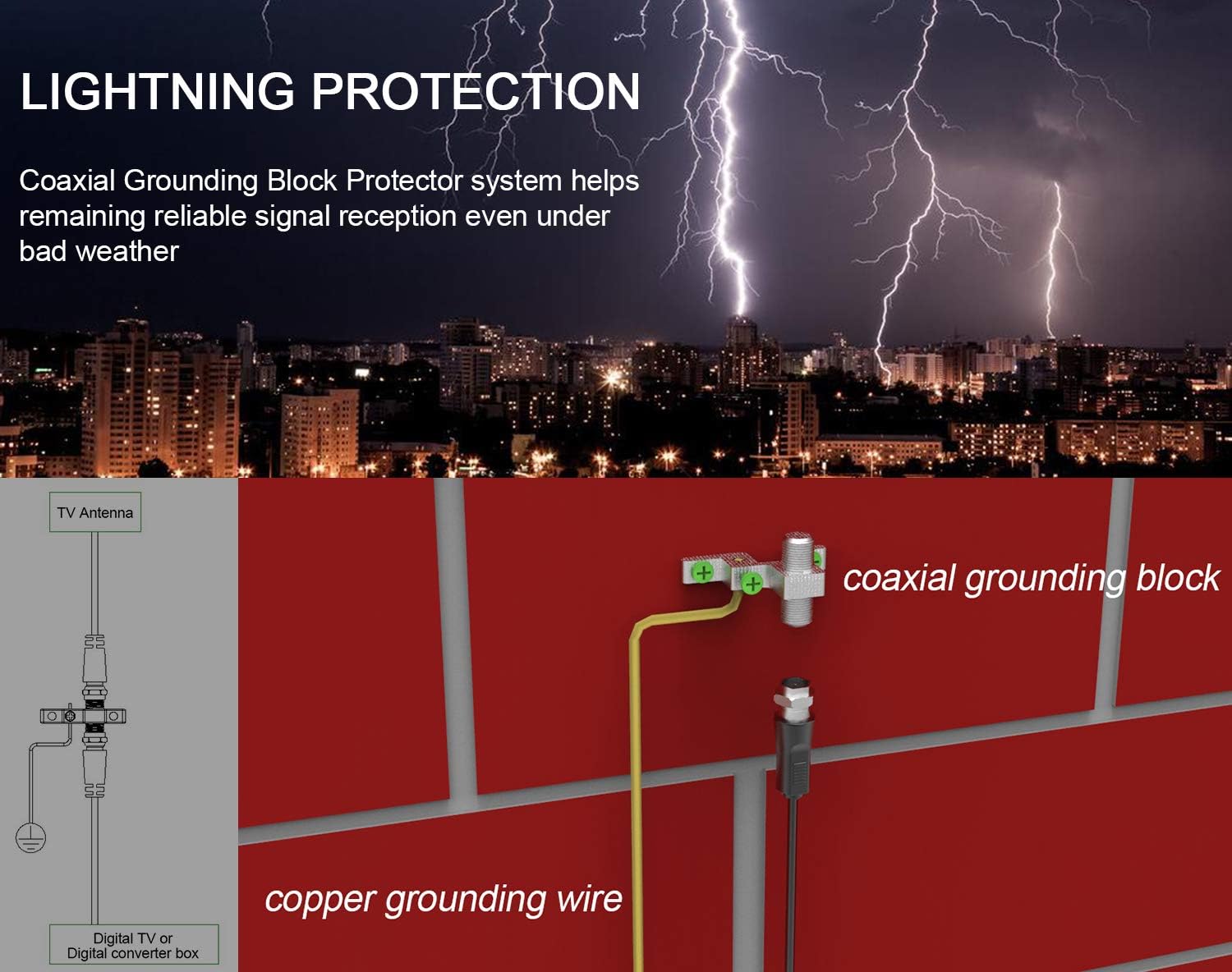

1, Clamp a#10 copper or #8 aluminum grounding wire to the base of the antenna mast. Using stand-offs every 1.2m to 1.8m /4 to 6 feet, run the wire down the building in as straight a line as possible.

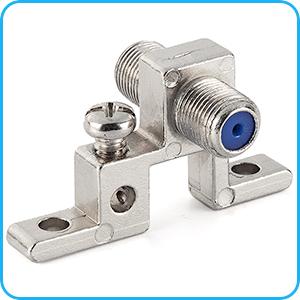

2, Attach a 300-Ohm static discharge unit (lightning arrestor) or a 75-Ohm grounding block to the antenna’s lead-in cable as close as possible to the point where the cable enters the house.
3, Attach the grounding wire to the lead-in cable’s grounding unit and run the wire to the central building ground.
Acceptable central building ground points may include:
Grounded interior metal cold water pipe within 1.5m/ 5 feet of the point where it enters the building Grounded metallic service raceway
Grounded electrical service equipment enclosure
2.4m / 8foot grounding rod driven into the ground (only if bonded to the central building ground by #6 or heavier bonding wire)
Other acceptable electrodes that comply with the sections 250 and 810 of the National Electrical Code (NEC)
Note: TV signal reception is immensely affected by the conditions such as antenna height, terrain, distance from broadcasting transmission antenna and output power of transmitter. Channels you can watch may vary depending on these conditions.
The HDTV reception ensures that you always have the highest quality content.
Depending on your location, the HDTV antenna can receive include NBC, FOX, CBS, ABC, PBS, THE CW, QUBO, TELEMUNDO, UNIVISION, RTV, THIS TV, ION, ME TV, the weather channels and SO MUCH MORE.
Get free access to all the content available in your area, including the most popular over-the-air TV shows, news, sitcoms, kids programs, sports and much more, all in breathtaking 4K Ultra HD for the best picture quality, most vivid colors and stunning sound.
NOTE: BEFORE YOU BUY:
find channels that works in your area:
And if you’re looking for a cable-style TV schedule, "TitanTV" is a free Web service that lists local programming.
Please Note:

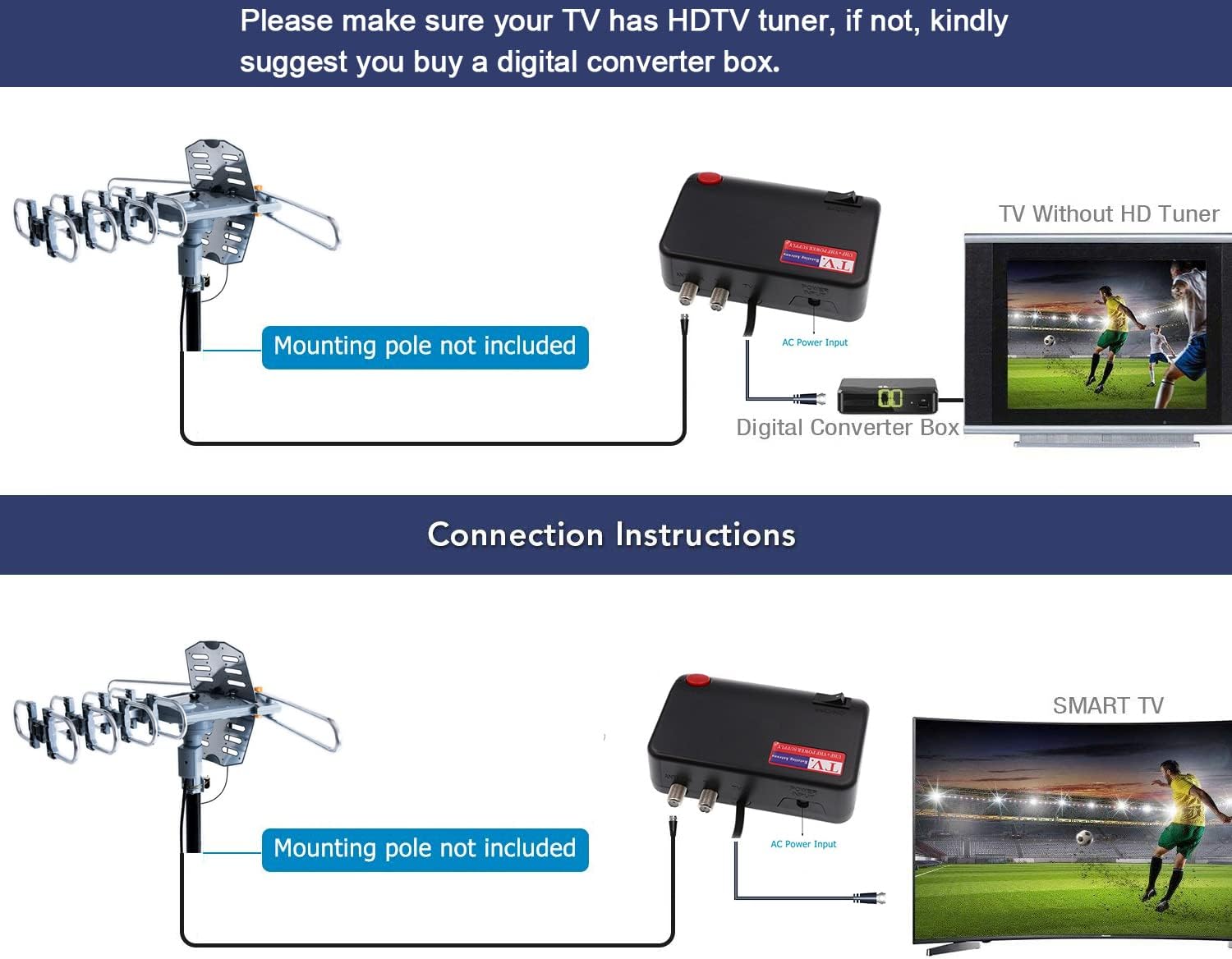

1. For flatscreen HDTVs, please check the TV's manual to make sure the TV has a built-in tuner for receiving over-the-air broadcast, and make sure this tuner can receive HD signals or else it will not be able to receive and watch HD channels.
2.Retune your TV and/or digital box from time to time to ensure you are receiving all available services. Retuning takes only a few minutes using the remote control.
3.Antenna signal strength can vary depending on distance from the tower, terrain, and weather. Reposition the antenna in a different location if needed. It is best for the antenna to be in line of sight with the TV tower(s) and avoid obstructions. Always re-scan for channels after moving the antenna.

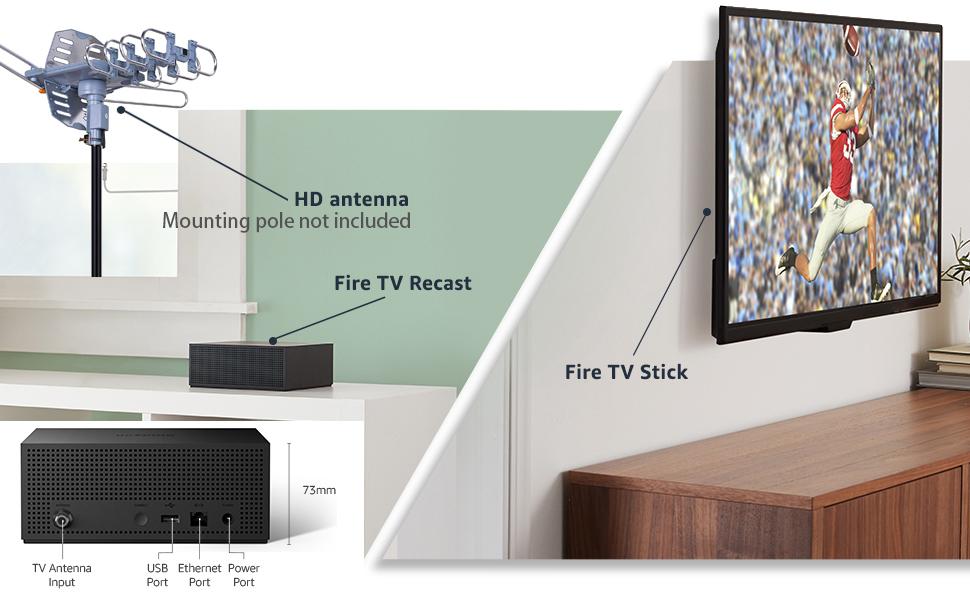

4. If your TV has no built-in tuner, you can add an ATSC digital converter box to receive the HD signal.
