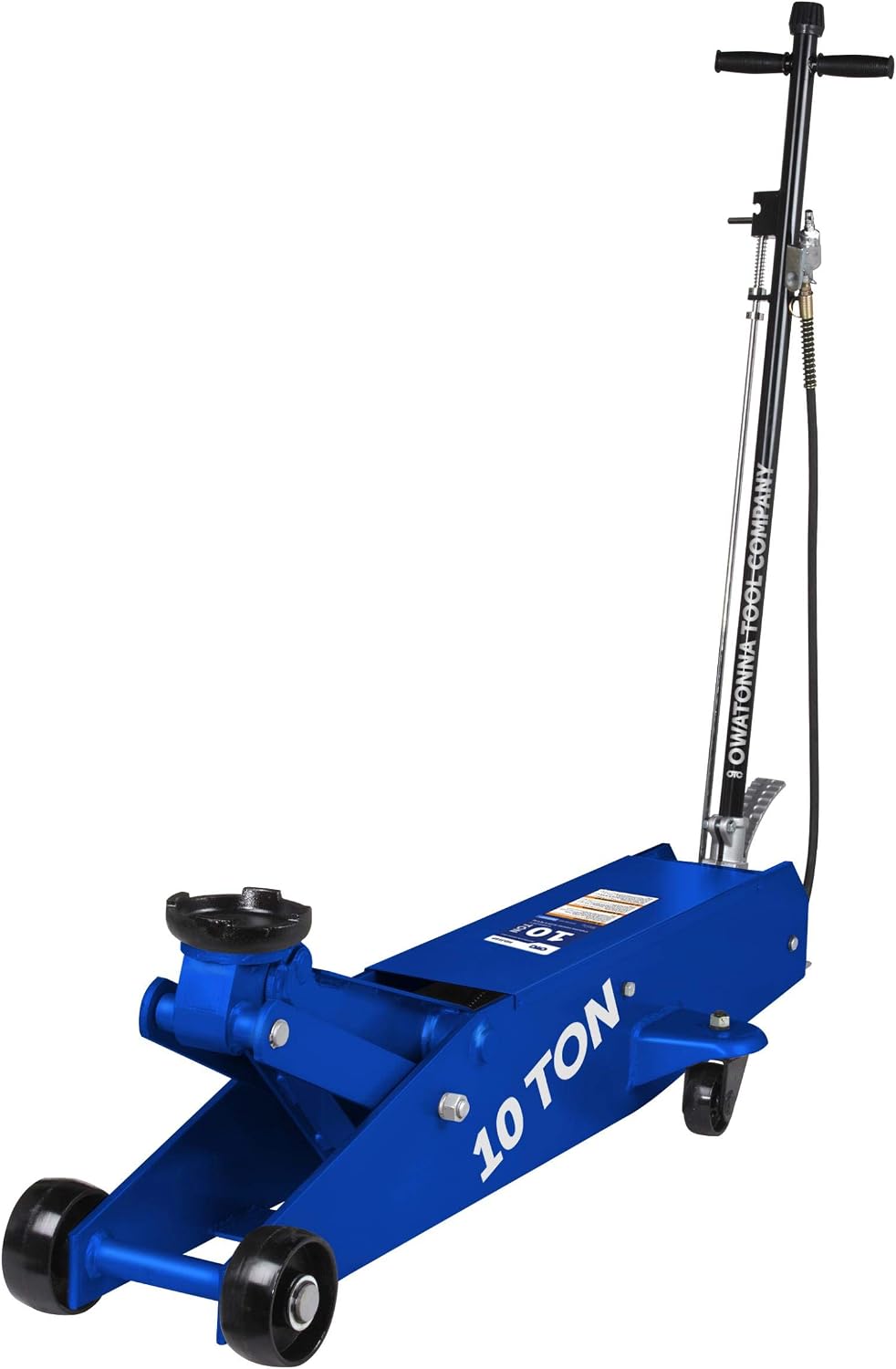

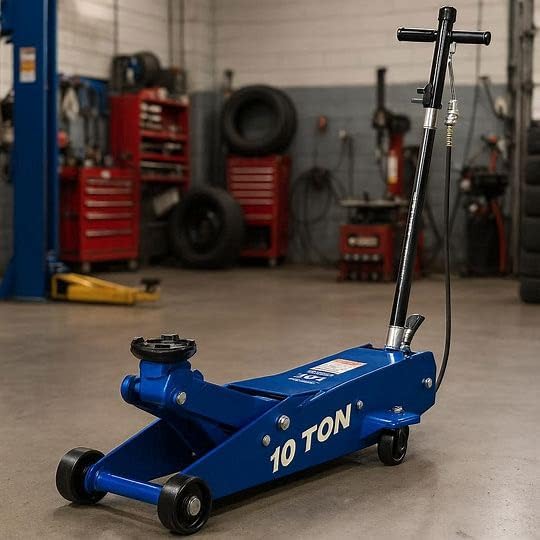

OTC's HDJ10P is a rugged, steel frame, 10-ton capacity service jack with three position (from horizontal to vertical), locking, spring-loaded handle, that brings the versatility of air-assist operation to your shop’s lifting tasks
Ideal size for heavy duty lifting jobs such as vocational vehicles, highway maintenance, delivery and service fleets, bucket trucks, school buses and community transit vehicles
Easy to maneuver, with a foot pedal that quickly positions the saddle to the lift point; Connects to 80-120 PSI shop air supply for effortless lifting of heavy loads
Rugged, welded hydraulic pump and cylinder construction with rust resistant chrome plated ram and contaminant preventing wiper seals; Roller (front) and ball (rear) bearing wheels provide stability and allow easy maneuvering
Specifications: 6-3/8 to 22 inch lifting range, 106.2 inch reach, 6 inch diameter round saddle, 9.8 inch frame height, 45.4 inch handle length, 4 casters: 5.6 inch fixed front (2), 3.6 inch mid-body swivel (2), weighs 293 lbs.
