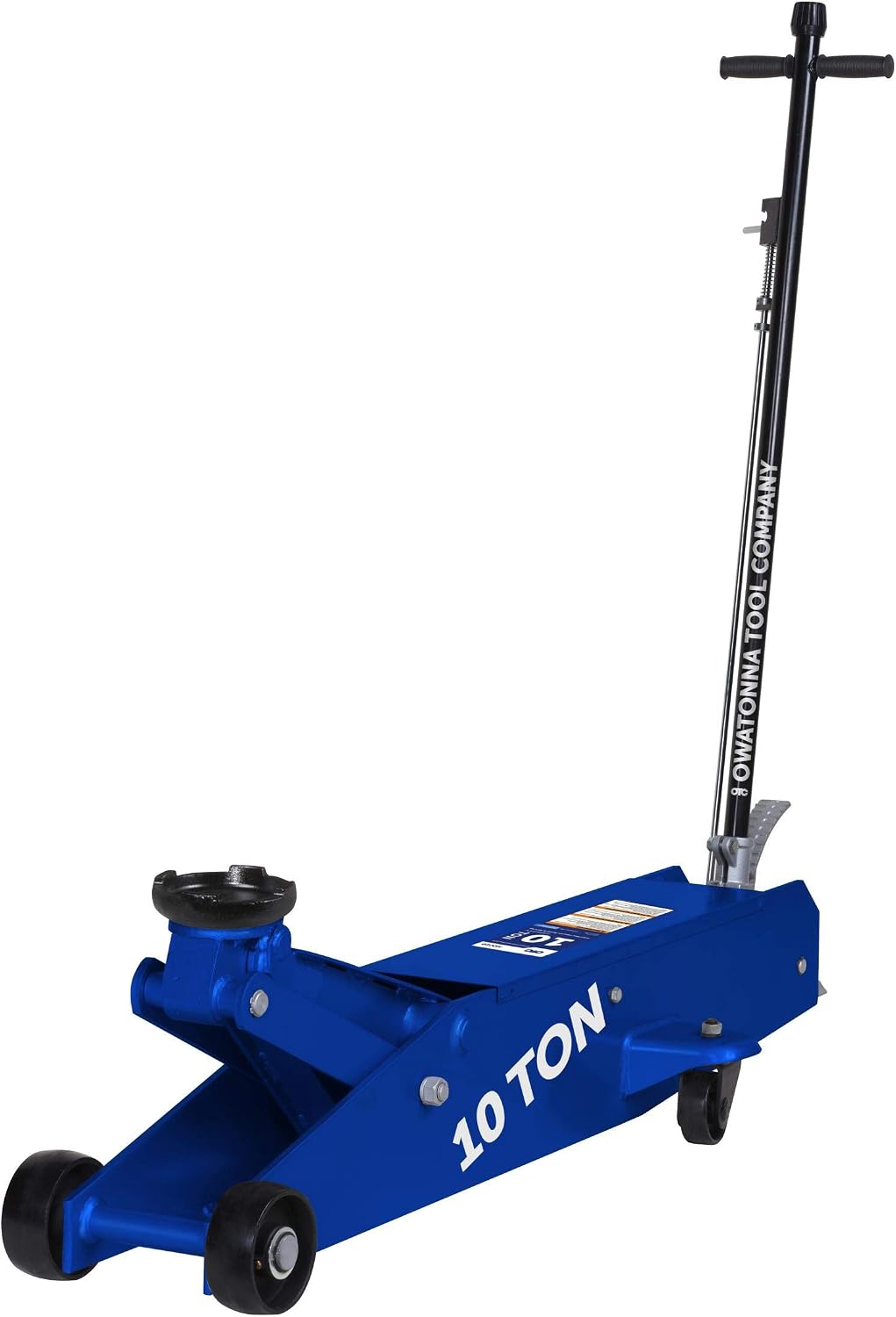

OTC's HDJ10 is a rugged, steel frame, 10-ton capacity service jack with three position (from horizontal to vertical), locking, spring-loaded handle and overload/bypass safety valves to prevent use beyong jacks rated capacity and extension
Ideal size for heavy duty lifting jobs such as vocational vehicles, highway maintenance, delivery and service fleets, bucket trucks, school buses and community transit vehicles
Easy to maneuver, with a foot pedal that quickly positions the saddle to the lift point, enabling you to quickly get vehicle to desired lift height
Rugged, welded hydraulic pump and cylinder construction with rust resistant chrome plated ram and contaminant preventing wiper seals; Roller (front) and ball (rear) bearing wheels provide stability and allow easy maneuvering
Specifications: 6-3/8 to 22 inch lifting range, 51 inch reach, 6 inch diameter round saddle, 9.8 inch frame height, 43.25 inch handle length, 4 casters: 5.6 inch fixed front (2), 3.6 inch mid-body swivel (2), weighs 285 lbs.
