| Maximum Rotational Speed | 45 rpm |
|---|---|
| Additional Features | Split-Pole Pin Technology |
| Compatible Devices | Personal Computer |
| Cycles | DC Motor |
| Signal Format | Analog |
| Power Source | Corded Electric |
| Connectivity Technology | Bluetooth |
| Style Name | Modern |
| Color | Black |
| Item Weight | 5 g |
| Item Dimensions L x W x H | 1.08"L x 0.63"W x 0.71"H |
| Built-In Media | Ortofon Super OM-5e Cartridge |
| Model Name | SUPER OM 5E |
| Unit Count | 1 Count |
| Manufacturer | Ortofon |
| Model Number | SUPER OM 5E |
| Mfr Part Number | 0130541 |
| Warranty Description | 2-Year Warranty |
| Enclosure Material | Plastic |
| Included Components | Ortofon Super OM-5e Cartridge |
| Special Feature | Split-Pole Pin Technology |
| Material | Plastic |
| Style | Modern |

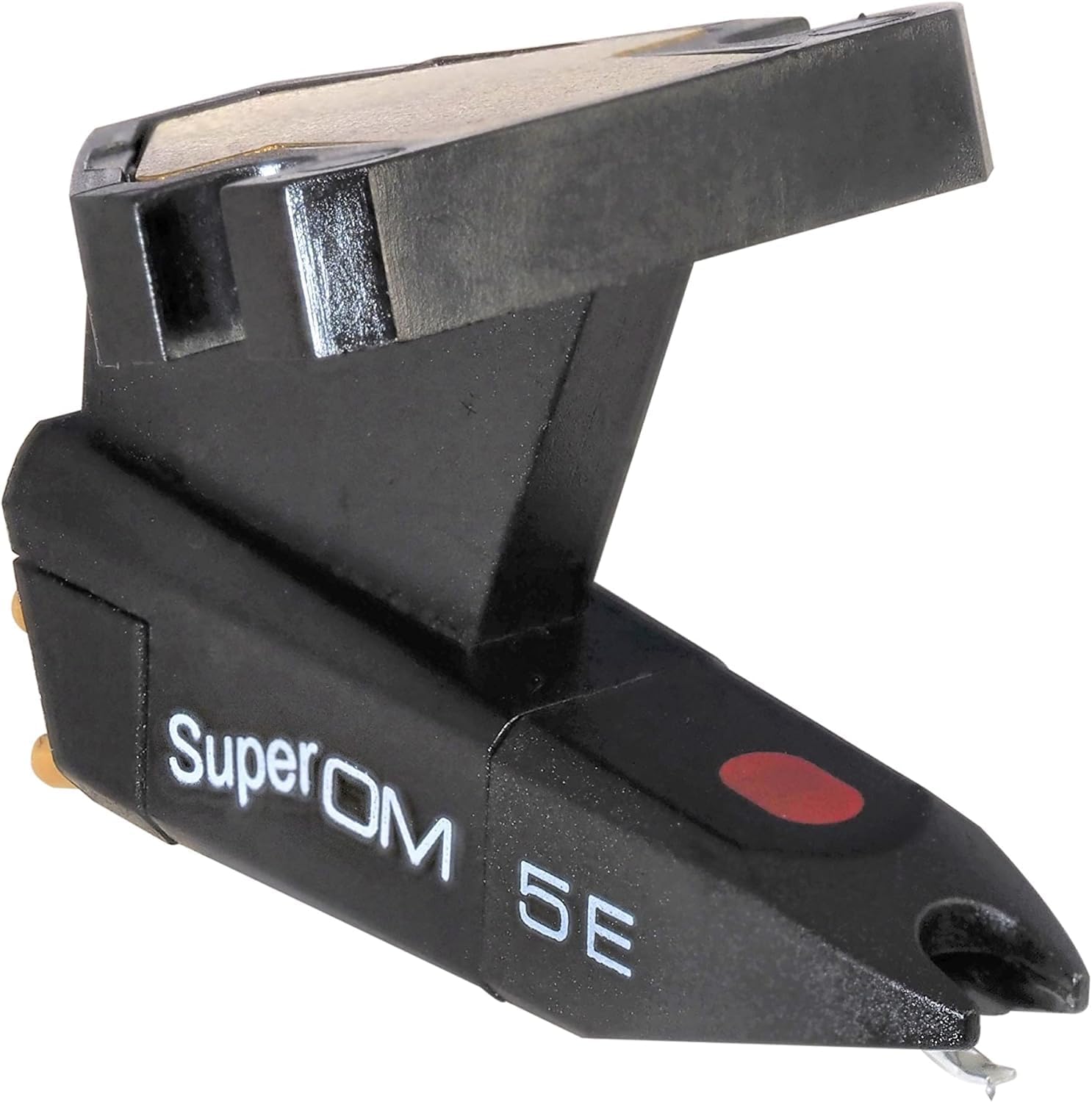

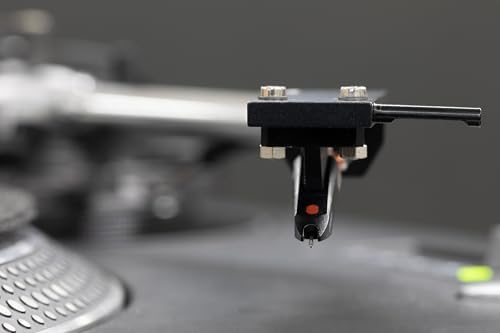

The Super OM 5E features improved lineraty, higher channel seperation, and an Elliptical stylus that provides balanced and distortion-free playback. The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

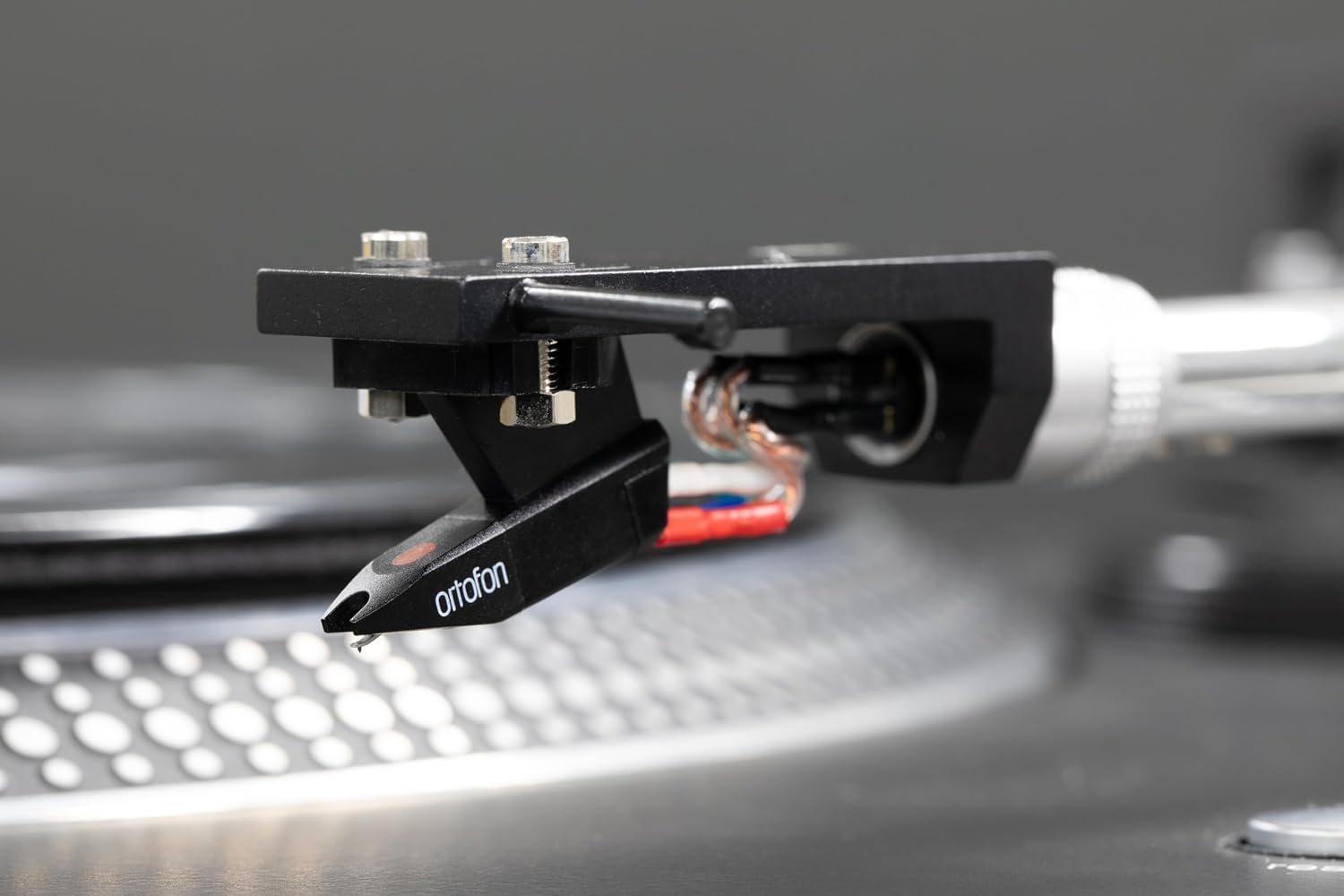

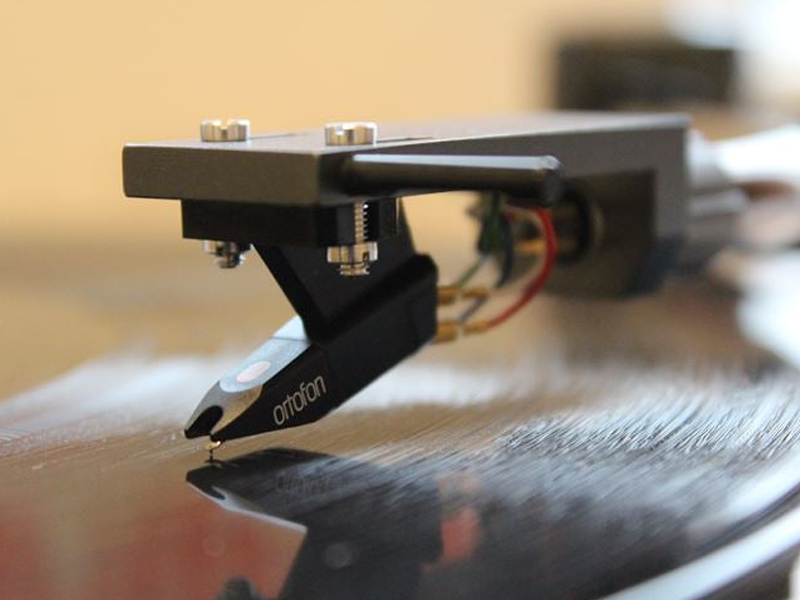

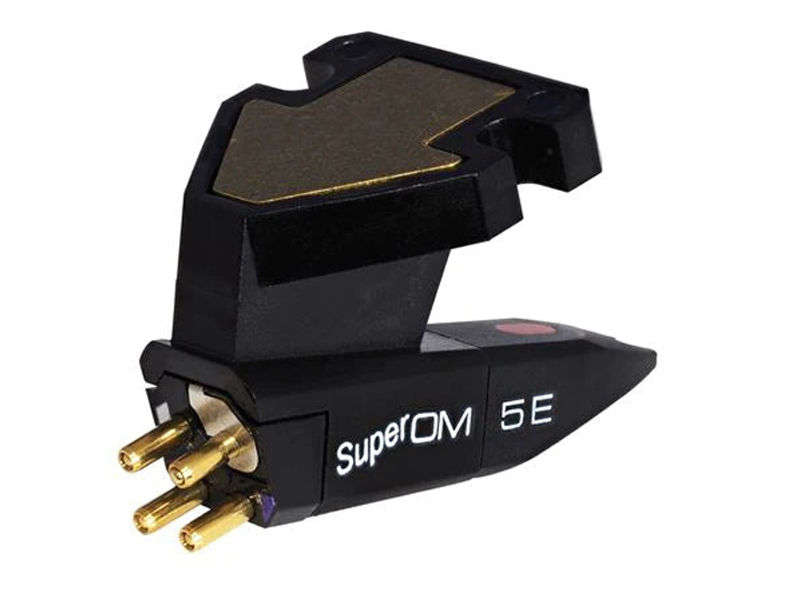

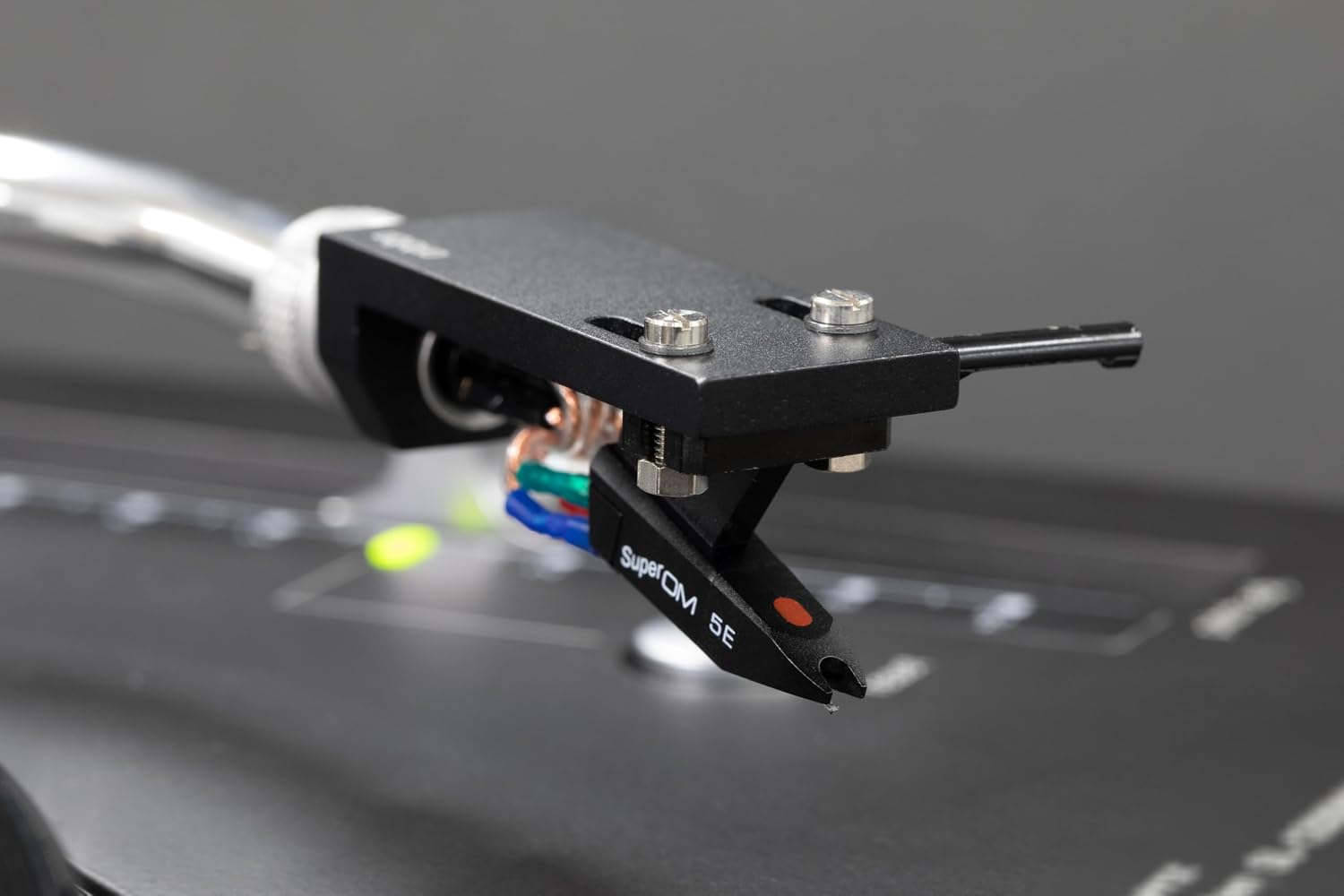

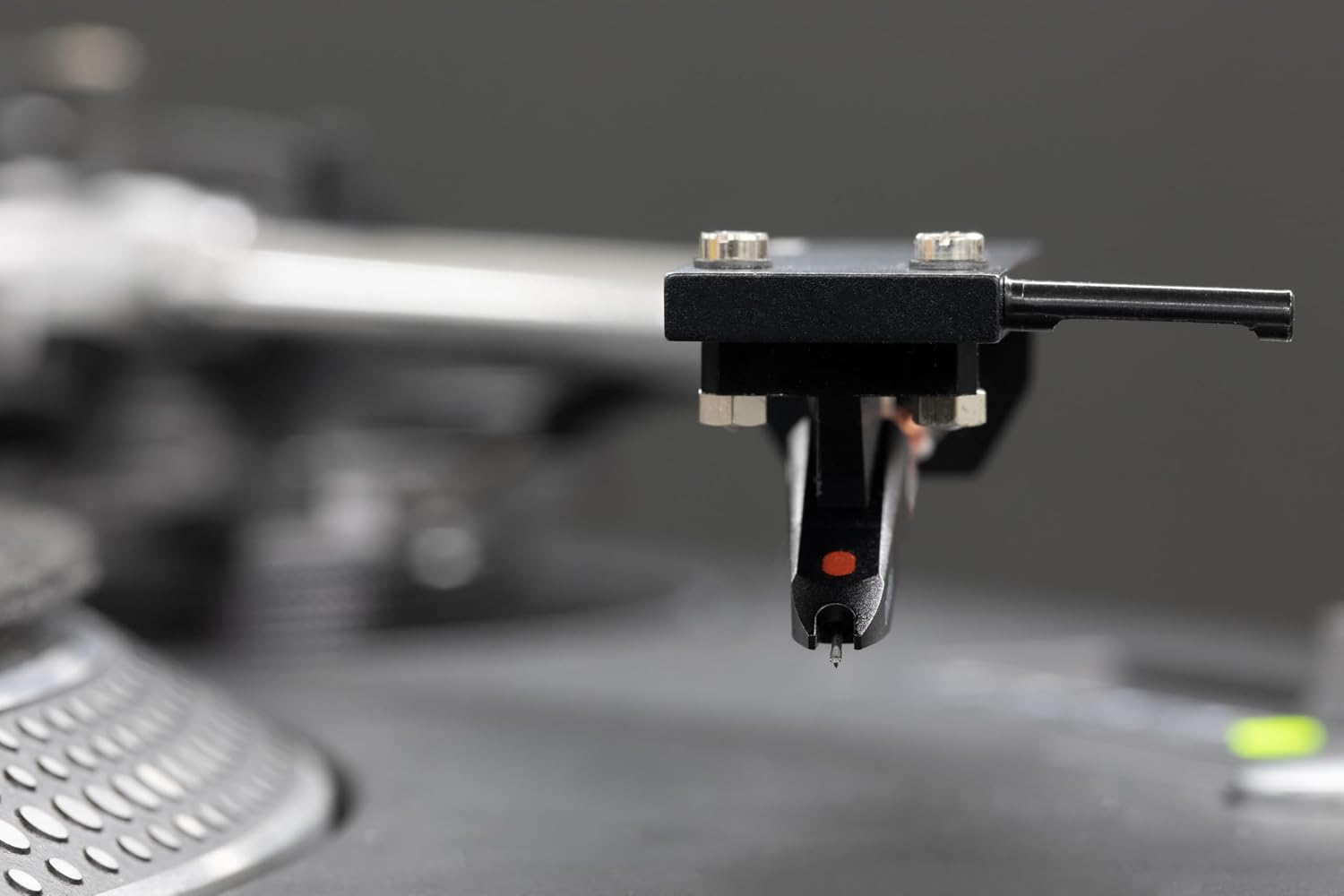

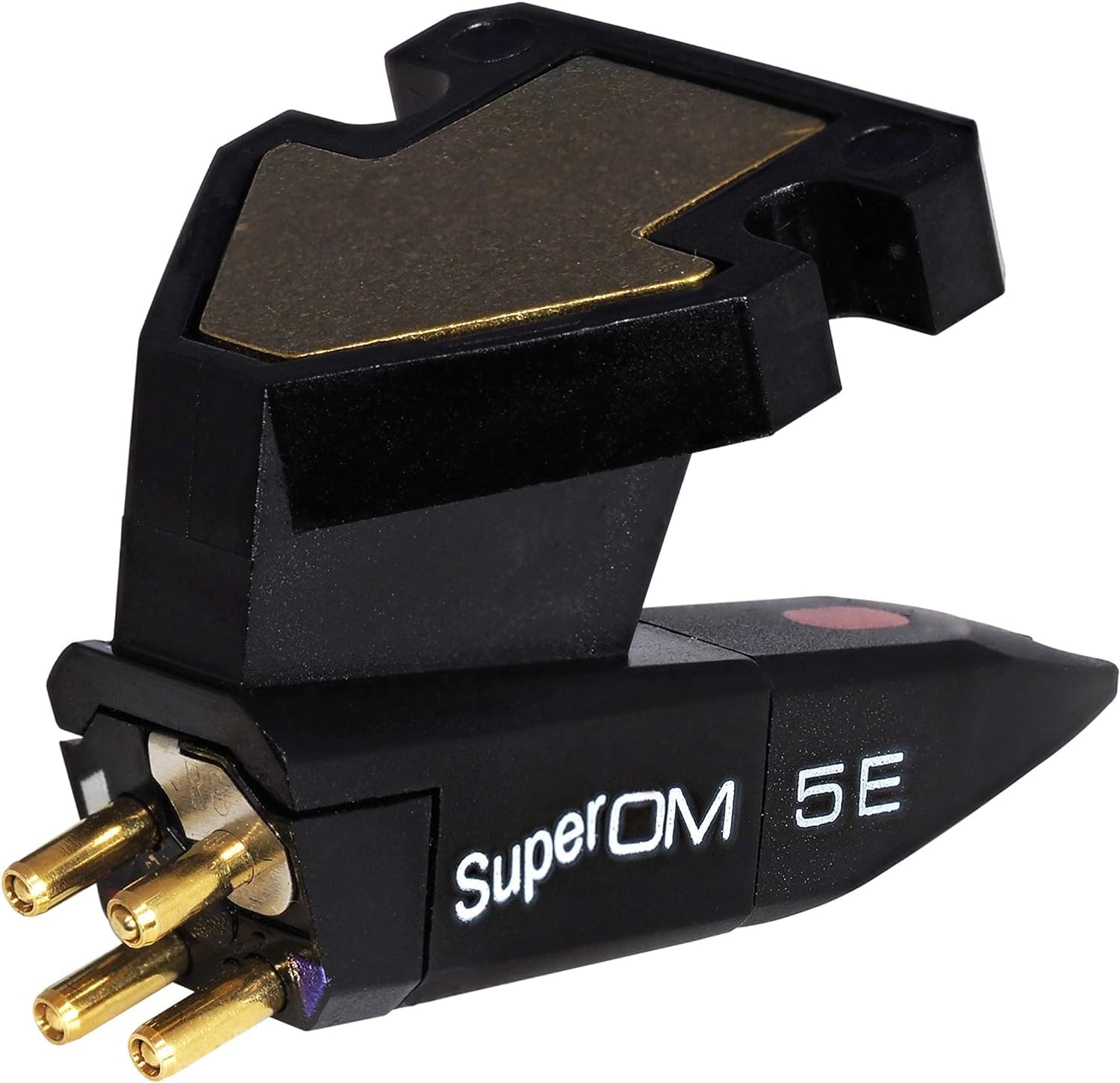

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight plate.
If your tonearm is a standard tonearm, just leave the weight plate. If your tonearm is one of the low-mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.
| Channel balance at 1 kHz | 1.5 dB |
| Output voltage at 1 kHz | (5cm/sec): 4 mV |
| Channel seperation at 1 kHz | 22 dB |
| Channel seperation at 15 kHz | 15 dB |
| Frequency response | (20 Hz - 20 kHz): 20-22.000 Hz + 3 / -3 |
| Tracking ability at 315Hz | (at recommended tracking force): 60 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.5-2.0 g (15-20 mN) |
| Tracking force, recommended | 1.75 g (17.5 mN) |
| Tracking angle | 20° |
| Internal impedance | (DC resistance): 1.0 kOhm |
| Recommended load capacitance | 200-500 pF |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 580 mH |
