| Additional Features | Scratch and Back-Cueing Capabilities, Spherical Diamond Tip, High Output |
|---|---|
| Compatible Devices | OM Q.Bert Cartridge |
| Signal Format | phono |
| Voltage | 11 Millivolts |
| Style Name | Boom microphone stand with a telescoping boom arm |
| Color | White |
| Item Weight | 0.1 g |
| Enclosure Material | Stainless Steel |
| Built-In Media | Replacement Needle |

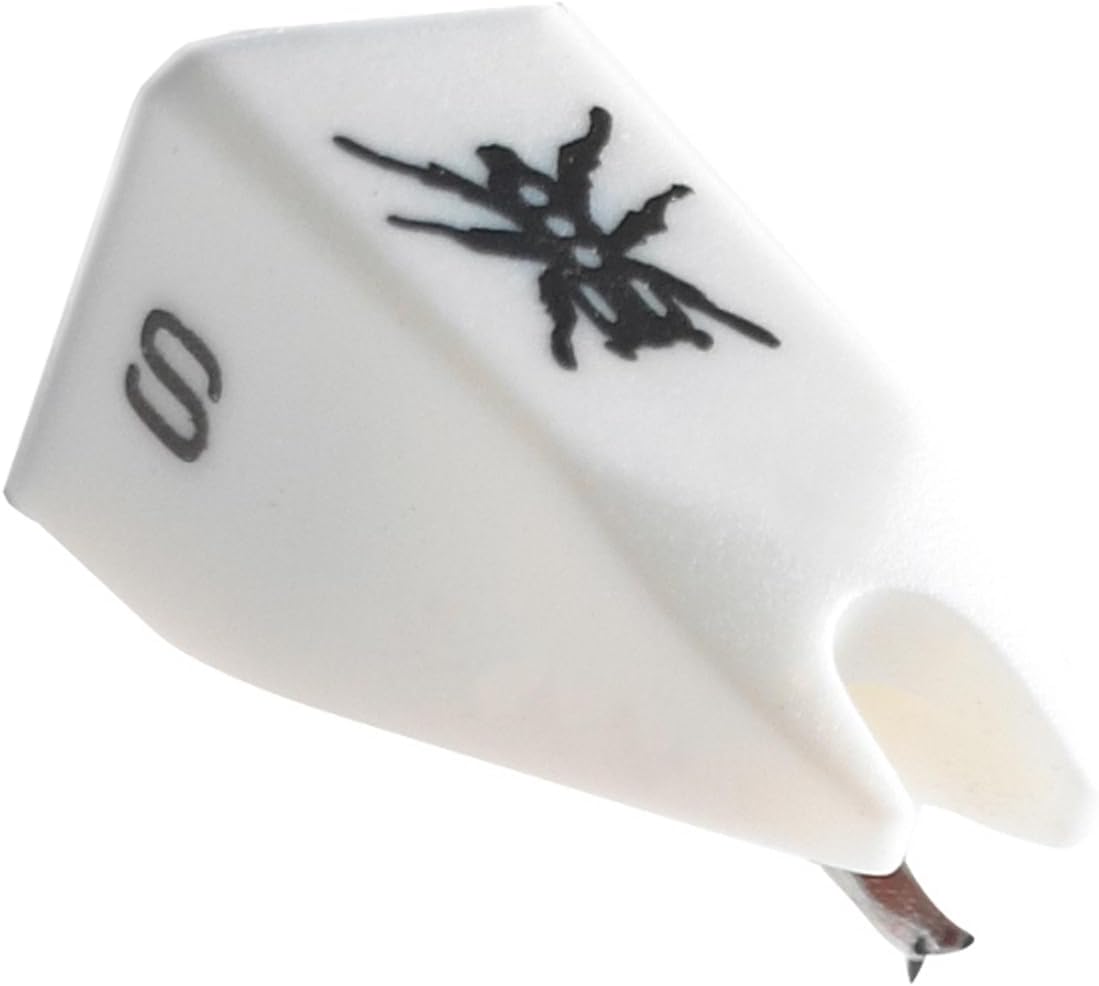

| Model Name | Q.Bert |
| Unit Count | 1 Count |
| Manufacturer | Ortofon |
| Global Trade Identification Number | 05705796176773 |
| Model Number | Stylus Q.Bert |
| Mfr Part Number | Stylus Q.Bert |
| Warranty Description | 2-Year Warranty |
| Included Components | Replacement Needle |
| Special Feature | Scratch and Back-Cueing Capabilities, Spherical Diamond Tip, High Output |
| Material | Stainless Steel |
| Style | Boom microphone stand with a telescoping boom arm |
Physically, each series of DJ styli for Concorde MkI except for S-120, and Concorde MkII will fit on alternate cartridge bodies. However, these combinations are not supported by Ortofon, as each cartridge series is designed with a synergistic combination in mind - that is, each stylus is made to compliment the magnet and coil configuration of each cartridge body. For instance, using CLUB stylus with SCRATCH body will not provide the full benefit of either product, and might even provide undesired results, including (but not limited to) differences in output, unbalanced sound reproduction.
Firstly lock the turntable tone arm, unscrew the cartridge, gently remove the stylus from the cartridge and insert a new stylus. A stylus is changed usually by pulling straight out and in the opposite direction of the turntable's arm. If the stylus doesn't come with directions, try these: with one hand, hold the cartridge to steady it. With the other hand, using a pair of tweezers, grasp the stylus from both sides and pull. Install the new stylus: holding the stylus from the top, press it gently into the space at the tip of the cartridge where the old stylus had been. Don't force it.
Cleaning of record by means of carbon fibre brush before and after every use. Cleaning of record by using record cleaning machine once in a while.
Cleaning of stylus by means of a fine antistatic brush. Please remember to remove dust from the diamond tip before and after playback of each record. Use the brush in the forward direction from the rear of the cartridge towards the stylus tip and never from stylus tip to the rear of the cartridge and never from side to side.
Proper adjustment of antiskating, azimuth and tracking force.
The physical difference between a spherical and elliptical stylus is the shape of the diamond.
An elliptical diamond allows for more detailed sound quality, as it fits better within the groove and therefore has more contact area with the groove itself. Elliptical diamonds penetrate the groove walls further, extracting more intricate detail, especially in the high end, than is possible with a spherical diamond. It is commonly misrepresented that elliptical styli cause more wear than spherical styli.
In fact, spherical styli, since they have a smaller contact area and more pressure, cause more immediate wear than elliptical styli, but in a smaller area of the groove itself. Elliptical styli, since they have more weight distribution amongst a larger contact area, will wear the groove slower, but will wear more of the groove over repeated backcueing.
