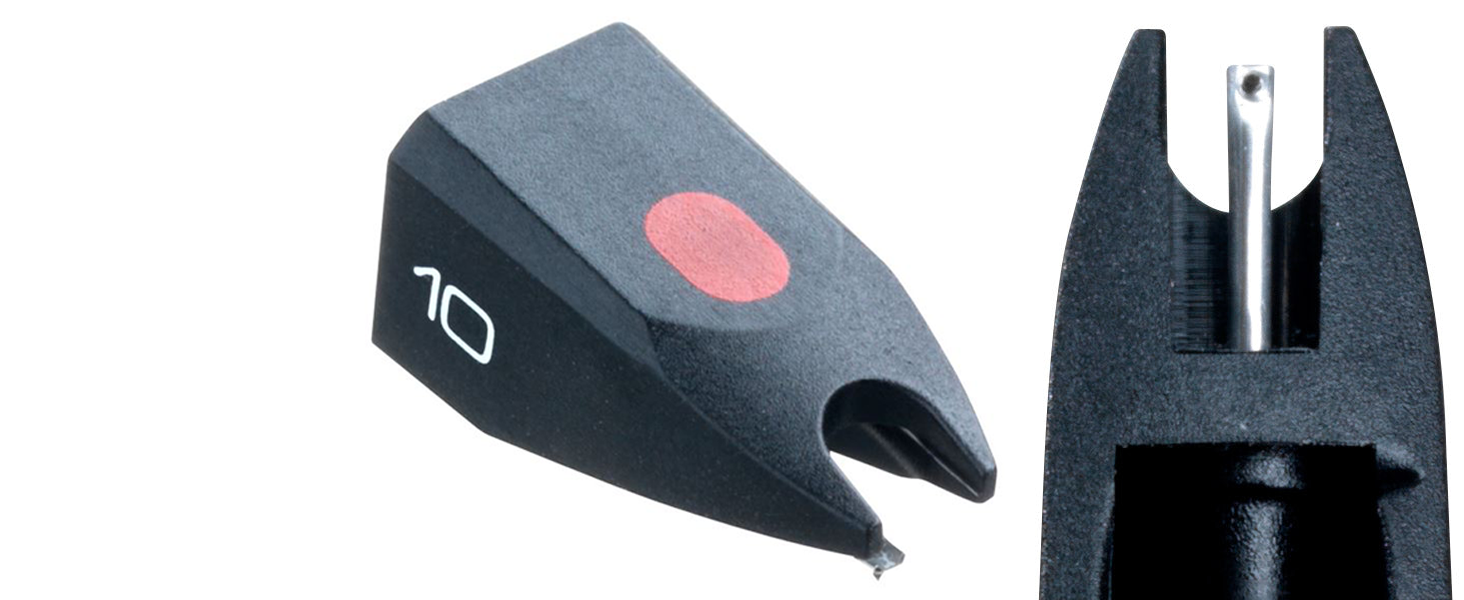

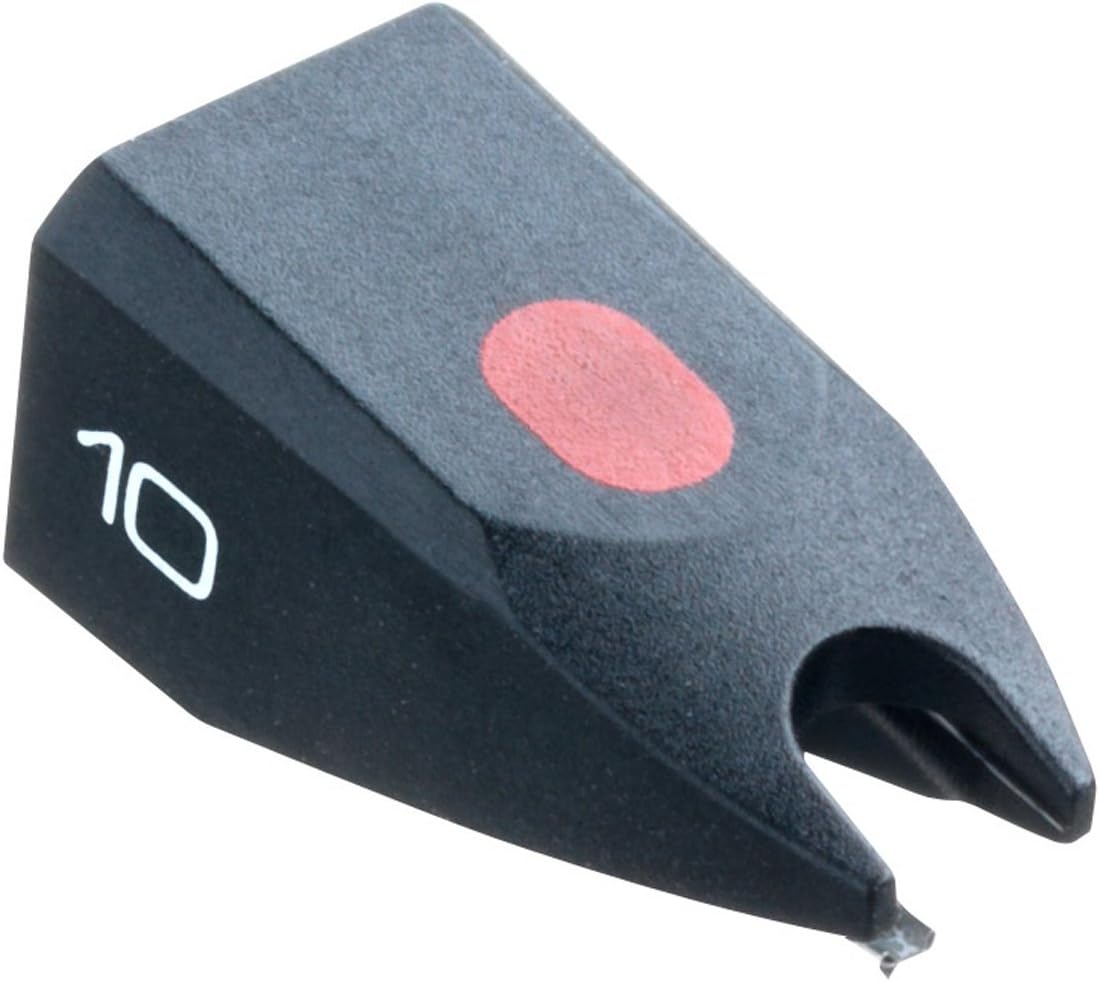

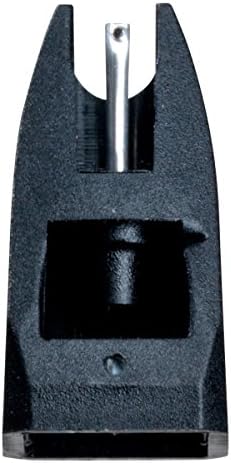

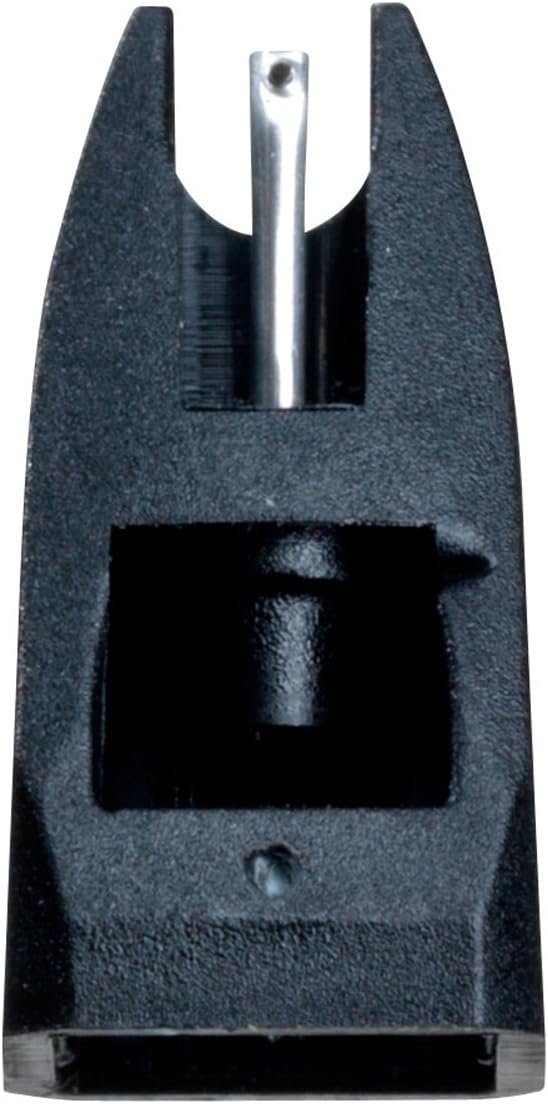

Ortofon Replacement Stylus 10

$24.80 USD

Shipping fees will be calculated at checkout.

Replacement Stylus for Ortofon OM 10 and Super OM 10
Will fit the following Ortofon cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD
Recommended for following cartridges: Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD
Stylus type - Elliptical
Recommended tracking force is 1.5g

Additional Features	Elliptical Stylus for Superior Audio Reproduction
Compatible Devices	Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, OD 1, Concorde 10, Concorde EC 10, Concorde STD, SG 10, TM 10H, LMB 12, SMB 12, LMA 12
Style Name	Hi-Fi cell
Color	Black
Item Weight	9.07 g
Enclosure Material	Cotton
Model Name	ORTOFON Stylus 10
Unit Count	1 Count
Manufacturer	Ortofon
UPC	411378012272
Global Trade Identification Number	05705796130065
Item Part Number	STYLUS10
Model Number	Stylus 10
Mfr Part Number	STYLUS 10
Special Feature	Elliptical Stylus for Superior Audio Reproduction
Material	Cotton
Style	Hi-Fi cell

Stylus 10

Frequency response	(20 Hz - 20 kHz): 3 /- 3 dB
Tracking ability at 315Hz	(at recommended tracking force): 60 µm
Compliance, dynamic, lateral	20 µm/mN
Stylus tip radius	r/R 8/18 µm
Tracking force range	1.25-1.75 g (12.5-17.5 mN)
