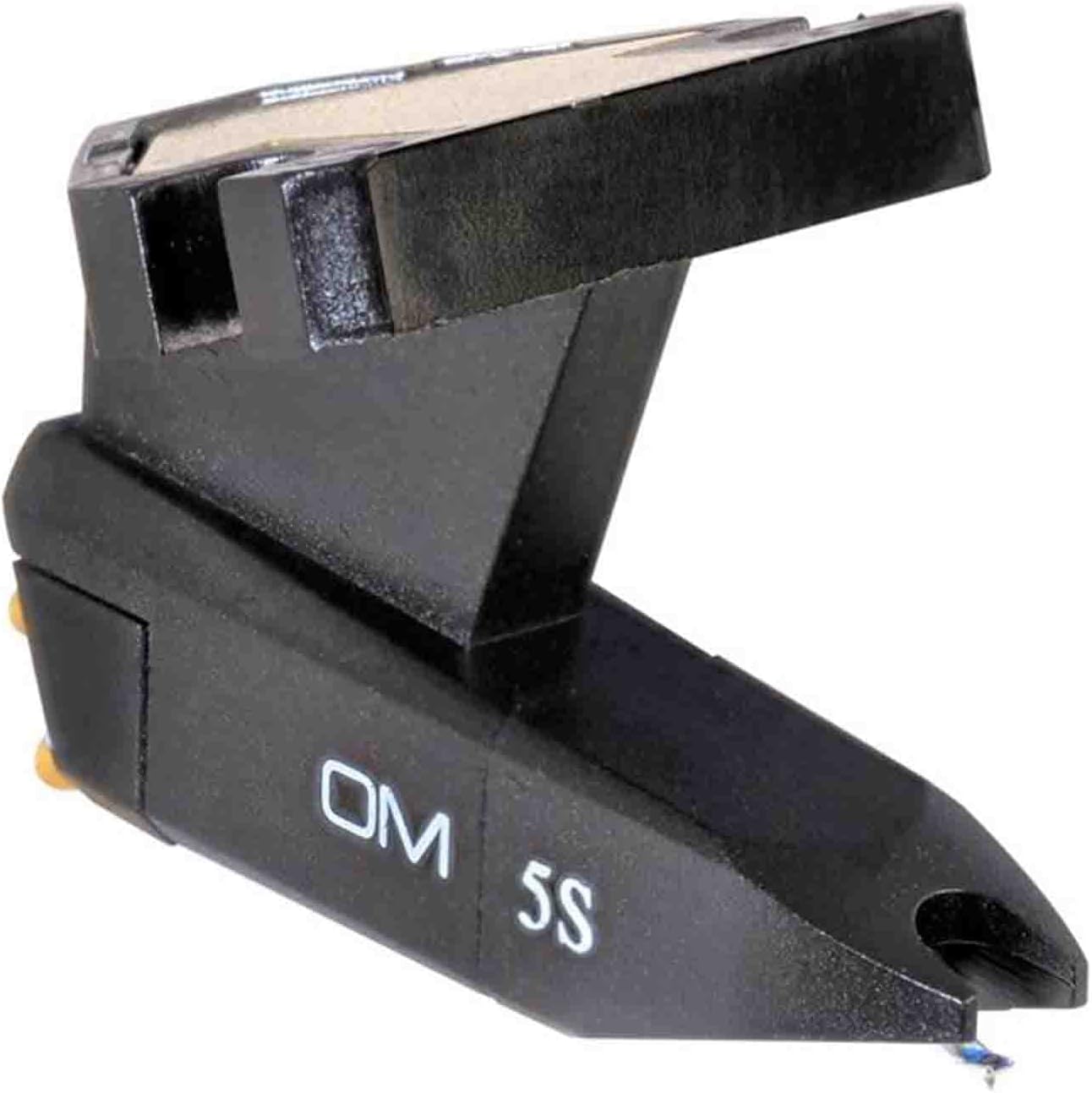

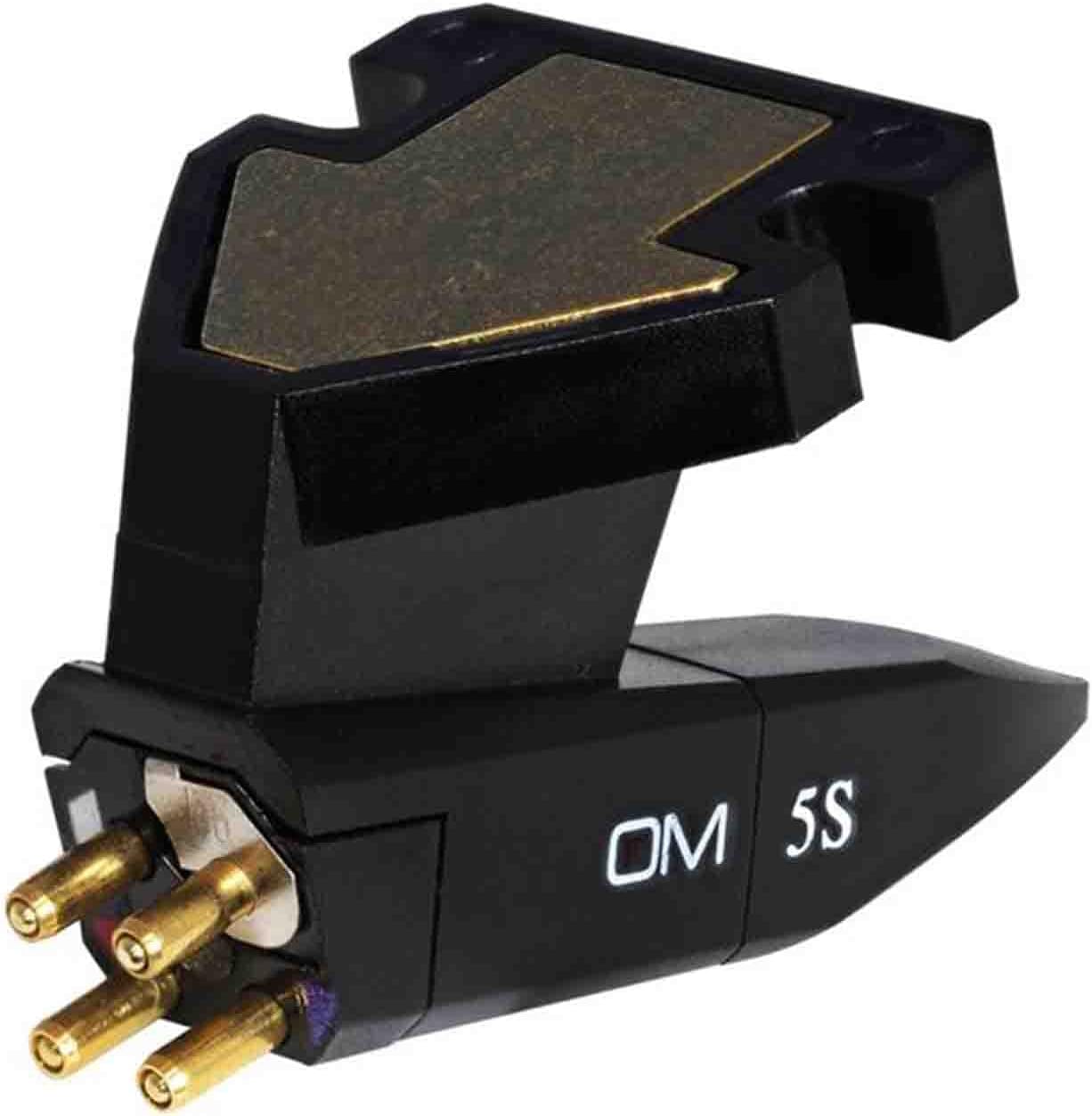

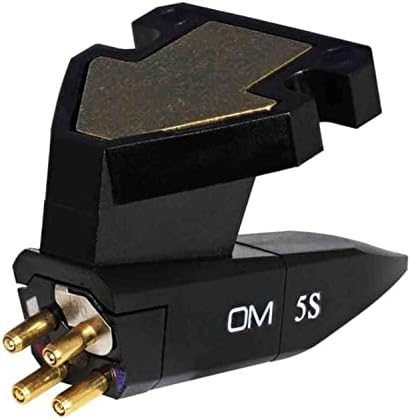

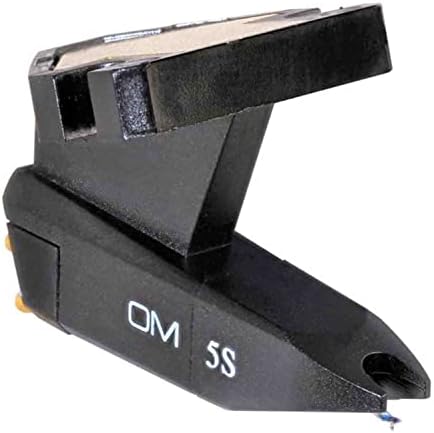

Ortofon OM-5S Moving Magnet Phono Cartridge Aluminum Wired Black

$26.80 USD
Shipping fees will be calculated at checkout.
  • Free worldwide shipping

  • Free returns

  • Carbon neutral

  • Secure payments

  • Fits most standard turntables
  • Easily relpaceable stylus
  • Spherical diamond
  • Offers distortion free playback of stereo records
  • Low mass design reduces record wear
Additional FeaturesSpherical Diamond Stylus
Compatible DevicesTurntable, Amplifier, Speaker, Audio system
Signal FormatPhono
Style NameBoom microphone stand with a telescoping boom arm
ColorBlack
Item Weight5 g
Enclosure MaterialStainless Steel
Model NameOM-5s
Unit Count1 Count
ManufacturerOrtofon
Model NumberOM 5S
Mfr Part Number0130531
Warranty Description2-Year Warranty
Special FeatureSpherical Diamond Stylus
MaterialStainless Steel
StyleBoom microphone stand with a telescoping boom arm

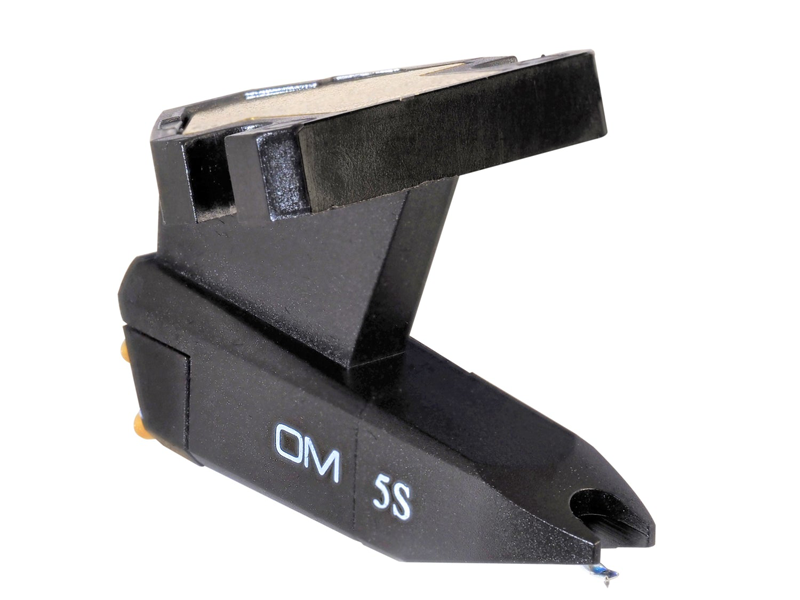

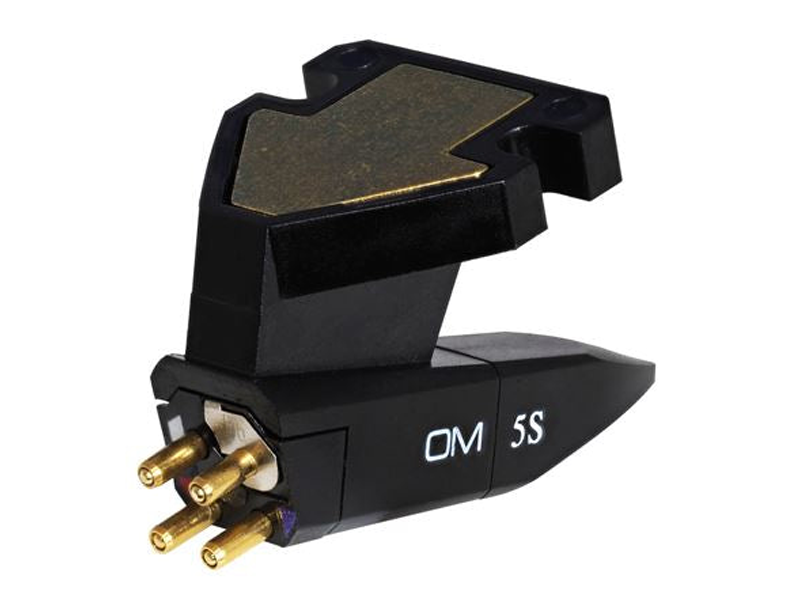

OM 5S

A moving magnet cartridge for general purpose application

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight plate. If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.

A great match for your home system

Styli types and interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.

OM 5S
Channel balance at 1 kHz 2 dB
Output voltage at 1 kHz (5cm/sec): 4 mV
Channel seperation at 1 kHz 20 dB
Channel seperation at 15 kHz 12 dB
Frequency response (20 Hz - 20 kHz): 20-22.000 Hz
Tracking ability at 315Hz (at recommended tracking force): 60 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Spherical
Stylus tip radius R 18 µm
Tracking force range 1.5-2.0 g (15-20 mN)
Tracking force, recommended 1.75 g (17.5 mN)
Tracking angle 20°
Internal impedance (DC resistance): 750 Ohm
Recommended load capacitance 200-500 pF
Recommended load resistance 47 kOhm
Internal inductance 450 mH
