| Item Weight | 0.176 ounces |
|---|---|
| Product Dimensions | 1.14 x 0.59 x 0.67 inches |
| Item model number | OM 5E |
| Color Name | black |
| Material Type | Stainless Steel |

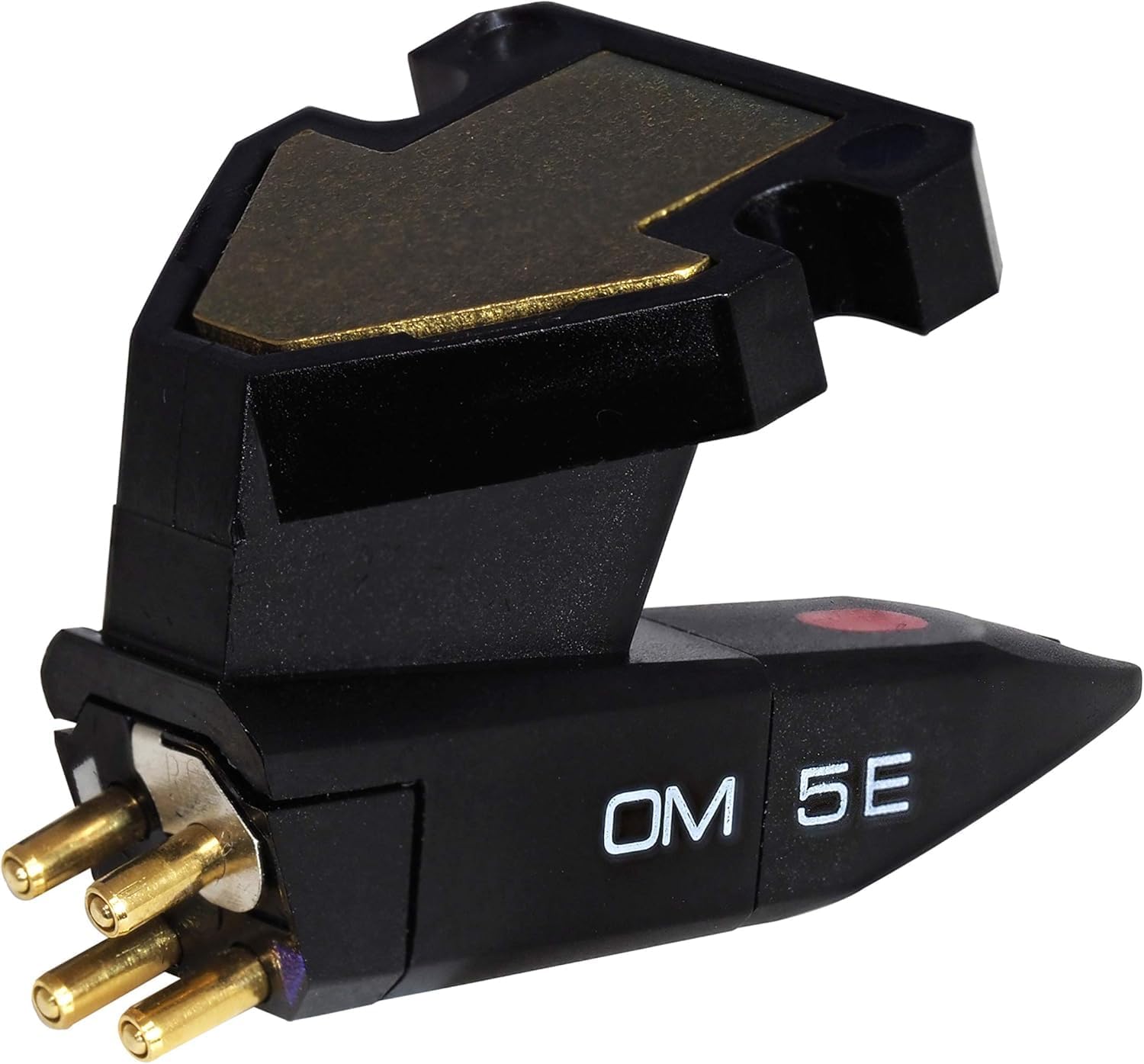

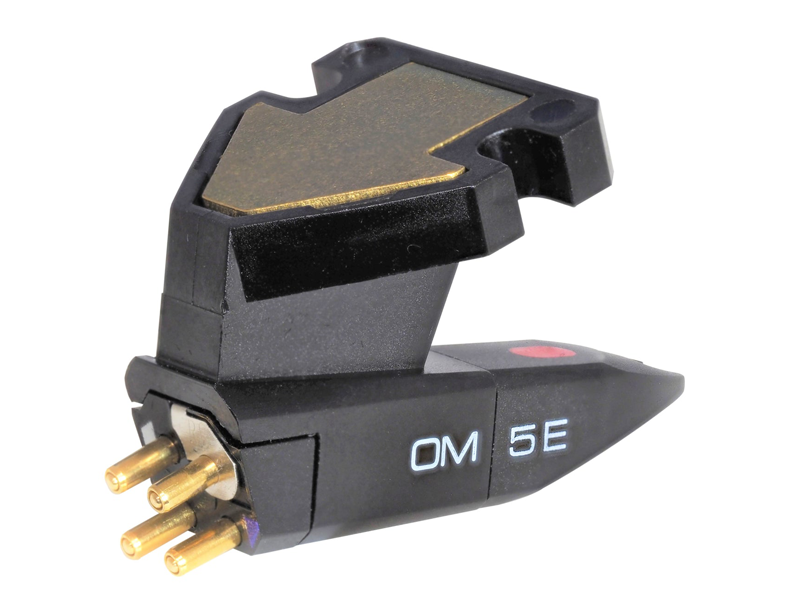

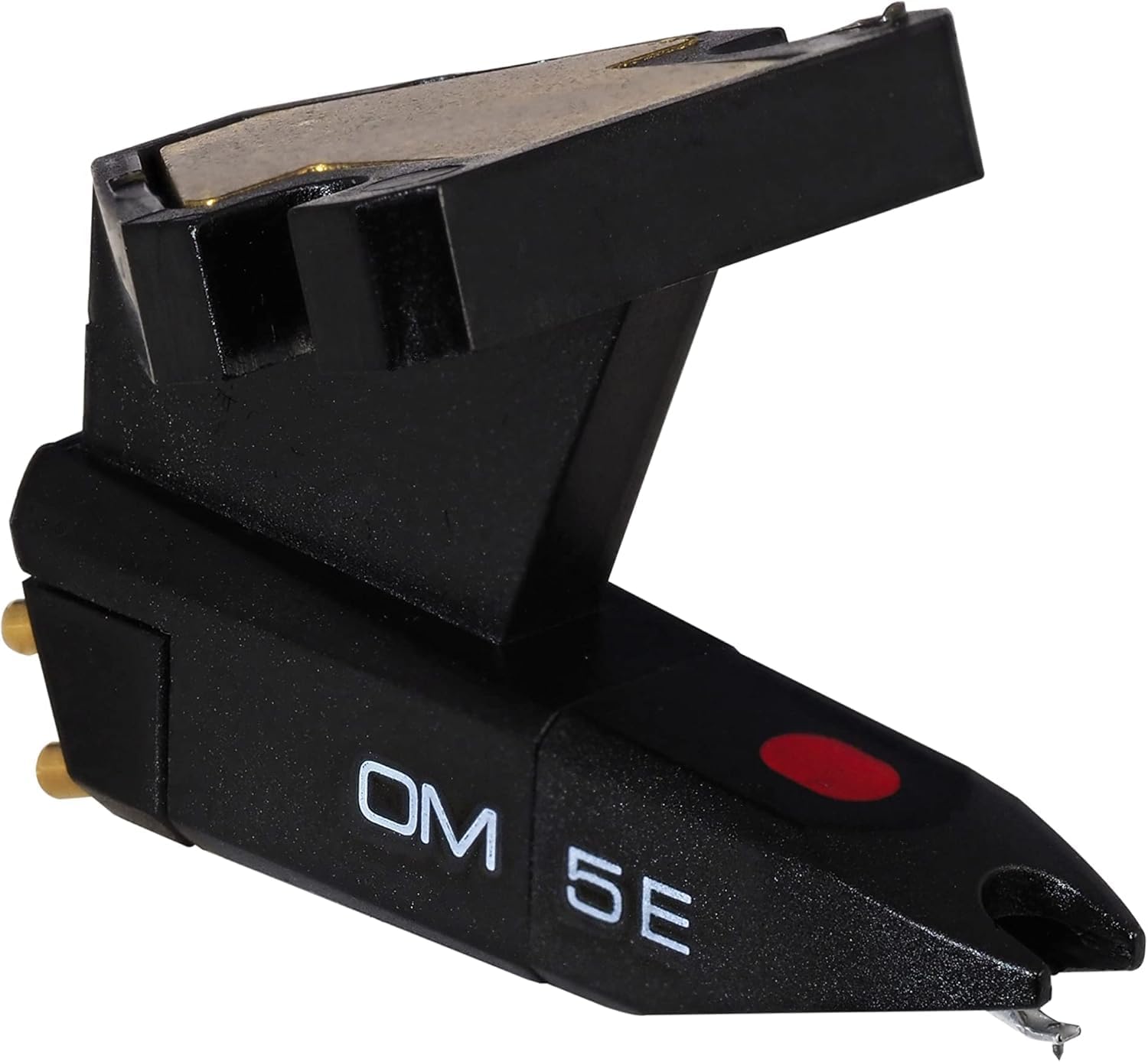

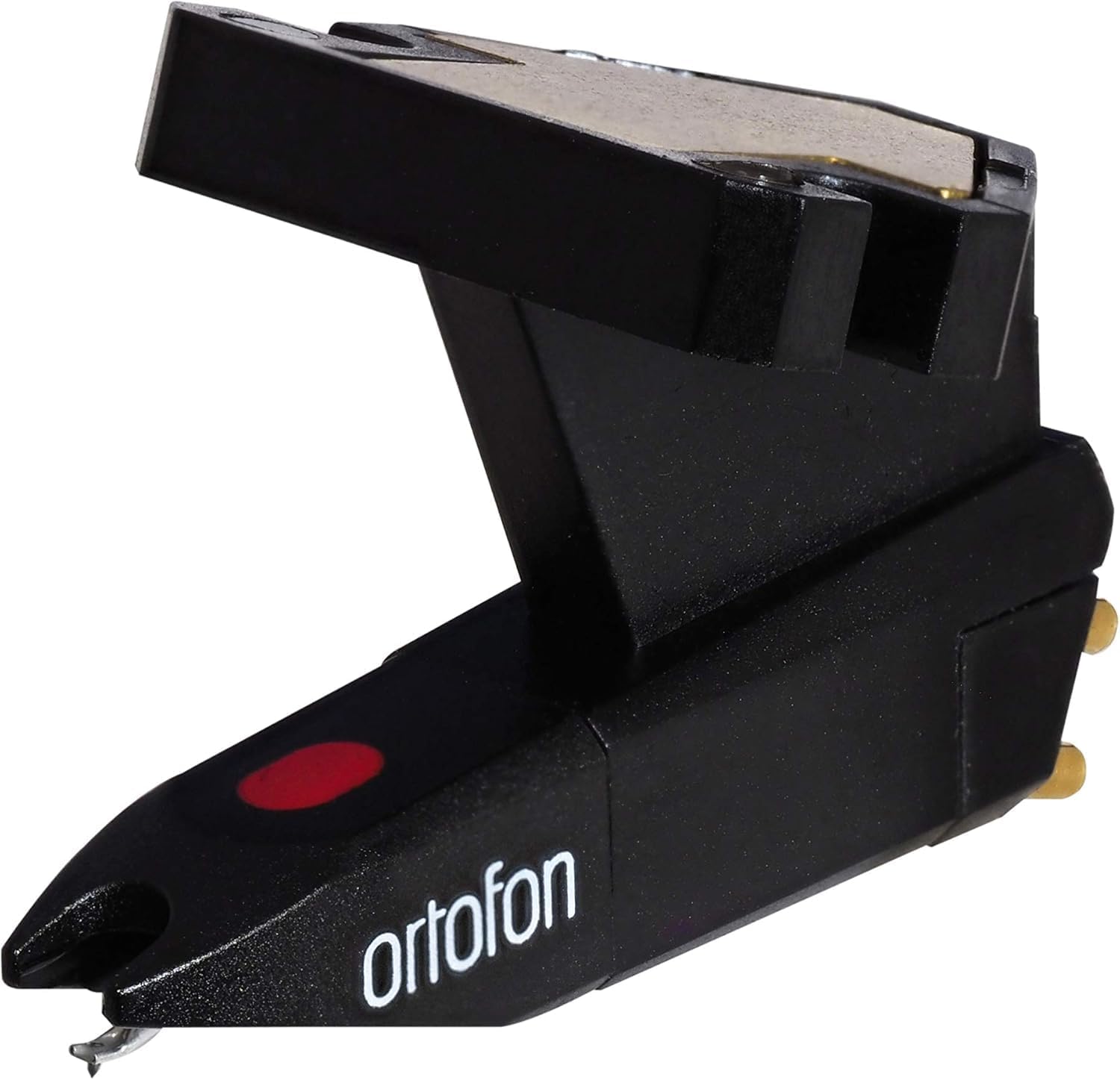

OM 5E features Elliptical stylus that provides balanced and distortion-free playback.

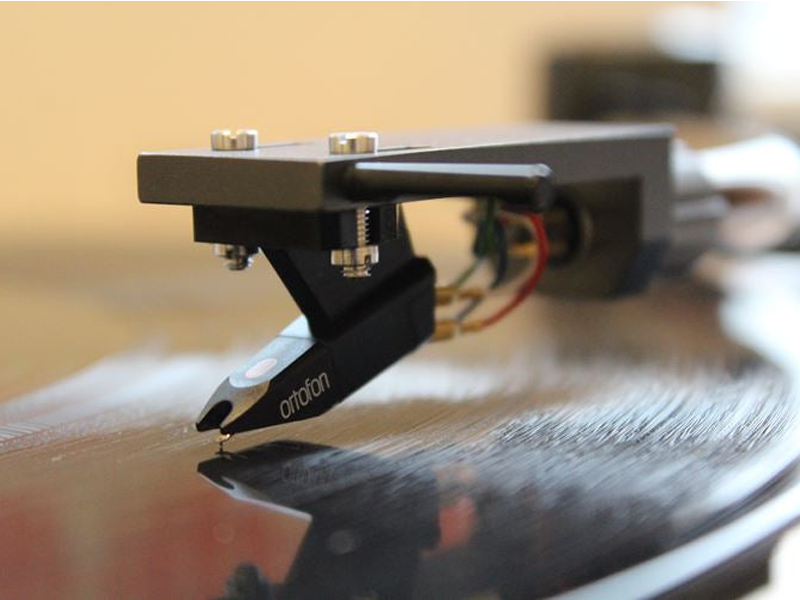

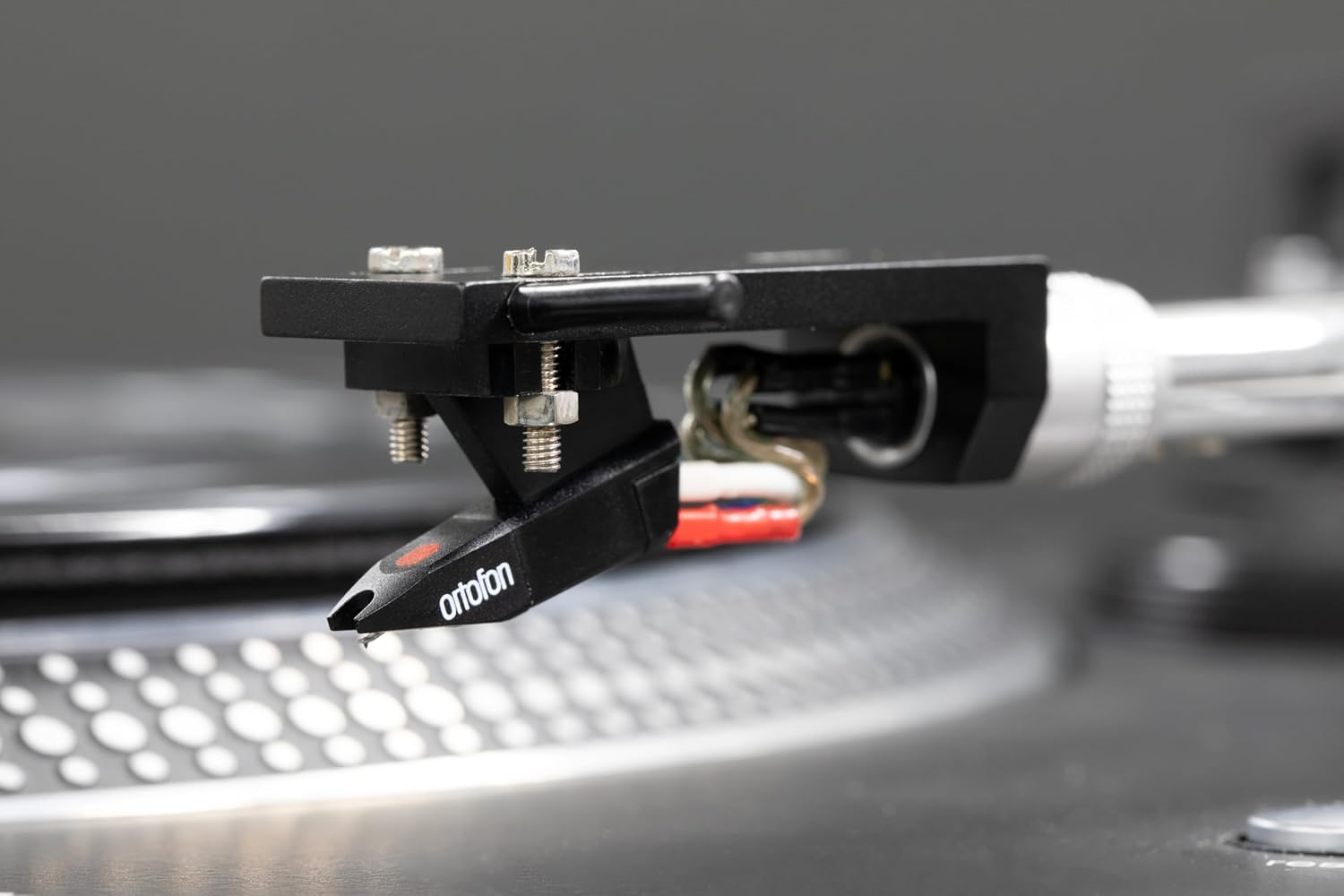

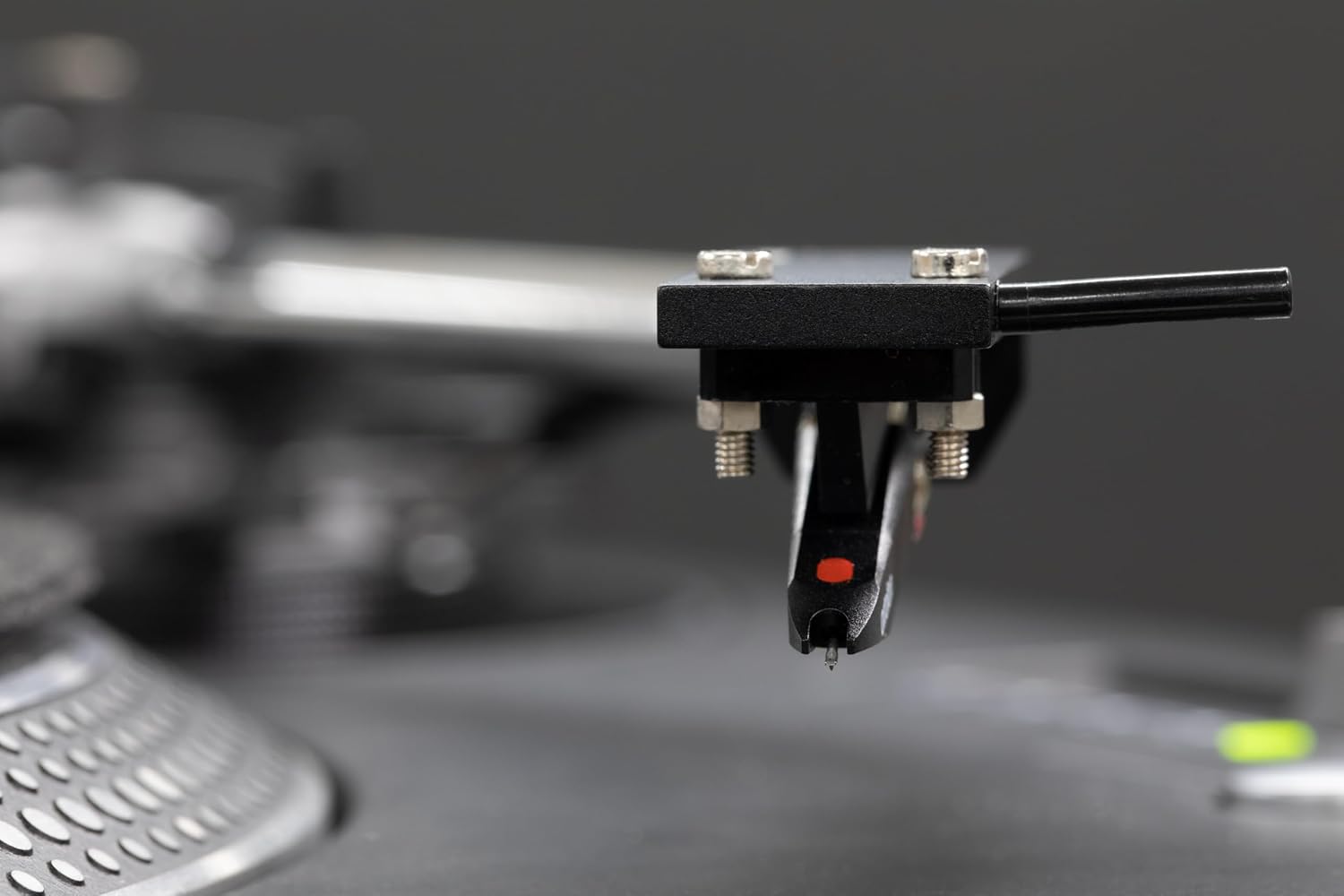

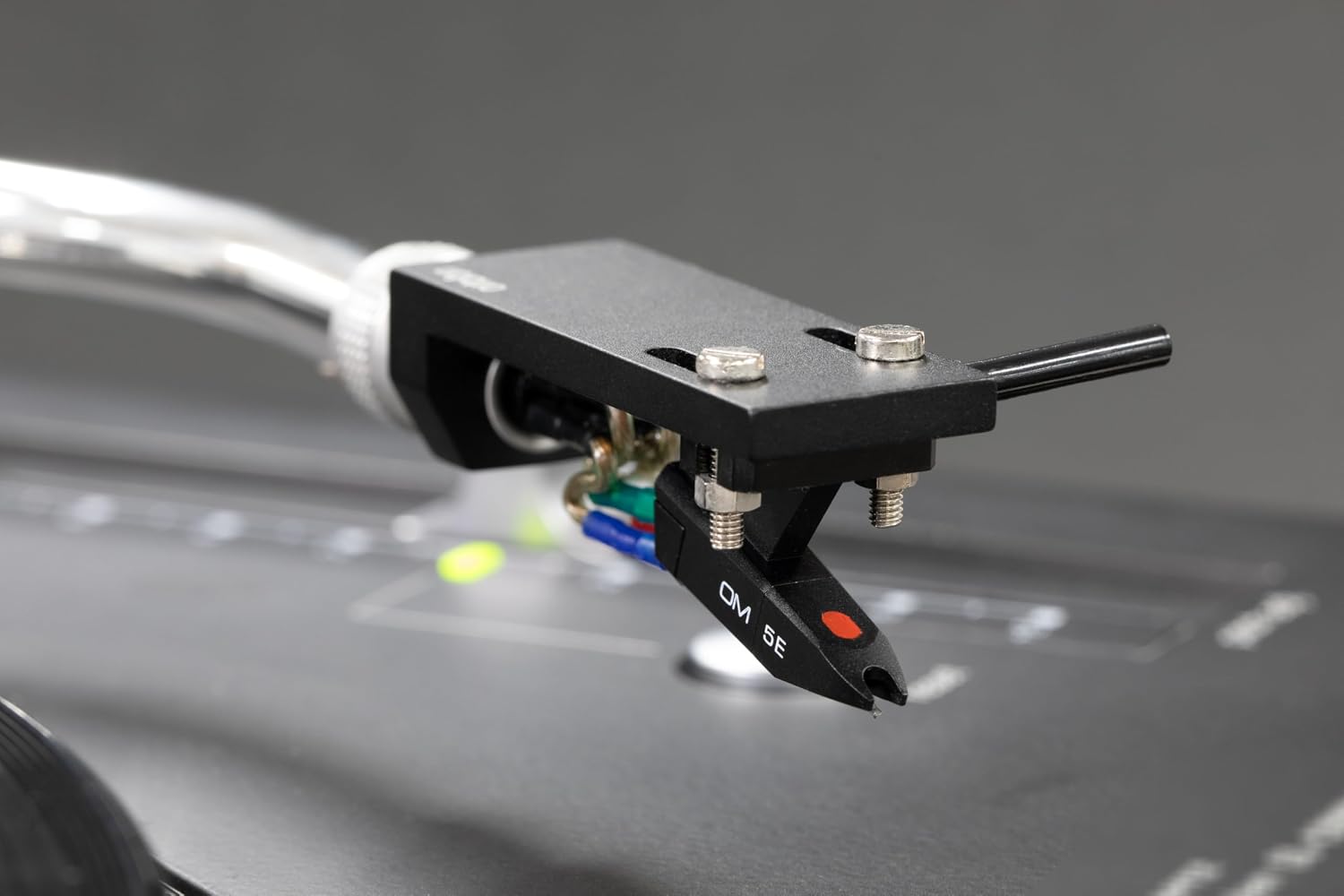

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight plate. If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget.
In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.
| Channel balance at 1 kHz | 2 dB |
| Output voltage at 1 kHz | (5cm/sec): 4 mV |
| Channel seperation at 1 kHz | 22 dB |
| Channel seperation at 15 kHz | 15 dB |
| Frequency response | (20 Hz - 20 kHz): 20-22.000 Hz + 3 / -3 |
| Tracking ability at 315Hz | (at recommended tracking force): 60 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.5-2.0 g (15-20 mN) |
| Tracking force, recommended | 1.75 g (17.5 mN) |
| Tracking angle | 20° |
| Internal impedance | (DC resistance): 750 Ohm |
| Recommended load capacitance | 200-500 pF |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 450 mH |
