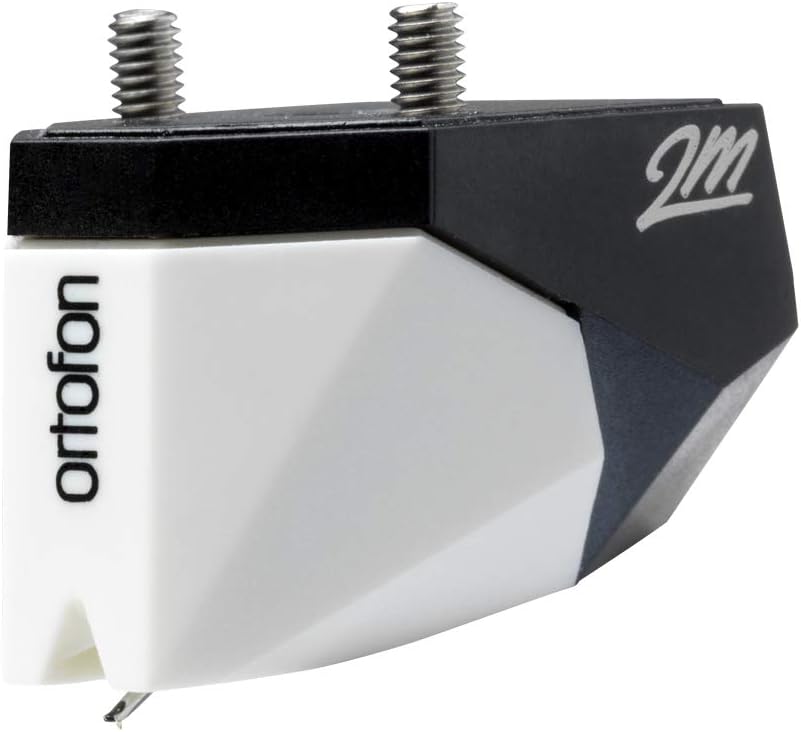

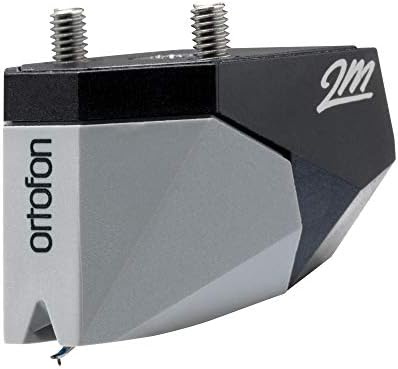

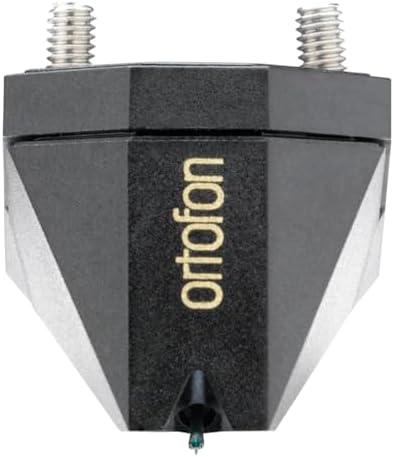

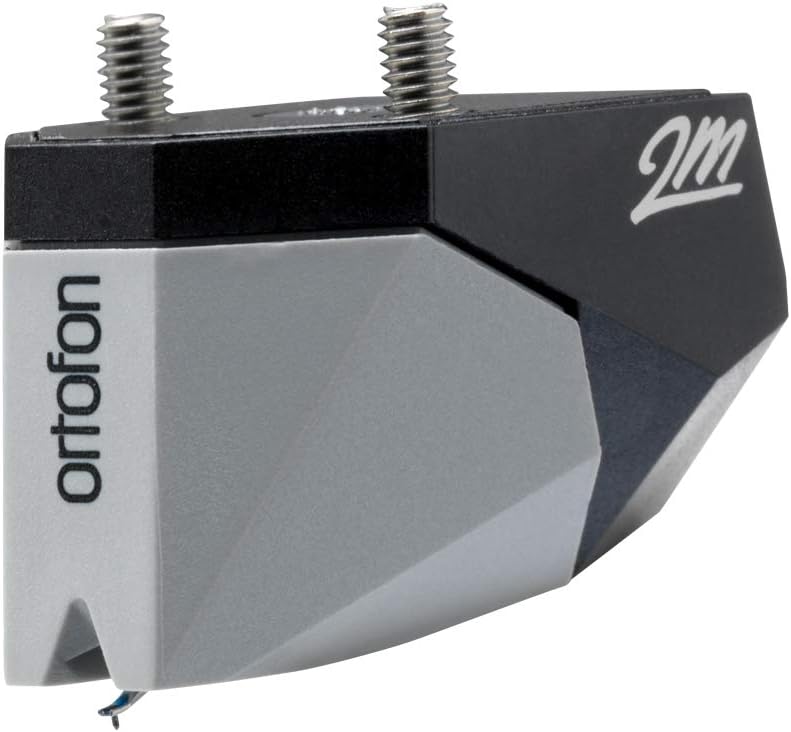

The 2M 78 Verso model is for bottom mount headshells (vintage Thorens, etc)
Ortofon True Mono cartridge
For playback of 78 rpm shellac records
Ortofon 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins
Features a R 65µm Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile
Department
Hobbyists
Item Weight
3.53 ounces
Manufacturer
ORTOFON
Item model number
ORTOFON Cellule 2M 78 VERSO
Product Dimensions
3.35 x 3.54 x 4.53 inches

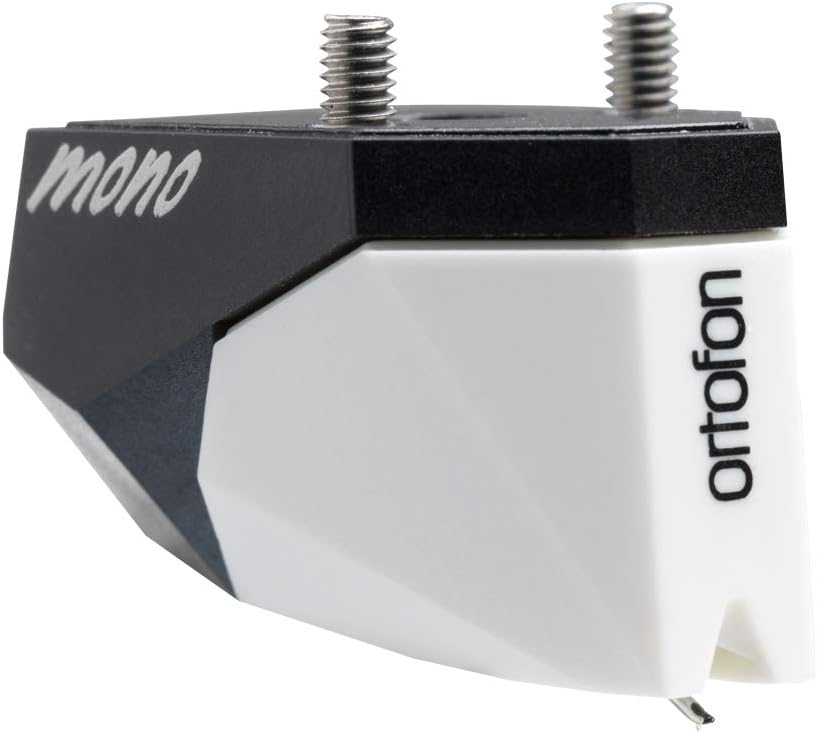

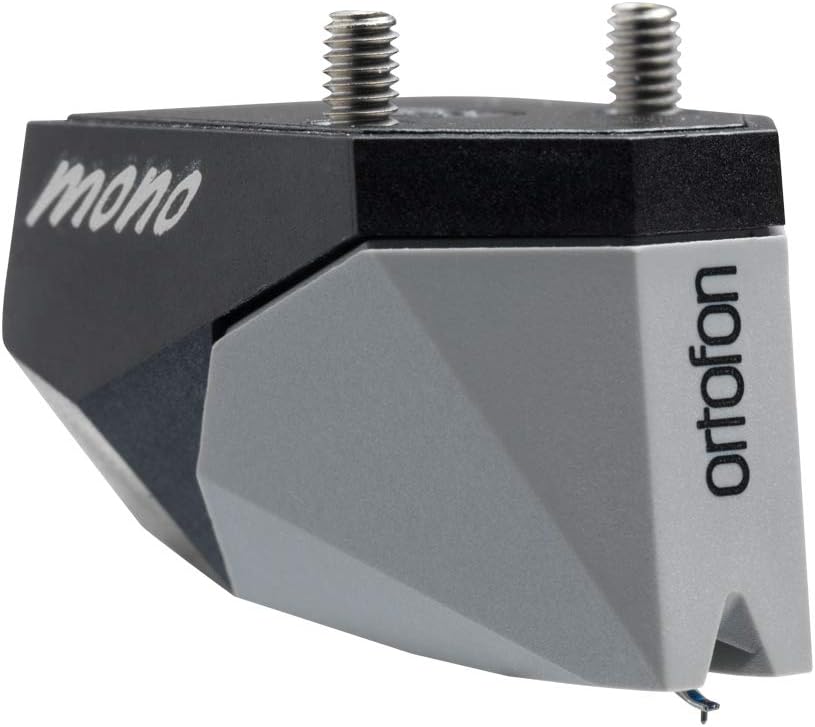

Made for Mono

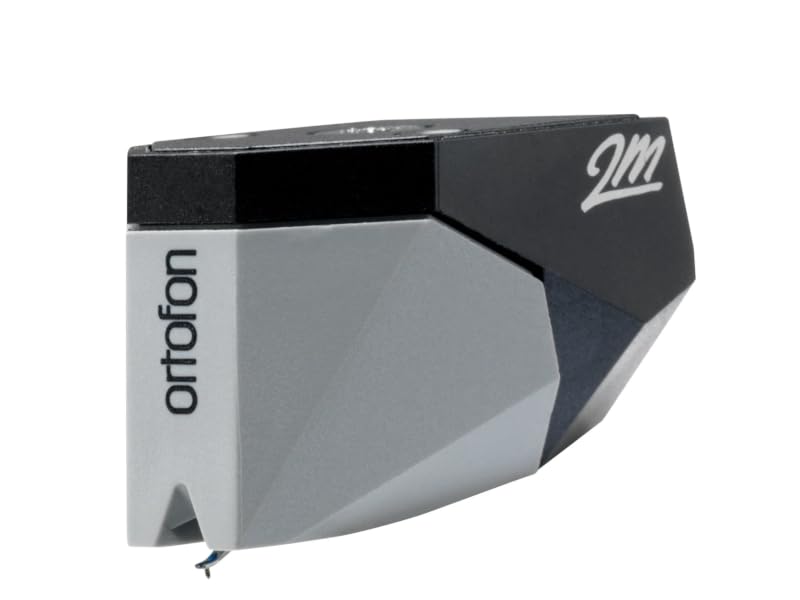

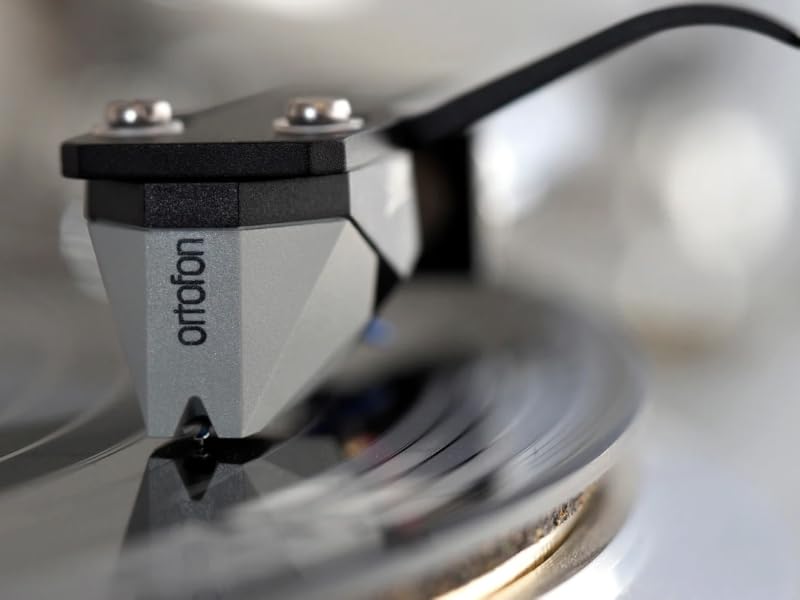

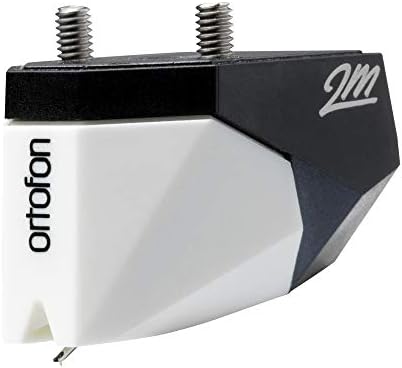

2M 78 Verso

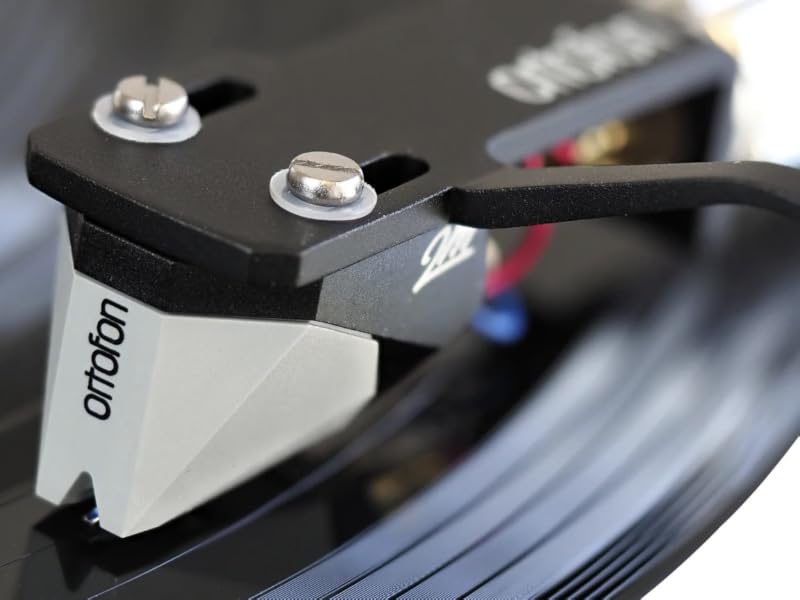

The 2M 78 Verso is designed specifically for bottom mount headshells, making it an ideal solution for turntables that require mounting from underneath the headshell.

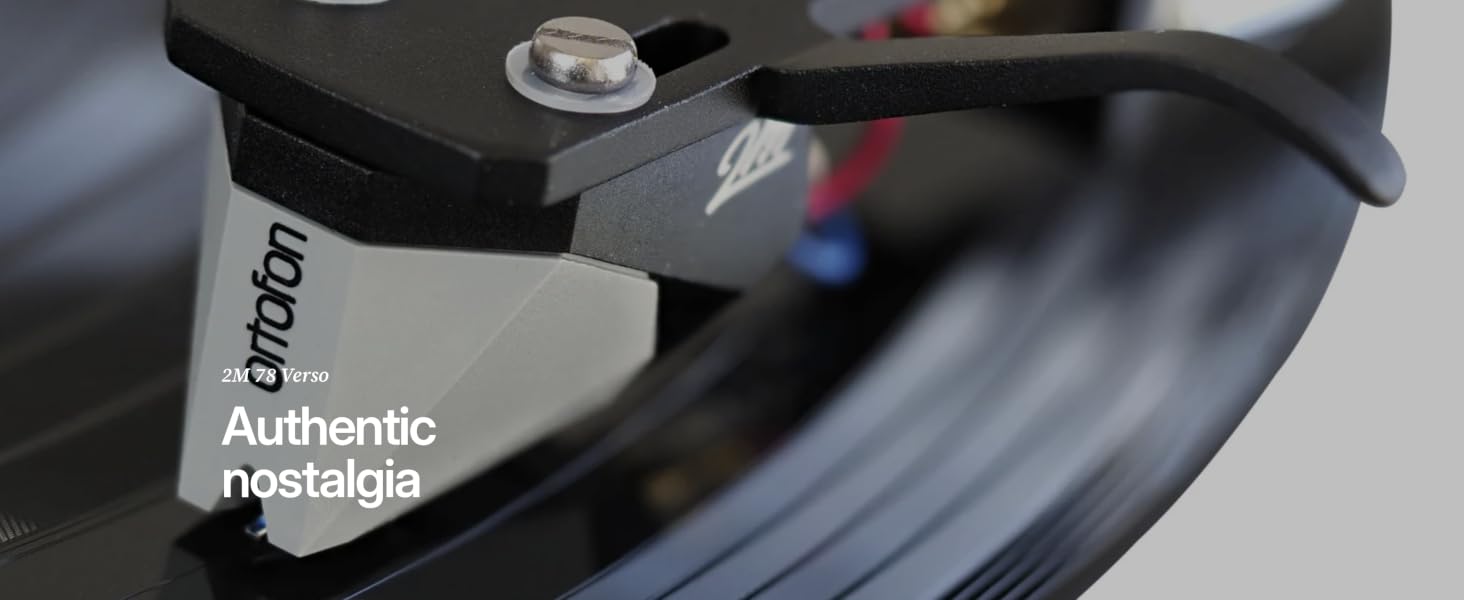

Journey back in time with the 2M 78 Mono Cartridge, specially designed for playing 78 rpm shellac records. Immerse yourself in the authentic nostalgia of mono recordings brought to life with impressive precision and fidelity.
The cartridge features a spherical diamond stylus, specially designed to properly track the wider grooves of 78 rpm shellac records, ensuring accurate playback and reduced groove wear.
Stylus
The 2M 78 features a stylus' tip with a Spherical diamond, perfect for playback of 78 rpm shellac records. These unique records necessitate a larger stylus profile, and the 2M 78 flawlessly accommodates this requirement, ensuring optimal playback quality and preserving the authenticity of your cherished collection.
Enjoy true mono
Output
The 2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.
Universal fit
Compatibility

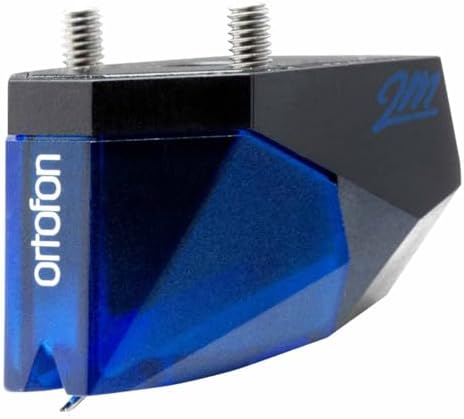

The Ortofon 2M Series is designed for easy installation and compatibility with today's most popular turntables. Choose from four configurations: the standard 2M for most turntables, 2M Premounted for S-shaped tonearms, 2M Verso for bottom-mount headshells, and the low-profile 2MR for Rega and similar turntables requiring a compact cartridge. Each version is tailored for an ideal fit without compromising performance.

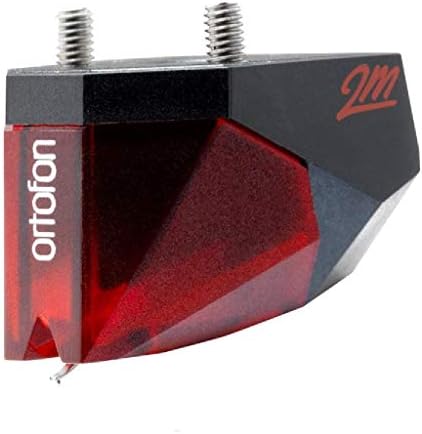

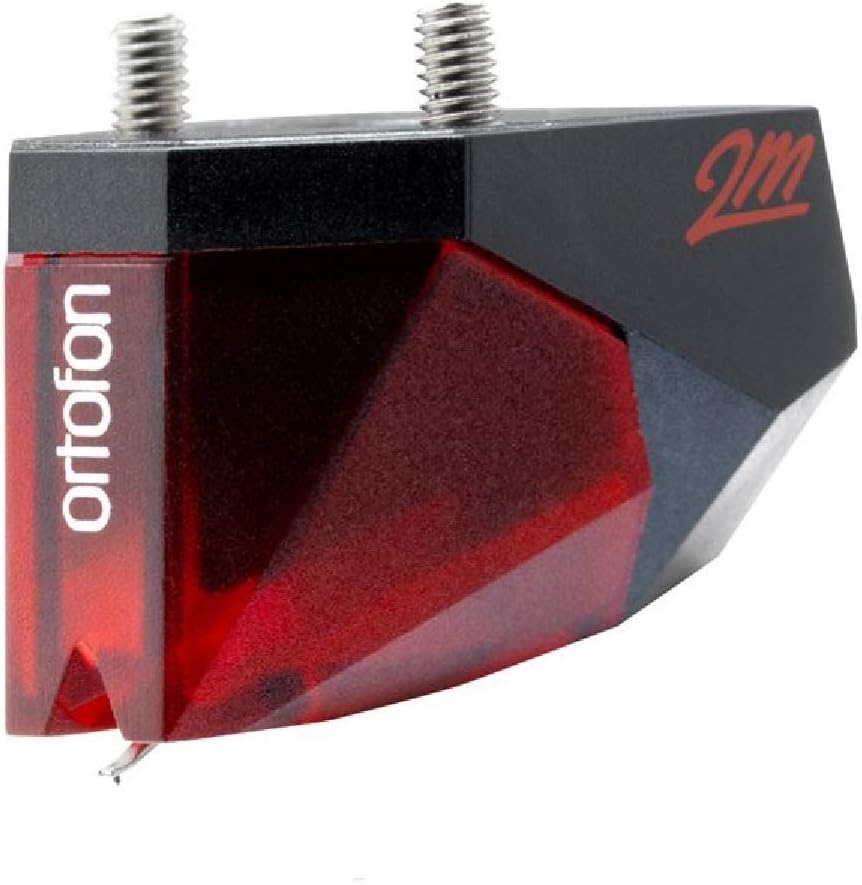

How to replace M2.0 mm screws on 2M Red Verso
Remove the stylus with the stylus protection guard from the cartridge body to avoid damaging the diamond.
Using the Torx 8 key, unscrew the black screw from the Verso top plate.
Gently detach the top plate by pulling the screws.
Remove the two countersunk screws from the top plate.
Insert the two M2.0 mm screws in the top plate.
Attach the top plate to the cartridge body by flipping it 180 degrees.
Mount the black screw in the top plate and tighten with appropriate force.
Mount the cartridge on the tonearm using the enclosed tool.
Mount the stylus with the stylus protection guard on the cartridge body.
