| Color Name | 2M Red |
|---|---|
| Item Weight | 0.254 ounces |
| Body Material | Hopelex |
| Material Type | Diamond |
| Connector Type | PIN |
| Item model number | 2M Red |
| Product Dimensions | 1.1 x 0.75 x 0.71 inches |

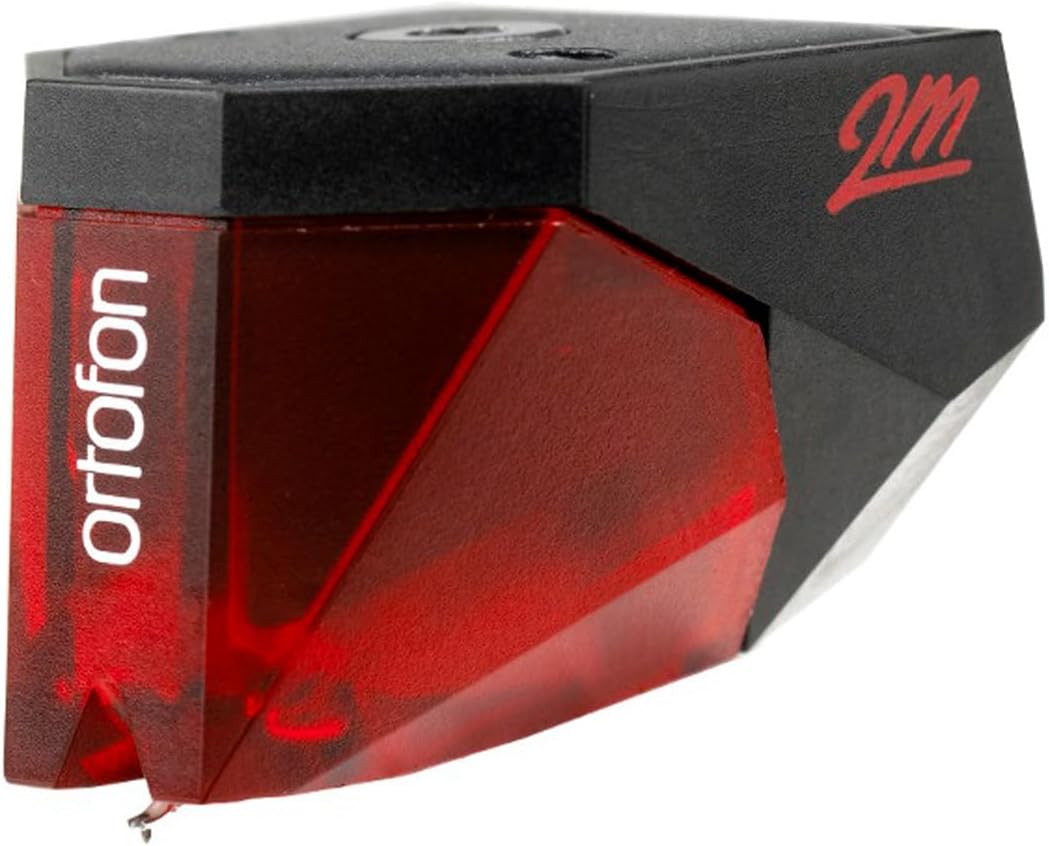

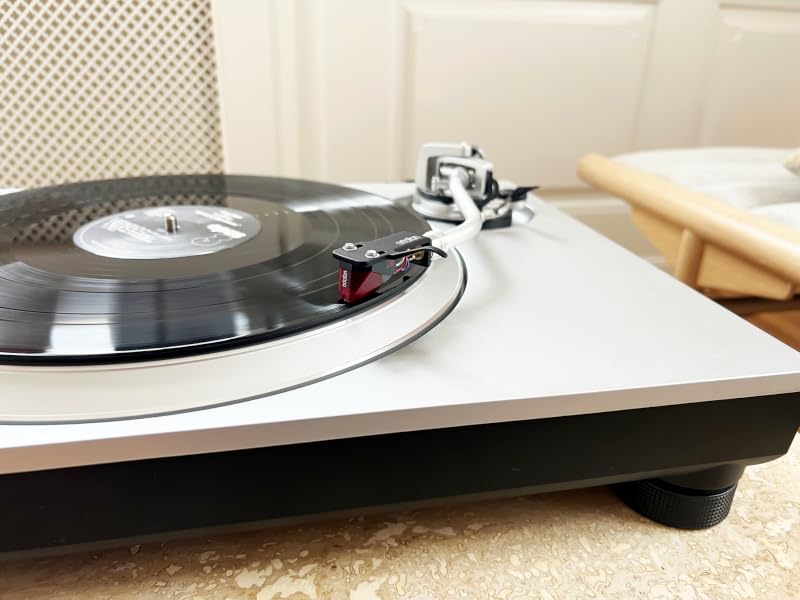

With the 2M Red you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.
With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry. The 2M Red delivers an open, dynamic sound with a slight touch of warmth.
The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
The 2M Red features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.
The engine provides an increased output of 5.5 mV, an optimized sound reproduction, and a high level of sonic accuracy. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.
| Channel balance at 1 kHz | 1.5 dB |
| Output voltage at 1 kHz | (5cm/sec): 5.5 mV |
| Channel seperation at 1 kHz | 22 dB |
| Channel seperation at 15 kHz | 15 dB |
| Frequency response | 20 Hz - 20 kHz 20-20.000 Hz + 3 / - 1 dB |
| Tracking ability at 315Hz | (at recommended tracking force): 70 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.6-2.0 g (16-20 mN) |
| Tracking force, recommended | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance | (DC resistance): 1.3 kOhm |
| Recommended load capacitance | 150-300 pF |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 700 mH |
