| Color | Blue Stealth |
|---|---|
| Material | Hopelex |
| Model Name | 2M Blue Stealth |
| Unit Count | 1 Count |
| Manufacturer | Ortofon |
| Model Number | 0701303 |
| Signal Format | Phono |
| Built-In Media | Mounting hardware, Stylus guard, Screwdriver, Universal mounting accessories |
| Mfr Part Number | 0701303 |
| Special Feature | Nude Elliptical Diamond and Split Pole Pins with Copper Wire, High Output Level (5.5 mV) |
| Compatible Devices | Speaker |
| Enclosure Material | Hopelex |
| Additional Features | Nude Elliptical Diamond and Split Pole Pins with Copper Wire, High Output Level (5.5 mV) |
| Included Components | Mounting hardware, Stylus guard, Screwdriver, Universal mounting accessories |
| Maximum Rotational Speed | 78 rpm |

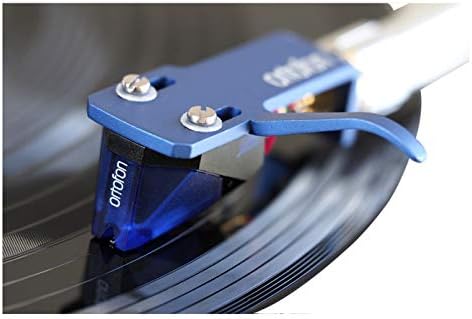

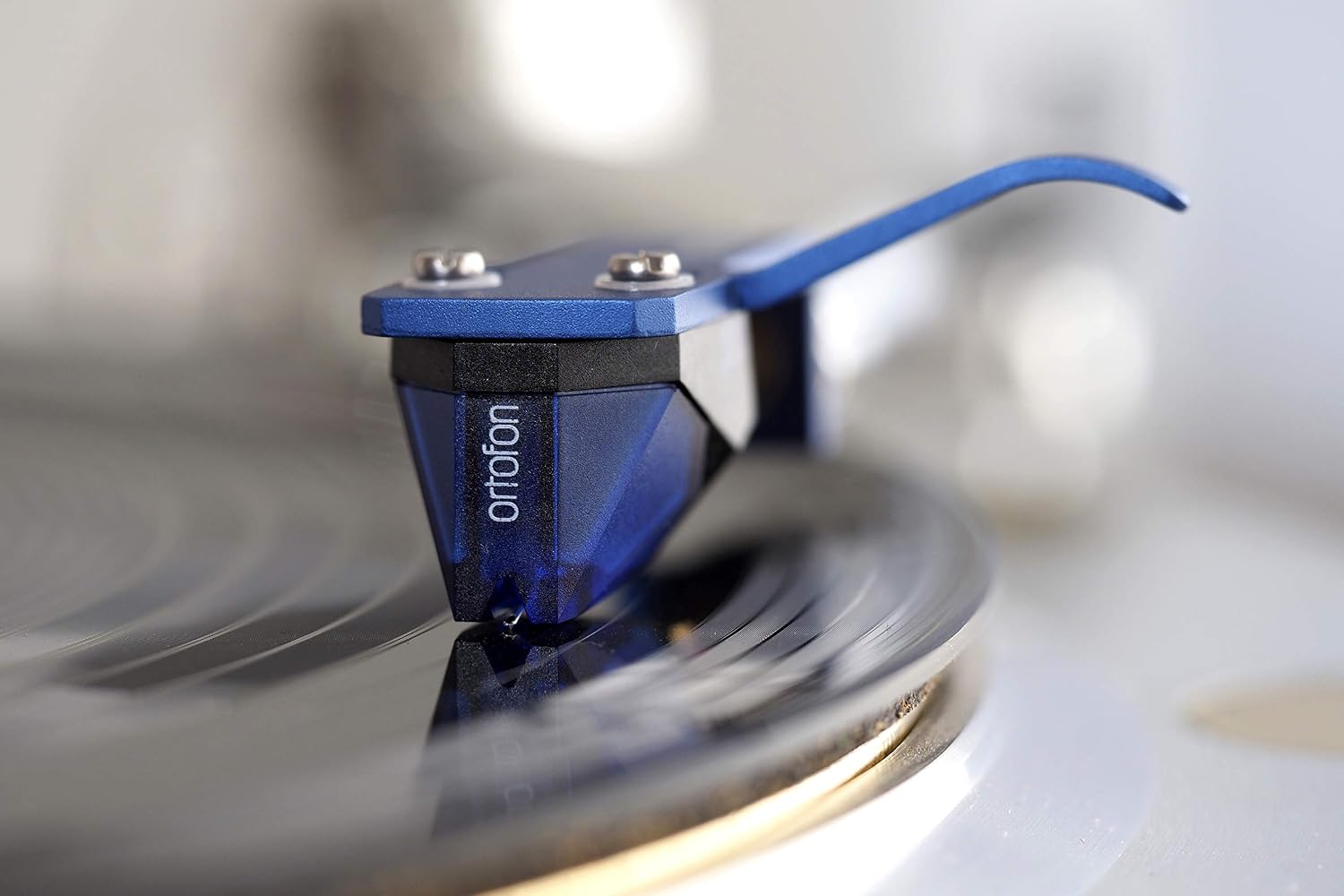

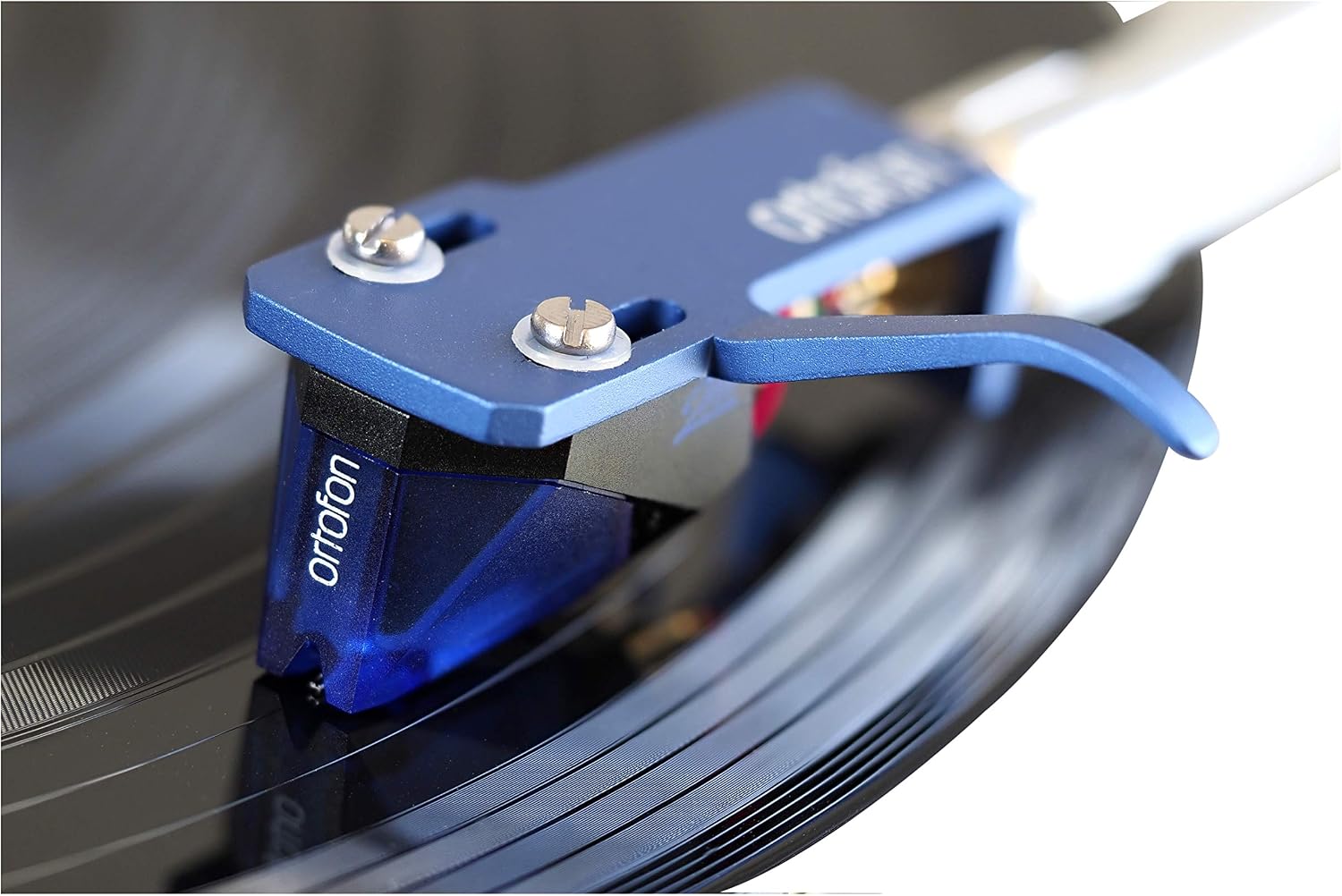

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.
The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M Blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.
The Nude diamond is cut in an Elliptical shape, and when it hits the groove, it is like travelling through both space and time to the very moment the music was recorded.

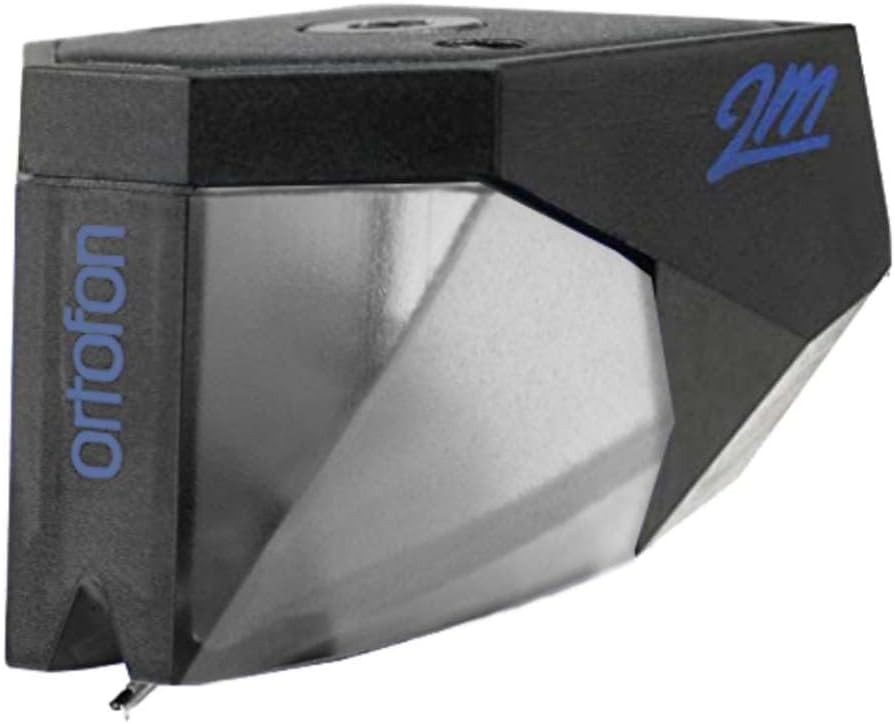

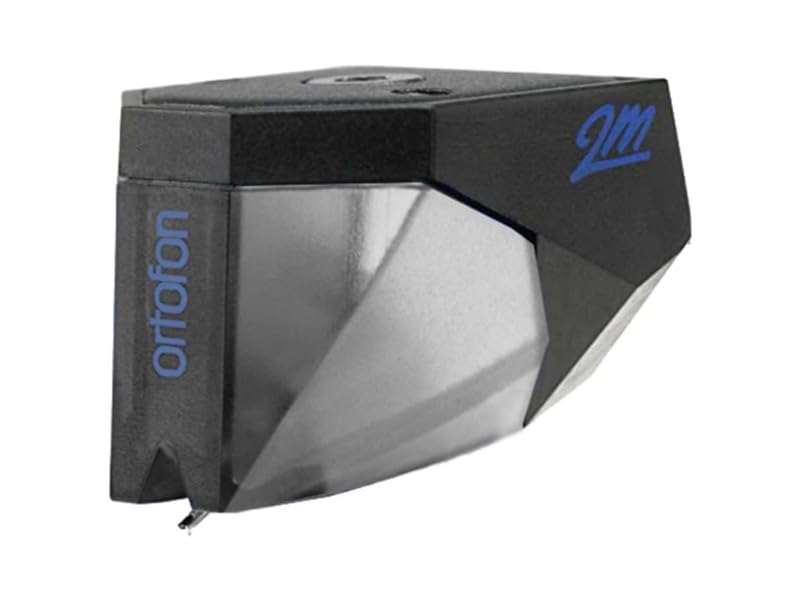

The 2M Series offers four distinct product versions: The 2M is for most common turntables on the market, the 2M Premounted for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, the 2M Verso for bottom mount headshells, and the 2MR, which is designed with cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
The engine provides an increased output of 5.5 mV optimized sound reproduction and a high level of sonic accuracy. The 2M Blue adds more dynamics and resolution, sounds more open, and reproduces more details compared to the 2M Red model.
| Channel balance at 1 kHz | 1.5 dB |
| Output voltage at 1 kHz | (5cm/sec): 5.5 mV |
| Channel seperation at 1 kHz | 25 dB |
| Channel seperation at 15 kHz | 15 dB |
| Frequency response | 20 Hz - 20 kHz 20-20.000 Hz + 2 / - 1 dB |
| Tracking ability at 315Hz | (at recommended tracking force): 80 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.6-2.0 g (16-20 mN) |
| Tracking force, recommended | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance | (DC resistance): 1.3 kOhm |
| Recommended load capacitance | 150-300 pF |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 700 mH |
