| UPC | 816602027051 046878554696 |
|---|---|
| Color | Black |
| Style | Saturn III |
| Material | Plastic |
| Style Name | Saturn III |
| Item Weight | 0.28 kg |
| Manufacturer | Orbit |
| Model Number | 55469 |
| Material Type | Plastic |
| Item Type Name | Sprinkler |

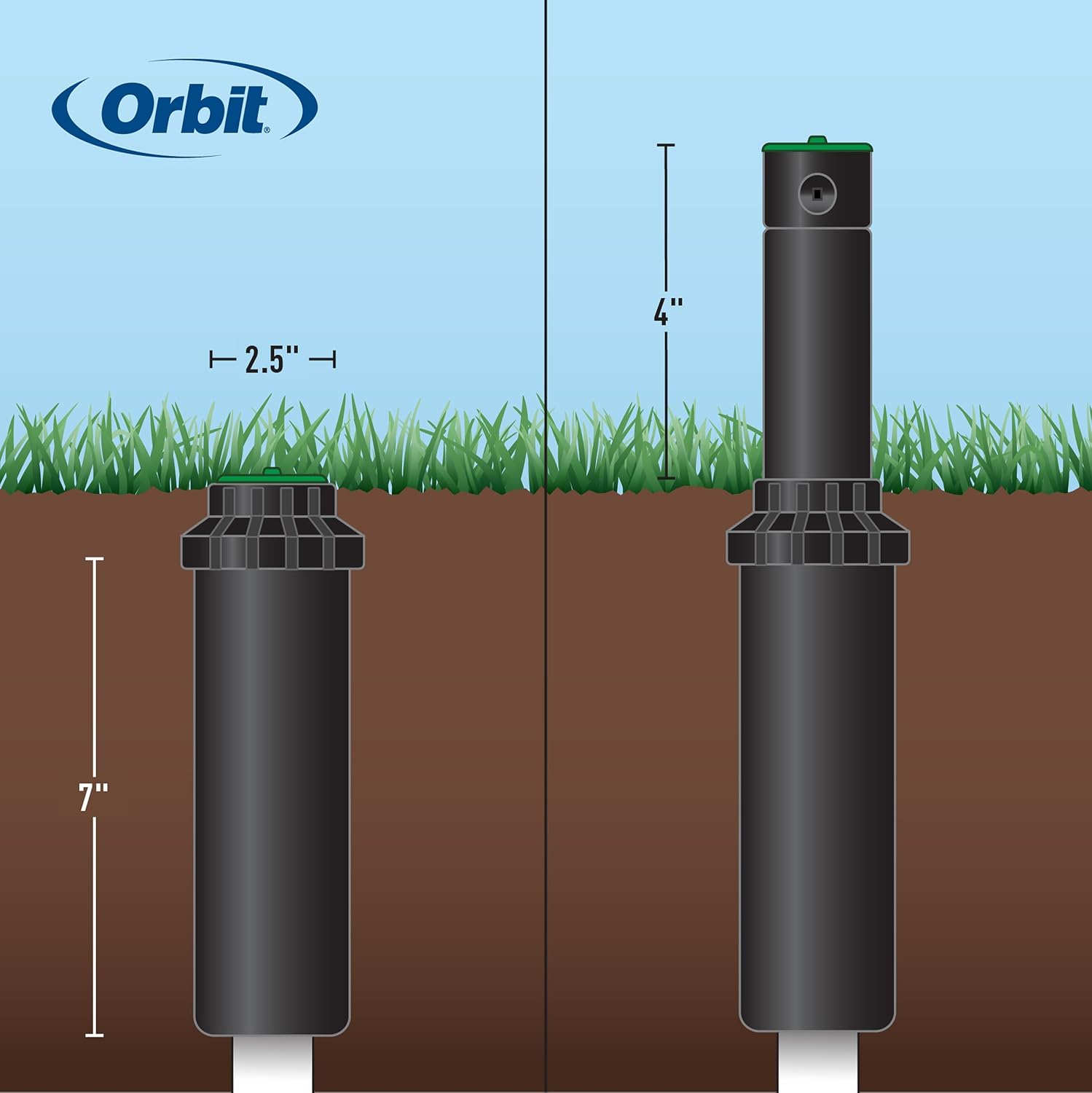

| Item Dimensions | 2.5 x 4.5 x 7 inches |
| Number of Items | 2 |
| Maximum Pressure | 40 psi |
| Maximum Flow Rate | 2 gpm |

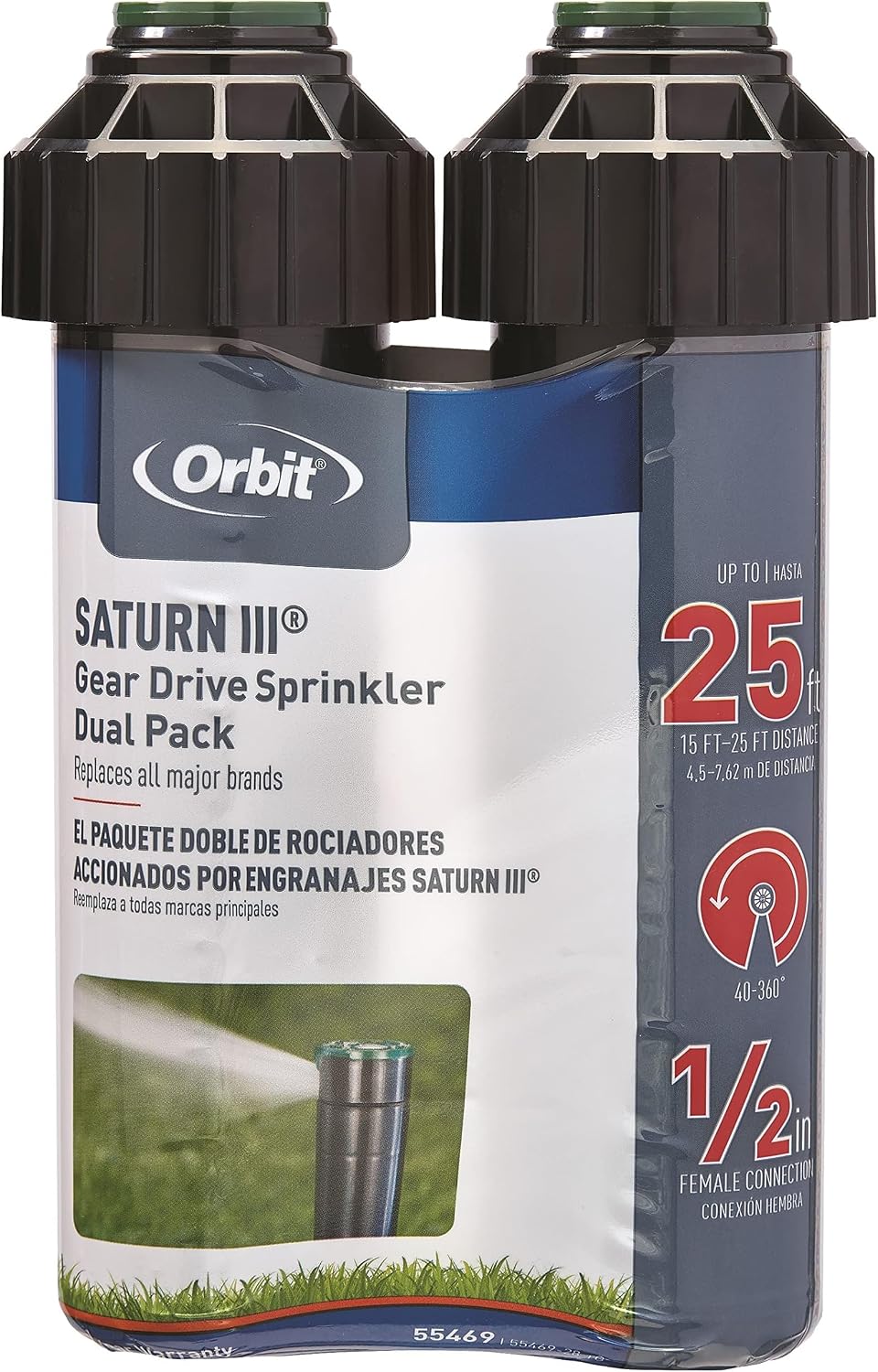

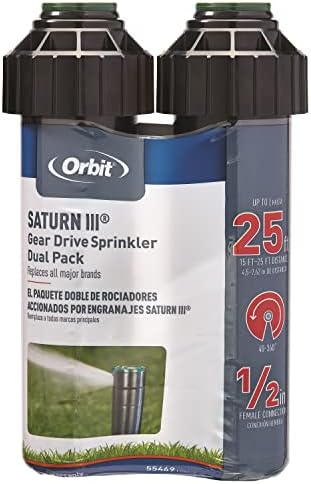

| Included Components | 2-Pack Pop-Up Gear Drive Rotor Sprinkler Spray Head |
| Manufacturer Part Number | 55469 |
| Global Trade Identification Number | 00046878554696 |

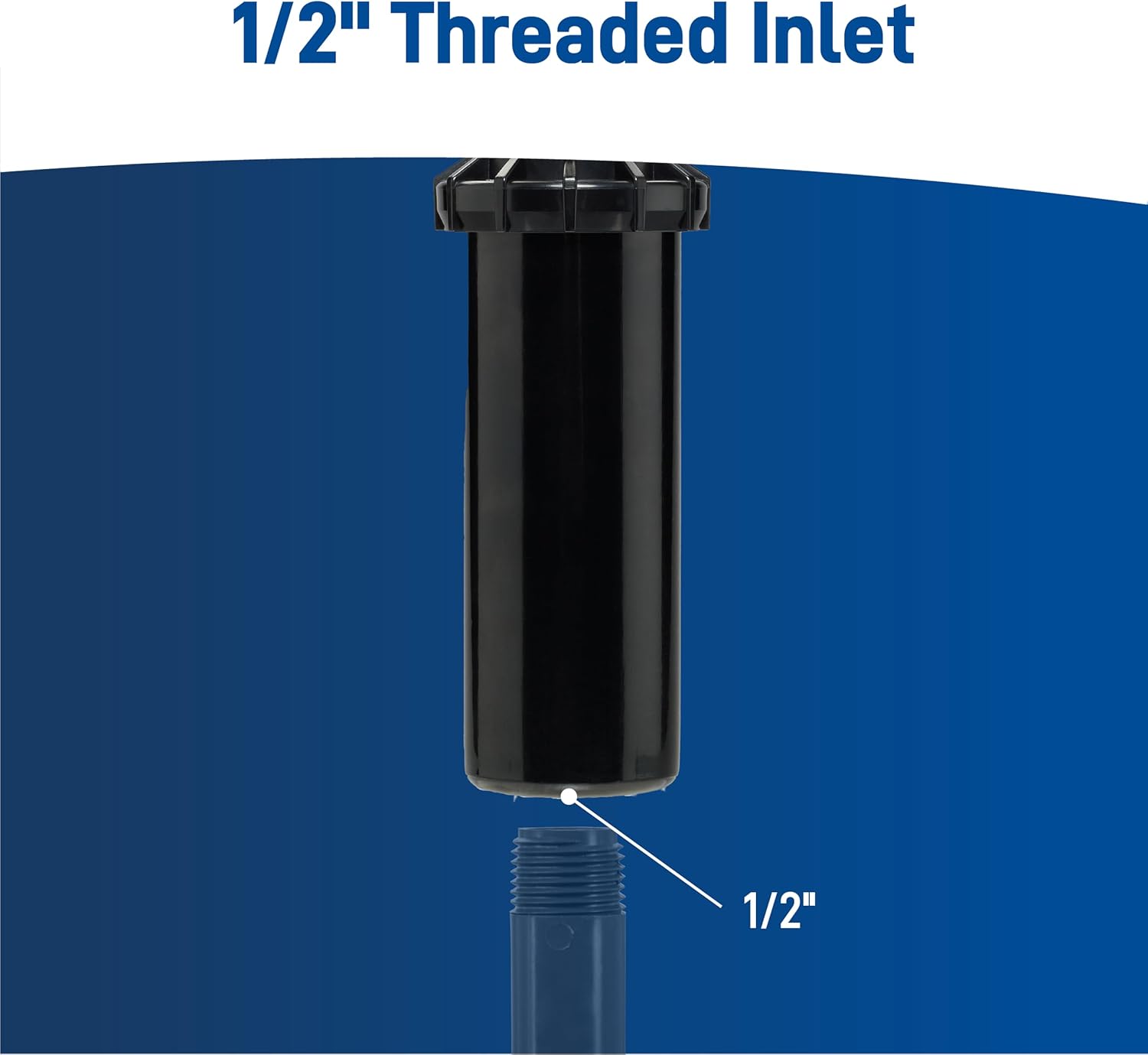

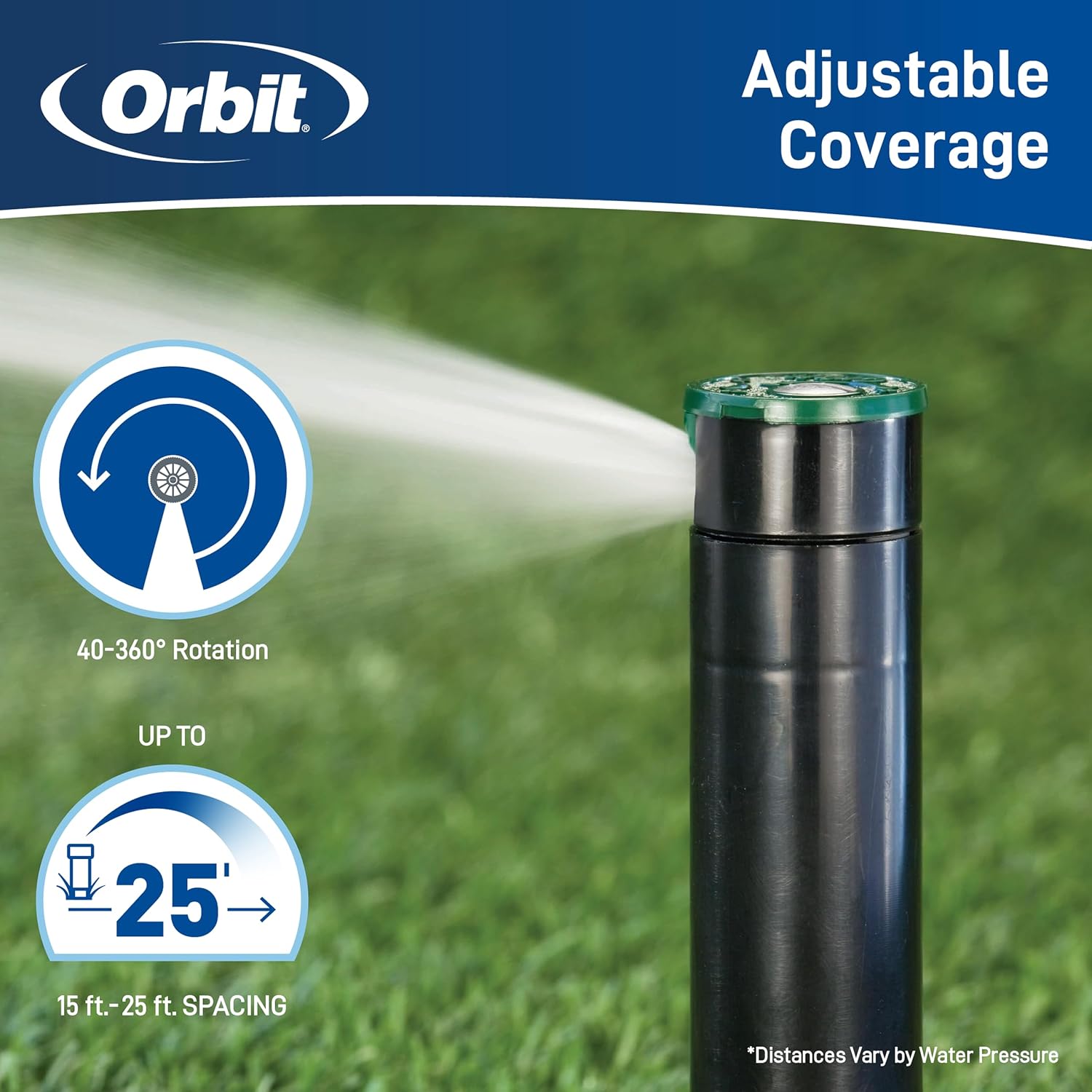

All three models deliver up to 25-foot coverage with adjustable arcs from 40° to 360° and use 1/2" female pipe thread inlets. They share the same low 0.30 in/hour precipitation rate at 40 PSI, bottom inlet filter, and radius adjustment down to 75% of max distance.

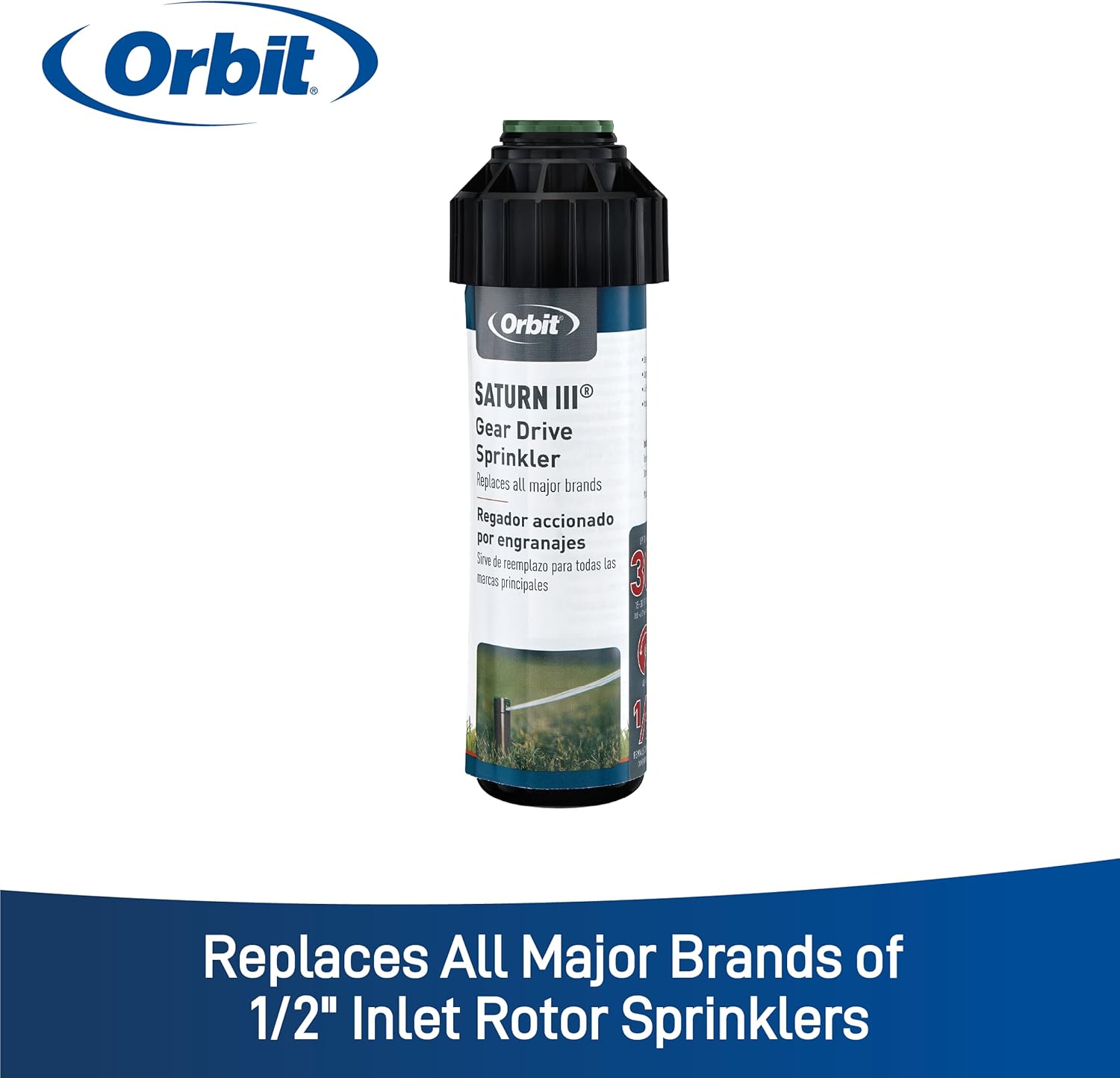

All three replace rotors from Orbit, Hydro-Rain, and other major brands using 1/2" connections. They work best at 40 PSI and install on 1/2" MPT fittings, swing joints, or risers.

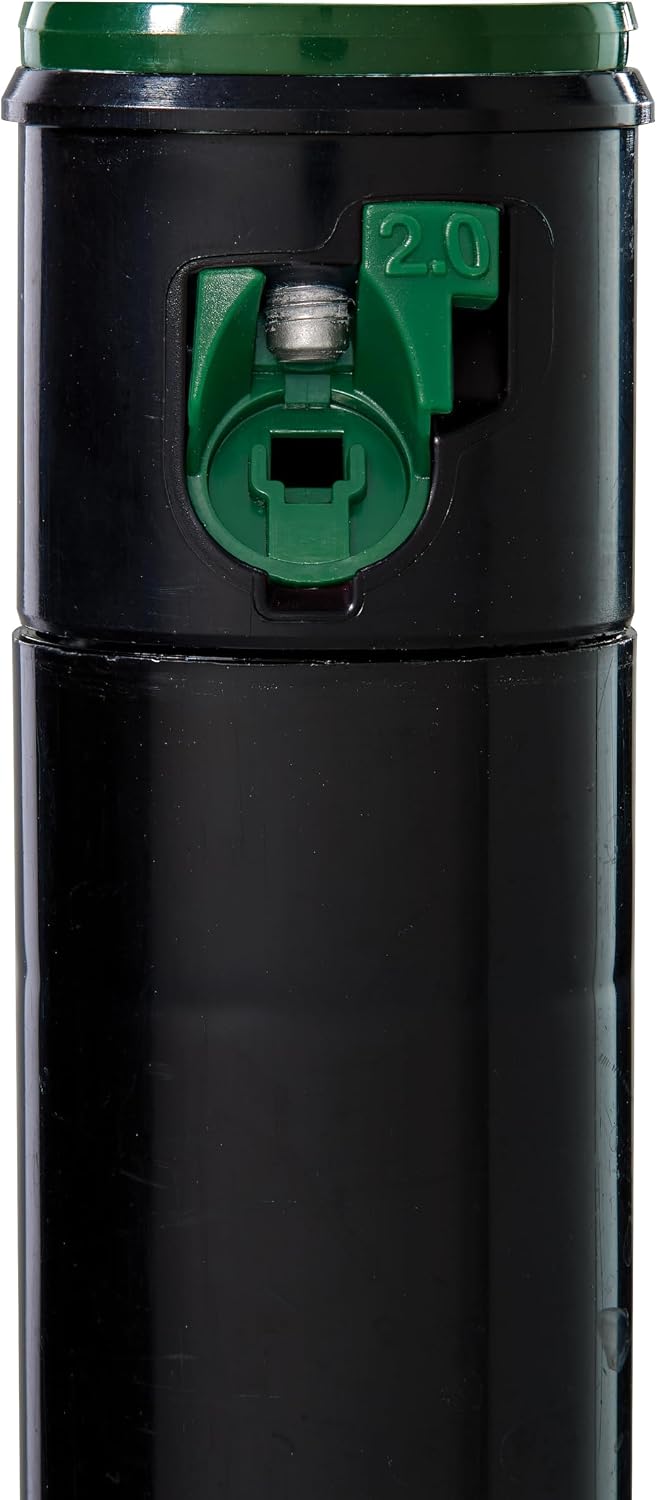

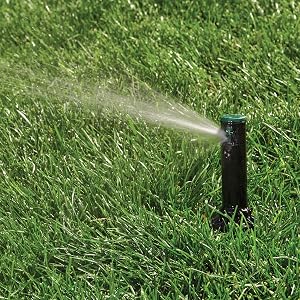

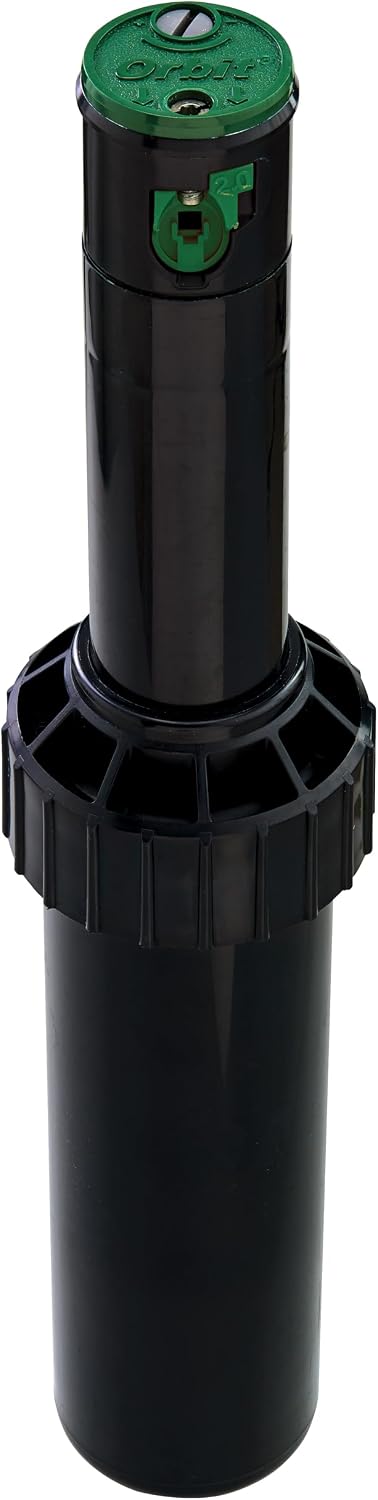

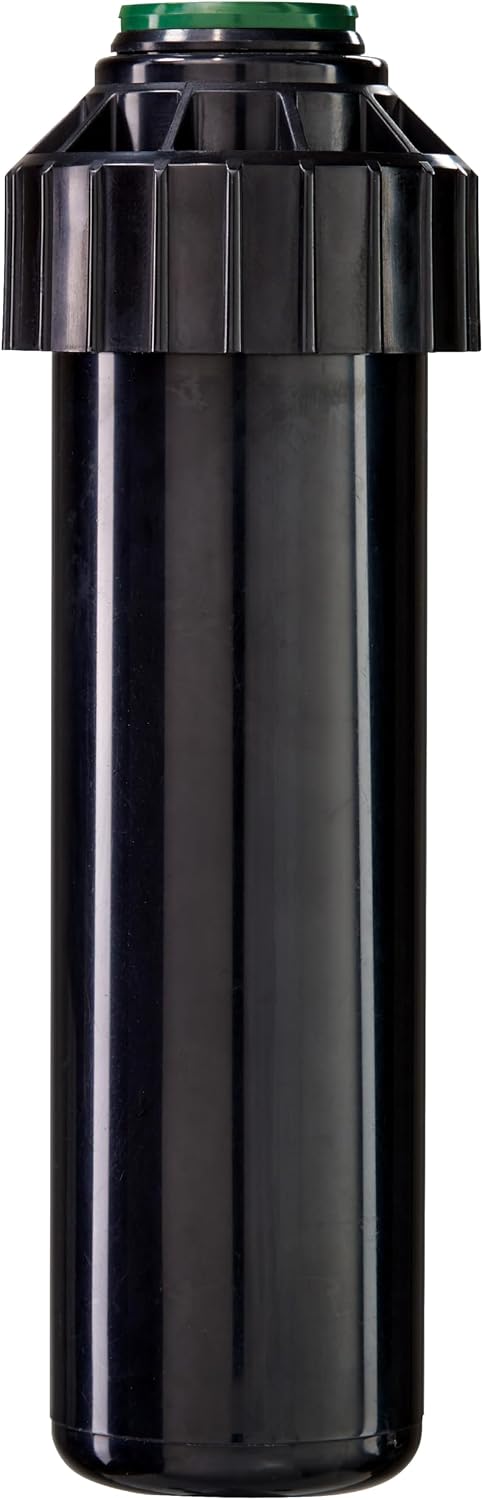

Saturn III (55069) is the value choice for in-ground installations. It features a 4-inch pop-up riser that retracts when not in use and adjusts with any standard slotted screwdriver—no special tools needed. If you're replacing existing rotors or want simplicity, this model gets the job done with minimal fuss.
Saturn IV (55179) steps up with a matched-precipitation nozzle rack that includes six additional nozzles (0.5, 1.0, 1.5, 2.0, 3.0, and 5.0 GPM). The pre-installed 2.0 GPM nozzle performs identically to the Saturn III, but the extra nozzles give you flexibility to fine-tune water delivery across your zones. It uses an included adjustment key instead of a screwdriver. Choose this if you need nozzle options or want to optimize your system for mixed plantings.
Titan Shrub Head (55045) is built for above-ground installations on PVC risers. It has a fixed 6-inch stem that doesn't retract—perfect for watering over tall shrubs, perennials, or raised beds. The internal mechanism matches the Saturn III, adjusted with a slotted screwdriver. This is your choice when you need permanent above-grade coverage.
Saturn III
Saturn IV
Titan
Before You Install: Test your water pressure. These rotors need at least 40 PSI to perform correctly. Lower pressure causes short throws and incomplete rotation.
Installation Depth: Pop-up models should sit flush with soil when retracted. If too deep, the riser won't extend fully. Too shallow and the can sticks out.

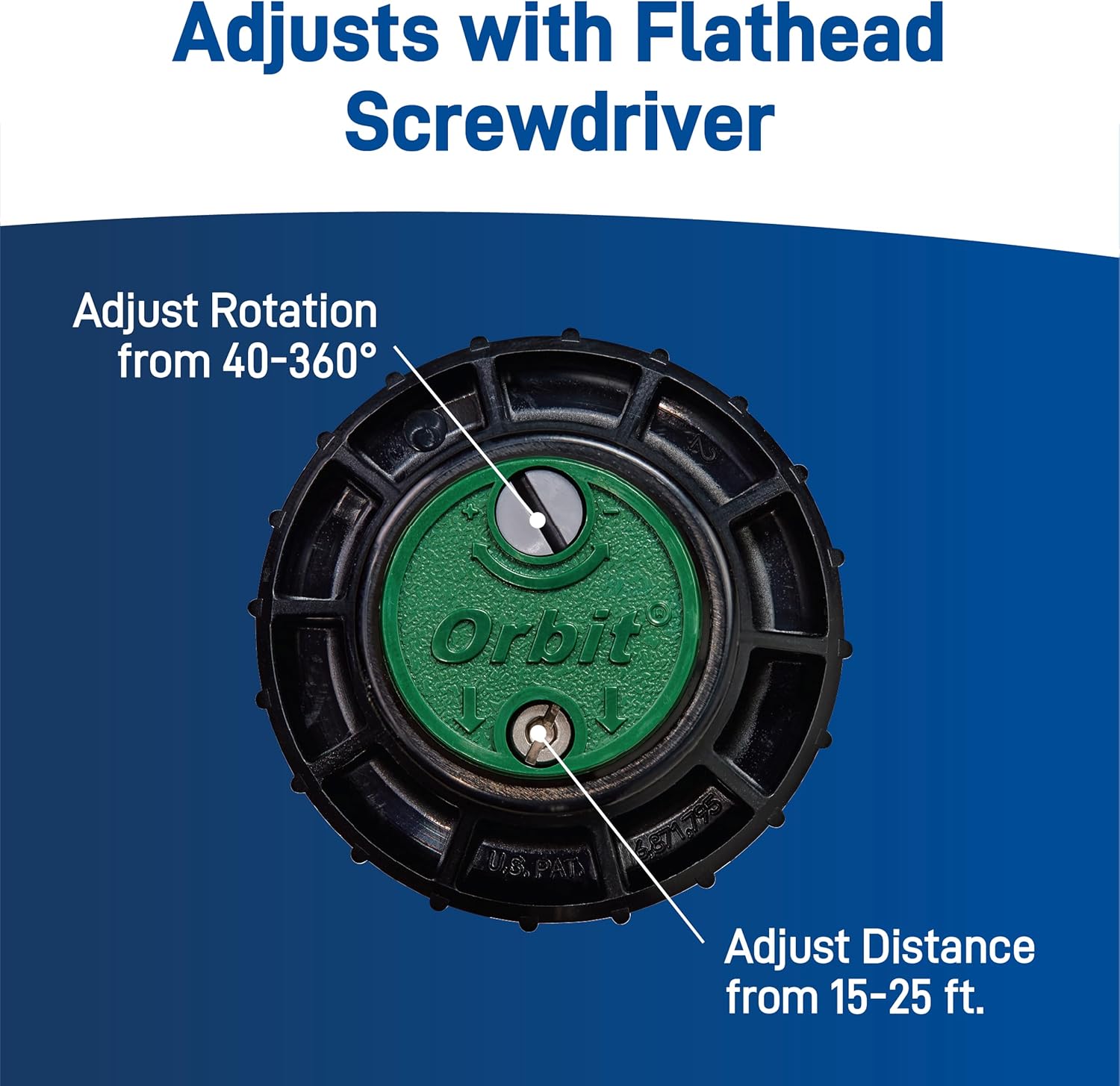

First-Time Setup: Turn on water and let each rotor run for 30 seconds to flush debris. Then adjust arc and radius while water flows. Saturn III and Titan use a flathead screwdriver. Saturn IV uses the included adjustment key.
Arc Adjustment: The right side is fixed. Turn clockwise to increase left stop (wider arc) or counterclockwise to decrease (narrower arc). Make small turns and watch the result.
Radius Adjustment: Turn clockwise to decrease throw, counterclockwise to increase. Start at full distance and dial back if needed to avoid overspray.

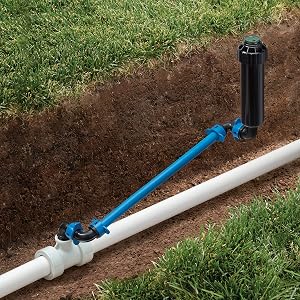

Mounting: Install on 1/2" MPT Blu-Lock swing joints for easy leveling, or use funny pipe fittings and rigid PVC risers.
Before You Install: Test your water pressure. These rotors need at least 40 PSI to perform correctly. Lower pressure causes short throws and incomplete rotation.
Installation Depth: Pop-up models should sit flush with soil when retracted. If too deep, the riser won't extend fully. Too shallow and the can sticks out.
First-Time Setup: Turn on water and let each rotor run for 30 seconds to flush debris. Then adjust arc and radius while water flows. Saturn III and Titan use a flathead screwdriver. Saturn IV uses the included adjustment key.
Arc Adjustment: The right side is fixed. Turn clockwise to increase left stop (wider arc) or counterclockwise to decrease (narrower arc). Make small turns and watch the result.
Radius Adjustment: Turn clockwise to decrease throw, counterclockwise to increase. Start at full distance and dial back if needed to avoid overspray.
Mounting: Install on 1/2" MPT Blu-Lock swing joints for easy leveling, or use funny pipe fittings and rigid PVC risers.
Zone Design Matters: Don't mix rotor types with different flow rates on the same zone. Pair Saturn III with Saturn III or use Saturn IV's low-angle nozzles if you need to combine Saturn's with Voyagers. Matched precipitation ensures every plant gets the same amount of water.
Nozzle Selection Strategy: The 2.0 GPM nozzle works for most residential applications. Switch to lower GPM nozzles (0.5 to 1.5) on slopes or clay soils where runoff is a concern. Higher GPM nozzles (3.0 to 5.0) speed up watering on flat terrain with good drainage—just confirm your system delivers adequate pressure and flow.
Maintenance Schedule: Clean the bottom inlet filter twice per season if you have well water or older pipes. Remove the nozzle once per season to inspect the wiper seal and clear any debris from the filter screen. This five-minute task prevents most performance issues.
Smart Controller Benefits: Pair these rotors with a B-hyve smart controller to automatically adjust run times based on weather, soil type, and sun exposure. The low 0.30 in/hour precipitation rate gives controllers plenty of flexibility to fine-tune watering without runoff.
Installation Flexibility: Saturn III and IV install on Blu-Lock swing joints for easy positioning and leveling without digging up the entire lateral line. Titan mounts on any 1/2" MPT riser—just add PVC couplings and extensions to raise it as plants grow. No need to replace the entire assembly when landscaping changes.
Replacement Compatibility: These rotors replace 1/2" models from Orbit, Hydro-Rain, and other major brands. Keep the old fittings in place and simply unscrew the old rotor and thread on the new one. Saturn IV includes everything you need in one package if you're upgrading from basic rotors that lacked extra nozzles.
