| Set Name | Router Table Insert Plate Template Kit |
|---|---|
| Manufacturer | O'SKOOL |
| Model Number | RTS020 |
| Manufacturer Part Number | RTS020 |
| Item Dimensions L x W | 15.9"L x 13.3"W |
| Item Weight | 1.3 kg |
| Line Size | 9.25 inches |
| Size | 9-1/4" x 11-3/4" |
| Material Type | MDF |
| Material | MDF |
| Item Length Width | 15.9"L x 13.3"W |
| Number Of Items | 1 |

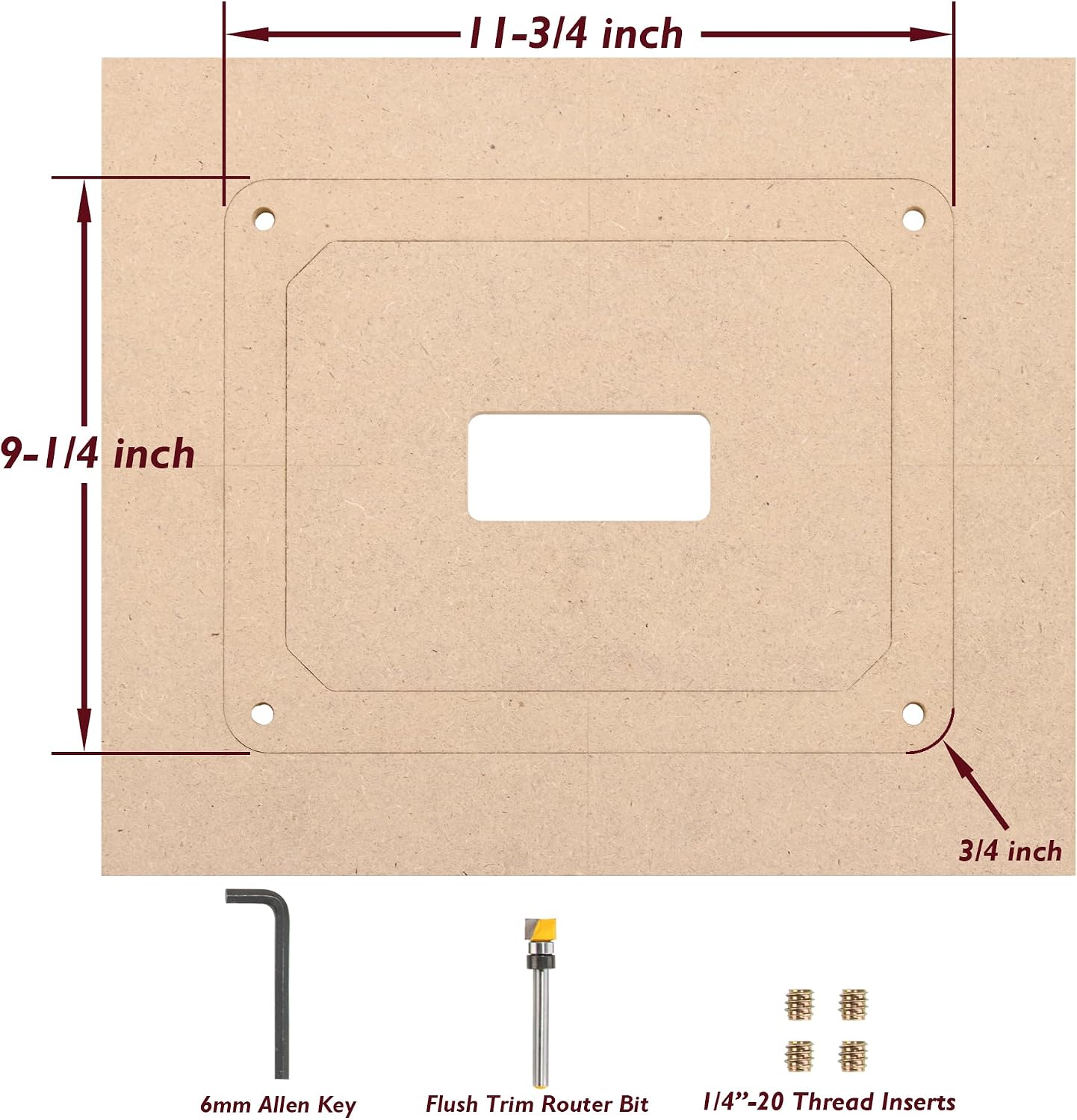

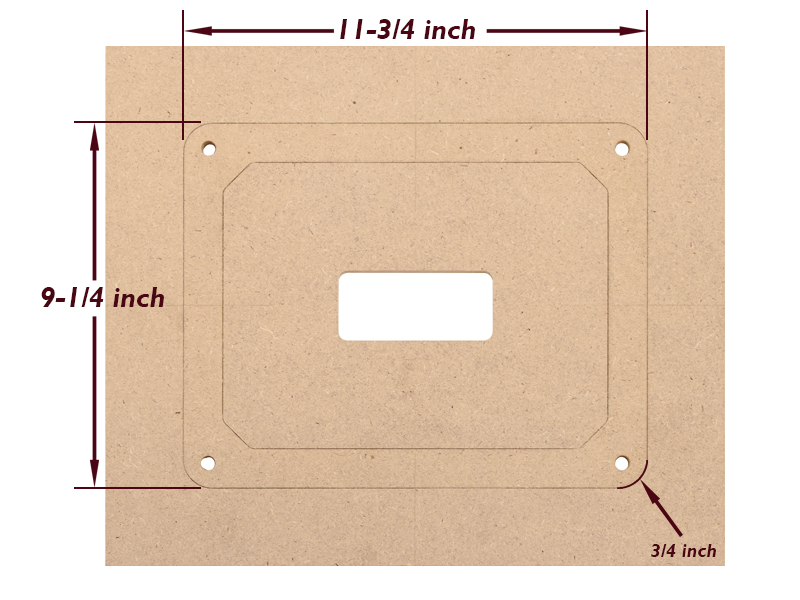

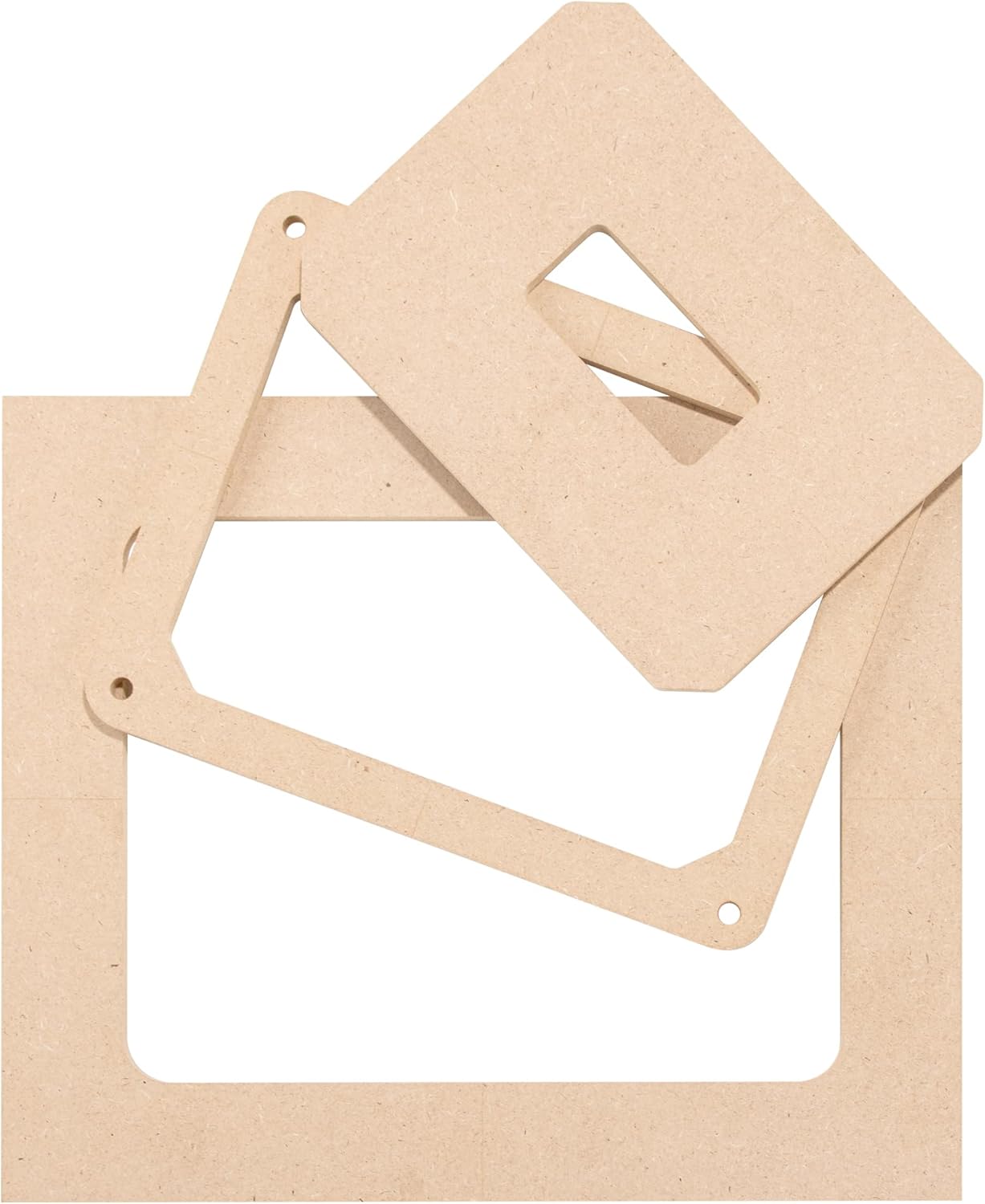

Cut flawless openings for your router plate with this durable MDF template, designed for the most common 9-1/4" x 11-3/4" plate size. Pre-rounded corners with a 3/4" radius ensure your insert fits flush, clean, and accurate—no guessing or overcutting. Ideal for custom router table builds, shop jigs, and repeatable precision across multiple projects.

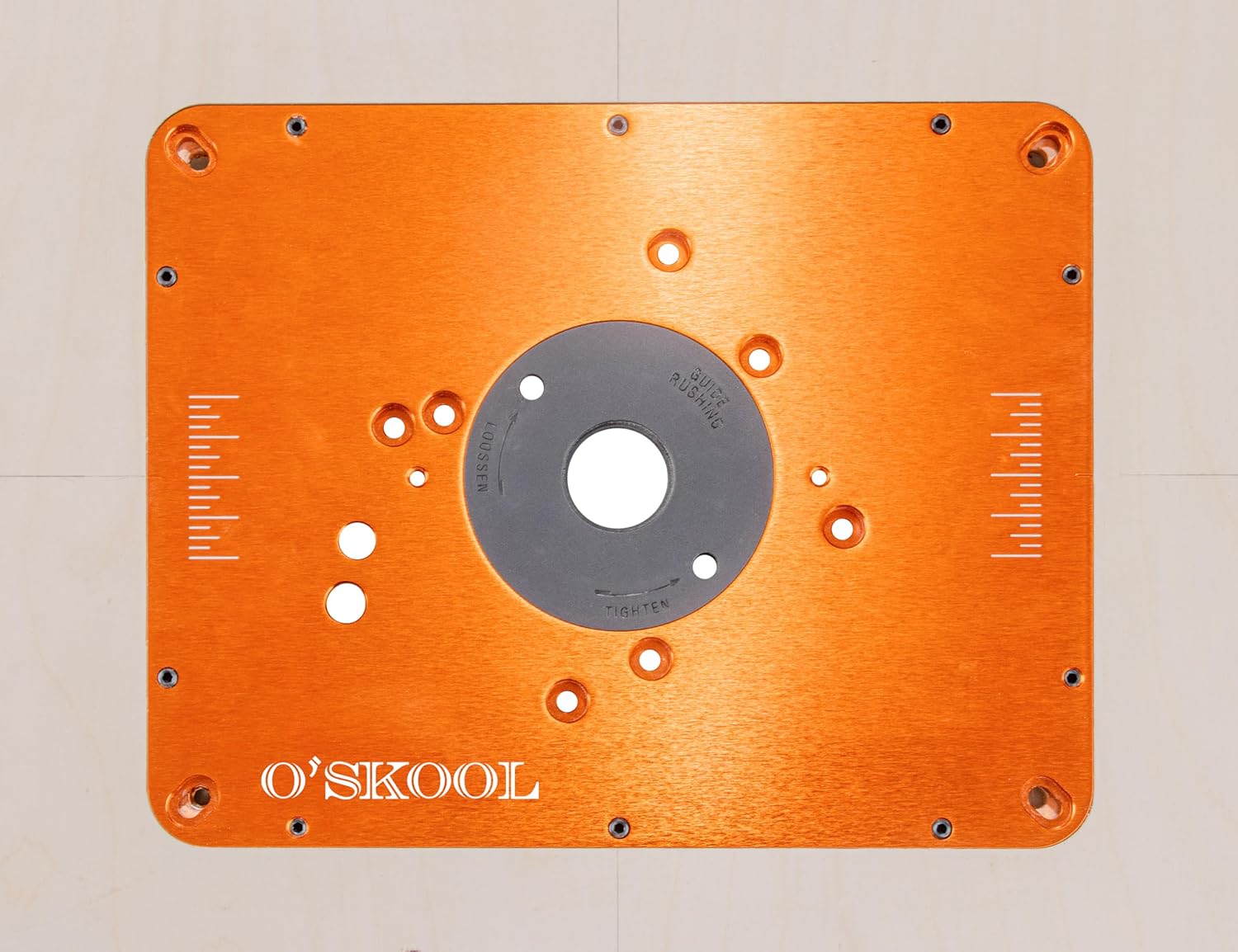

Compatible with O'SKOOL RTS013 / RTS07 / RTS05 Router Lifts; RTS02A Aluminum Insert Plate

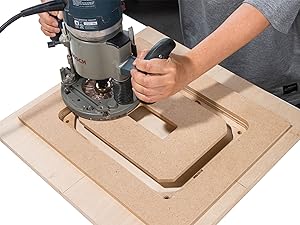

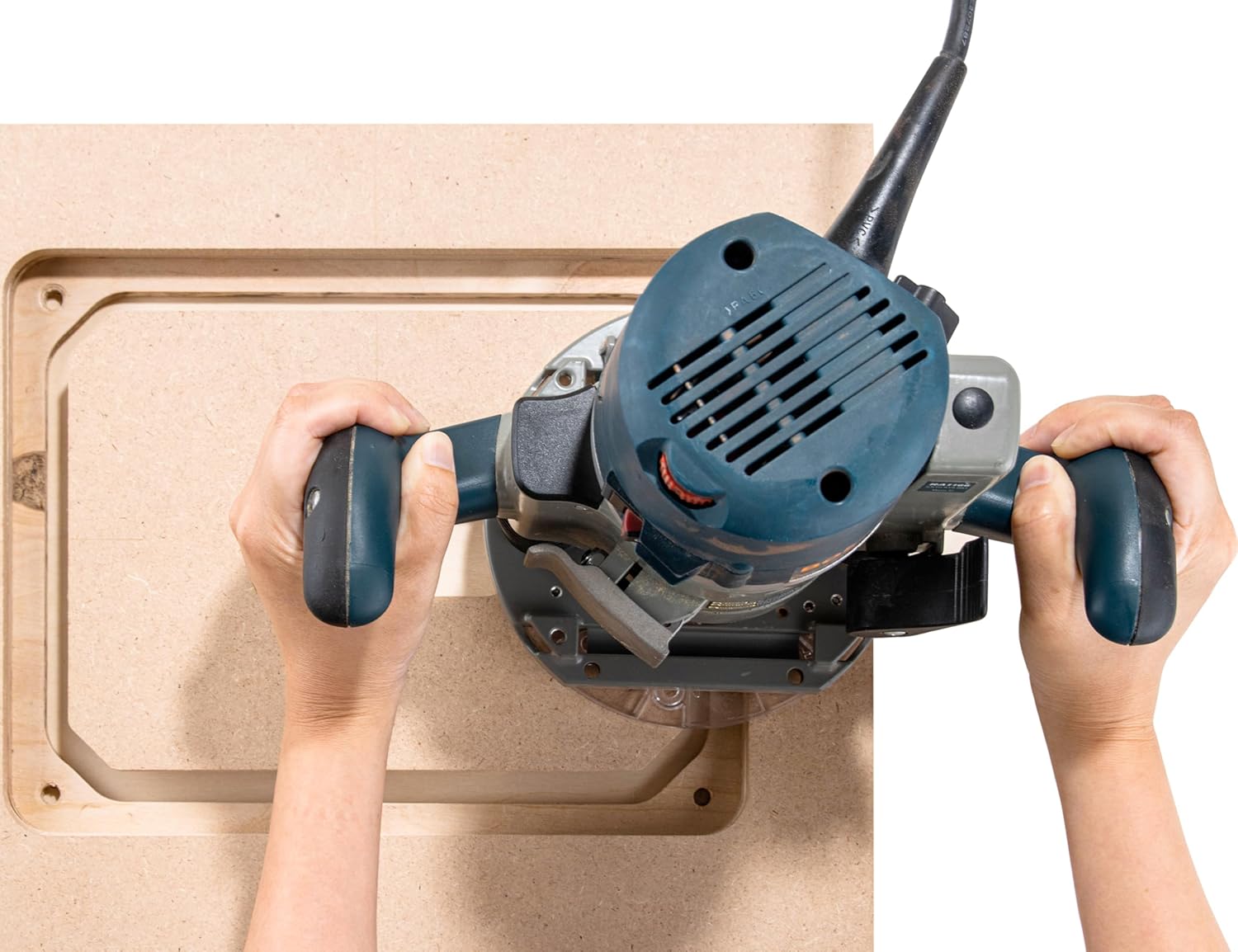

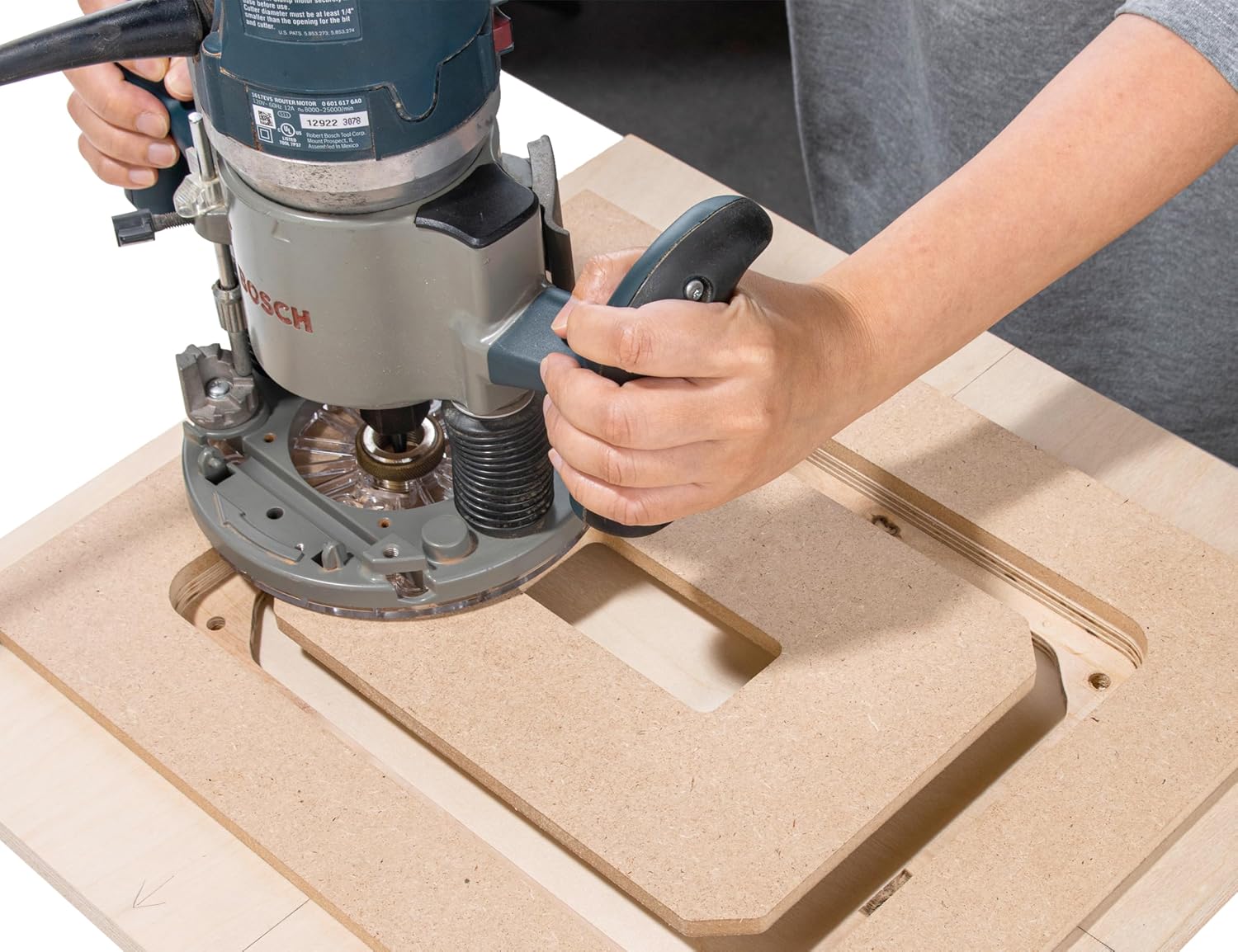

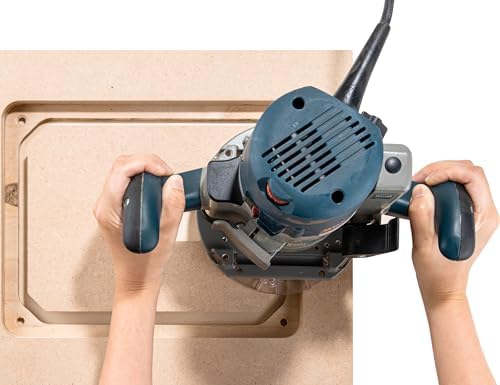

Use a plunge router with the MDF template to cut precise, clean openings for your insert plate—no measuring or layout lines required.
Use the template to guide your drill and mark precise mounting holes, ensuring proper plate alignment and a stable, secure fit.
Insert the threaded brass fittings for repeatable mounting—perfect for easy plate removal, tool upgrades, or fine adjustments.

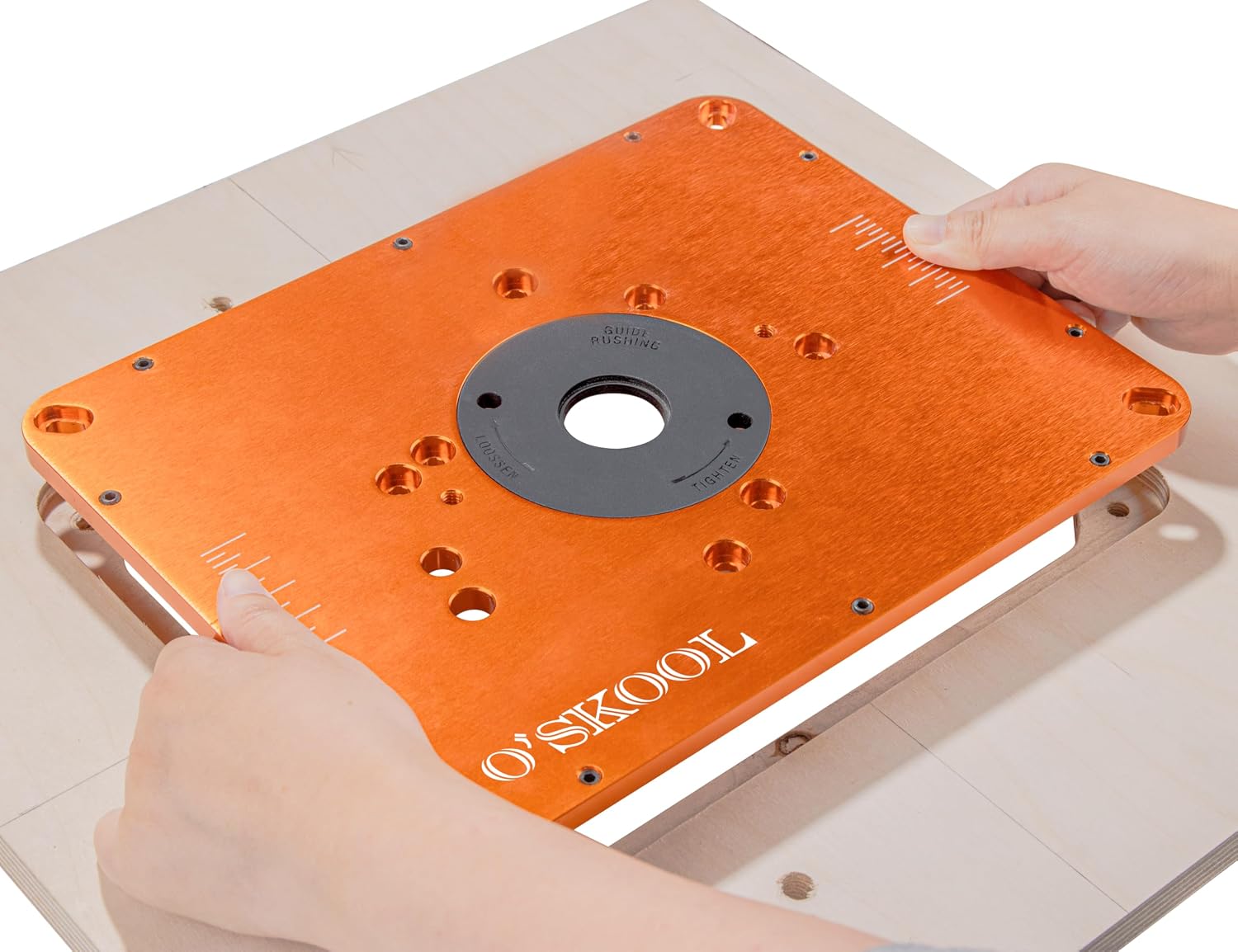

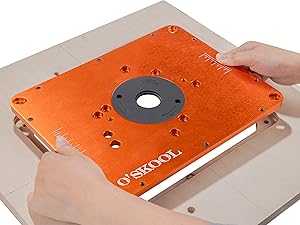

After routing and drilling, simply place your insert plate into the cutout to complete the installation—flush, secure, and ready to work.
What size router insert plates does this template support?
It is designed for nominal 9-1/4" × 11-3/4" router insert plates. Check the plate dimensions, corner radius, and required recess depth before cutting the tabletop.
What tools are required to use this template kit?

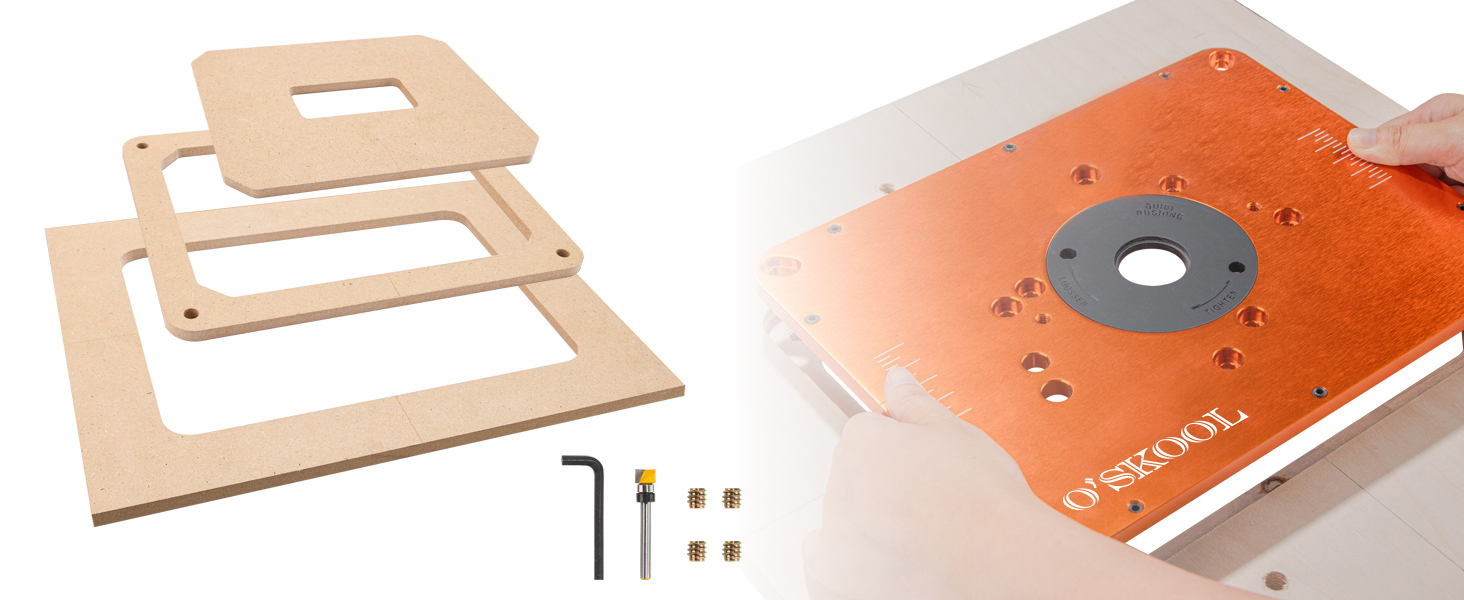

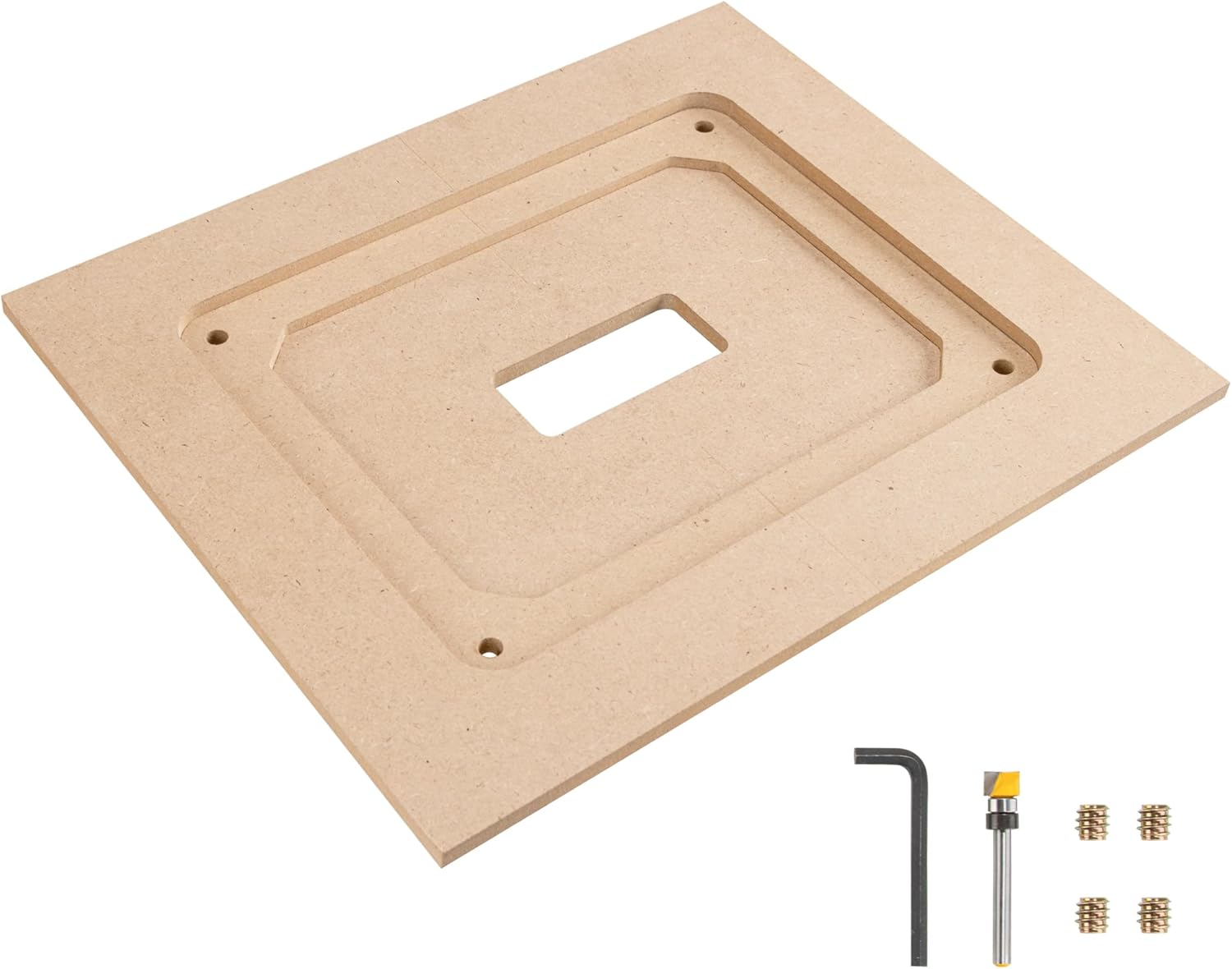

A handheld router and drill are required. The kit includes the templates, threaded inserts, router bit, and Allen keys. Additional cutting tools may be required depending on the tabletop thickness and installation method.
Can I reuse this template for future builds?
The MDF templates may be reused if they remain flat, undamaged, and able to attach securely to the tabletop.
Can I choose where to position the insert plate?
Yes. Choose the desired router spindle location, mark two intersecting reference lines, and align the template centerlines with those marks before routing.
What should I check before using the included router bit?
Before each use, tighten the set screw on the black collar with the included 2mm Allen key. Secure the templates, follow the specified routing direction, and limit each pass to 1/4" or less. Stop if any part is loose or damaged.
