          O'SKOOL Router Lift System, 3-1/2" Router Motor Fit

          $47.00 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

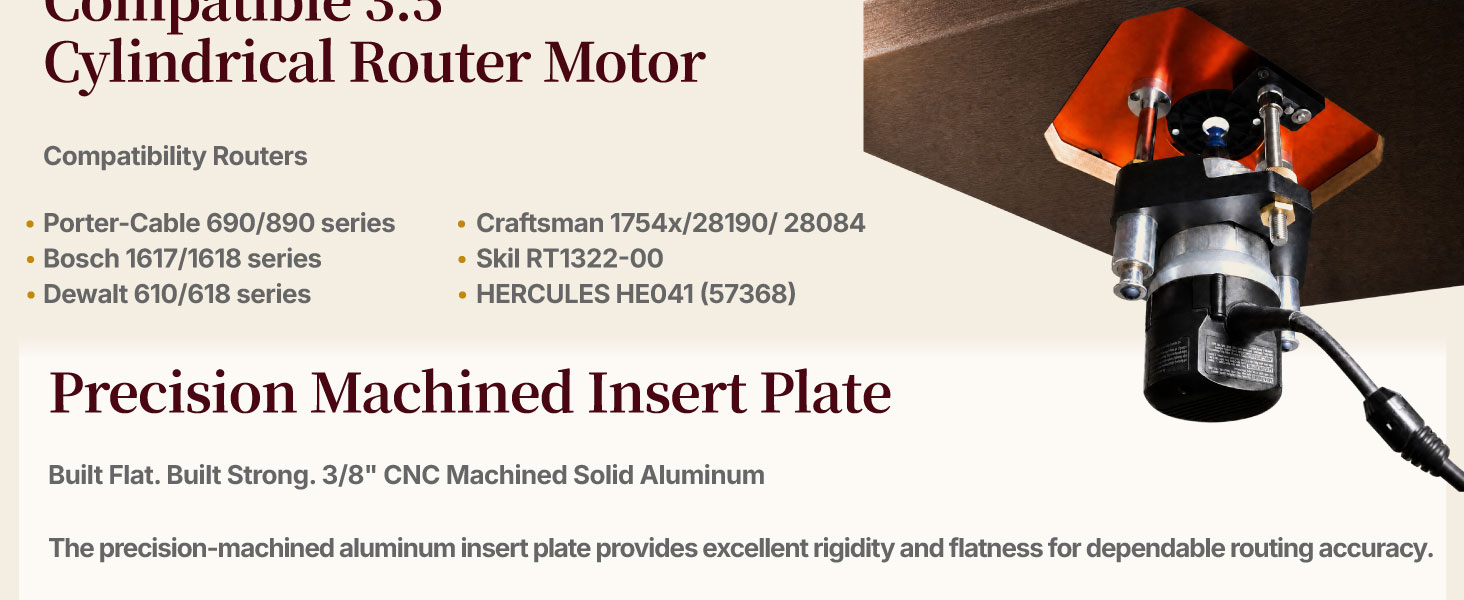

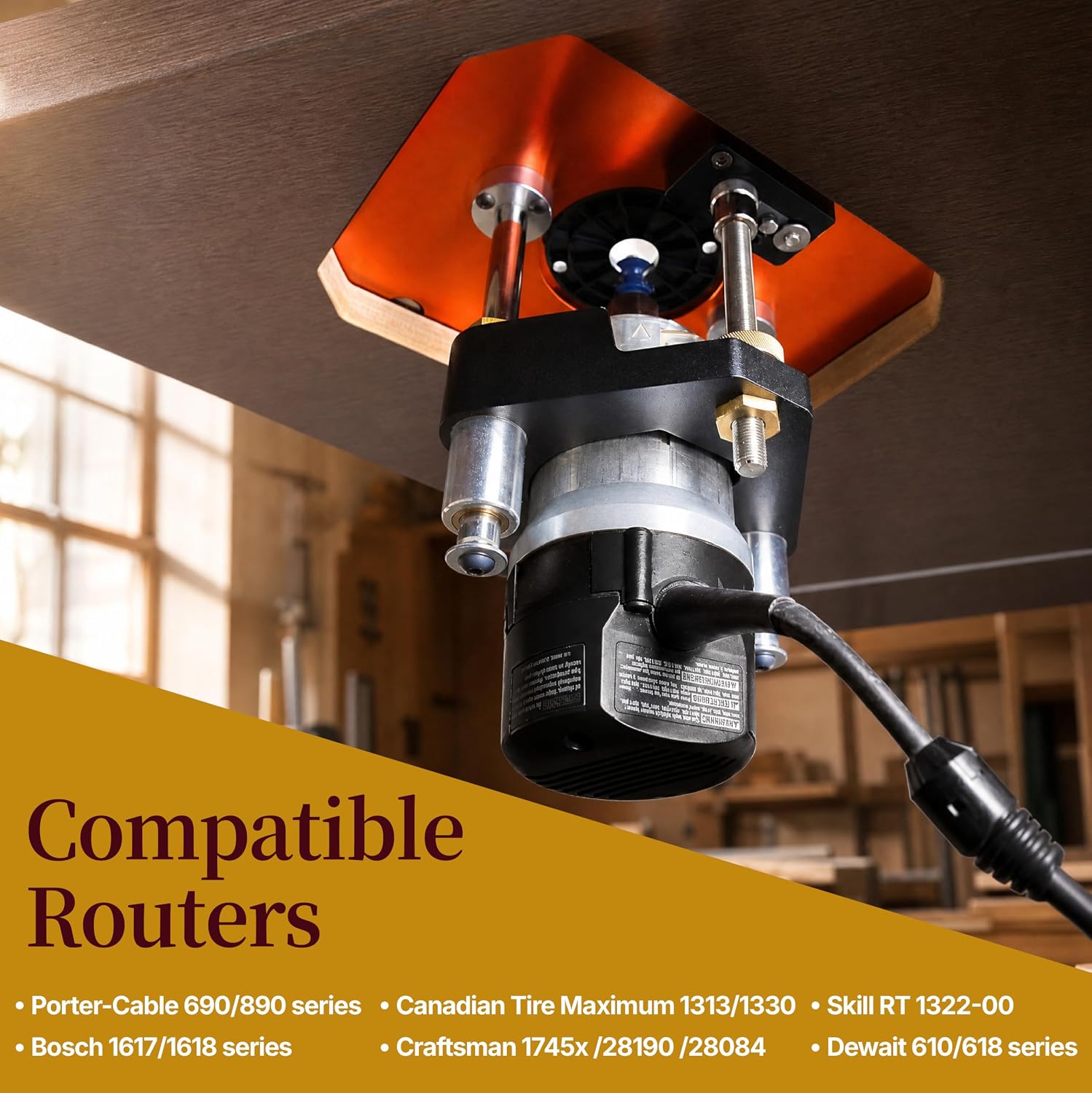

          • Router Lift System For 3-1/2" Cylindrical Motors : Built for router table woodworking with 3-1/2” router models such as Porter Cable 690/890, DeWalt 610/616/618, Bosch 1617/1618, Craftsman 1754X/28190/28084, and Skil RT1322-00. This router lift system helps buyers quickly check core motor compatibility before setup

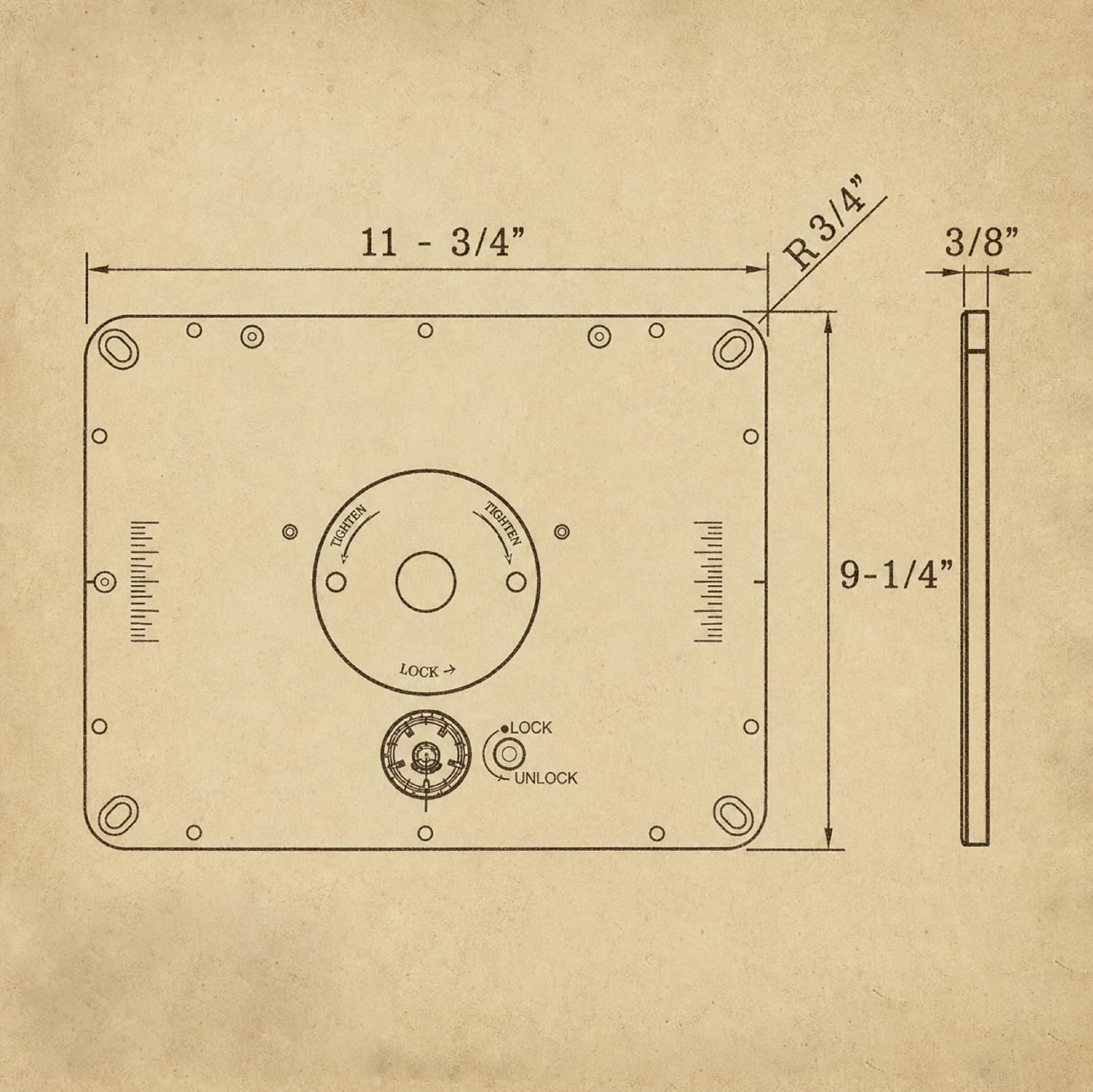

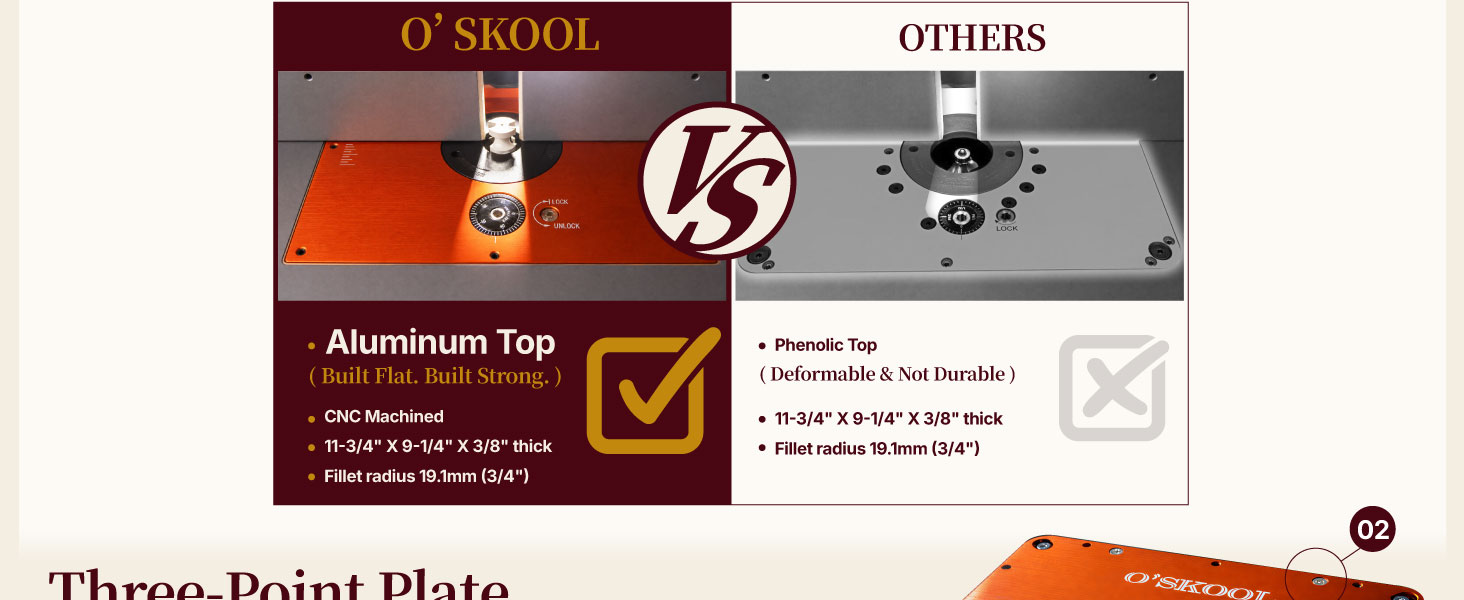

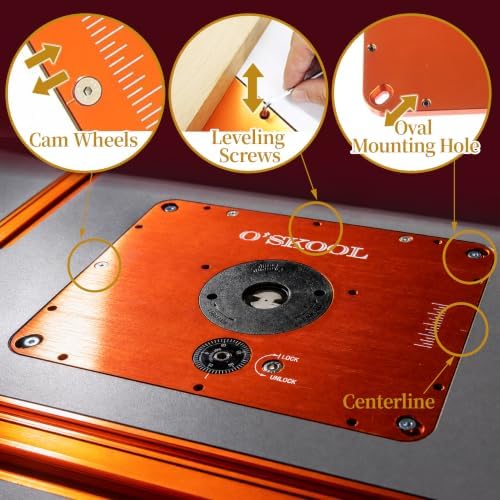

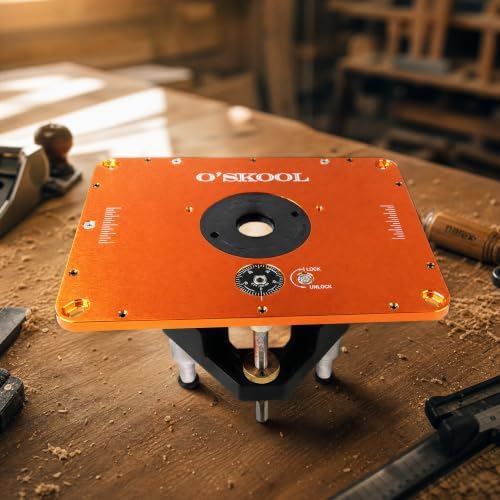

          • 3/8" Aluminum Router Table Insert Plate With Three-Point Adjustment : The 11-3/4" x 9-1/4" x 3/8" aluminum router table insert plate, built with a 3/4" corner radius, uses oval mounting holes, cam wheels, and leveling screws to help align the plate, reduce gap at the opening, and level the surface for a flush, stable router table setup

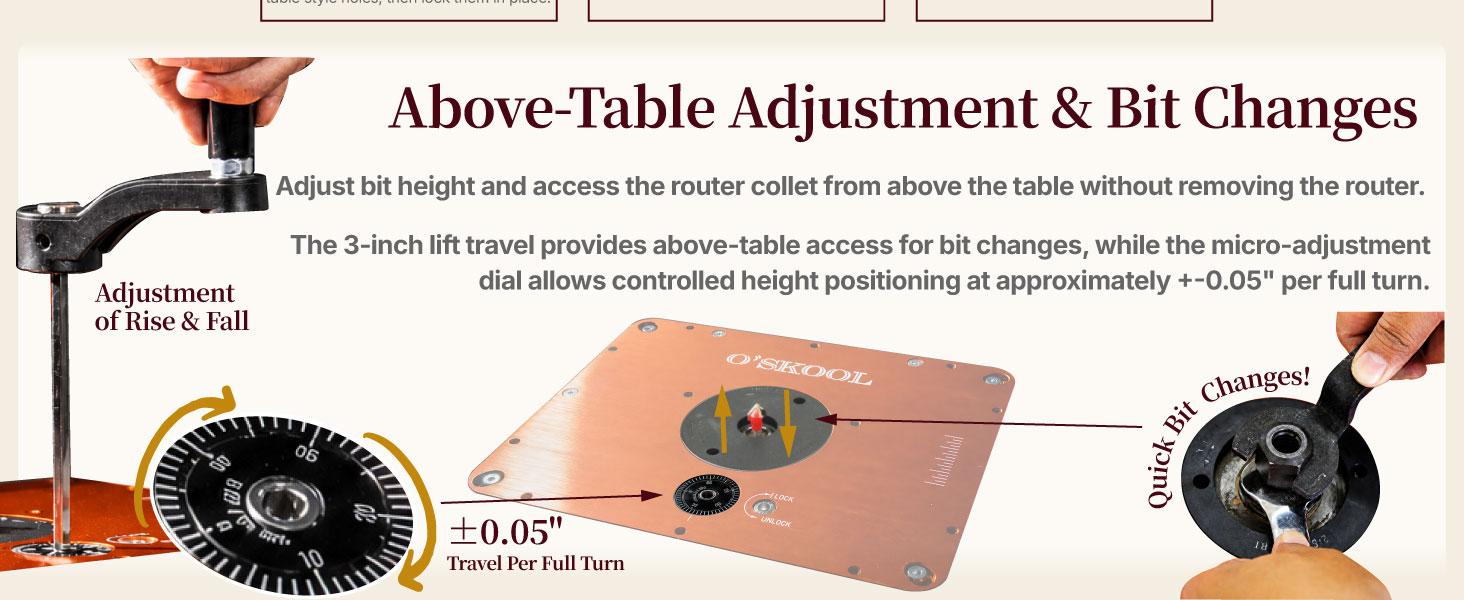

          • Precise Above-Table Adjustment And Bit Changes : The 20 TPI height adjustment screw changes bit height by 0.05" per full turn, while the zeroing index ring with 50-angle scale supports controlled micro-adjustments as small as 0.001". A height screw locking device helps reduce minimal movement caused by router vibration for more consistent cutting depth, and above-table access makes bit height changes and collet access easier without removing the router motor

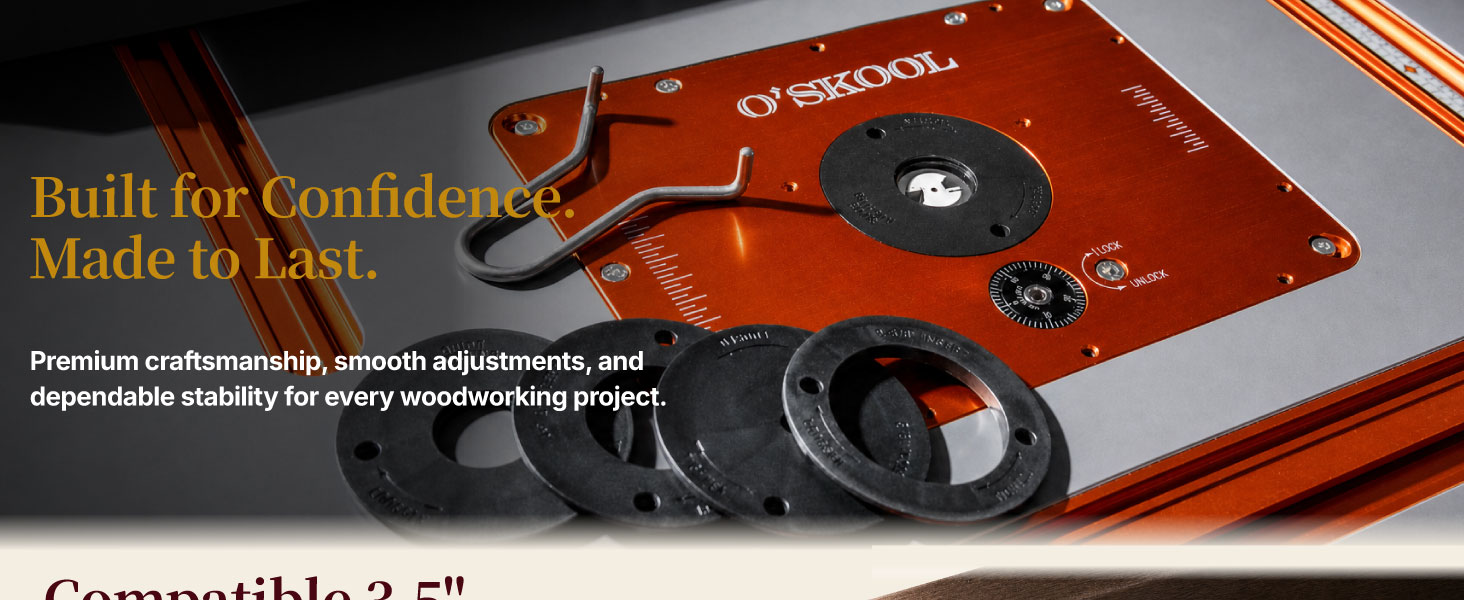

          • 5 Insert Rings For Different Bit Setups :Included with this router lift are 5 insert rings for better stock support with different router bit sizes: 3/8", 1", 1-1/4" for guide bushings, 1-7/8", and 2-5/8". The included ring options help support a wider range of routing setups without needing separate inserts

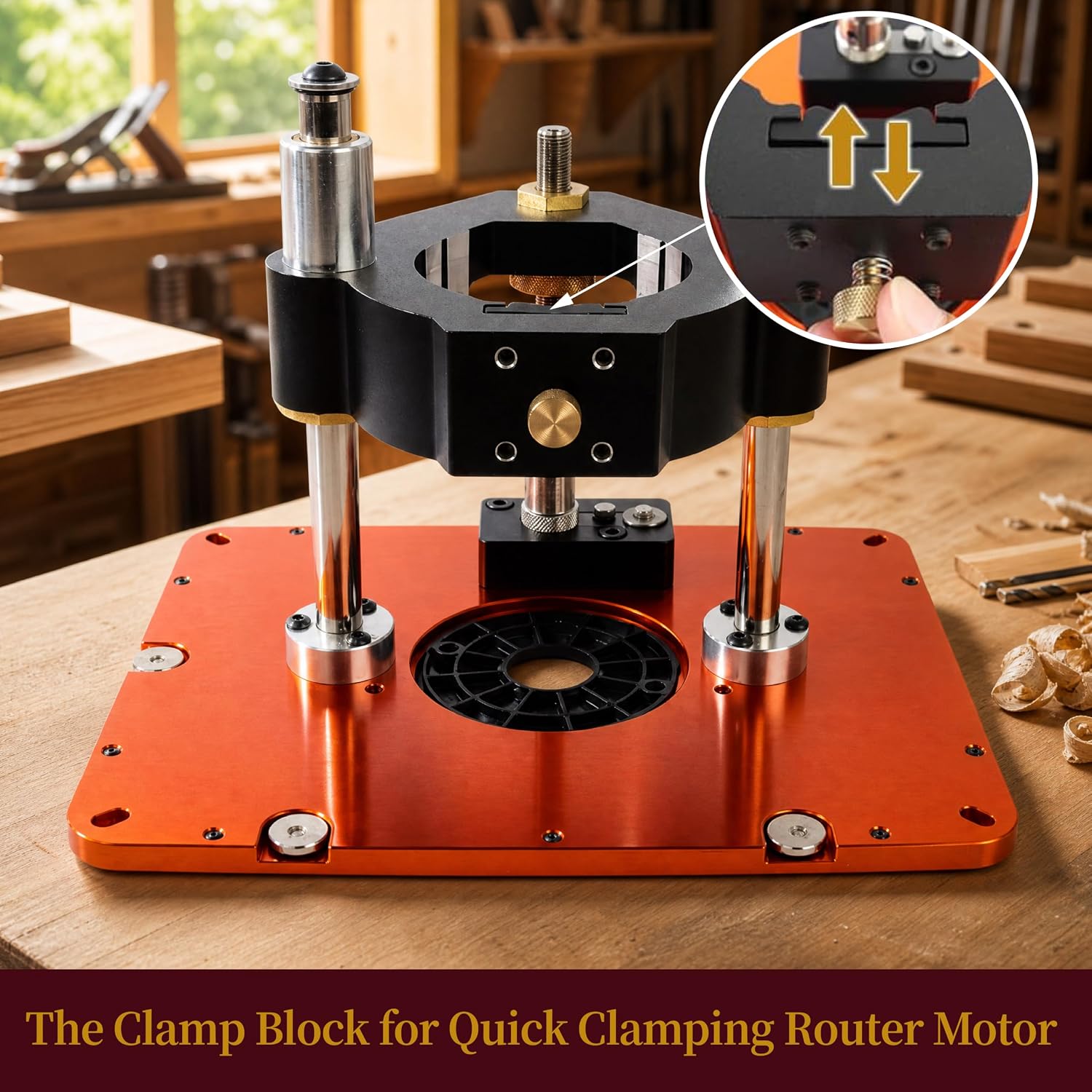

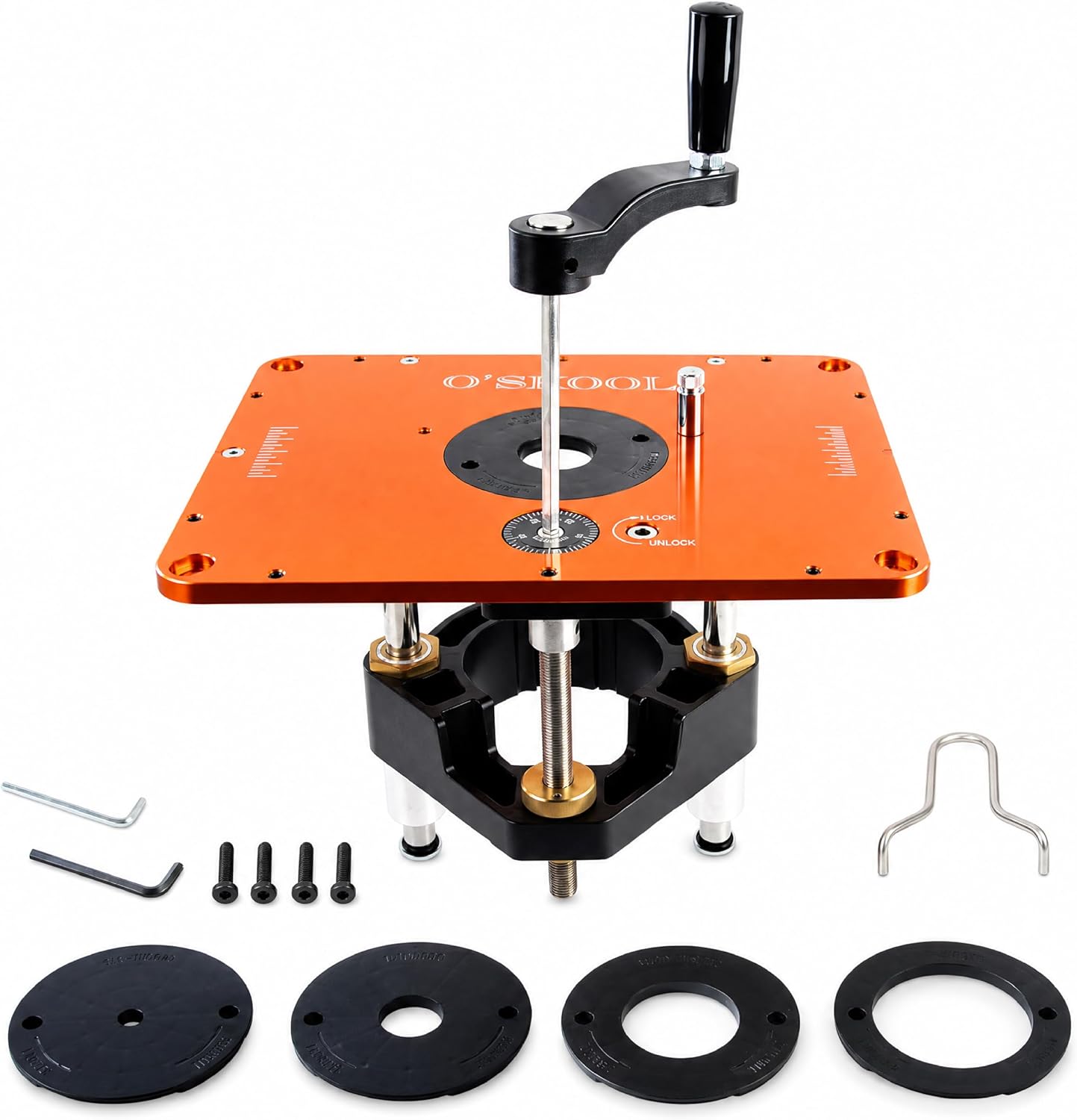

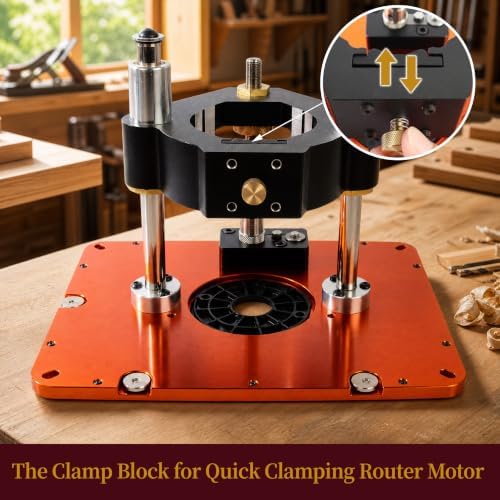

          • Quick-Clamping Design With Included Setup Accessories : The clamp block helps quickly position the router motor during installation, and the package includes a crank handle, start pin, ring wrench, hex wrenches, and mounting hardware. Before buying, confirm both your motor body diameter and router table opening size for proper fit
          • Backed by a 1-year warranty; customer support is available for product questions and basic setup assistance
          Item Dimensions W x H11.75"W x 3"H
          Material TypeAluminum
          Model NumberRTS05
          Unit Count1 Count
          ManufacturerO'SKOOL
          Manufacturer Part NumberRTS05
          MaterialAluminum
          Item Width Height11.75"W x 3"H
          Number Of Items5
          O'SKOOL router lift installed in a router table for above-table height adjustment
          Close-up of the router lift height adjustment mechanism and aluminum insert plate
          Aluminum router lift with insert rings and leveling screws on a workbench
          O'SKOOL router lift fitted with a compatible 3-1/2-inch router motor
          Woodworker routing a board on a table equipped with an O'SKOOL router lift

          • Will This Fit My Router And My Router Table?

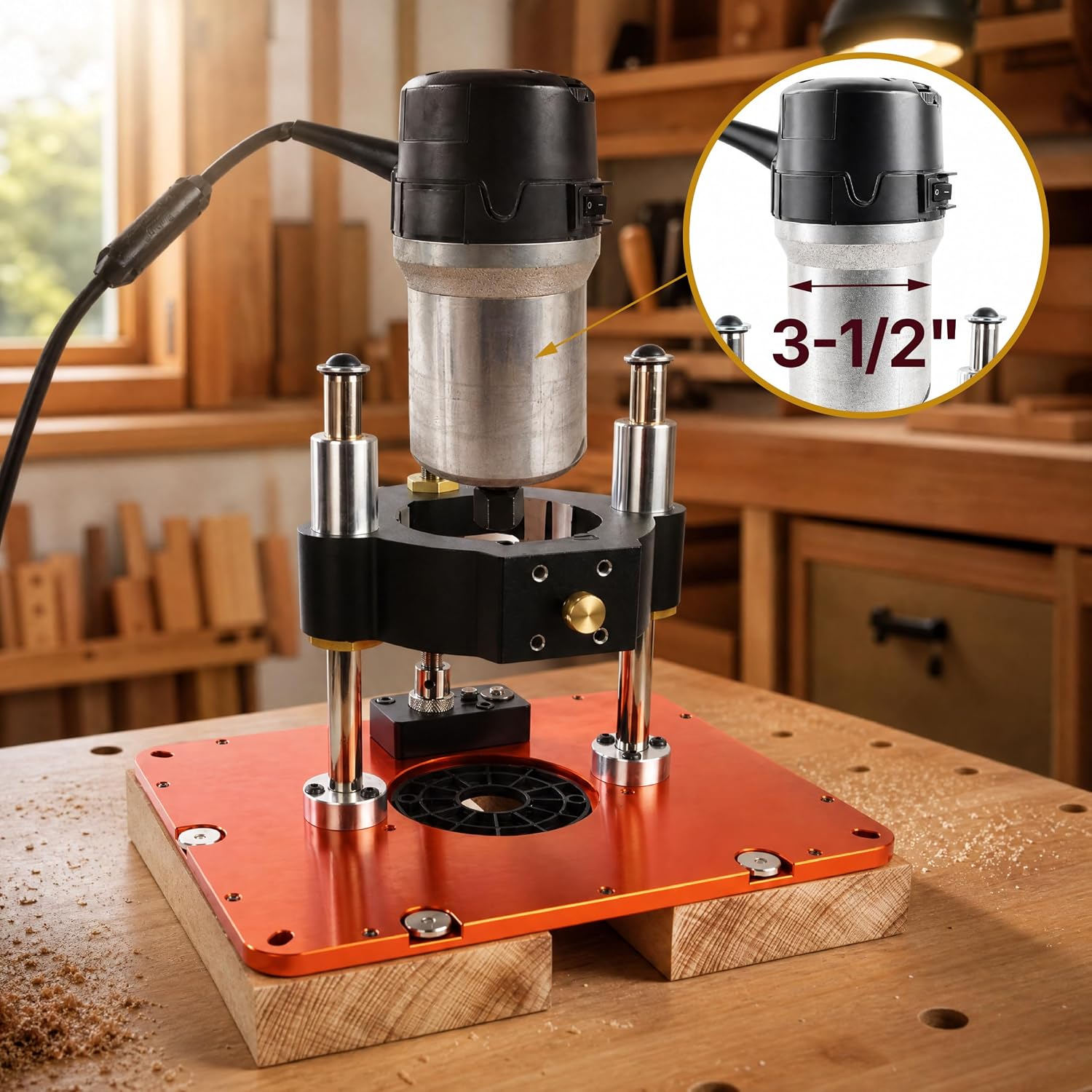

            Check both before buying. Your router motor body should be 3-1/2" in diameter, and your table opening should match the 11-3/4" x 9-1/4" plate size

          • Can I Adjust Bit Height And Change Bits From Above The Table?

            Yes. The lift allows above-table bit height adjustment and collet access, so routine setup changes are easier without removing the router motor

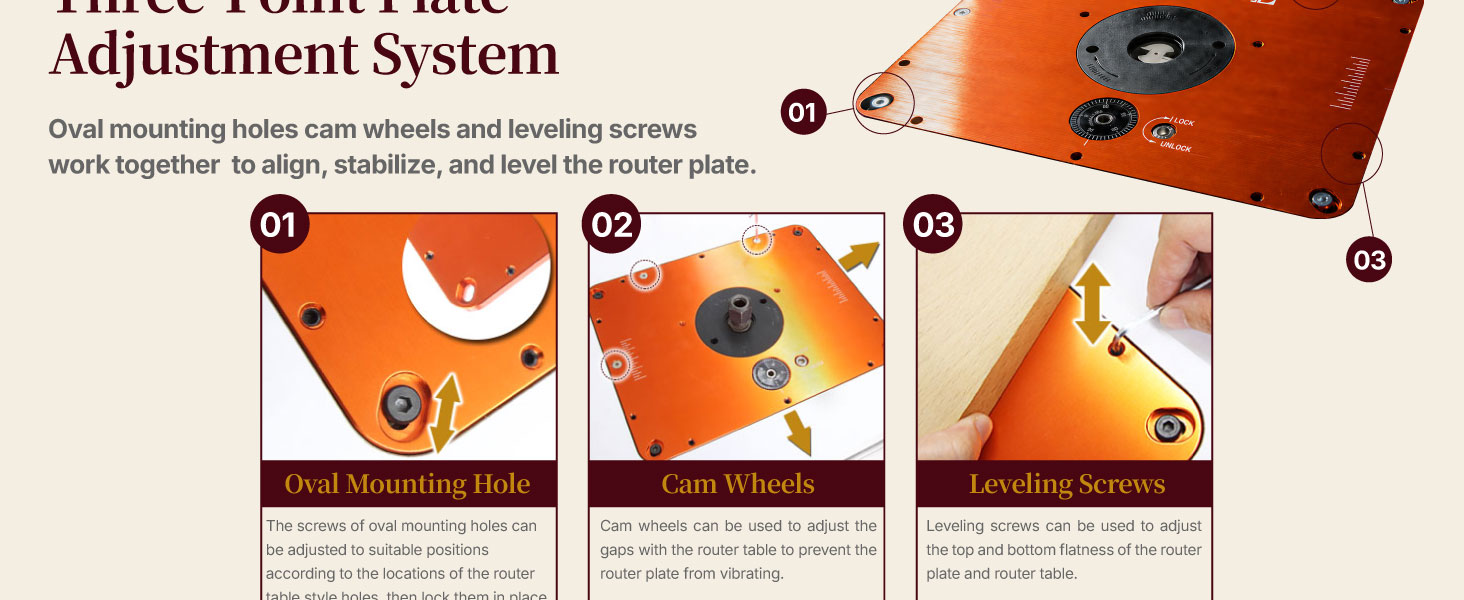

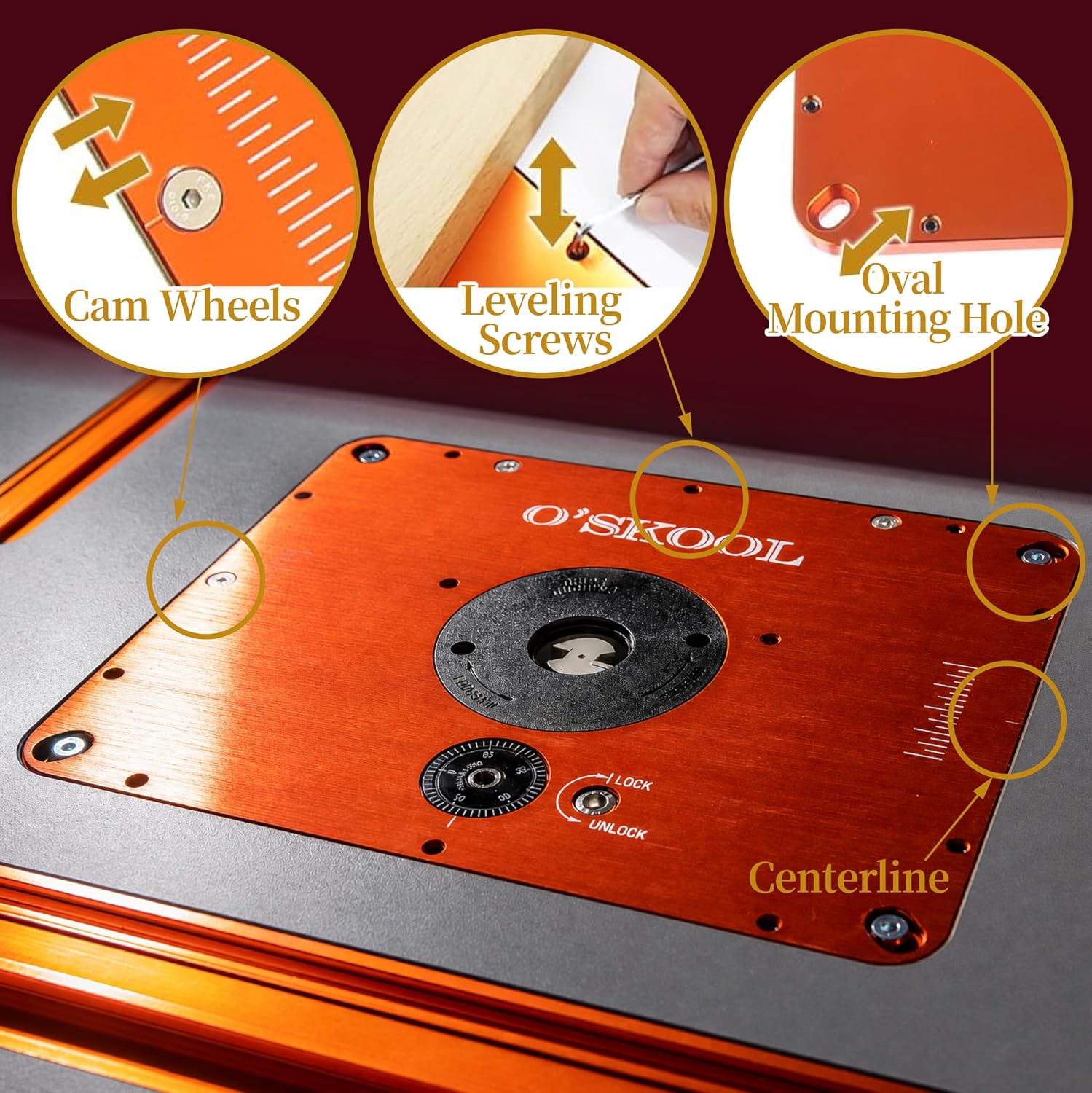

          • What Do The Cam Wheels, Leveling Screws, And Oval Mounting Holes Do?

            They help adjust plate position, reduce gap at the opening, and level the insert plate with the table surface for a more flush and stable setup.

          • What Insert Rings Are Included?

            The lift includes 5 insert rings: 3/8", 1", 1-1/4" for guide bushings, 1-7/8", and 2-5/8" for different router bit setups.

          • How Do I Keep The Router Motor Secure During Use?

            After positioning the motor, tighten the clamp block and lock the set screws evenly. The height screw lock also helps reduce minimal movement from router vibration during routing.
