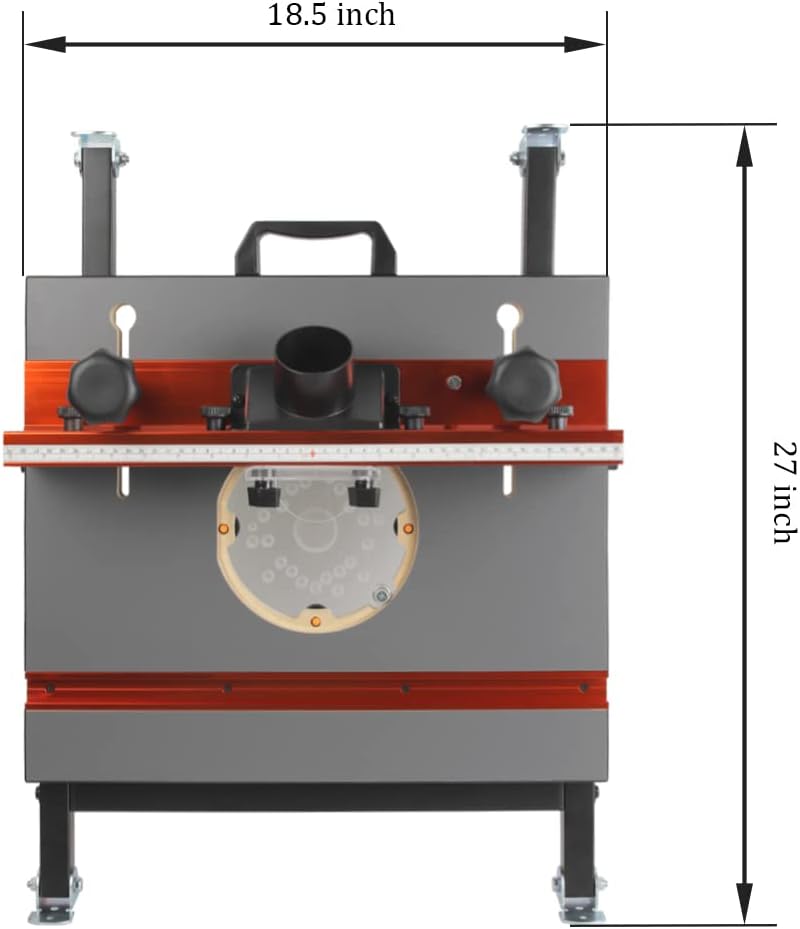

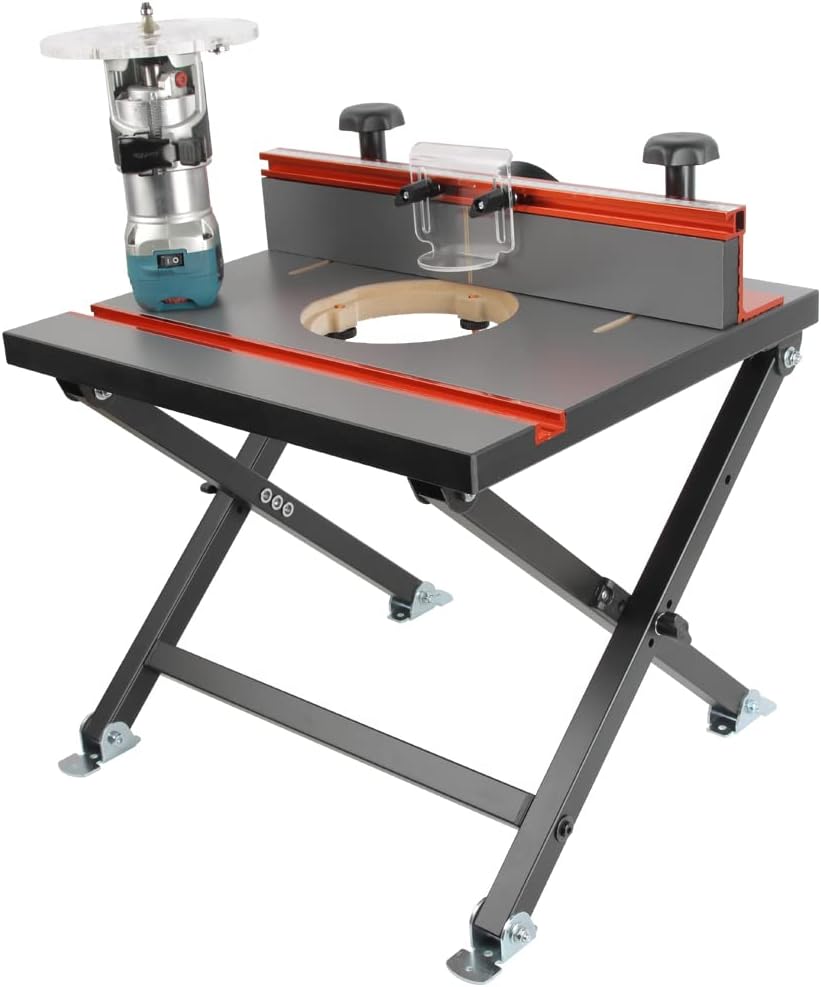

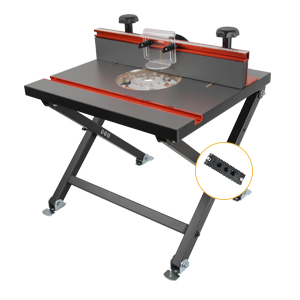

Foldable Storage And Three Preset Heights : The X-frame legs fold beneath the tabletop, while the built-in handle helps carry the table between storage and the workbench. Folded dimensions: 18.5" x 27" x 1.98". Tabletop size: 18.5"W x 15.94"D x 1"H. Overall benchtop dimensions: 18.5"W x 18.75"D, with preset heights of 13.6", 14.8", and 15.6"

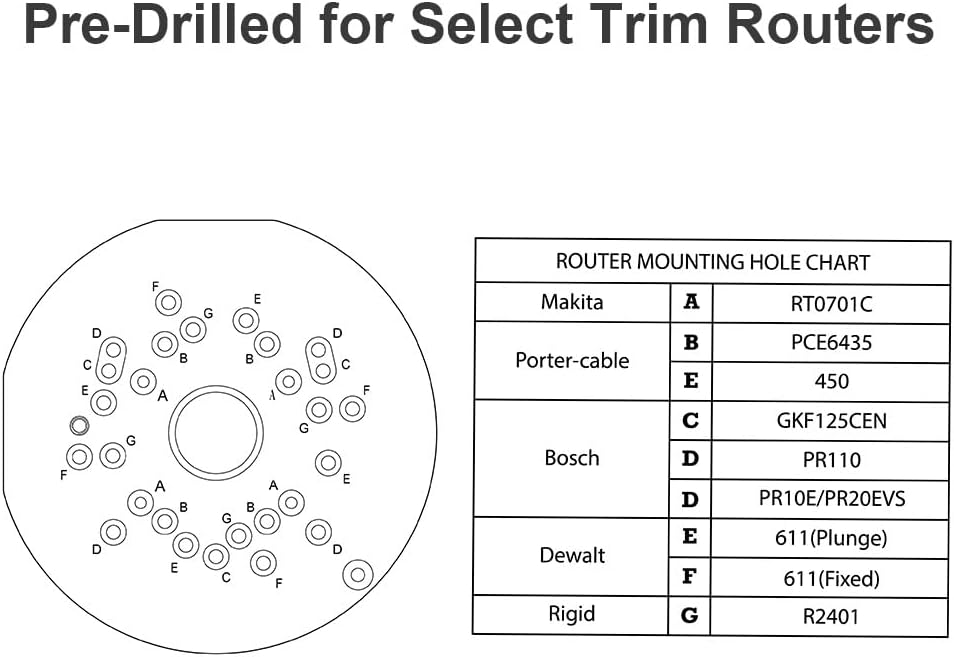

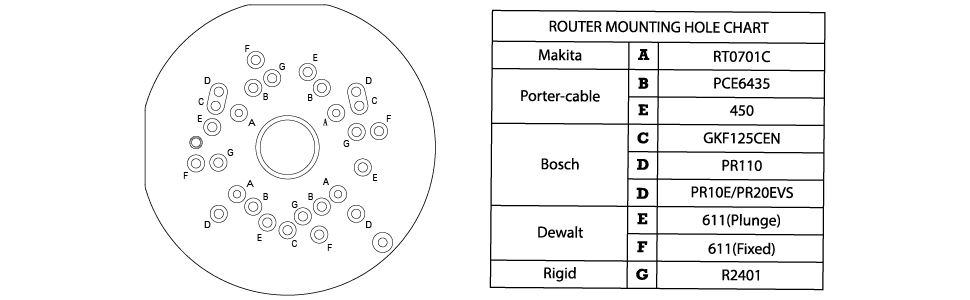

Check Router Fit Before Purchase : The insert plate includes pre-drilled mounting patterns for Makita RT0701C; Porter-Cable PCE6435 and 450; Bosch GKF125CEN, PR110, PR10E, and PR20EVS; DeWalt 611 Plunge and 611 Fixed; and Ridgid R2401. Models not listed are not confirmed compatible

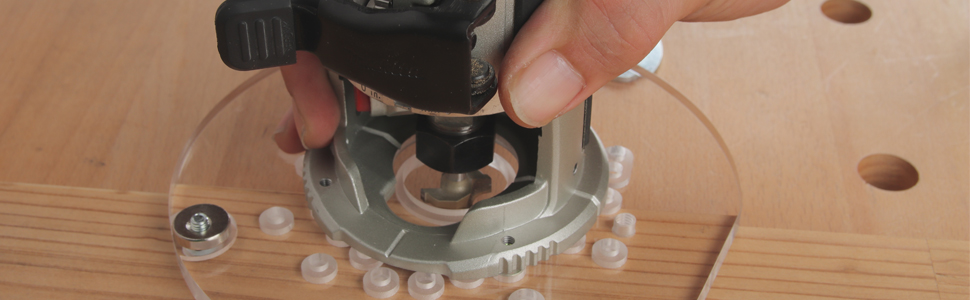

Removable, Level-Adjustable Insert Plate : Four leveling screws help set the plate flush with the router table top, while the locking cams secure it before use for a more consistent tabletop routing setup
Fence-Guided And Bearing-Guided Routing : Use the aluminum fence with MDF faces for guided edge routing, or install the included start pin for bearing-guided work without the fence. The dust port has a 2-1/2-inch outside diameter

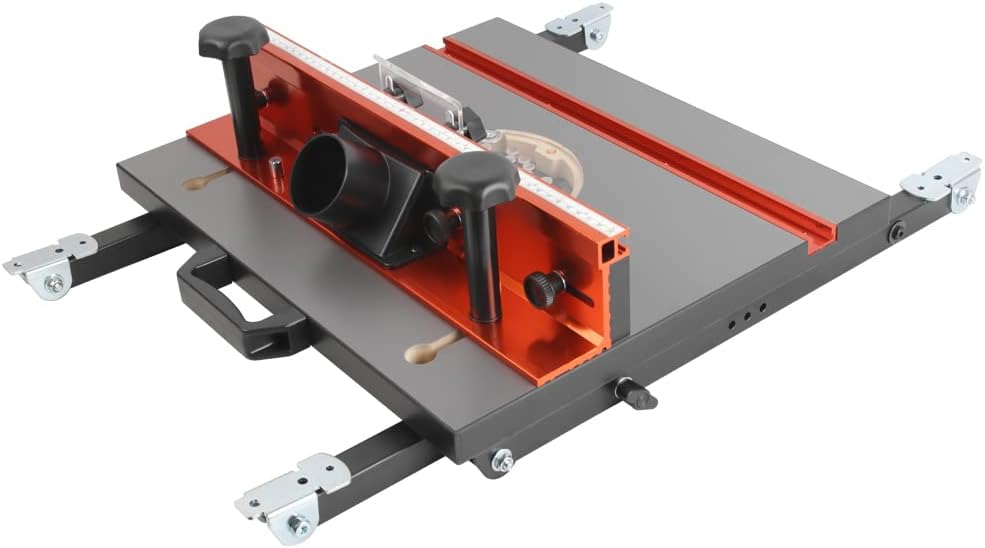

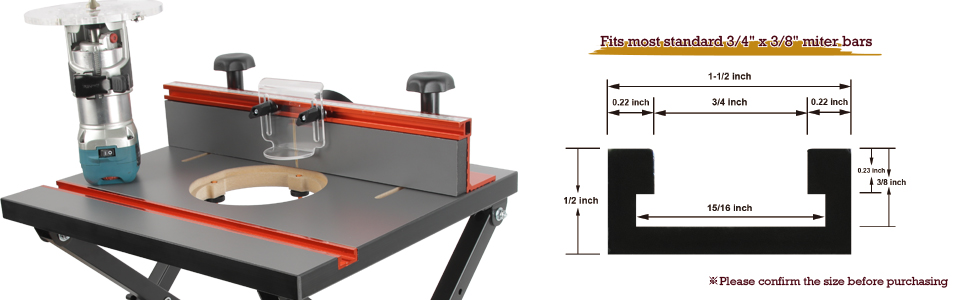

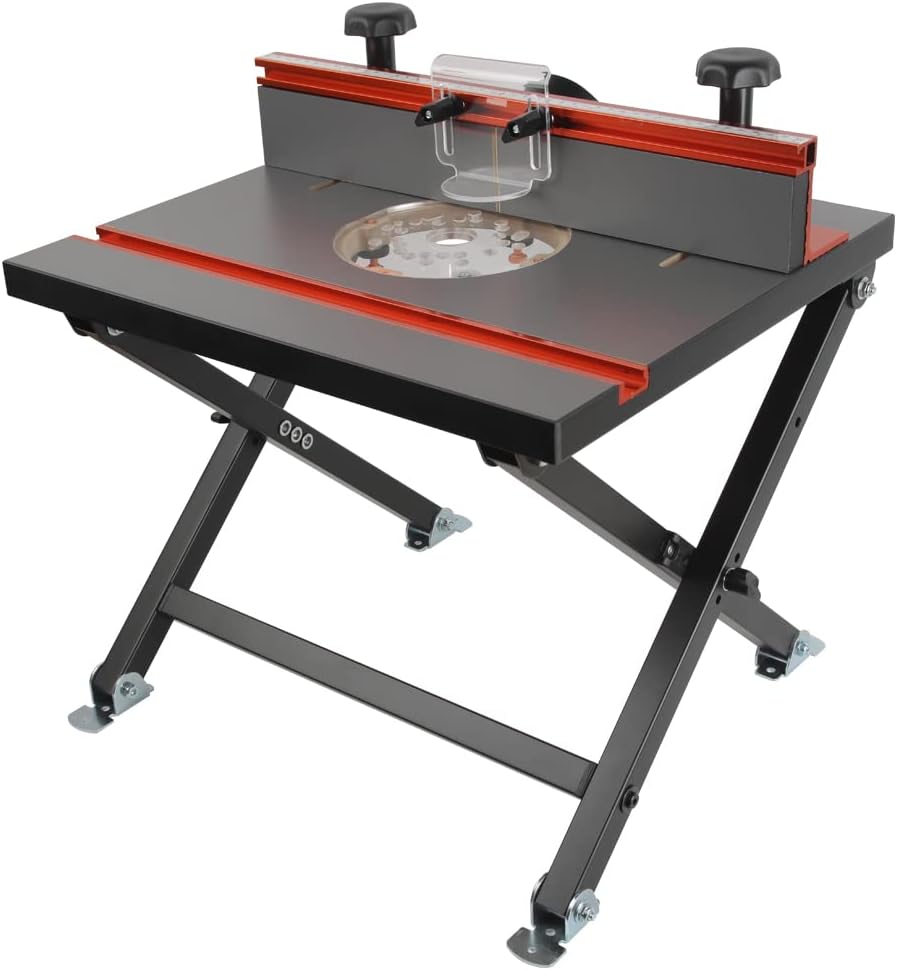

Complete Router Table System : Includes the tabletop, foldable stand, fence, insert plate, bit guard, dust port, start pin, and mounting hardware. A standard 3/4" x 3/8" (19 x 9.5 mm) aluminum T-track accepts an optional matching miter gauge. Router, miter gauge, clamps, dust hose, bits, and push block are not included

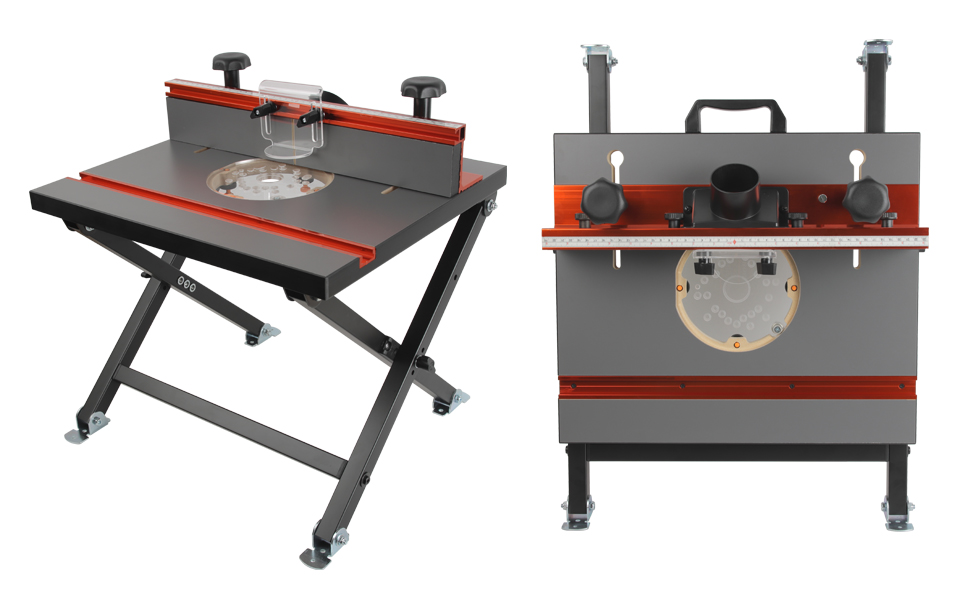

Includes: (1) Router Table with foldable table legs, (1) Fence with MDF sub-faces, (1) Insert Plate, (1) Bit guard, (1) Dust port
Base Type
Legs
Model Number
RTS10
Manufacturer
O'SKOOL
Manufacturer Part Number
RTS10
Item Dimensions W x H
18.5"W x 15.6"H
Item Weight
10.25 kg
Material Type
Engineered Wood
Material
Engineered Wood
Item Width Height
18.5"W x 15.6"H
Specifications
Top Dimensions
18.5 inch x 15.9 inch x 1 inch
Overall Dimensions (benchtop)
18.5 inch x 18.75 inch x H (13.6 inch, 14.8 inch, 15.6 inch)

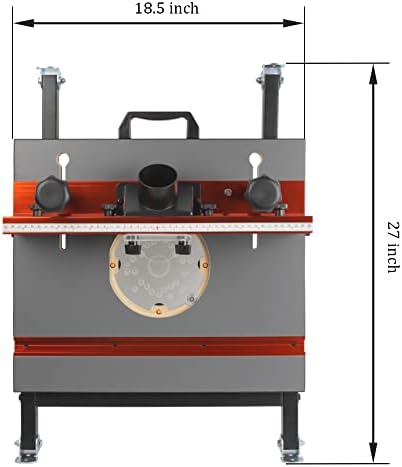

Overall Dimensions (storage)
18.5 inch x 27 inch x 1.98 inch
Fence Dimensions
18.5 inch x 3 inch
Top Material
MDF with melamine coating
Fence Material
Extruded aluminum with MDF faces
Base Material
Steel
Dust Port Outside Diameter
2-1/2 inch
Miter Track Dimensions
3/8 inch x 3/4 inch
Weight Capacity
110 lbs
Product weight
23.1 lbs

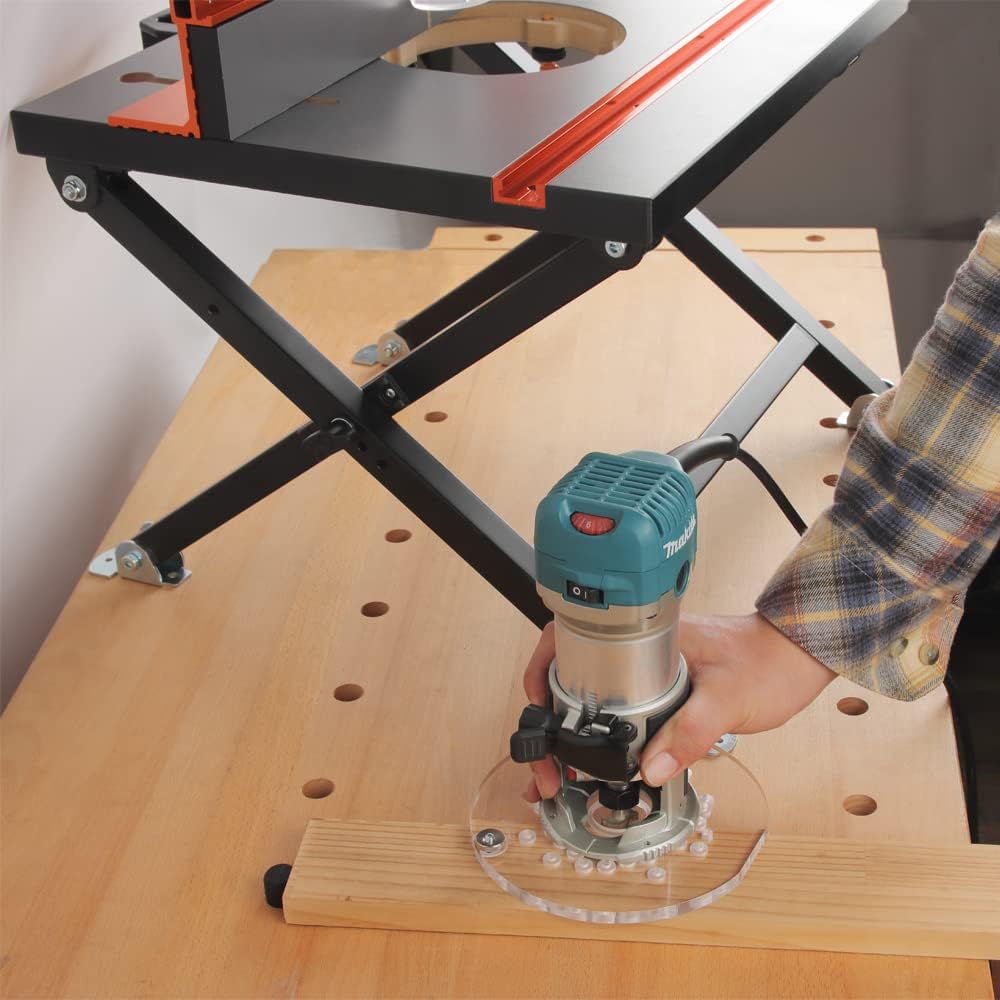

Versatile Router Insert Plate
That could be used alone without the table
Height of Benchtop Trim Router Table Desktop

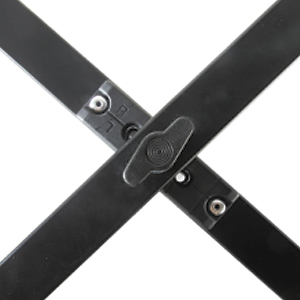

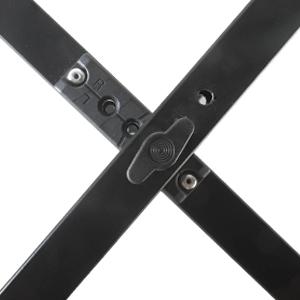

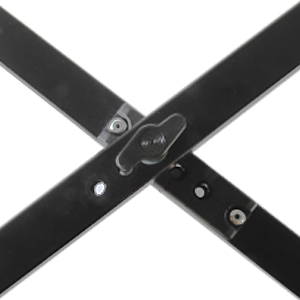

You can adjust the height of the benchtop router table according to the height of your workbench It can be adjusted in 3 heights (13.6", 14.8",15.6") for ease of use.
Height of Benchtop Trim Router Table Desktop
You can adjust the height of the benchtop router table according to the height of your workbench It can be adjusted in 3 heights (13.6", 14.8",15.6") for ease of use.
Height of Benchtop Trim Router Table Desktop
You can adjust the height of the benchtop router table according to the height of your workbench It can be adjusted in 3 heights (13.6", 14.8",15.6") for ease of use.
Height of Benchtop Trim Router Table Desktop
You can adjust the height of the benchtop router table according to the height of your workbench It can be adjusted in 3 heights (13.6", 14.8",15.6") for ease of use.
