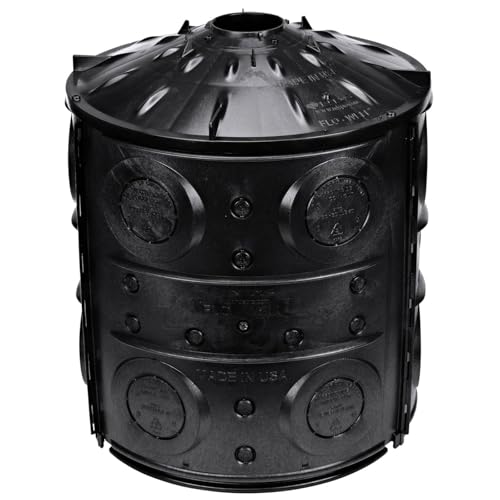

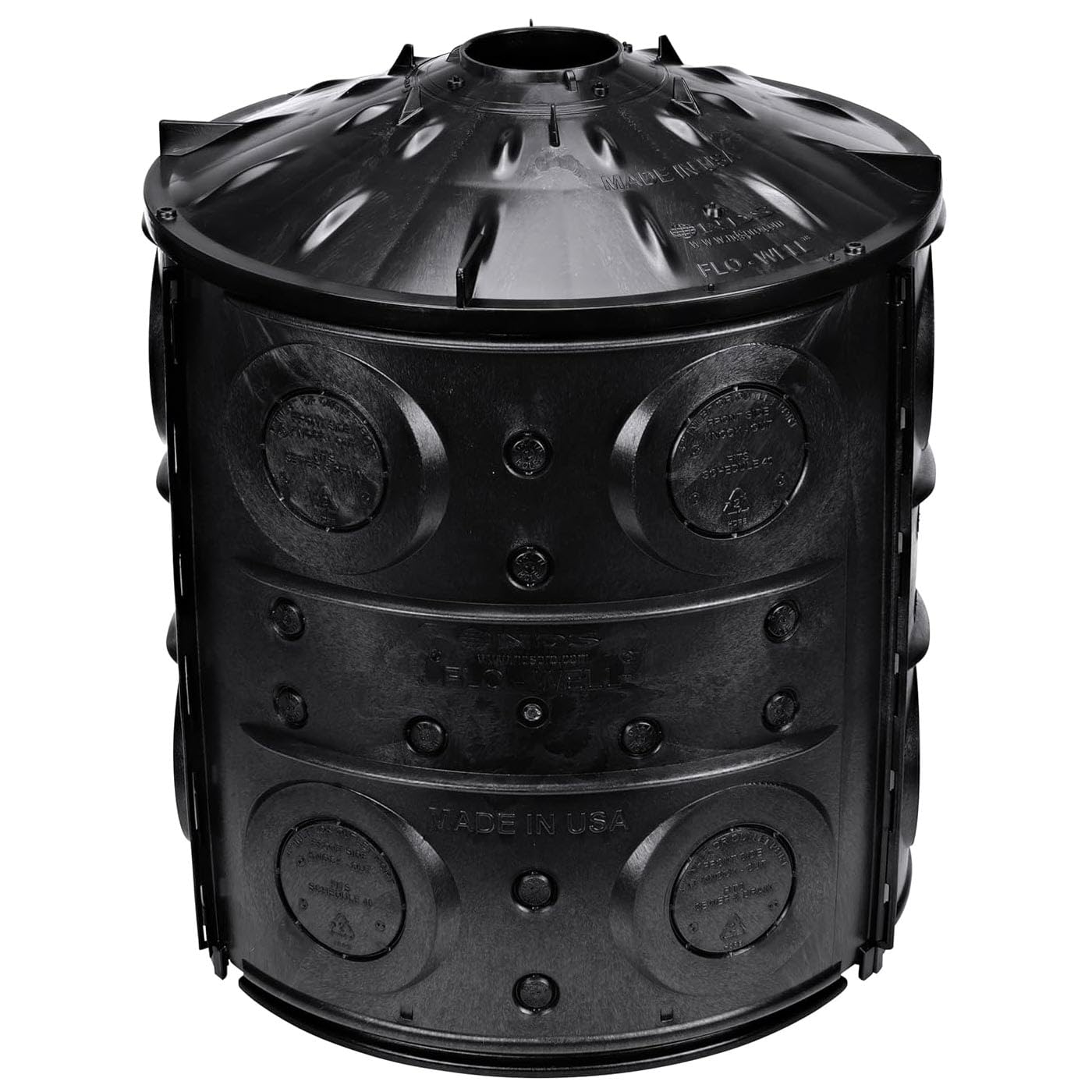

COLLECT, DETAIN, AND INFILTRATE EXCESS WATER: For draining yard and landscape areas prone to flooding, the Flo-Well Dry Well is installed underground to collect, temporarily store, and slowly release excess water into the ground

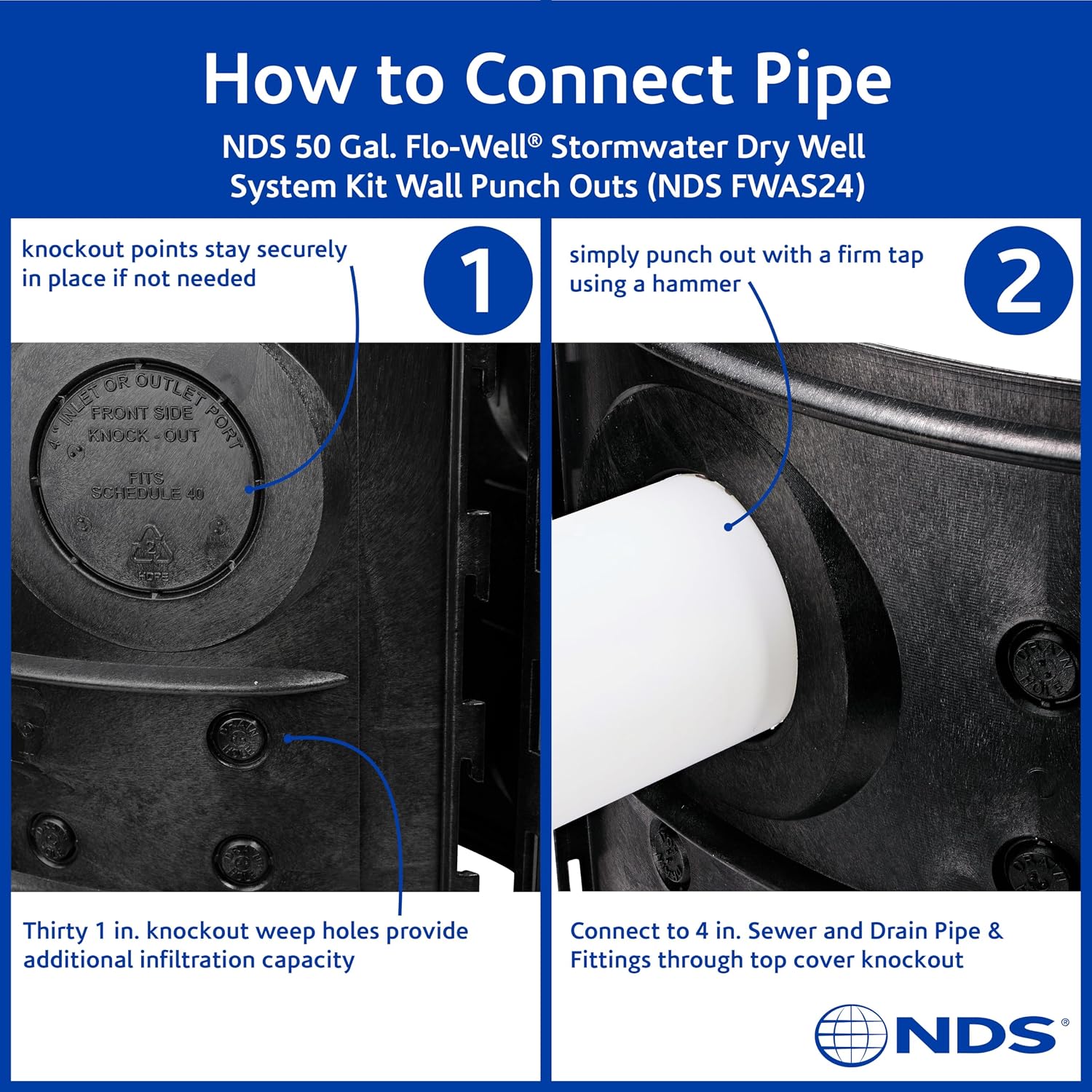

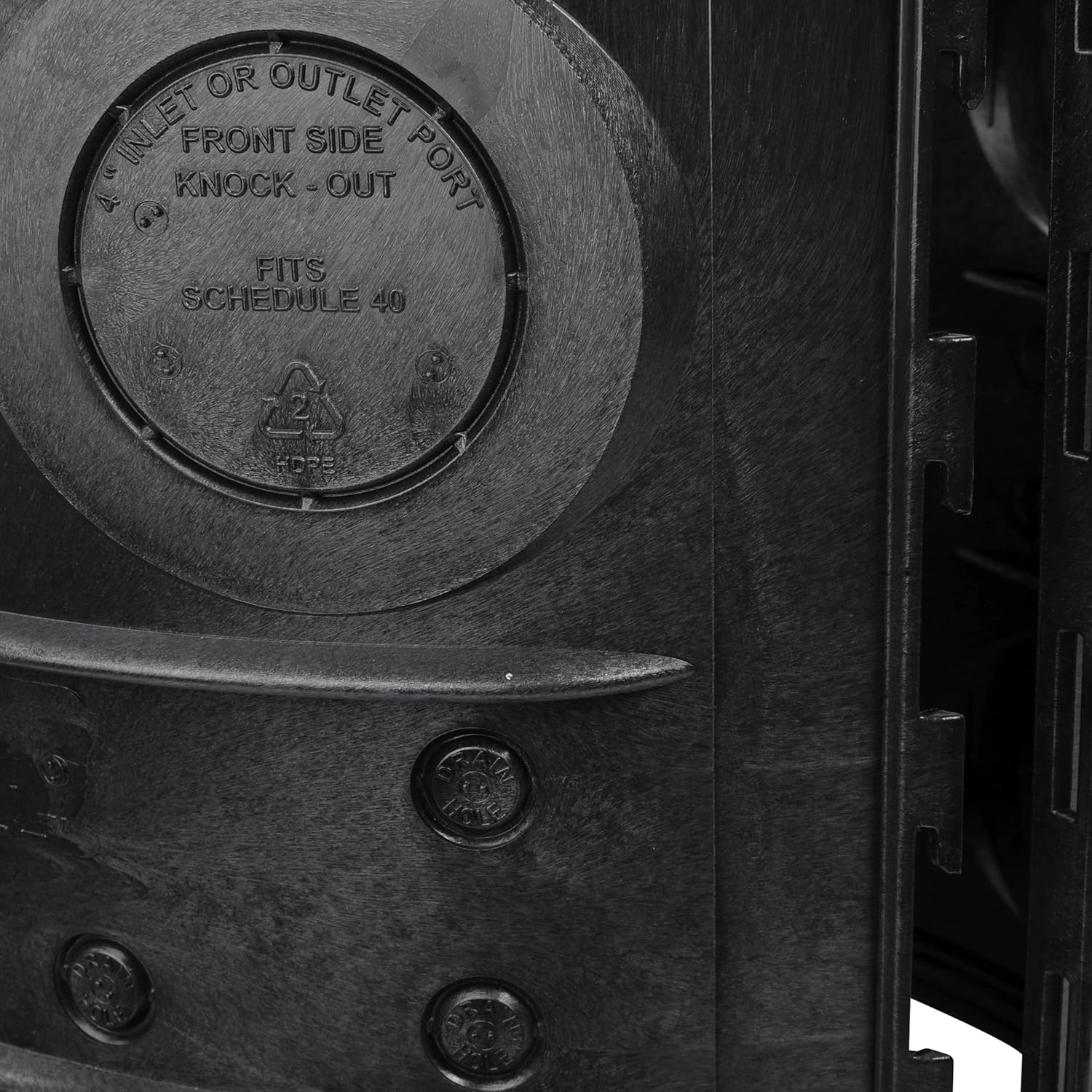

HOW TO INSTALL: Connect to 4" Sewer and Drain (S&D) Pipe through top cover knockout; 12 side-panel knockout points connect 4" S&D and Sch 40 Pipes; Can be buried or stacked up to 8 ft deep and supports pedestrian traffic, including lawn tractors
GRAVEL-FREE ALTERNATIVE: Unlike a traditional dry well that requires filling a large hole with heavy stone and gravel, the Flo-Well Dry Well only needs a small amount of gravel at the base to prevent scouring and provides 250% more detention volume than comparable gravel-filled dry wells
USE ONE OR MANY: Works as a stand alone product and can be used in multiples - units can be stacked up to 4 high or side-by-side 18" apart; Ideal for residential and commercial locations such as yards, playgrounds, golf courses, wash-down areas, rain gardens and bioswales

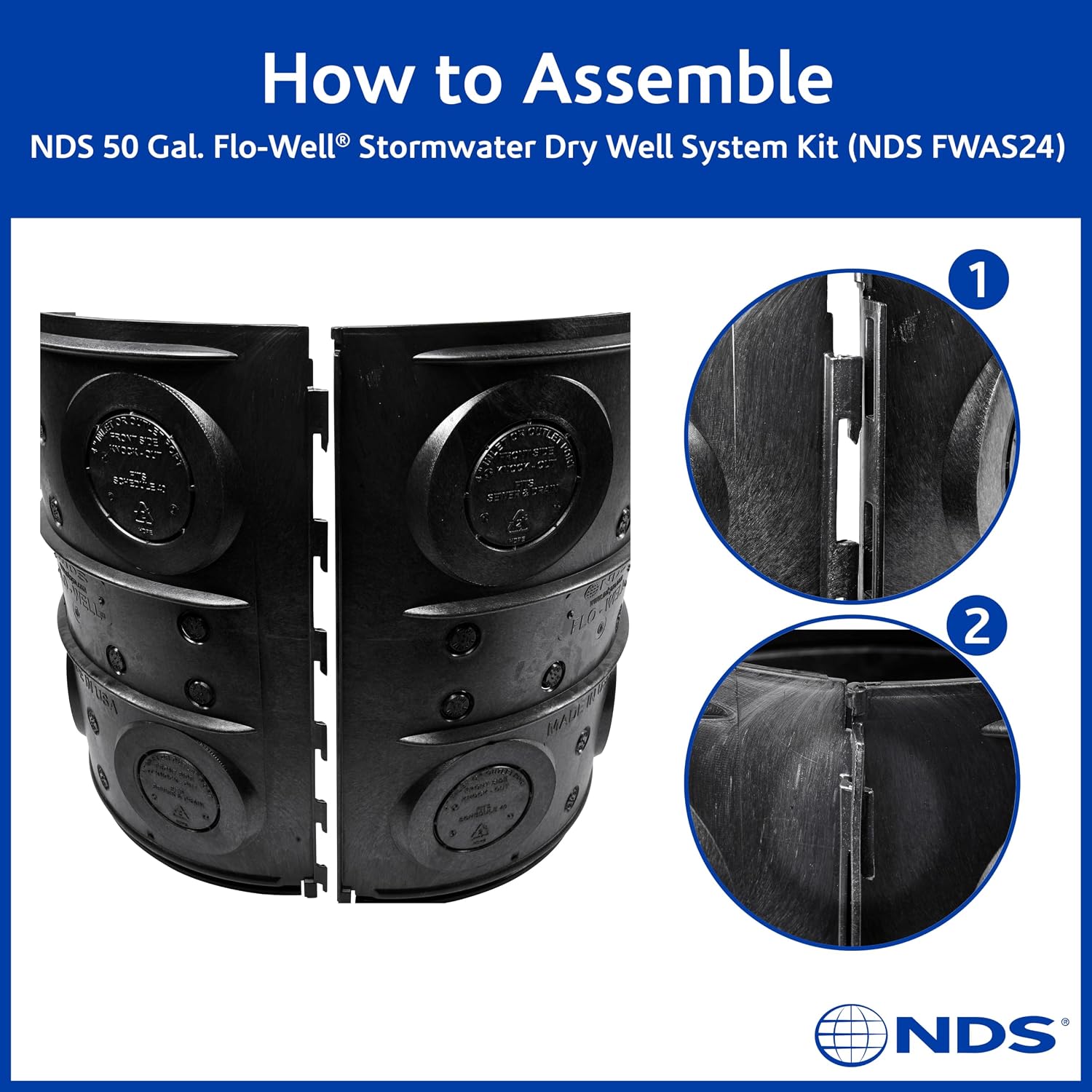

INCLUDES: 3 side panels and top cover, unassembled; open bottom allows water to seep into gravel and ground below; bottom panel sold separately to provide a base for a sump pump if desired
Unit Count
1 Count
Global Trade Identification Number
00052063003207, 10052063003204
UPC
052063003207
Manufacturer
NDS, Inc.
Included Components
Installation Guide
Item Type Name
Dry Well System Kit with 3 Side Panels & 1 Cover
Model Number
FWAS24
Manufacturer Part Number
FWAS24
Item Dimensions L x W x H
24"L x 24"W x 28.75"H
Capacity
40 gallons
Item Weight
0.27 kg
Color
Black
Shape
Round
Material Type
Plastic
Material
Plastic
Item Length Width Height
24"L x 24"W x 28.75"H
An easy to install and sustainable solution for managing stormwater runoff
Product type: Kits
Color: Black
Height: 28-3/4"
Weight: 27.2400
With Flo-Well, water dispersion is now easier than ever. Flo-well is a key component in the NDS S5 System.

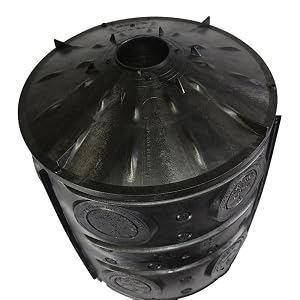

Flo-Well Storm Water Leaching System
The No-Hassle Solution for Multiple Drainage Situations
Captures and retains water on-site
Robust 50-gallon capacity
Stackable and expandable
Best value for your money
Easy to install, less digging and trenching needed
Uses less gravel to install and haul to site
Compliant with municipal regulations
With the Flo-Well, water can now be discharged into the subsoil rapidly and easily. There is no need for piping systems to transport storm water to a far-off discharge point, large heavy equipment, considerable excavation of current landscaped areas nor large labor cost.
Manufactured from recycled plastic
Includes 3 side panels and 1 top component
Units can be stacked or connected to hold larger volumes of water for a customizable drainage system
Each Flo-Well unit holds approximately 50 gallons of storm water
