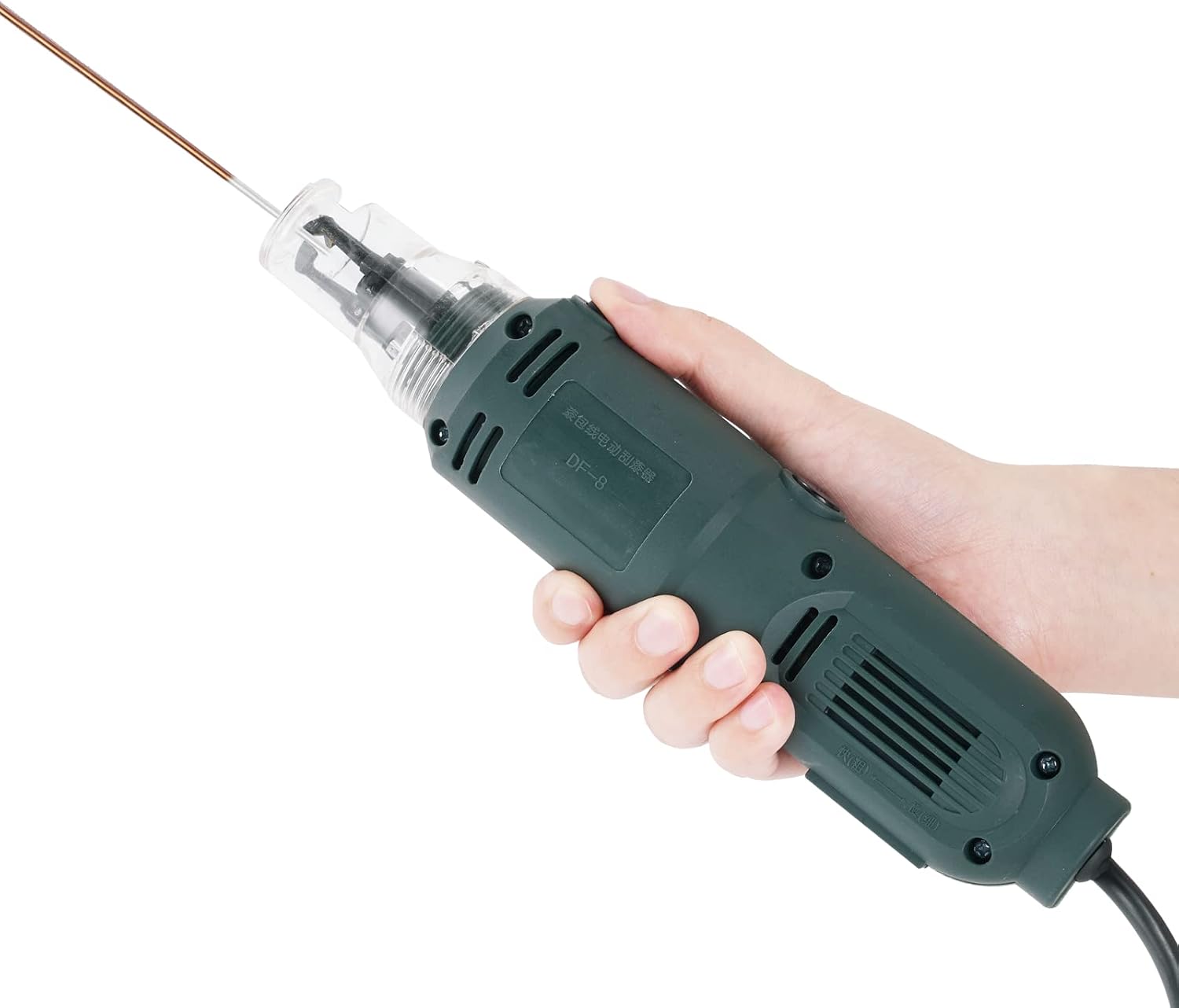

MXBAOHENG Handheld Magnet Wire Stripping Machine 75W | Wire Stripper Cutter, 0.3-3mm Enameled Wire Paint Scraper, 12000r/min, 110V

1 / 14

MXBAOHENG Handheld Magnet Wire Stripping Machine 75W | Wire Stripper Cutter, 0.3-3mm Enameled Wire Paint Scraper, 12000r/min, 110V

$26.92 USD

Shipping fees will be calculated at checkout.

The DF-8 magnet wire stripper adopts advanced electric paint scraping technology, which takes a few seconds to remove the insulating paint film on the surface of various enameled wires without damaging the substrate.

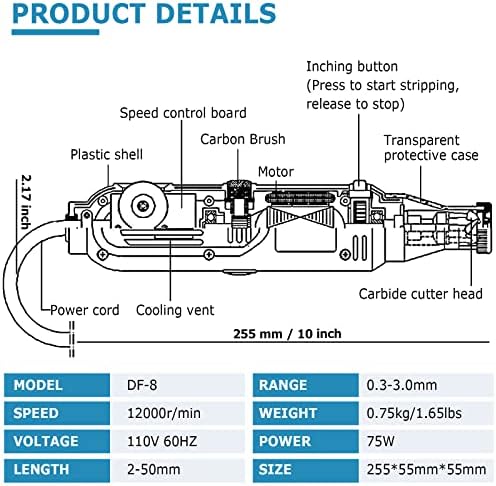

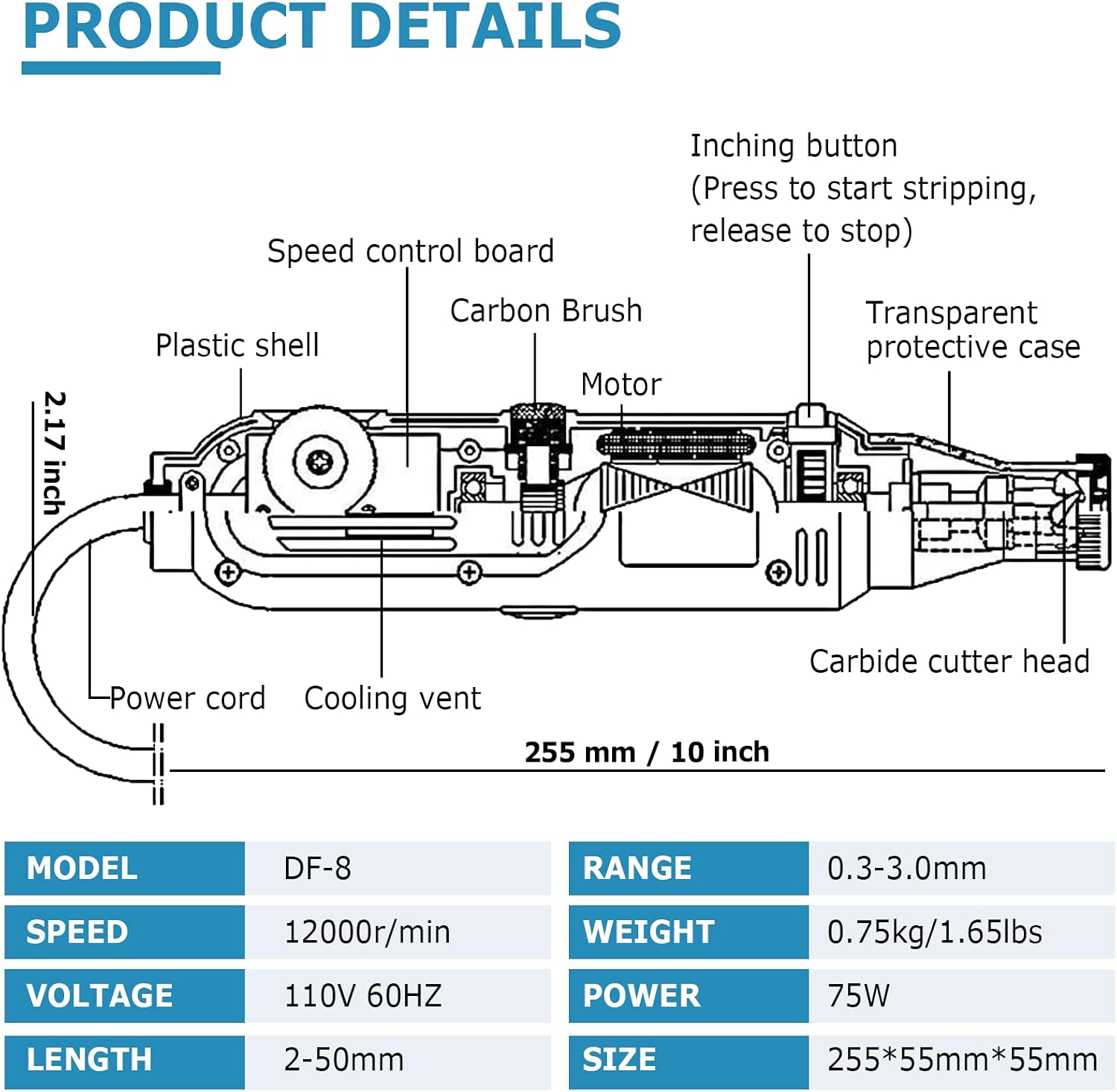

This magnet wire stripping machine is composed of an electronic stepless speed regulator, a single-phase series motor and a three-jaw cutter head. It adopts light and micro-point switch and spinning carbon brush.
This enameled wire paint scraper has the remarkable characteristics of fast paint scraping speed, high efficiency, simple operation, stable quality, low failure rate, convenient carrying and storage, and novel design.
It is a small, easy-to-use and hand-held magnet wire paint scraping tool. Compared with manual wire stripping, this tool can save a lot of time and strip more cleanly. It is a necessary tool to strip magnet wire.
It is a paint scraping tool for coil manufacturing and maintenance industries such as motors, electrical appliances, meters, transformers, electronics, household appliances and power tools.

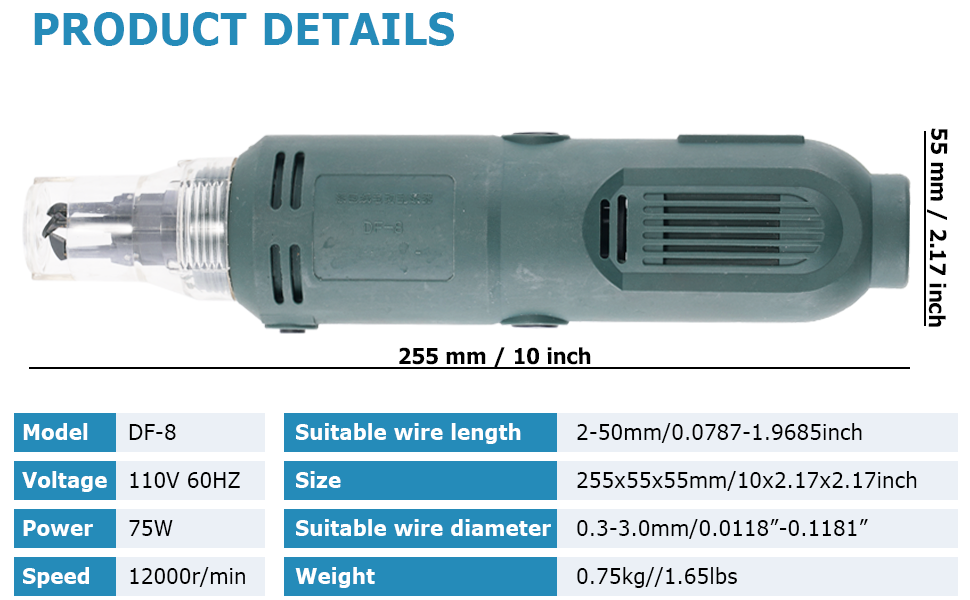

Model Number	MX03
Unit Count	1 Count
Manufacturer	MXBAOHENG
Manufacturer Part Number	MX03
Specific Uses For Product	coil manufacturing, electrical appliance maintenance, motor repair, transformer maintenance, electronics, household appliances, power tools
Item Dimensions L x W	10"L x 2.17"W
Item Weight	1.8 pounds
Cutting width	2.5 millimeters
Material Type	Plastic, Stainless Steel
Handle Material	Plastic
Color	Green
Grip Type	Ergonomic
Material	Plastic, Stainless Steel
Item Length Width	10"L x 2.17"W
Handle	Plastic

Handheld Magnet Wire Stripping Machine 75W Wire Stripper Cutter Enameled Wire Paint Scraper

Note:
Before scraping the paint, the enameled wire must be slightly straightened by hand to avoid the enameled wire being unable to align with the center of the cutting edge.
When scraping to the end of the enameled wire, please do not immediately make the wire leave the three-jaw cutter head until it stops rotating. So as to avoid the enameled wire suddenly detaching from the cutting edge and damaging the cutting edge during rotation.
How to adjust the speed:
When the enameled wire with different specifications, you can adjust the speed regulating potentiometer. The small wire diameter is adjusted toward the slow speed, and the large wire diameter is adjusted toward the fast direction; when the paint film of the enameled wire is not cleaned off, the speed should be increased until it is cleaned. If the enameled wire is scratched by the stripping machine during speed regulation, the speed should be reduced until it meets the requirements. Please select the most suitable speed according to the above method.
Package includes:
1* Handheld magnet wire stripping machine
1* User manual

Applicable magnet wire diameter: 0.3-3.0mm/0.0118”-0.1181”, suitable for stripping 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, AWG magnet wire/enameled copper wire
Applicable enameled wires
Suitable for scraping wire: This enameled wire scraper can only scrape enameled wire, not suitable for scraping too fine enameled wire.
Aluminum enameled wire: suitable for diameter in the range of 0.6-2.5 mm/0.0236-0.0984 inch, applicable specifications: AWG 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22.
Copper enameled wire: suitable for diameter within 0.3-3 mm/0.0118-0.1181 inch, applicable specifications: AWG 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26.
Questions & Answers:
What should I do if the enameled wire is broken during the stripping process?
When stripping the enameled wire below 0.4 mm (0.0157") , there is a possibility of wire breakage.
The reason is that the blade is sharper, or the speed of the machine is fast.
When stripping thin magnet wires, it is recommended to adjust the speed to the slowest first, and then pull out the enameled wire faster.
If the wire is still easy to break when stripping at the lowest speed, it is better to strip the wire with a blunt blade, and you can replace the old blade.

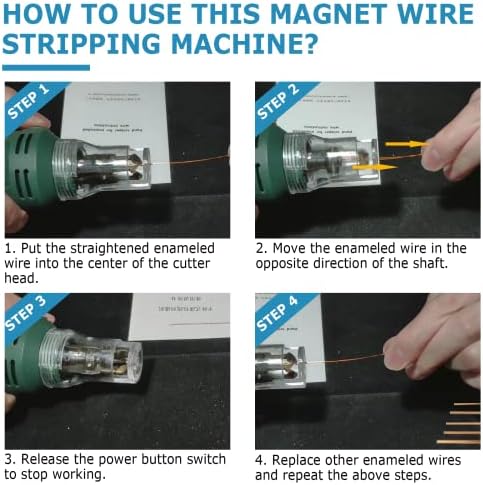

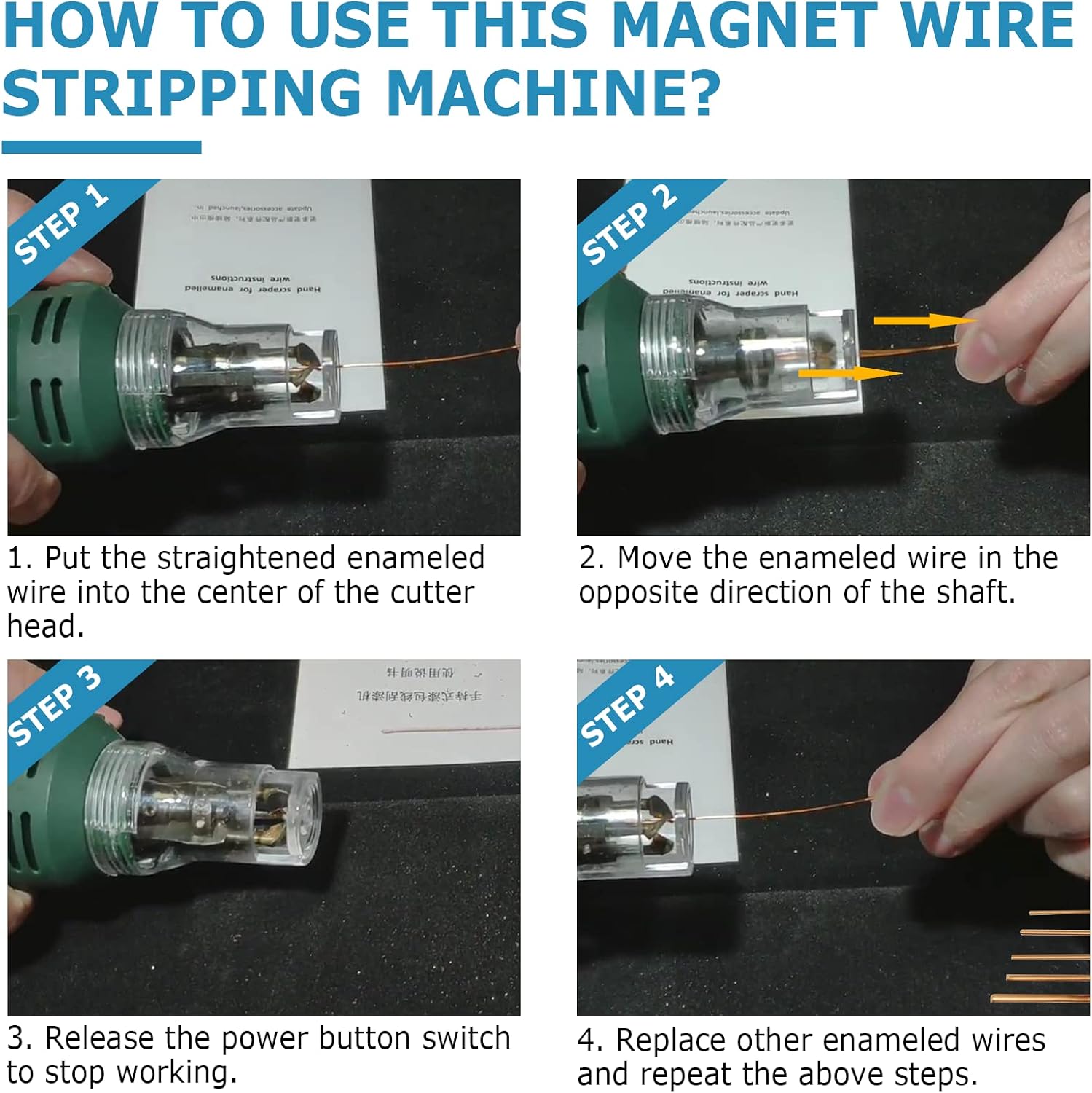

Operation:

Handheld Magnet Wire Stripping Machine 75W Wire Stripper Cutter Enameled Wire Paint Scraper

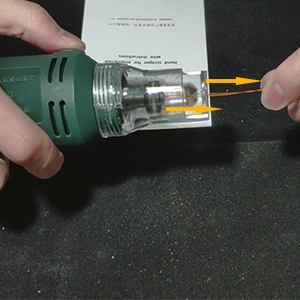

Step 1

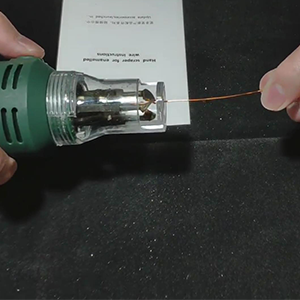

1. Straighten the enameled wire that needs to be scraped, put it into the center of the knife holder, press the power start switch, and the motor will rotate immediately.

Handheld Magnet Wire Stripping Machine 75W Wire Stripper Cutter Enameled Wire Paint Scraper

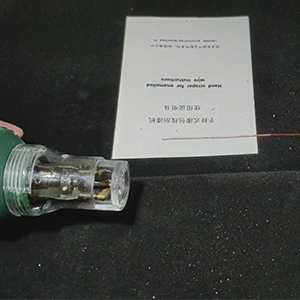

Step 2

2. Move the enameled wire in the opposite direction of the axial direction until the end of the enameled wire, then the paint film can be scraped off.

Handheld Magnet Wire Stripping Machine 75W Wire Stripper Cutter Enameled Wire Paint Scraper

Step 3

3. Release the power button switch and the motor immediately stops rotating.

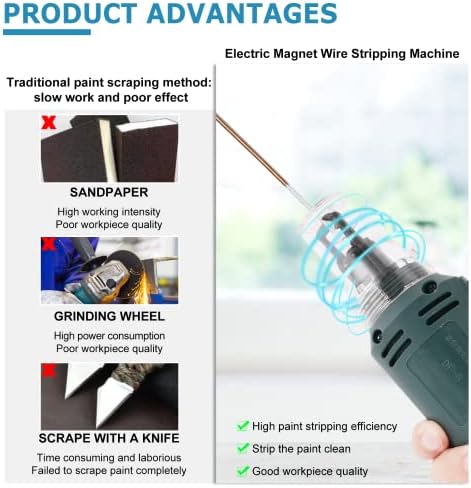

Advantages:

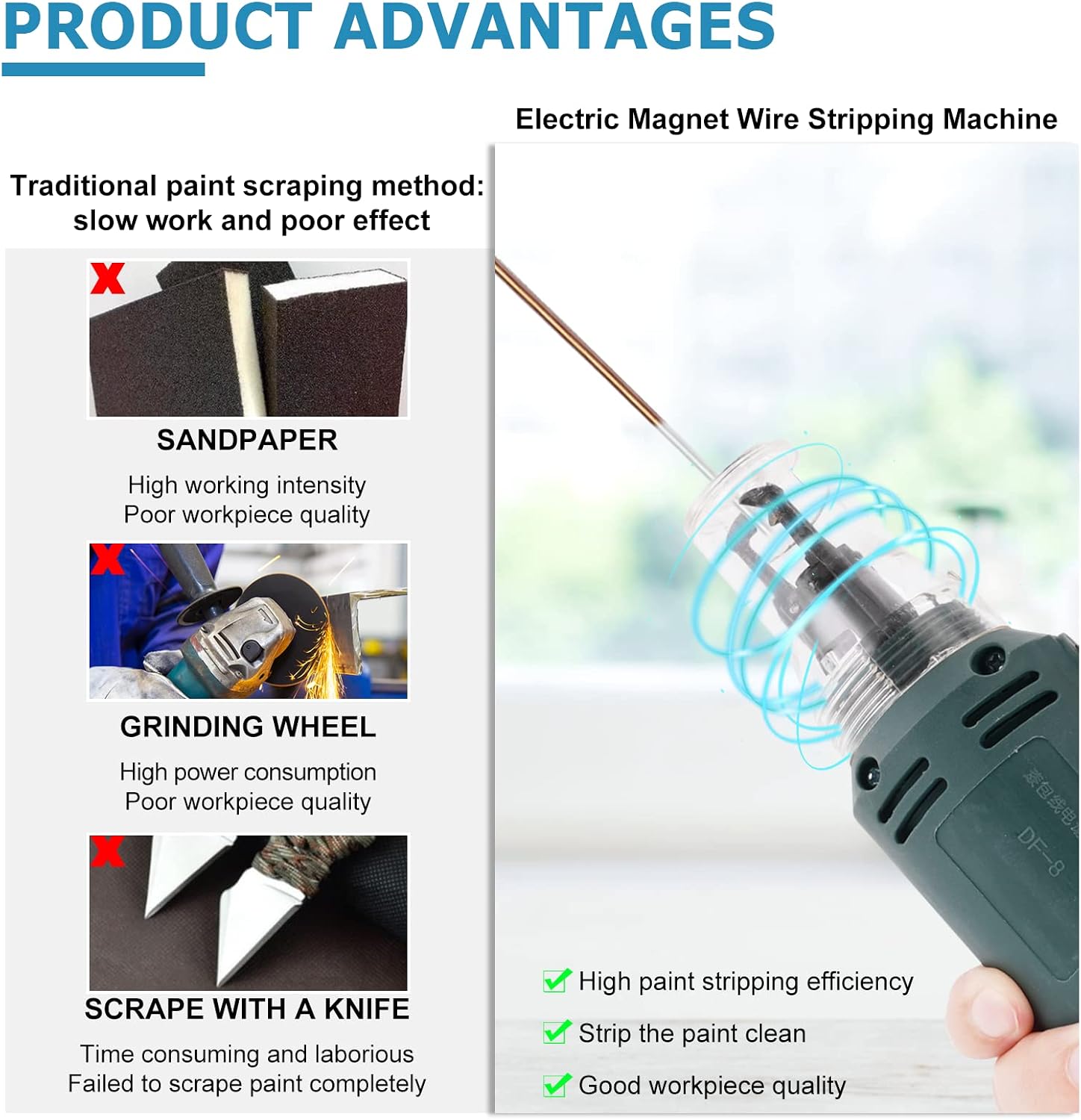

1.This handheld magnet wire stripper adopts advanced electric paint scraping technology, which can easily and quickly remove the insulating paint film on the surface of various enameled wires without damaging the substrate. Its performance is superior to traditional manual knife scraping, grinding wheel sandpaper grinding, chemical corrosion and other paint stripping methods, greatly improve the quality and efficiency of the wire welding.

2.This enameled wire electric paint scraper is composed of an electronic stepless speed regulator, a single-phase series motor and a three-jaw cutter head. It adopts lightweight and micro-point switch and spinning carbon brush. It has the remarkable characteristics of fast paint scraping speed, high efficiency, simple operation, stable quality, low failure rate, convenient carrying and storage, and novel design.

3.The shell is made of voltage-resistant plastic material, which is safe and reliable. The shell of the cutter head is made of transparent PP material, transparent and clear, easy to operate. This magnet wire stripping machine is a suitable for coil manufacturing and maintenance industries such as motors, electrical appliances, meters, transformers, electronics, household appliances and power tools.

Handheld Magnet Wire Stripping Machine 75W Wire Stripper Cutter Enameled Wire Paint Scraper

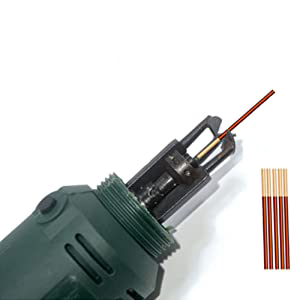

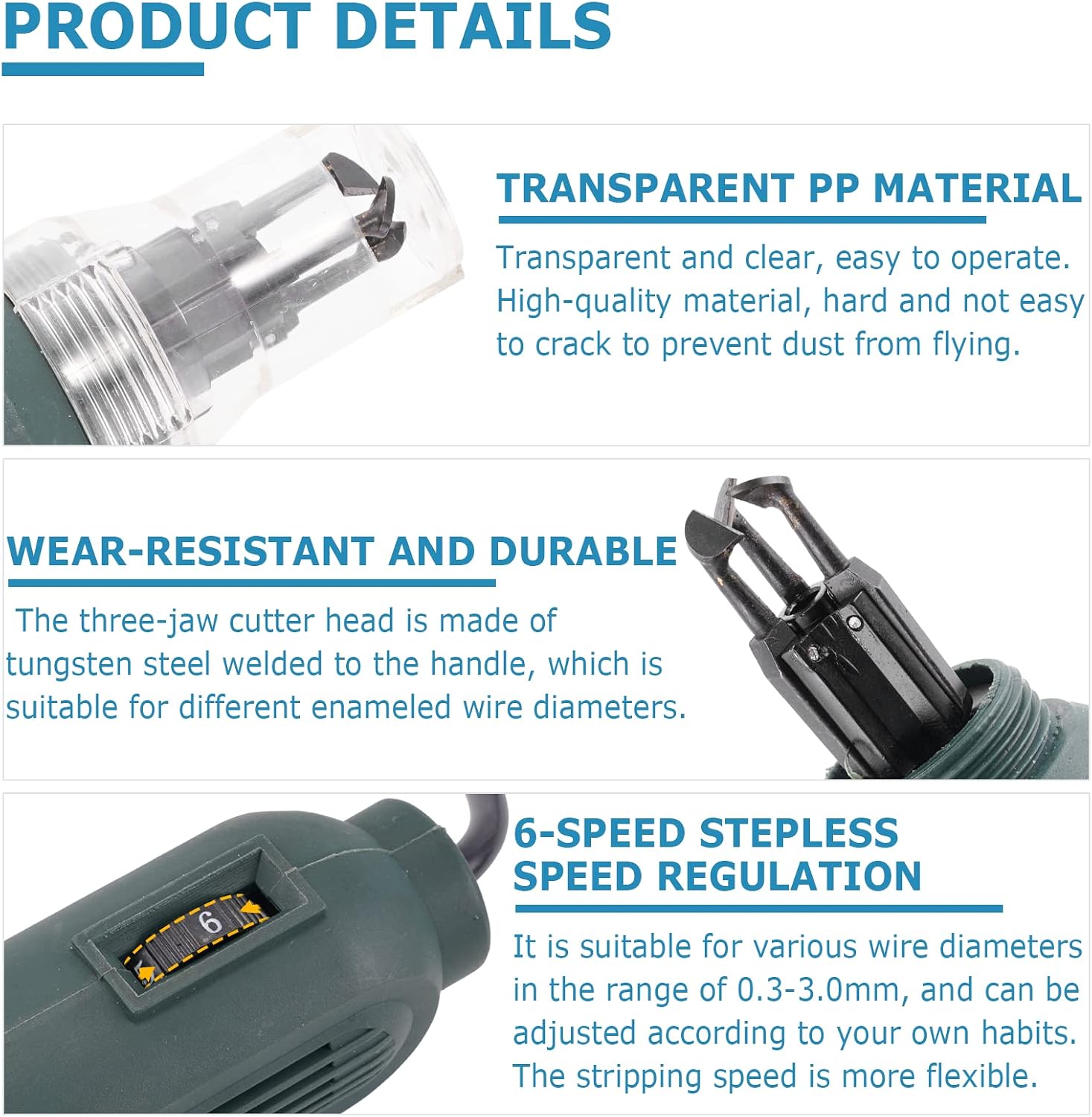

Tungsten steel cutter head

Wear-resistant and sturdy: The three-jaw cutter head is made of tungsten steel welded to the handle, which is suitable for different enameled wire diameters. High-strength operation, wear-resistant, paint smooth and clean.

Handheld Magnet Wire Stripping Machine 75W Wire Stripper Cutter Enameled Wire Paint Scraper

Adjustable speed

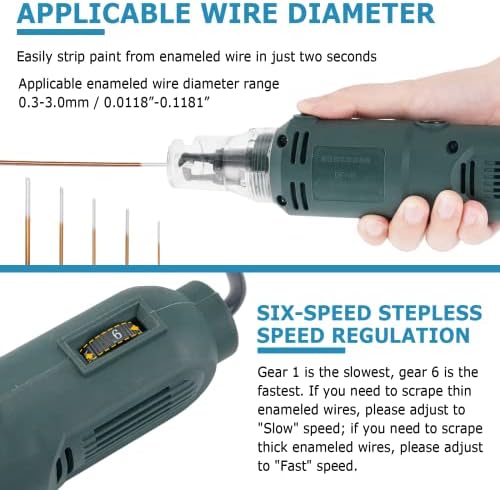

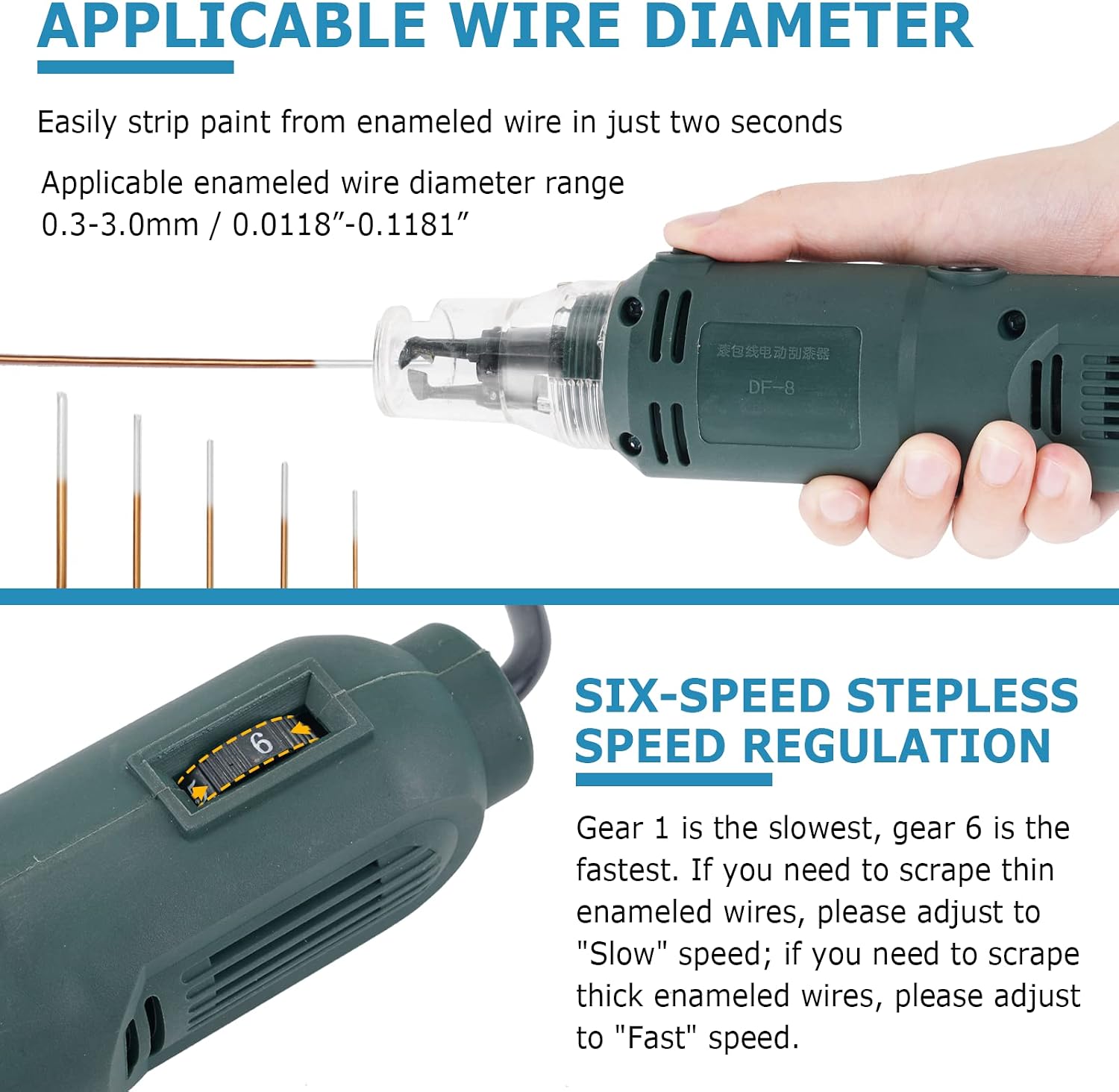

6-speed stepless speed regulation: It is suitable for various wire diameters in the range of 0.3-3.0mm, and can be adjusted according to your own habits. The stripping speed is more flexible.

Handheld Magnet Wire Stripping Machine 75W Wire Stripper Cutter Enameled Wire Paint Scraper

High-quality bearings

High-quality bearings make the rotor run more smoothly, and it has its own fan blades. Good heat dissipation and long life. Impact resistance: Thickened steel sheet, impact resistance.

Handheld Magnet Wire Stripping Machine 75W Wire Stripper Cutter Enameled Wire Paint Scraper

Carbon brush

The carbon brush is made of pure carbon and coagulant, which can quickly form a uniform oxide film on the surface of the commutator. With long service life, does not wear the commutator, and has good commutation and current collection performance, small energy loss, low noise, reliable assembly and no damage.
