| Manufacturer | Hengwei |
|---|---|
| Part Number | W10003M |
| Item Weight | 6.39 pounds |

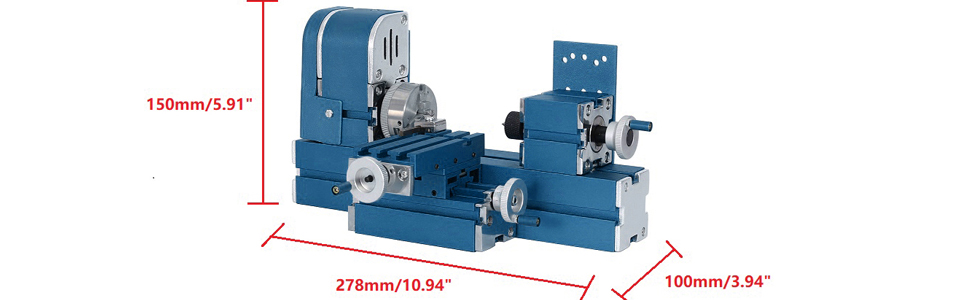

| Product Dimensions | 10.94 x 3.94 x 5.91 inches |
| Item model number | Lathe Machine |
| Color | Lathe |
| Voltage | 12 volts, 240 volts |
| Item Package Quantity | 1 |
School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science. It is helpful for improving manual ability and independent thinking, thus effectively improving the intelligence of children. So as to be a good didactical tool for children. Wear goggles when using. Children need to be guided by adults.

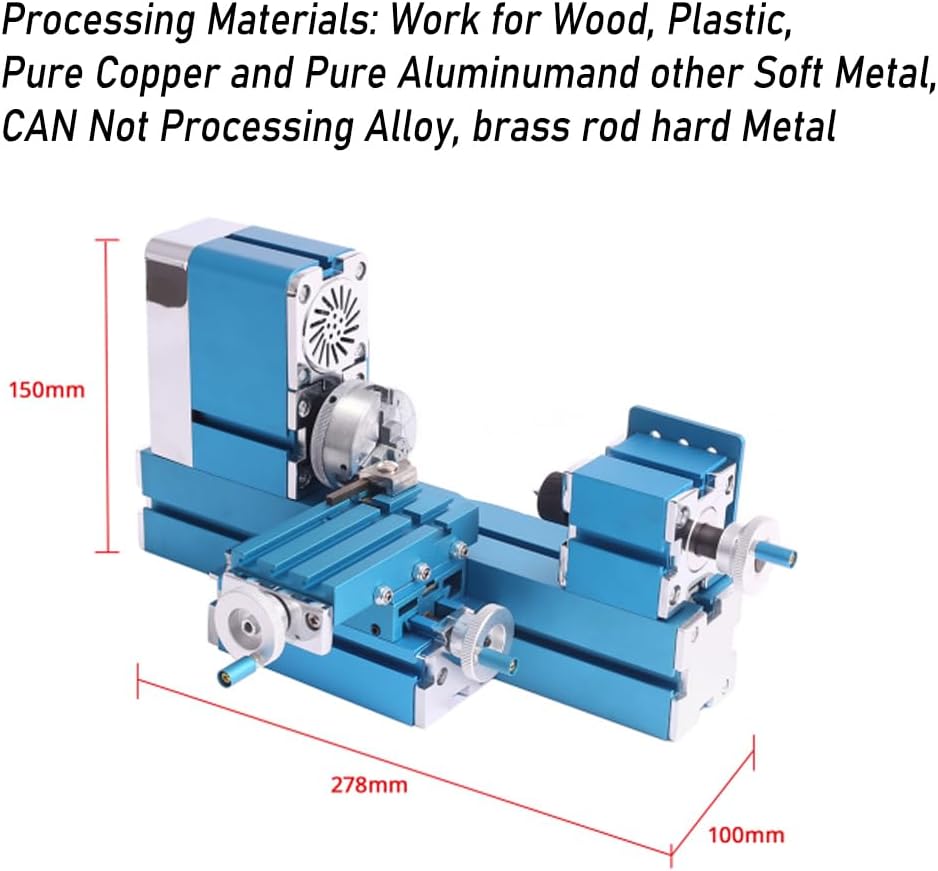

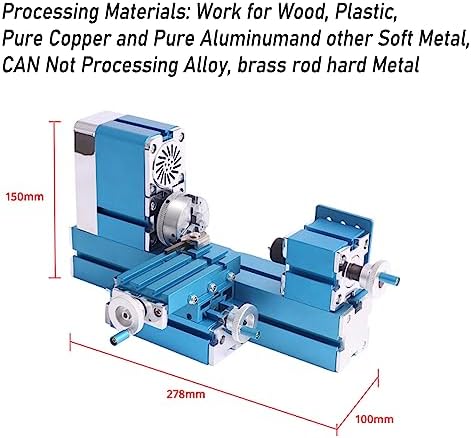

Note Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).CAN'T Processing Alloy, brass rod.
About Received Customer Feedback--Our Reply:
1. Precision problem:

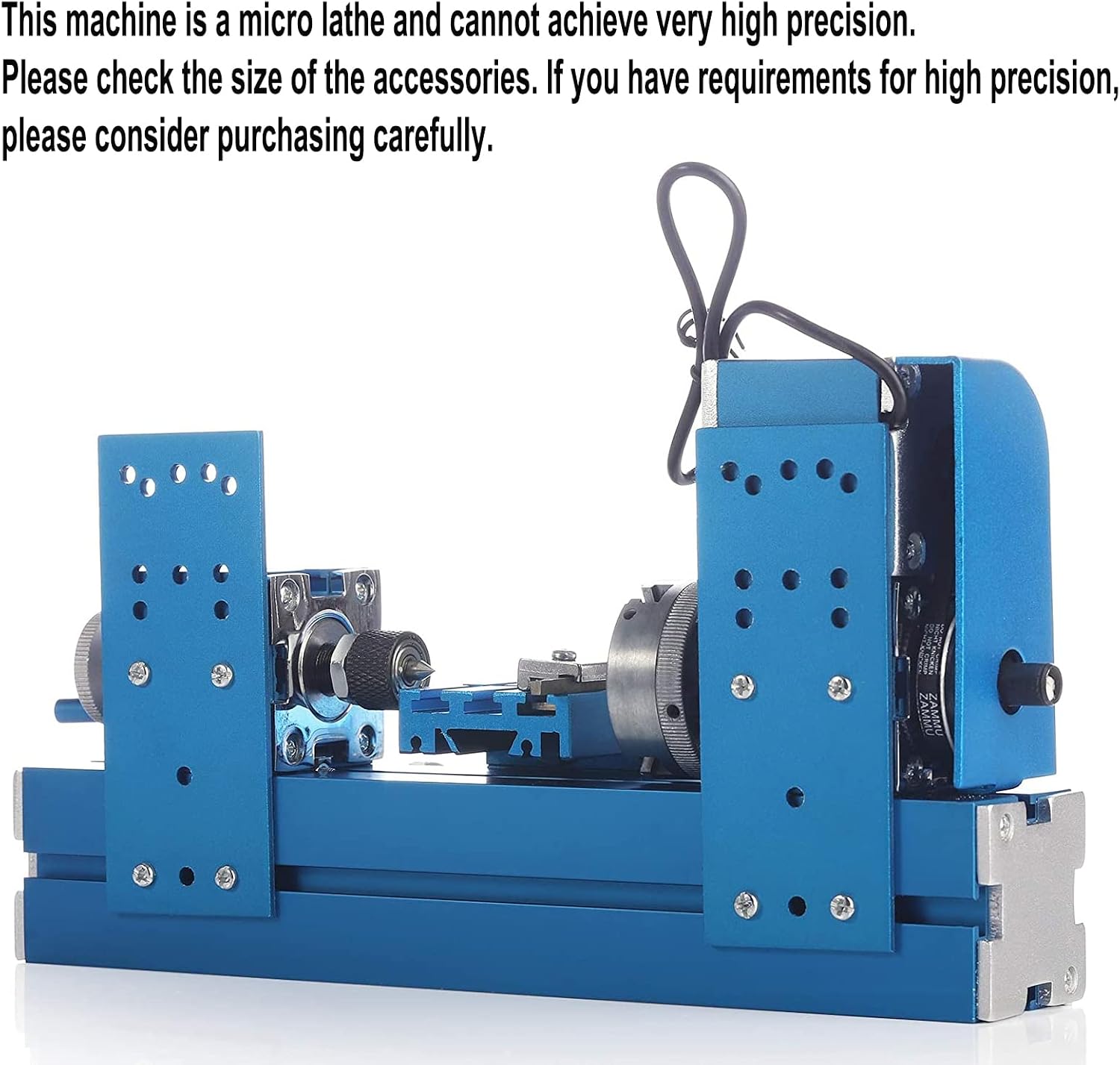

This machine is a micro lathe and cannot achieve very high precision. Please check the size of the accessories. If you have requirements for high precision, please consider purchasing carefully.
2. Chuck swing problem:
It is because of the vibration of the motor. Because it is a micro lathe, it is small and light, so it will vibrate slightly, but this is within the normal range.
3. Tool version off-center:
Maybe the tip of the knife is not centered. This can be solved by raising the height of the turning tool, that is, adding a spacer under the blade.
Input voltage: AC100V~240V 50/60HZ ；Output voltage : DC12V 3A/4A ；Motor rated power: 24W
Motor speed: High speed motor 18000r/min±15%
Low speed motor: 10000r/min±15%
Spindle speed: high speed motor 3000r/min±15%
Low speed motor: 1600r/min±15%
Spindle jump: <0.1mm
Large slider stroke（Z axis）: 45mm
Small slider stroke（X axis）: 35mm
Center height: 25mm
Center distance: 110mm
Turning tool size: 3.5*3.5mm
Maximum processing diameter: 13mm positive claw, 45mm reverse claw

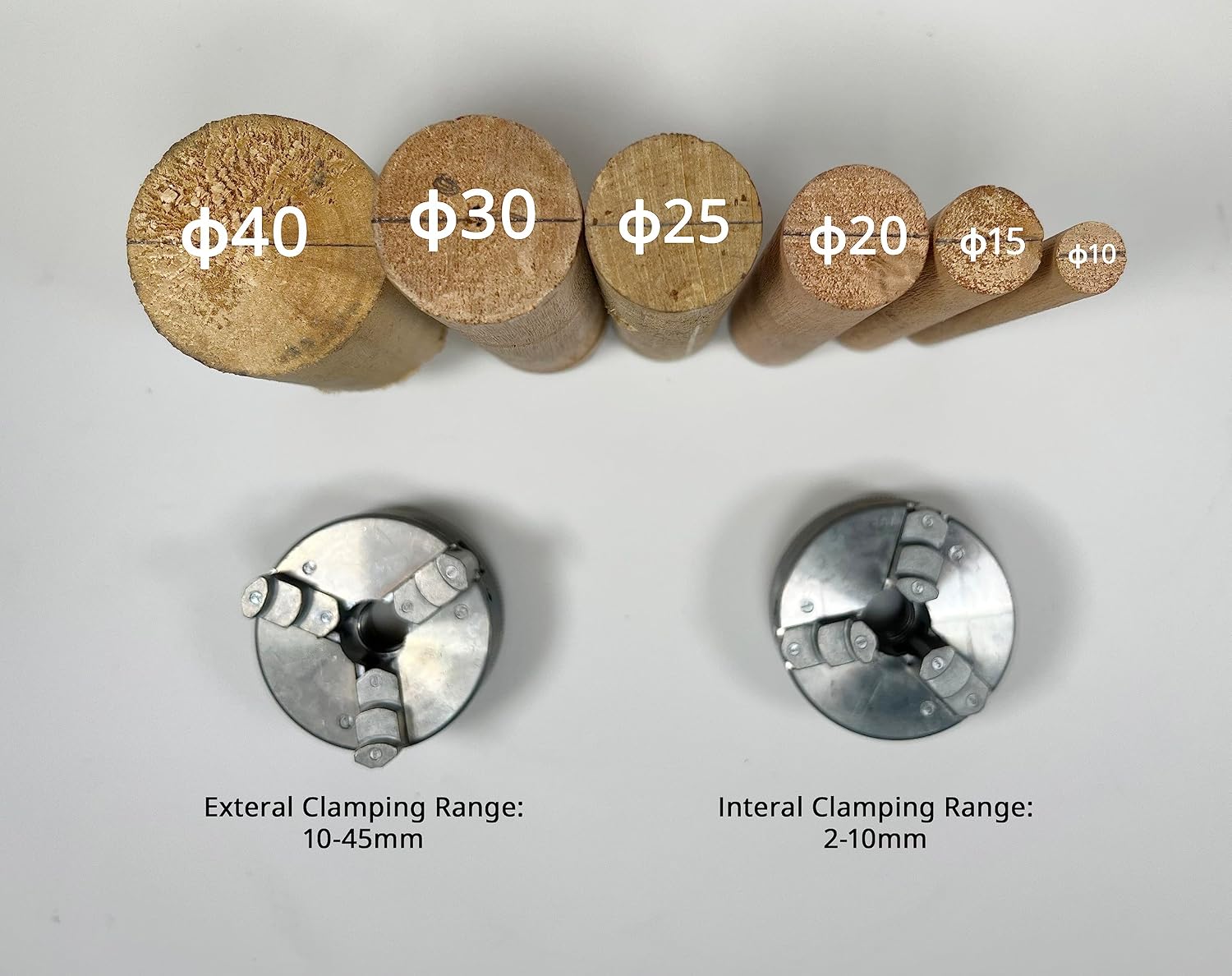

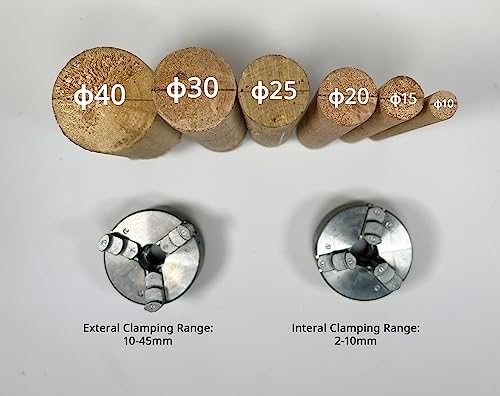

Three-jaw chuck clamping diameter: 13mm claw, 45mm reverse claw
Handle scale: 0.1mm/division

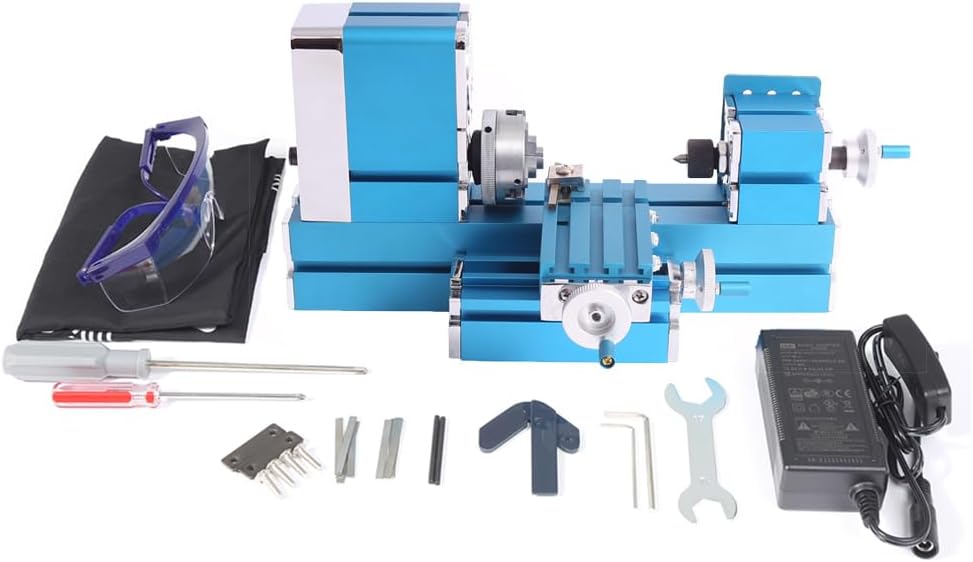

Set of Accessories:
2x inner hexagon spanner 2pcs(S=2\3)
1x double-headed wrench (S=14\17)
1x cross screwdriver；1xcenter finder
1x turning tool (3.5*3.5mm), on machine
5x Height increase film(0.3mm)；5x Height increase film(0.4mm)
2x three-jaw chuck locking rod
2x two hole clamping plate
2xscrew(M4*16)
1 x apron；1 x goggles
1.Q: Can I change the speed of the machine?
A: The speed is fixed. Can not change the speed of the machine. Note: The machine defaults to use the high-speed motor.
2.Q: What can I process?
A: You can process wood, plastic and soft metals (pure copper and pure aluminum).Note: The harder the material, the smaller the depth of cut.
3.Q: What is the size of turning tool?
A: The size of the turning tool is φ3.5*3.5mm, material is high speed steel. At the same time, we offer several Height increase films for you to adjust the height of the turning tool.
4.Q: Is the machine manual or automatic; What is the max swing over bed?
A: It’s a manual machine; the Max swing over bed is 50mm.
