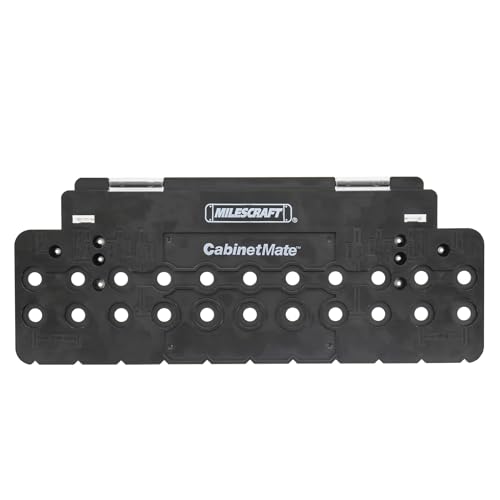

Milescraft 1316 CabinetMate - Shelf Pin Drilling Jig

1 / 15

Milescraft 1316 CabinetMate - Shelf Pin Drilling Jig

$12.60 USD

Shipping fees will be calculated at checkout.

PRECISE DRILLING: Comes with the 1/4 in. self-centering brad point bit
QUALITY: Custom spring-loaded-brad point drill bit allows the holes you drill to self-center with the holes on the main body
VERSATILE HARDWARE JIG: Built in closed storage compartment for your bit and indexing pins
MULTI-FUNCTIONAL: Allows you to mark the locations for euro-style hinges
PREMIUM MILESCRAFT TOOLS: Please review specifications to ensure this product will meet your project’s dimensional requirements (Imperial or Metric Units)

Model	1316
UPC	737888131600
Unit Count	1 Count
Global Trade Identification Number	00737888131600
Manufacturer	Milescraft Inc.
Part Number	1316
Number of Pieces	1

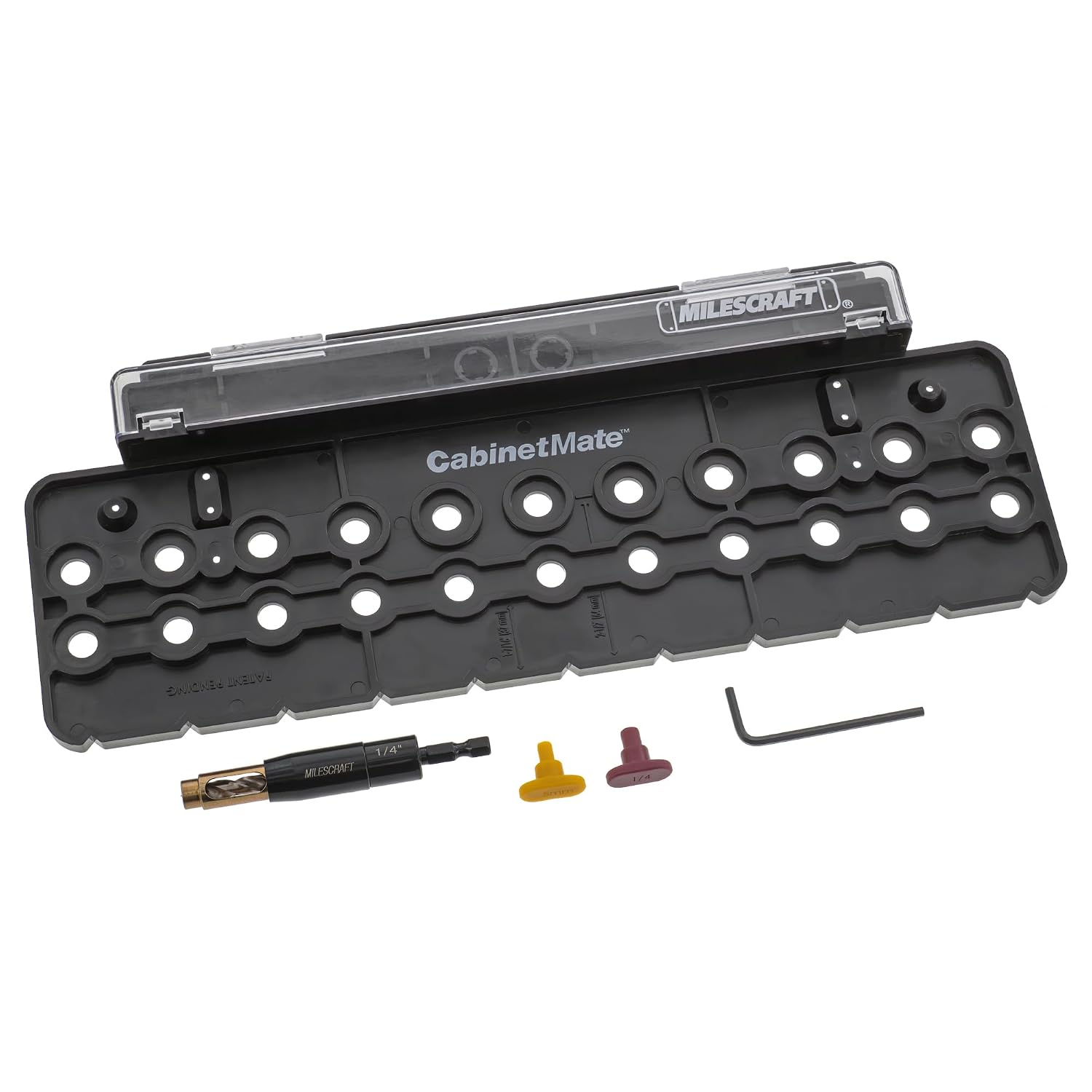

Included Components	CabinetMate, self centering brad point drill bit, 2 index pins, allen key
Item Type Name	CabinetMate
Item Weight	16 ounces
Warranty Description	1 year
Cutting Diameter	0.25 inches
Item Dimensions	16.65 x 7.13 x 1.38 inches
Minimum Bore Diameter	0.25 inches
Material Type	Polymer and steel
Finish Types	Matte
Shank Type	Straight
Surface Recommendation	Wood
Tool Flute Type	Straight
Point Style	Brad Point
Number of Flutes	2
Material	Polymer and steel
Finish Type	Matte
Shank	Straight

Milescraft, Milescraft Tools, Pocket Hole Jig, Drill Mate, Push Block, Woodworking, Sign Making

Milescraft 1316 shelf pin drill mate cabintery cabinet wood working tool accessories

Drill straight shelving holes every time!

Always The Better Idea

Tackle even the toughest projects with confidence and ease with our wide selection of power tool accessories. Whether you’re a pro looking to take on the next big thing or a first time home renovator, Milescraft has everything you need to get the job done. Our durable product design ensures that our tools will last as long as your masterpieces.

A leader in power tool accessories and woodworking tools
Over 20 years of innovative product development
Family owned small business

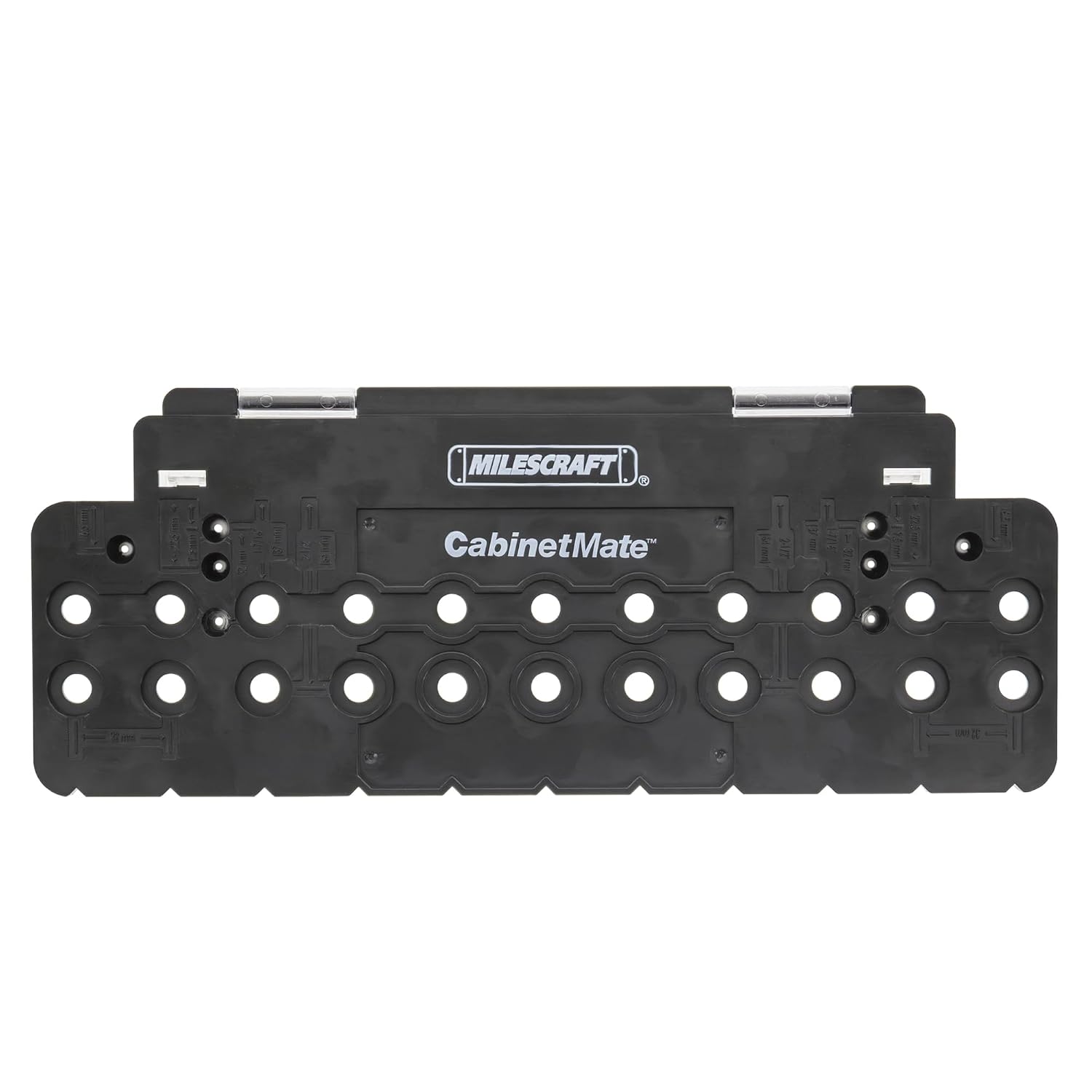

Milescraft 1316 CabinetMate - Shelf Pin Drilling Jig

Easy to use Shelf Pin Drilling Guide

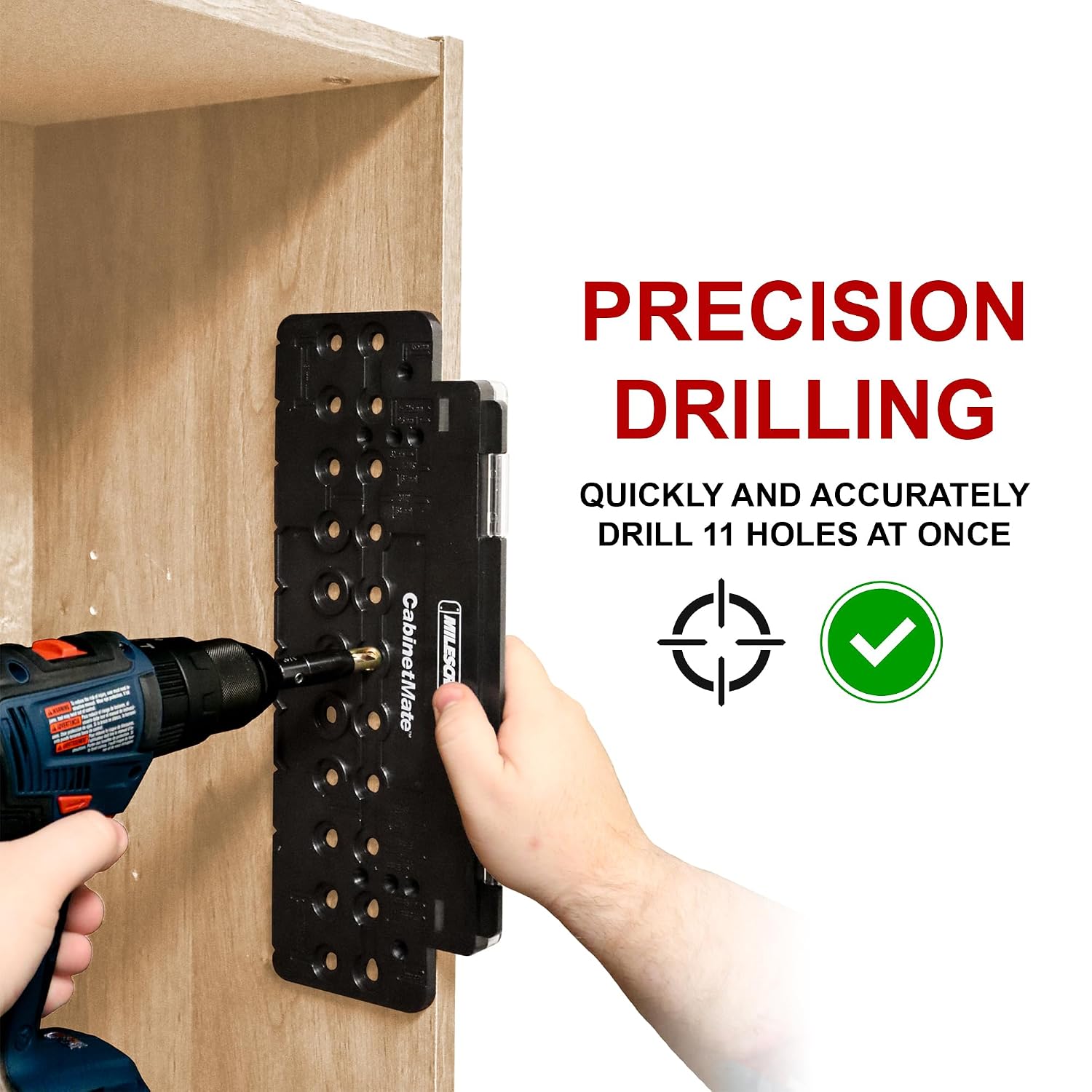

Create sturdy, true cabinet shelfing with the Milescraft CabinetMate. This light-weight, easy to use jig allows you to drill up to eleven holes evenly spaced 32mm a part in one setting. Whether creating cabinets from scratch or updating existing cabinets, this jig helps you get the job done fast and accurately. The jig is designed for use with both face-frame and frameless cabinets.

Jig allows you to drill up to 11 holes evenly spaced 32mm (1-1/4"" apart in one setting
Self-centering, spring loaded bit for precise drilling at a pre-set depth
Indexing pin system allows you to reposition jig with perfect spacing
Works on both the front or back of cabinet
Storage compartment to hold indexing pins and Shelf Pin Bits (up to two)

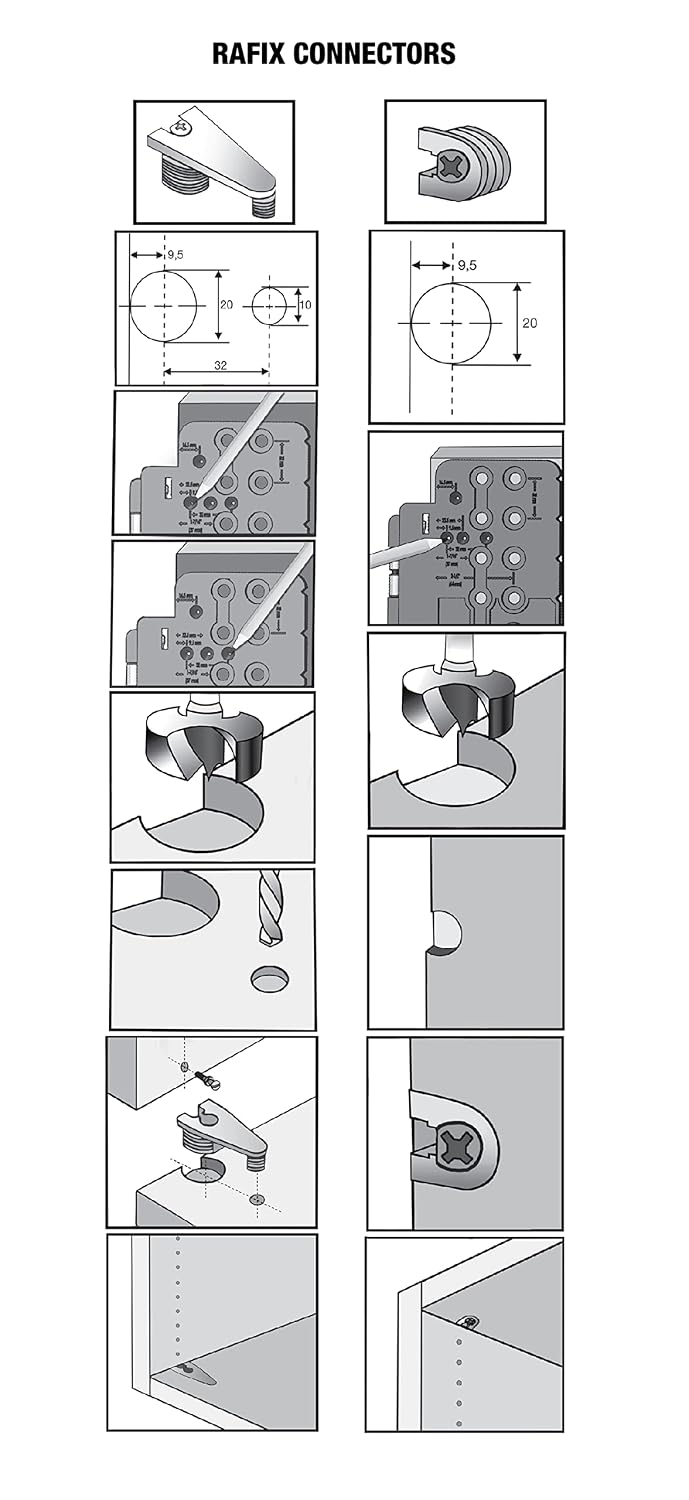

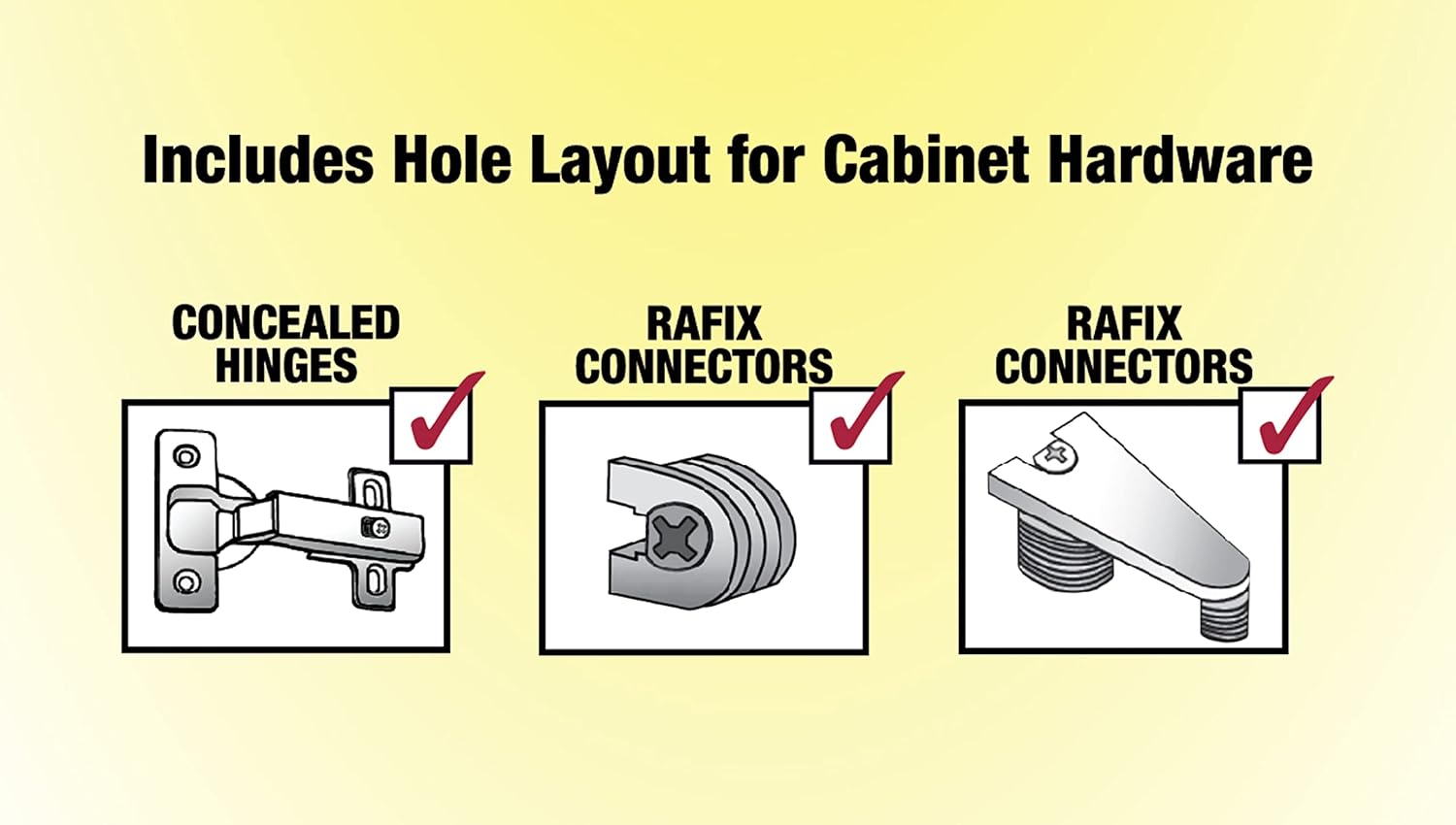

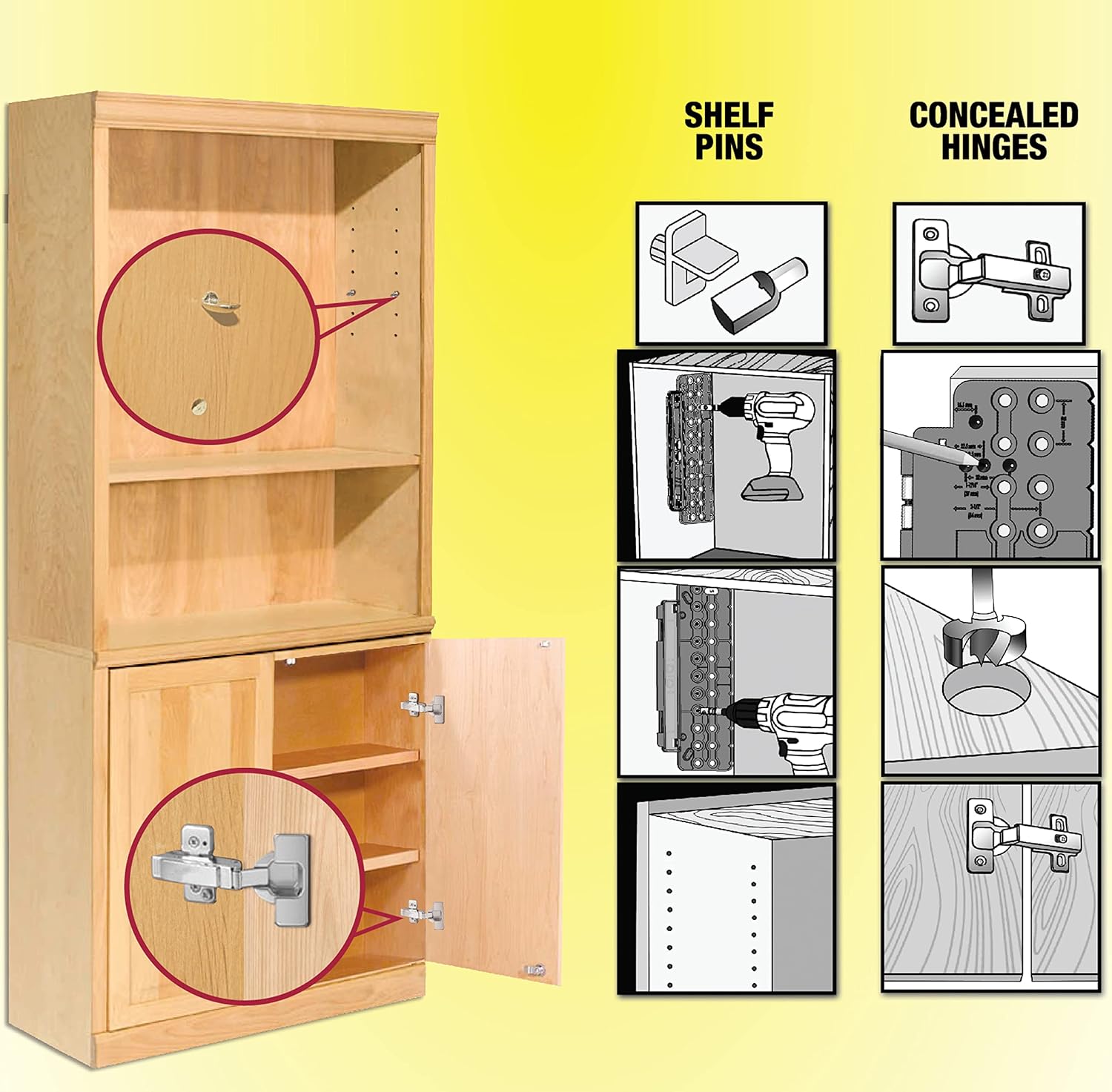

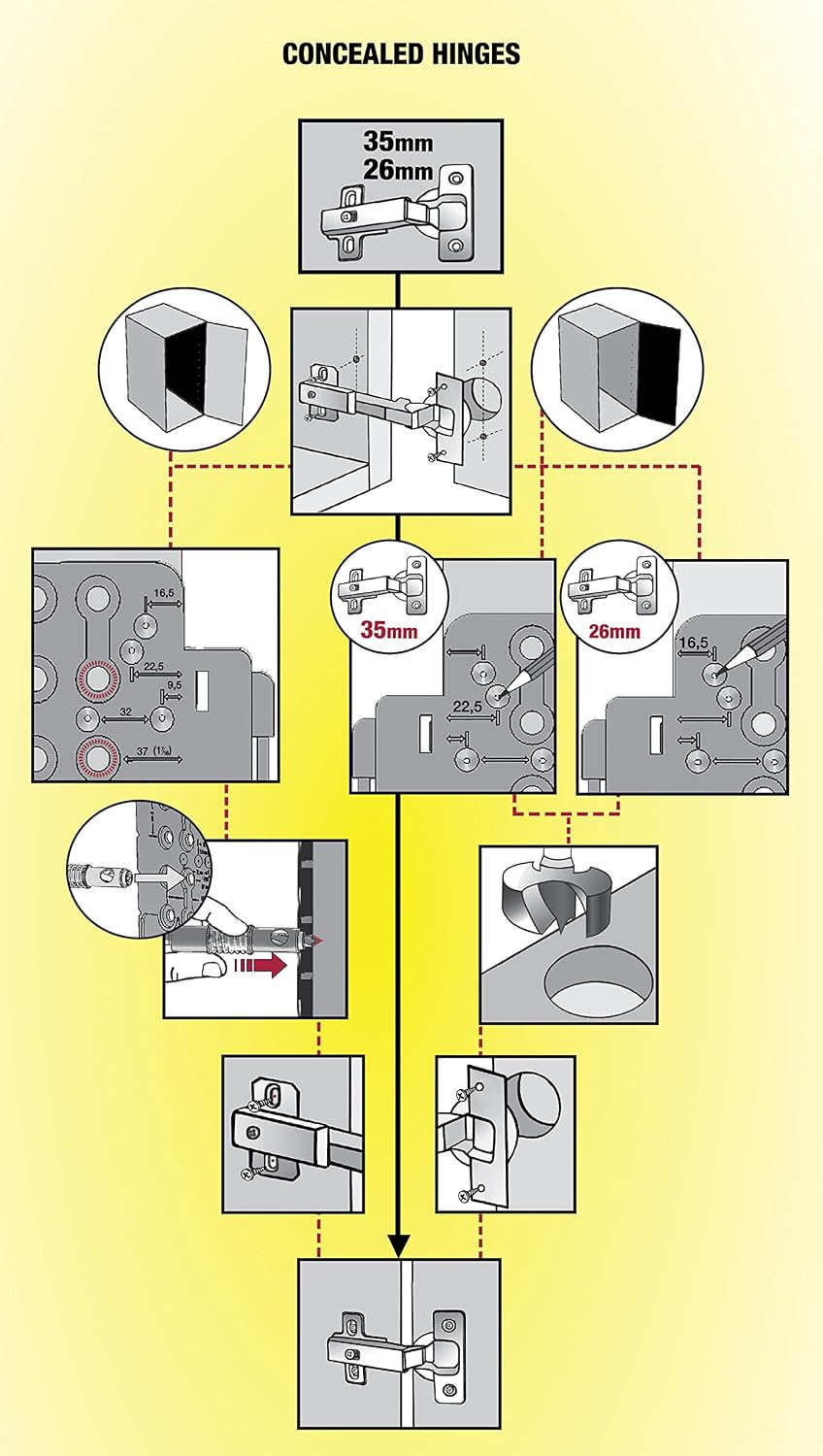

Additional guides let you mark the locators for Euro-style hinges

Shelf Cabinet jig drill guide milescraft cabinet woodworking wood working tool accessories drilling

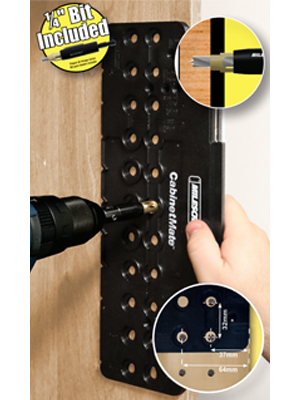

Evenly Spaced Drilling Holes

Easily drill shelving holes 32mm apart and 37mm (1-7/16" inches) and 64mm (2-1/2" inches) from the edge.

Milescraft 2313 Drill Bit

Includes New Drill Bit

We've redesigned the complementary drill bit for better strength and stability. Included with every CabinetMate purchase.

Milescraft 1316 Index Pins Cabinet wood working tool accessories

Includes 2 Index Pins

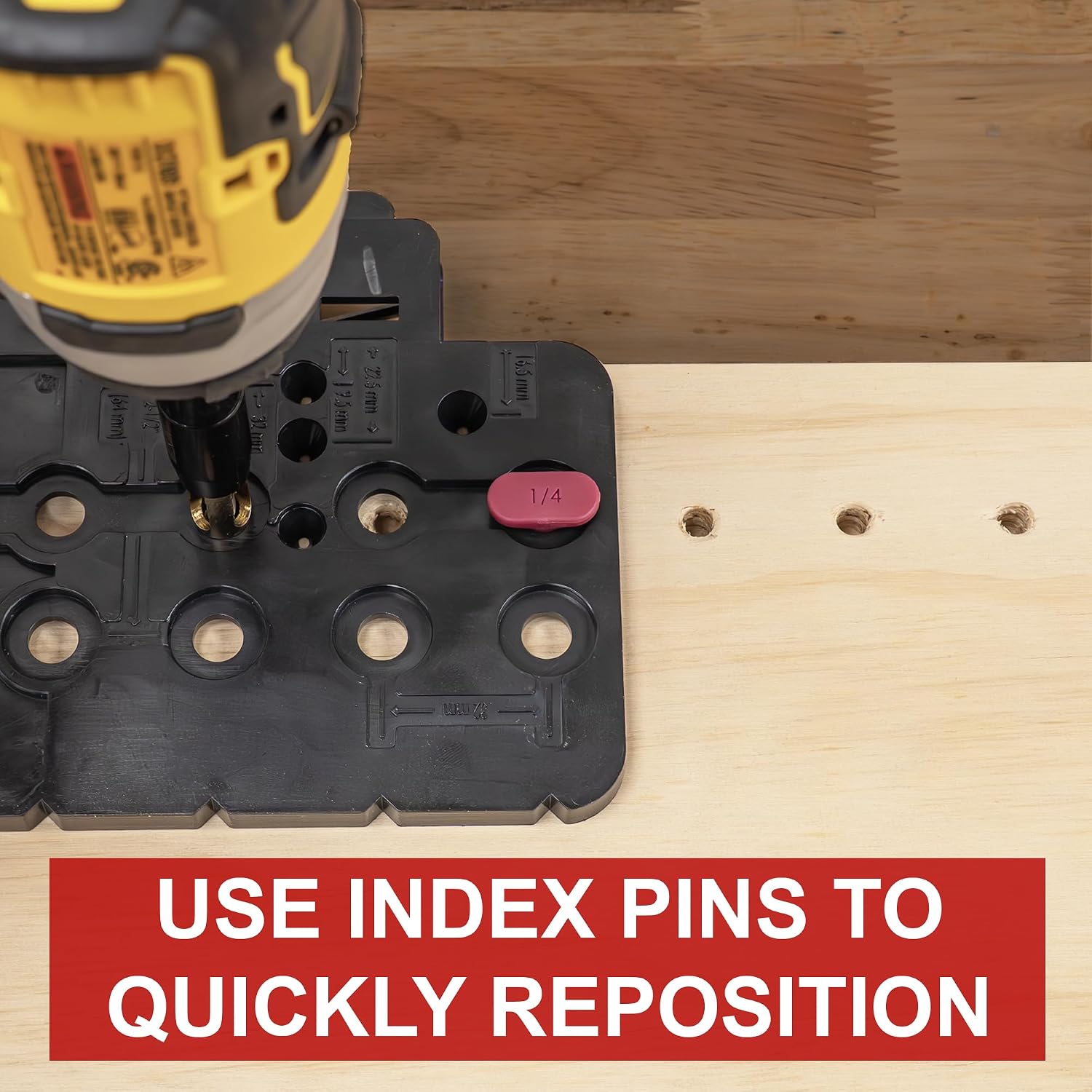

The Indexing pin system allows you to reposition the jig quickly with perfect spacing. Yellow Index Pin is 5mm and Red Index Pin is 1/4".

Milescraft 1316 cabinetmate cabinet mate shelf pin jig wood working tool accessories

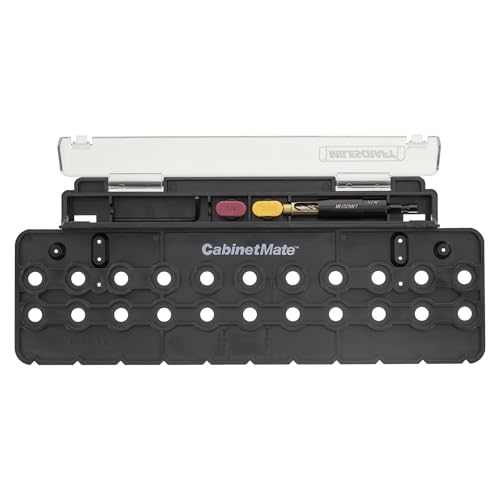

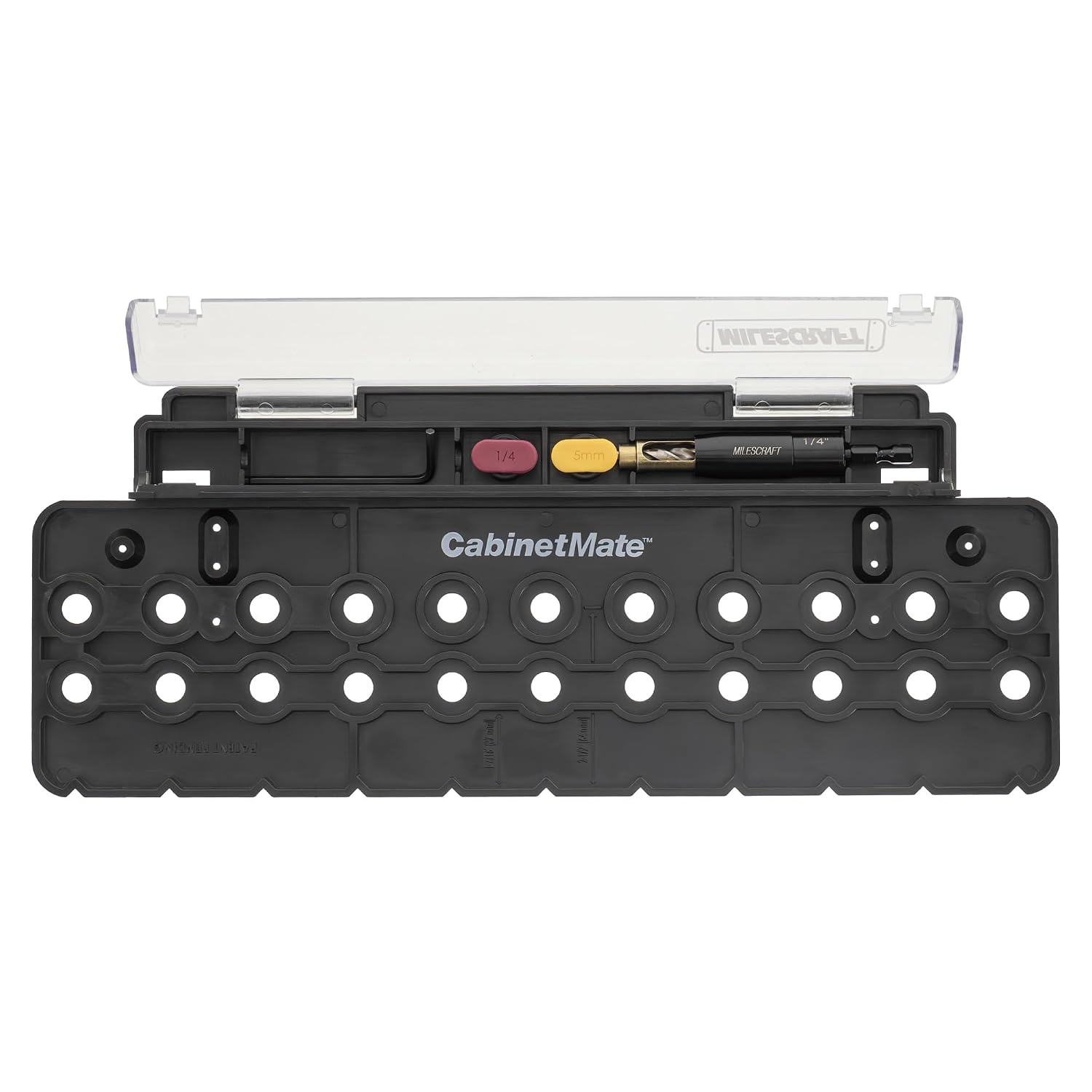

Built-in Storage Container

Don't worry about misplacing your Drill Bit and Index Pins. The CabinetMate has a built-in storage container that can hold both Index Pins and up to 2 Drill Bits. It also acts as an edge guide for perfect alignment.
