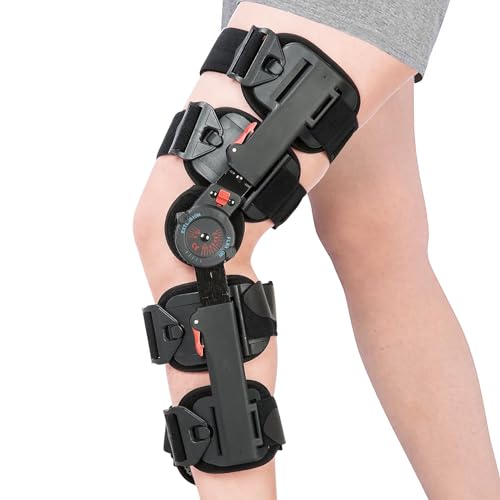

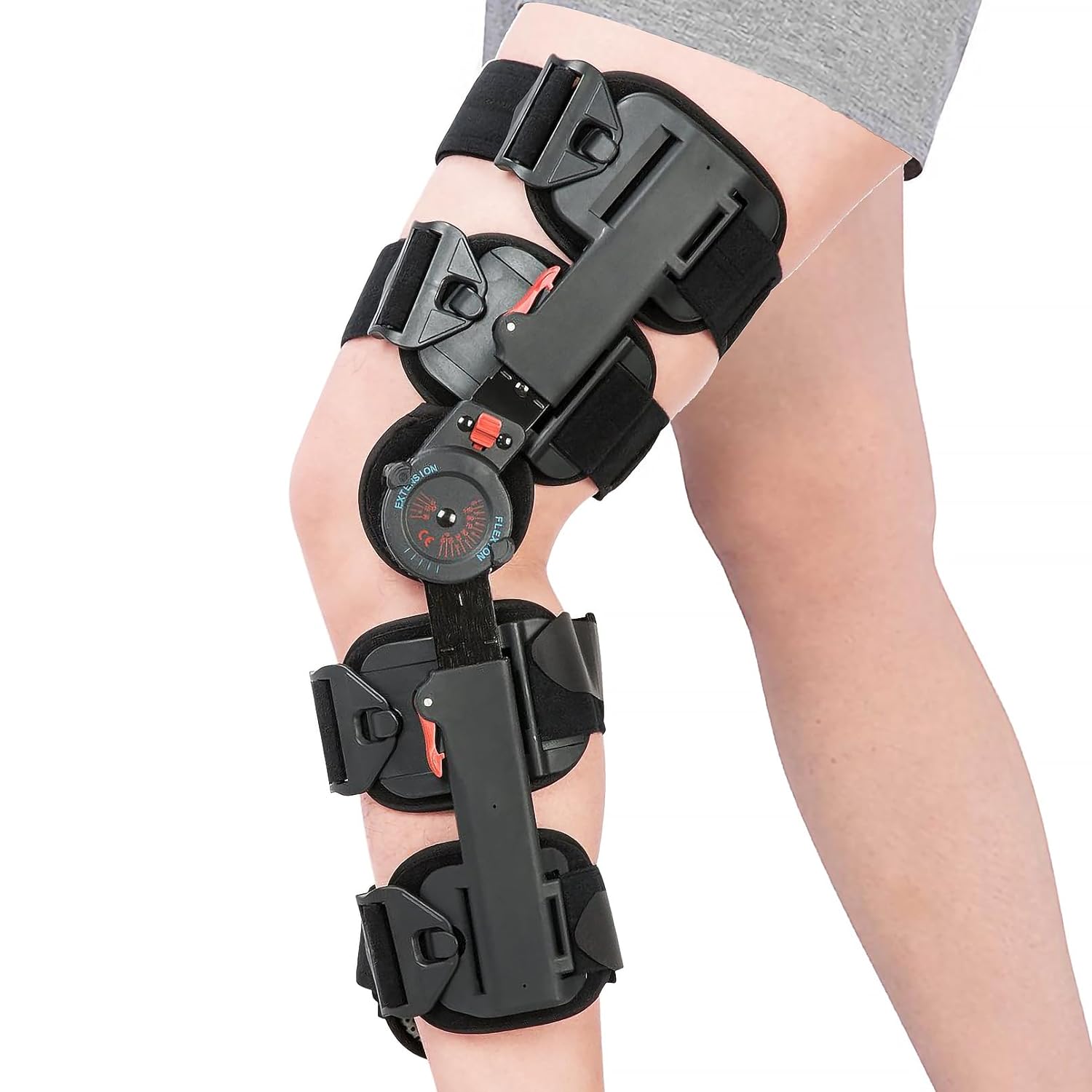

Medibot Hinged Knee Brace ROM Adjustable Post Op Knee Support Orthosis Immobilizer Protector for Left Leg and Right Leg, Both Men and Women

As a medical equipment, it is recommended to purchase and use this product under the supervision of a doctor to ensure that you get medical equipment that suits you and is what you need.

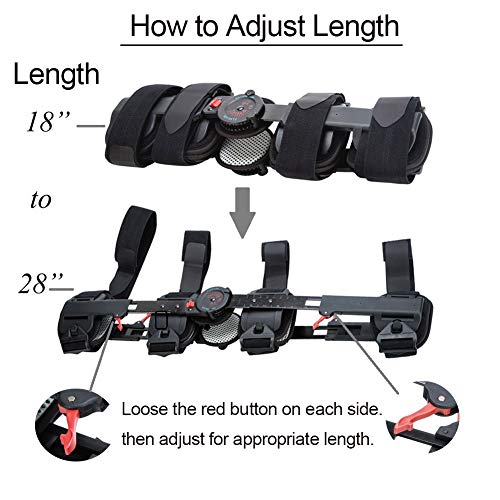

How to adjust length

Loose the red button on each side then adjust for appropriate length after confirm length, buckle tightly the red button.

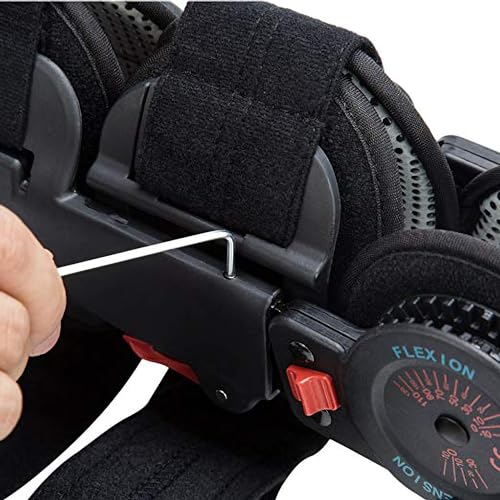

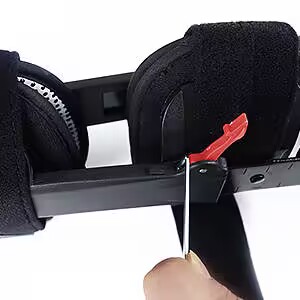

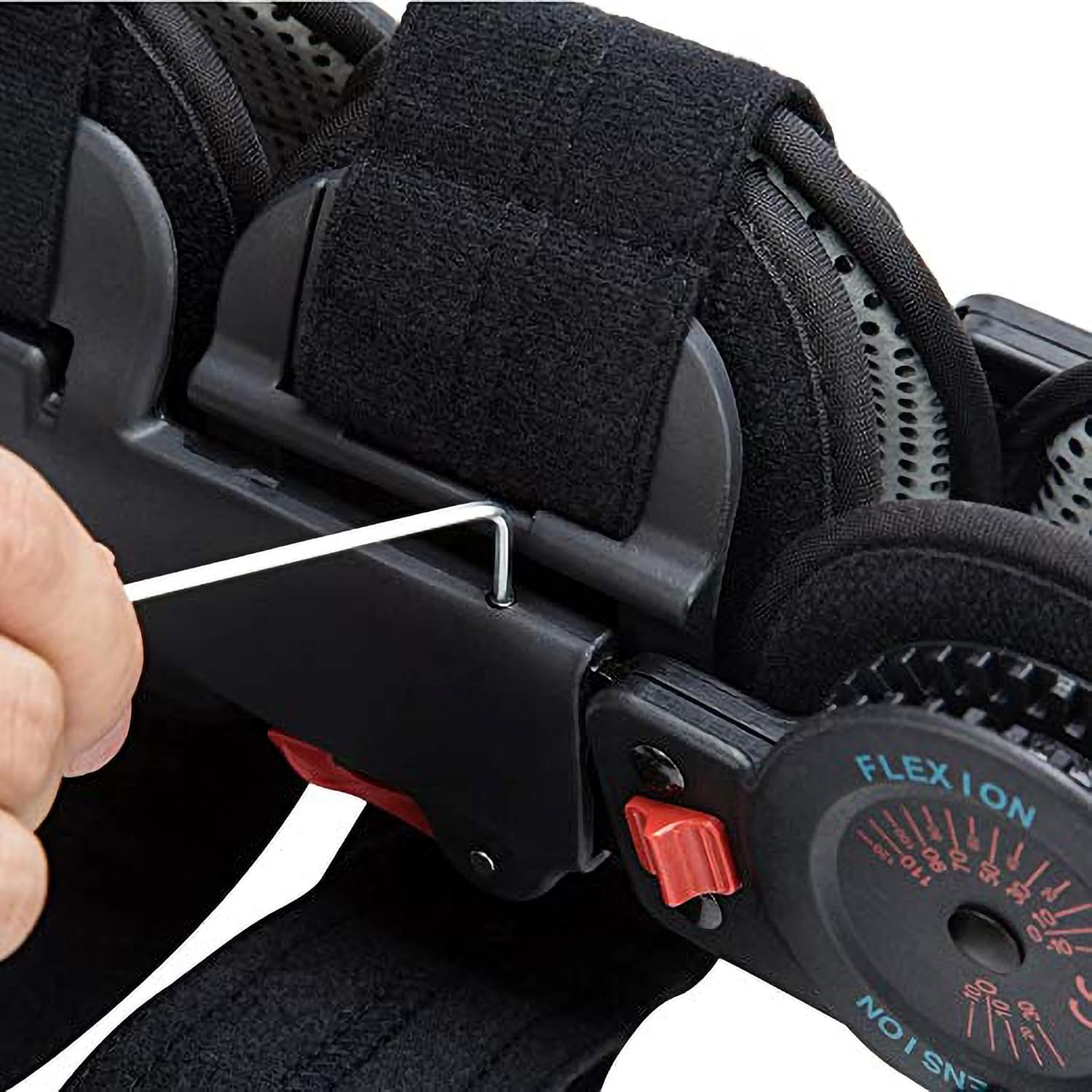

If length appear slide while wearing, you only need to use accompanying Allen wrench to tighten the Allen screw.

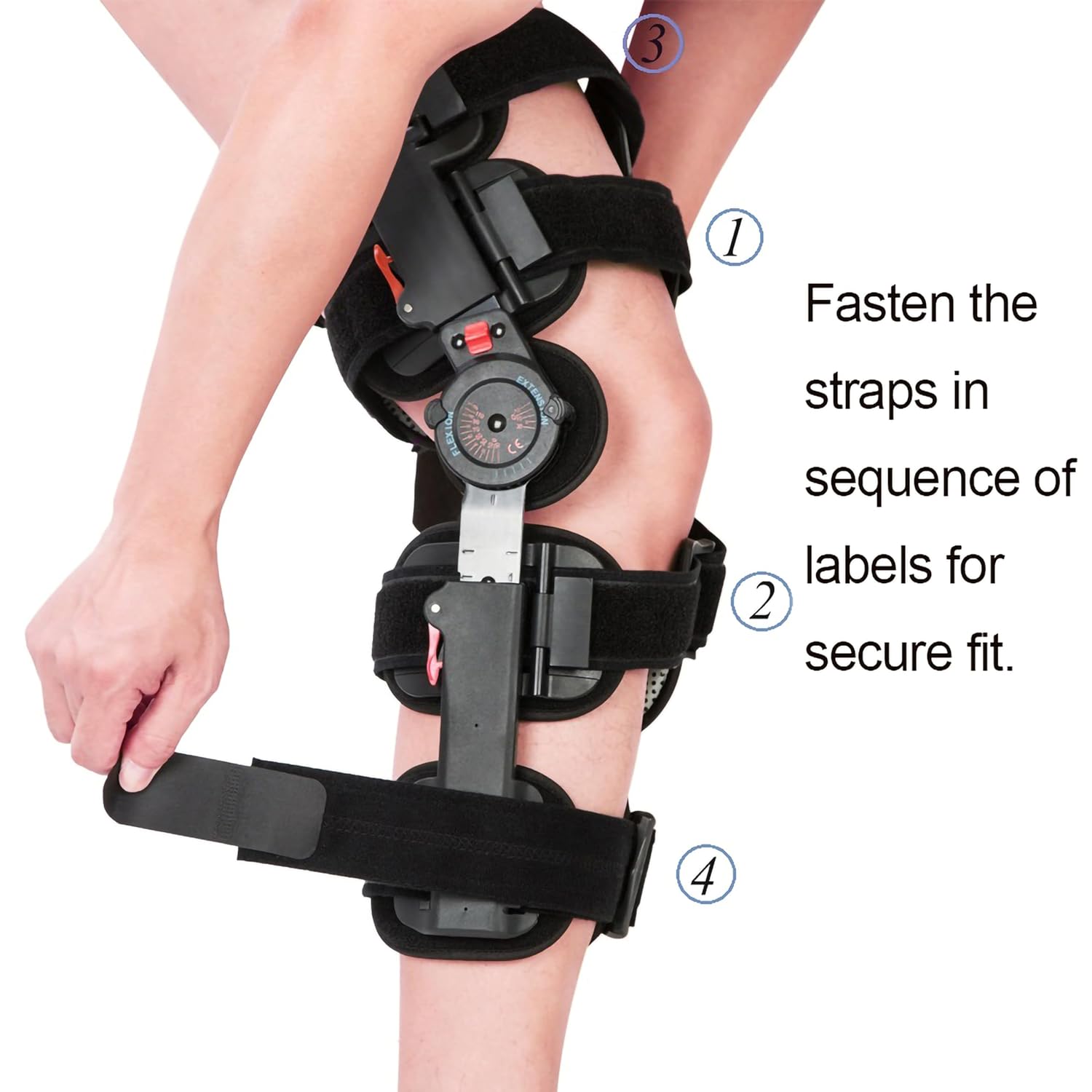

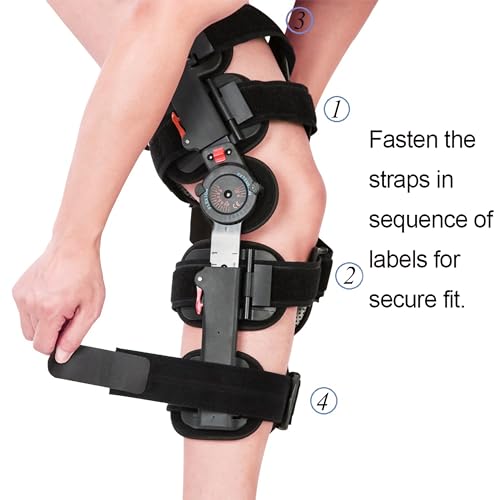

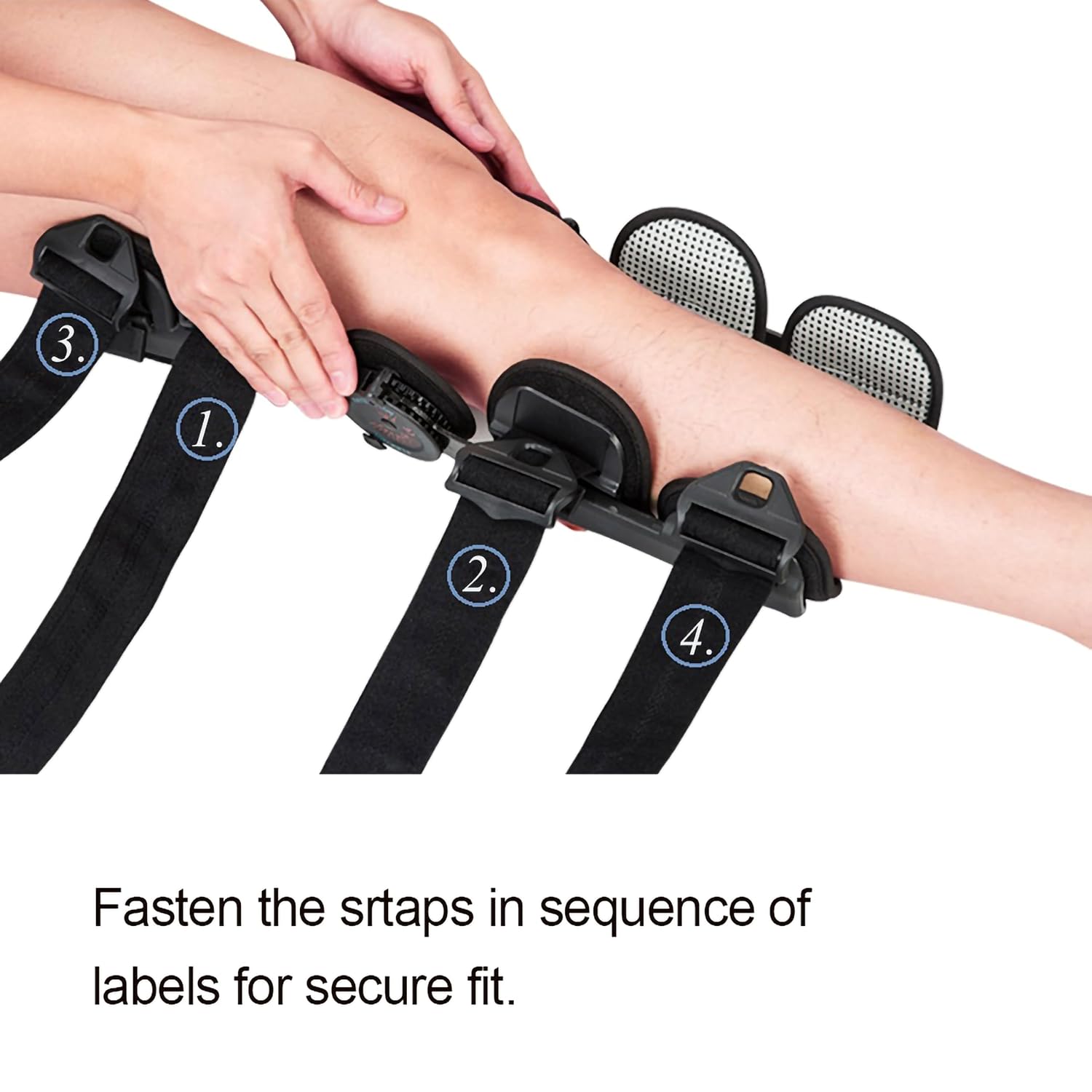

1. Lift the fastening clips of the straps on one side of the brace and unfasten the buckles on the other side.
2. Separate the hinge bars and position the device with the knee central between the hinges.Ensure that the hinges are pointed in the indicated direction,with the calf pads(the smaller ones) towards the feet.
3. Fasten the buckles of the two straps closest to the knee,without tightening.
4. For correct adjustment,loosen the friction clips on the side struts and slide the upper and lower telescopic hinge bars up or down to accommodate the leg.Close the friction clips to lock position.The selected length can be verified by looking at the length indicators on the hinge bars.
5. Fasten the buckles of the two remaining straps without tightening.
6. To tighten the straps,poll on them until these is no gap behind the leg.Be careful to maintain the lateral and medial positions of the hinge bars.
7. Close the fastening clips.
8. Then pull the straps through the buckles to tighten.Again,be careful to maintain the lateral and medial positions of the hinge bars.
9. Use the Y tongues at the ends to fasten the straps.If necessary remove the Y tongue,cut the strap to the required length and then reattach the Y-tongue.

How to adjust

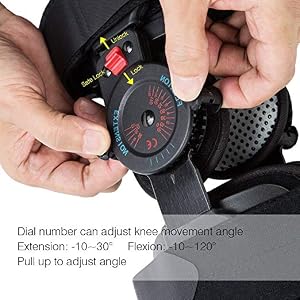

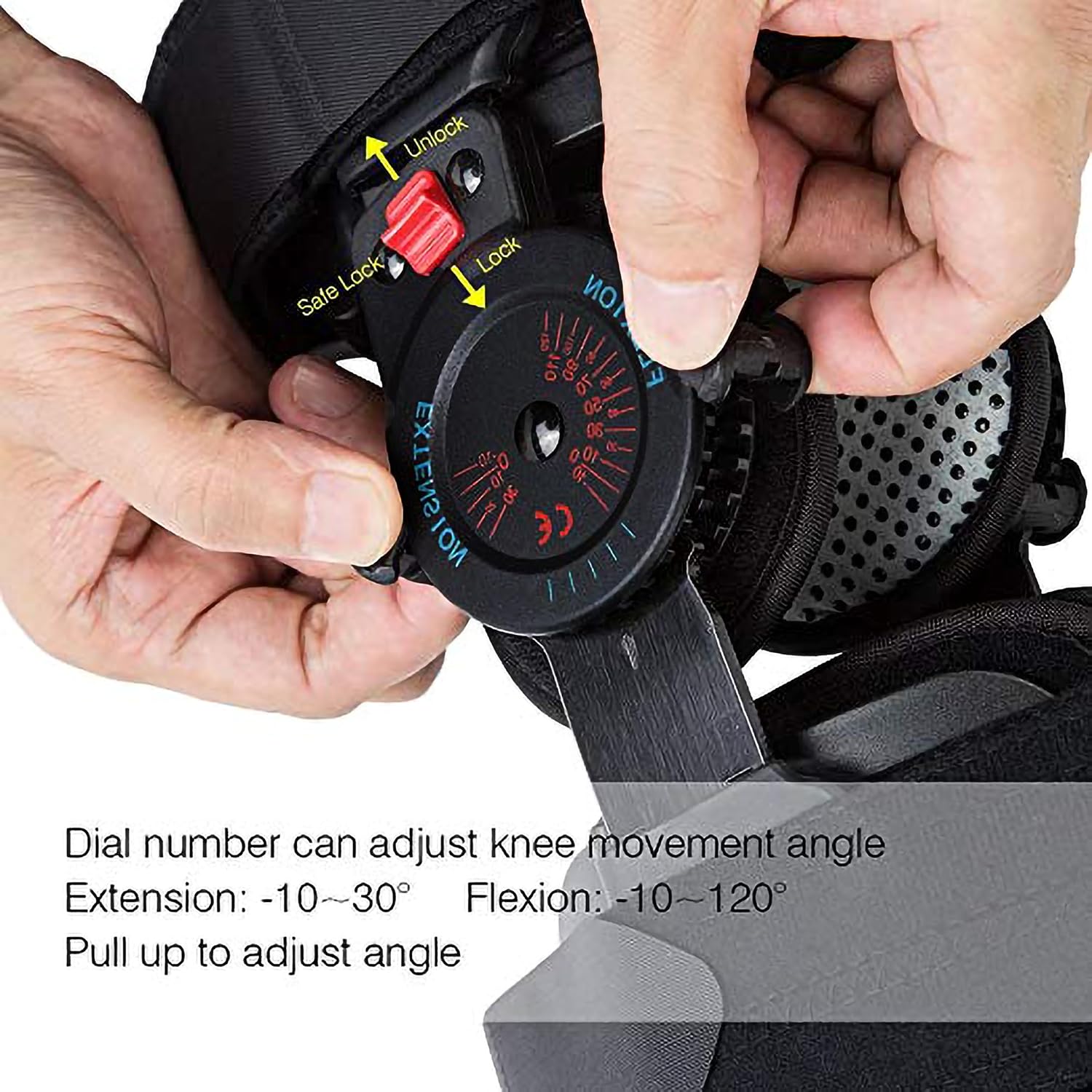

• The values of the extension limits can be selected between 10°of hyperextension and 30°of extension by pulling the plastic stop,sliding it to the desired position and reinserting.
• The values of the flexion limits can be selected between-10-120°of hyperextension in the same way.
• The hinge can be locked by sliding the quick fastening button down to any of the 5 blocking position:10°of hyperextension,0°(neutral),10°,20°and 30°of extension.
