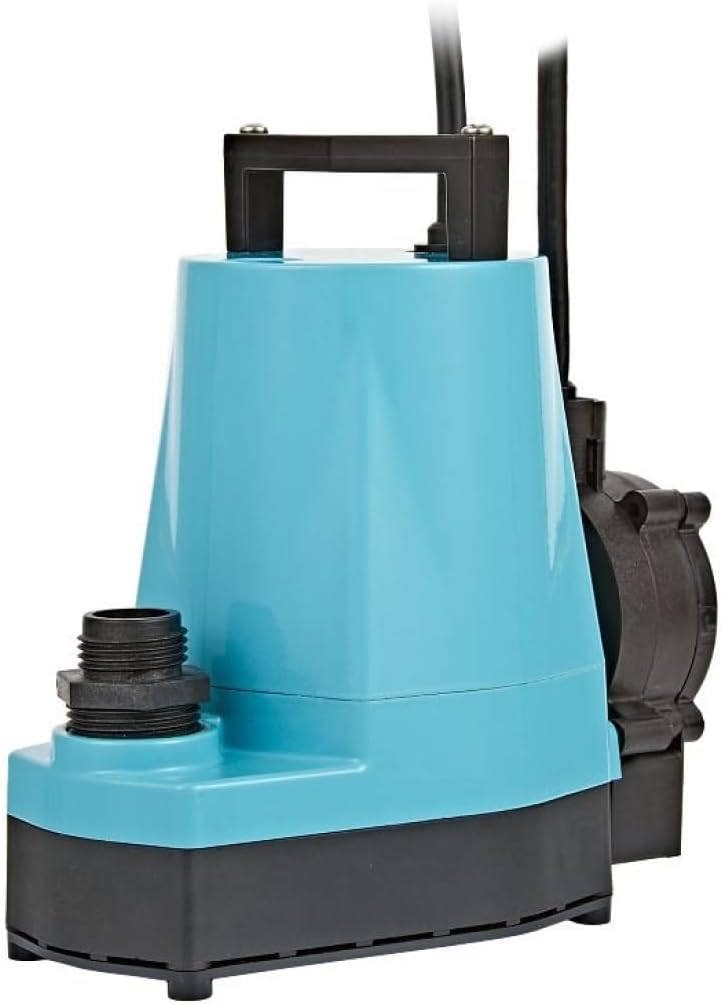

          Little Giant 5-ASP 115V, 1/6 HP Automatic Utility Pump, 10' Cord | 1500 GPH, Submersible, Cast Aluminum, Piggyback Diaphragm Switch

          $43.99 USD
          Shipping fees will be calculated at checkout.

          • Free worldwide shipping

          • Free returns

          • Carbon neutral

          • Secure payments

          • AUTOMATIC UTILITY PUMP: equipped with a piggy-back diaphragm switch; pump activates when the water level reaches 6" - 9" and shuts off when the water level falls between 1" and 4"

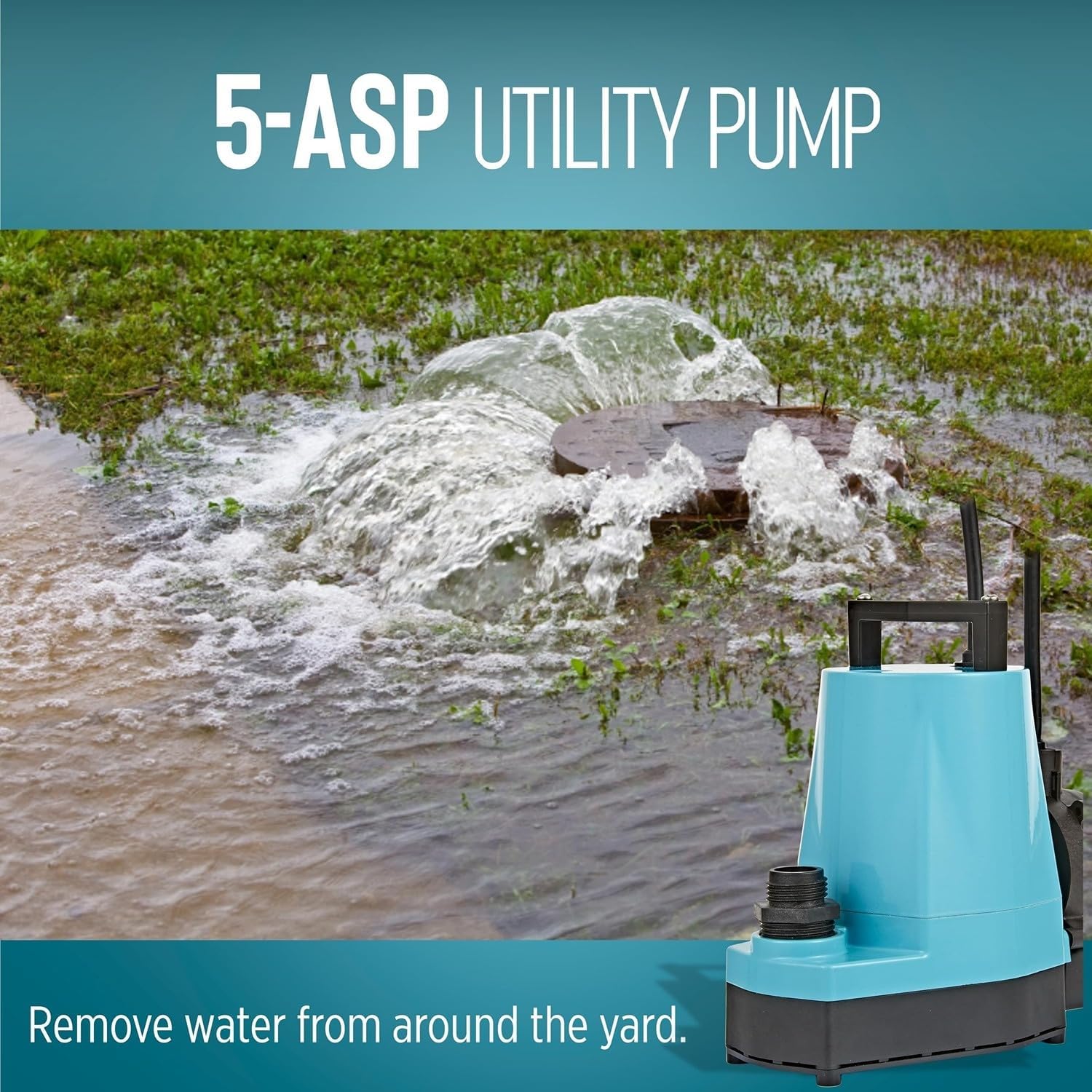

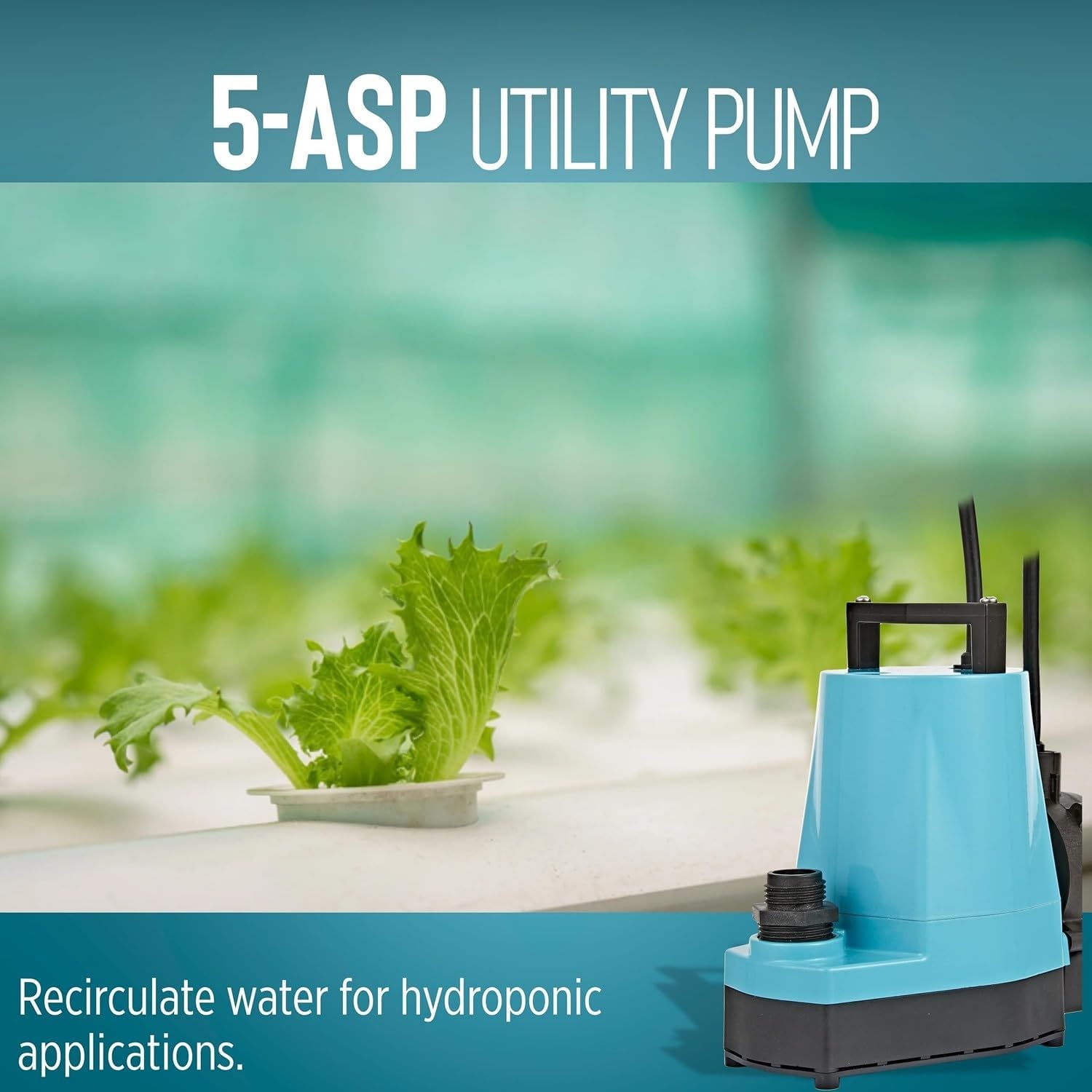

          • SUBMERSIBLE PUMP: Typical applications for the 5-ASP pump include commercial, industrial, and home uses where liquid must be transferred or recirculated; this pump is for submersible use only
          • BUILT TO LAST: epoxy coated die-cast aluminum with a 1/6 HP permanently lubricated, oil-free, energy-efficient PSC motor with overload protection, triple-lip seal; upper and lower ball bearings
          • FEATURES: portable and compact weighing less than 8 lbs.; convenient built-in carry handle; piggyback switch allows easy conversion to a manual pump; garden hose adapter included

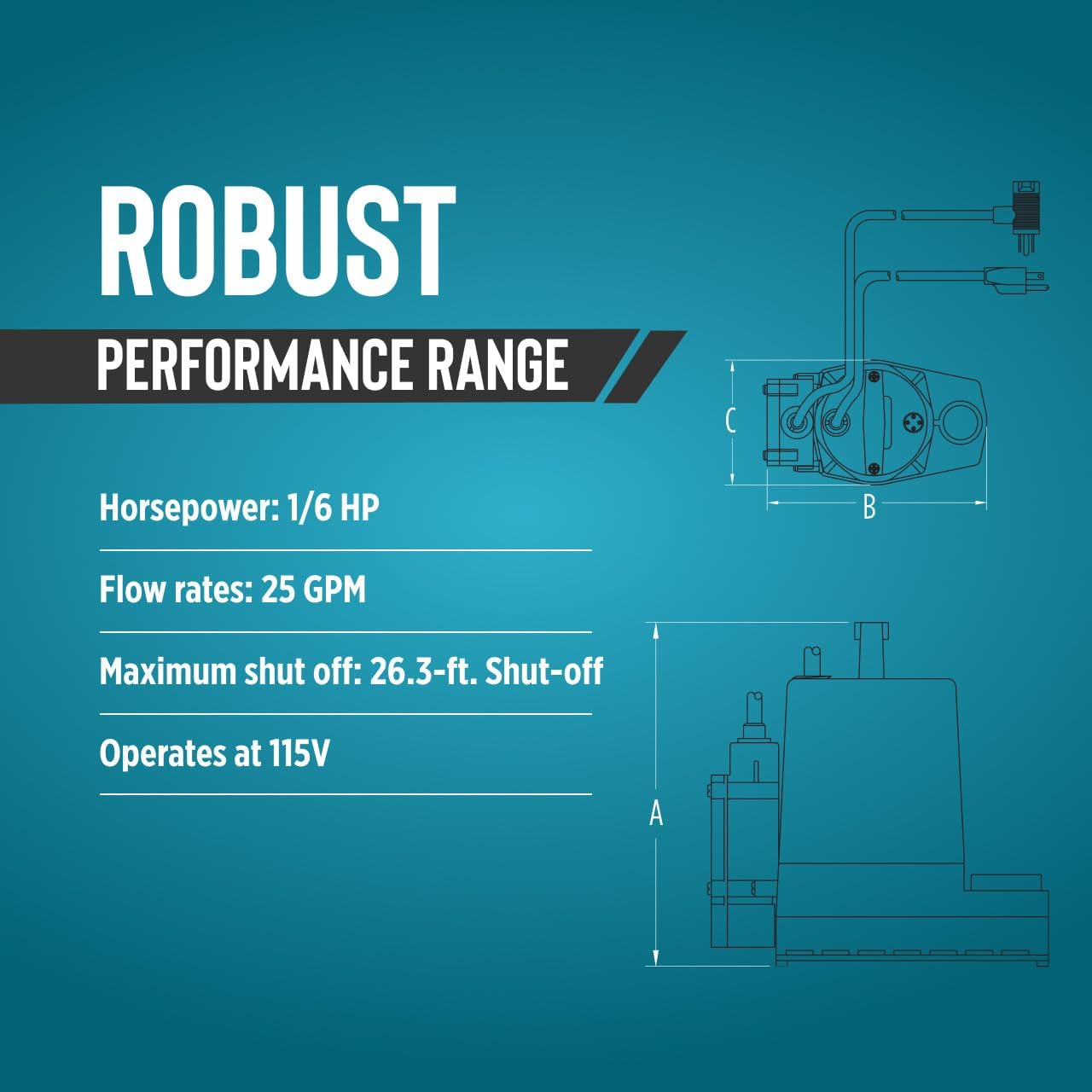

          • SPECIFICATIONS: 1/6 HP, 1500 GPH, 115-Volt, 10-ft. cord, 2.0 running Amps, 220 Watts, 26' shut-off, 11.43 PSI, 1" FNPT discharge with 3/4" garden hose adapter
          Power SourceCorded Electric
          Flow Rate25 gpm
          Maximum Lifting Height26 feet
          Voltage115 volts_of_alternating_current
          Horsepower0.17 hp
          ColorBlue
          Product StyleStandard Automatic, 115V, 10' Cord
          Item Dimensions L x W x H7.75"L x 4.29"W x 8.07"H
          Item Weight7 pounds
          Material TypeEpoxy Coated Cast Aluminum
          Model Number505715
          ManufacturerFranklin Electric Co., Inc.
          UPC029753004639
          Unit Count1 Count
          Included Components3/4" garden hose adapter, installation manual, pump with 10' cord, standard level piggyback switch
          Item Type NameLittle Giant 5-ASP 115-Volt, 1/6 HP, 1500 GPH, Automatic Aluminum Utility Pump with Standard Piggyback Diaphragm Switch, 10-ft. Cord
          Manufacturer Part Number505715
          MaterialEpoxy Coated Cast Aluminum
          StyleStandard Automatic, 115V, 10' Cord
          Item Length Width Height7.75"L x 4.29"W x 8.07"H
          Power Source TypeCorded Electric
          Maximum Flow Rate25 gpm

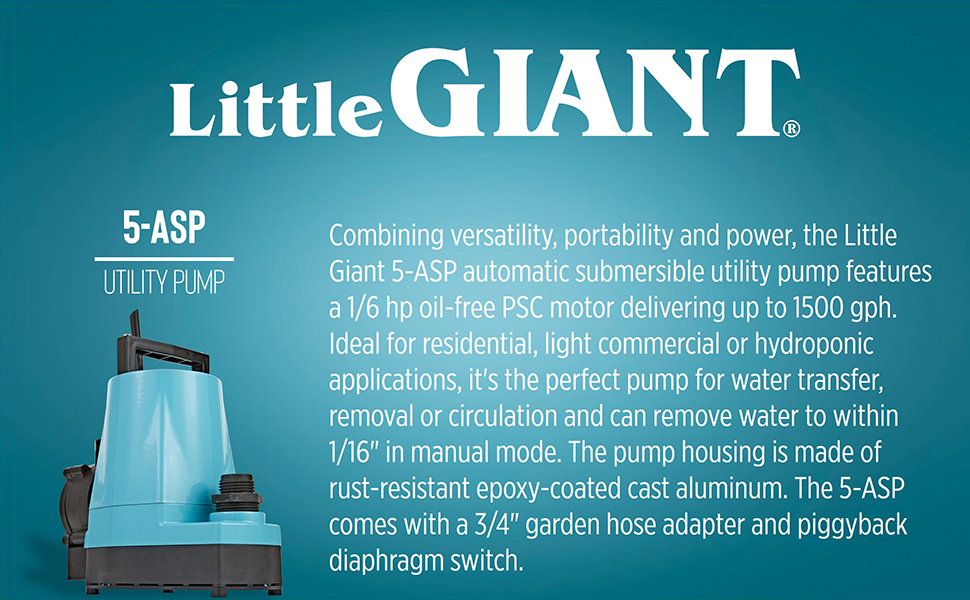

          5-ASP A+ Content Main Image 970x600

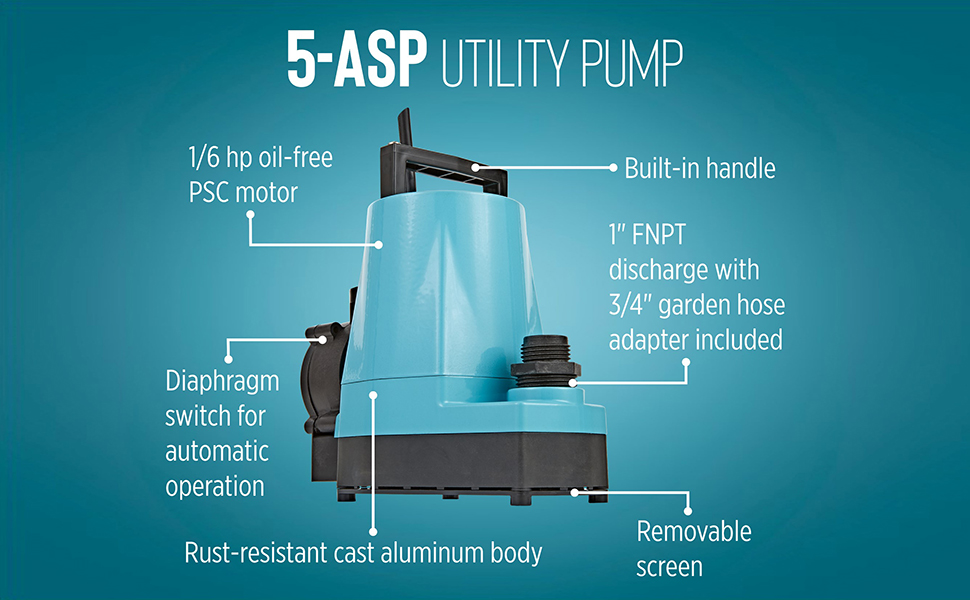

          5-ASP A+ Content Callout 970x600

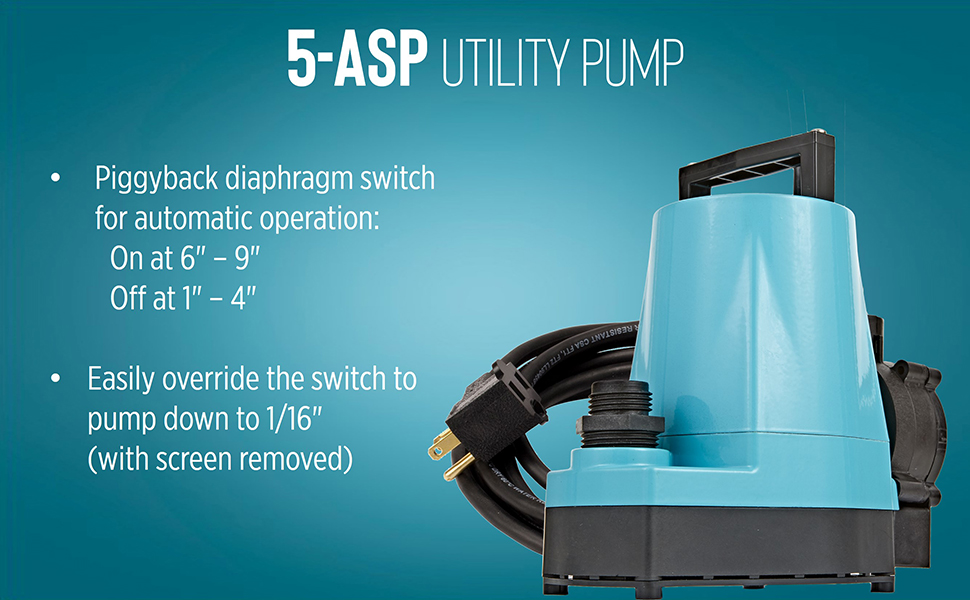

          5-ASP A+ Content Switch 970x600

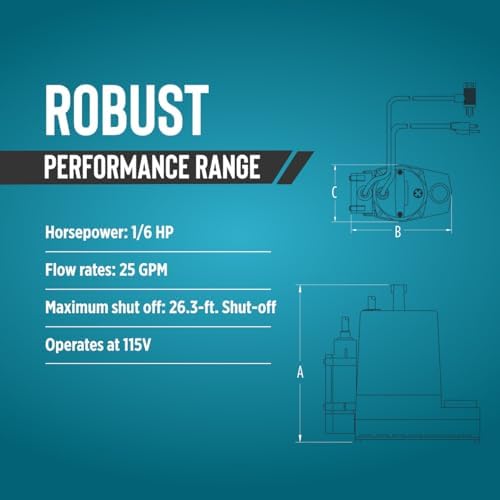

          5-ASP Technical Specifications

          Motor 1/6 hp, oil-less PSC motor with thermal overload protections
          Voltage 115 volts
          Amperage 2.0 running Amps
          Wattage 220 Watts

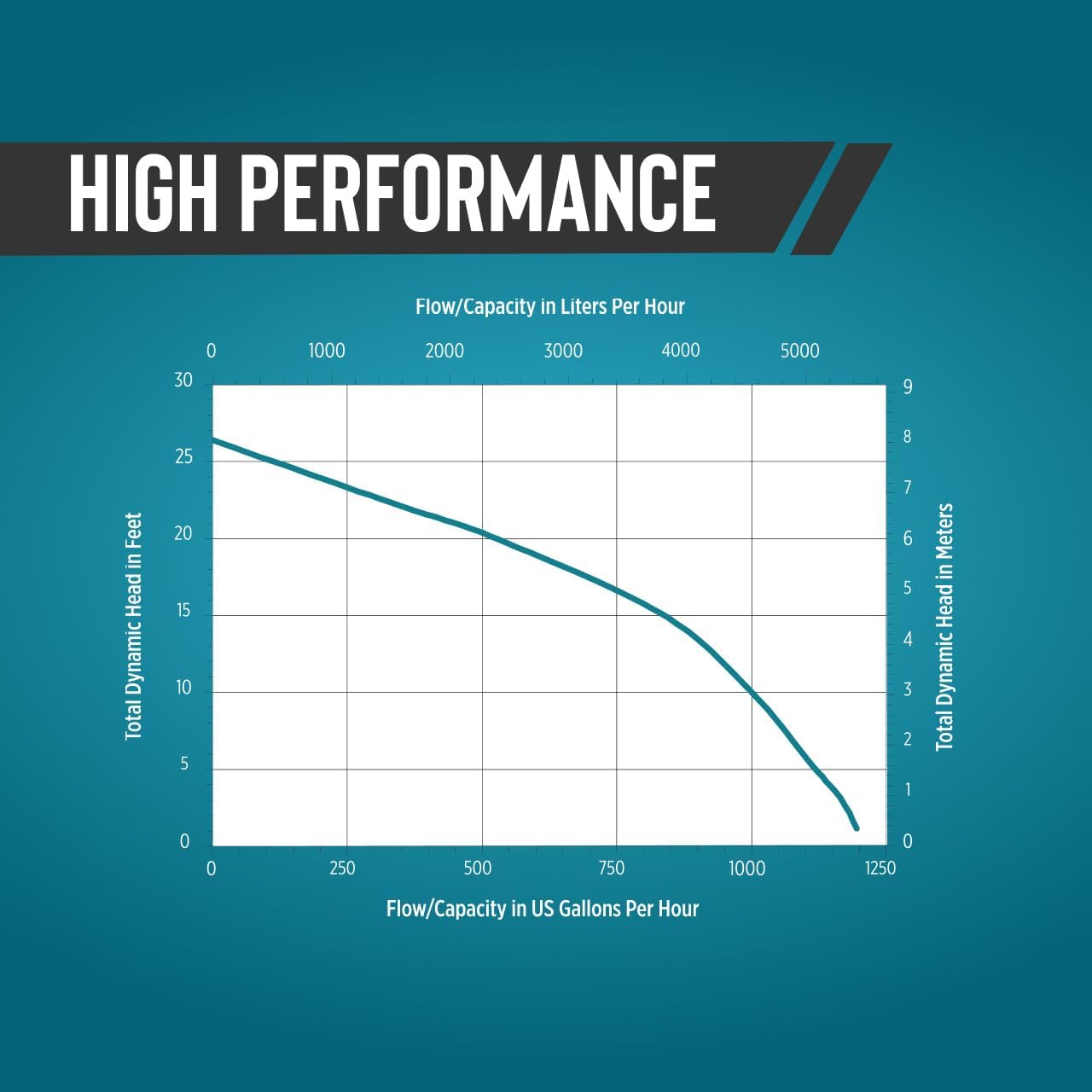

          Performance at 1' lift 1500 gph (5678 lph)
          Performance at 3' lift 1464 gph (5542 lph)
          Performance at 5' lift 1395 gph (5281 lph)
          Performance at 10' lift 1191 gph (5281 lph)
          Performance at 20' lift 528 gph (1999 lph)
          Shut-off 26' (7.9 m)
          Maximum pressure 11.43 PSI (0.788 bar)
          Switch type Piggyback diaphragm - standard level; on at 6" - 9"; off at 1" - 4"
          Cord length 10' (3 m)
          Dimensions (LxWxH) 7.75" x 4.29" x 8.07" (197 mm x 109 mm x 205 mm)
          Weight 7.93 lbs (3.6 kg)
