| Specific Uses For Product | Brake Lights, LED Trailer Light, License Plate Light, Stop Light, Trailer Side Marker Lights |
|---|---|
| Light Source | LED |
| Compatible with Vehicle Type | Boat, RV, Snowmobile, Tractor, Truck |
| Additional Features | Bright, Corrosion Resistant, Submersible, Utility, Waterproof |
| Voltage | 12 volts_of_direct_current |
| Wattage | 30 watts |
| Auto Part Position | Rear |
| Automotive Fit Type | Universal Fit |
| Lens Material | Polycarbonate |
| Item Dimensions | 8 x 5 x 3 inches |
| Color | Trailer Light Kit |
| Lens Color | Clear |
| Model Year | 2026 |
| UPC | 765756147514 |
| Manufacturer Part Number | XZC-0136-XQ |
| Manufacturer | CYFIE |
| Set Name | Trailer Light Kit |

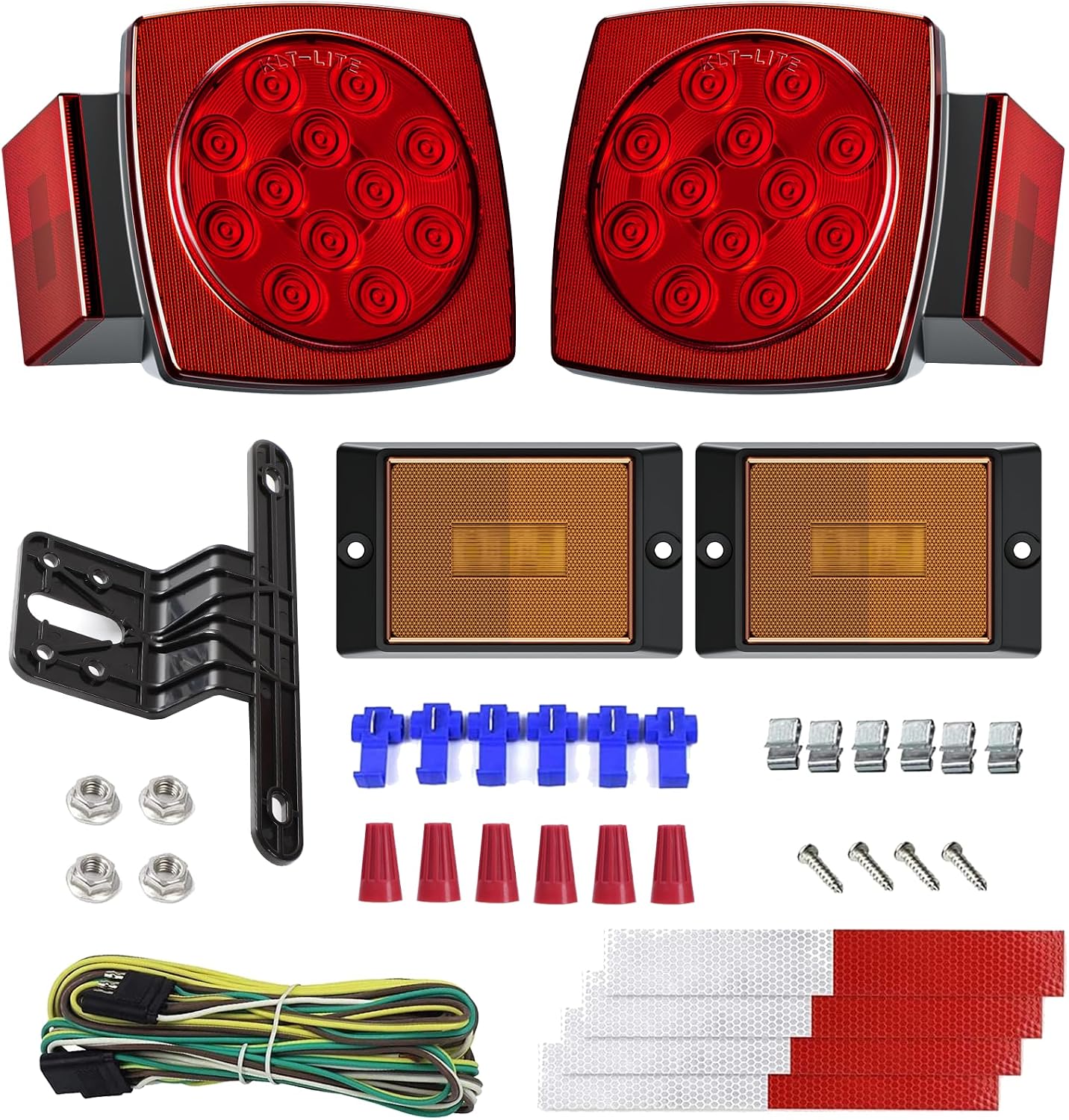

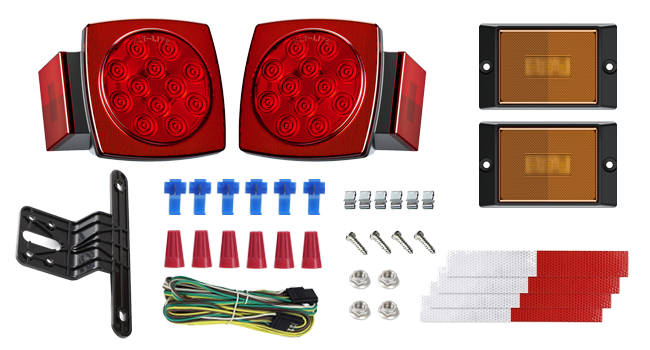

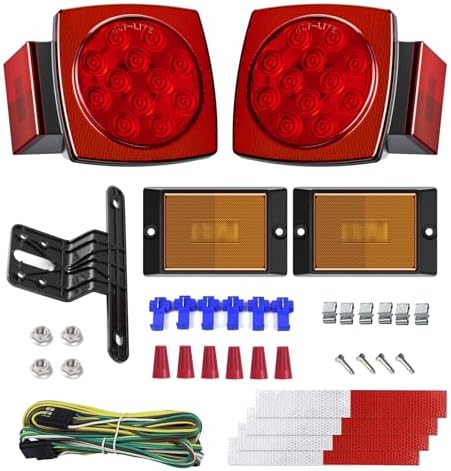

| Included Components | 1 * 25ft Wire, 1 * 4ft Wire Harness, 1 * License Plate Bracket, 2 * LED Trailer Light, 2 * Side Marker Light |
| Model Number | XQ-CEA-0136 |
| Manufacturer Warranty Description | 1 Year |
| Compatible With Vehicle Type | Boat, RV, Snowmobile, Tractor, Truck |
| Special Feature | Bright, Corrosion Resistant, Submersible, Utility, Waterproof |

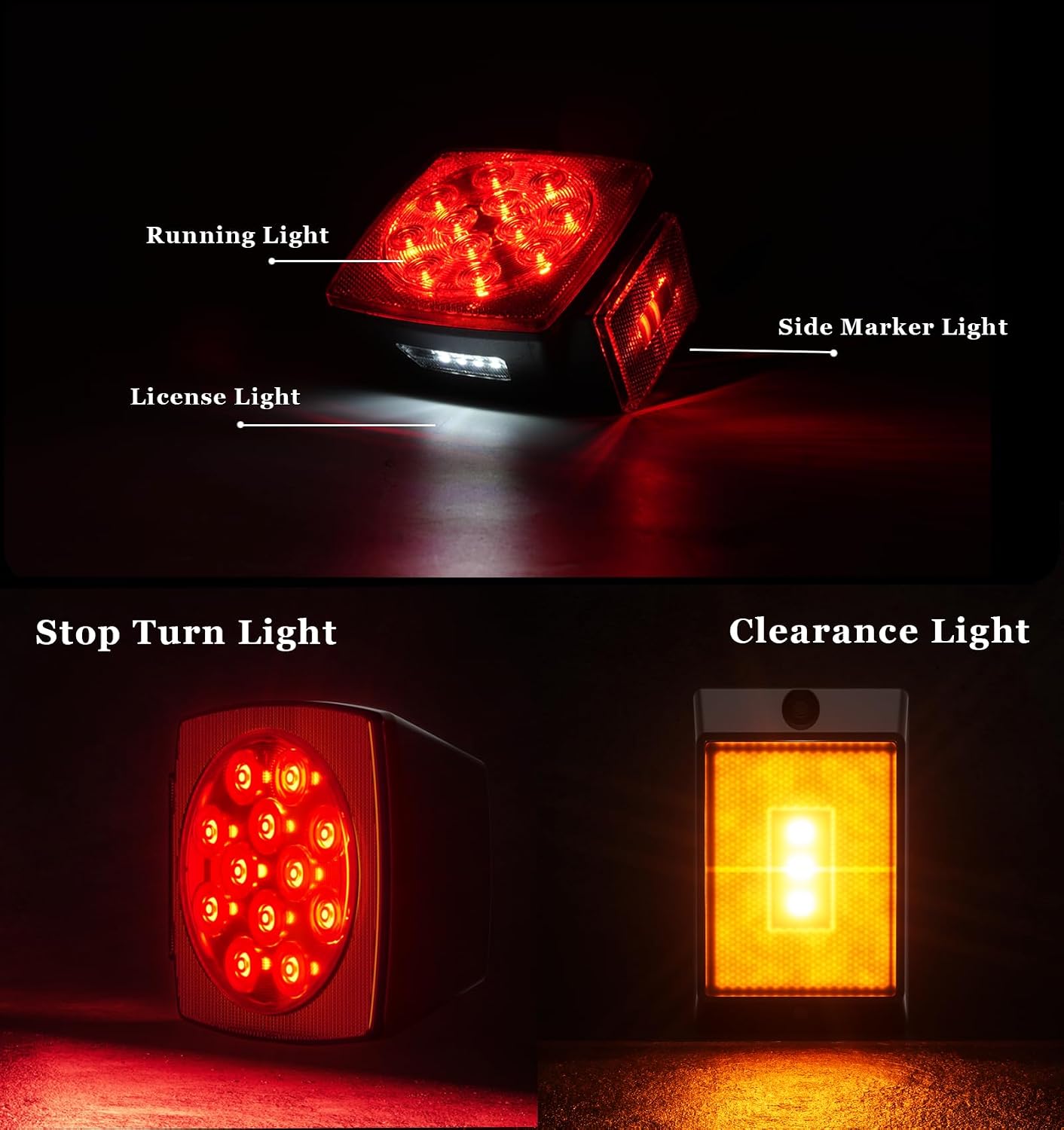

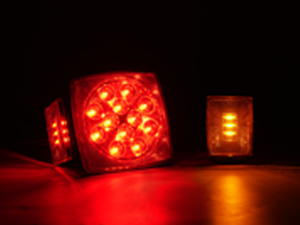

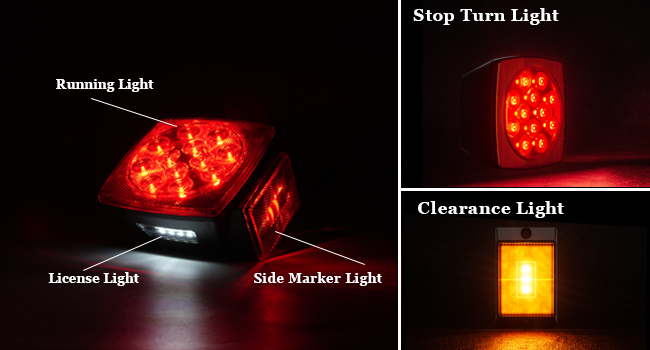

The square tail lights feature multifunctions: red running light stop turn light, white license light, and side marker light.

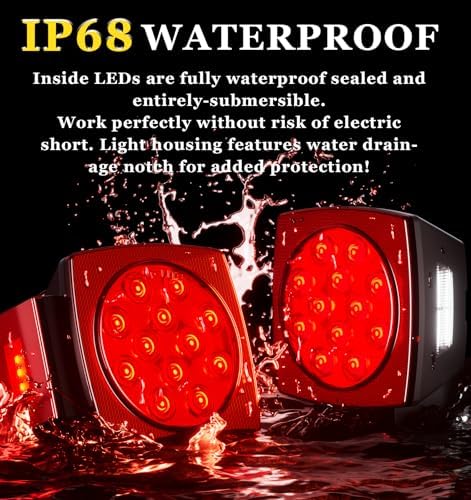

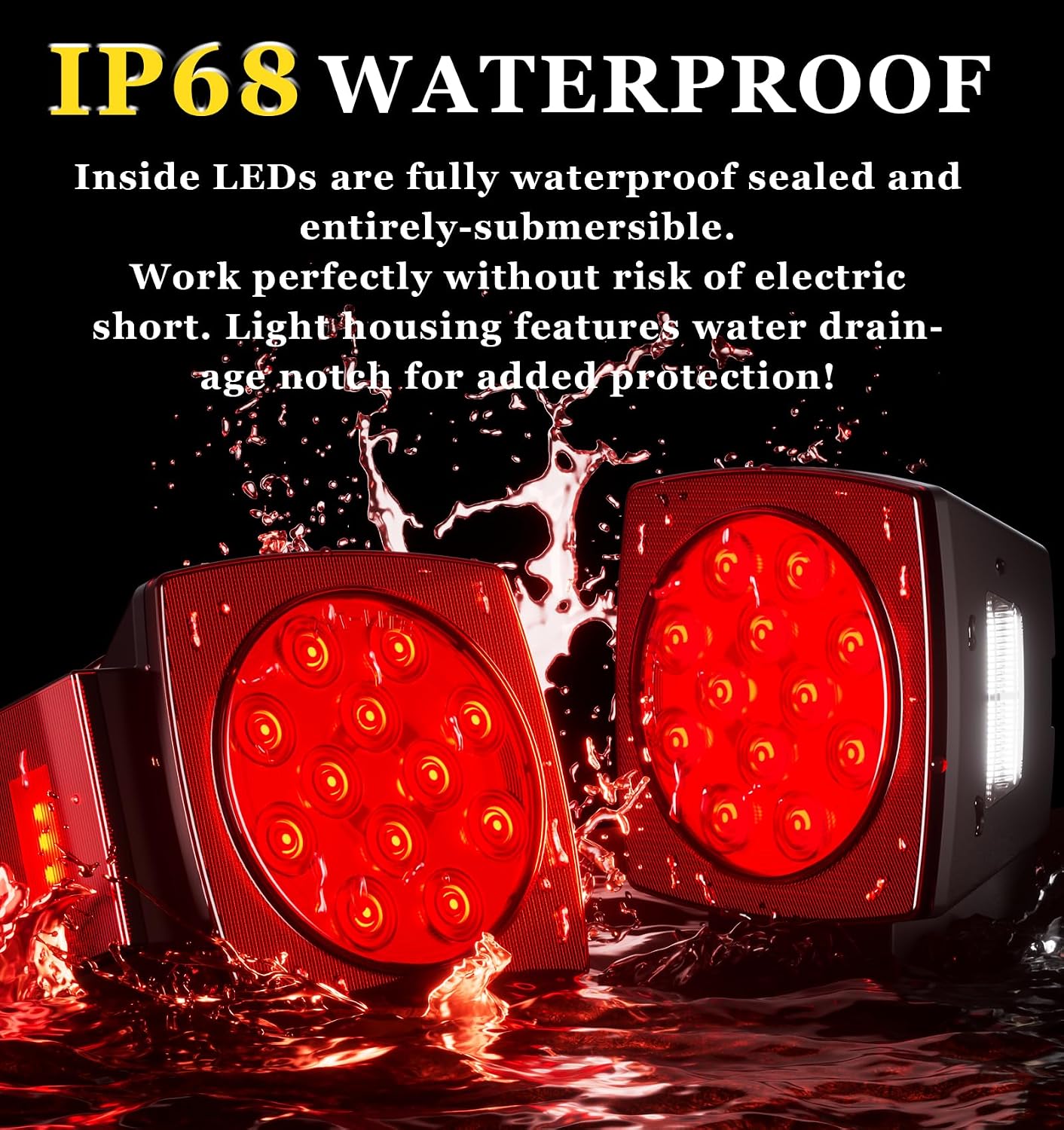

Inside electronics and circuit board are epoxy encased and fully sonically sealed and submersible, trailer light housing also has water drainage.

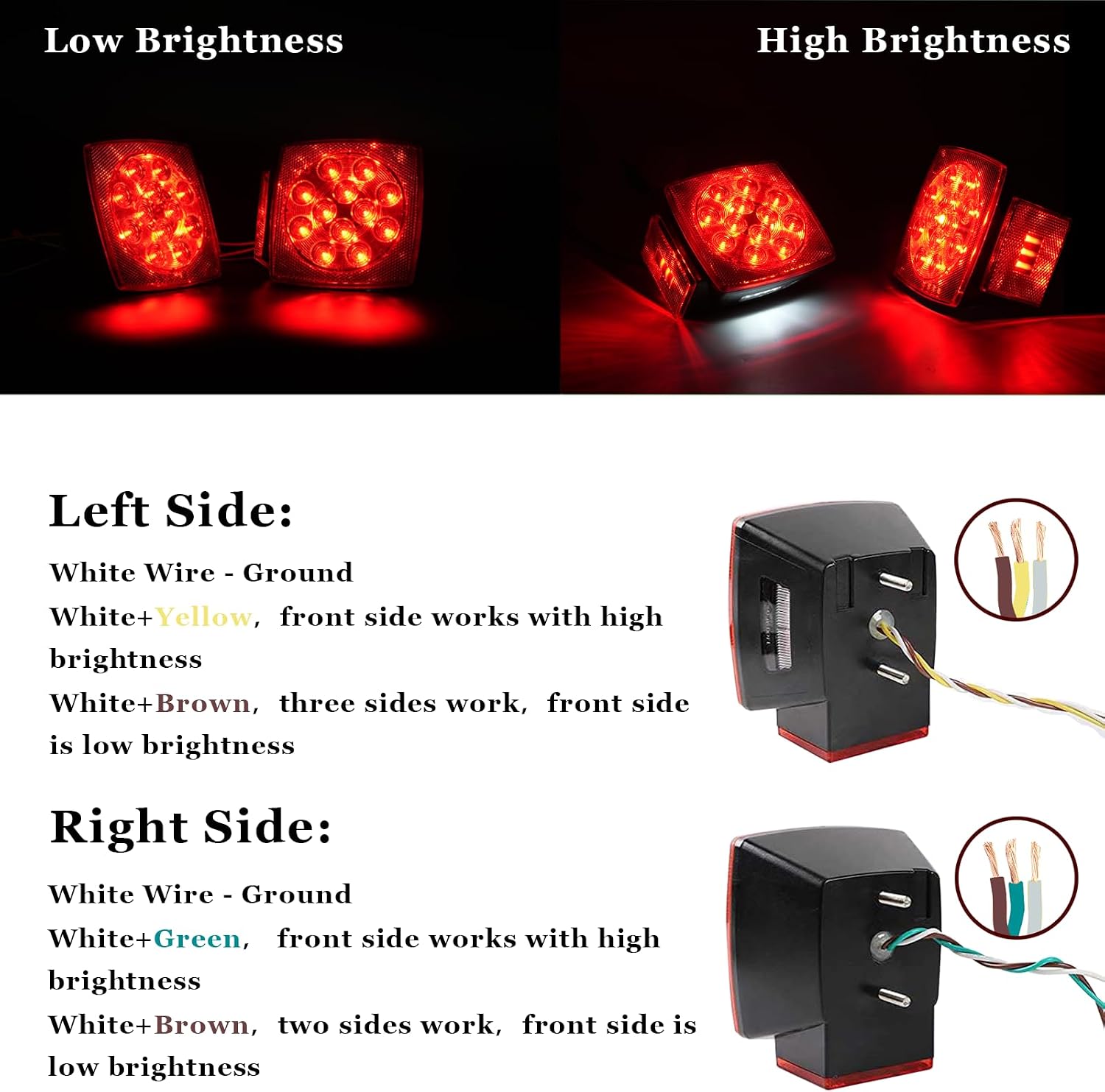

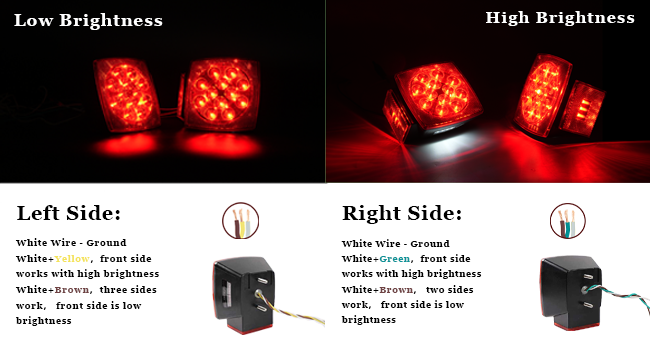

Left Side：White Wire - Ground, White + Yellow - Front side works with high brightness
White + Brown - Three sides works, front side is low brightness
Right Side: White Wire- Ground, White+ Green - Front side works with high brightness
White + Brown - Two sides works, front side is low brightness
Quality and more LEDs, and add on new design halo glow ring for better brightness and safety.

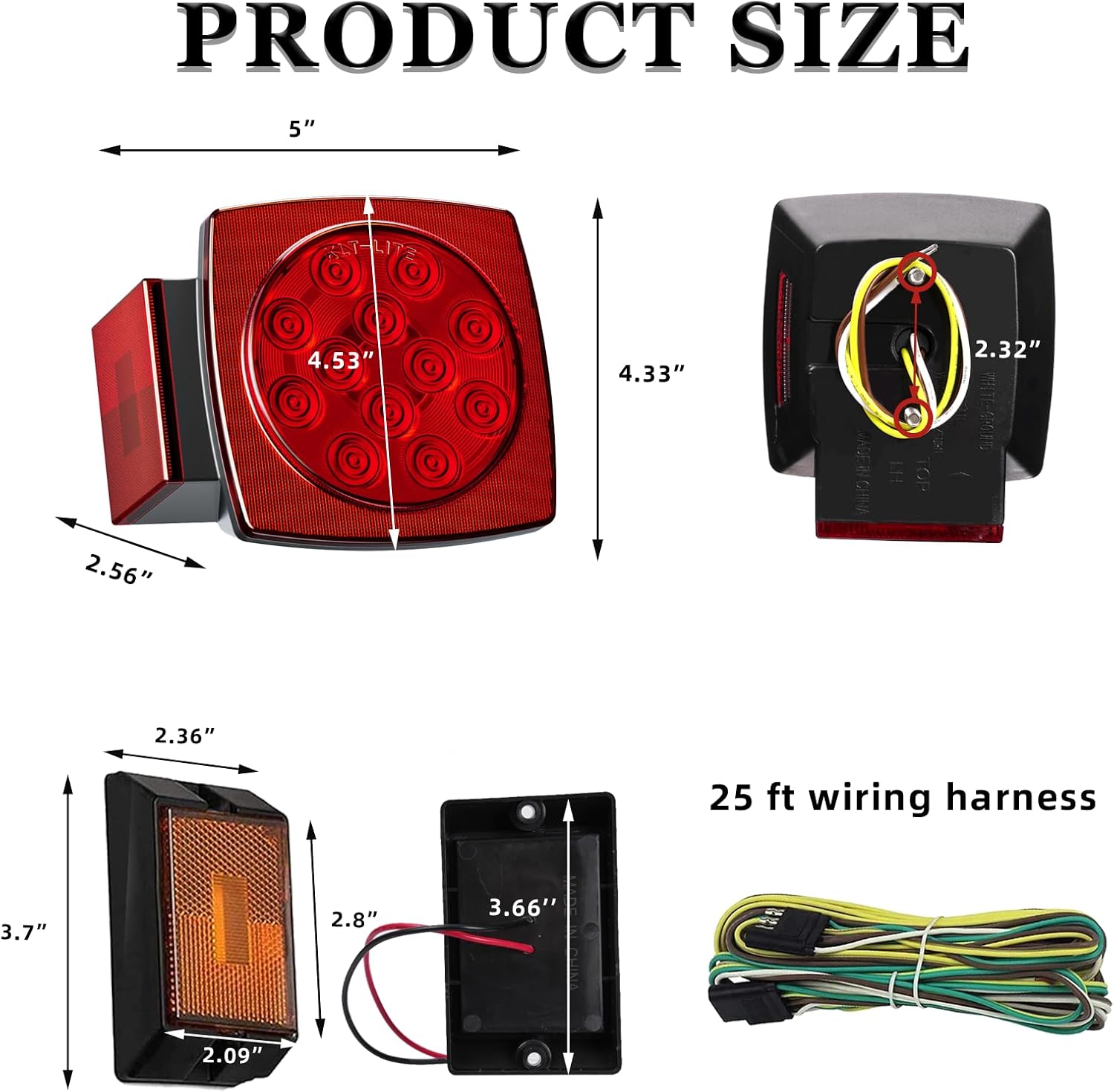

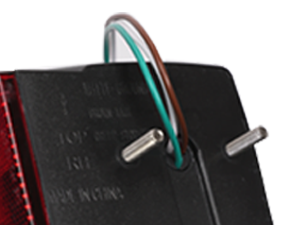

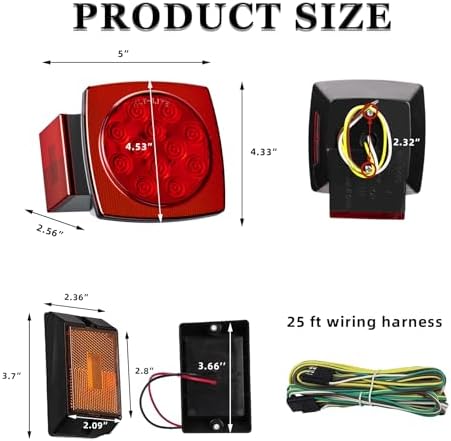

Stud mounting for easy, firm, and durable installation. Grooves designed for perfect surface mounting. Square light mounting distance: 2.32".

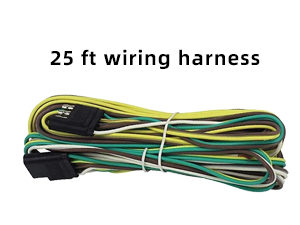

With 25ft length trailer wiring harness (21.65ft length wire harness and 3.93ft wire harness), the wiring becomes more convenient.

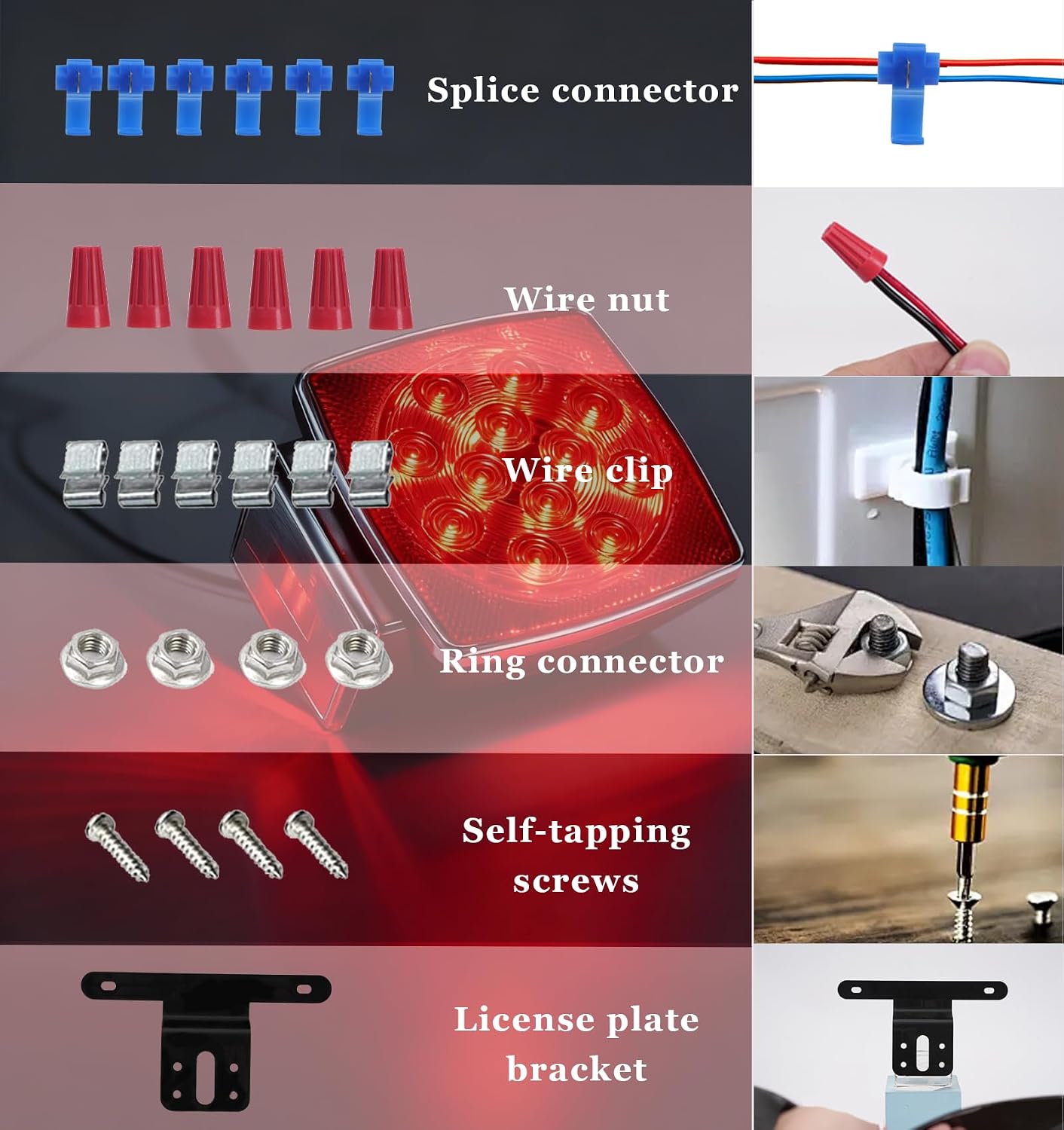

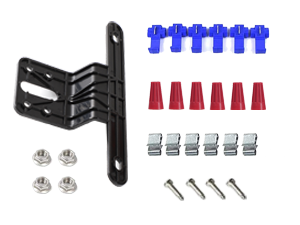

Come with all the accessories required for installation. Please refer to the attached instruction manual for detailed usage.
Perfect for 12V DC vehicles with max width of 80 inches. Fit most trailers, boats, trucks, RV, Marine, Pickups, camper, golf cart, tractors, bus, lorry, UTV, van, caravan, snowmobile utility trailers, etc.
Is installation difficult?
This trailer light kit easy to install, with good instructions provided. It typically takes about 20 minutes to hook up.
Can the lights be used in saltwater environments?
Yes, these trailer lights are designed to be waterproof and can be used in saltwater environments.
How long is the wire harness included in the kit?
This boat trailer lights is equipped with 25ft wiring harness with 4-flat plug (21.6 ft wire harness and 4ft wire harness)
