FITS 3-1/2 IN ROUTER MOTORS: Clamps Porter-Cable 690 and 890, DeWalt 610, 616 and 618, Bosch 1617 and 1618, Skil and Craftsman fixed-base motors with a 3-1/2 in body, no adapter needed. Makita 1101 and Hitachi M12VC fit with an optional printed collar.

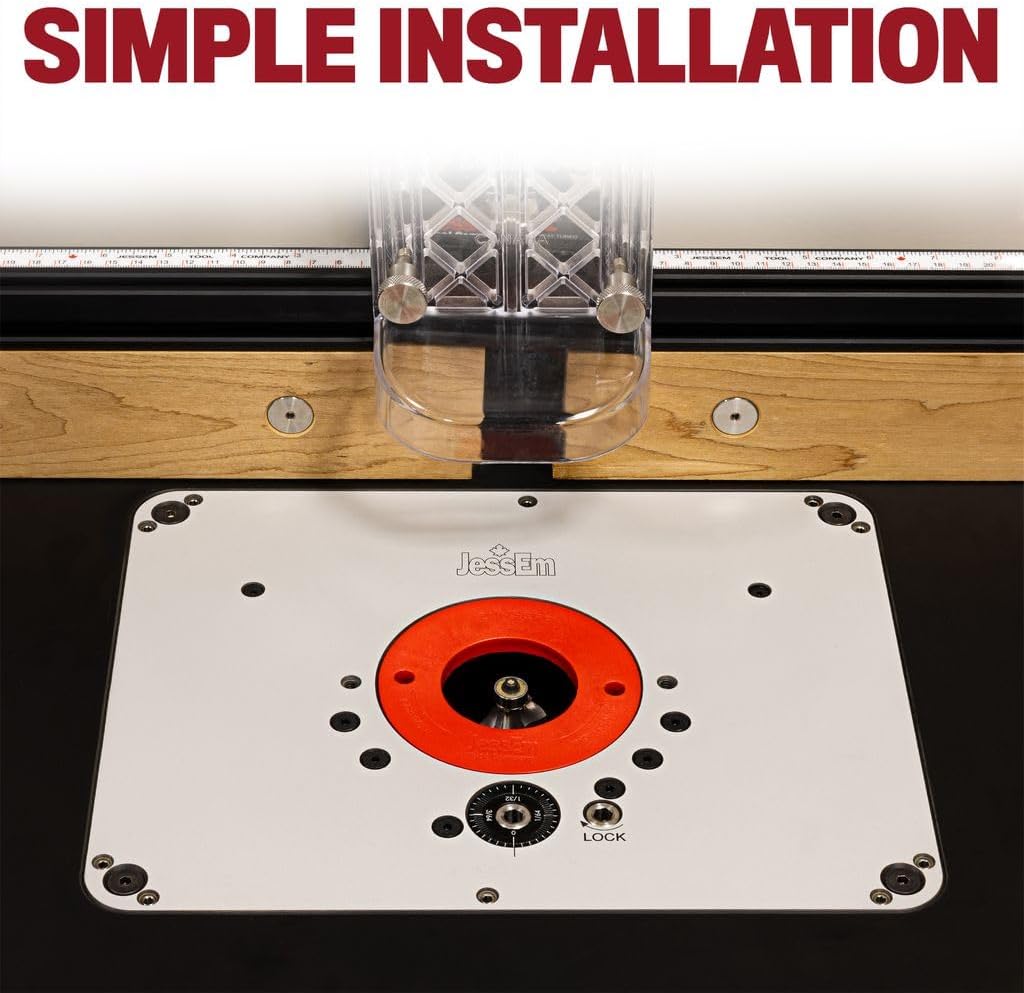

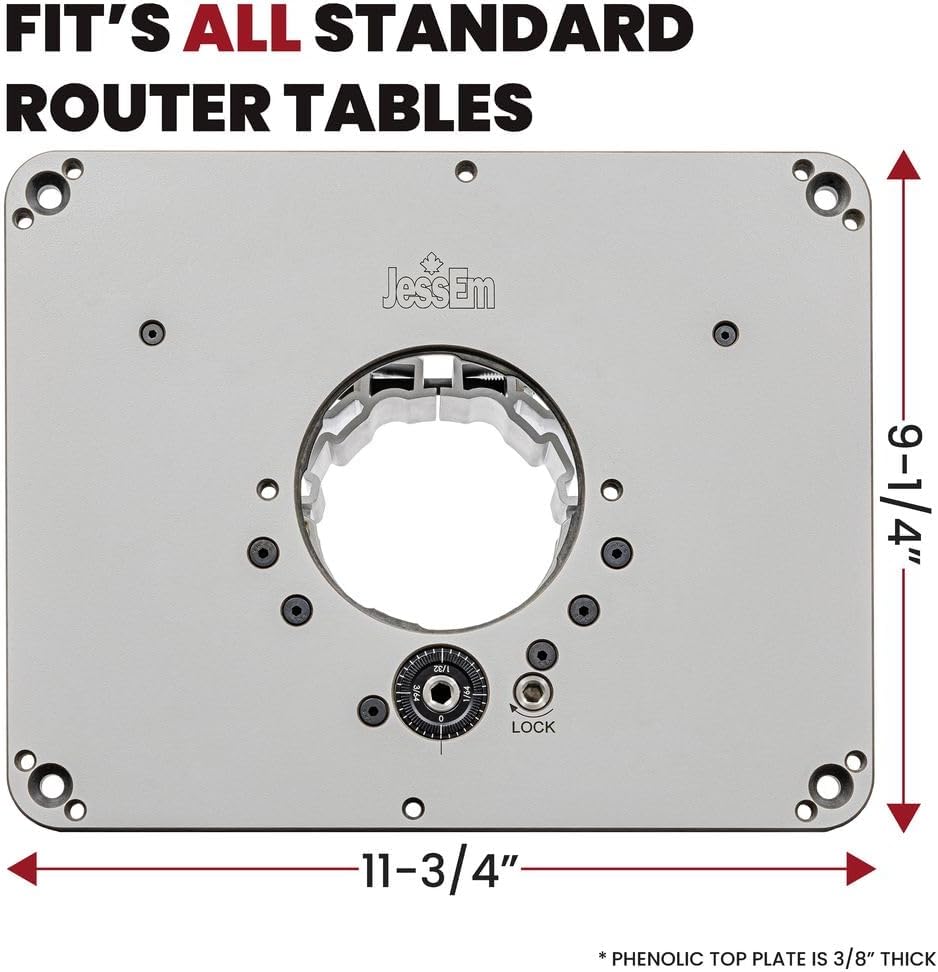

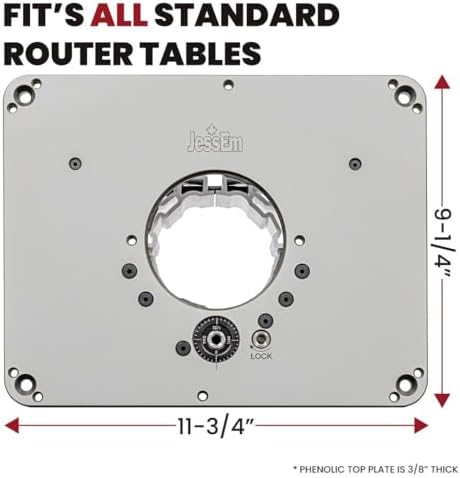

FITS STANDARD 9-1/4 x 11-3/4 TABLE OPENINGS: The 3/8 in insert plate drops into JessEm, Kreg and shop-built router tables built around the standard opening, so you can upgrade the router table you already own instead of building a new one.

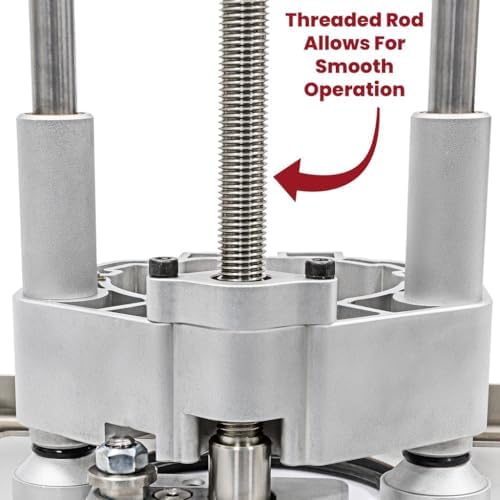

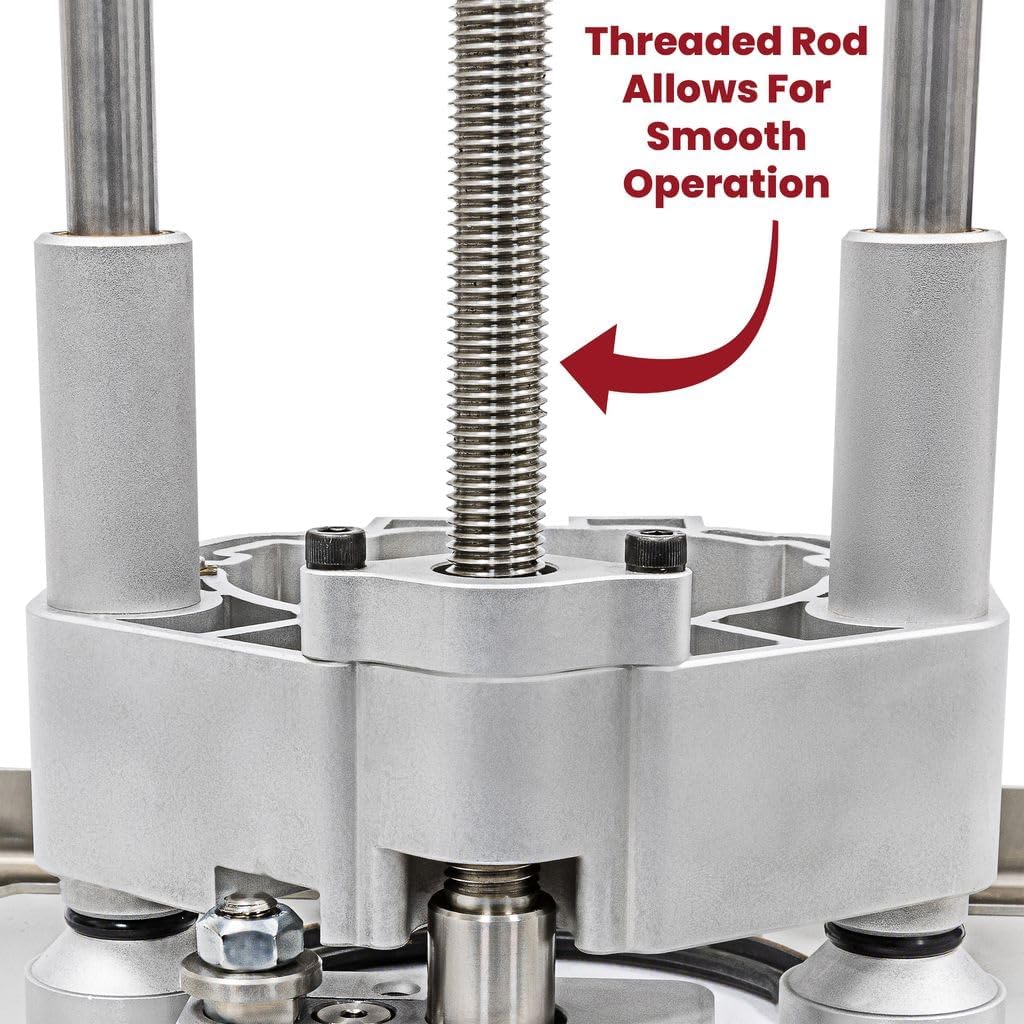

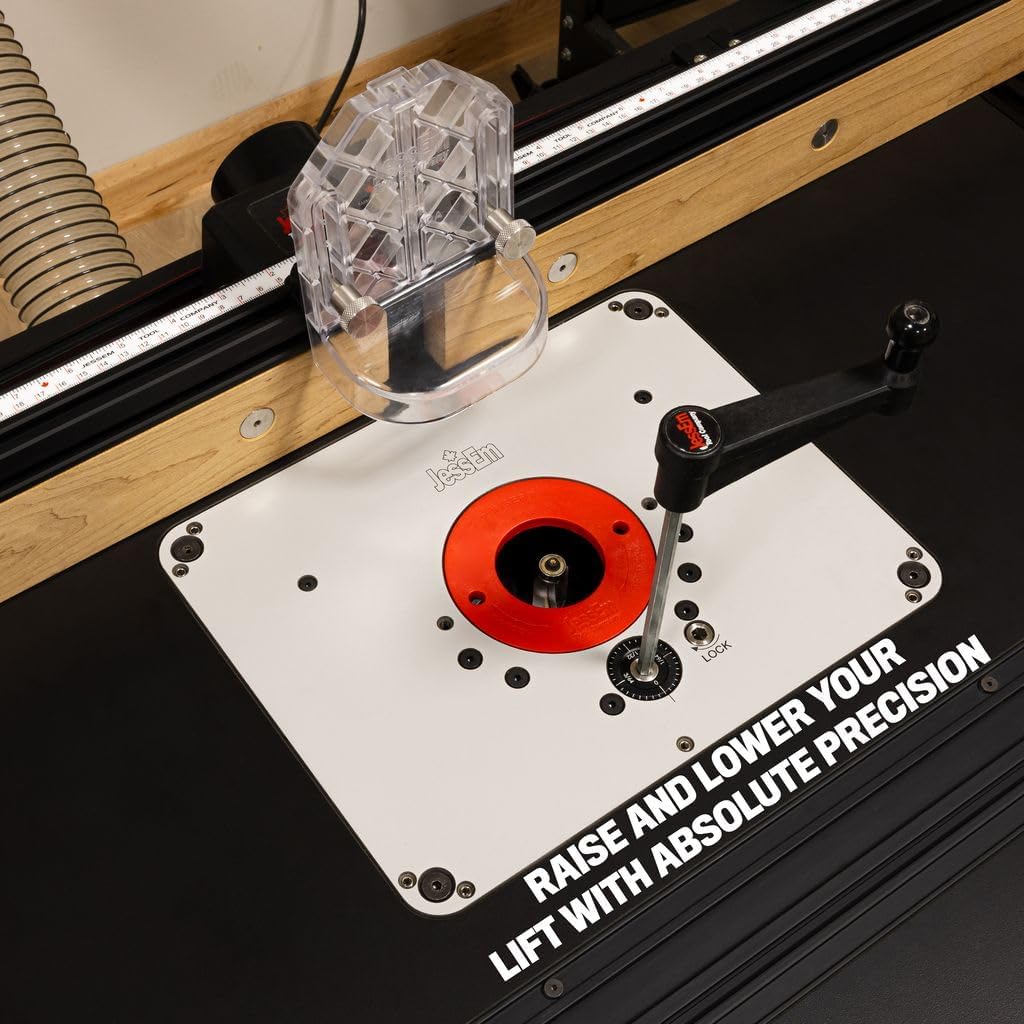

SET BIT HEIGHT FROM ABOVE THE TABLE: A double-sealed bearing spindle raises and lowers the motor smoothly with the included handle, so you can dial in depth for dados, rabbets and profiles and repeat the same cut from part one to part one hundred.

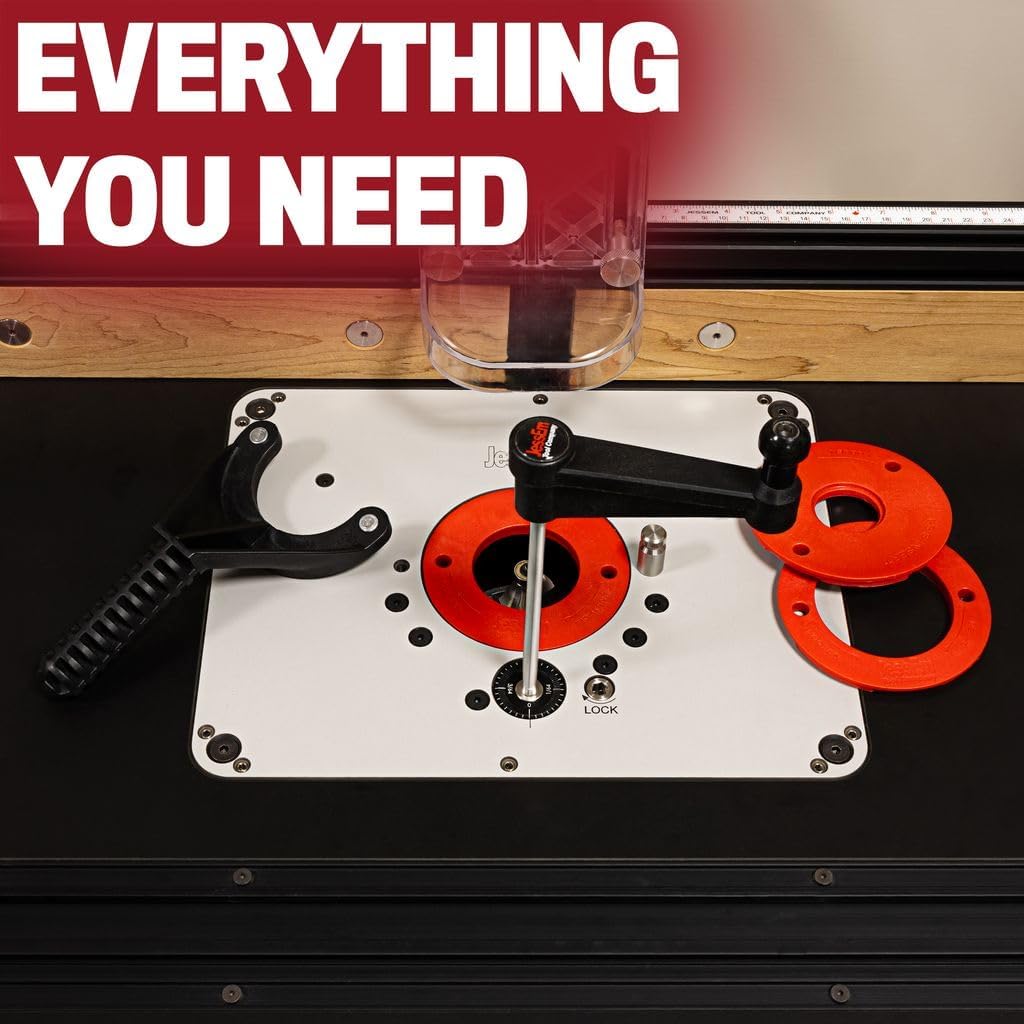

CHANGE BITS WITHOUT CRAWLING UNDER THE TABLE: Raise the collet through the plate and swap router bits from above. Three twist-out insert rings (1-3/8, 2 and 2-1/2 in) close the gap around large and small bits for better workpiece support.

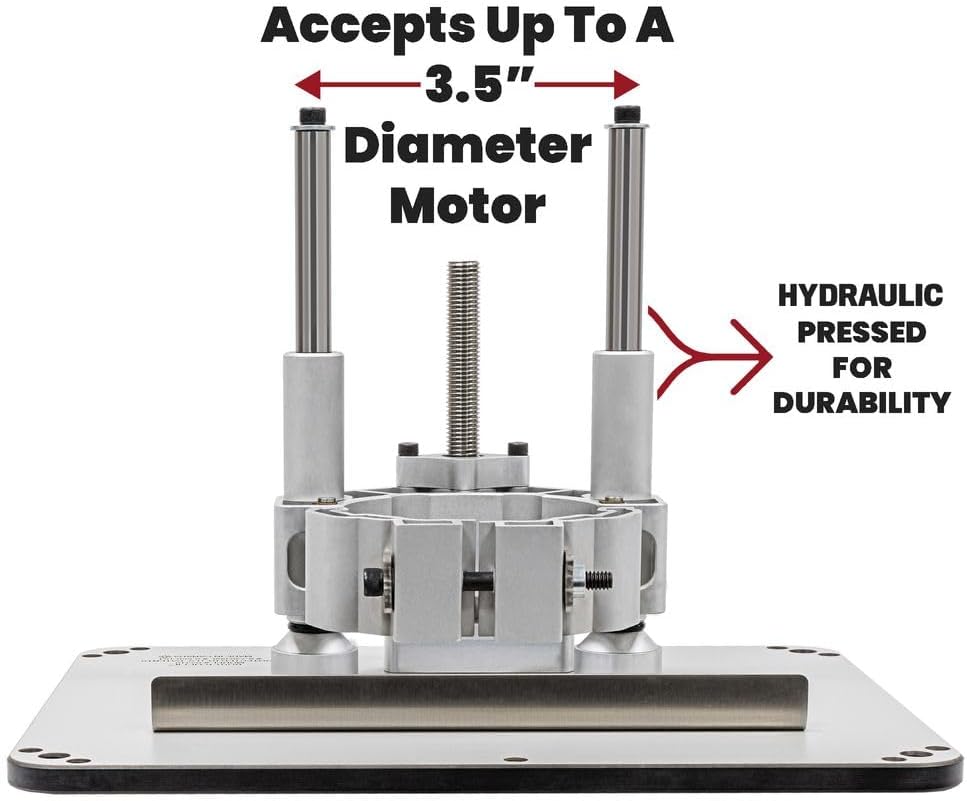

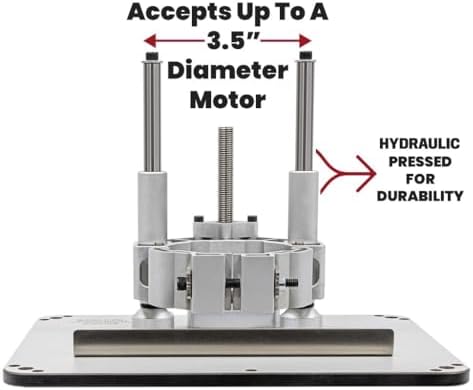

BUILT TO HANDLE A FULL-SIZE MOTOR: Shafts are hydraulically pressed into oversized mounts and bolted to the top plate so the lift stays rigid under load. CNC machined in Canada. Includes lift handle, 3 insert rings, ring wrench and mounting hardware.
Power Source
Hand Powered
Base Type
Fixed
Material Type
Aluminum
Color
Stainless Steel
Item Dimensions W x H
9.25"W x 0.38"H
Model Number
02318
UPC
842585001108
Included Components

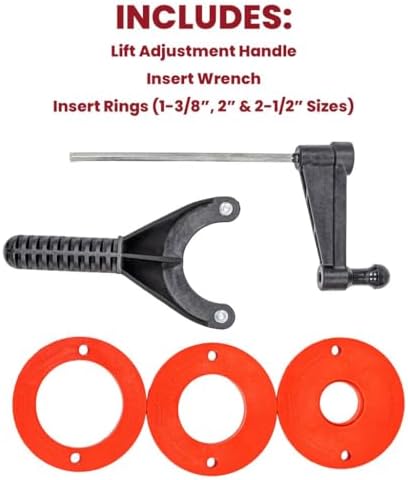

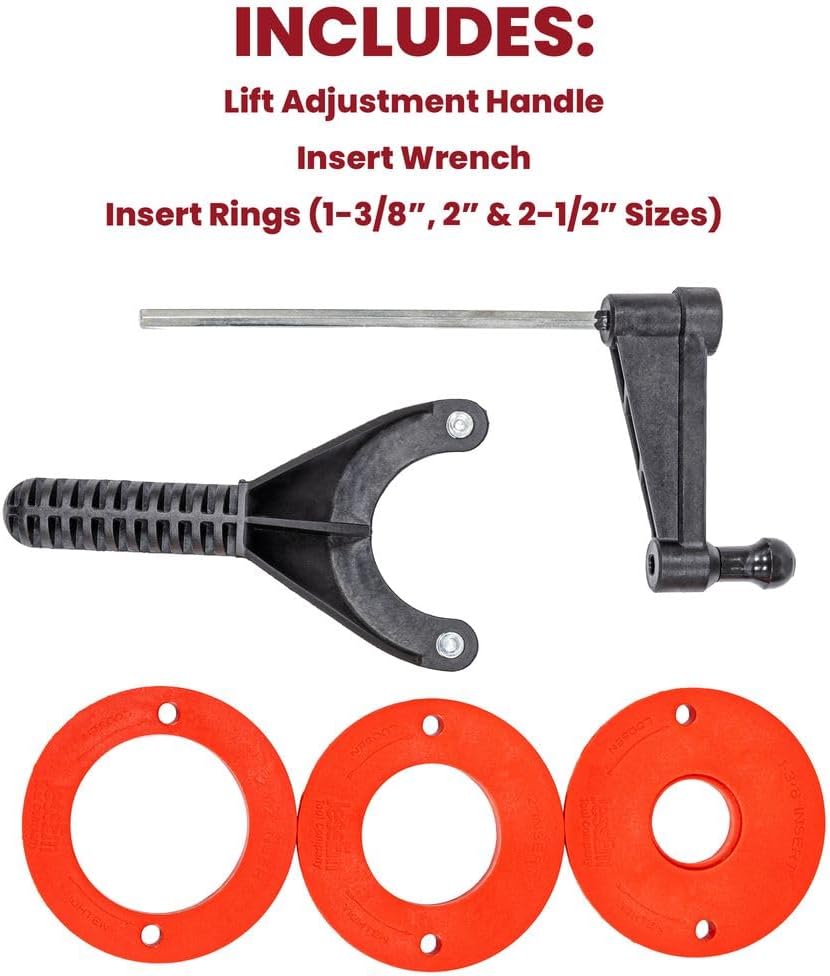

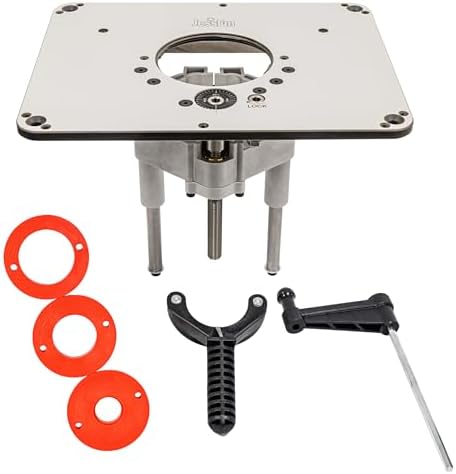

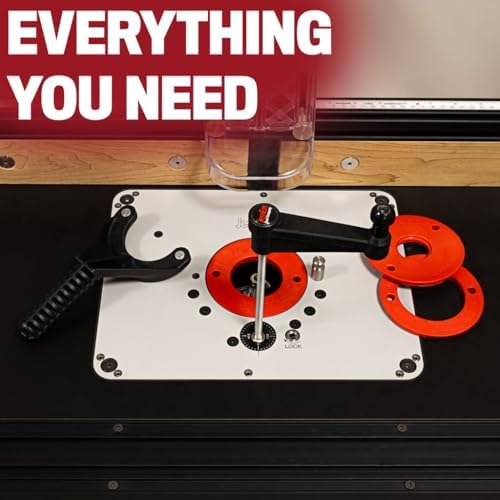

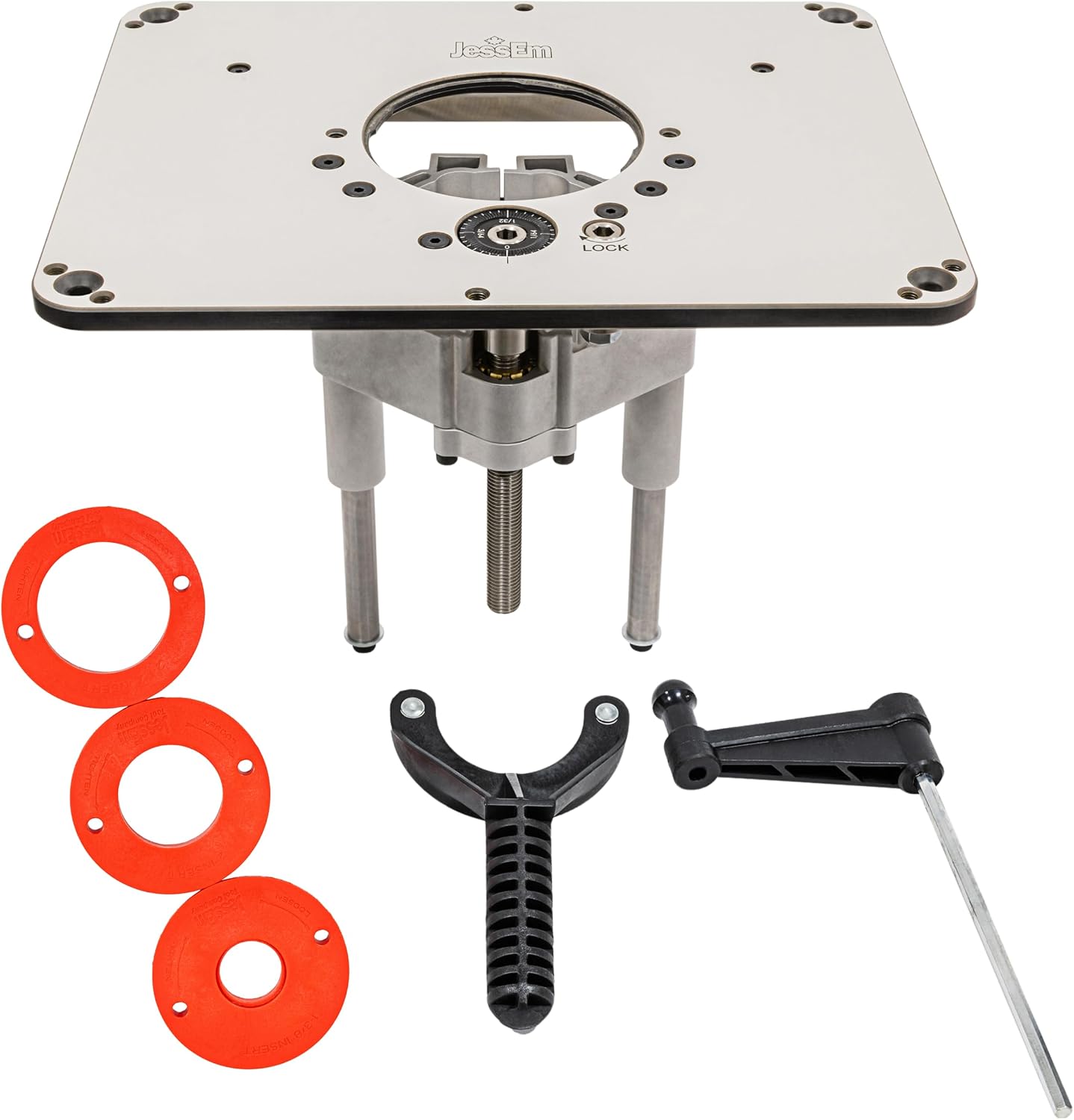

Rout-R-Lift 3.5XT Router Lift with Top Plate, Insert Rings (1-3/8 in, 2 in, 2-1/2 in), Insert Ring Wrench, Lift Adjustment Handle, Mounting Hardware
