Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use

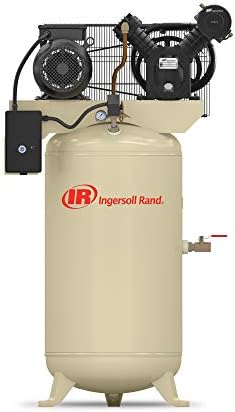

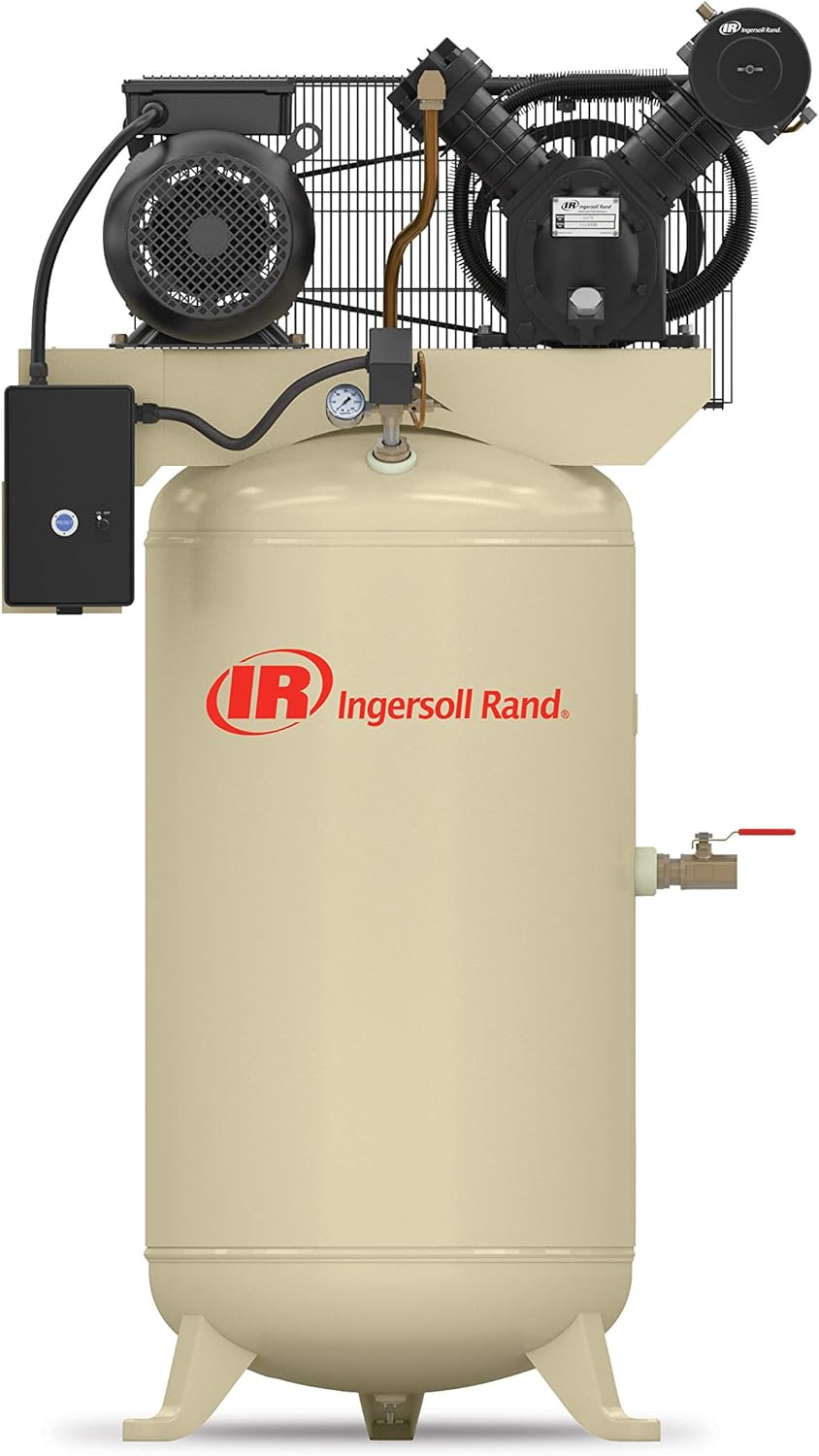

Maximum Power and Flexibility: 100% continuous duty, 7.5 hp two-stage air compressor, 175 psig maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications
Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants
Two-Year Warranty Available: Purchase an All-Season Select lubricant start-up kit, and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty
Voltage
230 volts_of_alternating_current
Recommended Uses For Product
Industrial Applications
Power Source
Corded Electric
Noise
85 db
Additional Features
Heavy Duty, Two-Stage
Maximum Power
7.5 hp
Capacity
80 gallons
Maximum Current
32 A
Air Flow Capacity
24 cfm
Maximum Horsepower
7.5 hp
Compatible Hose Diameter
0.75 inches
Tank Volume
80 gallons
Maximum Pressure
175 psi
Item Weight
611 pounds
Item Dimensions L x W x H
38"L x 24"W x 70"H
Material Type
Cast Iron
Included Components
Ingersoll Rand - Air Compressor 7.5Hp 2 Stage (2475N7.5) 230/1/60
