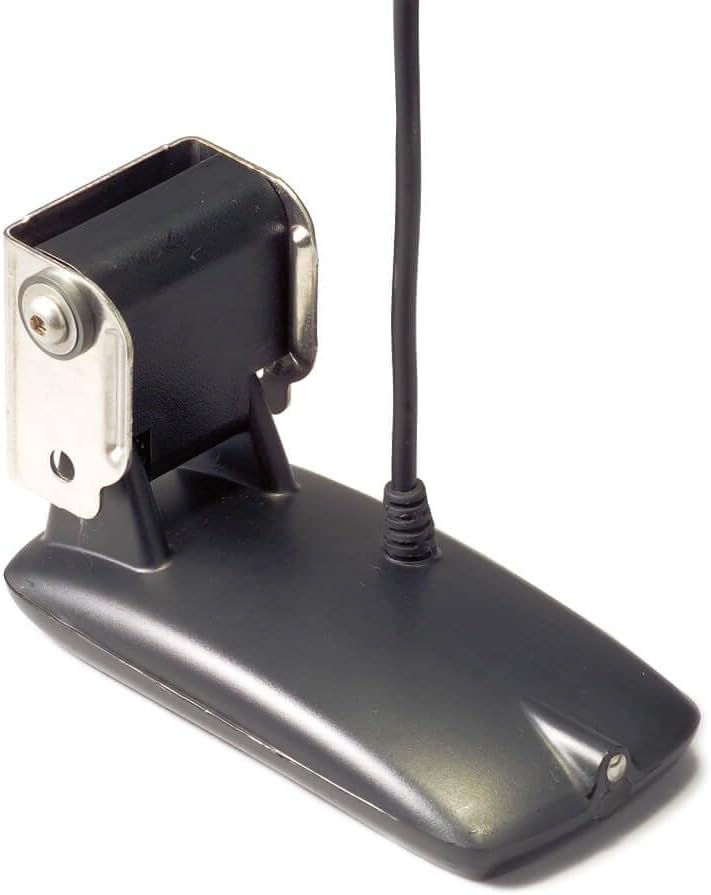

Humminbird Transom Transducer – XHS 9 HDSI 180 T

$41.80 USD

Shipping fees will be calculated at checkout.

Transom-Mount Transducer: Provides High-Definition Side Imaging and DualBeam PLUS sonar for compatible Humminbird models
Side Imaging Sonar: Scan a full 180-degrees for a detailed, side-to-side perspective on structure, cover, and contour changes
DualBeam PLUS Sonar: Combines two beams for great detail and a wide coverage area, helping you find fish and structure
Built-In Temperature Sensor: Monitor water surface temperature on your compatible Humminbird fish finder
Fish Finder Compatibility: Works with select HELIX Side Imaging models (except HELIX 7 CHIRP MSI GPS G3, G3N, G4, G4N) and legacy Side Imaging models (1199ci HD SI, 999ci HD SI, 899ci HD SI, 1198c HD SI, 998c HD SI, 998c SI, 898c HD SI, 898c SI)
New design is more secure, less prone to kick up, with improved running angle
Includes 20-foot cable, necessary mounting hardware, and built-in temperature sensor

Model Name	Transom Mount Transducer
Unit Count	1 Ounce
UPC	082324507496
Included Components	Transom mount High Definition transducer (includes built-in Temperature) with 20 ft cable length; Mounting hardware; Installation instructions
Item Type Name	Fish Finder Transducer Accessory
Manufacturer	Humminbird
Model Number	710201-1
Manufacturer Part Number	710201-1
Warranty Description	1 year Manufacturer
Power Source	Battery Powered
Display	LCD
Mounting Type	Transom Mount
Item Weight	14.08 ounces
Power Source Type	Battery Powered

WHATS ON YOUR SCREEN

The key to making side imaging work for you on the water is learning how to read and interpret the returns with confidence.

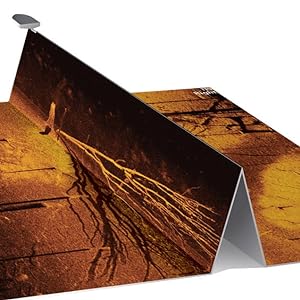

UNDERSTANDING SIDE IMAGING

The dark, center portion of the screen represents the column of water below your boat. The lighter portions on the far left and right of the screen show you the bottom below and to the left and right of your boat. Keep in mind, Side Imaging is a record of the water and terrain your boat has already passed over.

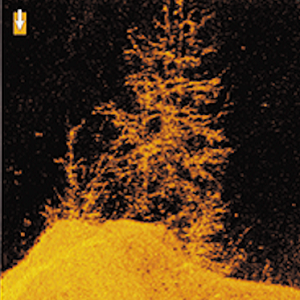

UNDERSTANDING DOWN IMAGING

Like Side Imaging, Humminbird Down Imaging uses a razor thin, high-frequency beam to create picture-like images of structure, vegetation and fish. But unlike Side Imaging, Down Imaging returns are oriented identically to traditional, down-looking sonar returns - with the most-recent information appearing on the right side of the screen.

WHAT STYLE OF TRANSDUCER SHOULD I BUY?

TRANSOM TRANSDUCER

TRANSOM

Mount on the transom (back of the boat). The impact release feature pivots transducer out of the way if struck by an object.

TROLLING MOTOR TRANSDUCER

TROLLING MOTOR

Mount on most trolling motors. Low-profile shape reduces drag and hang-ups on weeds.

IN-HULL TRANSDUCER

IN-HULL

Mount to inside of most single-layer fiberglass hulls using slow-cure epoxy.

PORTABLE TRANSDUCER

PORTABLE

Mount on transom or side of most-smooth surface wood, aluminum or fiberglass boats. Heavy-duty suction cup holds transducer at trolling speeds only.

BRONZE TRANSDUCER

BRONZE

Ideal for large boats and boats with in-board motors. Not recommended for trailered boats. Professional installation recommended.

PLASTIC TRANSDUCER

PLASTIC

Economic alternative to bronze transducer. Mounts on thinner hulls such as aluminum. Not recommended for trailered boats. Professional installation recommended.

ICE TRANSDUCER

ICE

This Dual Beam transducer can be used as replacement or to convert any portable unit into an ice-ready fish finder.
