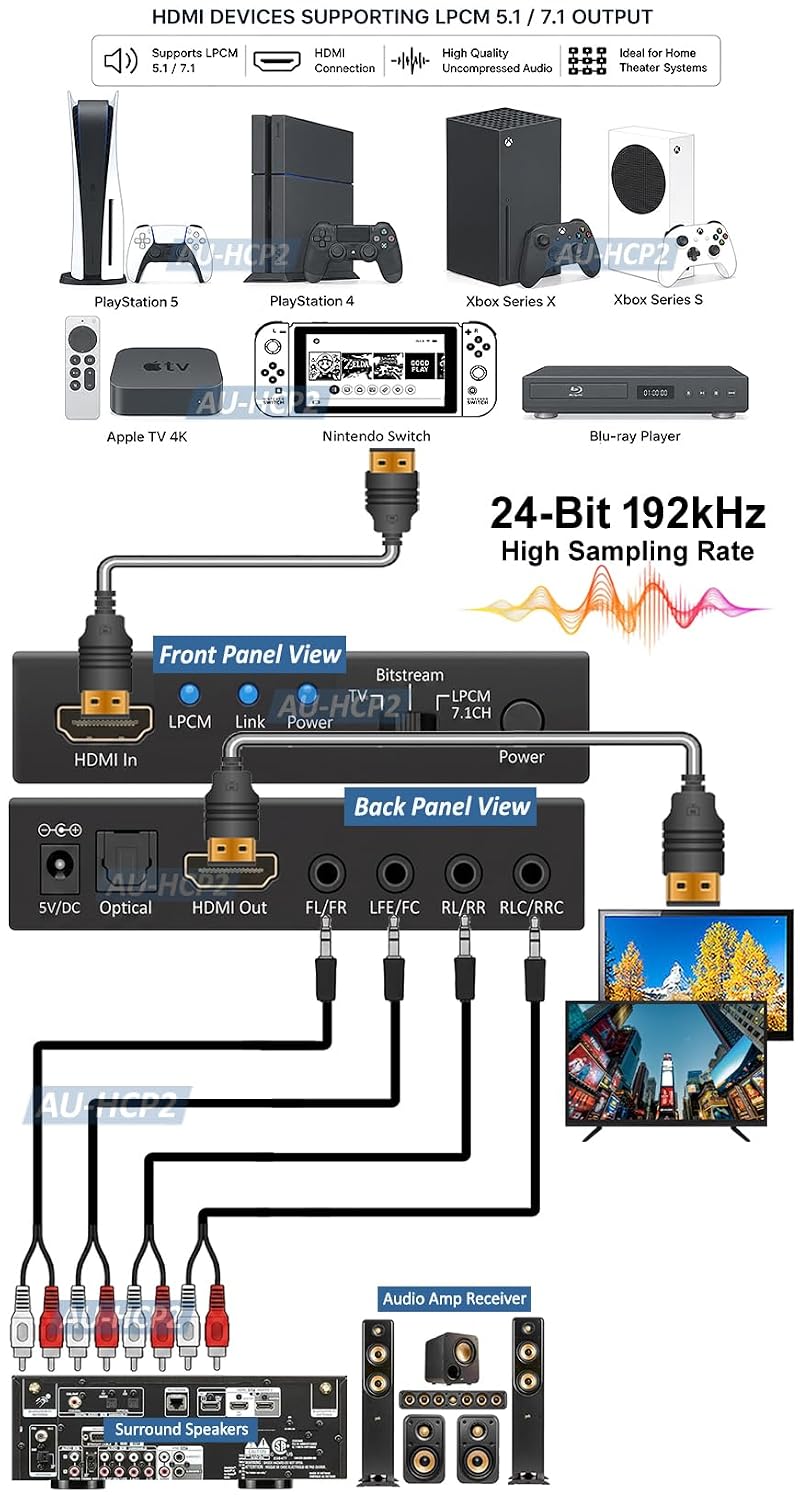

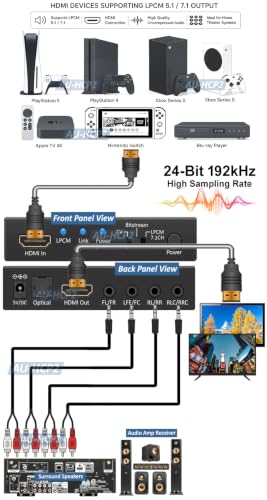

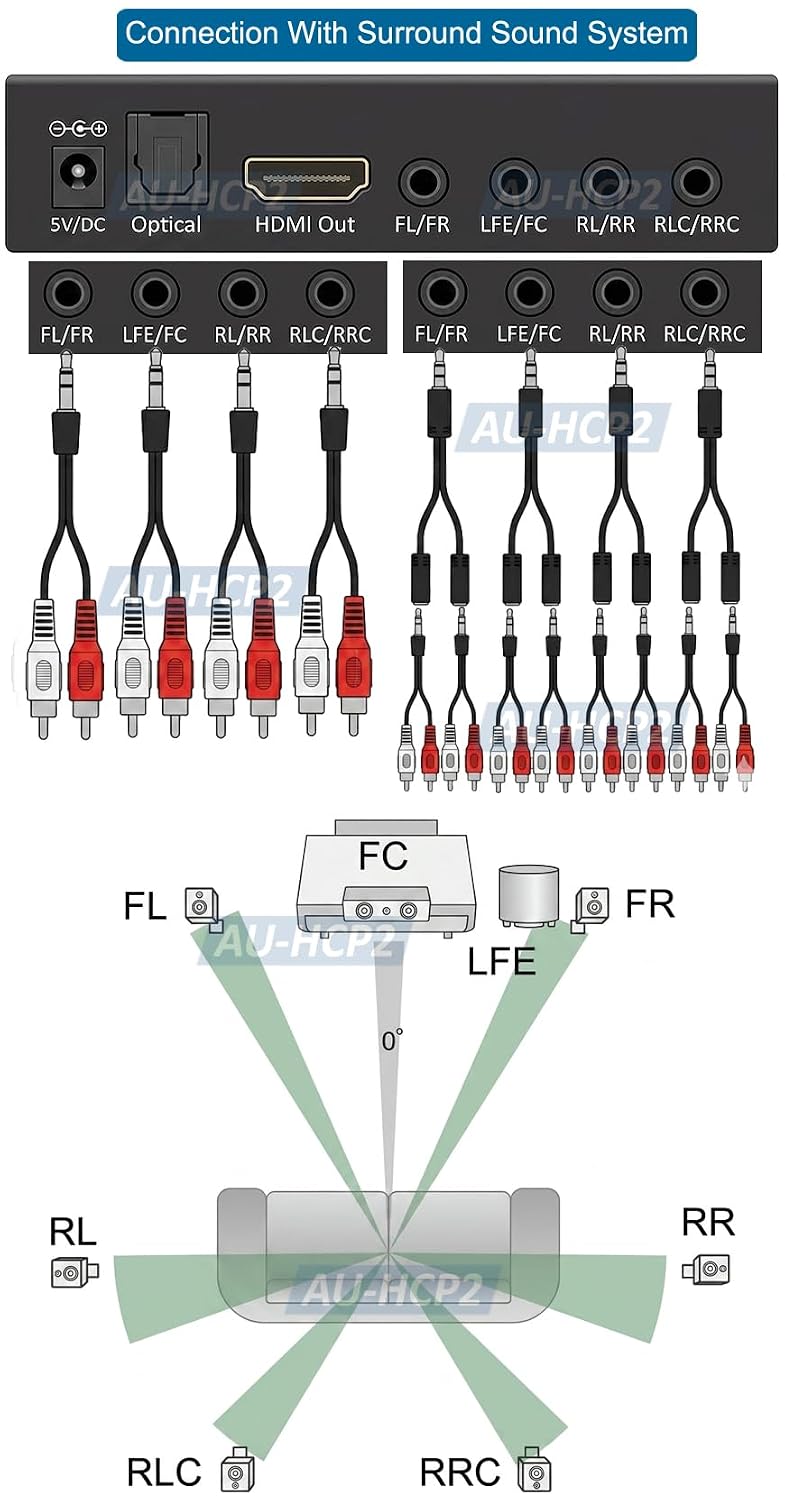

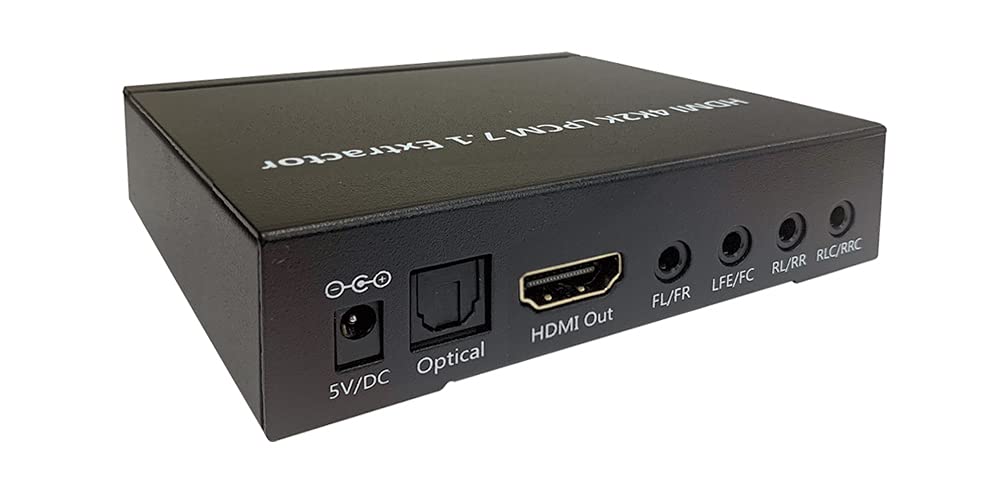

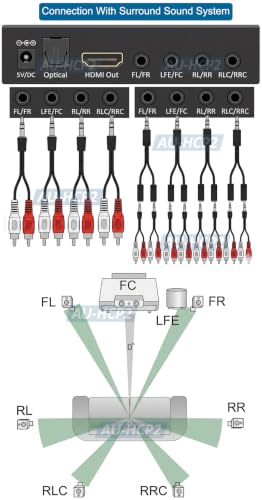

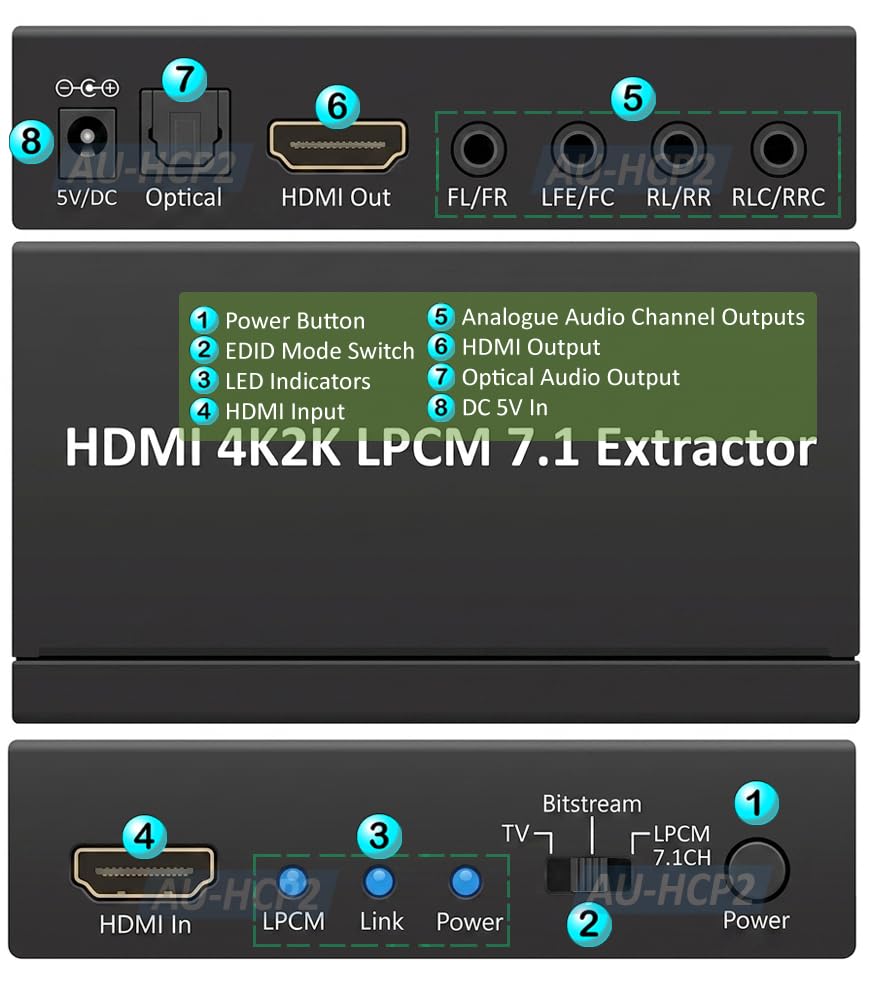

Great digital to analog audio decoder solution for transcoding uncompressed digital LPCM 7.1 or 5.1 channel sound into analog surround format for existing analog amplifier or receiver. Extract compressed digital Bitstream audio such as Dolby Digital, AC3 and DTS 5.1/7.1 embedded in HDMI feed and output through its optical audio output for further decoding by downstream device. Supports uncompressed LPCM 7.1, LPCM 5.1 and LPCM 2 channel in analog output through the multi-channel 3.5 output ports.

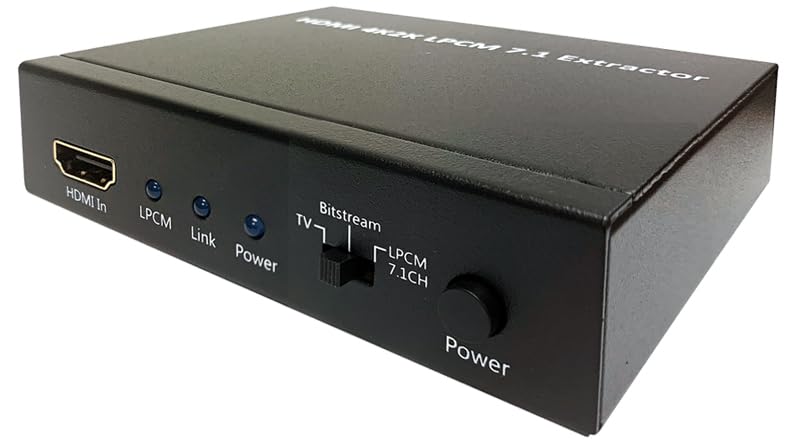

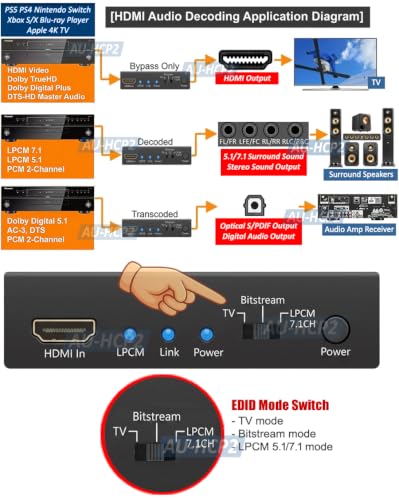

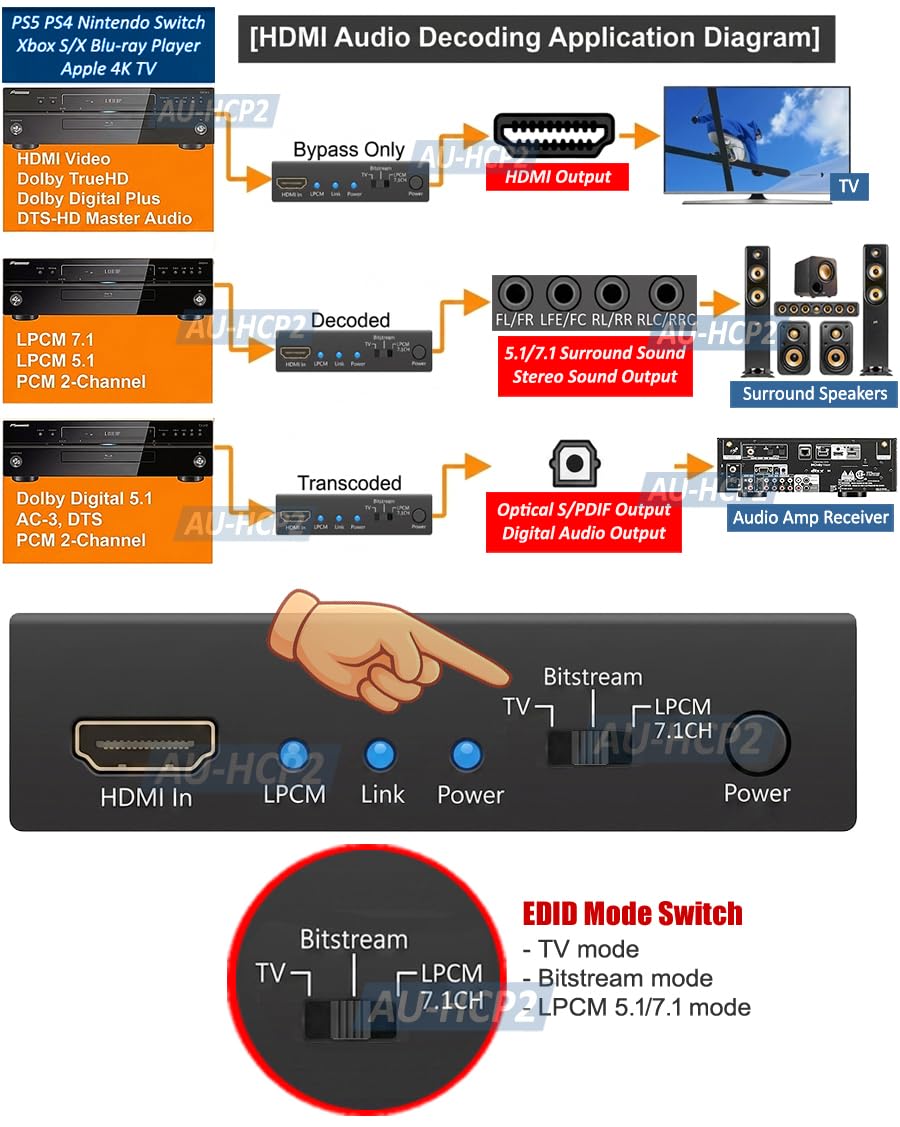

Supports compressed audio such as Dolby Digital, AC3, DTS 5.1 and LPCM 2CH through optical audio output. Easy EDID dip switch selection so users can easily control their HDMI source to send the desired digital audio format for decoding or conversion. No HDMI output with TV is required when receiving audio at the analog or optical audio output.
Supports HDMI audio sampling rates up to 192 kHz. Supports optical (S/PDIF) digital audio sampling rates up to 192 kHz. Supports all HDTV resolutions including 480p,576p,720p,1080i,1080p and 4Kx2K. Output resolution follows input.

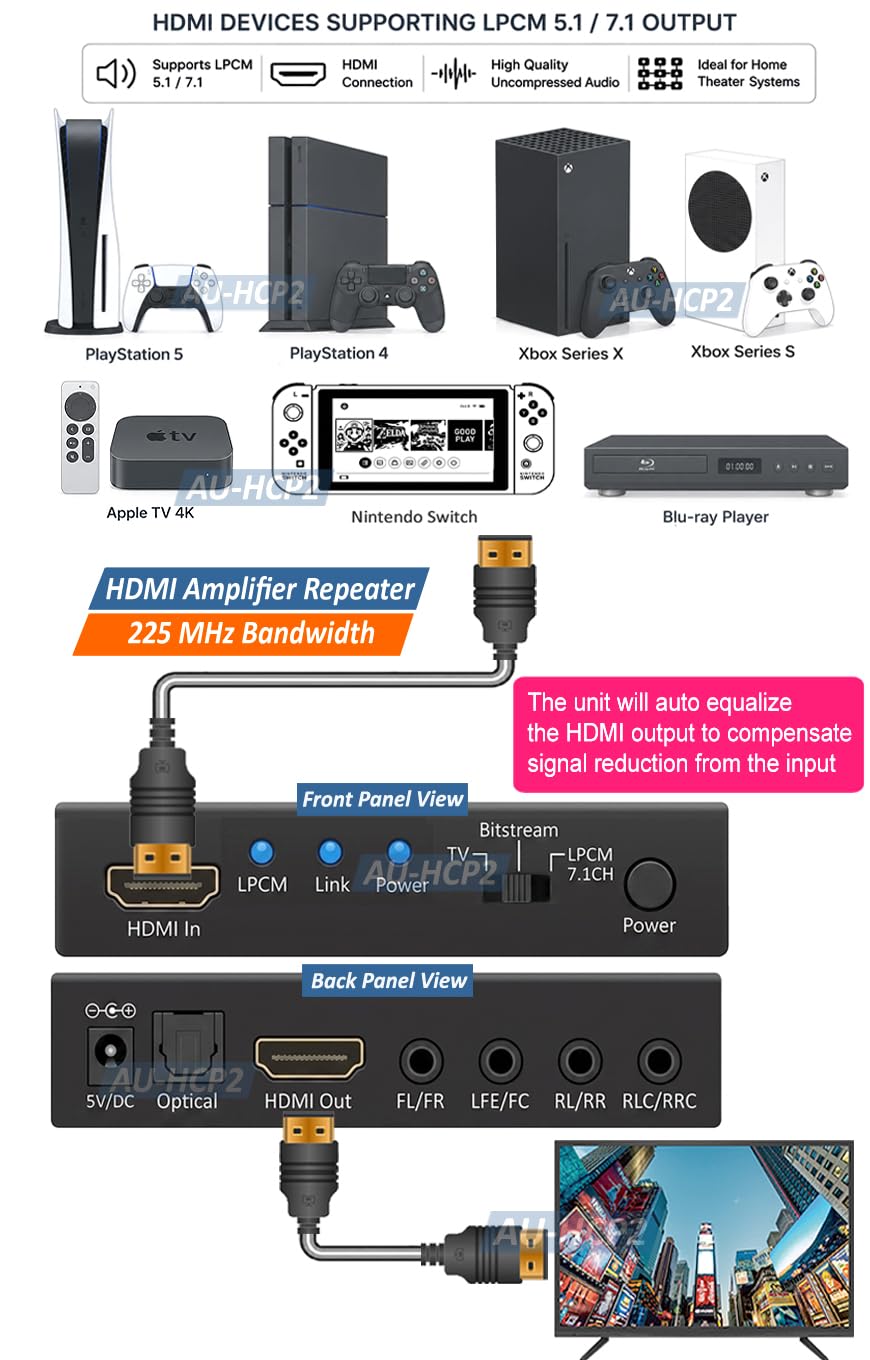

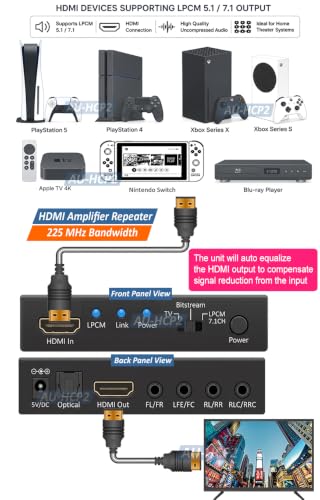

Fully compliant with HDMI 1.3, HDCP 1.2 and DVI 1.1 standards. Supports high-bit-rate (HBR) audio. Its built-in repeater function helps devices regenerate and equalize the HDMI/DVI output signal to be same with sharp detailed images with original audio sound quality.
