FITS 9–26 KW GENERAC AIR-COOLED STANDBY GENERATORS MADE IN 2008 OR LATER: Compatible with Honeywell and Centurion models manufactured by Generac where engine specs match; not designed for portable generators
THERMOSTAT ACTIVATES AT 40°F AND SHUTS OFF AT 55°F AUTOMATICALLY: Heater engages only when crankcase oil temperature drops into the cold-start danger zone, preventing thick oil from causing hard starts or engine wear

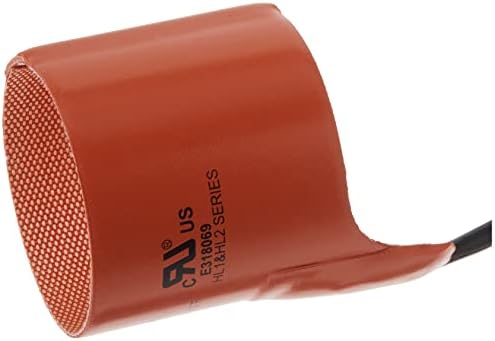

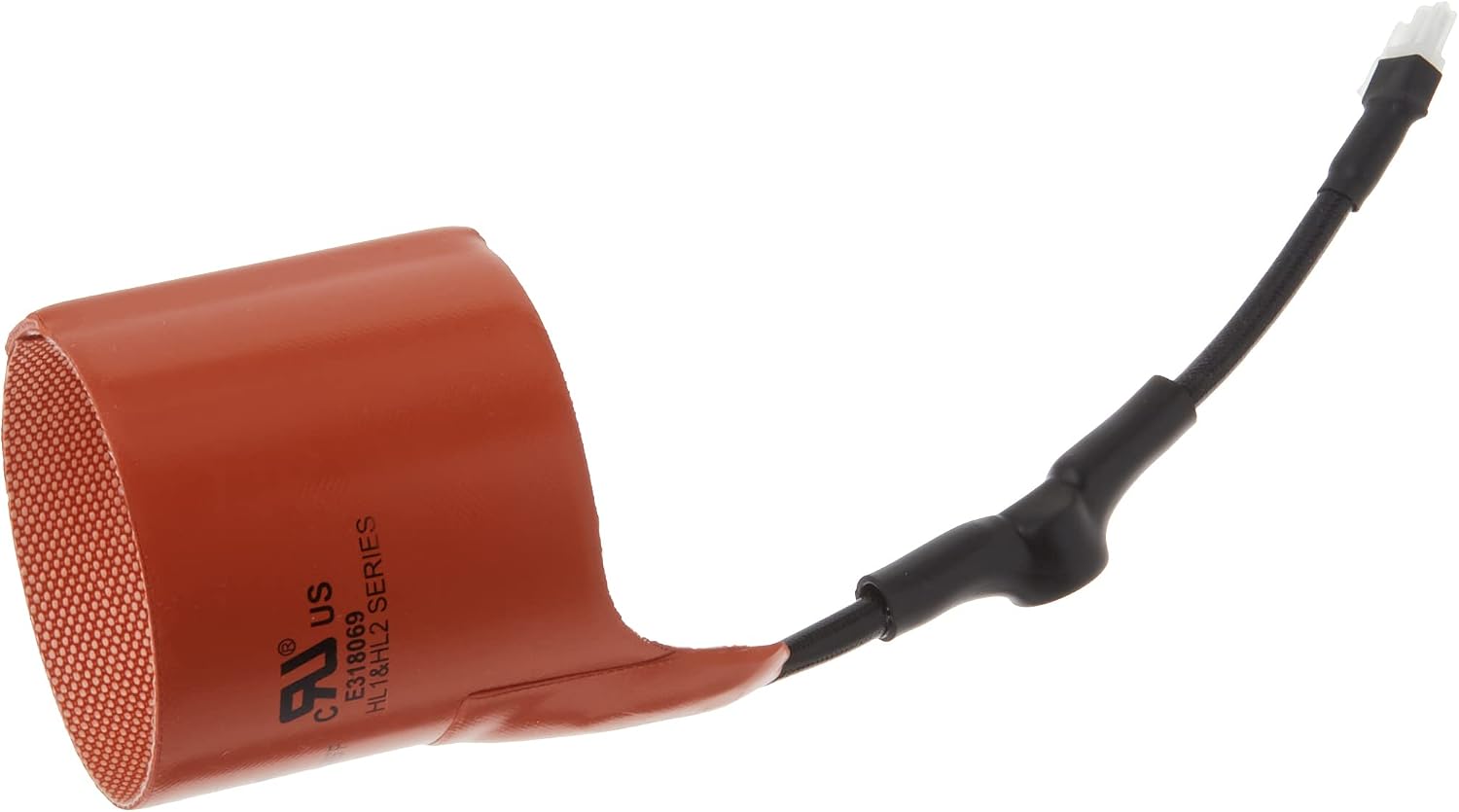

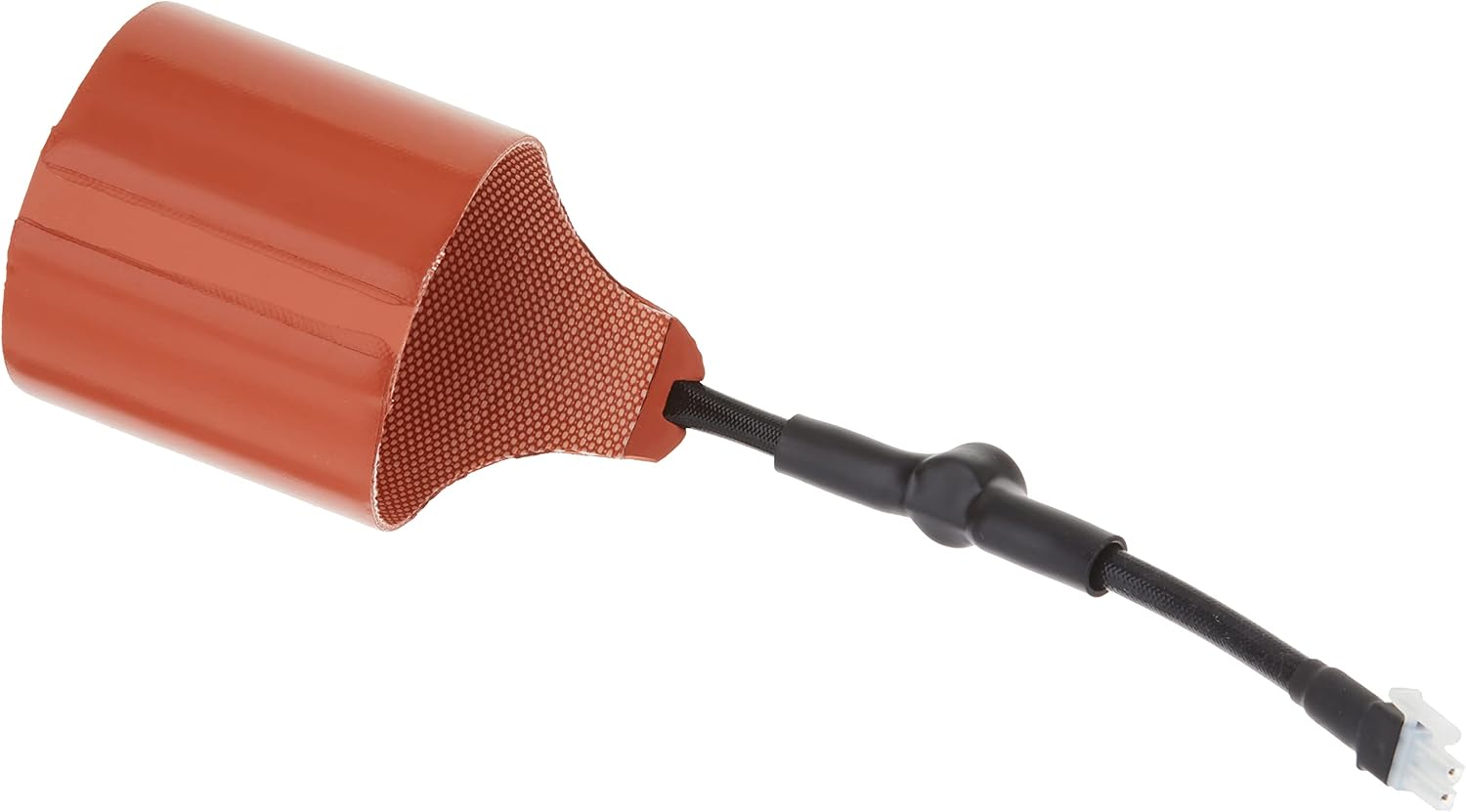

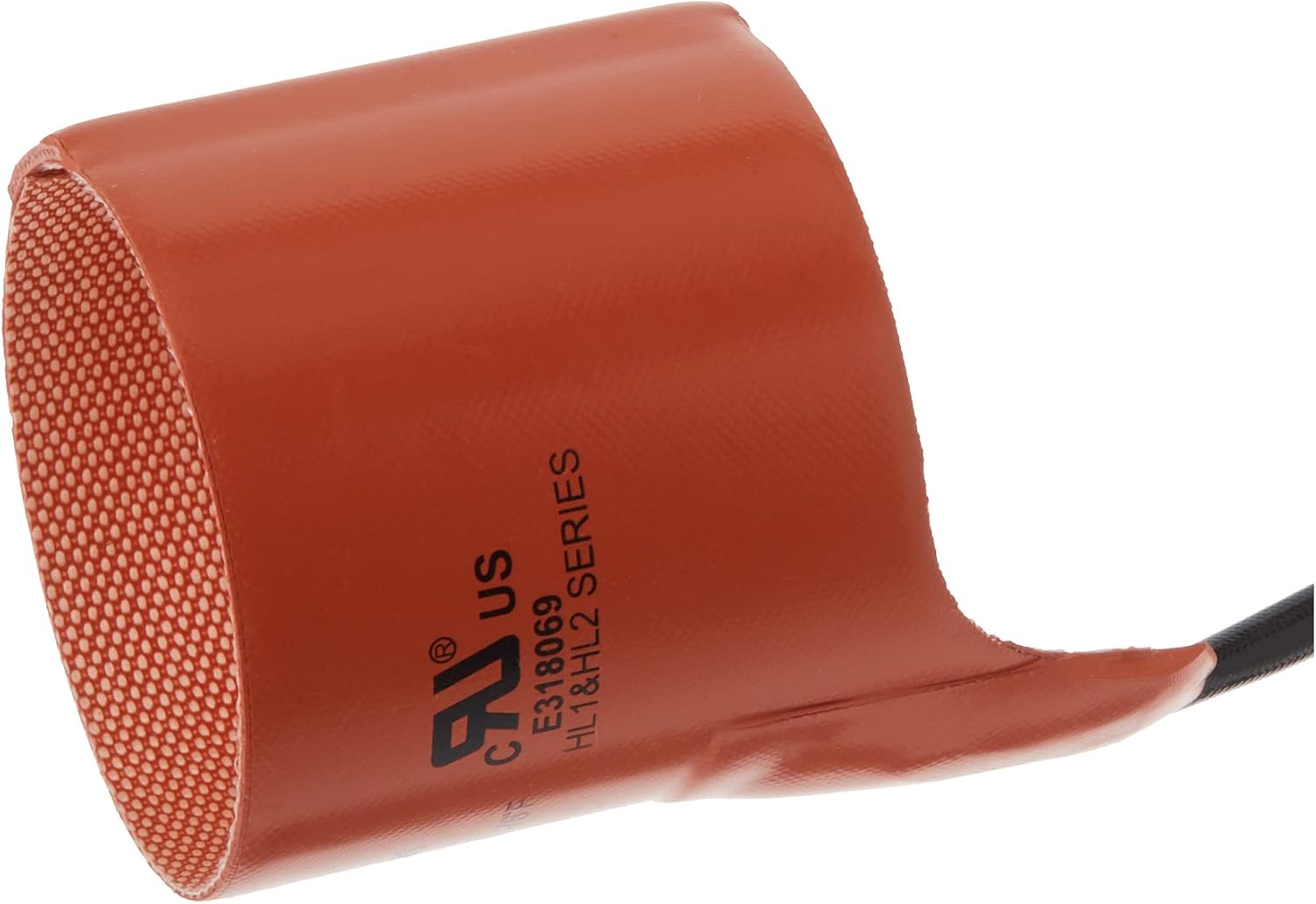

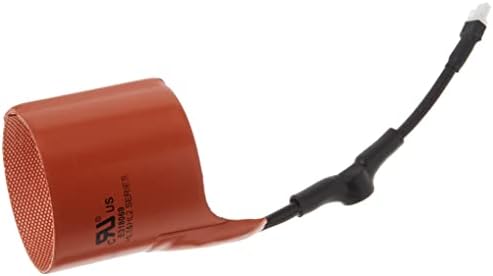

SLIPS DIRECTLY OVER THE OIL FILTER — NO OIL DRAIN REQUIRED TO INSTALL: The orange silicone heating loop slides over the existing oil filter in minutes without removing or draining oil, reducing installation time significantly
RUNS ON 240V UTILITY POWER AT JUST 50W AND 0.21A FROM THE N1/N2 CIRCUIT: Draws power directly from the utility line through the transfer switch control circuit — it does not draw from or drain the generator's starter battery
BUILT-IN THERMOSTAT RUNS AUTOMATICALLY YEAR-ROUND WITHOUT MANUAL UNPLUGGING: Heater self-regulates based on ambient temperature and only operates on utility power — it is inactive while the generator is running during an outage
THIS KIT HEATS THE OIL FILTER ONLY — BATTERY WARMER (MODEL 7101) IS SOLD SEPARATELY: The 7102 protects crankcase oil viscosity; the 7101 protects the starter battery; both are recommended for climates that regularly drop below freezing
5W-30 FULL SYNTHETIC OIL IS REQUIRED WHEN THIS KIT IS INSTALLED — NOT A SUBSTITUTE FOR IT: Synthetic oil alone does not provide sufficient cold-start protection below freezing; the 7102 heater and 5W-30 synthetic oil work together as a system

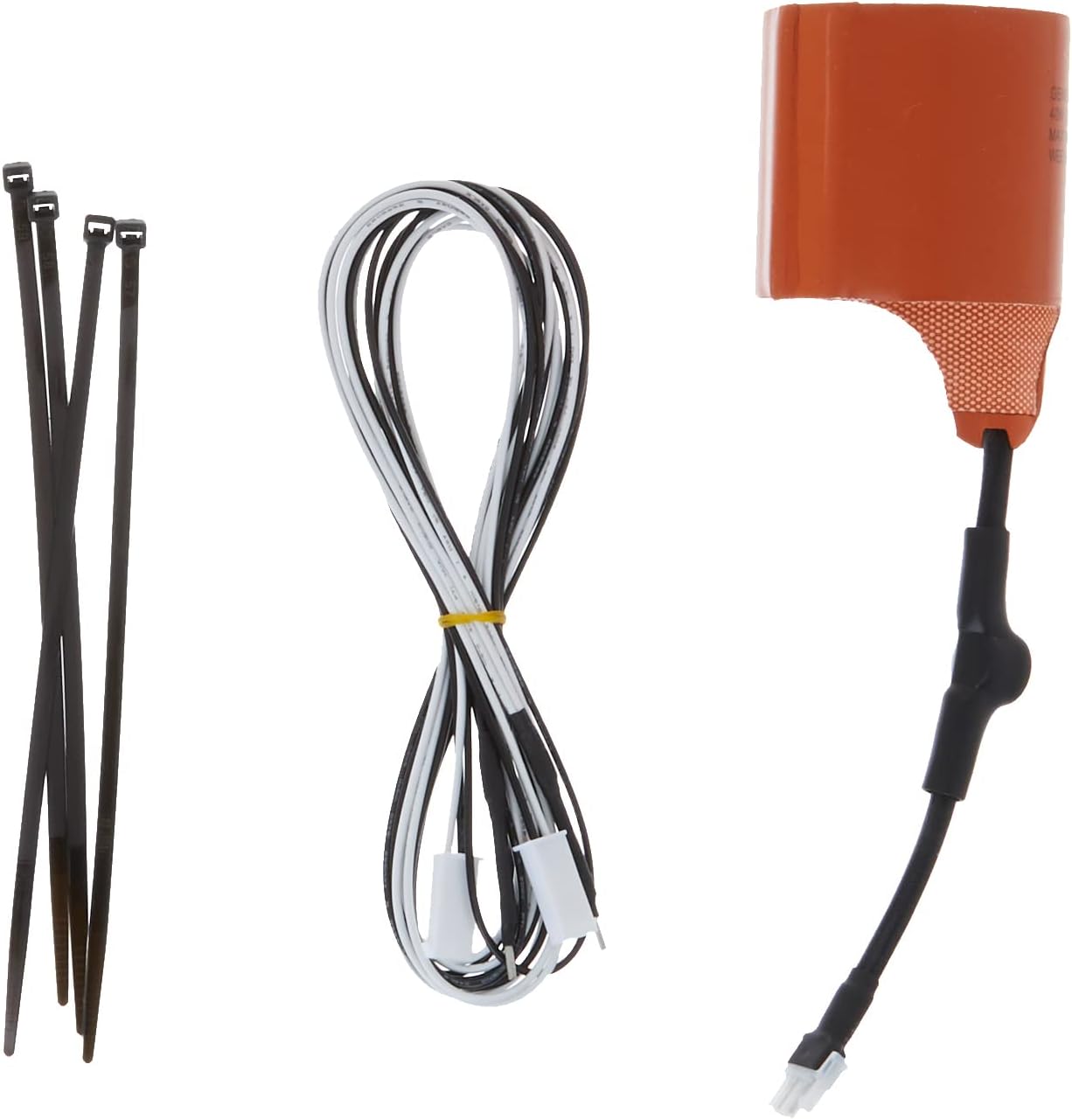

WHAT'S INCLUDED: Orange silicone oil filter heating loop, wire harness, mounting zip ties, and installation instruction sheet; engine oil and battery warmer pad (model 7101) are sold separately
Wattage
50 watts
Color
Orange
Item Dimensions
10 x 6 x 3 inches
Item Weight
9.12 ounces
UPC
696471001112
Global Trade Identification Number
00696471001112
Manufacturer
GENERAC POWER SYSTEMS
Included Components
Oil heater kit
Item Type Name
Generac 7102 Oil Heater Kit for 9kW - 22kW Air Cooled Standby Generato
