| Power Source | Corded Electric |
|---|---|
| Operating System | Linux |
| Screen Size | 4.3 inches |
| Automotive Fit Type | Vehicle Specific Fit |
| Item Dimensions L x W x H | 7.8"L x 3.85"W x 1.1"H |
| Manufacturer | FOXWELL |
| Included Components | 1X Diagnostic Cable, 1X NT510Pro fit for BMW/Mini/Rolls Royce Scanner, 1X Protective Carring Case, 1X USB Type C Cable, 1X User's Manual, 1X Quick Guide |
| Model Number | NT510 Pro |
| Manufacturer Part Number | FOXWELL NT510Pro fit for BMW |
| Manufacturer Warranty Description | 12 Months |
| Power Source Type | Corded Electric |
| Item Length Width Height | 7.8"L x 3.85"W x 1.1"H |
| Display | 4.3 inches |

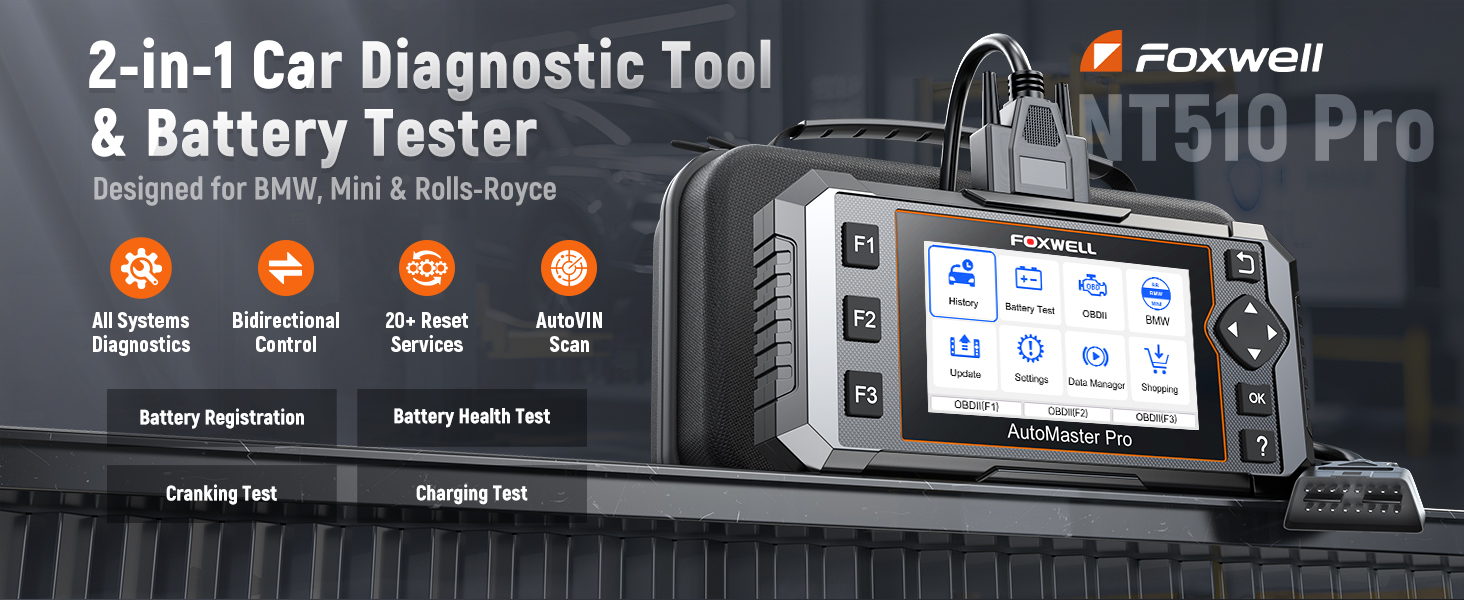

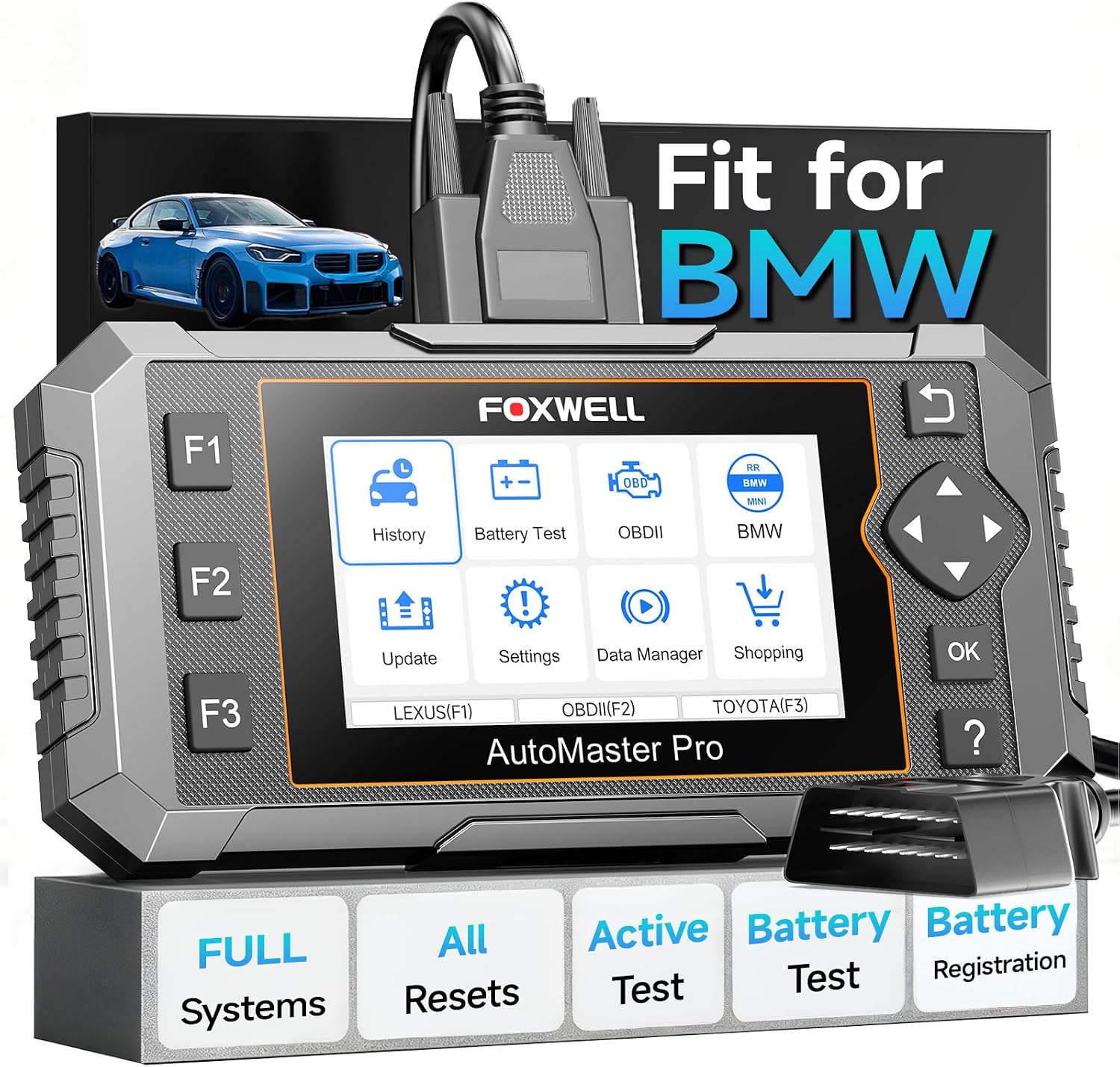

FOXWELL NT510 Pro (upgraded from the NT510 Elite) is a comprehensive OE-level diagnostic tool bundled with a 12V battery tester, including battery health analyzer with cranking & charging Test.

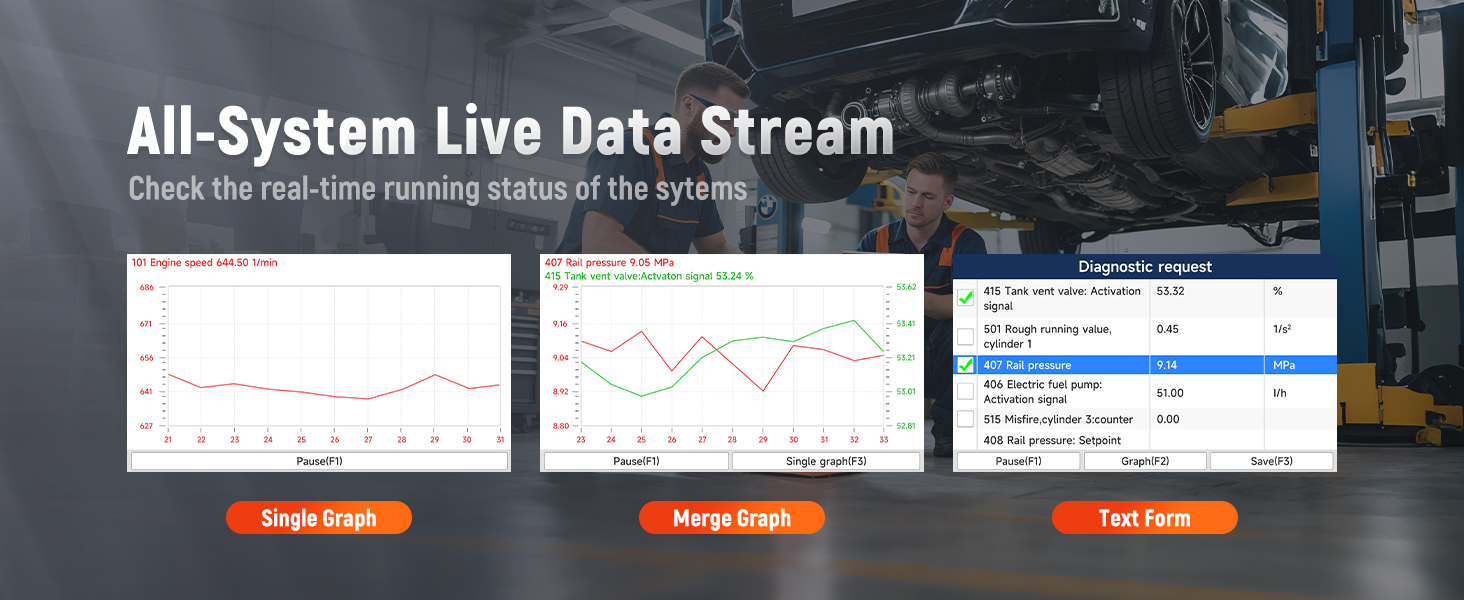

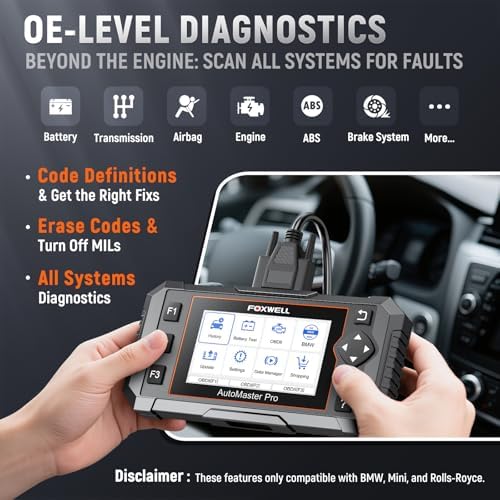

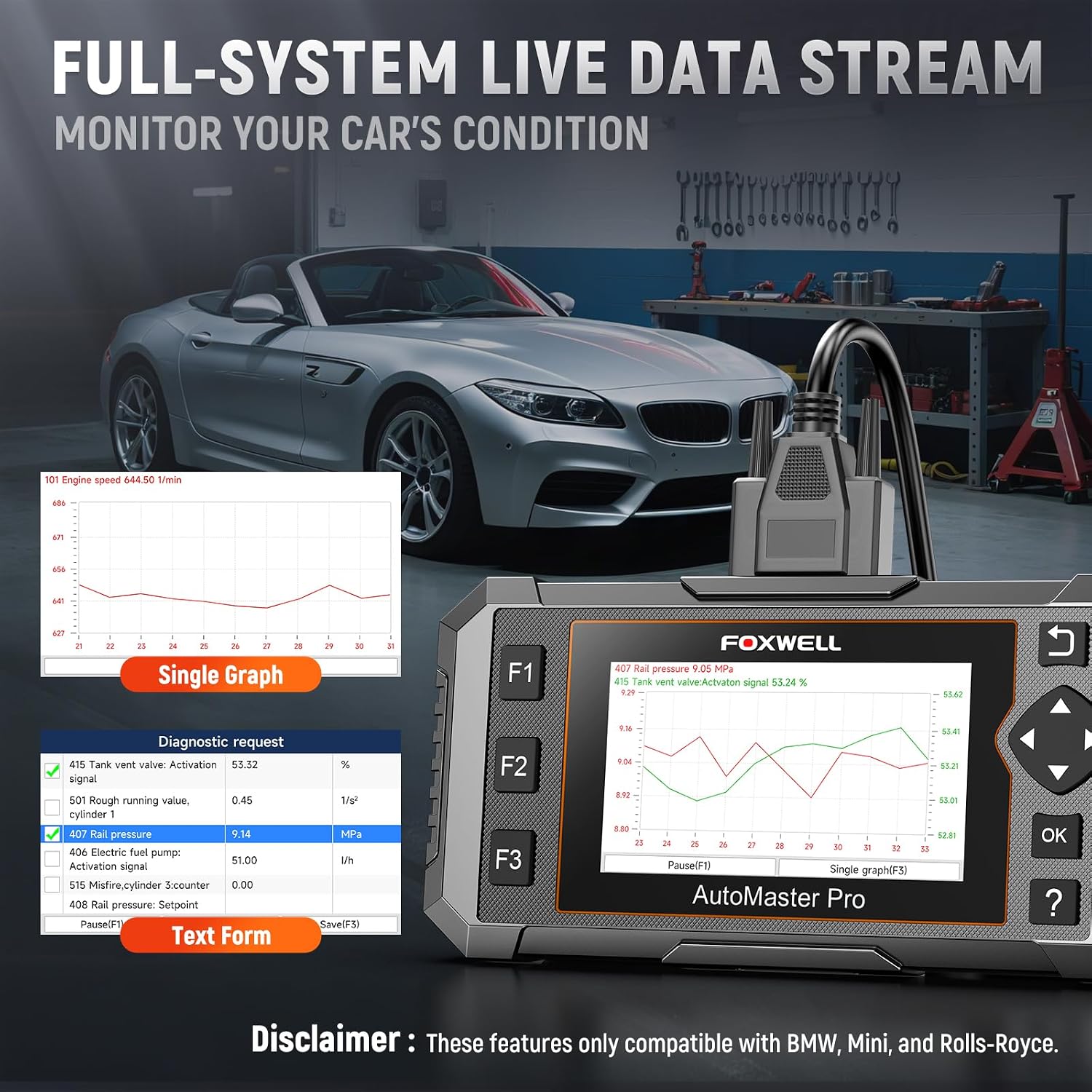

Scans all available modules (Engine, Transmission, ABS, Airbag, SAS, BMS, EPB, Fuel Pump, etc.), reads/clears fault codes, and resets MIL. View real-time data and reports to quickly pinpoint issues.
Monitor battery health, starting, and charging systems to prevent costly issues. Includes: Battery Health Test (voltage, SOH, resistance, SOC), Cranking Test (cranking voltage/time), and Charging Test (loaded/no-load voltage, ripple).

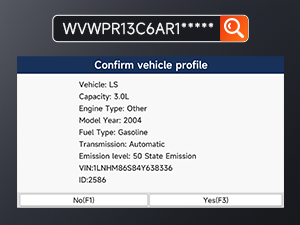

Automatically scan vehicle information, such as VIN, CID, CVN, and etc., offers convenience for users and improves diagnostic accuracy and efficiency.

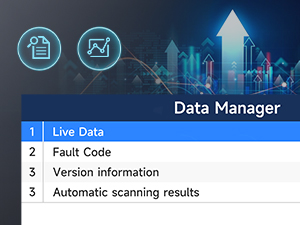

Easily generate diagnostic reports for analysis, allows you to track performance over time by comparing historical data, help you spot issues early.

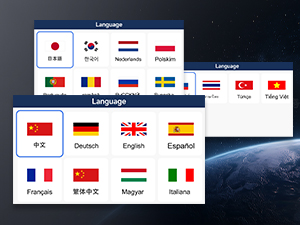

Supports English, Spanish, Portuguese, German, French, Italian, Polish, Dutch, Swedish, Japanese , Korean etc.

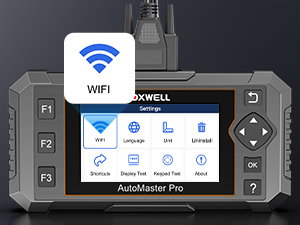

Pay once and get all features with lifetime free updates. Keep your scanner always up-to-date with the latest version.
Easily register a new battery to your vehicle’s system with one tap. This ensures the car’s power management system recognizes the new battery, maintaining optimal electrical system performance and preventing charging issues –no more battery warning errors after replacement

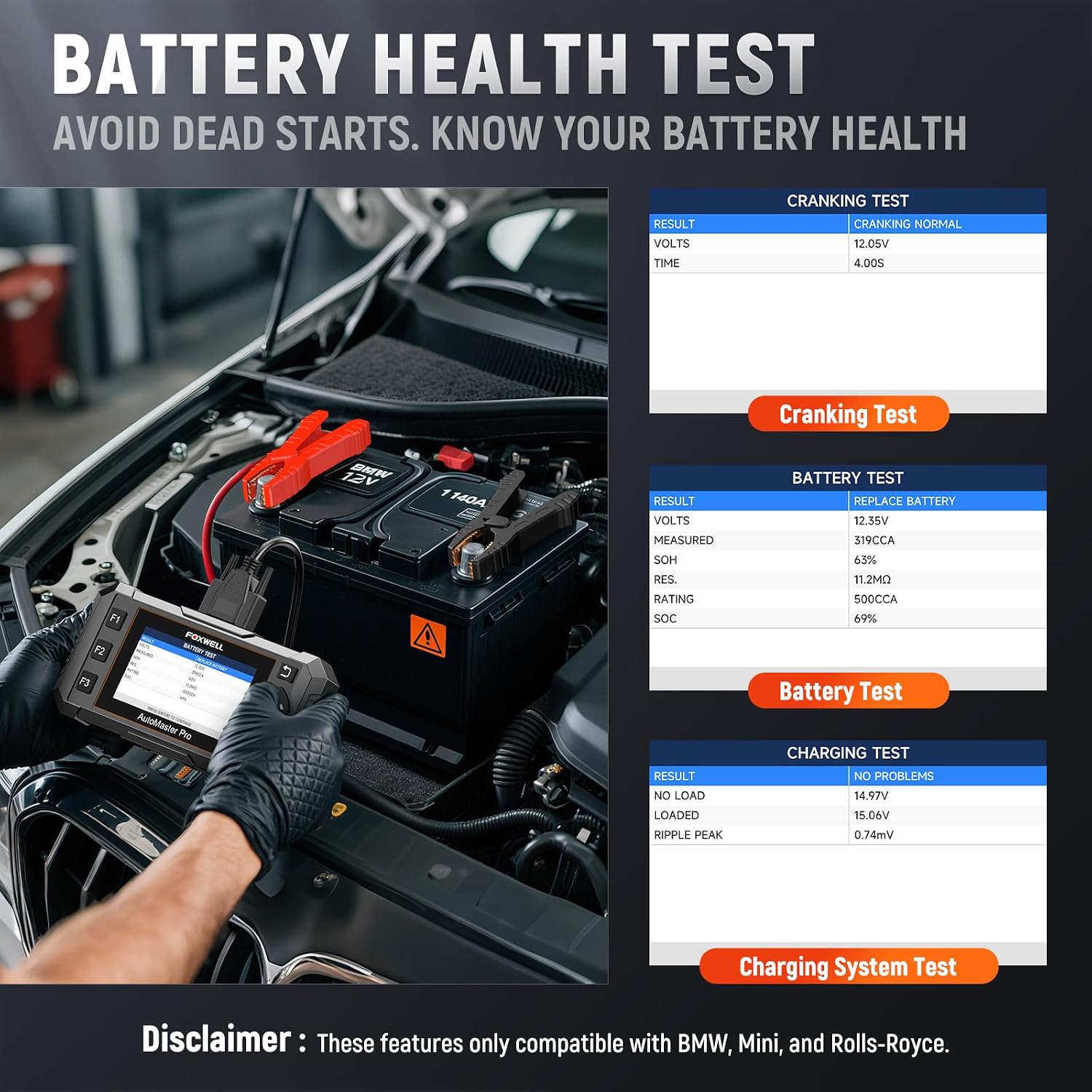

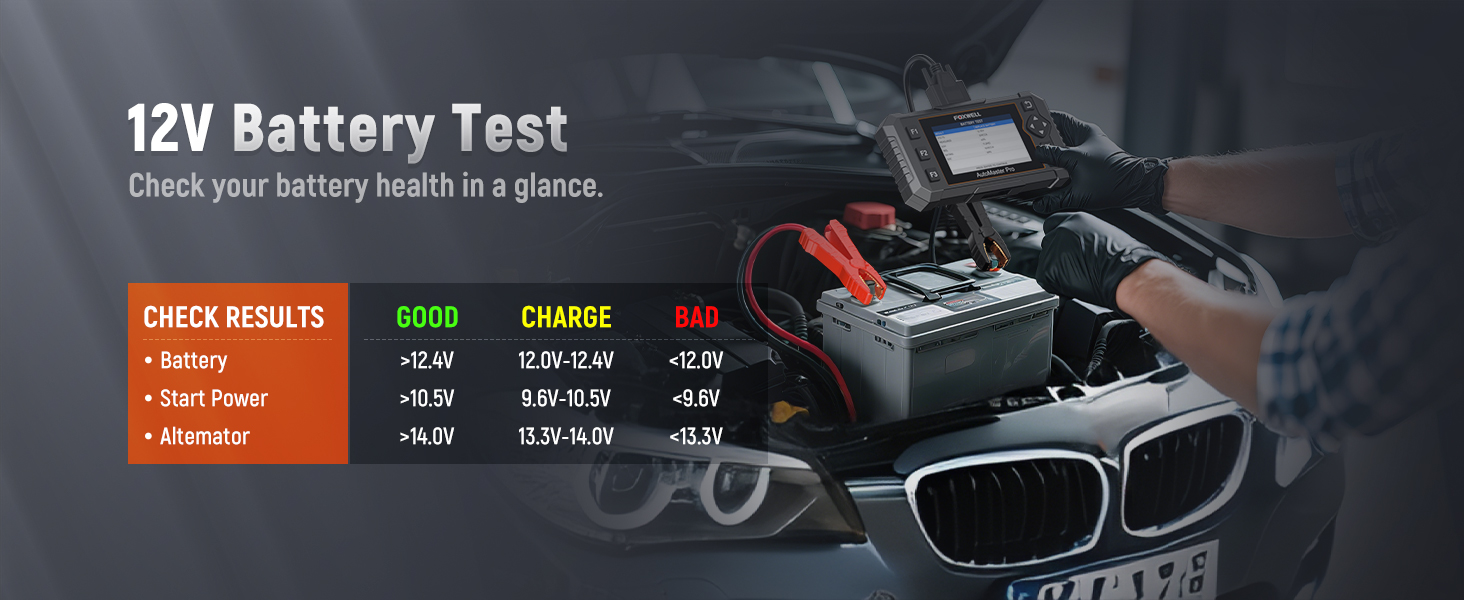

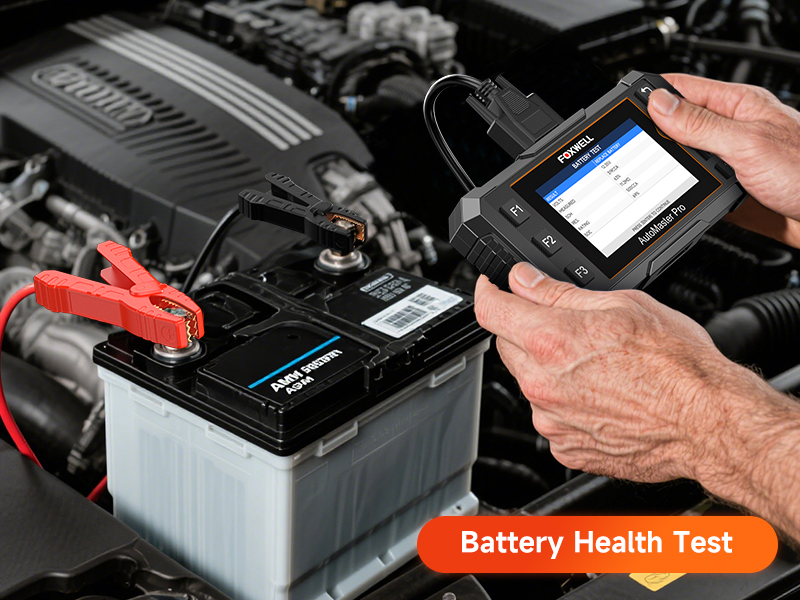

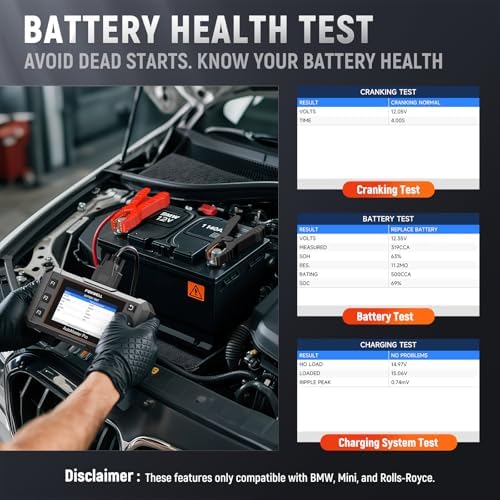

Battery health check measures voltage, state of health (SOH), internal resistance, and state of charge (SOC). A static voltage reading below 12.4V suggests a battery that is undercharged or aging.

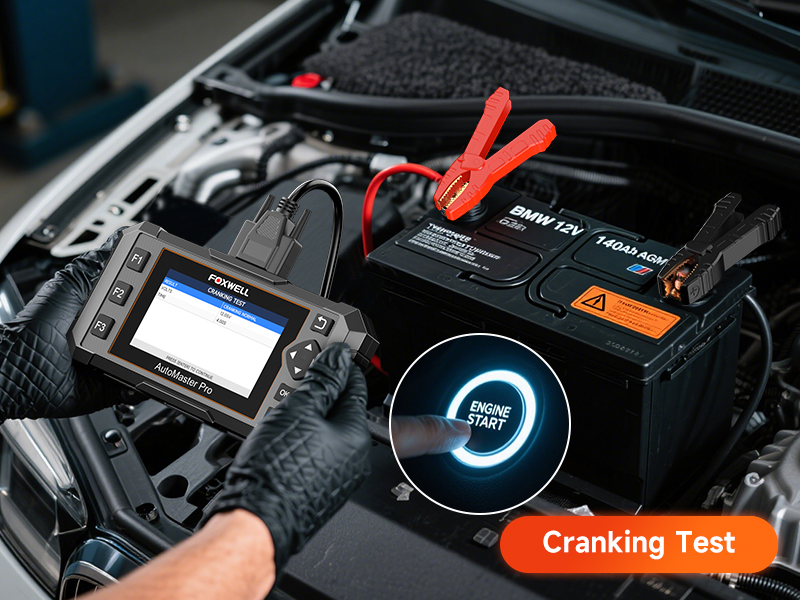

Analyze battery health status by detecting the voltage and time when engine cranking. If the cranking voltage is lower than 9V, it means that the battery is unable to provide sufficient starting power

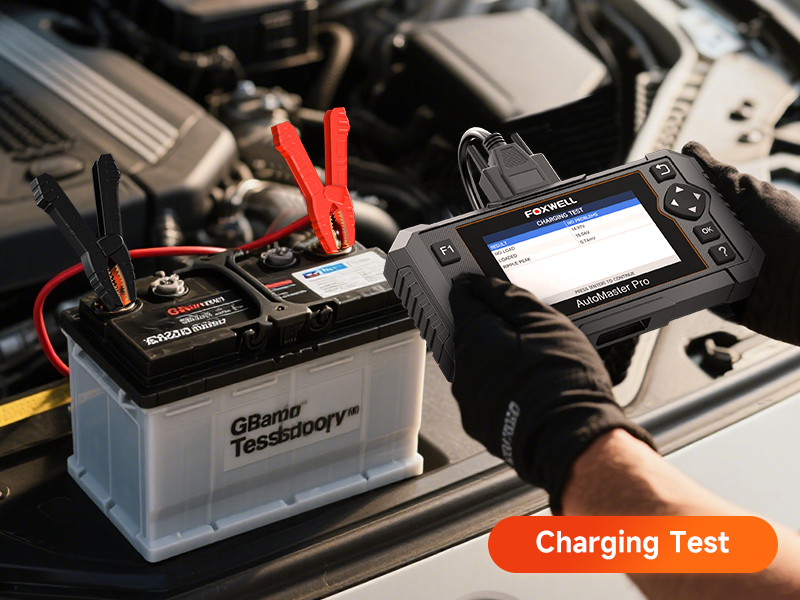

Evaluate whether the working status of the car generator and charging system is normal by detecting the loaded/no-load voltage, ripple of charging. For 12V vehicle systems, the normal charging voltage is between 13.5V and 14.8V
Why does the code come back after I remove it?
It is recommended to fix the problem before removing the code. Otherwise, simply removing the code will only lead to the same problem reappearing quickly.
How do I know if it's compatible with my car?
Specifically designed for BMW/Mini/Rolls-Royce. As compatibility of specific features may vary by model, we recommend contac us for details regarding your vehicle.
Does NT510Pro support all reset maintenances ?
It depends on your car's model and year, NT510Pro supports all the available special functions the vehicle allows. If the car model does not support certain reset maintenance functions, NT510pro will also be unable to perform them.
What is the recommended time to perform battery testing?
Wait at least 10 minutes after shutdown before battery testing. The vehicle’s electrical system needs time to discharge, or you may get a reading that’s temporarily too high.
Can the positive and negative poles be reversed during battery testing ?
No, and you need to connect the positive pole first and then the negative pole, otherwise there may be sparks.
