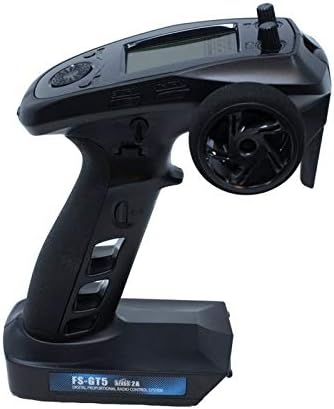

Flysky FS-GT5 6CH RC Transmitter with FS-BS6 Receiver 2.4Ghz AFHDS 2A Protocol gyro Radio for RC Car Boat

FlySky FS-GT5 Transmitter 2.4GHz 6 Channel Remote Controller with FS-BS6 Receiver for RC Car and RC Boat

• This product uses the 2.4GHz Second Generation AFHDS 2A protocol. The FS-GT5 transmitter and FS-BS6 receiver constatute a 6 channel gyro stabilised system compatible model cars, boats and other models.
• ABS Function (automatic brake): This function only adjusts the throttle channel, including six kinds of parameter settings, automatic brake settings to adapt to different models of track, to achieve the best braking effect and cornering control effect.
• F.SAFE Function (Fail-Safe Protection): This function can protect the safety of the model when the receiver can not receive the signal from the transmitter normally, and move the actuator arm to the pre-set position.
• CRAWL Function (climbing car mode), SVC function (smart car control mode), gyro stability function. 4 Climbing Mode: With 4 Climbing Mode, revolutionary control optimization for climbing cars, easier handling, more freedom to distribute functions
• FS-GT5 can store 20 models, each model can set the parameters separately, but also can write the model name easy to remember. Keep all cars specific trims and End Point Adjustment (EPA) setting data to avoid massive immigrating data from other radio transmitters.

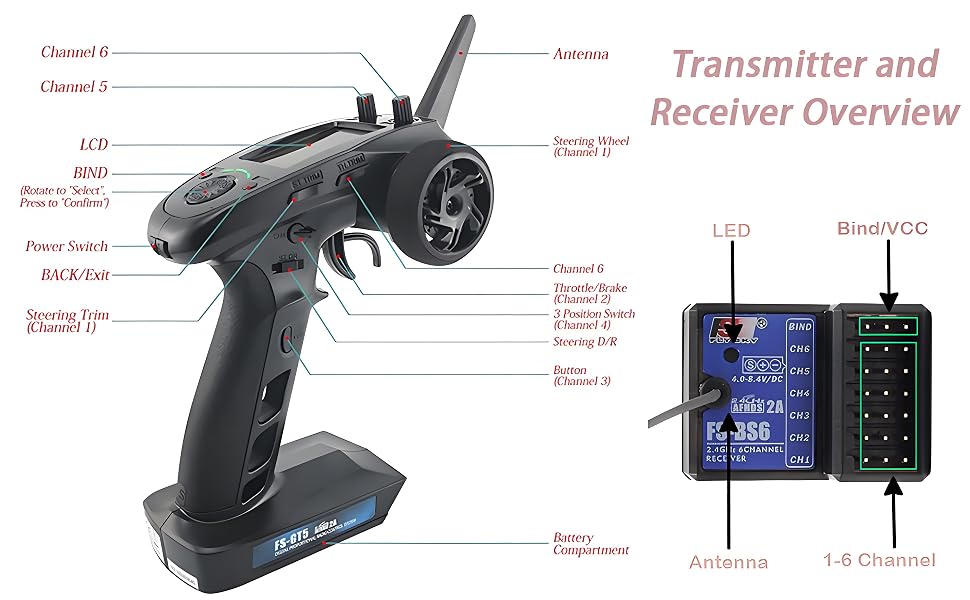

Transmitter and Receiver Overview

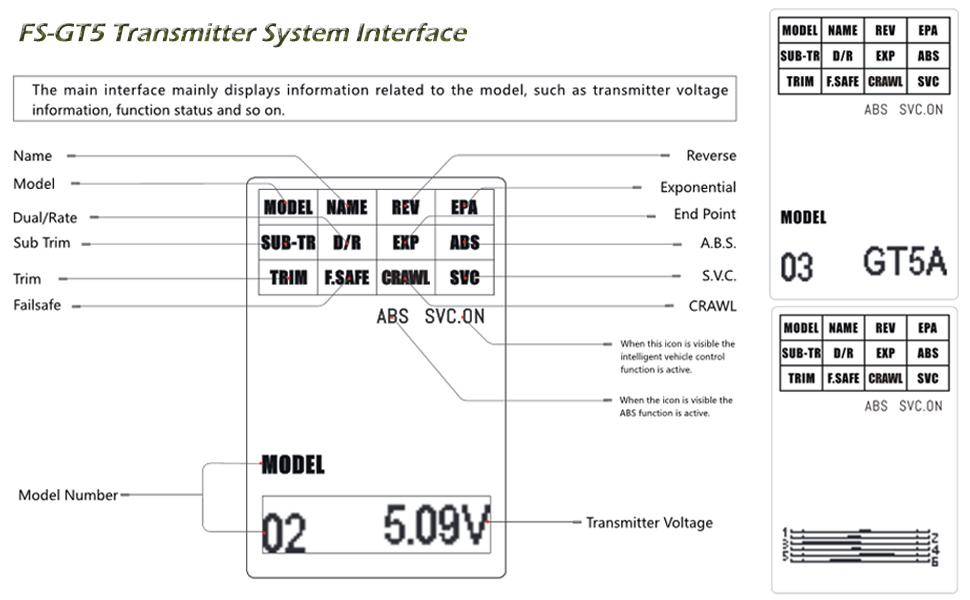

FS-GT5 Transmitter System Interface

Details Functions and Use

• MODEL: The transmitter can hold up to 20 models (01-20). Each configuration can quickly be recalled.
• NAME: This function is for naming a model using up to 4 characters in length : 0123456789 ABCDEFGHIJ K L MNOPQRSTUVWXYZ
• Reverse (REV): The reversing function is used to correct the direction of travel for any channel.
• End Point Adjust (EPA): The EPA function is used to set the travel limits for each channel.
• Sub Trim (SUB-TR): This function can be used to change the centre point of any channel.
• Dual/Rate (D/R): This function is used to limit the ST or TH D/R.
• Exponential (EXP): This function is used to add a curve to the output of a channel. When set to 0 the curve response is linear; however when set to a positive or negative value the curve will no longer be linear.
• A.B.S. (ABS): This function uses the throttle output to create automatic braking in order to make braking easier on different surfaces.
• Trim (TRIM): This function is used to change the center point of each channel. For example if the steering wheel, when centered, leaves the model's wheels pointing out of alignment, this function can be used to correct it.
• Failsafe (ESAFE): This function protects the model, the safety of the user and others. When active the failsafe will set all channels to a predefined value until either; power is removed or it regains signal. If a channel is set to off it will remain in the last position it was in when signal is lost.
• CRAWL: This function is used to create a crawler mix, meaning that the front and back wheels can move in different directions. By default this function is set to off. Channel 3 will always be assigned as the rear wheels.
• S.V.C. (SVC): This function is only available for the FS-BS6. However because of frequent updates this function may become available for other receivers, for more information please visit our website. Intelligent vehicle control needs the use of the receivers gyroscope. Using the gyroscope this function will alter throttle and steering in order to keep the model going in the desired direction.

FS-GT5 Transmitter and FS-BS6 Receiver Specification
