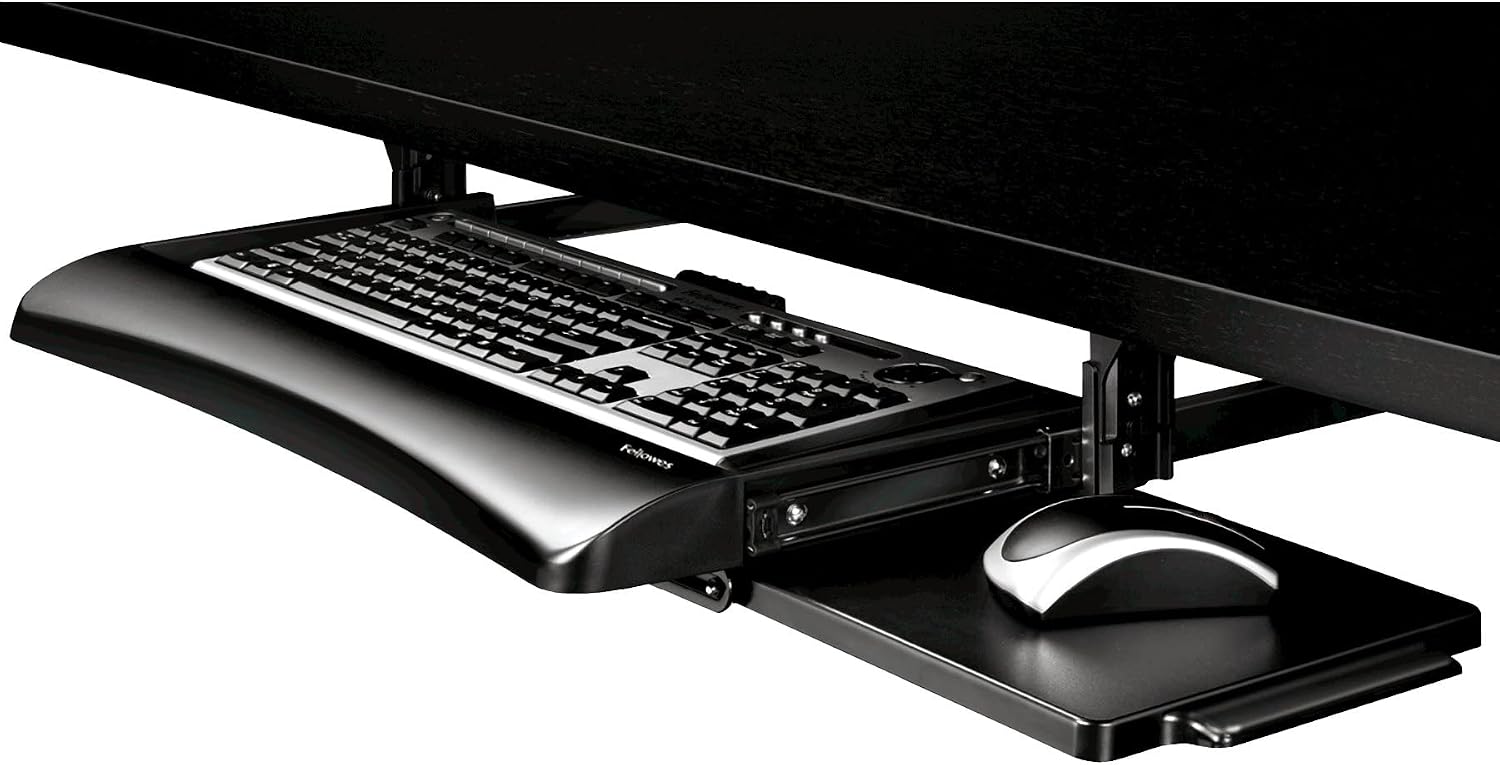

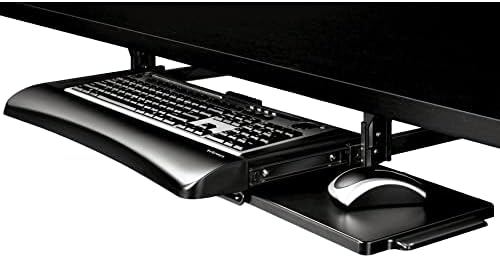

Fellowes Office Suites Underdesk Keyboard Drawer, Black/Silver (9140305)

$15.67 USD

Shipping fees will be calculated at checkout.

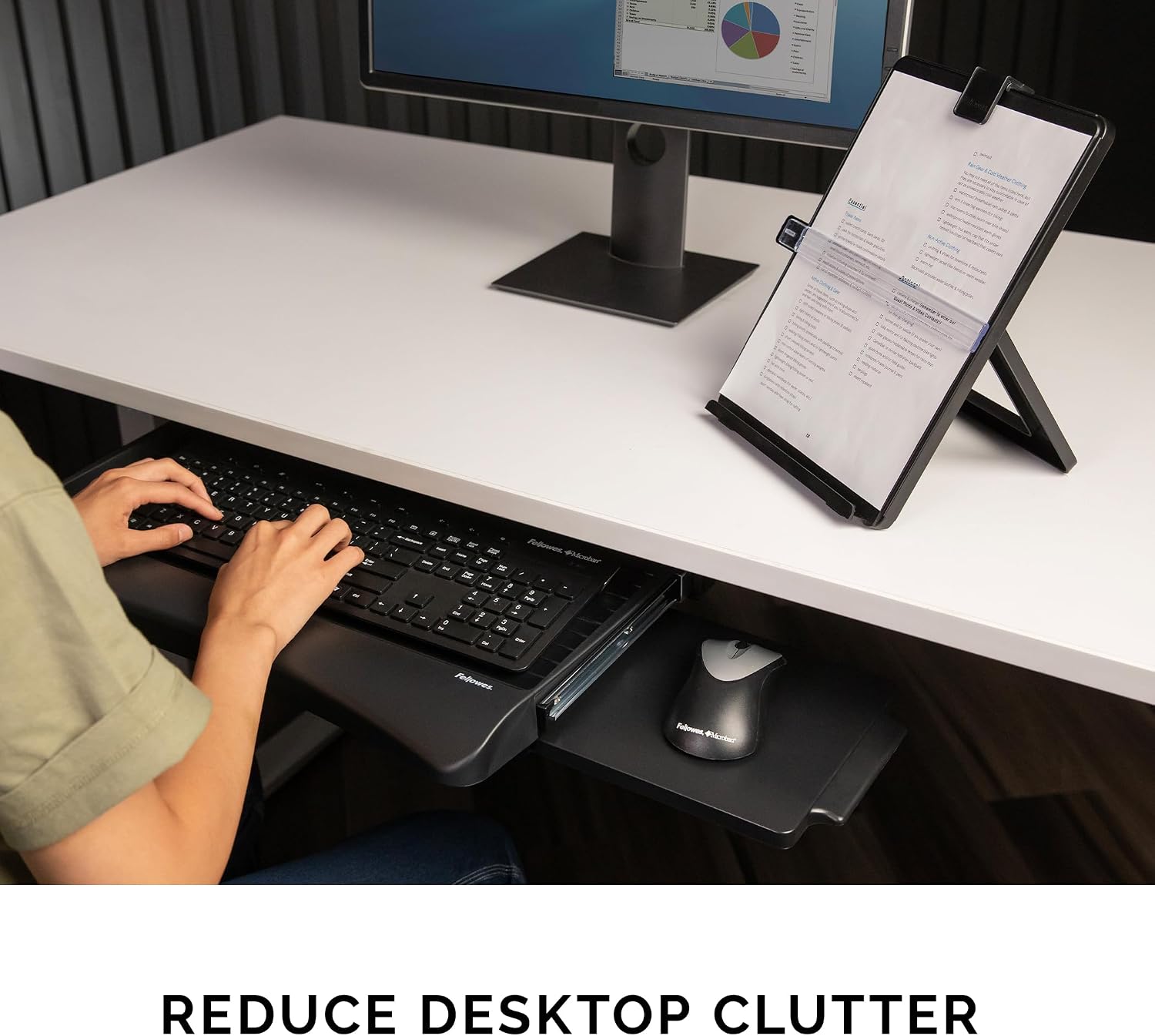

Height adjustable unit features 3 height adjustments to suit preferred work position and moves keyboard and mouse off the desktop to save workspace

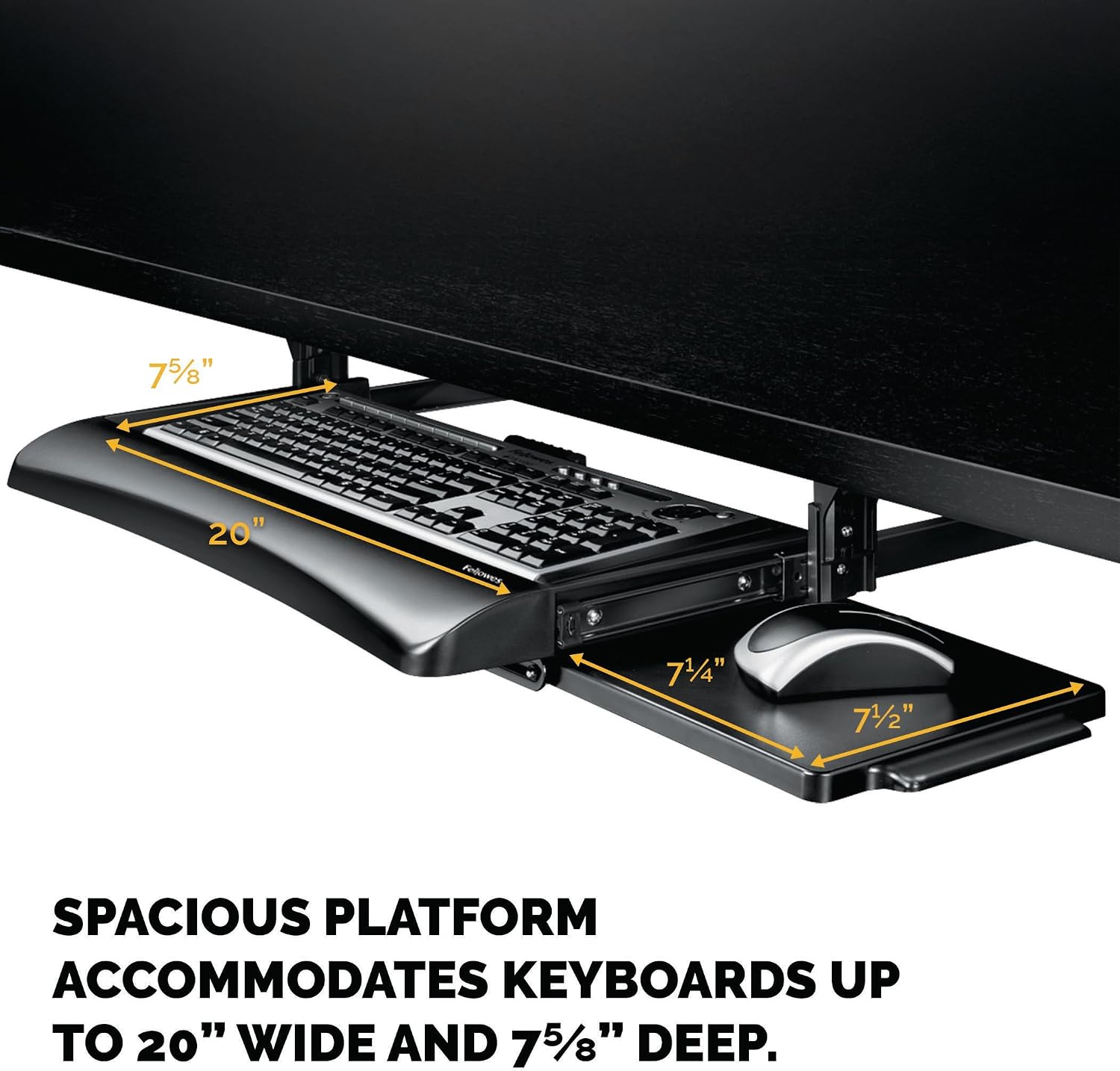

Spacious platform accommodates keyboards up to 20" wide and 7 5/8" deep.
Sturdy, impact-resistant tray fits standard keyboards

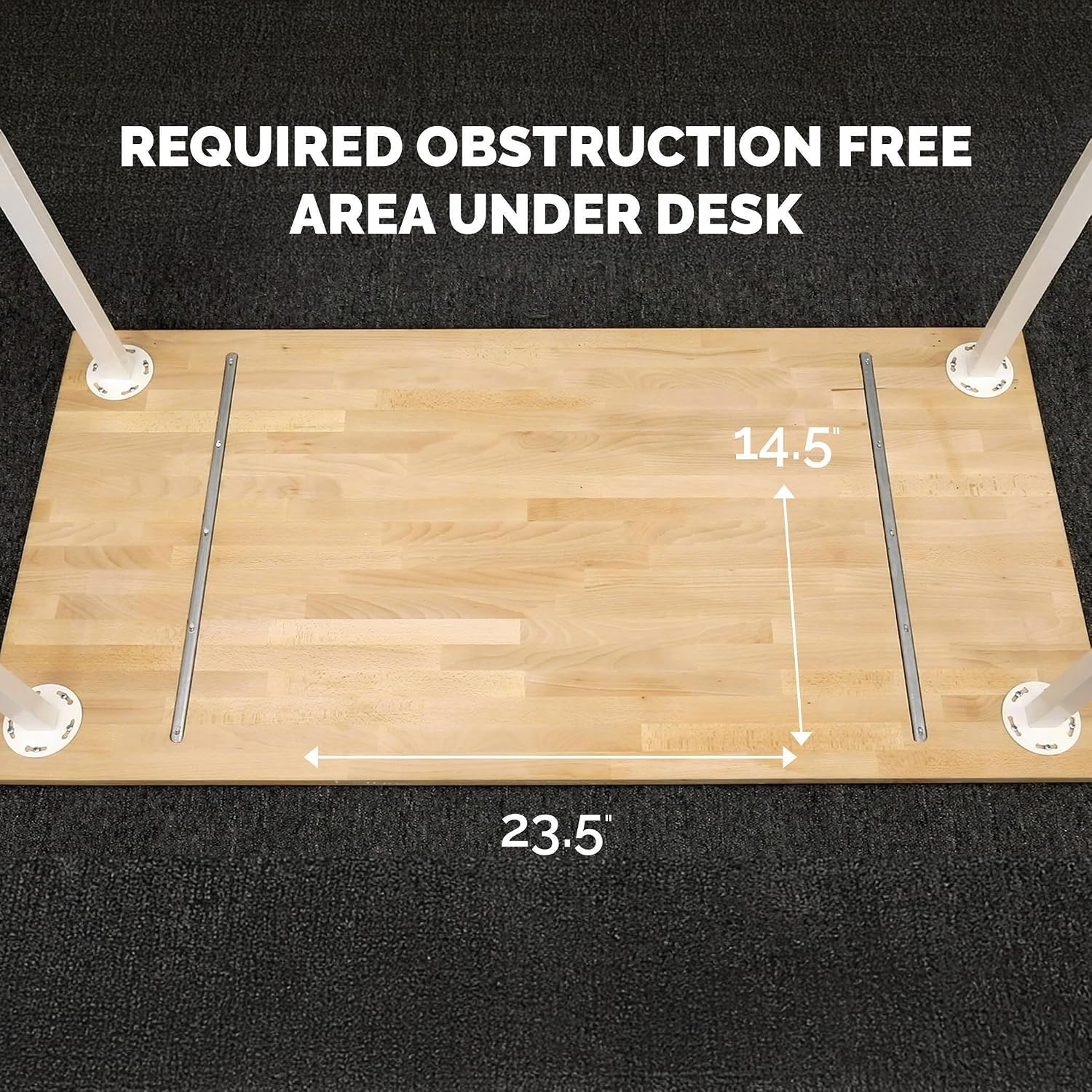

Requires 23.5" of width and 14.5" of depth underneath your desk for proper installation
Obstruction free area required: Ensure the installation area is free of any obstructions, such as crossbars or supports, that may interfere with mounting the hardware
Installation requires mounting to the underside of a desk using Philips Rounded Head Screws #7, ¾” Long
Mouse tray dimensions = 7.25" x 7.5" and is pre-installed on the right side of the keyboard tray

Manufacturer	‎Fellowes
Item Weight	‎3.9 pounds
Product Dimensions	‎11.63 x 22.37 x 2.25 inches
Item model number	‎9140305
Color	‎Black/Silver
Shape	‎L-Shape
Material Type	‎Plastic
Total Recycled Content Percentage	‎1
Number of Items	‎1
Size	‎2.3"x29"x11.6"
Ink Color	‎Black
Manufacturer Part Number	‎9140303

underdesk, keyboard, keyboard tray, keyboard drawer,

keyboard manager, keyboard tray, keyboard drawer, keyboard, tray, drawer, fellowes

Fellowes Office Suites Underdesk Keyboard Drawer

Fellowes Office Suites Underdesk Keyboard Drawer moves keyboard and mouse off the desktop to save workspace. Features 3 height adjustments to suit preferred work position. Mouse tray mounts to right or left side of keyboard tray or stows underneath when not in use. Attractive new look and color blends with any office décor. Sturdy, impact-resistant tray fits standard keyboards. 23 ½” wide space required for installation

At A Glance:

Height adjustable unit moves keyboard and mouse off the desktop to save workspace
Features 3 height adjustments to suit preferred work position
Mouse tray mounts to right or left side of keyboard tray or stows underneath
23 ½” wide space required for installation

How To Install

under desk, keyboard tray, keyboard drawer,keyboard manger, tray, tray, drawer, fellowes

Step 1

Align drawer slide with the keyboard tray. Insert 1/2" chrome self tapping screws. Repeat for other side of tray.

under desk, keyboard tray, keyboard drawer,keyboard manger, tray, tray, drawer, fellowes

Step 2

Secure adjustable mounting brackets on right side with 1/4" brass machine screws. Repeat for other side of tray.

under desk, keyboard tray, keyboard drawer,keyboard manger, tray, tray, drawer, fellowes

Step 3

The instruction sheet serves as the drill hole template. Using masking tape, place the template at the desired location underside of your desk. Drill 3/22" (2.5mm) diameter pilot holes approximately 3/8" (9.5mm) deep in the 4 locations indicated. Be careful not to drill through the top of the desk.

under desk, keyboard tray, keyboard drawer,keyboard manger, tray, tray, drawer, fellowes

Step 4

Insert 1/2" chrome self tapping screws into adjustable mounting brackets. Repeat for other side.
