| Model Name | gear |
|---|---|
| Manufacturer | Keenso |
| UPC | 705989731425 705989591401 |
| Part Number | Keensobm3n4r2hvd |
| Speed | 3500 rpm |
| Voltage | 12 volts, 36 volts |
| Horsepower | 120 watts |
| Item Dimensions W x H | 2.68"W x 3.94"H |
| Item Weight | 1.1 kg |
| Material Type | Aluminum, Metal |
Premium Quality -- Made of premium aluminum material, this small brush motor is high and anti-, to use
Application -- The shaft diameter: 8mm (single milling slot 1mm). Our electric motor is universal suitable for electric scooter, electric, etc
Delicate Metal Pulley -- Design with a delicate metal pulley, let you use more convenient, extend the brush motor's service life

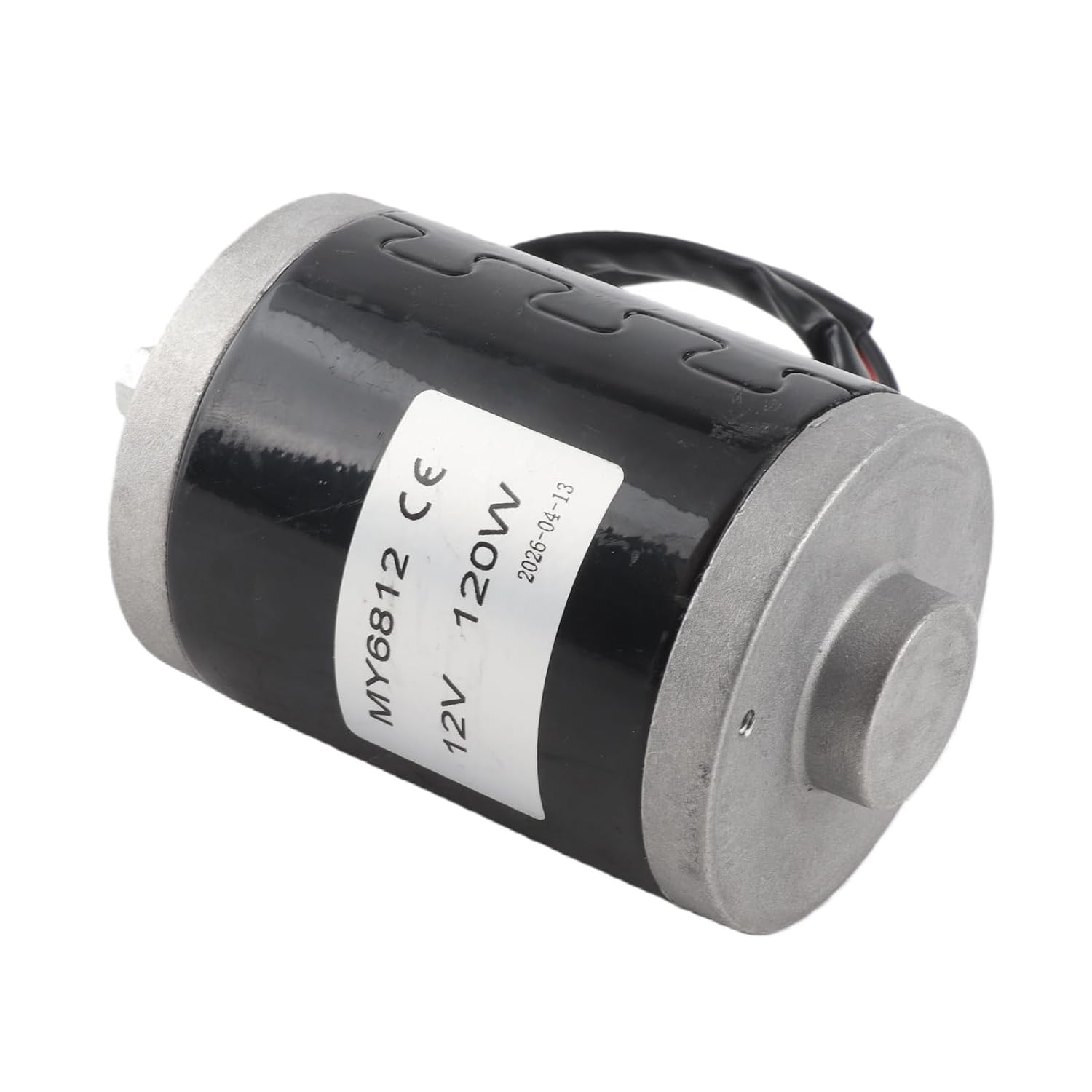

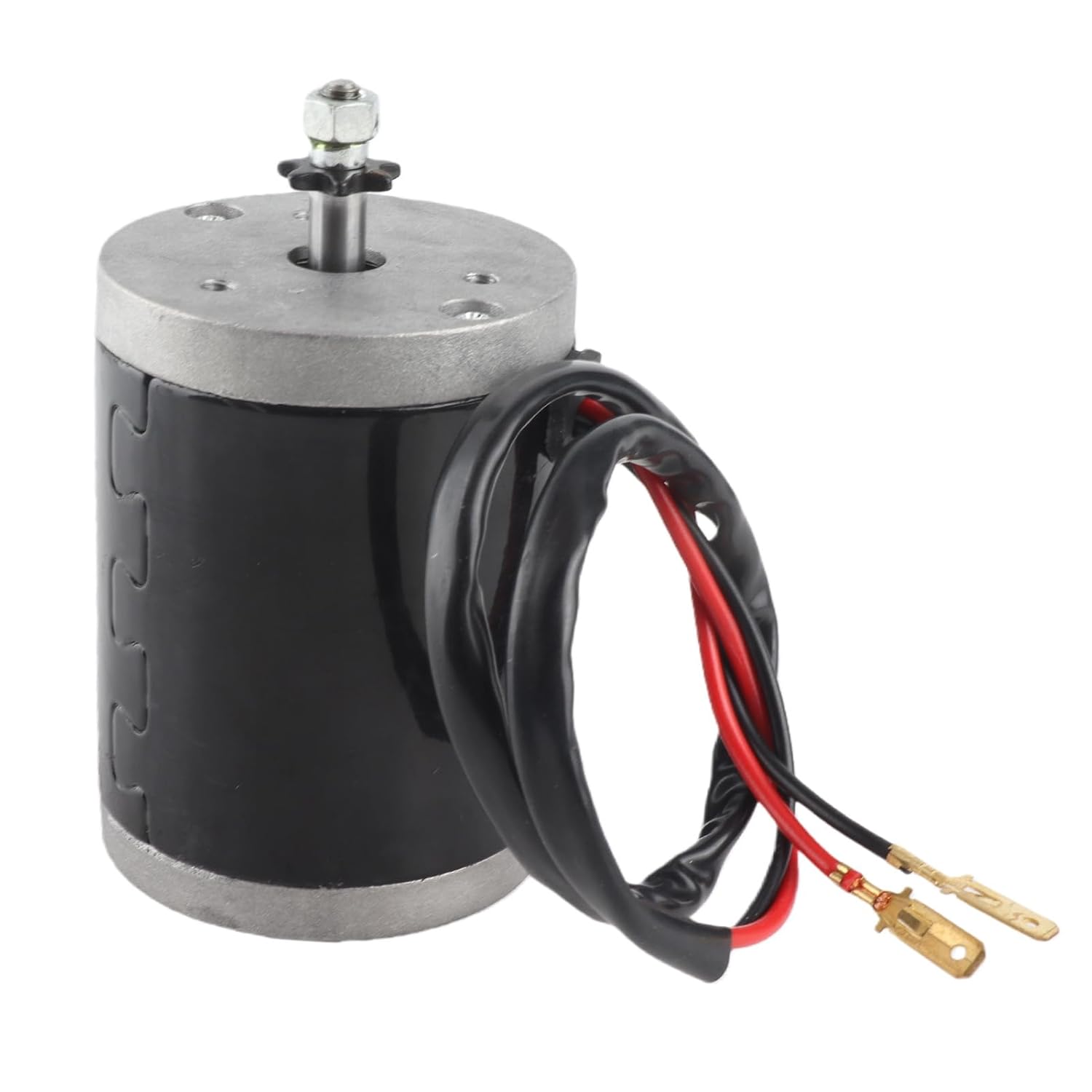

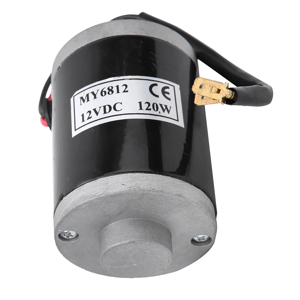

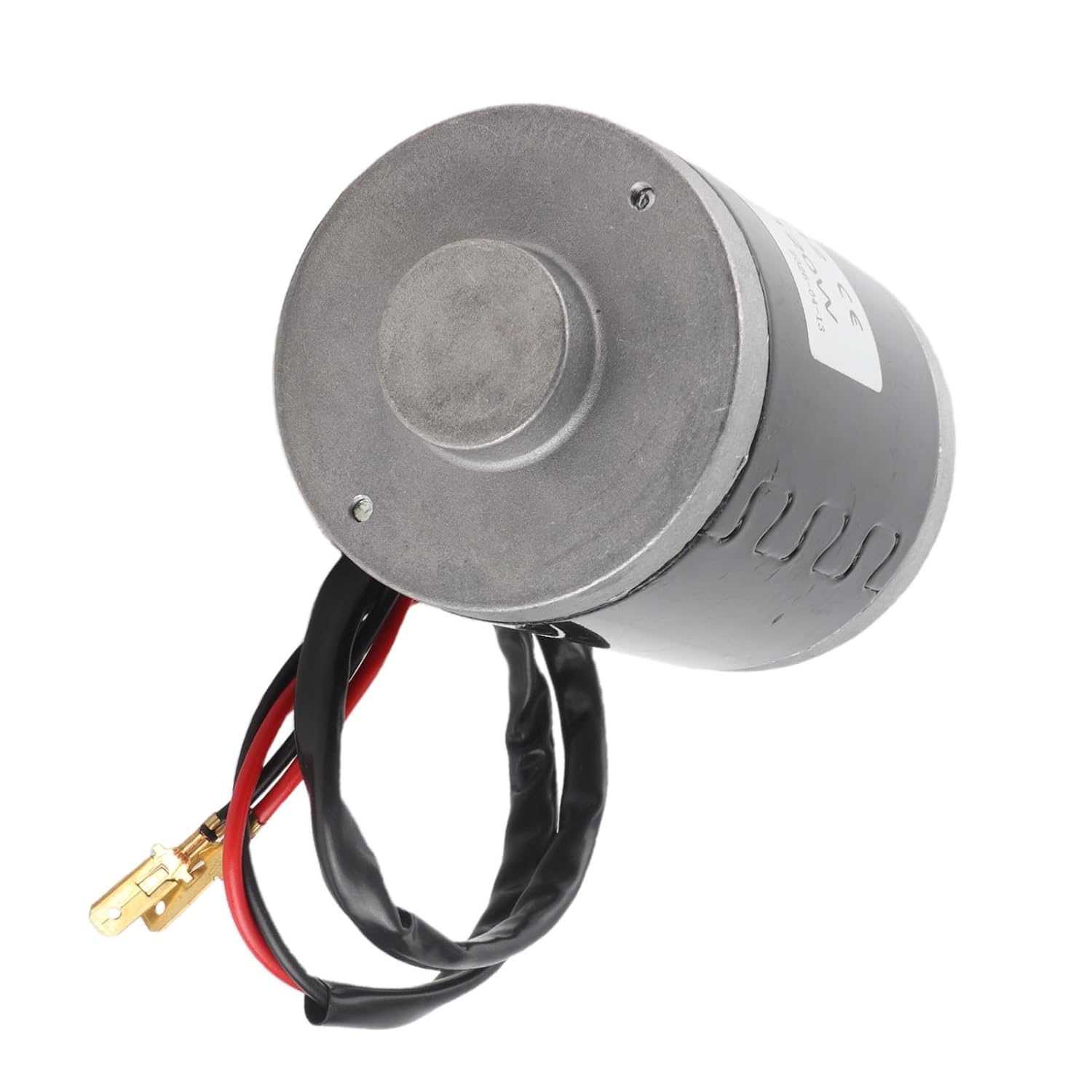

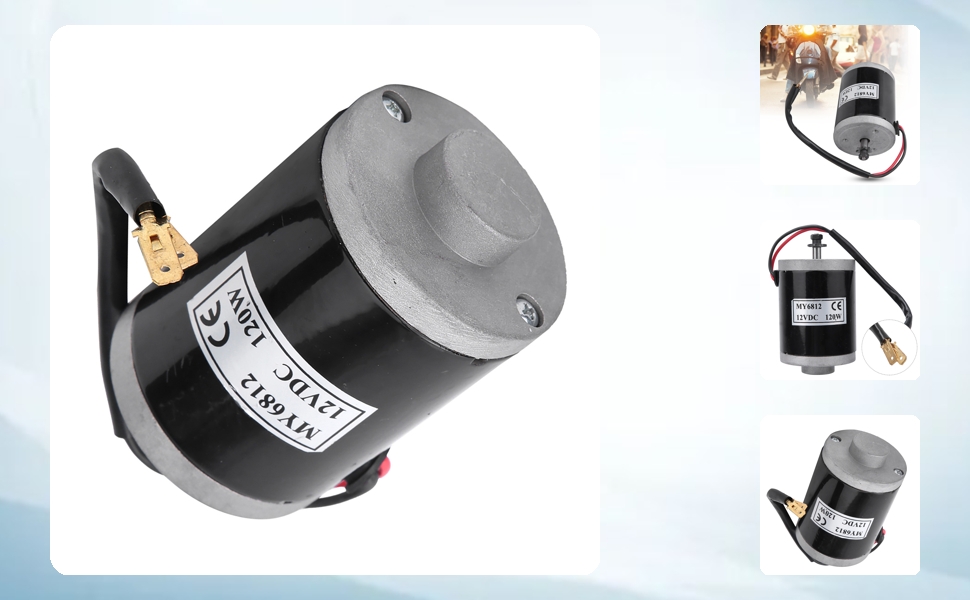

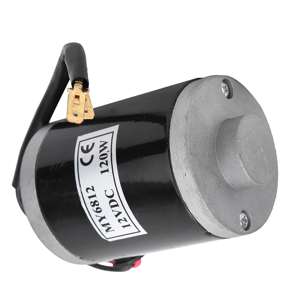

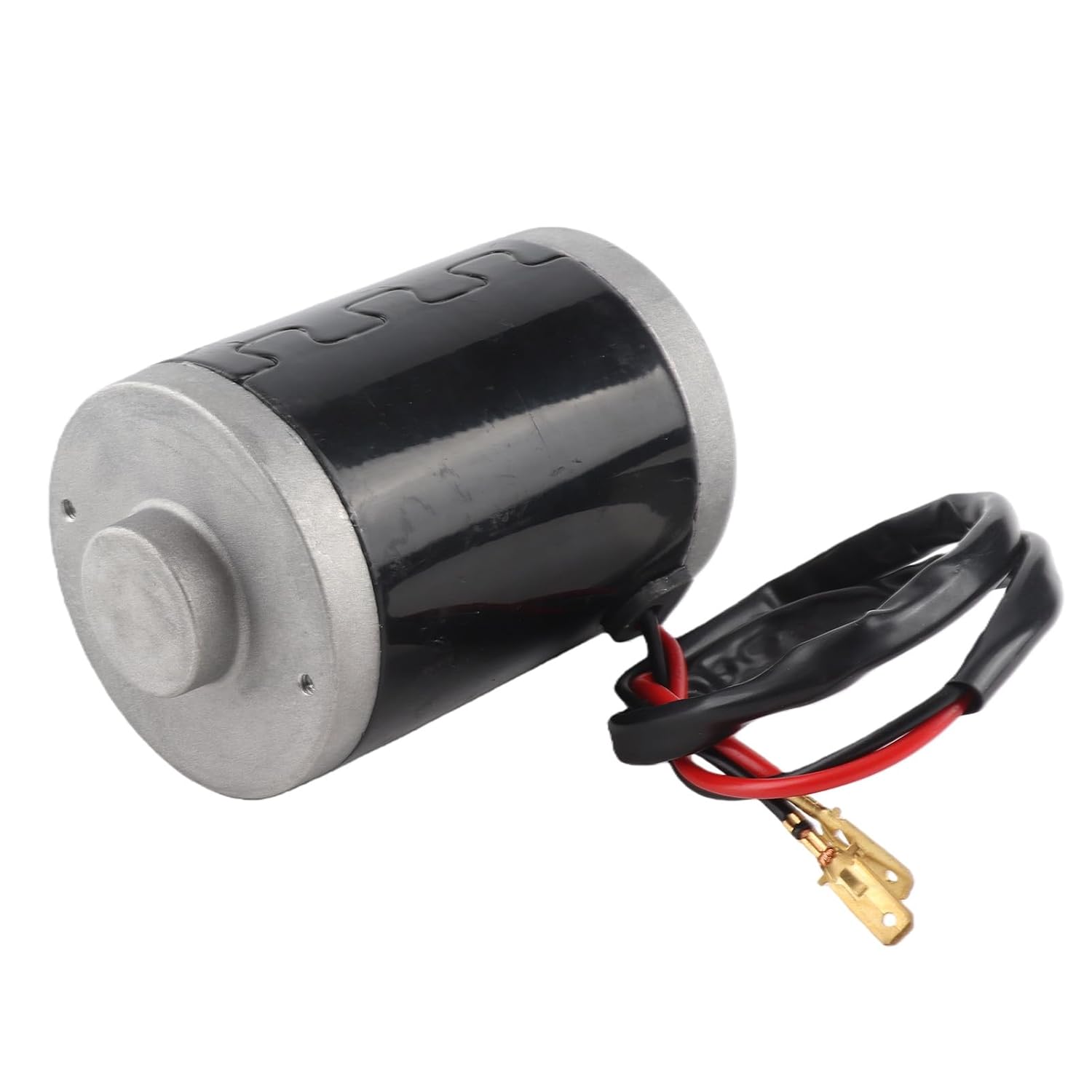

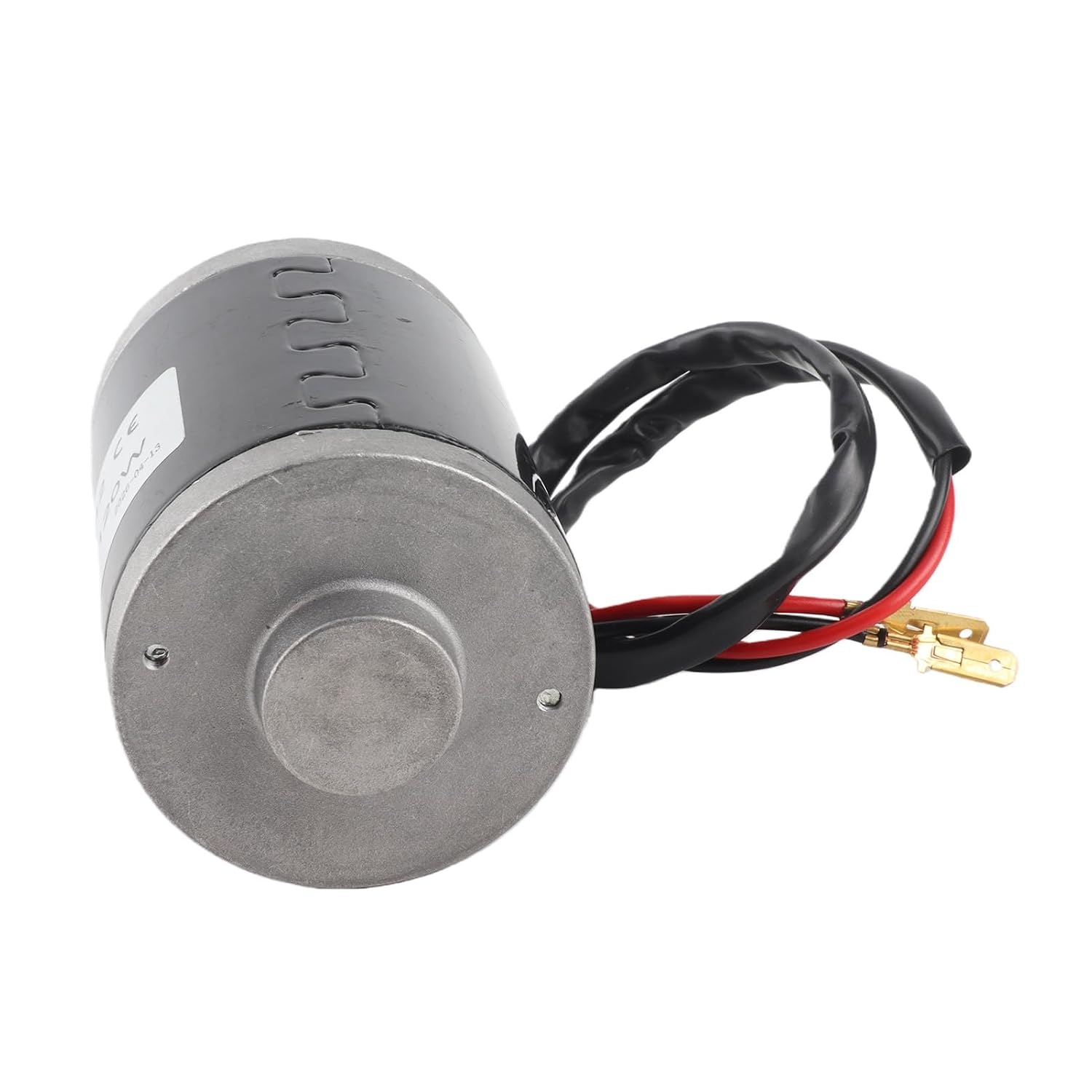

Keenso-- MY6812 12V 120W High Speed Small Brush Motor with Belt Pulley Electric Scooter E Bike Accessory
Specification:
Condition: Brand New
Item Type: Brushed Motor
Model: MY6812
Material: aluminum
Color: as picture shown
Rated power: 120W (kW)
Rated voltage: 12 (V)

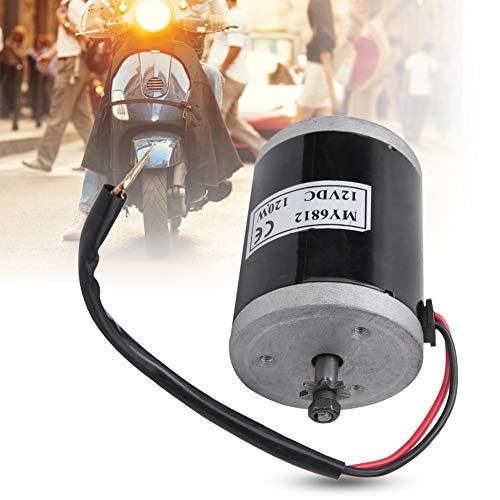

Main application: scooter, electric vehicle
Rated voltage range of 3C: below 36V DC
Rated current: <8, 5A
Rated speed (RPM) : 2500±5%
Maximum speed (RPM) : 3500±5%
No-load current: < 0.9A
Rated torque: 0.56 nm
Transmission: belt pulley, metal
Shaft diameter: 8mm (single milling slot 1mm)
Efficiency: > 68%

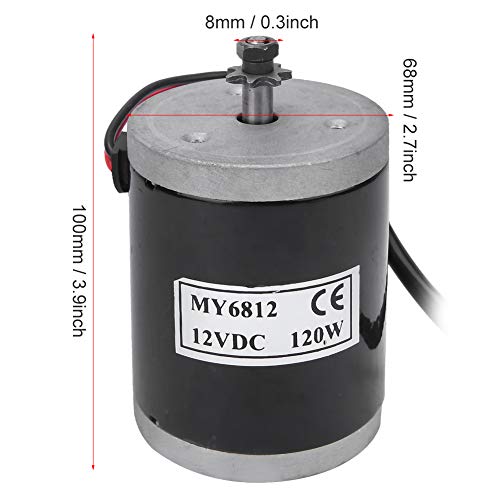

Motor length: 100mm/3.9inch
Motor diameter: 68mm/2.7inch
Shaft diameter: 8mm/0.3inch
Motor fixed holes distance: 36mm/1.4inch

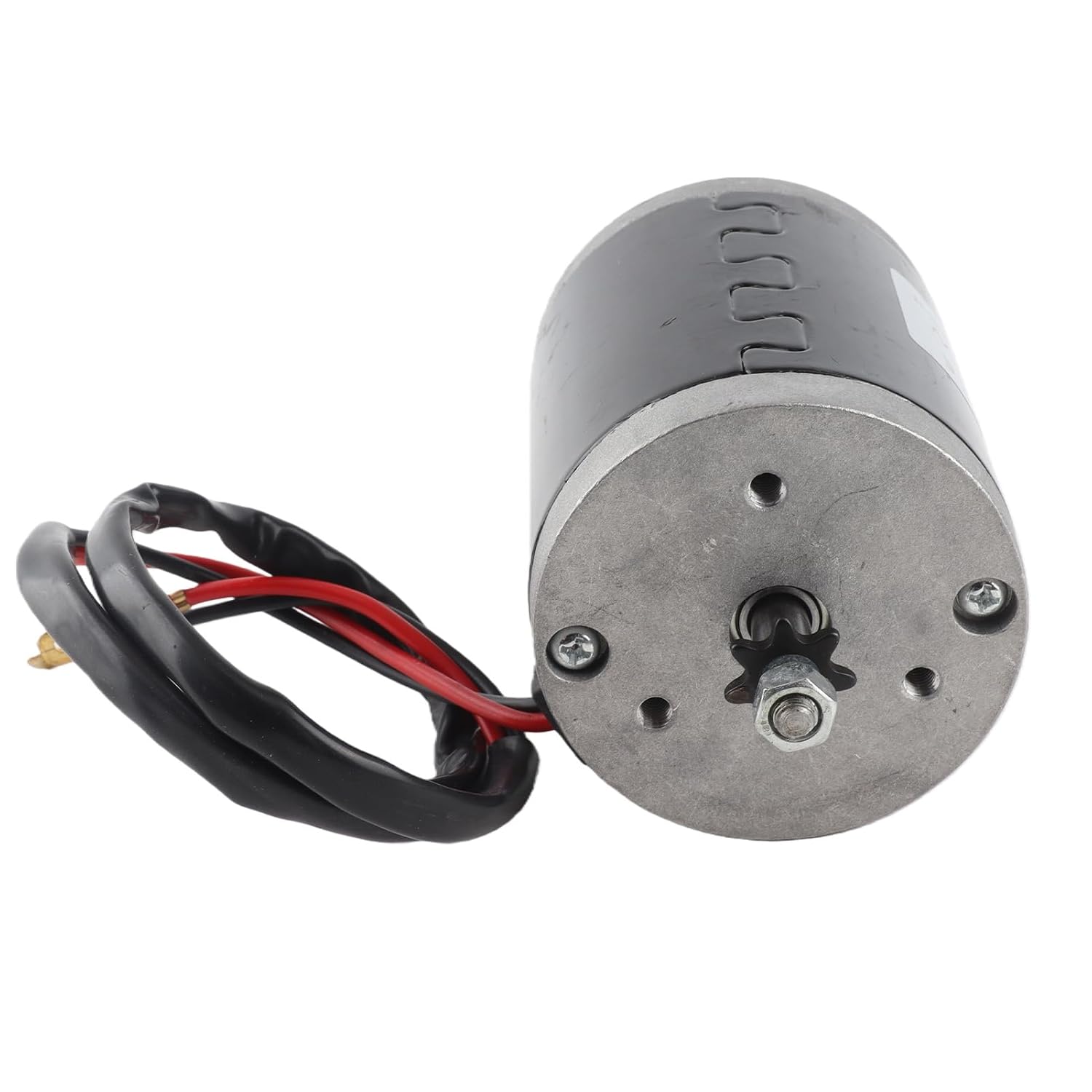

Sprocket: 25H 9 teeth sprocket
Package List:
1 x Brushed Motor
Note:
1. Please allow 0~1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
