Electric Bike Motor Controller, LCD Display Brushless Motor Speed Controller 24V-36V Compatible for Commuters, Urban Cyclists, and Off-Road Riders

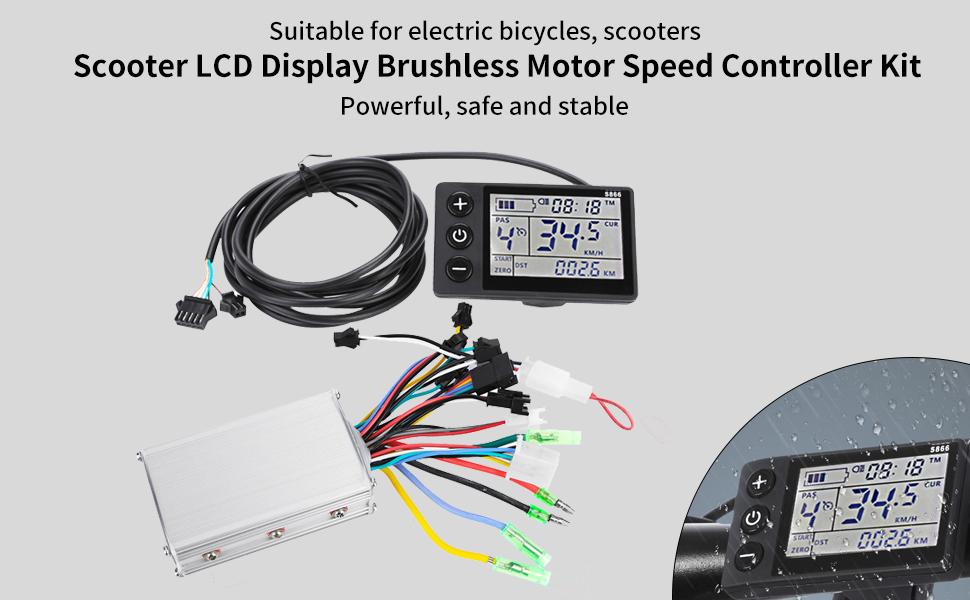

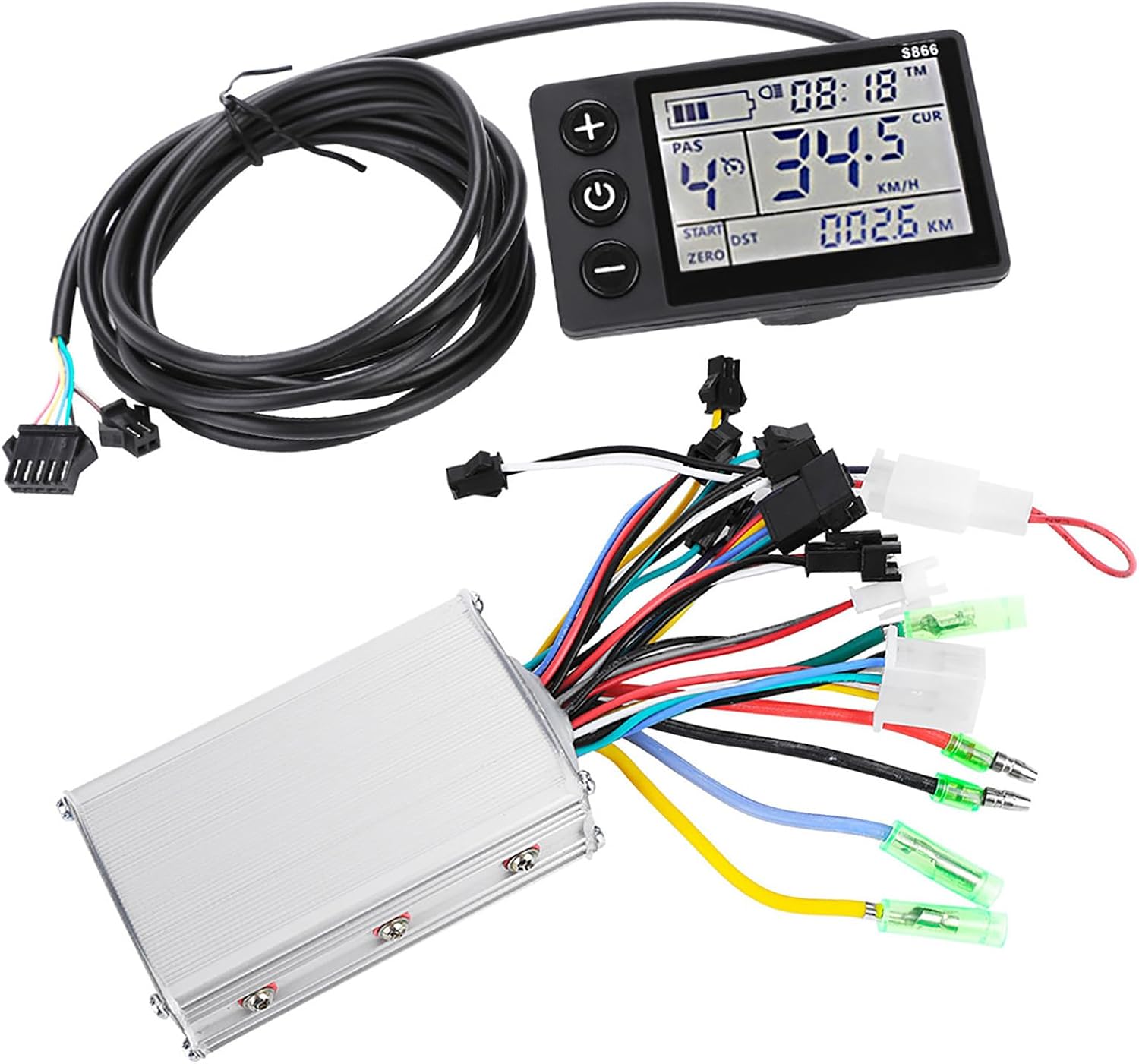

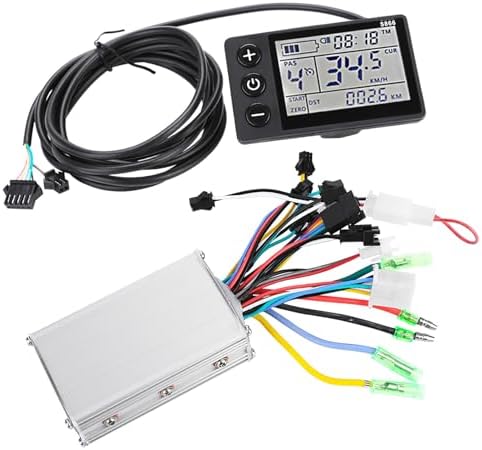

VGEBY Motor Brushless Controller, Waterproof LCD Display Panel and Ebike Scooter Brushless Motor Speed Controller Kit

Specification:

Material: Plastic + LCD + Metal

Options: 1#24V-36V; 2#36V-48V

Power: 1#24V-36V: 250W; 2#36V-48V: 350W

Low-voltage Protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V

Waterproof: Rainproof

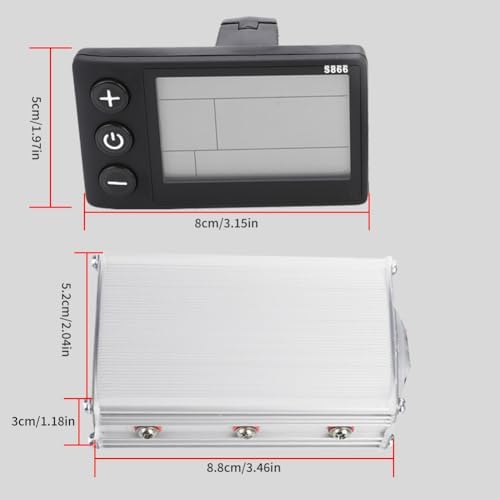

Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch

Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch

Weight: Approx. 332g

Note:

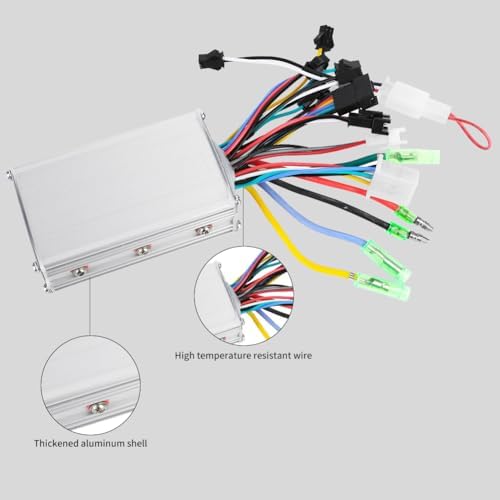

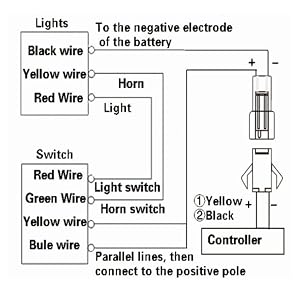

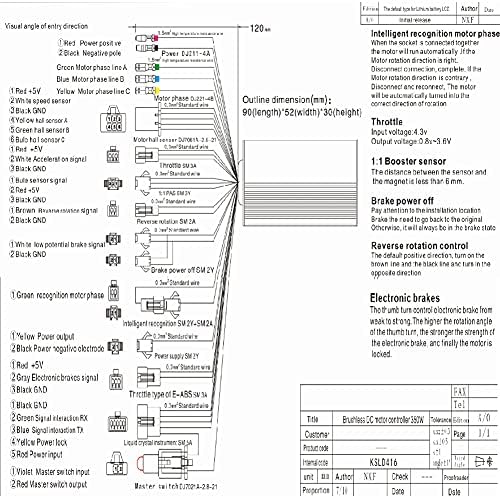

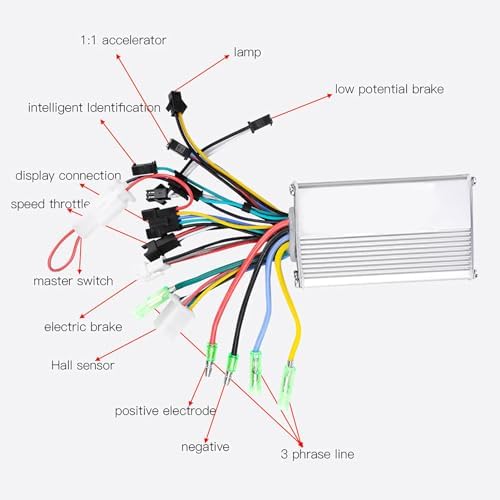

Each cable is labeled with color for different uses

Red: power positive electrode

Black: power negative electrode

Please note that the controller model will be sent randomly, and make sure you will not mind before ordering.

LCD-S866 hand Control Panel Operation Instruction

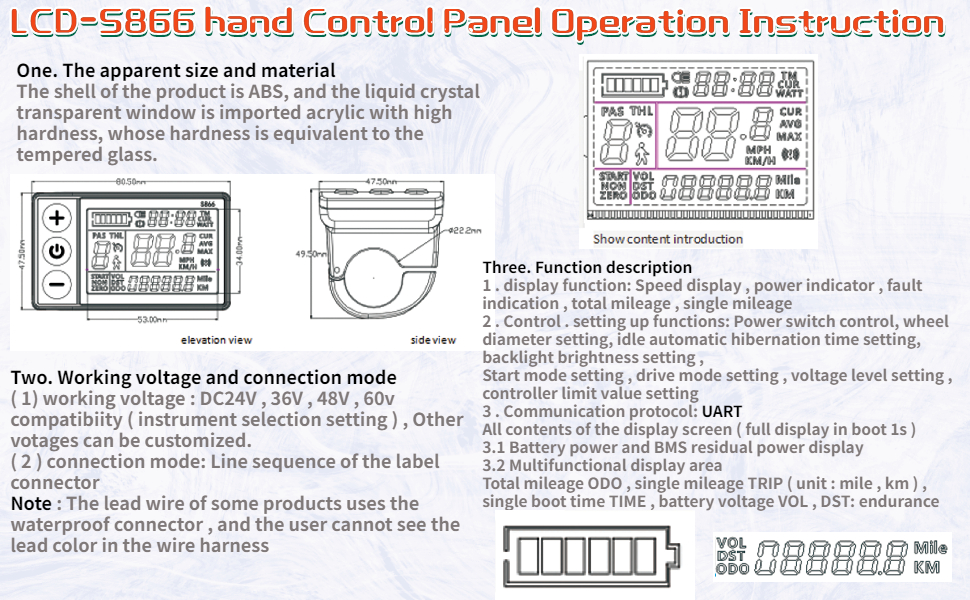

One. The apparent size and material

The shell of the product is ABS, and the liquid crystal transparent window is imported acrylic with high hardness, whose hardness is equivalent to the tempered glass.

• Two. Working voltage and connection mode

( 1) working voltage : DC24V , 36V , 48V , 60v compatibiity ( instrument selection setting ) , Other votages can be customized.

( 2 ) connection mode: Line sequence of the label connector

Note : The lead wire of some products uses the waterproof connector , and the user cannot see the lead color in the wire harness

• Three. Function description

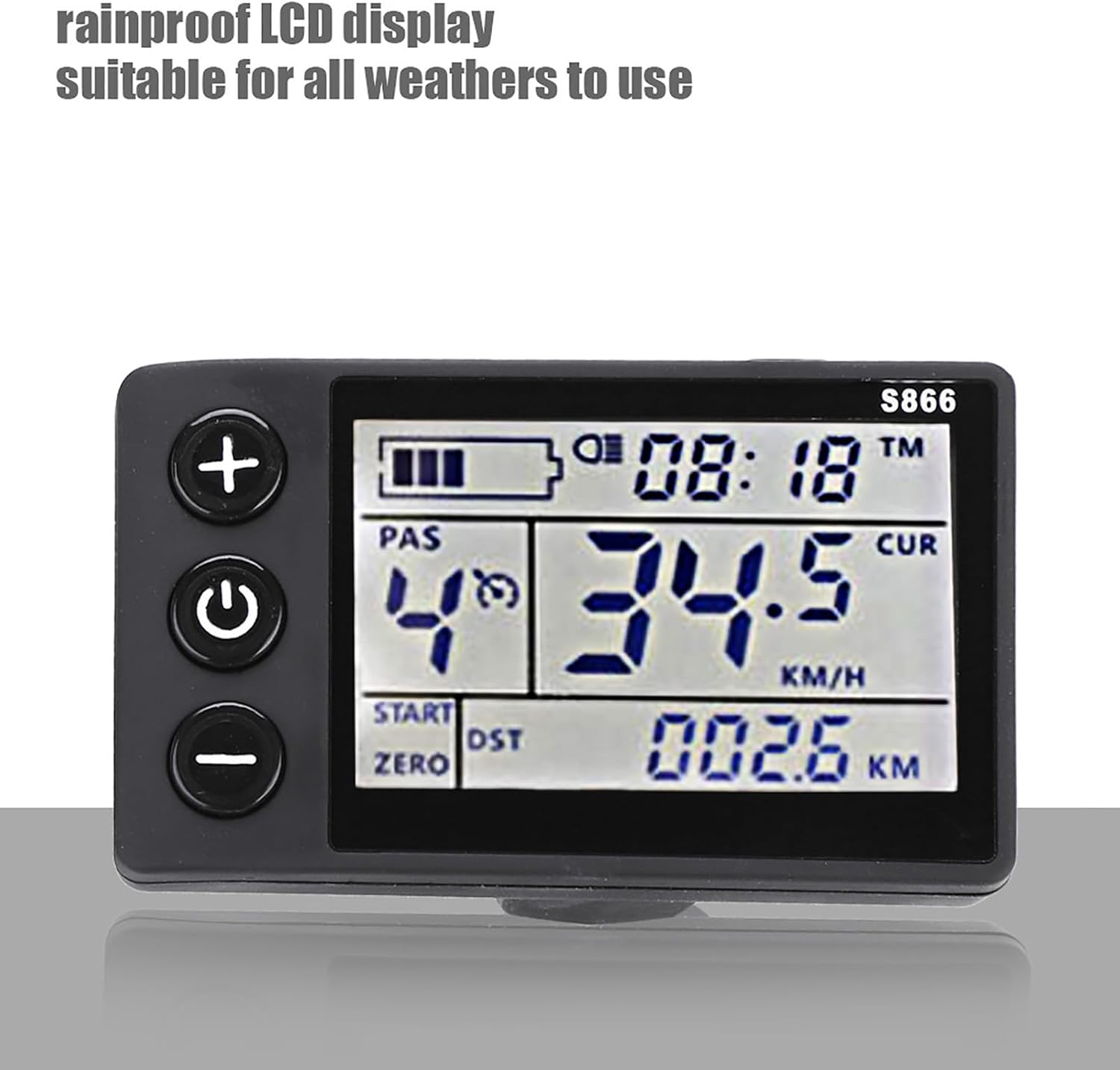

1 . display function: Speed display , power indicator , fault indication , total mileage , single mileage

2 . Control . setting up functions: Power switch control, wheel diameter setting, idle automatic hibernation time setting, backlight brightness setting , Start mode setting , drive mode setting , voltage level setting , controller limit value setting

3 . Communication protocol: UART

All contents of the display screen ( full display in boot 1s )

3.1 Battery power and BMS residual power display

3.2 Multifunctional display area

Total mileage ODO , single mileage TRIP ( unit : mile , km ) , single boot time TIME , battery voltage VOL , DST: endurance

3.3 Speed display area

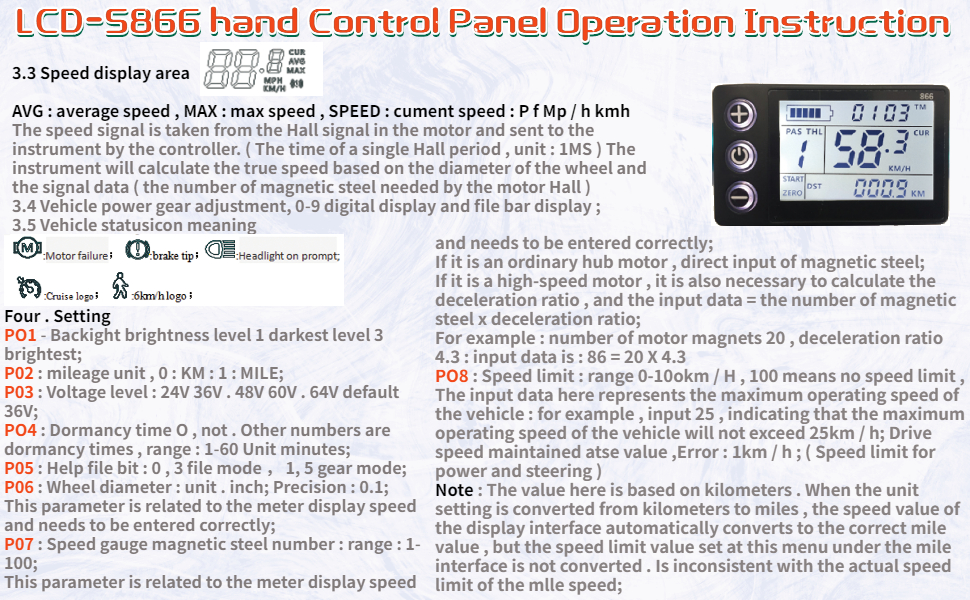

AVG : average speed , MAX : max speed , SPEED : cument speed : P f Mp / h kmh

The speed signal is taken from the Hall signal in the motor and sent to the instrument by the controller. ( The time of a single Hall period , unit : 1MS ) The instrument will calculate the true speed based on the diameter of the wheel and the signal data ( the number of magnetic steel needed by the motor Hall )

3.4 Vehicle power gear adjustment, 0-9 digital display and file bar display ;

3.5 Vehicle statusicon meaning

• Four . Setting

PO1: Backight brightness level 1 darkest level 3 brightest;

P02 : mileage unit , 0 : KM : 1 : MILE;

P03 : Voltage level : 24V 36V . 48V 60V . 64V default 36V;

PO4 : Dormancy time O , not . Other numbers are dormancy times , range : 1-60 Unit minutes;

P05 : Help file bit : 0 , 3 file mode ， 1, 5 gear mode;

P06 : Wheel diameter : unit . inch; Precision : 0.1;

This parameter is related to the meter display speed and needs to be entered correctly;

P07 : Speed gauge magnetic steel number : range : 1-100;

This parameter is related to the meter display speed and needs to be entered correctly;If it is an ordinary hub motor , direct input of magnetic steel; If it is a high-speed motor , it is also necessary to calculate the deceleration ratio , and the input data = the number of magnetic steel x deceleration ratio;

For example : number of motor magnets 20 , deceleration ratio 4.3 : input data is : 86 = 20 X 4.3

PO8 : Speed limit : range 0-10okm / H , 100 means no speed limit ,

The input data here represents the maximum operating speed of the vehicle : for example , input 25 , indicating that the maximum operating speed of the vehicle will not exceed 25km / h; Drive speed maintained atse value ,Error : 1km / h ; ( Speed limit for power and steering )

Note : The value here is based on kilometers . When the unit setting is converted from kilometers to miles , the speed value of the display interface automatically converts to the correct mile value , but the speed limit value set at this menu under the mile interface is not converted . Is inconsistent with the actual speed limit of the mile speed;

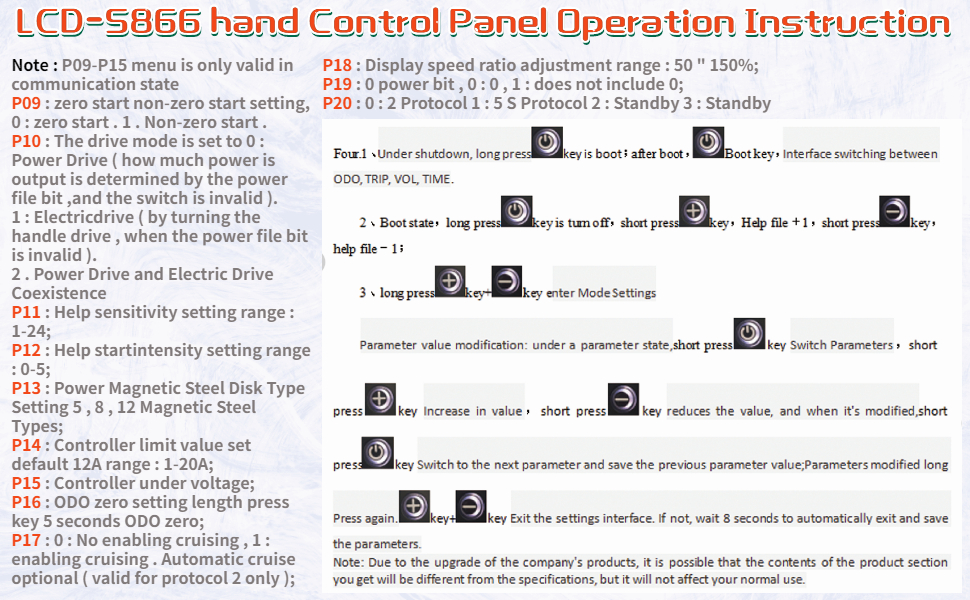

Note : P09-P15 menu is only valid in communication state

P09 : zero start non-zero start setting, 0 : zero start . 1 . Non-zero start .

P10 : The drive mode is set to 0 : Power Drive ( how much power is output is determined by the power file bit ,and the switch is invalid ).

1 : Electricdrive ( by turning the handle drive , when the power file bit is invalid ).

2 . Power Drive and Electric Drive Coexistence

P11 : Help sensitivity setting range : 1-24;

P12 : Help startintensity setting range : 0-5;

P13 : Power Magnetic Steel Disk Type Setting 5 , 8 , 12 Magnetic Steel Types;

P14 : Controller limit value set default 12A range : 1-20A;

P15 : Controller under voltage;

P16 : ODO zero setting length press key 5 seconds ODO zero;

P17 : 0 : No enabling cruising , 1 : enabling cruising . Automatic cruise optional ( valid for protocol 2 only );

P18 : Display speed ratio adjustment range : 50 " 150%;

P19 : 0 power bit , 0 : 0 , 1 : does not include 0;

P20 : 0 : 2 Protocol 1 : 5 S Protocol 2 : Standby 3 : Standby
