ELECTOP 6 Way 12V/24V Fuse Block Blade with Negative Bus

1 / 14

ELECTOP 6 Way 12V/24V Fuse Block Blade with Negative Bus

$7.20 USD

Shipping fees will be calculated at checkout.

★【NEW DESIGN 6 WAY FUSE BOX】Electop 6-Way Blade Fuse Block accepts 1A to 20A ATC/ATO(middle size) fuses. It has positive and negative sides, which means that each positive terminal screw has a negative terminal screw to make your circuit clear at a glance. This device is intended for branch circuit protection and has good conductivity. Max. 32V DC operating voltage. Max. 20 Amp per circuit & 75 Amp per panel.
★【PREMIUM QUALITY & SAFE MATERIAL】Made of environment friendly PBT material, this fuse holder meets all the standards of an ideal fuse box. It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon.
★【PROTECTION COVER & PRE-PRINTED DIY STICKERS】Transparent plastic cover with screw nut, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses. Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor.
★【WIDE APPICATION】This 6 Circuit Fuse Block widely used in Car, Truck, Boat, Tankers, Marine, SUV, Yacht, RV, Van, Ships etc. Each fuse of fuses box can be connected to any circuit of electrical appliances. For example: car dome light, auto headlight, width lamp, fog lamp, warning lights, car refrigerator, car charger and car fan, car TV.etc.

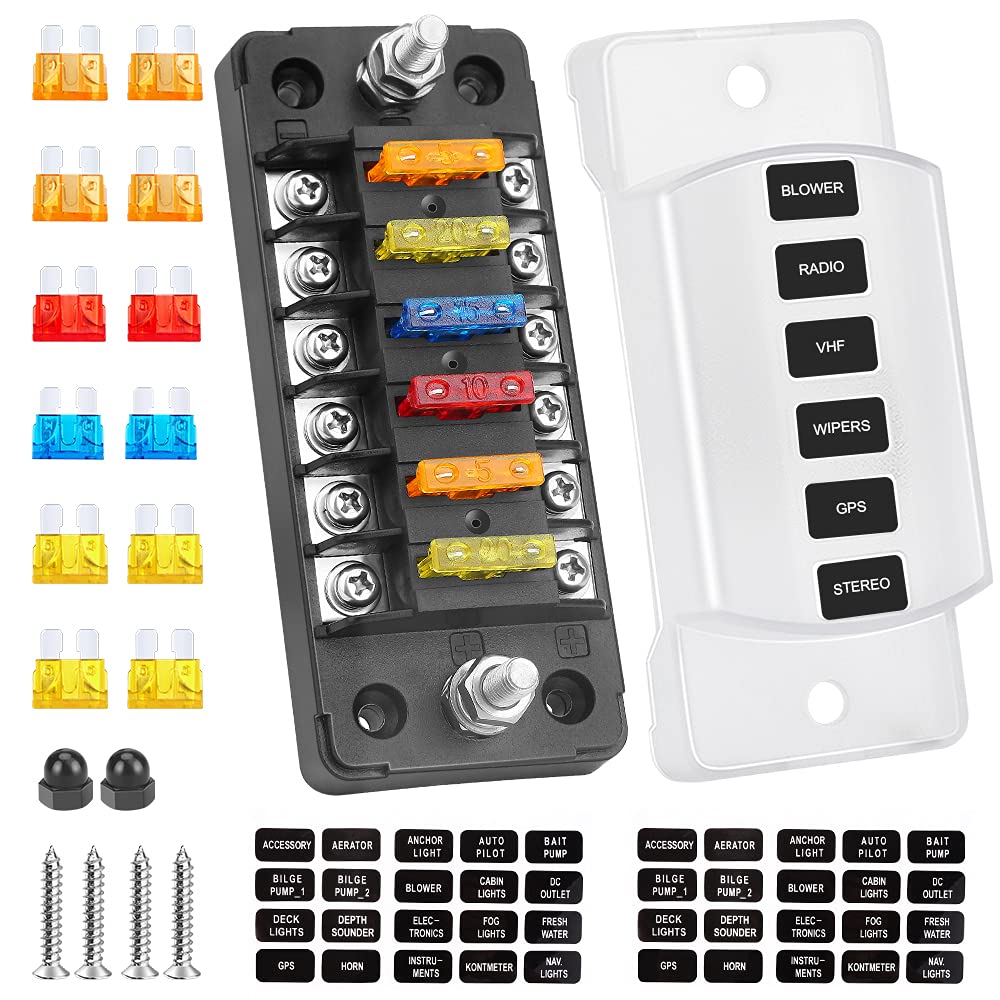

★【PACKAGE INCLUDED】Package includes 1 x 6 Way Blade Fuse Block with Protection Cover, 4 x 20A Fuse, 2 x 15A Fuse, 2 x 10A Fuse, 4 x 5A Fuse, 4 x Screw, 2 x Sticker. If you have any questions about this 6-way fuse box holder, please feel free to contact us. Our costumer service team always be there for you.

Model	ELECTOP6WAY
Number of Items	1
Manufacturer	Electop
Number of Packs	1
Unit Count	1 Count
Part Number	26404D5178747330
Voltage	12 volts, 32 volts
Mounting Type	Through-Hole Mount
Current Rating	1 A, 10 A, 15 A, 20 A
Material Type	Plastic
Color	Black
Price	$15.99 $ 15 . 99
Input Voltage	Max. 32V DC
Input Current	Max. 75 Amp per panel
Output Current	Max. 20 Amp per circuit
Fuse Slots	6
Fuses Included	12 Pieces
Fuse Type	Standard (ATC/ATO)
Electrical Wiring	with Negative Bus
Dust Cover	✓
Label Sticker	✓
Spare Fuse Slots	x
Material	Plastic

Electop 6 Way Fuse Block Blade Fuse Box with Negative Bus, Waterproof 6 Circuit Automotive Fuse Holder Fuse Block for 12V/24V Car Truck Boat Marine RV

6 circuits with negative bus, accept ATC/ATO(middle size) standard fuses.

This device is intended for branch circuit protection and has good conductivity.

Max. 32V DC operating voltage. Max. 20 Amp per circuit & 75 Amp per panel.

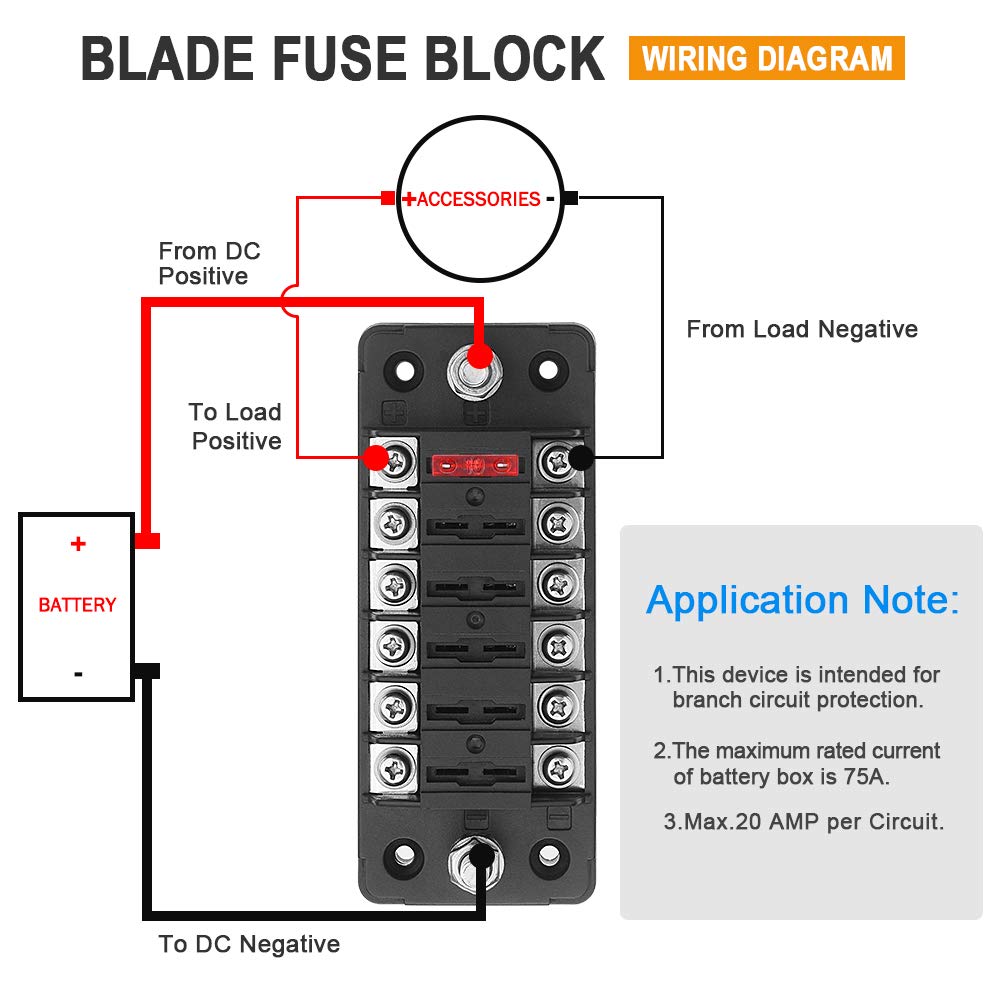

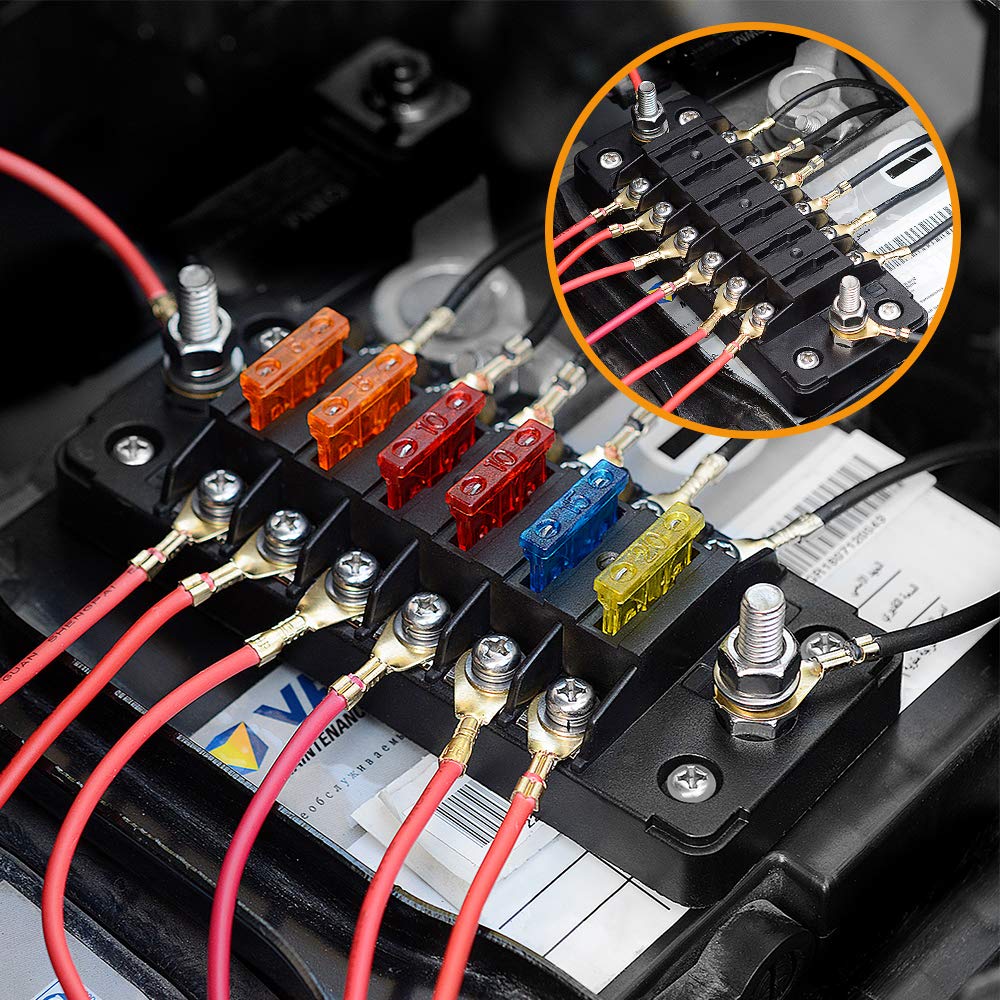

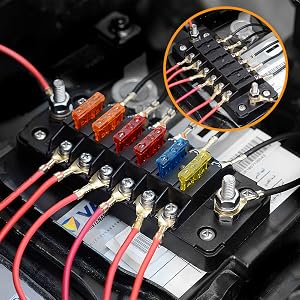

Each positive terminal has a negative terminal to make your circuit clear at a glance.

Made of high quality PBT material, this fuse holder meets all the standards of an ideal fuse box.

It is mechanically strong, insulated, heat resistant and flame resistant. There will hardly cause any issue like produce fracture, deformation, combustion or short circuit phenomenon.

ELECTRICAL

Main Line

terminal rating : M6 threaded studs (75A 32V DC.max)
wire size : #4-6 AWG

Single Line

terminal rating : M4 threaded studs (20A 32V DC.max)
wire size : #12-16 AWG

SAFE Material

Base: PA66
Dust Cover: PC
Terminal: Nickel plated copper
Screw: Stainless steel

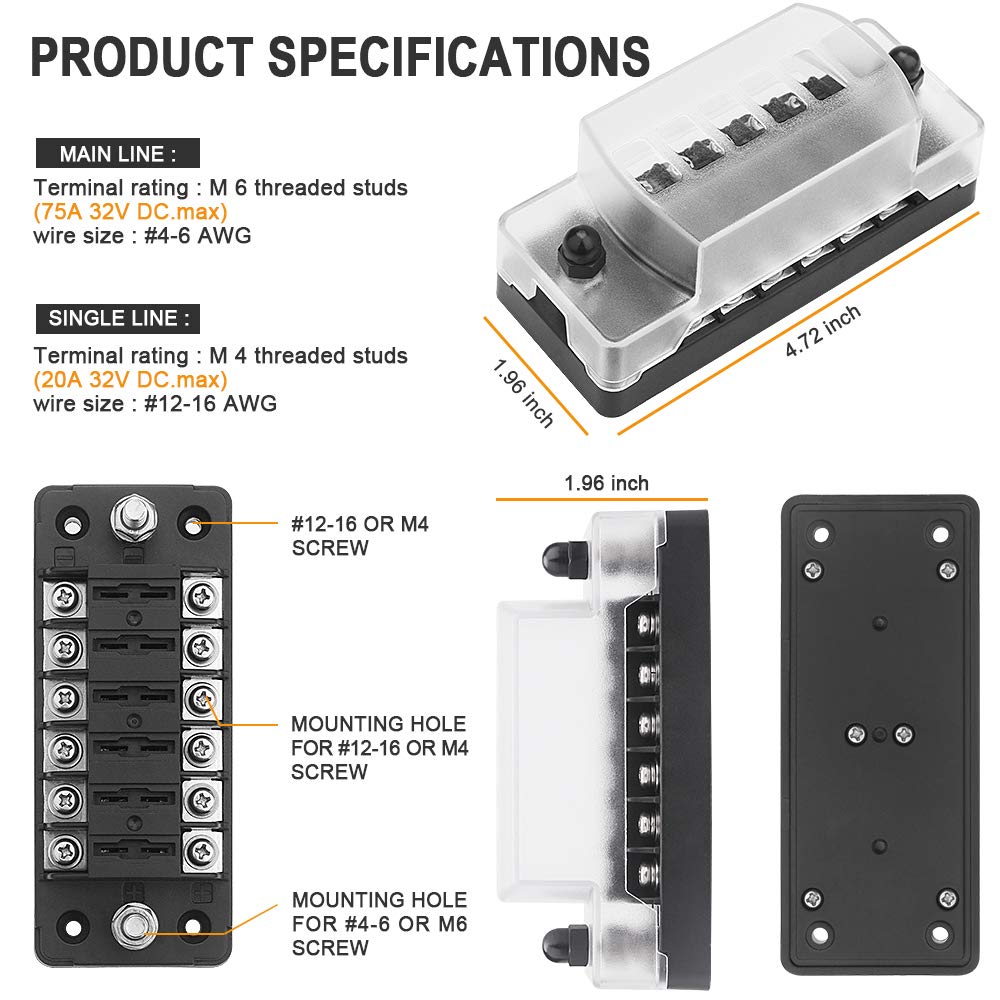

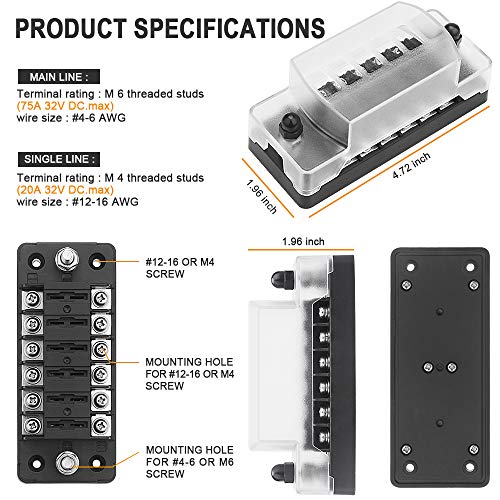

Product Specifications

Product Weight : 193g
Product Size : 120 * 50 * 52mm
Input Rated Voltage : DC 12V - 32V
Input Rated Current : 75A
Maximum Output Current : 20A per circuit
Fuse type : Standard (ATC/ATO)
Fuse slot : 6

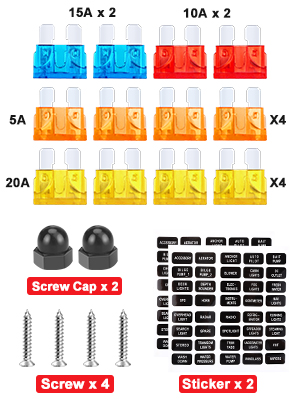

Package included

1 x 6 Way Blade Fuse Block
1 x PC Protection Cover
4 x 20A Fuse
2 x 15A Fuse
2 x 10A Fuse
4 x 5A Fuse
4 x Screw
2 x Cap Nut
2 x Sticker

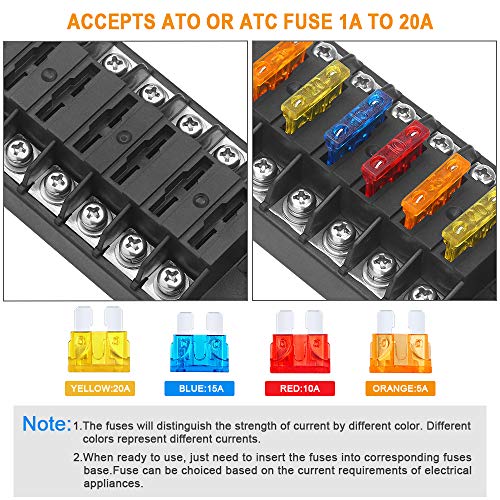

The current of the fuse will be distinguished by different colors.
Yellow:20A, Blue:15A, Red:10A, Orange:5A

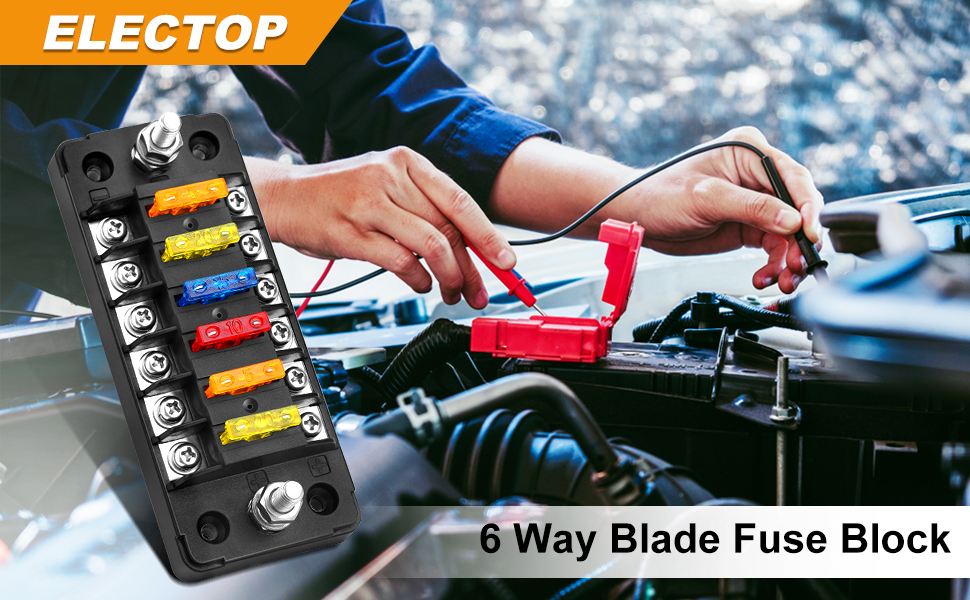

NEW DESIGN 6 WAY FUSE BOX FUSE HOLDER

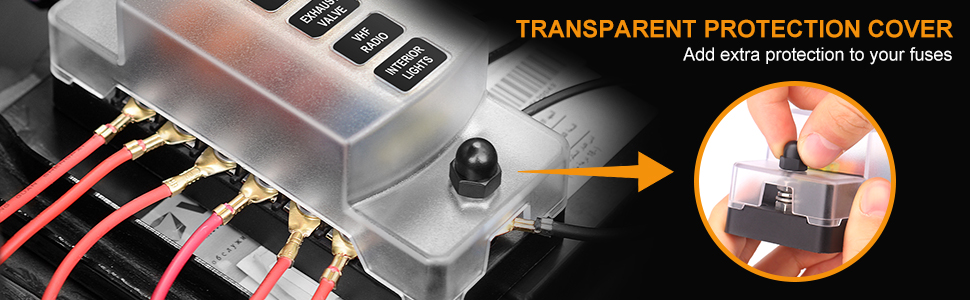

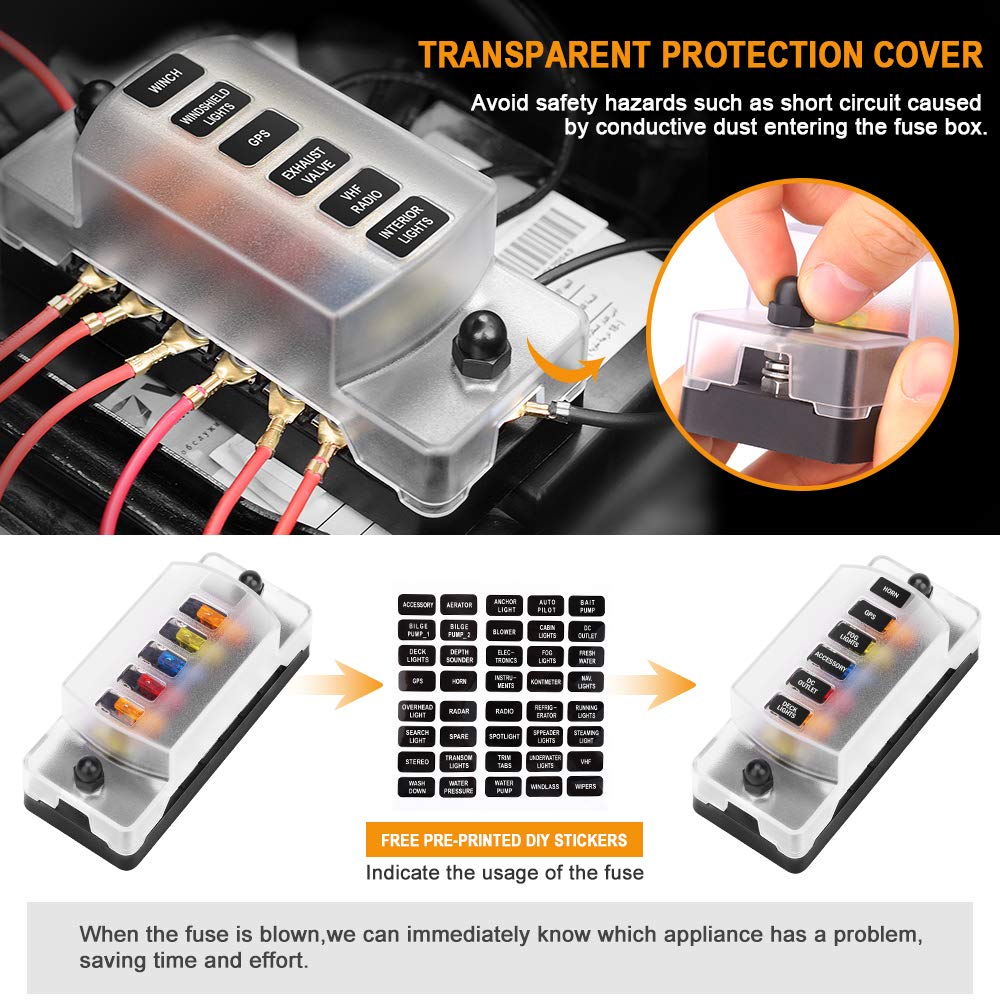

PROTECTION COVER

Transparent plastic cover with cap nut, easy to operate, splash and dust-proof design. Adds extra protection to your fuse box & fuses.

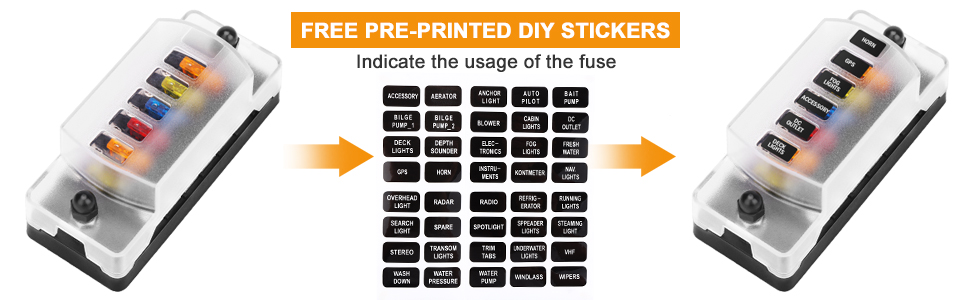

PRE-PRINTED DIY STICKERS

Come with multi-function stickers for DIY your specific need, convenient for examination and repair, easy to troubleshoot in outdoor.

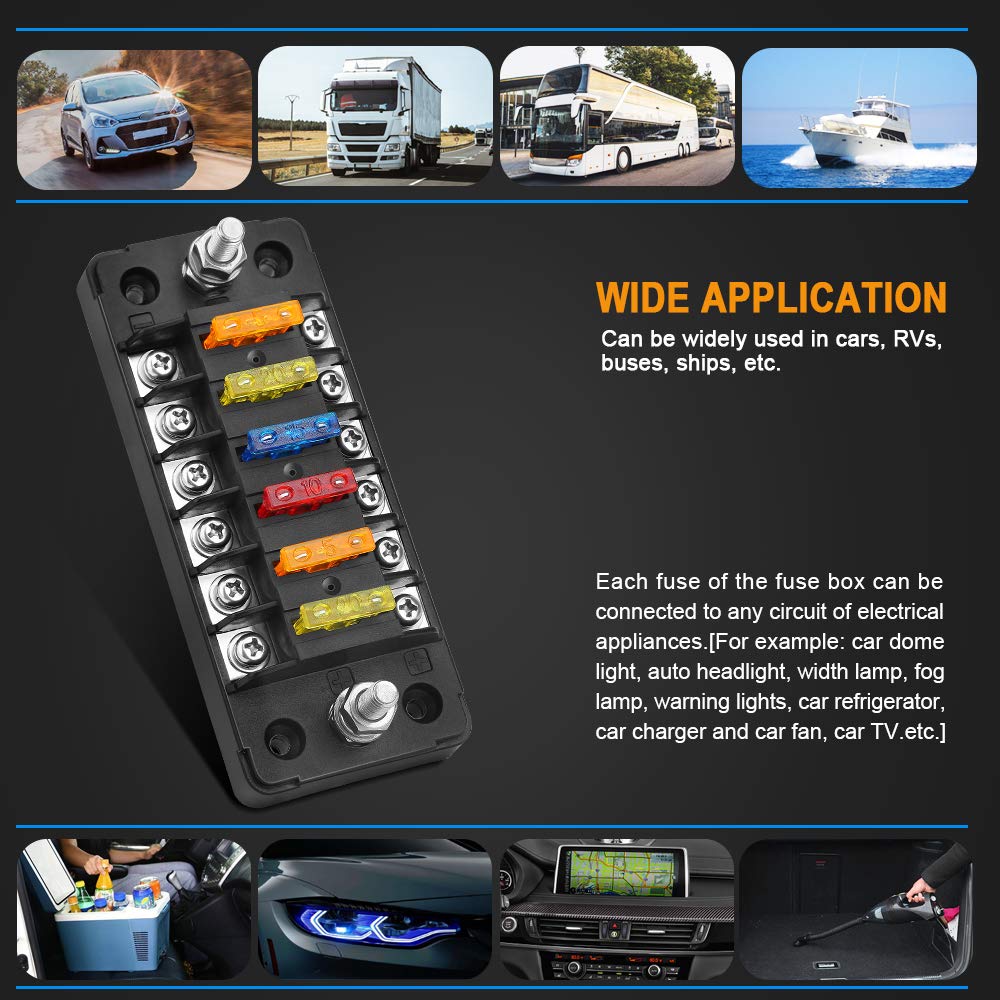

WIDE APPICATION
This 6 Circuit Fuse Block widely used in Car, Truck, Boat, Tankers, Marine, SUV, Yacht, RV, Van, Ships etc.
Each fuse of fuses box can be connected to any circuit of electrical appliances.
For example: car dome light, auto headlight, width lamp, fog lamp, warning lights, car refrigerator, car charger and car fan, car TV.etc.
