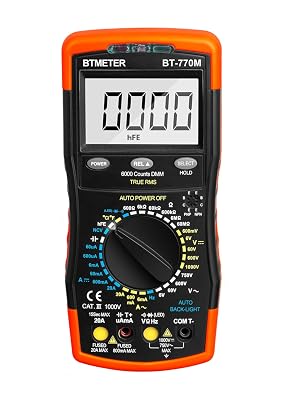

Digital Multimeter TRMS 6000 Count, BTMETER BT-770M Auto/Manual Ranging DMM Electrical Meter Tester for AC/DC Amp, AC/DC Volt

1 / 15

Digital Multimeter TRMS 6000 Count, BTMETER BT-770M Auto/Manual Ranging DMM Electrical Meter Tester for AC/DC Amp, AC/DC Volt

$16.65 USD

Shipping fees will be calculated at checkout.

✅【Professional Hobbist Multimetro 】6000 Counts multi tester 770M accurately measure AC votlage TRMS from 1mV~750V, DC volt from 0.1mV to 1000V, test DC amperage from 0.01uA to 20A, detect AC current true RMS from 6mA to 20A, measure resistance up to 600M ohm, Capacitance to 60mF, Frequency to 9.999MHz, temperature to 1832°F. Available to measure duty Cycle, Diode, hFE, Capacitor, transistor and LED Bulb.

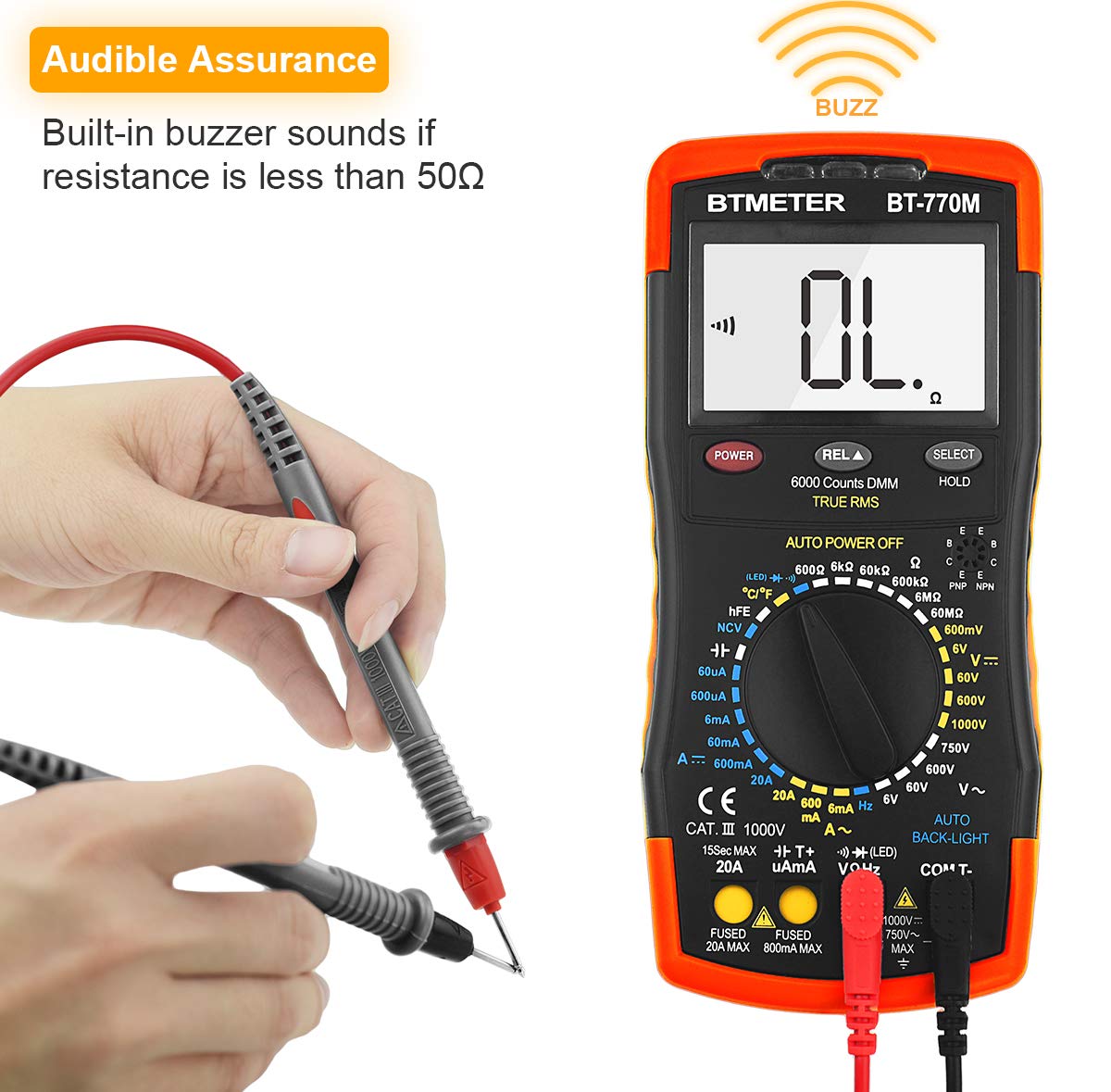

✅【Multi-function Digital Voltmeter】Comes with Quick Response Continuity Test with Alarm, Auto Backlit, Data Hold, Dial indicator light, NCV Tester, True RMS, Relative Value, Low power reminder, Auto Shut Down, Zeroing for precise measurement.
✅【Mechanical Protection System】Blocks the wrong ports to prevent the users insert the test leads into the wrong port because of the confusion or carelessness. DO NOT dial during measuring, pull out the RED test leads before dial.
✅【6.5ft Anti-Drop Multimeter】Removable durable case can protect it from falling accident. Comes with thermocouple probe that can stretch to 6ft, Multi test with temp range -4 to 1832 degree Fahrenheit. Ideal multitester for troubleshoot eletrical automotive HVAC problems.
✅【Auto Backlit & Indicator Light】Automatically turn on/off backlight and dial indicator light in the dark, Save the trouble from manual manipulation. 1 Year Warranty, lifetime tech support.

Power Source	Battery Powered
Minimum Operating Voltage	0.6 volts_of_direct_current
Upper Temperature Rating	1832 °F
Measurement Type	Multimeter
Style Name	BT-770M =（BT-770S）+ Mechanical Blocking System
Color	AC/DC 20A & Mechanical Block 770M
Item Weight	0.59 kg
Item Dimensions	7.67 x 3.46 x 1.57 inches
Model	BT-770M
Unit Count	1 Count
UPC	778469100578
Warranty Description	1 Year Manufacturer
Manufacturer	BTMETER
Part Number	770M
Power Source Type	Battery Powered
Style	BT-770M =（BT-770S）+ Mechanical Blocking System

Digital Multimeter TRMS 6000 Count,BT-770M Auto/Manual Ranging DMM Electrical Meter

BTMETER - A Professional Test & Measurement Solution Provider

We dedicated ourselves to test, measurement and monitoring instrument and software that are widely used in electric,HVAC,automotive,network troubleshooting, as well as in hobbist, electrical, industrial, medical, process and calibration applications.

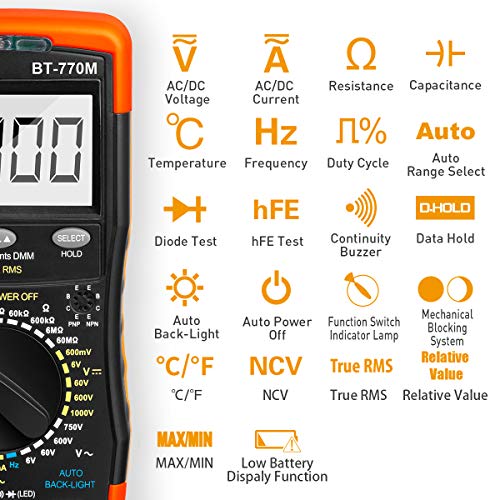

More Features:

Data Hold
Auto Ranging
Auto Back Light
Auto Power OFF
Continuity Alarm
Mechanical Blocking System
Non-contact Voltage Testing

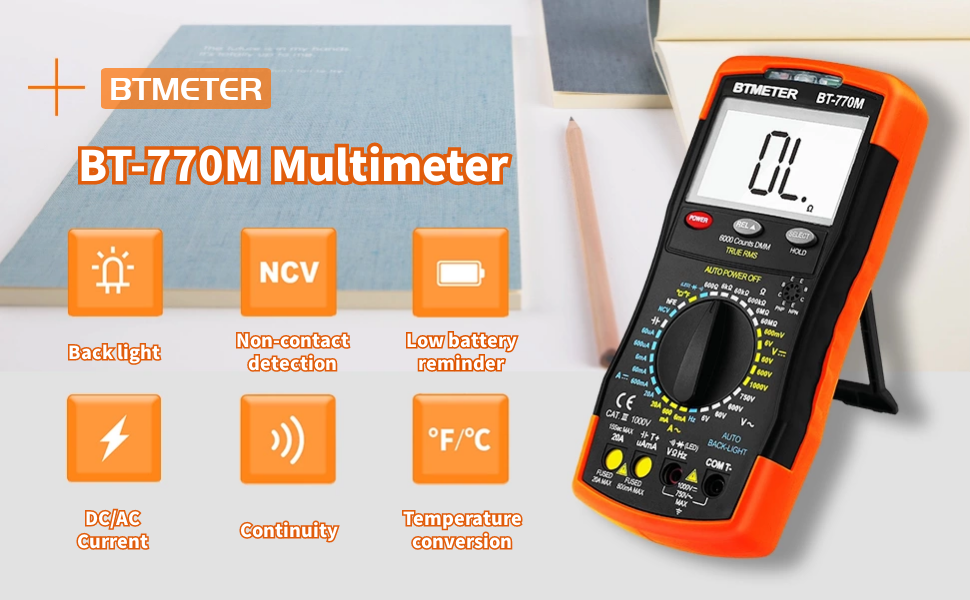

BT-770M 6000 Counts TRMS Digital Multimeter with Mechanical Blocking Protection

Durable tool makes troubleshooting easier and safer than ever

BT-770M avometer is professionally designed for measuring circuit properties: AC & DC volt, amp, ohm, capacitor, temp, Hz, duty cycle, NCV, etc. It is widely used in car repairs and maintenance, indutrial, household, HVAC systems.

Designed with kickstand and thick magnet on the back, you can pop out the bracket to support the voltemeter on the desk, or attch on metal materials while measuring.

Mechanical protective system avoides ammeter damage caused by selecting wrong range or functions.

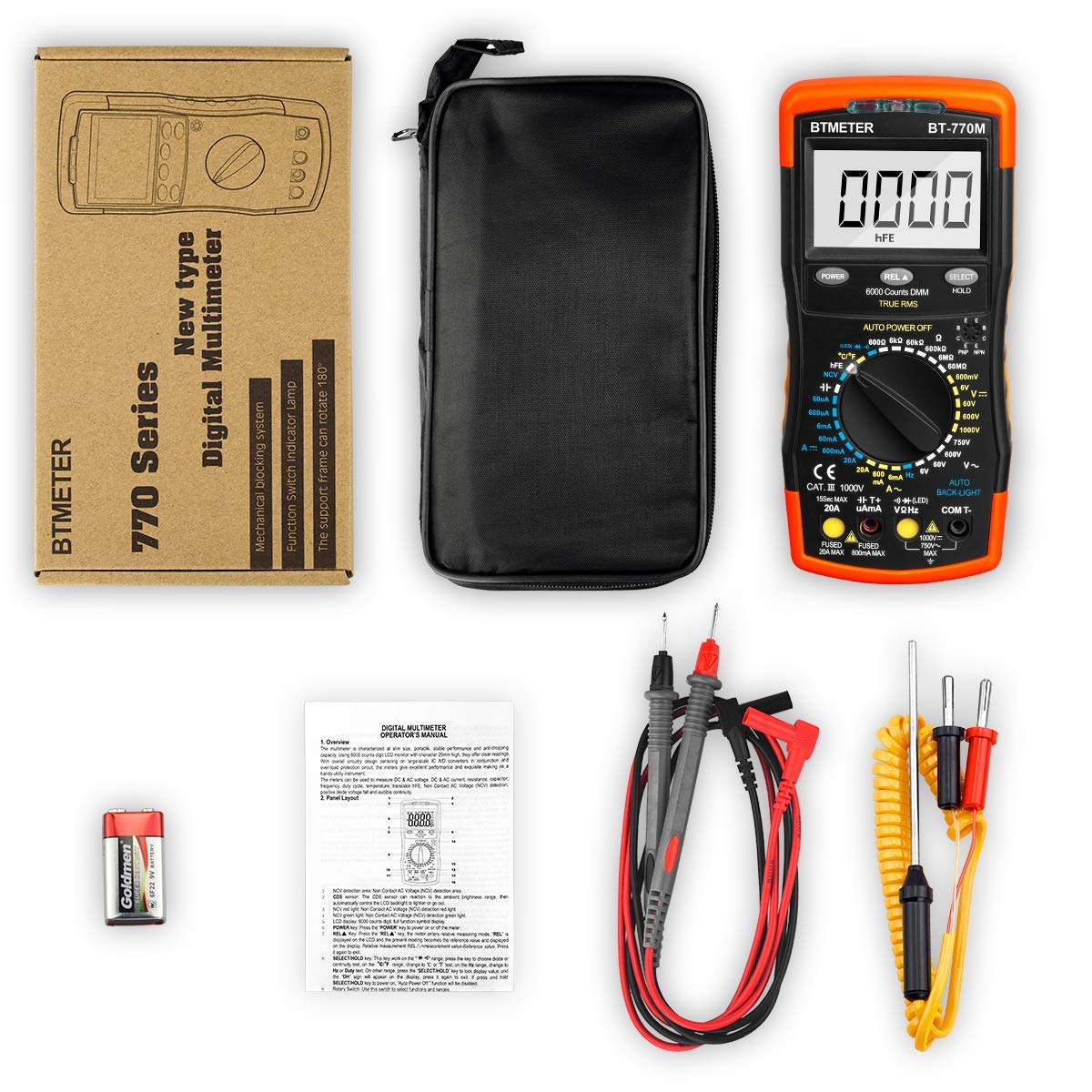

Removable durable case can protect it from falling accident.

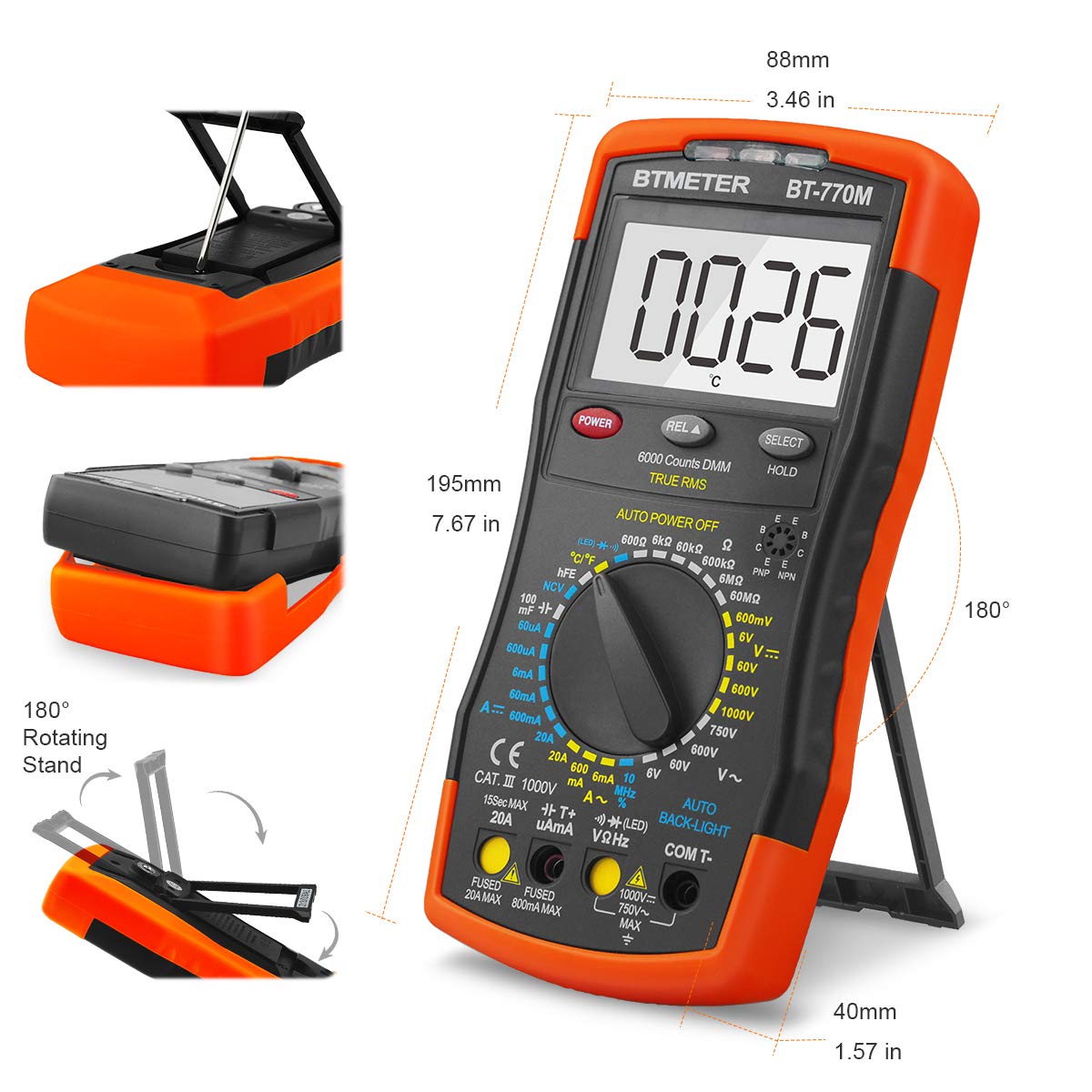

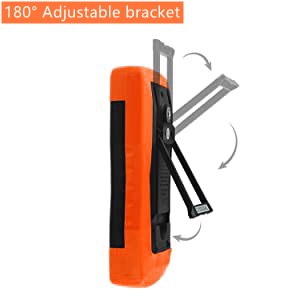

180° Adjustable Bracket

Backside design 180 degree adjustable bracket. It not only can be used as a support, but can also be used for suspension. What’s more, the back cover is equipped with magnets to adsorb the instrument on the surface of the iron materials.

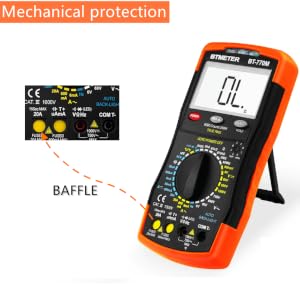

locks the wrong ports to prevent the users insert the test leads into the wrong port

Mechanical Blocking System

The BT-770M has a mechanical protection system and dual fuses so you don't have to worry about plugging the test leads into the wrong holes, and is equipped with 2 overload fuses in all measurement ranges to prevent the multimeter from burning out.

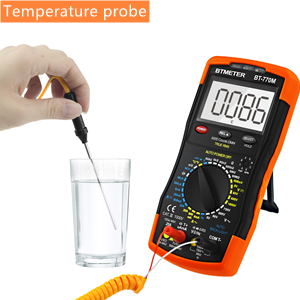

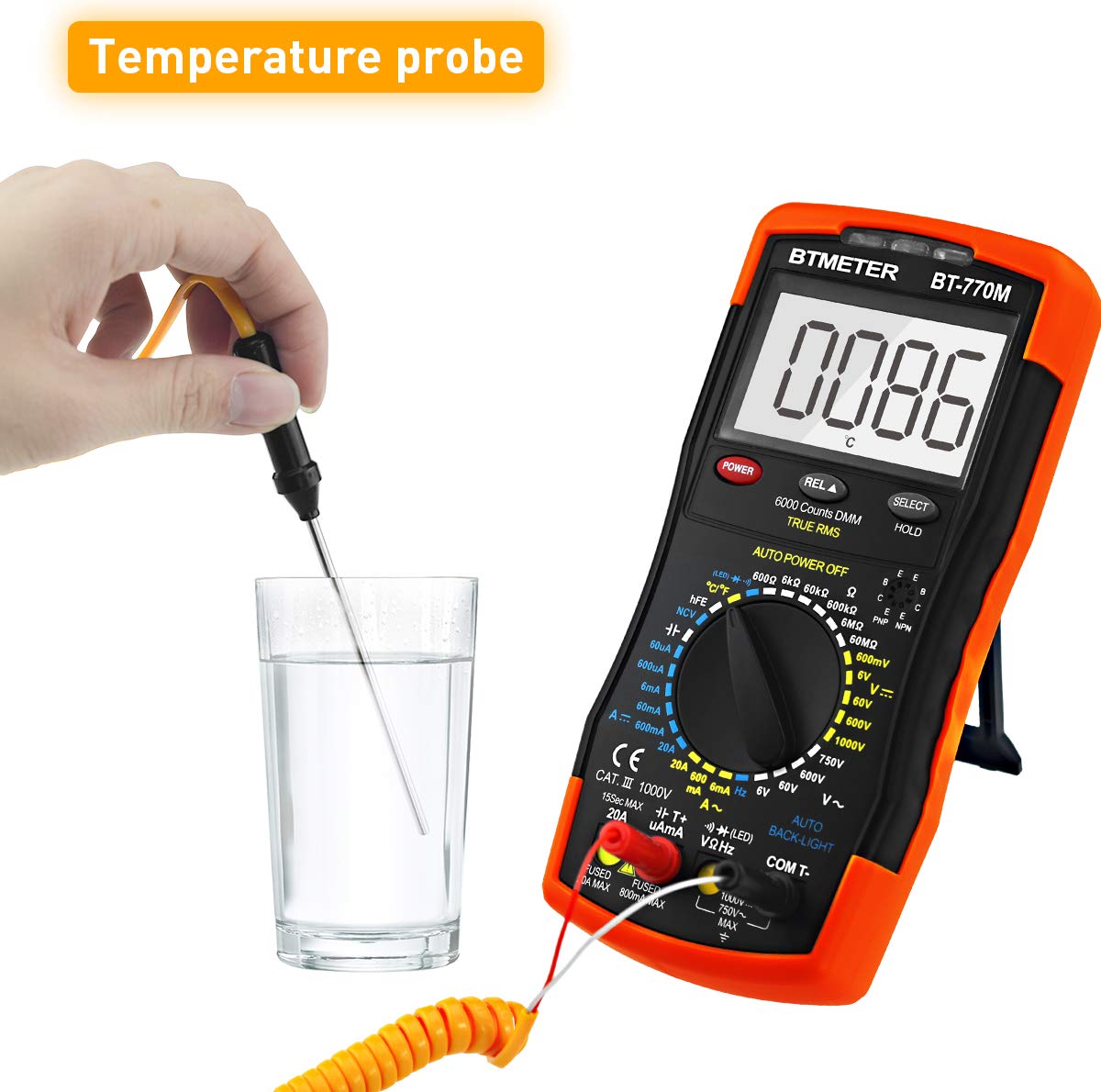

Not only a multimeter, but also a thermometer to test temperature from -4~1832℉(-20~1000℃)

Multimeter with Thermometer

Not only a multimeter, but also a thermometer to test temperature from -4~1832℉(-20~1000℃) Extensible temperature test probe is included with the Multimeter.

Digital Multimeter TRMS 6000 Count, BTMETER BT-770M Auto/Manual Ranging DMM Electrical Meter Tester

Multi-function Autoranging Multimeter

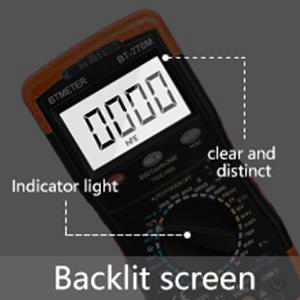

BT-770M multi-tester is equipped with indicator lamp & auto back-light function, so you can see data clearly even in the dark. Data Hold, Continuity with Alarm, Auto Power Off Function.

Digital Multimeter TRMS 6000 Count, BTMETER BT-770M Auto/Manual Ranging DMM Electrical

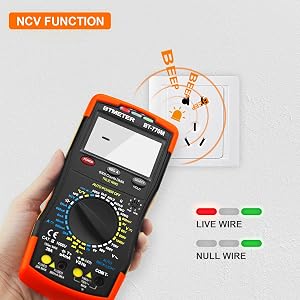

Non-contact Voltage Detection

Designed to be safer. Simply place the probe near a socket, outlet, terminal, etc. to test for the presence of voltage.

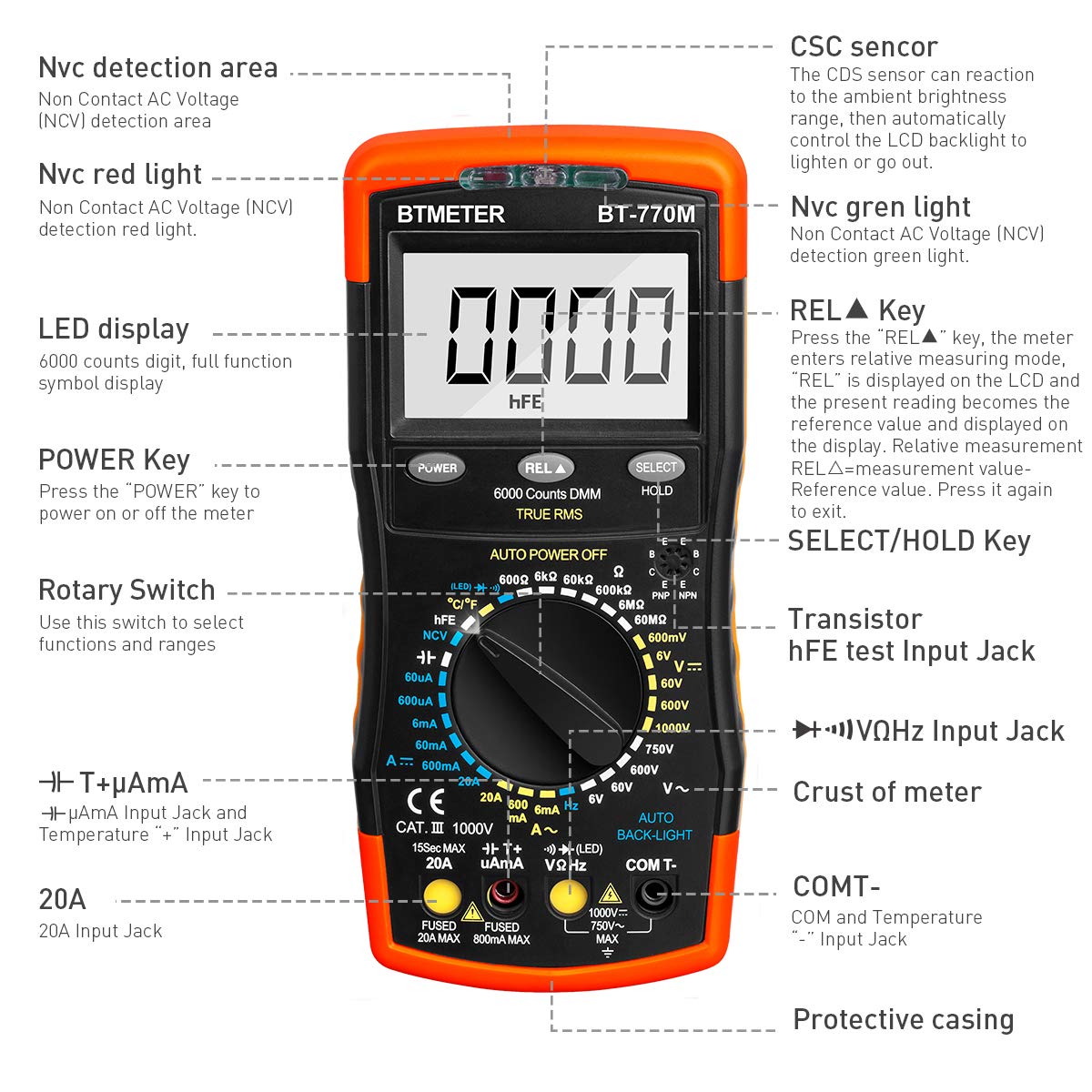

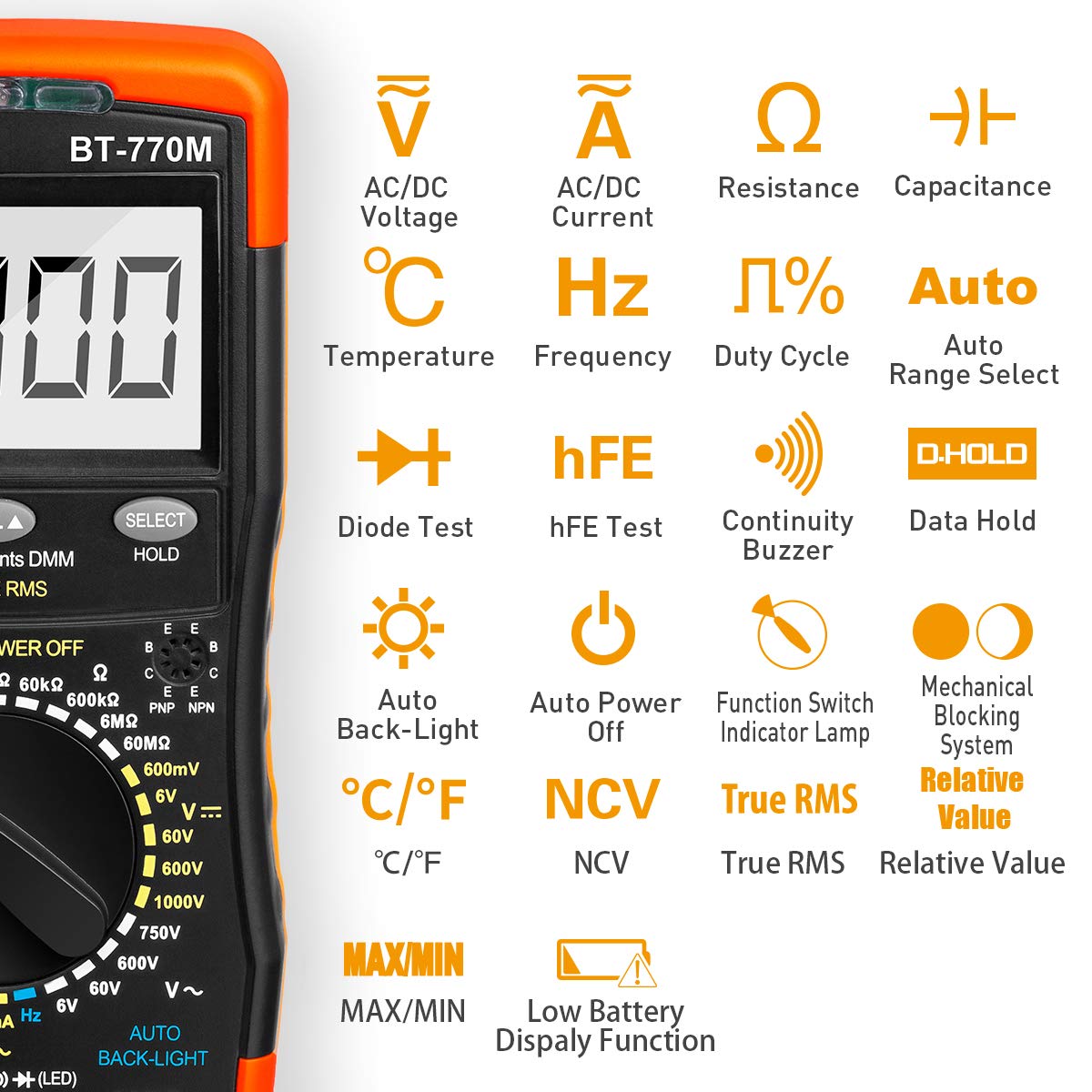

Auto Backlit, Data Hold, Dial indicator light, NCV Tester, True RMS, Relative Value

Wide Range of Applications

The multimeter is an industry-specific tool for residential/commercial electricians, HVAC, technicians, industrial maintenance and automotive repair professionals.

Specifications:

AC Current:	6mA, 600mA, 20A (+/- 1.5% + 2 digits)
DC Current:	60uA, 600uA, 6mA, 600mA, 20A (+/- 1.5% + 2 digits)
AC Voltage:	6V, 60V, 600V,750V (+/- 1.0% + 2 digits)
DC Voltage:	600mV, 6V, 60V, 600V, 1000V (+/- 0.5% + 2 digits)
Resistance:	600, 6K, 60K, 600K, 6M, 60M Ohm (+/- 1.0% + 2 digits)
Temperature:	-20℃~-1000℃, -4℉~1832℉ (+/- 3.0% + 10 digits)
Frequency:	9.999Hz~9.999M hz (+/- 0.1% + 5 digits)
Duty Cycle:	0.1%~99.9% (+/- 2.0% + 2 digits)
Capcitance:	9.999nF, 99.99nF, 999.9nF,9.999uF, 99.99uF, 999.9uF, 9.999mF, 99.99mF (+/- 3.0%~10% + 10 digits)
