CZC AUTO 12V LED Low Profile Submersible Rectangular Trailer Light Kit Tail Stop Turn Running Lights for Boat Trailer Truck Marine

$12.60 USD

Shipping fees will be calculated at checkout.

Kit includes 2 combination Submersible running/stop/tail/turn signal lights,license plate bracket and Mounting Hardware， 25ft length of 4 pin wire Harness for enough use.UPDATE ON 9TH,JUNE,2019.FOR BETTER SERVICE ON OUR CUSTOMER,WE IMPROVED THE WIREHARNESS TO 18GAUGE 100% COPPER WIRE FOR WATERPROOF USE
Waterproof and Submersible Feature and Testing（2nd Image）：We placed light underwater for 3 hour by 3 times each day ,total 5 days,the light worked great underwater! The lights are definitely waterpoof and submersible.Please make sure wires connect correctly and no electronic short before marine/underwater
Left light have 22 diodes which include 4 diodes for lincense plate light function,Right light have 18 diode. Super bright LED quality ,Complies with DOT standards
Each rectangular light size：8" Length* 2-3/4" width* 3" height,Stainless steel hardware for under and over80" marine towing vechiles
CLIENT SUPPORT: Please feel free to contact us at first if there is any problem when you receive or use our products. We are always here to support you.

Specific Uses For Product	Rear Lights
Light Source	LED
Compatible with Vehicle Type	Car, Trailer
Additional Features	License Plate Illumination, Running Light, Stop Light, Turn Signal Indicator Light, Waterproof
Voltage	12 volts
Wattage	12 watts
Auto Part Position	Right
Automotive Fit Type	Universal Fit
Lens Material	Polycarbonate
Item Dimensions	9.1 x 7.5 x 5.7 inches
Color	red
Lens Color	Red
Model Year	1997
UPC	611434029170
Manufacturer Part Number	101002
Unit Count	1 Count
Manufacturer	CZC AUTO
Item Weight	2.8 pounds
Model Number	4332983812
Compatible With Vehicle Type	Car, Trailer
Special Feature	License Plate Illumination, Running Light, Stop Light, Turn Signal Indicator Light, Waterproof

CZC AUTO 12V LED Low Profile Submersible Rectangular Trailer Light Kit Tail Stop Turn Running Lights for Boat Trailer Truck Marine

Fitment Type

Fit for under and over 80ft width boats
Fit for under and over 80ft width RVs
Fit for under and over 80ft width trailers

CZC AUTO 12V LED Low Profile Submersible Trailer Light Kit

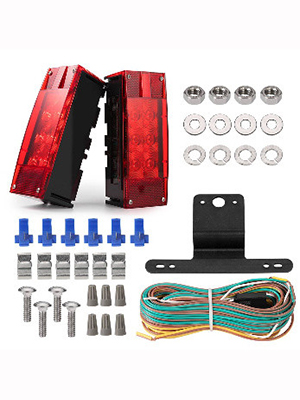

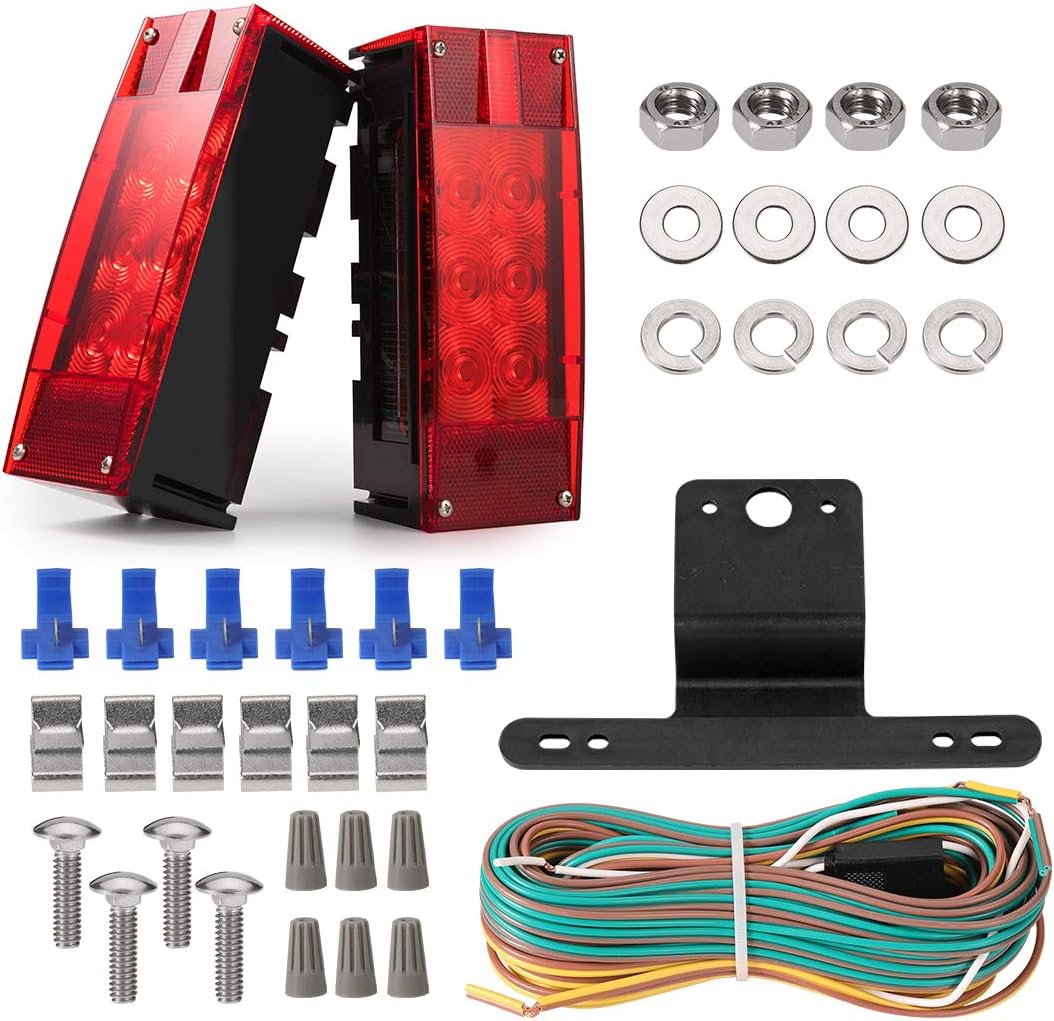

Complete Trailer Light Kit with Everything You Need

Come with tail lights, wires, license plate bracket, screw bag, instruction. Buy one, get all you need.

2 combination running, stop, tail, turn signal, license plate illumination rear lights
1 23ft + 2ft split Y-style color coded harness, with 4-pin male and female connectors
1 plastic license plate bracket
1 mounting hardware bag
1 assembly and operating instructions

Submersible and Waterproof

Please note: these trailer lights are sealed from PCB rather than the outer housings. The water can go into the housing and there are gaping holes on the housing for water to flow out.

All LED Tail Lights

Super High visibility and Longer Lifetime LED advantage! 100% comply with DOT standards. Left LED Light have 22 diodes: 12 diodes at front ,6 diodes on side and 4 white diodes facing down for license Plate illumination. Right Light have 18 diodes: 12 diodes at front ,6 diodes on side

Each rectangular tail lights with size 8" Length, 2-5/8" width, 2-7/8" height

Tail Light Size

Each rectangular tail lights with size 8" Length, 2-5/8" width, 2-7/8" height are equiped with stainless steel hardware for under and over 80" marine towing vechiles.

Wire Connection

Connect the BROWN wire of the Trunk Harness(4)to the towing vehicle's Running Lights wire. Connect the YELLOW wire of the Trunk Harness to the vehicle's Left Stop & Turn light. Connect the GREEN wire to the towing vehicle's Right Stop & Turn light. Attach the WHITE GROUND wire to the towing vehicle's frame When connect the wires, please especially note the white ground connection. Please insure the lights are really connected to the ground and form a closed cycle.
