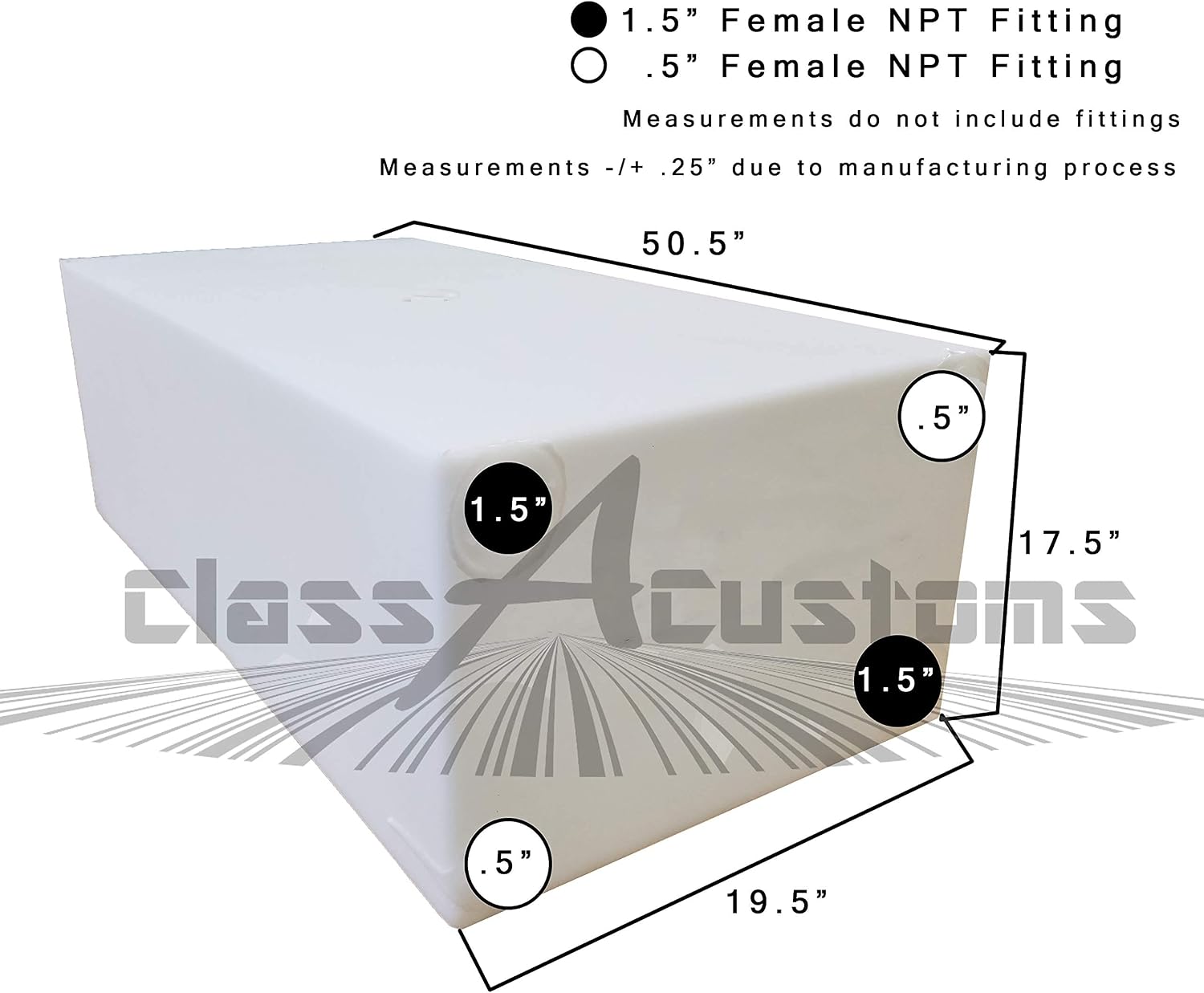

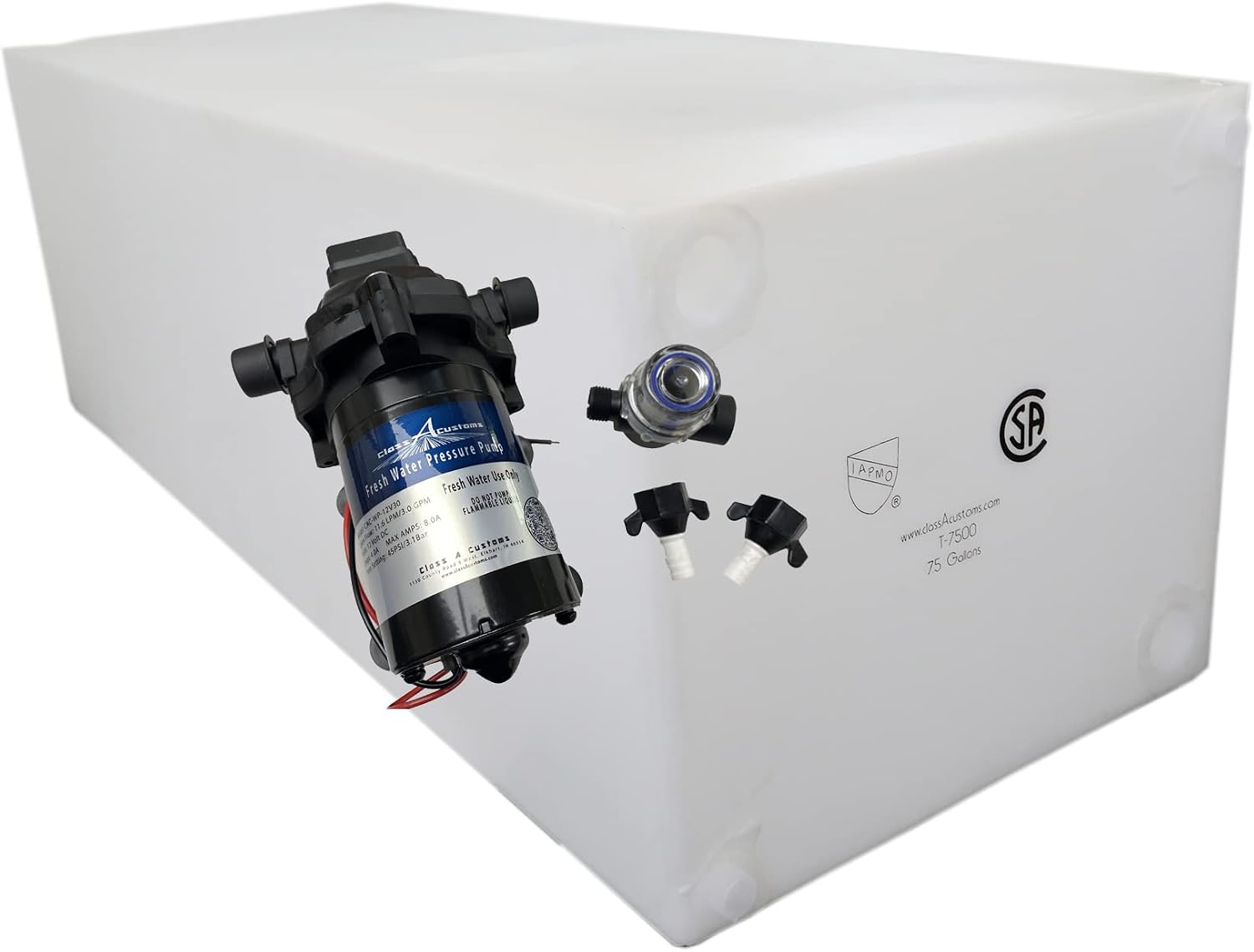

75 Gallon Fresh Water Holding Tank Manufactured by Class A Customs - Made from NSF Approved Materials - Fresh & Drinking Water Safe WATER TANK MEASUREMENTS: 50.5” Longest Length (not including fittings) x 17.5” x 19.5” - Tank can sit on any side - rotate tank to change height or width Average Thickness 7/32” +/- Please view photos. (Due to the manufacturing process +/- .25" on each measurement)

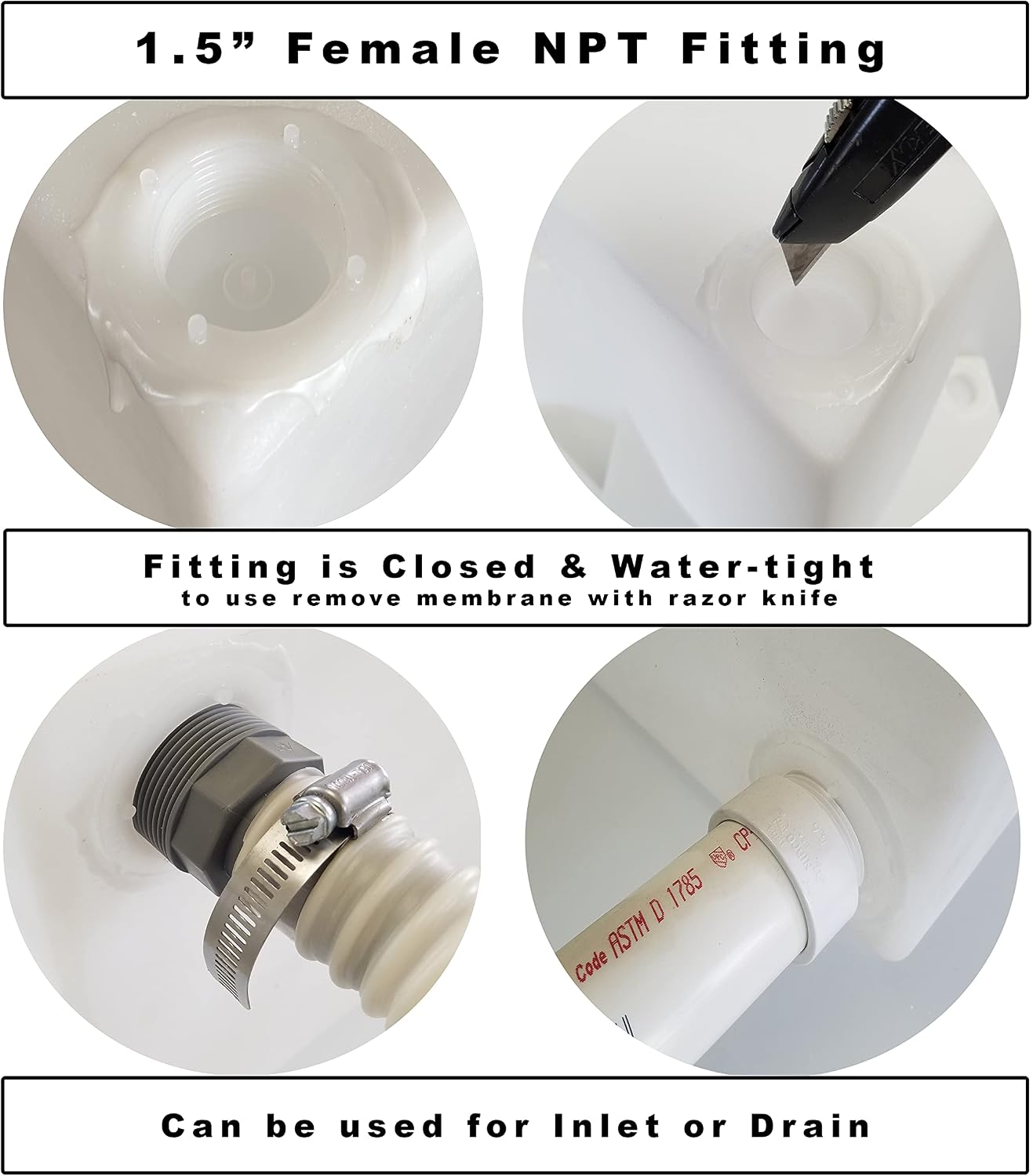

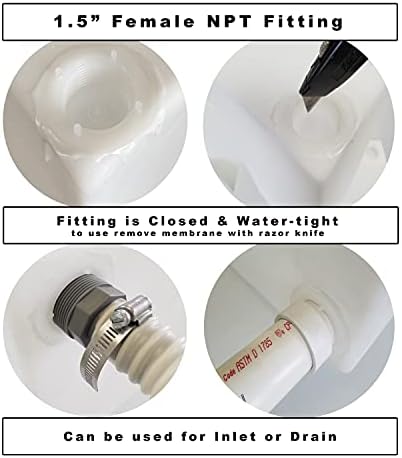

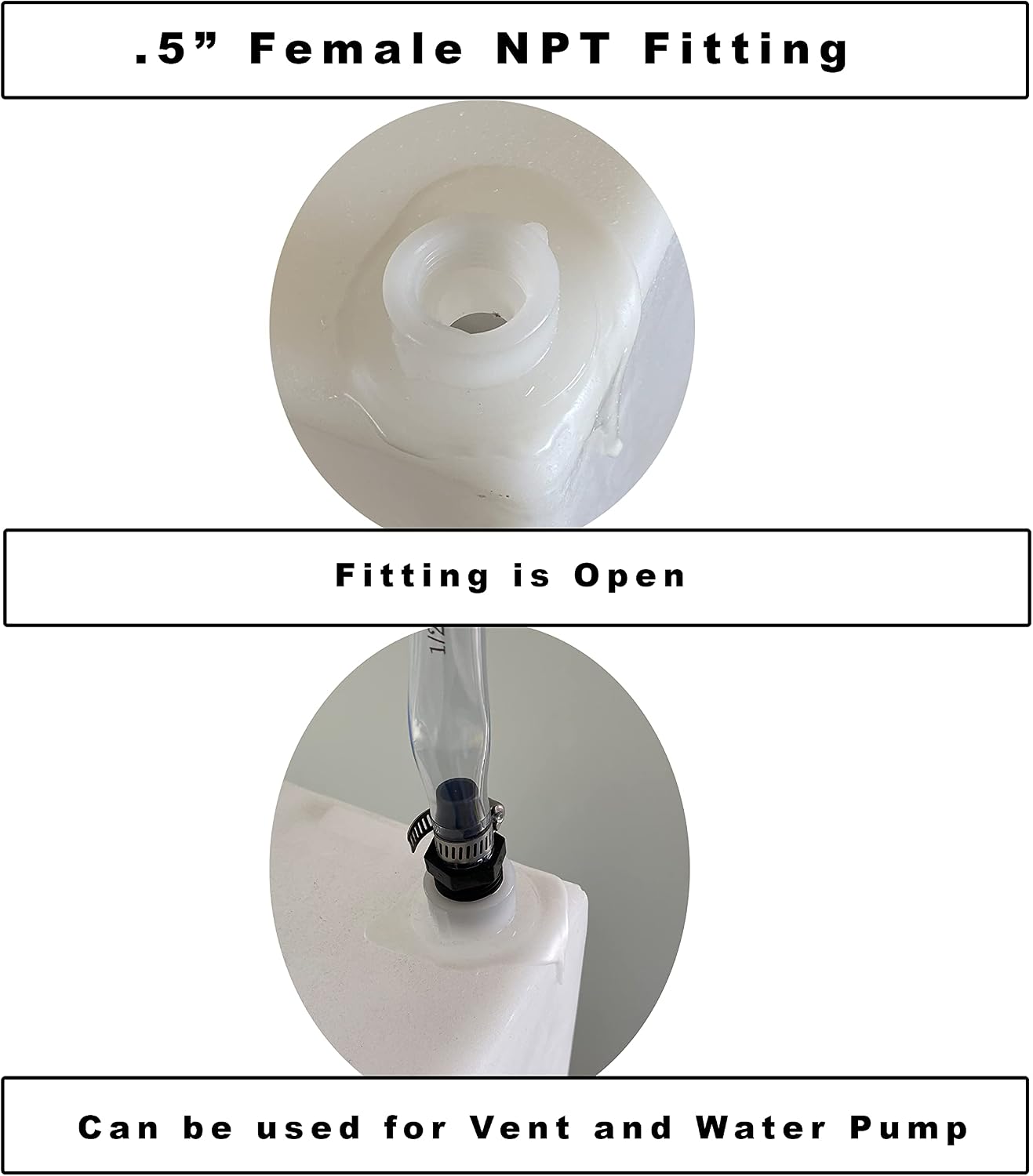

TANK BUILT-IN FITTINGS: (TWO) 1.5" Female NPT Fitting - fitting is sealed and watertight, to use remove membrane with razor knife (TWO) .5" Female NPT Fitting - fitting is open DO NOT over-tighten fitting damage will occur, use plastic connecting fittings as metal will damage threads.

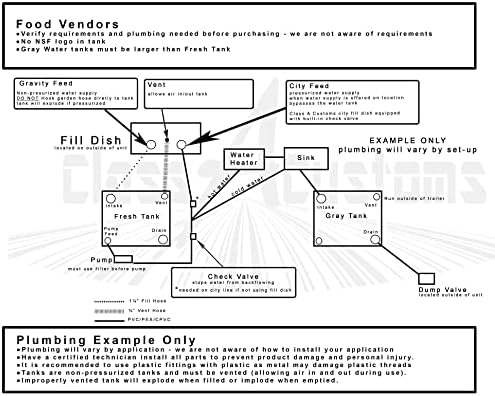

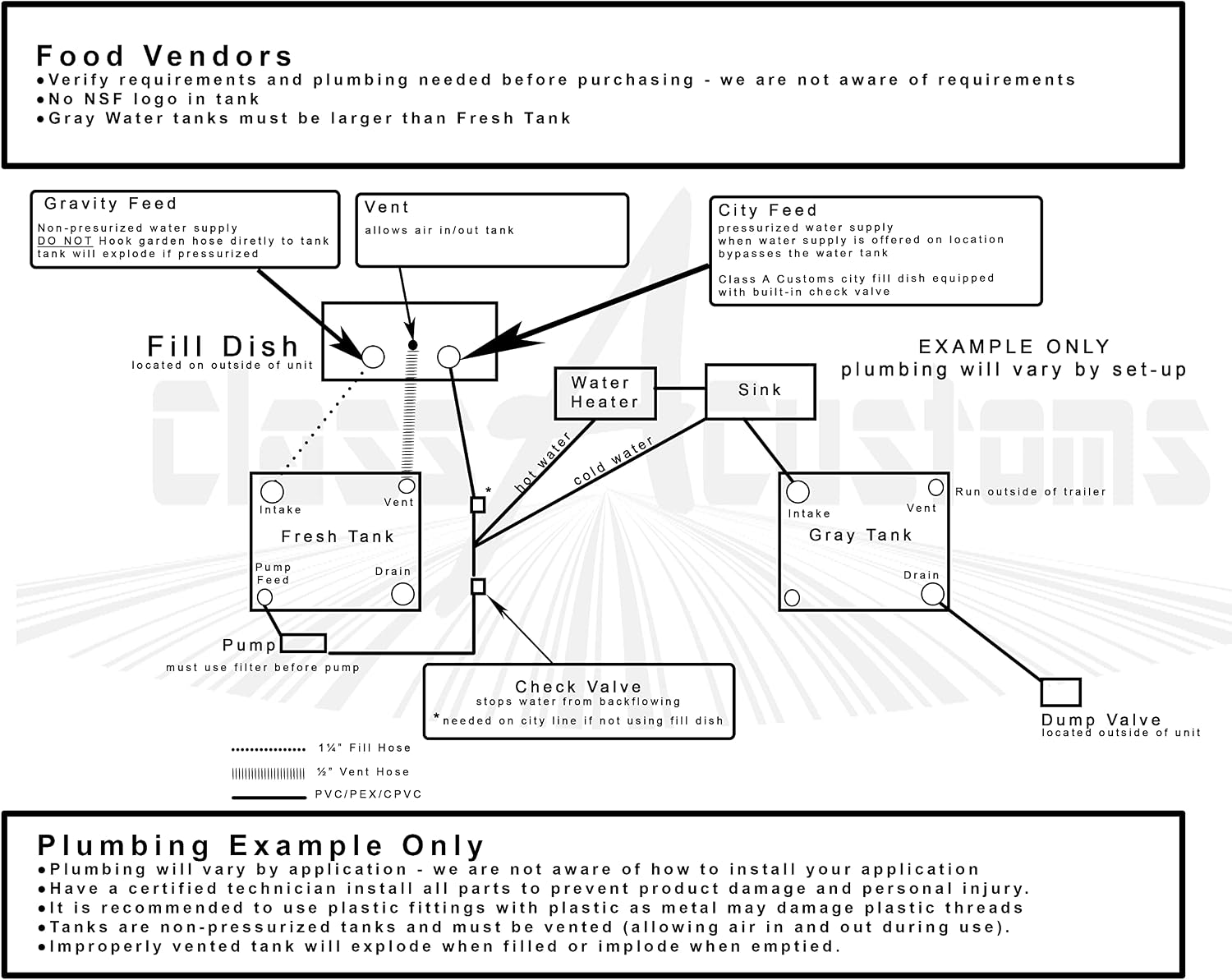

NON-PRESSURIZED TANK: tank must be vented allowing air in and out during use. DO NOT make a sealed connection with a garden hose directly to tank, this is a pressurized connection and will cause tank to explode causing damage. For filling tank it is recommended to use a fill dish or other gravity process.

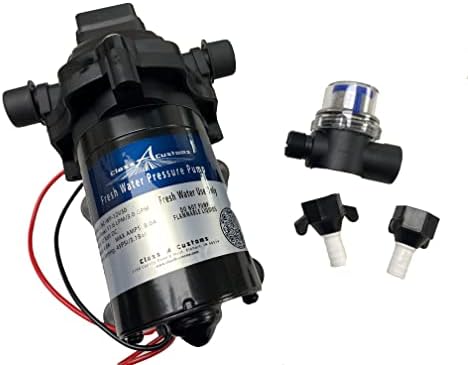

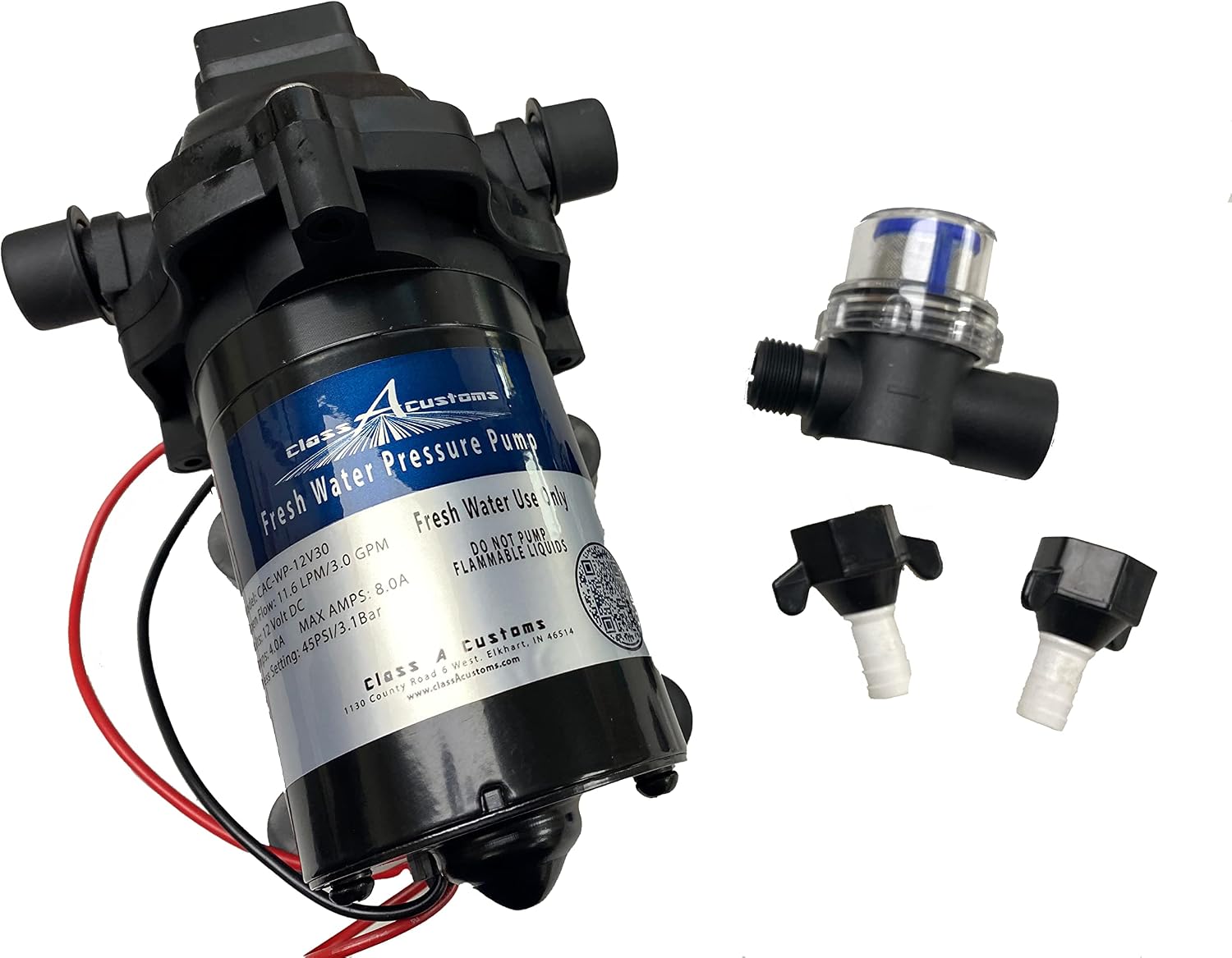

classAcustoms 12 VOLT Fresh Water Pump MODEL # 12V3 - FRESH WATER USE ONLY - OPEN FLOW 11.6LPM / 3.0GPM AMPS 4.0A MAX AMPS 8.0A SHUT OFF PRESSURE 45PSI/3.1 Bar ON-DEMAND PUMP only turns on when senses pressure changes in line 12 VOLT POWER ONLY! 110/115/220 volt will damage the unit - READ INSTRUCTION BOOKLER BEFORE INSTALLATION
Great extra water storage in RV, pop-up camper, off-road vehicles, concession trailers, hot dog carts, smaller food vendors and portable hand washing sinks. Class A Customs Manufactures this item in the USA in Elkhart, Indiana. Tanks are made in a warehouse clean each tank prior to use to remove any debris, scuffs or marking from the manufacturing process.
