| Power Source | Liquid Propane |
|---|---|

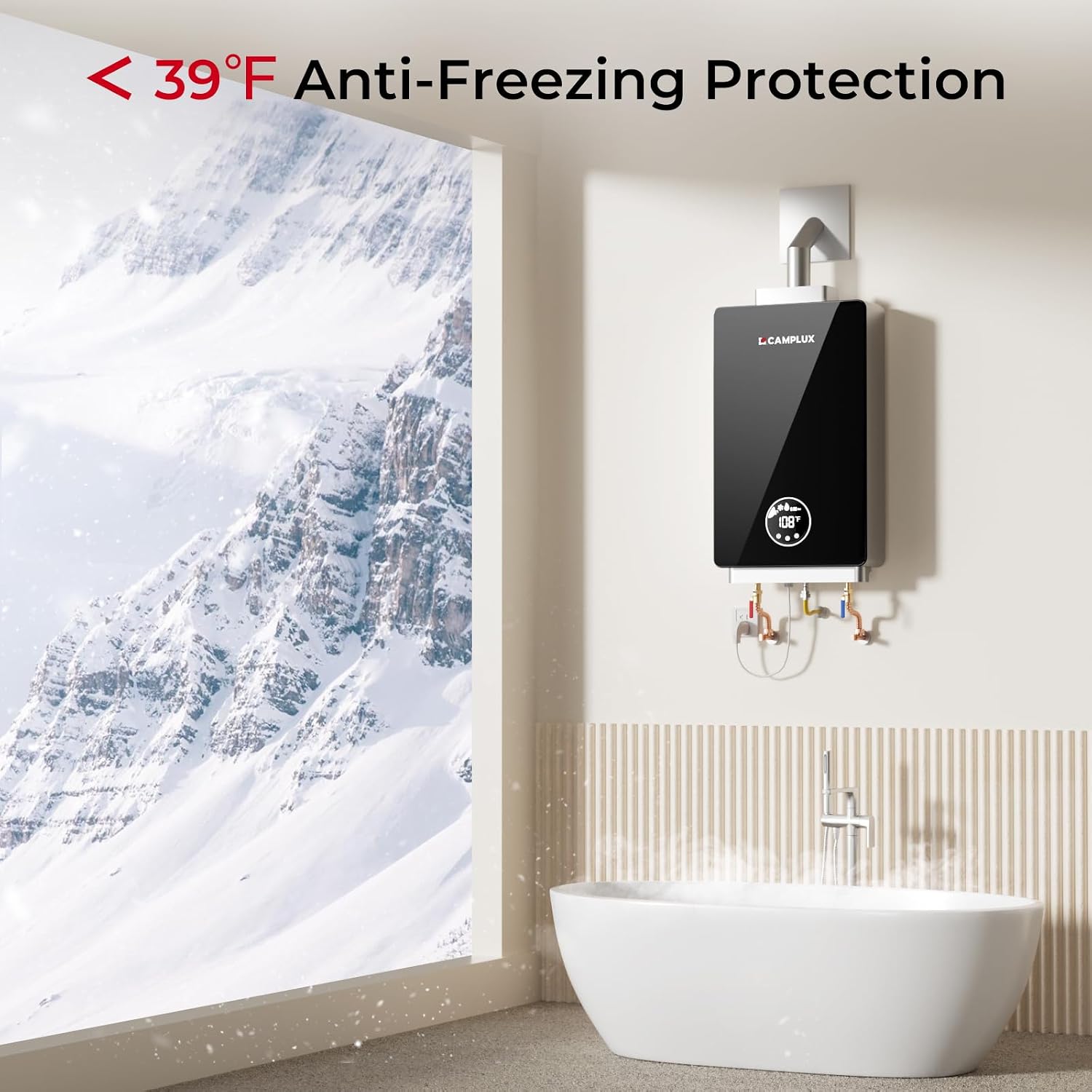

| Special Features | Anti-Freezing Protection, Child Lock Protection, Constant Temperature, On Demand Hot Water, Overheat Protection |
| Wattage | 42 watts |
| Voltage | 120 volts |
| Flow Rate | 3.18 gpm |
| Maximum Temperature | 150 °F |
| Heat Output | 149 °F |
| Efficiency | 98.99% |
| Maximum Pressure | 110 psi |
| Mount Type | Wall |
| Capacity | 3.18 gallons |
| Item Dimensions W x H | 4.72"W x 25.4"H |
| Item Weight | 23.8 pounds |
| Item Depth | 4.72 |

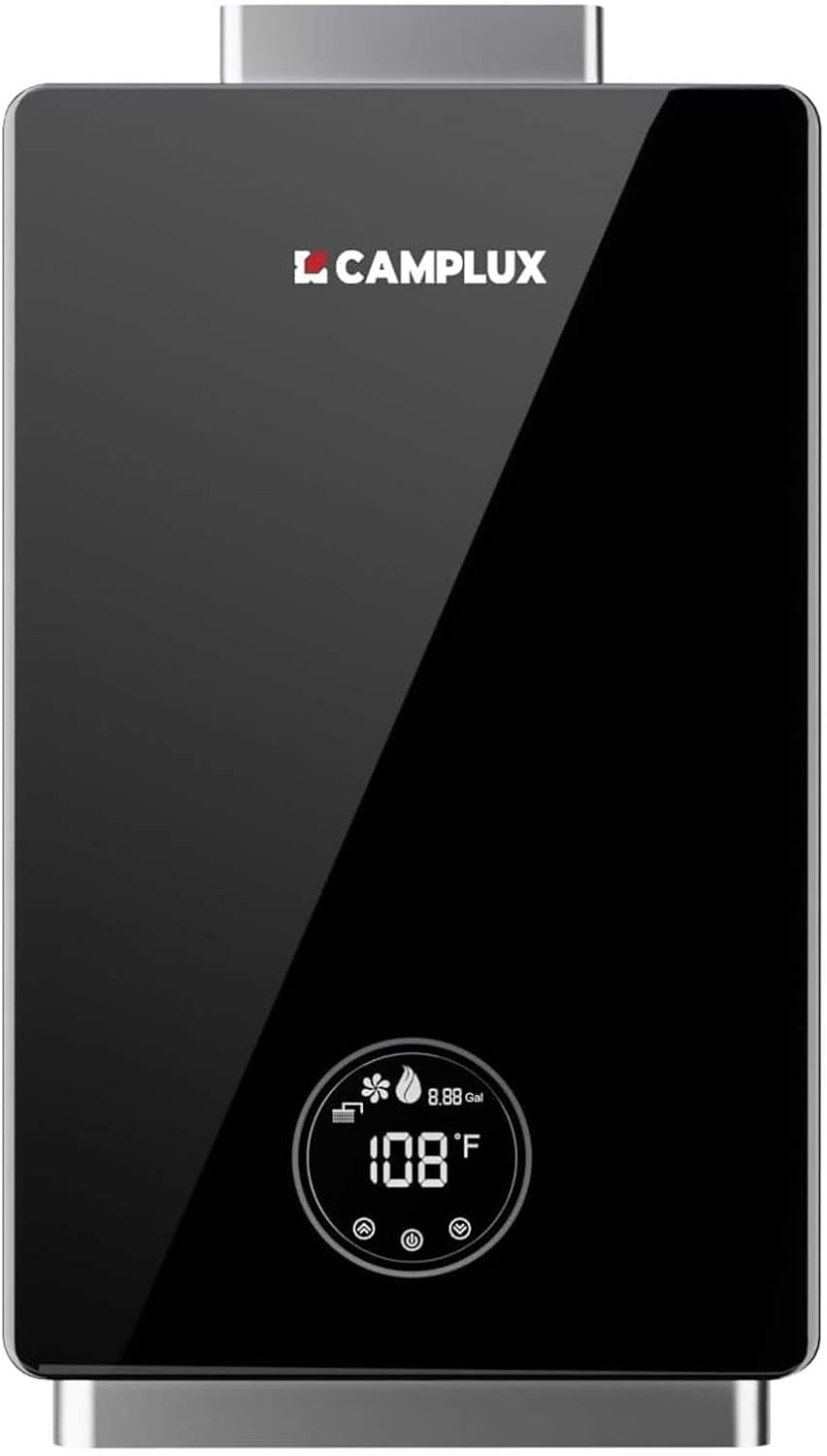

| Model Number | CA318B |
| Manufacturer | CAMPLUX |
| UPC | 749882674779 |
| Included Components | Camplux CA318 Tankless Water heater, Horizontal Venting, Installation Hardwares, Instruction Manual |
| Item Type Name | Propane 3.18 GPM |
| Manufacturer Part Number | CA318B |
| Color | 3.18GPM (Indoor) Black |
| Style Name | Liquid Propane 3.18 GPM |
| Material Type | Stainless Steel |
| Power Source Type | Liquid Propane |
| Item Width Height | 4.72"W x 25.4"H |
| Gas Supply | Liquid Propane |
| Rated Voltage | 120V/60Hz |
| Rated Water Output Capacity | 12L/min |
| Temp. Rise Range | 95℉-149℉ |
| Water Flow Range（GPM) | 2.14 GPM-4.19 GPM |
| Water Pressure Range | 3.6-150 PSI |

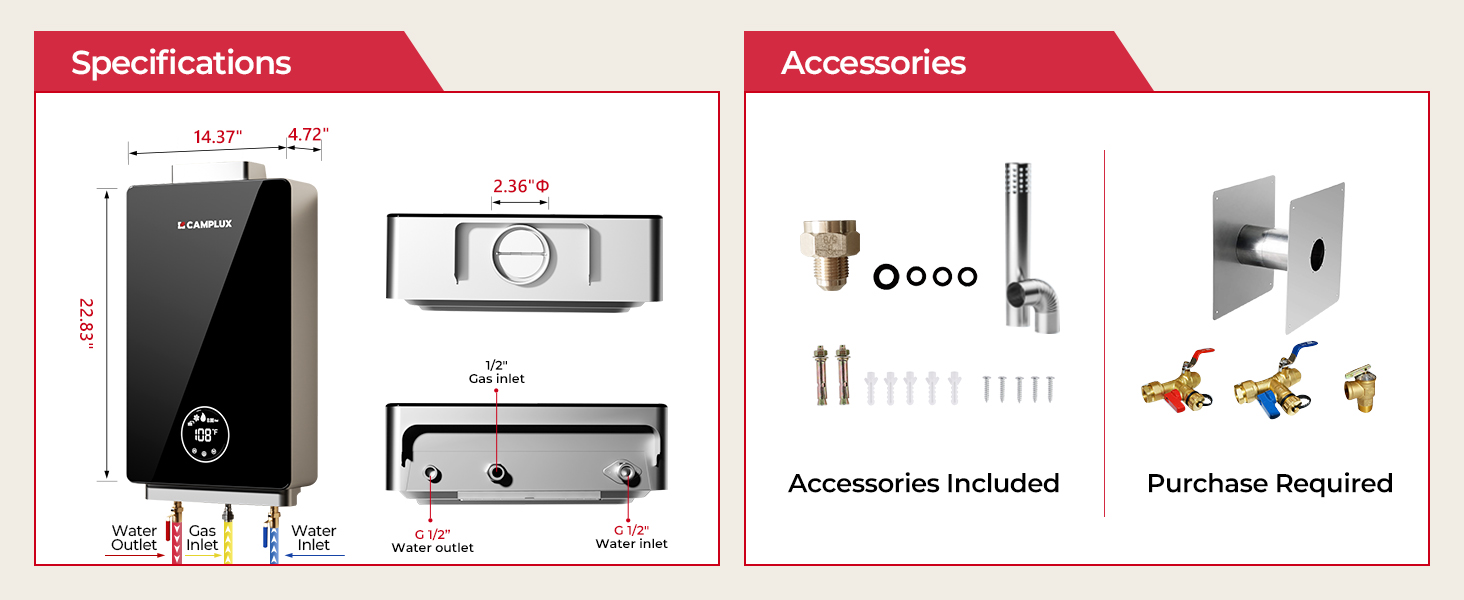

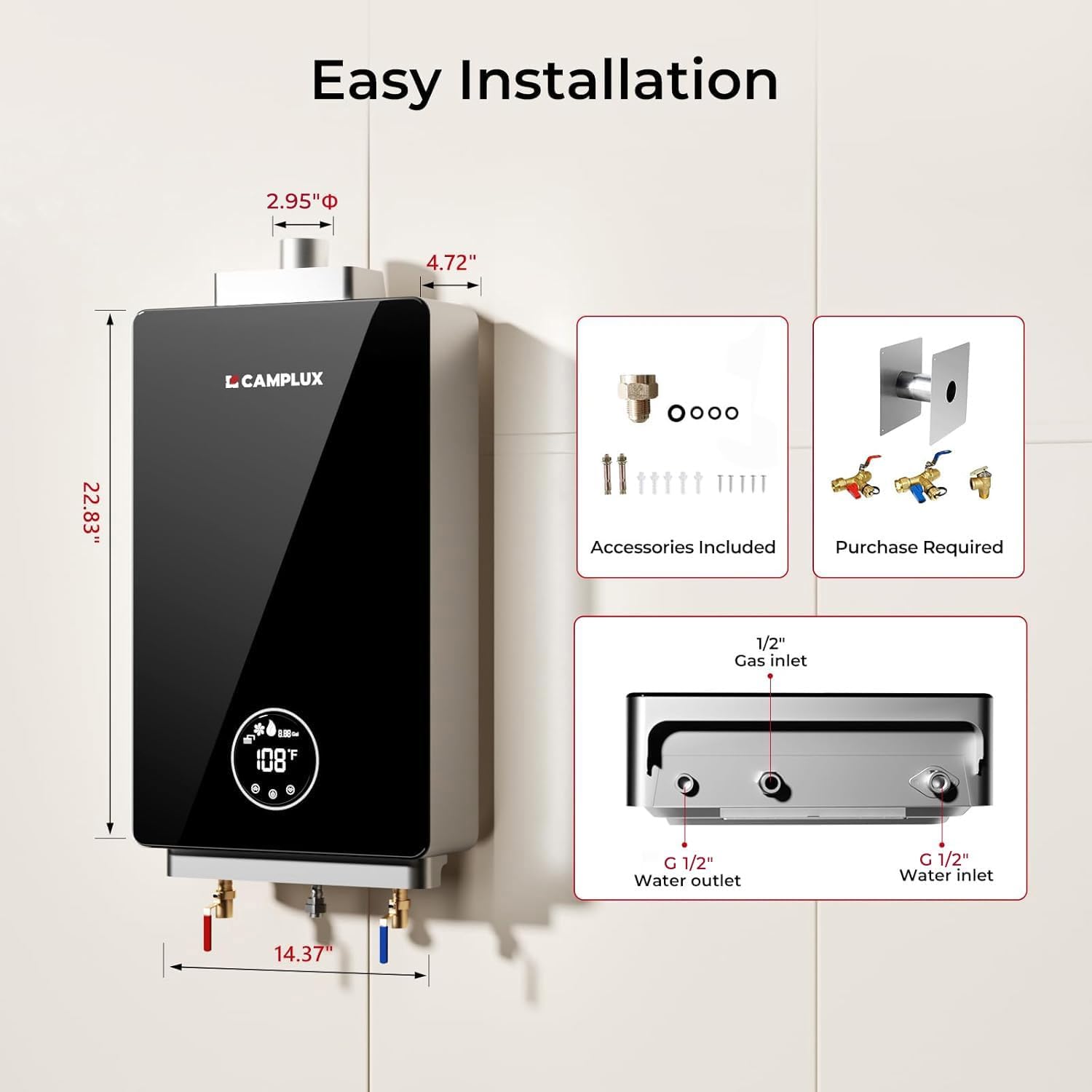

| Gas Inlet | G 1/2" |
| Cold Water Inlet | NPT 1/2" |
| Hot Water Outlet | NPT 1/2" |
| Flue Pipe Dia | Φ60 mm |
| Rated heat input（BTU/Hr) | 8,2000 BTU/ Hr |
| Burner | Pipe burner |
Do I have to buy any parts for installation ?
You need to buy a 150 psi pressure relief valve. Also take into consideration your exhaust diameter from the heater to your actual vent. You may need to get some adapters dependent on your situation.
What size propane tank does this unit require?
Yes you can use any size tank , its all about the lp pressure going into the heater . And the pressure and temp of the water going into the tank , to determine performance .
Can this unit be used for a whole house application? Kitchen sink, vanity, shower and washing machine?
You need electric to get it started and for the control panel like adjusting the hot water temp.
How long can this unit run? Until the propane is out? is this unit producing a constant temperature?
It will run as long as it has gas or propane supply and the hot water is turned on. It will give a constant temperature which also does not need set very high because its hot on demand. Will not run out of hot water with this tankless heater.
Can you use this inside a tiny home?
As long as it's vented you could use any any type home.
