| Container Type | Bottle |
|---|---|
| Compatible with Vehicle Type | Lawn Mower |
| Automotive Fit Type | Universal Fit |
| Liquid Volume | 1600 ml |
| Manufacturer Part Number | 5430K |
| UPC | 024847182620 |
| Global Trade Identification Number | 00024847182620 |
| Manufacturer | Briggs and Stratton |
| Size | 1.6-Liter |
| Unit Count | 1 Fluid Ounces |
| Included Components | Oil Extractor Pump |
| Item Type Name | 5430K Oil Extractor |
| Item Weight | 4 ounces |
| Model Number | 5430K |
| Manufacturer Warranty Description | 1 Year Limited |
| Container | Bottle |
| Compatible With Vehicle Type | Lawn Mower |
| Upc | 024847182620 |
Start the engine and run it until it is warm. Stop the engine. WARNING: Be sure to disconnect the spark plug wire, and secure it away from the spark plug to prevent accidental starting. Clean around the oil fill and drain plug area to prevent dirt and debris from falling into the crankcase (see photo at right). Remove the dipstick, if equipped.
Remove dipstick, wipe off, and set aside.

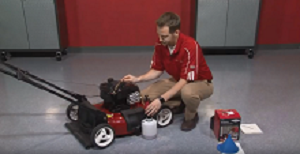

Feed hose down dipstick tube until it bottoms out in the sump.
Pump until oil ceases to come through the tube.
If your engine has an oil filter, replace it at least once per season.
Replace the oil filter by twisting counterclockwise on the body, using a filter wrench or pipe wrench.
Examine the sealing surface on the oil filter adapter for debris or gasket material.
Lightly oil the filter gasket with clean engine oil. Install a new filter, screwing in by hand until the gasket contacts the filter adapter (see photo at right). Tighten the filter an additional 1/2 to 3/4 turn.

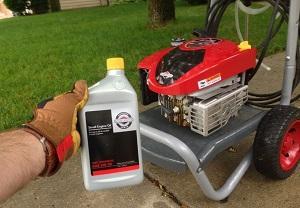

Pour in the correct amount and approved type of oil for your engine, based on this oil capacity chart , or your operator manual. If you have two oil fill plugs (normally yellow or white in color) on each side of the engine, either one can be used to fill the engine with oil to the correct level. Please do not fill the engine with oil without using the correct measuring device as illustrated in your operator’s manual.

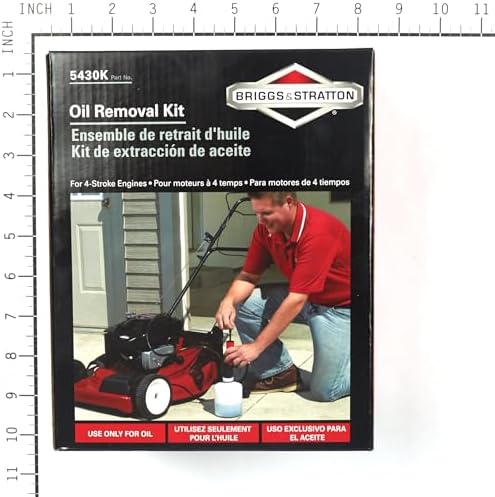

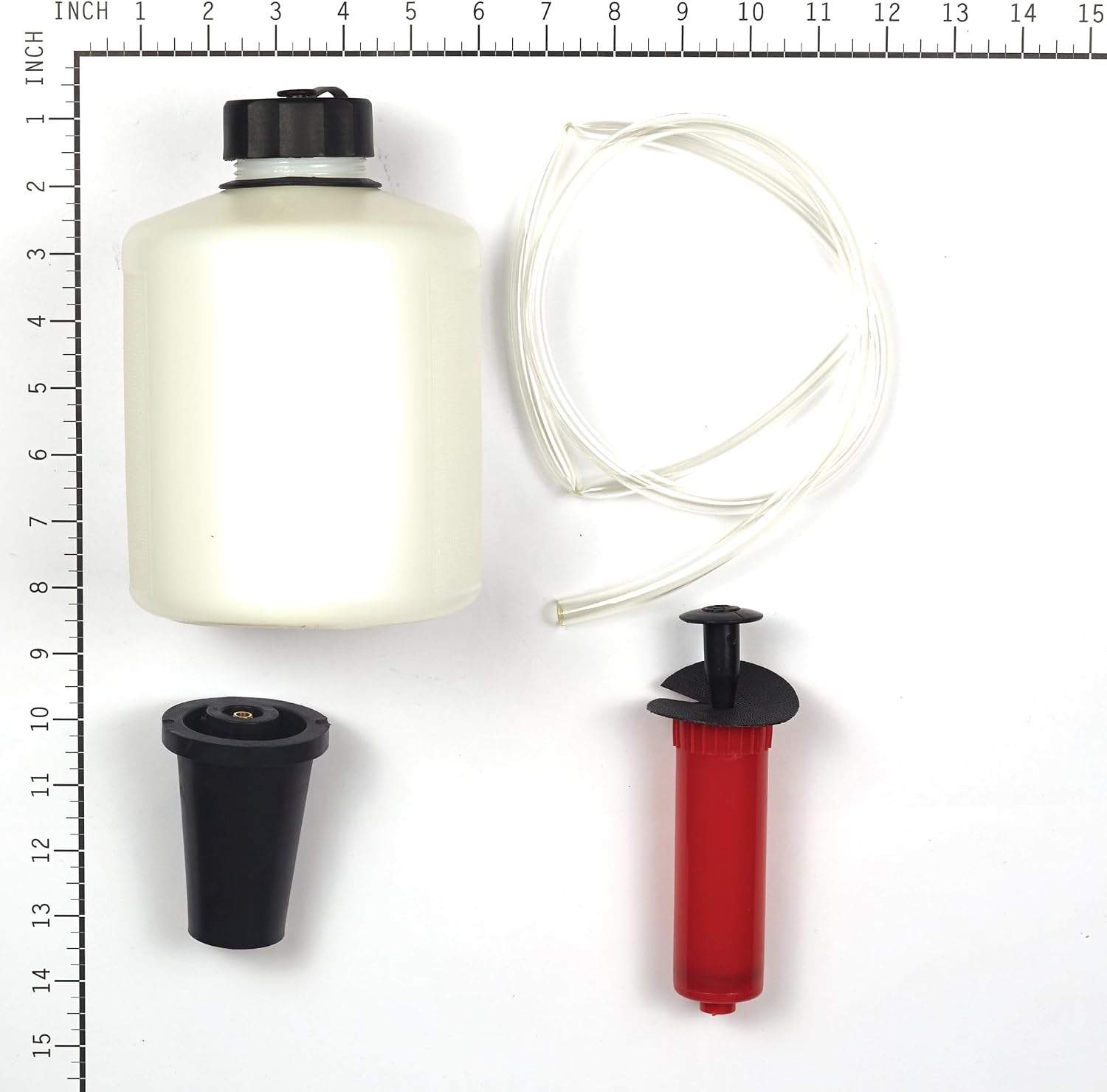

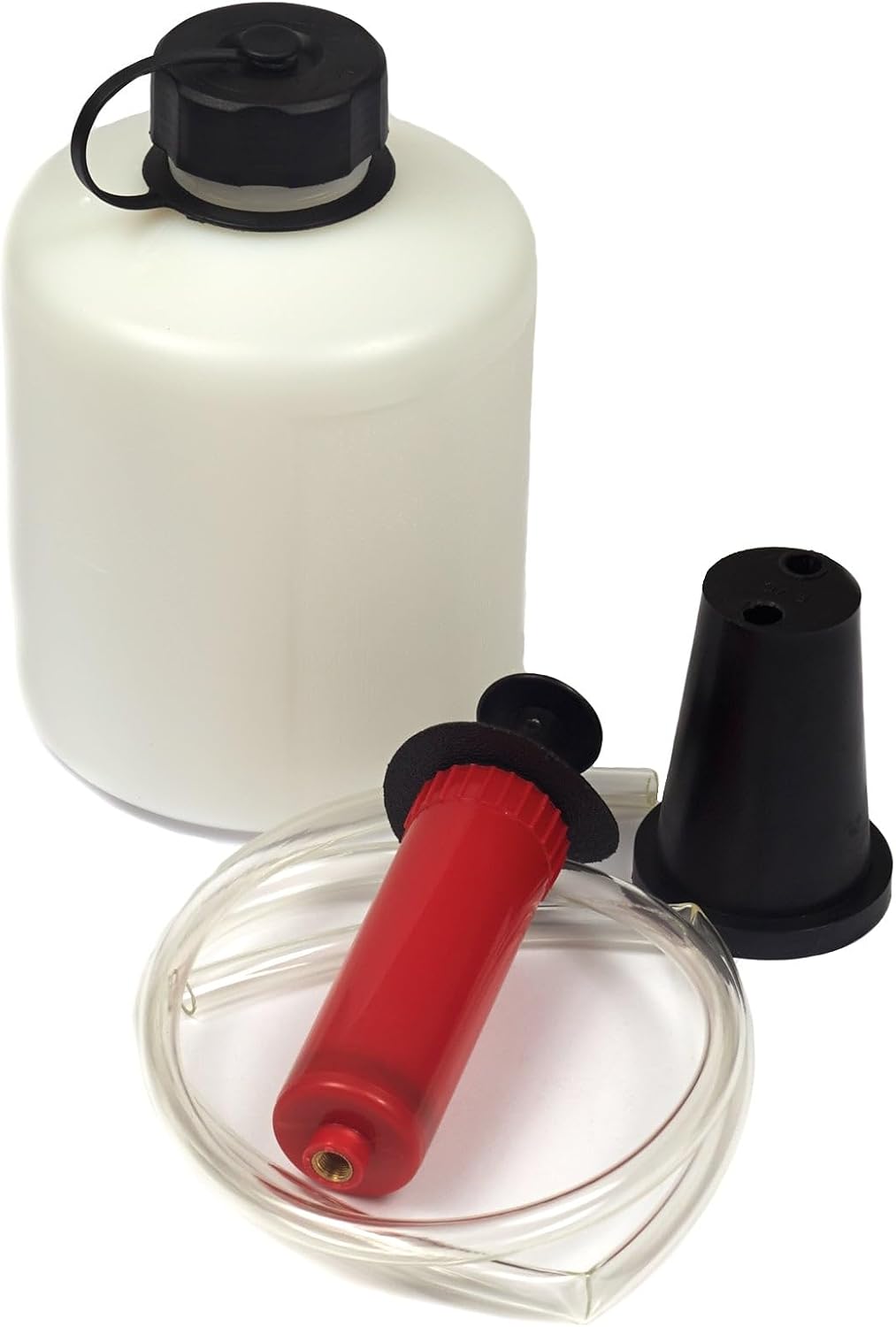

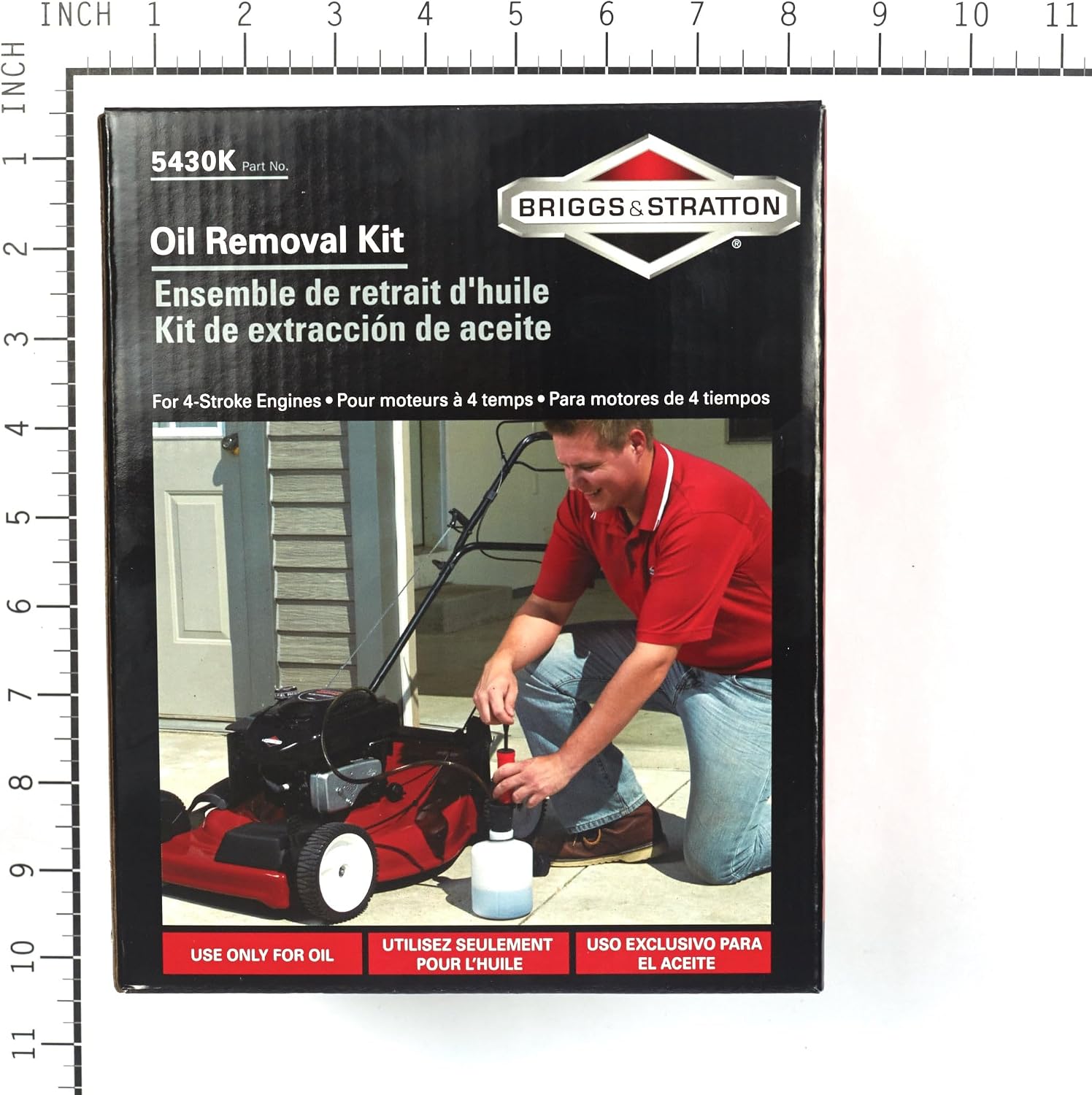

1.6 liter oil extractor pump. Suitable for the extraction of oil fuel from outdoor power equipment, cars, motorcycles, commercial vehicles, marine engines, stationary engines and other machinery.
We recommend the use of Briggs & Stratton Warranty Certified oils for best performance. Other high-quality detergent oils are acceptable if classified for service SF, SG, SH, SJ or higher. Do not use special additives.
Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best viscosity for the outdoor temperature range expected. Engines on most outdoor power equipment operate well with 5W30 Synthetic oil. For equipment operated in hot temperatures, Vanguard 15W50 Synthetic oil provides the best protection.
